Type	Hand blender (immersion blender)
Brand	Becken
Model	BHB4578
Power Supply	220-240 V~, 50/60 Hz, 600 W
Blending Rod Material	Stainless steel
Included Accessories	Stainless steel blending rod, cup
Functions	Blending, mixing, pureeing, preparing sauces, soups, mayonnaise, milkshakes, baby food, shakes, mixed drinks
Speed Control	Variable speed selector
Maximum Continuous Operation Time	1 minute per cycle; rest at least 1 minute between cycles
Capacity (Cup)	Not specified; use MAX level indicator
Blade Safety	Sharp blades; handle with care during assembly, disassembly, and cleaning
Cleaning	Blending rod and cup dishwasher safe (soft cycle); motor body wipe with damp cloth; do not immerse
Safety Features	Automatic shut-off not specified; requires manual on/off button; child safety: keep out of reach of children under 8
Warranty	3 years for manufacturing defects (Worten Equipamentos para o Lar)
Product Dimensions (approx.)	Not specified; typical hand blender length ~30-40 cm
Weight (approx.)	Not specified; typical weight ~0.5-1 kg
Certifications	Laboratory tested
Repairability	Do not attempt to repair; contact Customer Support Service; warranty void if opened
Environmental Compliance	Recyclable materials; follow local recycling regulations

Frequently Asked Questions - BHB4578 Becken

What is the power rating of the Becken BHB4578 hand blender?

The Becken BHB4578 operates at 220-240 V~, 50/60 Hz and has a power consumption of 600 W.

Can I use the hand blender for hot liquids?

Yes, but when mixing hot liquids, fill the cup no more than halfway and select the slowest speed to avoid splashing.

Is the blending rod dishwasher safe?

Yes, the stainless steel blending rod and the cup are dishwasher safe when using a soft cleaning program. However, the motor body must only be wiped with a damp cloth and never submerged.

What is the maximum operating time for the hand blender?

The appliance should not be used for more than 1 minute continuously. After each cycle, allow at least 1 minute of rest before using again.

Can I blend frozen foods or bones with this blender?

No, the blender is not designed for frozen goods or items containing bones. Such use may damage the appliance and void the warranty.

What should I do if the power cord is damaged?

If the cord or plug is damaged, do not use the appliance. Contact the Customer Support Service for replacement.

How do I attach the blending rod to the motor body?

Align the rod with the motor body and turn in the direction of the arrow until it locks. To remove, turn in the opposite direction.

Is the hand blender suitable for professional use?

No, this appliance is intended for household use only. Using it for professional or industrial purposes may lead to damage and safety hazards.

Can children use this hand blender?

Children aged 8 years and above may use the blender under supervision, provided they understand safe operation. Cleaning and maintenance should be done by children only if they are over 8 and supervised. Keep the appliance and cord out of reach of children under 8.

What is the warranty period for the Becken BHB4578?

The appliance comes with a 3-year warranty covering manufacturing defects from the date of purchase. Any attempt to repair the appliance by yourself or an unauthorized service will void the warranty.

USER MANUAL BHB4578 Becken

MANUAL DE INSTRUÇÕES

Bowl of green congee garnished with diced tofu and peas, served on a white ceramic bowl (no text or symbols visible)

Transparent plastic beaker with a side slot, no visible text or symbols

White kitchen brush with black handle and metal stand, labeled 'BECKEN 600W' (no additional text or symbols visible)

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 5
1.2. Power Cord and Other Cables 5
1.3. Humidity and Water 6
1.4. Cleaning 6
1.5. General Precautions 6

2. OPERATING INSTRUCTIONS 11

2.1. Product Description 11
2.2. Product usage 12
2.3. Maintenance 13

3. TECHNICAL SPECIFICATIONS 14

4. POST-SALE SERVICE 15

5. ENVIRONMENTAL PROTECTION 15

BECKEN

1. SAFETY INSTRUCTIONS

	WARNING
	RISK OF ELECTRIC SHOCKDO NOT OPEN
Warning: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that can be repaired by the user. Ask for assistance from the Customer Support Service.

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance should not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to the Customer Support Service for assistance.

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case, please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Customer Support Service for replacement.

BECKEN

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product, use a dry soft cloth only.

1.5. General Precautions

• Please follow the instructions in the user manual which will help you to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.
• Read these instructions carefully before switching on the appliance and keep them for future reference.

• Failure to follow and observe these instructions could lead to an accident.

• Before use, clean all the appliance parts that will be in contact with food, as indicated in the cleaning section.

• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
• Blades are sharp and could cause harm; be careful and avoid direct contact with the blades' cutting edges.
• Pay special attention when handling the blades, during assembly and disassembly operations, emptying the bowl and during cleaning.
• Always switch off the appliance and disconnect from supply if it is left unattended and before changing accessories or approaching moving parts when in use, assembling, disassembling and cleaning.
• If the connection to the outlet has been damaged, it must be replaced. Take the appliance to the Customer Support Service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.
• Ensure that the voltage indicated on the rating label matches the power supply voltage before plugging in the appliance.
• Connect the appliance to an outlet that can supply a minimum of 10 amperes.
• The appliance's plug must fit properly into the outlet. Do not alter the plug. Do not use plug adaptors.
• Keep the working area clean and well lit. Cluttered and dark areas invite accidents.

BECKEN

• Keep children and bystanders away when using this appliance.
• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casing breaks, immediately disconnect the appliance from the outlet to prevent the possibility of an electric shock.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance with damp hands or feet, or when barefooted.
• Do not force the power cord. Never use the power cord to lift, carry or unplug the appliance.
• Do not wrap the power cord around the appliance.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• The appliance is not suitable for outdoor use.
• The supply cord should be regularly examined for signs of damage. If damaged, the appliance must not be used.
• Do not use or store the appliance outdoors.
• Do not touch the plug with wet hands.
• Take the necessary measures to avoid starting the appliance involuntarily.

• Before using the appliance ensure that the blade is properly fixed in place.

• Exercise precaution after stopping the appliance as the blade(s) will continue moving from the effect of its own mechanical inertia.

• The temperature of the accessible surfaces may be high when the appliance is in use.

Use and care:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if its accessories are not properly fitted.
• Do not use the appliance if it is empty.
• Do not use the appliance if the on/off switch does not work.
• Do not force the appliance's work capacity.
• Respect the MAX level indicator. (Fig. 2).
• When using hot liquids do not fill the cup more than half way. At all times, when mixing hot liquids in the cup, select the slowest speed on the speed selector.
• This appliance is for household use only, not professional, industrial use.
• This appliance should be stored out of reach of children and/or disabled people.
• Do not expose the appliance to extreme temperatures.
• Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.

BECKEN

• Use the appliance, its accessories and tools in accordance with these instructions, taking into account the working conditions and the work to be performed. To use the appliance for operations different from those intended could result in a hazardous situation.
• Never leave the appliance connected and unattended if not in use. This saves energy and prolongs the appliance's useful life.
• Do not use the appliance for more than 1 minute at a time. In case of operate in cycles; allow the appliance a resting period of at least 1 minute between each cycle. Under no circumstances should the appliance be operated for more time than necessary.
• As a reference, the annexed table shows several recipes, that include the amount of food to process, the recommended operating time to elaborate each recipe, as well as the time of maximum operation of the appliance under each one of these conditions of load.
• Do not use the appliance on any part of the body of a person or animal.
• Do not use the appliance with frozen goods or those containing bones.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

2. OPERATING INSTRUCTIONS

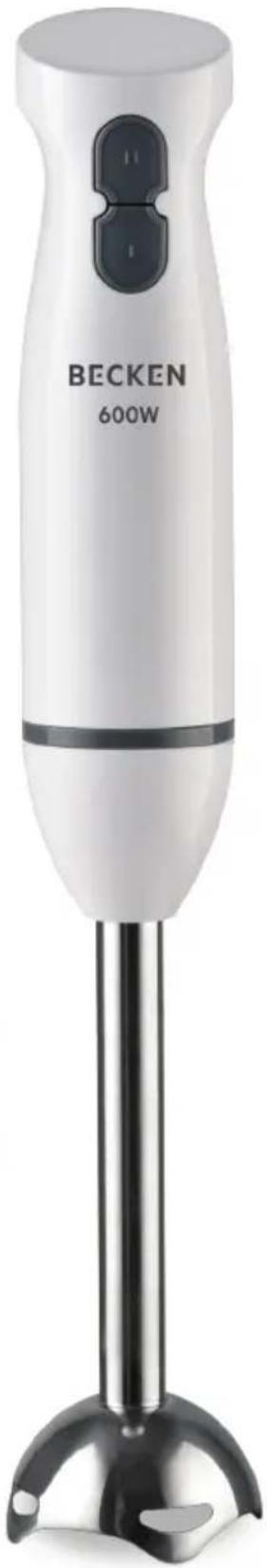

2.1. Product Description

Fig. 1

Fig. 2

Description

A1: Stainless steel blending rod

B1: Cup

If your appliance's model does not have the accessories described above, they can be bought separately from the Customer Support Service.

Accessories

Blender foot accessory (Fig. 1)

• This accessory is used for sauces, soups, mayonnaise, milkshakes, baby food ...
• Attach the blending rod onto the motor body and turn in the direction of the arrow (Fig. 1).
• Put the food to be prepared in the cup and switch the appliance on.
• For further cleaning, detach and remove the stick by turning in the opposite direction of the arrow (Fig. 1).

BECKEN

2.2. Product usage

Before using the appliance for the first time:

• Make sure that all the appliance's packaging has been removed.
• Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.
• Prepare the appliance according to the function you wish to use.

Before using the appliance:

• Unroll the cable completely before plugging it in.
• Connect the appliance to the outlet.
• Turn the appliance on, by pressing the on/off button.
• Select the appliance's desired function.
• Select the desired speed.
  • Work with the food you want to process.

Once you have finished using the appliance:

• Stop the appliance by releasing the on/off button.
• Unplug the appliance from the outlet.
• Put the cable back in the cable housing.
• Clean the appliance.

Food preparation

Food, quantity and preparation times

Recipe Recommended accessory			Quantity Time
Fruits vegetables			50~100 g 10 sec
Baby food			50-200 ml 10 sec
Shakes & mixed drinks			50~500 ml 10 sec

2.3. Maintenance

Cleaning

• Disconnect the appliance from the outlet and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth and a few drops of liquid detergent and then dry it clean.
• Do not use solvents or products with an acid or base pH such as bleach, or abrasive products to clean the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.
• During the cleaning process, take special care with the blades, as they are very sharp.
• It is advisable to clean the appliance regularly and remove any food remains.

BECKEN

• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.
• The appliance is suitable for cleaning in hot soapy water or in a dishwasher (using a soft cleaning program).
• The following pieces may be washed in a dishwasher (using a soft cleaning program):

- Blender foot

- Cup

- The draining/drying position of the articles washable in the dishwasher or in the sink must allow the water to drain away easily.

- Dry all parts before its assembly and storage.

3. TECHNICAL SPECIFICATIONS

220-240 V\~50/60 Hz, 600 W

4. POST-SALE SERVICE

Becken has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 3-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

5. ENVIRONMENTAL PROTECTION

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Estimado cliente,

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Caro(a) cliente,

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

BECKEN

Imported, produced and distributed by:

Worten Equipamentos p/o Lar S.A.
