USER MANUAL 302724 Aplic

Blue abstract logo shape resembling a stylized letter 'Q' or partial circle (no text or symbols)

aplic

2-Bay Battery Charger

Thank you for choosing an aplic product. Please read the following user manual carefully to have an enjoyable experience with your purchased product.

1 Scope of supply

• 2-Bay battery charger
- 12V power adapter
- User manual

2 Technical data

Operating voltage • Power adapter: 100-240V, 50/60Hz ACBattery charger: 12V DC 3A | - ---(o--- +
Output • 2 charging slots	• 1 USB port 5V DC / 2100mA Max.* (only for Powerbank function)
Battery types NiCd, NiMH, Li-ion
Compatible battery types • AA, AAA, A, SC, C• 26650, 22650, 26500, 18650, 17670, 18490, 17500, 17335, 16340, 14500, 10400
Charging current (can be adjusted)	500mA 1000mA 1500mA	A 2000mA
Modes Charge
Features • LCD display	BacklightBattery Power in percentage and visuallyBattery reverse polarity protectionOvercharging protectionDischarge protection

3 Important safety instructions for this device!

• Use only the compatible battery types that are listed in the table on the previous page! Never charge batteries that are not listed in the table!
• The device should only be used in dry rooms!
• Do not drop the product or place any heavy objects on the charger.
• Use only rechargeable batteries!
  • This product is not a toy. Keep it out of the reach of children.
• Use it only within the permissible working temperature from 0°C to +40°C.
• Do not use or store the charger in direct sunlight, or in places where it is very hot.

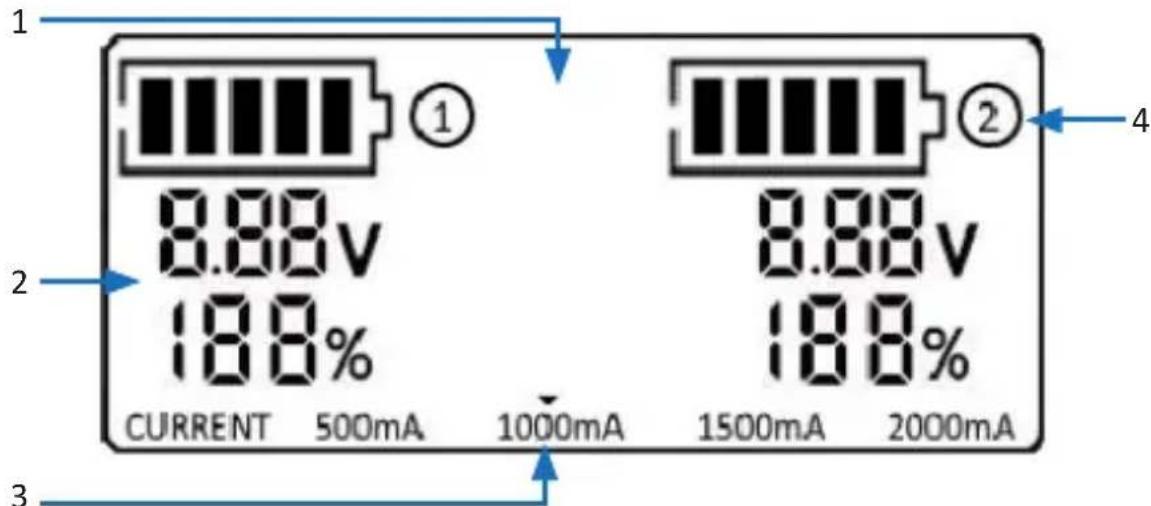

3 Product details

1 LCD display

2 Charging status display for slot 1 and slot 2 (alternately in percentage or in volts)

3 Charging current display

4 Charging status display for slot 1 and slot 2 visually

4 Function

The aplic charger is intended for charging NiCd, NiMH and lithium-ion batteries (types: 26650, 22650, 26500, 18650, 17670, 18490, 17500, 17335, 16340, 14500, 10400). The two charging slots can accommodate batteries and control them. The large, easy-to-read display shows information like charging current and battery status separately for each charging slot. There are no capacity limits for the batteries and they can be charged with a charging current of 500mA, 1000mA, 1500mA or 2000mA, and it is always the same for both the charging slots. It is therefore advisable to charge two batteries of the same type, or at least pay attention to the maximum charging current of the battery.

Powerbank function:

For an unplugged power supply and with at least one, preferably two Li-ion batteries, you can use your own USB devices to power it (max. 2.1A). In order to activate this function, press the „MODE“ button once.

4.1 Key functions

Connection "MODE" key Function
When power adapter is connected	keep it pressed Current setting
	press briefly	Alternates between voltage display and percentage displayDuring current setting, changing the charging current
Without power adapter	press briefly	Switch on Powerbank function (only possible with at least one Li-ion battery in place!)

5 Power supply

Use only a power supply, which meets the specifications of this device (DC 12V / 3A). Pay attention to the correct polarity of the contacts. Please also bear in mind that the maximum charging current depends on the capacity of the power supply.

6 Setting up

Take the device out of the package and remove all the packaging material. Plug the supplied power adapter to a properly installed power socket and to the battery charger. You can then insert the desired type of battery into the charger.

Caution! Charge only rechargeable batteries. Please do not use non-rechargeable batteries!

Various data such as the actual voltage and the charging status is shown in the display as soon as a battery is inserted. The actual charging current is shown at the bottom of the display. This can be adjusted between 500mA and 2000mA. Press and hold the "MODE" button to configure the current until the selection arrow starts to flash over the current. Then, you can adjust the current by briefly pressing the "MODE" button. The corresponding current is enabled once the arrow stops flashing.

Caution! The maximum charging current is mostly specified on the battery itself for NiCD and NiMH batteries and should not be exceeded as far as possible.

For Li-ion batteries you should choose a charging current of 0.5C, or expressed differently, the capacity should be divided by 2 (e.g.: 2600mAh divided by 2 = 1300mAh corresponds to the nearest lower charging current of 1000mA that can be set).

In case you want to charge completely discharged batteries, the charging process might be more effective if you charge with a lower charging current.

7 Cleaning and care

Disconnect the device from the mains and make sure that it is not carrying any current. Wipe it using a dry and soft cloth. Please do not use aggressive cleaning agents.

8 Additional information about this device

• Batteries are not toys. Always keep them out of reach of children.
• Do not leave the batteries lying around. There is a risk of them being swallowed by children or pets. Consult a doctor immediately in such cases!
• Batteries should never be short-circuited, dismantled or thrown into fire. There is a risk of fire and explosion!
• Leaking or damaged batteries may cause burns if they come into contact with the skin. Therefore, use suitable protective gloves in such cases.
• Commonly available non-rechargeable batteries should not be charged. There is a risk of fire and explosion!
• Non-rechargeable batteries are intended for single use only and have to be disposed of properly once they are discharged.
• Batteries should not become damp or wet.
• Never leave charging/discharging batteries unattended.
• Pay attention to the correct polarity when inserting the batteries into the charger (plus / + and minus / -).
• Do not charge/discharge batteries that are still hot (caused e.g. by high charging / discharging current). Allow the battery to cool down to room temperature before charging or discharging it.
• Never charge/discharge damaged, leaking or deformed batteries. This may result in a fire or an explosion! Dispose of such unusable batteries in an eco-friendly manner. Do not reuse them.
• Recharge standard batteries once in 3 months and the so-called low-discharge

batteries once in 3 years, since it may otherwise result in the so-called heavy discharge due to self-discharge, which will make the batteries useless. Never damage the outer casing of the battery. There is a risk of fire and explosion!

- If you have doubts regarding the correct use or have any questions which are not answered in the user manual, then please contact us or some other technical expert.

9 Safety instructions and Disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, hence please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures. Do not expose the device to sudden changes in temperature or heavy vibrations, as this could damage the electronic components. Check the device for damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. The product is not a toy. Keep it out of reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without prior intimation.

10 Disposal instructions

Electrical and electronic devices should not disposed with domestic waste according to the European WEEE directive. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The respective local law regulates the details in this regard. The symbol on the product, in the user manual or/and the packaging refers to these regulations. With such kind of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

WEEE Guideline: 2012/19/EU WEEE Register no.: DE 94495668

The company WD Plus GmbH hereby certifies that the device 302724/20170207SZ137 complies with the fundamental requirements and the other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
