MOD-MS25DS - Microwave Imarflex - Free user manual and instructions

Type	Microwave Oven with Grill
Brand	Imarflex
Model	MOD-MS25DS
Rated Voltage	230 V a.c. ~ 60 Hz
Input Power (Microwave)	1350 W
Input Power (Grill)	1000 W
Microwave Output Power	800 W
Microwave Frequency	2450 MHz
Outside Dimensions (H x W x D)	280 x 504 x 335 mm
Oven Cavity Dimensions (H x W x D)	205 x 328 x 302 mm
Oven Capacity	25 liters / 0.9 cu. ft.
Control Type	Digital with LED display
Functions	Microwave, Grill, Combi, Defrost, Auto Cooking, Multi-stage Cooking, Child Lock, Program Cooking, Express
Microwave Power Levels	5 levels: 100P, 80P, 60P, 40P, 20P
Turntable	Glass turntable with roller ring
Door Type	Side opening with safety interlock
Cleaning & Maintenance	Unplug before cleaning; use damp cloth; avoid harsh cleaners; clean turntable with soap and water; wipe roller rest and oven floor regularly
Safety Features	Door safety interlock, child lock, automatic shut-off if empty, prevents operation if door open
Cookware Compatibility	Ceramic, heat-resistant plastic/glass (microwave); do not use aluminum foil or metal
Installation Clearance	20 cm above, 10 cm back, 5 cm sides
Weight	Approximately 12 kg (estimated)
Color / Material	Stainless steel exterior

Frequently Asked Questions - MOD-MS25DS Imarflex

How do I set the clock on my Imarflex MOD-MS25DS microwave?

Press the Clock button once. The display will show '00:00'. Enter the current time using the number keys (e.g., press 1, 2, 3, 0 for 12:30). Press Clock again or wait 5 seconds to confirm.

How do I use the child lock feature?

To activate child lock, press and hold the Pause/Cancel button until 'OFF' appears on the display. To deactivate, press and hold the same button until a dot '.' appears.

What should I do if my microwave does not start?

Check that the oven is plugged in securely. Ensure the door is fully closed. If the display is blank, check the circuit breaker or fuse. Also verify that the control panel is programmed correctly.

How do I clean the microwave?

Unplug the oven before cleaning. Use a damp cloth to wipe the exterior, control panel, and interior. Avoid harsh cleaners. The glass turntable can be washed with soap and water. Clean the roller rest and oven floor regularly with mild detergent.

Can I use metal containers in this microwave?

No, do not use metal containers, aluminum foil, or any reflective materials as they can cause sparks or fire. Use microwave-safe ceramic, glass, or plastic containers.

How does the defrost function work?

Press the Defrost key repeatedly to select food type: d.1 (meat, 100g-2kg), d.2 (poultry, 200g-3kg), d.3 (seafood, 200g-900g). Use the up/down keys to set weight, then press Instant/Start.

What is the multi-stage cooking feature?

Multi-stage cooking allows you to set different power levels and cooking times sequentially. For example, you can program low power for 3 minutes followed by grill for 10 minutes. Press Power to set first stage, then Grill/Combi for second stage, and so on.

How do I set a delayed start or program cooking?

First set the clock, then choose power level and cooking time. Press and hold Clock for 3 seconds until a beep sounds. The display returns to current time. Enter the desired start time (e.g., 11:00) and press Instant/Start. Note: Not available for Express, Auto-cooking, or Defrost.

Why does steam accumulate inside the oven door?

Steam buildup is normal when operating in high humidity conditions. Dry the glass window and door with a soft cloth. Ensure ventilation openings are not blocked.

What is the maximum power level for grilling?

The grill element has an input power of 1000W. For combination cooking, the microwave and grill work together at various levels (C1 or C2). Always use potholders as the oven and rack become hot.

USER MANUAL MOD-MS25DS Imarflex

Exterior view of a modern IMartex microwave oven with control panel and digital display (no visible text or symbols on main body)

Stainless Steel

MOD-MS25DS

CLEANING & MAINTENANCE

1. Unplug the oven from the wall socket before cleaning.
2. Do not allow food splatters or spilled liquids adhere to oven walls. Baking soda may be used if the oven gets very dirty. Avoid using spray and other harsh cleaners as this may stain, streak, or dull the door surface.
3. Use damp cloth in cleaning the glass window and the surface of the oven.
4. Do not allow water to seep into the ventilation openings to avoid damages on the operating parts.
5. Do not allow the control panel to become wet.
6. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
7. If the steam accumulates inside or around the oven door, dry it using soft cloth. This may occur when the oven is operated under high humid conditions, but this is normal.
8. If the glass turntable becomes dirty, remove it and wash it with soap and water.
9. The roller rest and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom part of the oven with mild detergent. The roller ring can be washed with soap and water. If the roller rest is removed from the oven, be sure to return it properly.

PROGRAM COOKING

The oven has the ability to be programmed to do several functions.

Example: Microwave oven will automatically start cooking with 100P microwave power for 2 minutes and 30 seconds at 11:00 clock.
Steps	Display on LED screen
1. Set clockClock	10:00
2. PressPower	100P
3. Set cooking time, press230	2:30
4. Press and holdClockfor 3 seconds (a beep will be heard and display will return to its current time).	10:00
5. Set desired time you expect to start, press1▶1▶00	11:00
Note: Automatic starting function is not applicable for Express, Auto-cooking and Defrost.

MULTI-STAGE COOKING

Steps	Display on LED screen
1. PressPower5 times.	20P
2. Set cooking time, press<3 0 0	3:00
3. PressOnce.	G
4. Set cooking time. Press1▶ 0 0 0	10:00
5. PressInstant/start
Note: Some recipes need different cook menus during different stage of cookingcycle. For best result,you can program your oven to switch to one power menuto another.

SPECIFICATION

Model No. : MOD-MS25DS

Rated Voltage : 230Va.c. \~ 60Hz

Input Power : 1350W (Microwave)

: 1000W (Grill)

Microwave Output Power : 800W

Microwave Frequency : 2450MHz

Outside Dimension : 280mm(H)x504mm(W)x

335mm(D)

Oven Cavity Dimension : 205mm(H)x328mm(W)x

302mm(D)

Oven Capacity : 25 liters/0.9 cu. ft.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not place any object between the door safety lock system or allow small solid particles or cleaner residue to accumulate on sealing surfaces.

2. Do not operate the oven if it is damaged. It is important that the oven is properly closed and there are no damages like:

a. Bent doors

b. Broken or loosened hinges and latches

c. Leaks on door seals and sealing surfaces

1. The oven should not be adjusted or repaired by anyone aside from an authorized Imarflex service technician.

2. Do not tamper the safety interlocks.

BEFORE BRINGING THE MICROWAVE TO THE CUSTOMER SERVICE CENTER

If the microwave fails to operate:

1. Check to ensure that the oven is plugged in securely. If not, unplug the unit, wait for 10 seconds and plug it again.

2. Check for a blown circuit fuse or a tripped main circuit breaker. If there's no problem with the supply of electricity, test the outlet with another appliance.

3. Check to ensure that the control panel is programmed correctly.

4. Check to ensure that the door is properly closed.

INSTALLATION

1. Remove all packaging materials

2. WARNING: Check for any damages, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches. If there is any damages do not use the oven.

3. The oven should be placed on a flat, stable surface to hold its weight.

4. Do not place near gas stove, electric burner or a heated oven.
5. The oven must have sufficient airflow, allow 20cm of space above the oven, 10cm at the back and 5cm on both sides. Do not cover or block any openings of the oven. Do not remove the stand.
6. Do not use the oven without the turntable, roller ring and shaft in their proper positions.
7. The socket should be accessible so that it can be easily unplugged in case of emergency.
8. Do not use the oven outdoors.

RADIO INTERFERENCE

1. Operation of microwave oven can cause interference to radio, TV or similar appliance.
2. When there is interference, it may be eliminated by: a. Cleaning the door and sealing surface of the oven b. Plugging the oven into a different outlet so that the oven and receiver are on different branch circuit

IMPORTANT SAFETY INSTRUCTION

When using electrical appliance, basic safety precaution should be followed, including the following:

1. Read all instructions carefully.
2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).

3. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.

4. Use the oven only for its intended use or as described in this manual. Do not use corrosive chemicals. This oven is not designed for industrial and laboratory use.

5. Do not operate the oven if empty.

6. Do not use the oven if the cord or plug is damaged, it should be replaced before using.

7. Close supervision is necessary when any appliance is used by or near children.

8. To reduce the risk of fire in the oven cavity:
   a. When heating food in plastic or paper containers, check the oven frequently for possible ignition.
   b. Remove wire twist-ties from paper or plastic bags before placing the bag in the oven.
   c. Do not use the cavity for storage purposes. Do not -2-

DEFROST

1. Press DEFROST key to choose the type of food to defrost Press once - d.1 for defrosting meat (weight range from

100g to 2kg.)

Press twice - d.2 for defrosting poultry, (weight range from 200g to 3kg.)

Press 3 times - d.3 for defrosting seafood, (weight range from 200g to 900g.)

1. Press #1 key (UP) or #3 key (DOWN) to set weight of the food.
2. Press INSTANT/START key to start cooking.

AUTO COOKING

Steps	Display on LED screen	Suitable for.	CookingTime
Press oncePress twice	3.03.5	Popping 3.0 ounce of corn per bagPopping 3.5 ounce of corn per bag	2 mins. and 30 secs.2 mins. and 40 secs.
Press oncePress twice	0.450.65	Cooking 450g of potato stripsCooking 650g of potato strips	7 mins. and 12 secs.10 mins. and 12 secs.
[TDS3]Press once	1.00	Reheating 150g of pizza	1 min.
Press once	0.45	Cooking 450g of fish	6 mins. and 30 secs.
Press twice	2.505.00	Heating 250ml of liquid (small cup)Heating 500ml of liquid (small cup)	2 mins. and 20 secs.2 mins. and 40 secs.

Set your desired menu and press INSTANT/START key to start cooking.

-7-

PAUSE/CANCEL

1. Press PAUSE/CANCEL button once to pause cooking procedure.
2. Press PAUSE/CANCEL twice to cancel the cooking procedure

MICROWAVE COOKING

1. Press POWER key to choose desired Microwave Power

Press once 100P--- High Power, 100% microwave power, for quick and thorough cooking

Press twice 80P--- Medium High Power, 80% microwave power, for medium express cooking

Press 3 times 60P--- Medium Power, 60% microwave power

Press 4 times 40P--- Medium Low Power, 40% microwave power, for defrosting food

Press 5 times 20P--- Low Power, 20% microwave power, for keeping warm

1. Use the number keys to set the cooking time.
2. Press INSTANT/START key to start cooking.

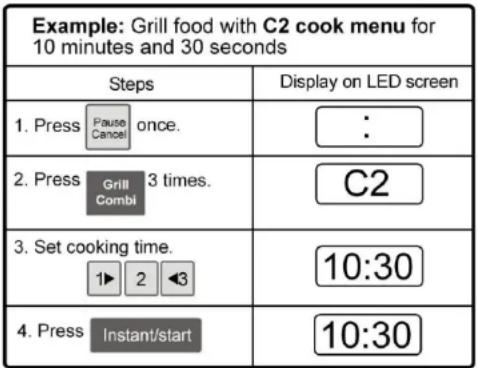

GRILL/COMBINATION COOKING

Press GRILL/COMBI key.

G - For grilling thin meats such as steak, sausage and chicken wing.
C1 - Combination of Grill and Microwave Cooking, for western style steak
C2 - Combination of Grill and Microwave Cooking (more microwave energy), for thick meats.

Warning:

In the mode of Grill/Combination, all of the oven parts, as well as the rack and cooking containers, may become very hot. Use potholders to PREVENT BURNS.

-6-

leave paper products, cooking utensils or food in the cavity when not in use.

d. If smoke is observed, switch off or unplug the oven and keep the door closed in order to stifle any fumes.

1. Do not use sealed containers since they may burst, use only microwave containers.
2. Contents of feeding bottles and baby food jars are to be stirred or shaken and check the temperature before consumption, in order to avoid burns.
3. Heat from the food may transfer to the container, use path holders to avoid burns.
4. Cookware/containers should be checked to ensure that they are suitable for microwave use.

COOKING TIPS

1. Arrange food carefully, place thickest areas toward outside of dish.
2. Watch cooking time, cook for the shortest amount of time indicated and add more time as needed.
3. Slightly cover foods before cooking, covers prevent spattering and help foods to cook evenly.
4. Check recipe for suggestions on proper use of paper towels, microwave plastic wrap or a lid.
5. Stir foods from outside to center of dish once or twice during cooking, foods such as chicken, hamburgers or steaks should be turned over once during cooking.
6. Rearrange foods, like meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.
7. After cooking ensure adequate standing time, heated liquid or beverage may result in delayed eruptive boiling. Remove food from oven and stir if possible. Covered food during standing time allows the food to finish cooking without overcooking.

8. Check for the cooking status, look for signs indicating that cooking temperature has been reached. Doneness signs include:

9. Food steams throughout, not just at edge.

10. Poultry thigh joints move easily.

11. Pork and poultry show no pinkness.
    Fish is opaque and flakes easily with fork.

12. When using microwave safe plastic wrap as cover for cooking food with high fat content, do not allow the wrap touch the food as it may melt. Some microwave safe plastic cookware are not suitable for cooking foods with high fat and sugar content. -3-

13. Potatoes, sausage must be pierced or peeled before cooking.

COOKWARE GUIDE

1. Ideal material should be transparent to microwave. Use clear or plain white cookware. It allows energy to pass through the container and heat food.
2. Do not use reflective materials such as stainless steel, aluminum foil, etc.
3. Do not use recycled paper products as they may contain small metals that can cause sparks or fire.
4. Use round containers rather than oblong and square containers because food in corners tend to be overcooked.
5. Use the table below as reference.

COOKWARE	Microwave	Grill	Combi
Ceramic	Yes	No	No
Heat-Resistant Plastic	Yes	No	No
Heat-Resistant Glass	Yes	No	No
Aluminum Foil & Foil Containers	No	No	No

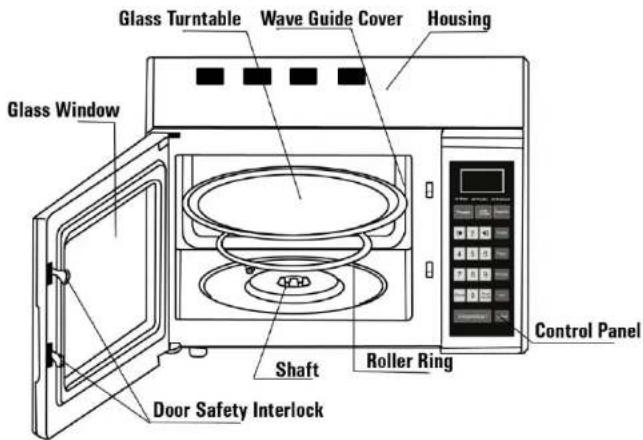

DESCRIPTION OF PARTS

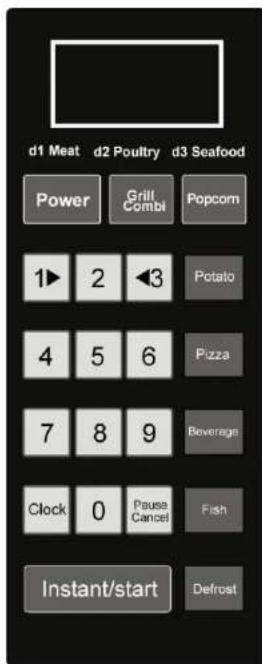

CONTROL PANEL

Steps	Display on LED screen
1. PressClock	00:00
2. Press▶ 2 ◀3 0	12:30
3. PressClockor wait for5 seconds.	12:30
Note: This step can be skipped for simple operation if youdo not use delayed function/automatic start.

CHILD LOCK FUNCTION

This feature prevents unsupervised operation by children.

Steps	Display on LED screen
To set child-lock:
Press Press Cancel and hold until "OFF" appears on screen	OFF
To cancel child-lock:
Press Press Cancel and hold until "." appears on screen
