ELNEXTGRILL379BTR - Toaster Electroline - Free user manual and instructions

Product Type	Contact Grill / Panini Press
Brand	Electroline
Model	ELNEXTGRILL379BTR
Power	1500 W
Voltage	220-240 V ~ 50/60 Hz
Dimensions (mm)	305 x 268 x 105
Weight	1.8 kg
Plate Size (mm)	254 x 178 (fixed)
Body Material	Bakelite, Stainless Steel
Indicator Lights	Power and Ready (preheat)
Grill Opening Angle	180 degrees
Power Cord Length	0.7 m
Non-stick Coating	Yes
Removable Plates	No
Preheat Time	Approximately 3 minutes
Cooking Time	3 to 8 minutes
Grounded Plug	Yes
Dishwasher Safe	No
Warranty	2 years
Country of Origin	Made in China

Frequently Asked Questions - ELNEXTGRILL379BTR Electroline

How do I clean the grill?

Unplug the grill and let it cool. Wipe the cooking plate with a soft cloth to remove food residue. For burnt residue, apply warm water with mild detergent. Do not immerse in water or use abrasive pads.

Can I immerse the grill in water?

No, never immerse the grill or its cord in water or any liquid to avoid electric shock. Only wipe the exterior with a damp cloth.

What is the preheat time?

The preheat time is approximately 3 minutes. The ready indicator light will turn off when the cooking temperature is reached.

Why is the indicator light staying off?

This is normal. During cooking, the heating element cycles on and off to maintain temperature. If the light stays off permanently, check the power connection or contact service.

My food is burning. What should I do?

The thermostat might be faulty. Reduce cooking time or check if the plate is too hot. If the problem persists, send the device to an authorized service center.

Can I use metal utensils on the grill?

No, never use metal utensils as they will damage the non-stick coating. Use plastic or wooden spatulas instead.

What is the warranty period?

The Electroline warranty covers defects in workmanship for 2 years from the date of purchase, provided the product is used for personal use and not resold.

How do I store the grill?

Always unplug and let it cool. Wrap the power cord around the base. Store in a cool, dry place. Ensure the grill is completely dry before storing.

Is the grill suitable for outdoor use?

No, this grill is designed for indoor home use only. Do not use outdoors or for commercial purposes.

What should I do if the power cord is damaged?

If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazards. Do not attempt to repair yourself.

USER MANUAL ELNEXTGRILL379BTR Electroline

Abstract white curved line on black background, resembling a stylized 'E' or logo (no text or symbols)

electroline

Line drawing of a portable grater with control knobs and a flat top (no text or symbols)

1500w

Potenza

Bistecchiera

ELNEXTGRILL379BTR

Gentile cliente

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Thank you very much for purchasing our product. We kindly ask you to read and keep this instruction manual carefully as it provides important information on safe use and maintenance.

INDEX

1 Safety warning
2 Device Description
3 Before first use
4 Operation Instructions
5 Cleaning and maintenance
6 Troubleshooting
7 Technical specifications
8 Dispose
9 Warranty and Compliance

1 safety warning

Warning:

May only be used at the voltage specified. For

• home use only.
- Do not touch hot surfaces. Use the correct handles and knobs to control equipment.
- To prevent the risk of electric shock, do not immerse cords, plugs, or cooking appliances in water or any other liquid.

• This device should not be used by children.

- Unplug from the socket when not in use and before cleaning. Allow parts to cool before attaching or removing them and cleaning the equipment.

- Do not operate equipment that is malfunctioning or damaged in any way. To avoid the risk of electric shock, never attempt to repair the equipment yourself. Please send the device to an authorized service station for repair. Improper reassembly may create an electrical shock hazard during use.

- Use of accessories not recommended by the manufacturer may result in risk of fire, electric shock, or personal injury.

• Not for outdoor or commercial use.

- Do not let the power cord hang over the edge of a table or countertop or come into contact with hot surfaces.

- Do not place on or near hot gas stoves, electric stoves or ovens.

- Unplug after use.

- Do not use the device for anything other than its intended use.

- Use extreme caution when moving equipment with hot oil or other hot liquids inside it.

- Keep the device and its cord out of the reach of children.

- Please be careful not to touch hot surfaces while the device is running.

Warning: Hot surface

If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified personnel to avoid hazards.

WARNING

To reduce the risk of fire or electric shock, repairs should only be performed by an authorized repair center.

Please keep this manual Grounded Plug

To reduce the risk of electric shock, this equipment is equipped with a grounding plug. If the plug cannot be fully inserted into the electrical outlet, contact a qualified electrician. Do not modify the plug or use an adapter in any way.

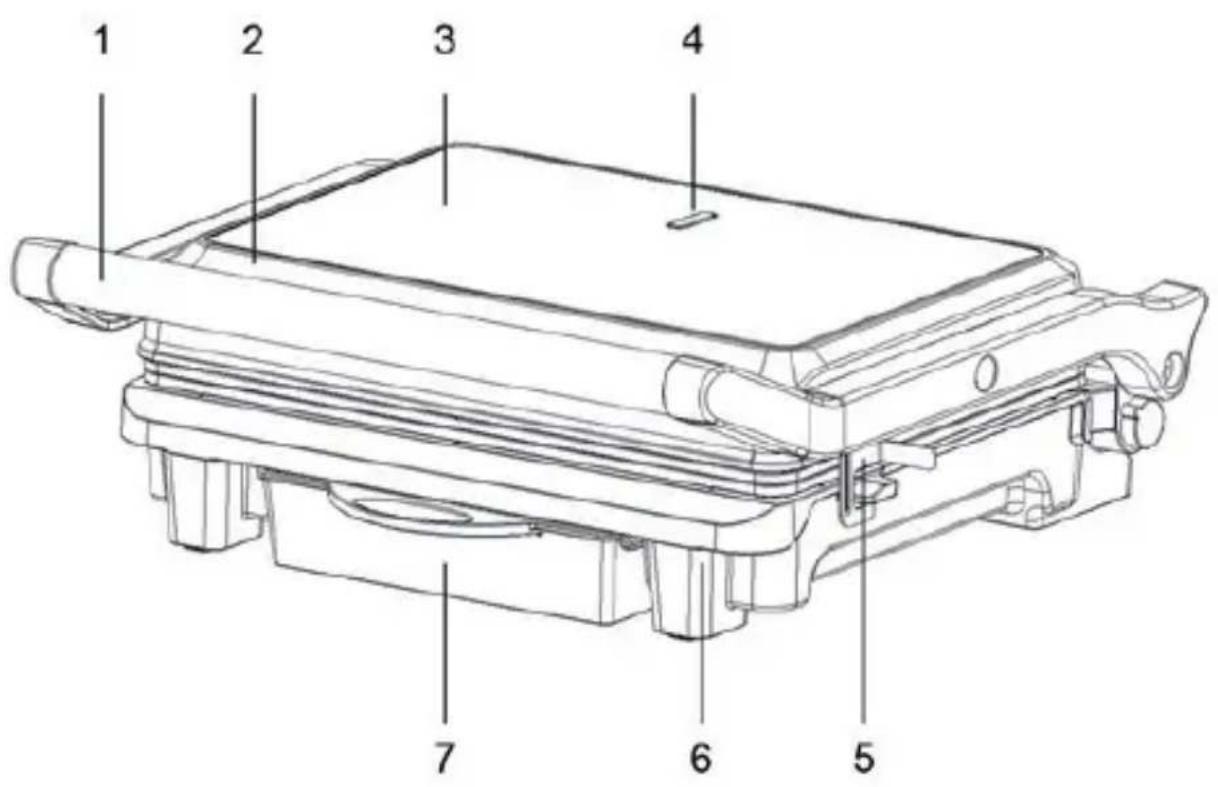

2 Device Description

01 Handle
02 Top cover
03 Metal Cover
04 Ready indicator light

05 Clasp to fasten handle
06 Bottom cover
07 Oil tray

3 Before first use

Before using this device for the first time, follow these instructions

• Remove all packaging
• Wipe the cooking plate with a sponge or cloth dampened with warm water.
• Do not immerse the appliance in water or place water directly on the cooking surface.
  • Dry with a dry cloth or paper towel.
• For best results, lightly coat the nonstick plate with a little cooking oil or cooking spray.

NOTE: TThere may be some smoke or smell when the device is first heated. This is normal for many heating devices. This does not affect the performance or safety of the device.

4 Instructions

- Close the grill and plug it into a wall outlet. When the ready light comes on, the unit has begun preheating.

- It will take approximately 3 minutes to reach cooking temperature and the preheat indicator light will turn off.

- Open the grill and place sandwiches, meats or other foods on the bottom cooking plate.

- Close the grill and the ready light will come on again.

- Cook for about 3 to 8 minutes until the indicator light turns off again, or until golden brown. You can adjust the time according to your personal taste.

- When the food is cooked, open the grill. Use a plastic spatula to remove food. Never use metal utensils as this will damage the cooking plate's non-stick coating.

- Once you're done cooking, unplug it from the wall outlet and leave the grill open to cool.

5 Cleaning and maintenance

- Be sure to unplug the grill and allow it to cool before cleaning. It is easier to clean when the device is slightly warm. No need to disassemble the device for cleaning. Never immerse the device in water or place it in the dishwasher.

- Wipe the cooking plate with a soft cloth to remove food residue. For burnt food residue, apply some warm water mixed with detergent onto the residue to clean it.

- Do not use any abrasives that can scratch or damage the nonstick coating. And don't use metal utensils to remove food, they can damage the non-stick surface.

- Do not use any abrasives that can scratch or damage the nonstick coating.

- Only wipe the outside of the grill with a damp cloth. Do not scrub with any abrasive pads or steel wool as this will damage the finish.

• Always unplug the grill before storing it.

Always make sure your grill is cool and dry before storing it.

- The power cord can be wrapped around the base of the base for storage.

6 Troubleshooting

Question	Answer
The device cannot be powered on.	Check that the plug is connected to the socket and check that the outlet has power.
The light on the device stays off.	No fault and normal. During the cooking process, the heating element automatically switches on and off to keep the temperature from getting too hot or too cold.
Food is under-cooked or burnt.	-The thermostat may be faulty and not regulating the temperature correctly. The device must be sent to a qualified service center.-The heating element may be damaged. The device must be sent to a qualified repair center.

7 Technical Specification

Voltage/Power	220-240V~50/60Hz
Power	1500W
Dimensions (mm)	305 x 268 x 105
Plate Size (mm)	254 x 178 (Fixed)
Body Material	Bakelite, Stainless Steel
Light Indicator	Yes, Power and Ready
Removable Plate	No
Grill Opening Angle	180 degrees
Weight	1.8kg
Power Cord Length	0.7m

Due to the ongoing technological evolution of products, the data contained in this manual may undergo slight changes without prior notice from the manufacturer.

8 Disposal

Processing of electric and electronic equipment at the end of their service life (applicable in member countries of the European Union and other European countries operating a selective waste collection system).

This symbol, affixed to the product or its packaging, indicates that the product must not be processed with household waste. It must be brought to an electric and electronic waste collection point for recycling and disposal. By ensuring the appropriate disposal of this product you also help in preventing potentially negative consequences for the environment and human health. The recycling of materials helps preserve our natural resources. For further information regarding the recycling of this product, please contact your municipality, local waste disposal centre or the store where the product was purchased.

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

In accordance with Legislative Decree of March 14, 2014, No. 49, "Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)" the crossed-out wheeled bin symbol on the appliance or its packaging indicates that the product must be collected separately from other waste at the end of its life. Therefore, the user should dispose of the end-of-life appliance at the appropriate collection points for electronic and electrical waste or return it to the retailer when purchasing a new equivalent appliance, on a one-to-one basis. Proper separate collection for the subsequent disposal, treatment, and environmentally friendly disposal of the discarded appliance helps to prevent potential negative effects on the environment and health and promotes the recycling of the materials the appliance is composed of. Unauthorized disposal of the product by the user may result in the application of administrative sanctions provided by current regulations.

9 Warranty and Compliance

This Electroline Warranty applies only to Electroline products purchased for personal use and not those intended for resale.

Your Electroline product is warranted in accordance with the terms and conditions of this warranty against defects in workmanship and conformity for a period of a 2 years, and that period begins upon delivery of the item, if purchased from an official dealer.

The warranty will not be valid if the product has been opened, in the presence of physical damage, damage resulting from incorrect use, modifications, repairs by unauthorized persons, negligence and in the event that the product has been used for purposes other than those for which it was intended; furthermore, the legal guarantee will not apply if the purchase methods or other circumstances

demonstrate, with reasonable certainty, that the purchase itself is not exclusively aimed at private consumption.

In the event that the product is defective, it can be returned to the retailer along with a description of the type of malfunction, proof of purchase, and any accessories.

If the product is still under warranty, you will receive a replacement product (if available) from the dealer.

These are not covered by the warranty:

- Accidental damage or damage resulting from incorrect or improper use, contact with liquids; damage caused by accidents or force majeure events such as fire, earthquake, flood, vandalism, theft or other external cause.

• Cosmetic damage such as scratches, dents, or other breakage of plastic parts, caused by handling errors.
• Defects resulting from normal product wear and tear (product aging).
• Incompatibility with other hardware/software products not listed in the minimum system requirements.
• Consumable accessories such as batteries, protective covers, and fuses, which normally wear out over time. Problems due to noncompliance related to labour or materials are excluded.

In no event shall the manufacturer be liable for incidental or consequential damages, including any loss of business profits or other commercial damages resulting from the use of the product.

Due to the rapidly evolving nature of our products, the content of this manual may be subject to change without prior notice.

Made in China

electroline

Manufactured and imported by Exertis Supply Chain Services Limited.

Unit 21 Fonthill Business Park, Clondalkin. Dublin 22, D22 FR82, Dublin, Ireland

"Electroline" used under license from Unieuro
