Product Type	Pneumatic Blind Rivet Gun
Brand	Hazet
Model	9037N-2
Rivet Diameters	3.0/3.2 mm (1/8"), 4.0 mm (5/32"), 4.8/5.0 mm (3/16"), 6.0 mm, 6.4 mm (1/4"), Structural Rivets 4.8/5.0 mm & 6.4 mm
Rivet Materials	Aluminum, Copper, Steel, Stainless Steel / Inox
Air Consumption per Stroke	2.64 liters
Working Pressure	6.3 bar
Air Inlet	12.91 mm (1/4")
Tractive Power	14700 N
Total Stroke	15.8 mm
Weight	2.11 kg
Length	296.6 mm
Sound Pressure Level	84.9 dB(A)
Sound Power Level	95.9 dB(A)
Vibration	1.65 m/s²
Scope of Delivery	Pneumatic rivet gun, 5 nose pieces, flexible connecting nipple, mandrel collection system
Intended Use	Driving blind rivets to assemble steel, aluminum, or stainless steel parts
Maintenance	Regular cleaning and oiling of chuck jaws, gripping mechanism, cylinder; check for wear
Storage Temperature	-10°C to +45°C
Relative Humidity (max)	65%

Frequently Asked Questions - 9037N-2 Hazet

What rivet sizes can the Hazet 9037N-2 handle?

The 9037N-2 handles blind rivets with diameters: 3.0/3.2 mm (1/8"), 4.0 mm (5/32"), 4.8/5.0 mm (3/16"), 6.0 mm, and 6.4 mm (1/4"), including structural rivets in 4.8/5.0 mm and 6.4 mm.

What materials can be riveted with this tool?

It can rivet aluminum, copper, steel, and stainless steel (inox) materials.

What accessories are included in the box?

The package includes the pneumatic rivet gun, 5 nose pieces, a flexible connecting nipple, and a mandrel collection system.

How do I select the correct nose piece for the rivet?

Use the gauge on the base of the rivet gun to quickly select the nose piece suitable for the rivet diameter. Screw the chosen nose piece onto the steel core.

How do I lubricate the rivet gun?

Insert 2 to 6 drops of pneumatic oil into the air inlet before use. For regular maintenance, use Hazet oiler no. 9070-1 or equivalent.

What is the recommended working pressure?

The maximum working pressure is 6.3 bar (approx. 91 psi). Always ensure the air supply does not exceed this value.

How often should I clean and service the gripping mechanism?

Regularly check and clean the chuck jaws and gripping mechanism. Disassemble, clean with a lint-free cloth, oil all components, and reassemble ensuring the gripping mechanism length is 60 mm.

What should I do if the tractive power seems weak?

Check the oil level in the hydraulic system. Unscrew the bottom of the tool body, remove the piston, and refill the small oil container with pneumatic oil if needed.

Can I use non-original spare parts?

For safety reasons, only use original Hazet spare parts. Non-approved parts may cause damage and void warranty, service, and liability claims.

How should I store the rivet gun when not in use?

Store in a dry, dust-free place away from liquids and aggressive substances. Temperature: -10 to +45°C, relative humidity max 65%. Disconnect from air supply before storage.

USER MANUAL 9037N-2 Hazet

	Rivet DiameterRivet Material	∅ 3.0/3.2mm∅ 1/8"	∅ 4.0mm∅ 5/32"	∅ 4.8/5.0mm∅ 3/16"	∅ 6.0mm	∅ 6.4mm∅ 1/4"	Structural Rivets∅ 4.8/5.0mm, ∅ 3/16"	Structural Rivets∅ 6.4mm, ∅ 1/4"
	Aluminum	●	●	●	●	●	●	●
	Copper, Steel	●	●	●	●	●	●	●
	Stainless Steel / Inox	●	●	●	●	●	●	●

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Operating instructions

Rivet gun

9037 N-2

1. For your safety

Before operation, this application note as well as the safety instructions for pneumatic tools should be read and observed diligently. For effective use of the tool as intended, it is essential that all safety and other information in this application note is adhered to. HAZET will not be liable for any injuries to persons or damage to property resulting from improper application, misuse of the tool or a disregard of the safety instructions. Such injuries and damage are the sole responsibility of the operator.

2. Explanation of symbols

Attention: Pay strict attention to these symbols!

Read the operating instructions and application notes

The operator of this tool set is obliged to observe the application note and safety instructions and should ensure that all users of this tool set use it according to the information given.

NOTE!

This symbol indicates advice that is helpful when using the tool.

CAUTION!

This symbol indicates important specifications, dangerous conditions, safety risks and safety advice.

Attention!

This symbol indicates advice which, if disregarded, will result in damage, malfunction and/or functional failure of the tool.

QUALIFIED PERSONNEL!

Tool may be used by qualified personnel only. Handling by non-qualified people may lead to injuries to persons or damage to the tool or the workpiece.

3. Intended use

- The rivet gun 9037N-2 may only be used to drive blind rivets. It is used to assemble parts made of steel, aluminium or stainless steel, using rivets with a diameter of 3.0 / 3.2, 4.0, 4.8 / 5.0, 6.0, 6.4 mm.

4. Scope of delivery

• Pneumatic rivet gun HAZET 9037 N-2
- 5 nose pieces
- Flexible connecting nipple
- Mandrel collection system

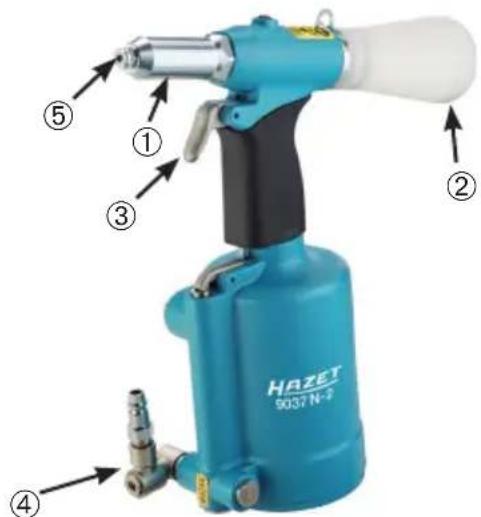

5. Tool components

1. Steel core
2. Mandrel collection system
3. Operating lever
4. Flexible connecting nipple
5. Nose piece

6. Technical data

Rivet sizes: 3.0 / 3.2, 4.0, 4.8 /5.0, 6.0, 6.4

Air consumption per stroke: 2.64 l/stroke

Working pressure: 6.3 bar

Air inlet: 12.91 mm / 1⁄4"

Tractive power: 14700 N

Total stroke: 15.8 mm

Weight: 2.11 kg

Length: 296.6 mm

Sound pressure level: 84.9 dB(A)

Sound power level: 95.9 dB(A)

Vibration: 1,65 m/s

	Rivet DiameterRivet Material	∅ 3.0/3.2mm∅ 1/8"	∅ 4.0mm∅ 5/32"	∅ 4.8/5.0mm∅ 3/16"	∅ 6.0mm	∅ 6.4mm∅ 1/4"	Structural Rivets∅ 4.8/5.0mm, ∅ 3/16"	Structural Rivets∅ 6.4mm, ∅ 1/4"
	Aluminum	●	●	●	●	●	●	●
	Copper, Steel	●	●	●	●	●	●	●
	Stainless Steel / Inox	●	●	●	●	●	●	●

7. Before starting the operation

• Before starting working with the tool, please make sure that all screwed connections are tightly fixed, all movable parts are running smoothly and are sufficiently oiled and that no damage can be detected.
  • Refill oil as described in chapter 8.
• Do not use a damaged device.
• The collection bin for the rivet mandrels must be attached properly during operation and must be emptied in a timely manner when filled up to ^1/3 .

8. Application

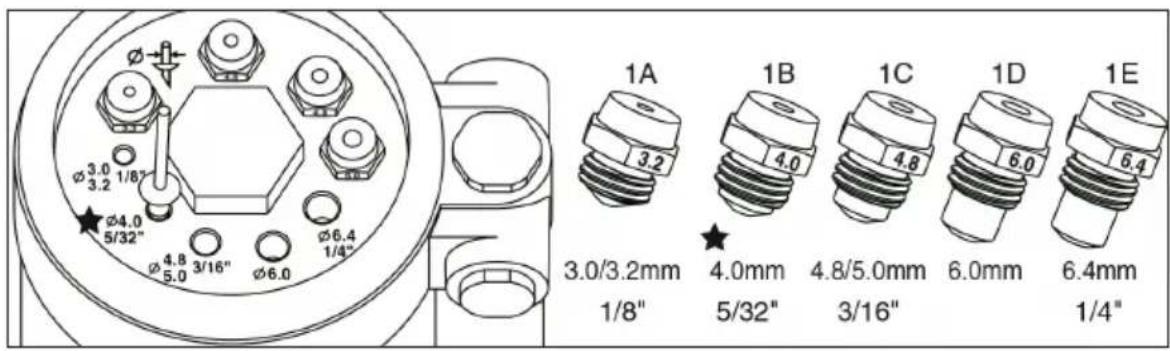

• Choose the nose piece suitable for the blind rivet and screw it to the steel core. In order to do this, use the gauge on the base of the rivet gun. With this gauge you can quickly and easily select the nose piece suitable for the rivet.
• Insert 2 to 6 drops of pneumatic oil into the air inlet or use HAZET oiler no. 9070-1.
• Connect the tool to the air inlet. Max. working pressure is 6.3 bar.
• The rivet gun is now ready for use - take care not to operate the trigger by mistake.
• Insert the blind rivet into the mouth piece and insert the rivet into the drill hole in question with the rivet gun as far as it will go.
• Pull the trigger until the rivet mandrel snaps off.
• Release the trigger and tilt the device backwards so that the mandrel stem falls into the mandrel collection bin.
  • After use, always disconnect the rivet gun from the air seal.

9. Maintenance and cleaning

• Regularly check the tool for damage.
- Replace all worn or damaged parts, joints and bearings immediately.

• If necessary, retighten all screws on the tool.
• The gripping mechanism for blind rivets must be serviced regularly in order to guarantee fault-free operation.
• The chuck jaws must be cleaned and oiled regularly.
• Disconnect the rivet gun from the compressed air and unscrew the steel core with the installed nose piece.
• The complete gripping mechanism is now visible.
• Unscrew the front part that contains the chuck jaws. Attention! There are loose parts inside.
• Memorise the order and composition of the components in order to be able to reassemble them afterwards.
• Check all components for wear and damage and clean them using a cloth free from fluff.
• Replace all worn or damaged parts.
• Subsequently oil all components.
• Reassemble the gripping mechanism. When doing this, ensure the specified length of the gripping mechanism of 60 mm is adhered to. The cylinder must be cleaned and oiled regularly. In order to do this, unscrew the bottom of the tool body and remove the piston, using a pair of pliers. Where the piston rod is located in the rivet gun, there is a small container filled with oil for the hydraulic system. If necessary, refill with some pneumatic oil if you feel the traction power of the gripping mechanism is no longer sufficient.

Clean the cylinder, the piston and the piston rod.

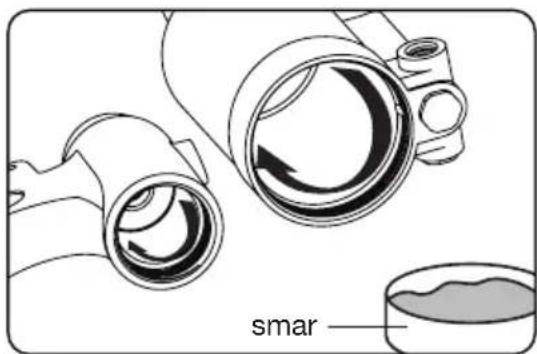

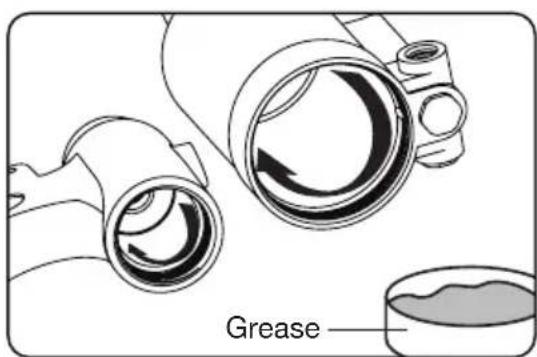

Oil or lubricate the inner surfaces and replace worn or damaged joints (O-rings) if necessary. Reassemble all components in reverse order and insert the piston into the cylinder until the air inlet in the cylinder is visible again.

- Impact, knocks, dropping and contact with liquids can impair the function and damage the device.

• The operator must regularly check all components for full, fault-free functionality.
• If the rivet gun is not required for a longer period of time, it must be disconnected from the air seal.

10. Spare parts

• For safety reasons, only the manufacturer's original spare parts may be used.
  • Unsuitable or defective spare parts may cause damage, malfunction or total failure of the tool.
• The use of non-approved spare parts will void all warranty, service and liability claims as well as all claims for compensation against the manufacturer or its agents, distributors and sales representatives.

11. Storage

• The device must be stored under the following conditions:
• Do not store the tool set outdoors.
• Keep tool in a dry and dust-free place.
• Do not expose the tool to liquids and aggressive substances.
  • Storage temperature: -10 to +45°C.
  • Relative air humidity: max. 65%

12. Disposal

• For disposal, clean tool and disassemble it according to the regulations for work safety and environmental protection.
• Components can be recycled.

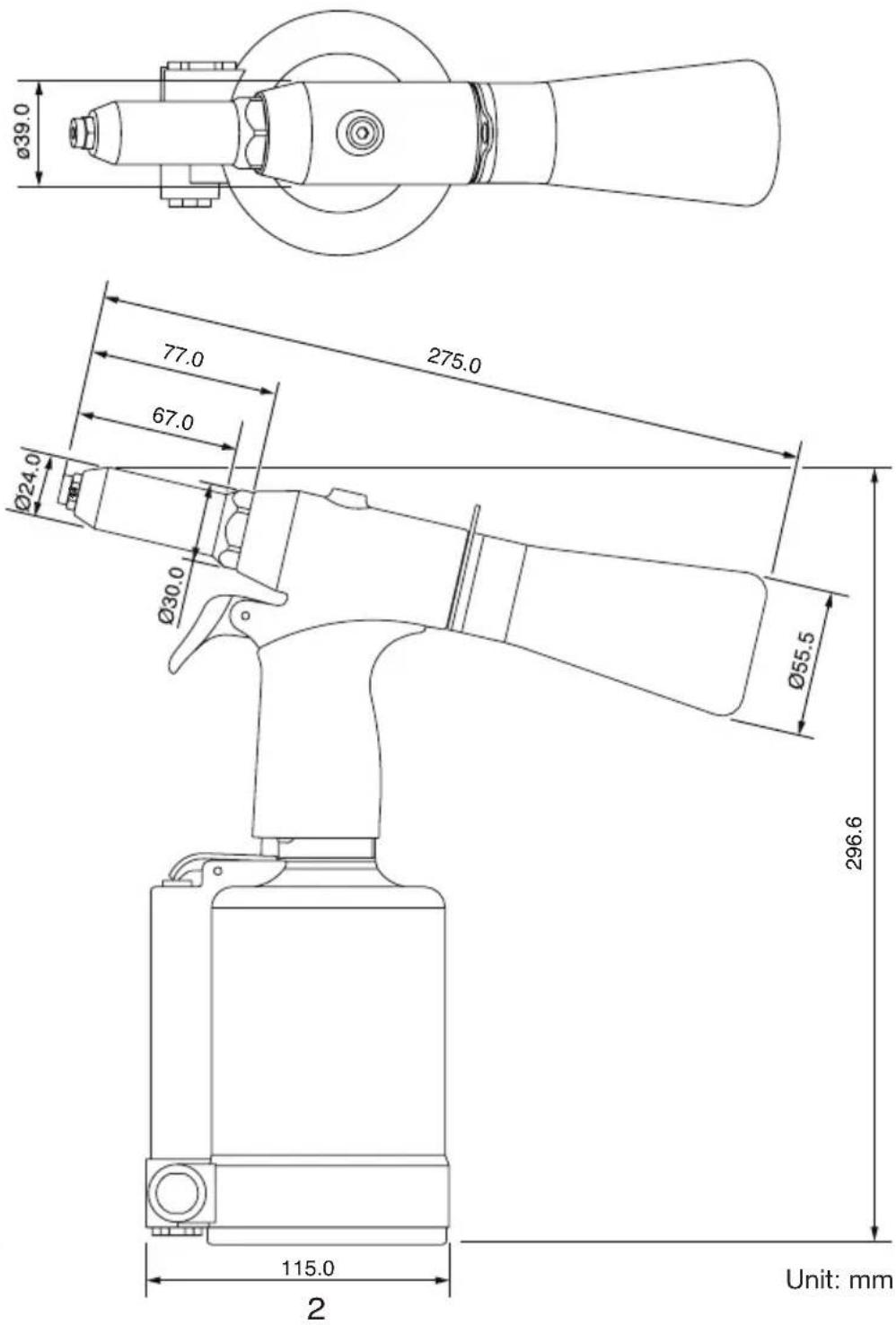

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Technical line drawing of a mechanical component with dimension标注 (no text or symbols)

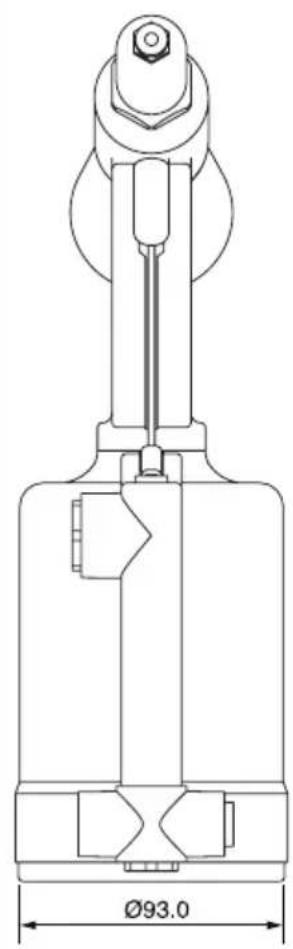

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

Technical line drawing of a mechanical component with dimension标注 (no text or symbols)

9037 N-2 III. 04.2023/∞ cb/448
