303224 - Wristwatch Bearware - Free user manual and instructions

Product type	Mirror alarm clock
Brand	Bearware
Model	303224
Power supply	3 x 1.5V AAA batteries or USB DC 5V 150mA (USB to DC plug cable included)
Temperature range	0°C to 50°C
Main functions	Alarm, temperature display, snooze, 12/24-hour display, night mode
Display	LED backlight
Controls	SNZ/LIGHT, MODE, ALARM, UP, DOWN buttons
Backlight operation	Permanently on with USB power; with batteries, backlight only on when button pressed
Time setting	Press and hold MODE for 2 seconds, adjust hour, minute, 12/24h format with UP/DOWN
Alarm setting	Press and hold ALARM for 4 seconds, set hour, minute, snooze time (5-60 min) with UP/DOWN
Snooze	Press SNZ/LIGHT during alarm; snooze time configurable
Night mode	Dims display during set period; set via MODE and DOWN button
Temperature display	Toggle between time and temperature with MODE; switch °C/°F with DOWN
Automatic temp/time alternation	Press and hold MODE in temperature display to enable (5 sec temp, 10 sec time)
Manual dimming	Press UP to adjust backlight brightness
Care and cleaning	Keep away from moisture, direct sunlight; clean with dry cloth
Battery replacement	Replace weak batteries immediately to prevent leakage; do not mix old and new
Safety precautions	Do not open, short-circuit, or expose to high humidity; keep out of reach of children
Intended use	Private use only, not for medical or public information

Frequently Asked Questions - 303224 Bearware

How do I set the time on the Bearware 303224?

In the time display, press and hold the MODE button for about 2 seconds. The hour will flash. Use UP or DOWN to adjust, then press MODE to confirm. Repeat for minute and 12/24-hour format.

How do I set the alarm?

Press and hold the ALARM button for about 4 seconds. The alarm time will appear. Use UP or DOWN to set the hour, press ALARM, then set the minute, press ALARM, then set the snooze time (5-60 minutes) and press ALARM again to save.

How do I turn the alarm on or off?

Press the ALARM button briefly. When the alarm is enabled, an alarm icon (AL) appears above the time. When disabled, no icon is shown.

How does the snooze function work?

When the alarm sounds, press the SNZ/LIGHT button to snooze. The alarm will stop and sound again after the snooze duration you set (default 9 minutes). You can change the snooze time in alarm settings.

How do I set up night mode?

Press MODE twice in the time display. The display shows 'OFF'. Press DOWN once to show 'ON'. Press and hold MODE until the start time appears. Use UP/DOWN to set the hour and minute, press MODE, then repeat for the end time. During the set period, the display dims automatically.

Can I dim the display manually?

Yes. Press the UP button repeatedly to cycle through brightness levels or dim the backlight.

How do I switch between temperature and time display?

Press the MODE button once to see the temperature. To toggle between °C and °F, press DOWN while in temperature mode. To show both alternately, press and hold MODE in temperature mode until you hear a beep. The display will then show temperature for 5 seconds and time for 10 seconds.

What type of batteries does the clock use, and can I use USB power?

The clock can be powered by three 1.5V AAA batteries or via a USB power source using the included USB to DC plug cable (5V, 150mA). With USB power, the backlight stays on permanently; with batteries, the backlight only turns on when you press a button.

What is the temperature measurement range?

The clock measures temperatures from 0°C to 50°C (32°F to 122°F).

How do I reset the clock or troubleshoot if it stops working?

First try replacing the batteries with fresh ones or reconnect USB power. If the display is erratic, remove batteries and USB, wait a few minutes, then reconnect. The product should not be opened; contact the manufacturer if problems persist.

USER MANUAL 303224 Bearware

Red stylized graphic of a bear and a pig (no text or symbols)

BEARWARE

Thank you for choosing a BEARWARE product. Please read the following user manual carefully so as to be able to get the most from the product you have purchased.

1 Scope of supply

• Mirror alarm clock
  • USB to DC connection cable
• User manual

2 Technical data

Power supply	Three 1.5V AAA batteries or alternatively one DC 5, 150mA USB charging adapter via USB to DC plug cable (3.5 mm/1.25 mm)/polarity: - ---(o--- +
Temperature range 0-50°C
Features	• Alarm function (alarm)• Temperature display• Snooze function• 12/24-hours display• Night mode

3 Additional pieces of information about this mirror alarm clock

Before using, make sure that the device is not damaged. If this is the case, then do not use it. The mirror alarm clock should not be exposed to moisture and direct sunlight.

Before using the product, ensure that the available supply voltage corresponds to the operating voltage indicated on the specification plate.

The product is intended only for private use and not for medical purposes or for public information.

Caution!

Keep the batteries and the device out of reach of children. Batteries contain harmful acids. Weak batteries should be replaced as soon as possible to prevent leakage! Never use new and old batteries or batteries of different types together. Never throw batteries into a fire and do not short-circuit them. Do not recharge the batteries and do not take them apart. There is a risk of explosion!

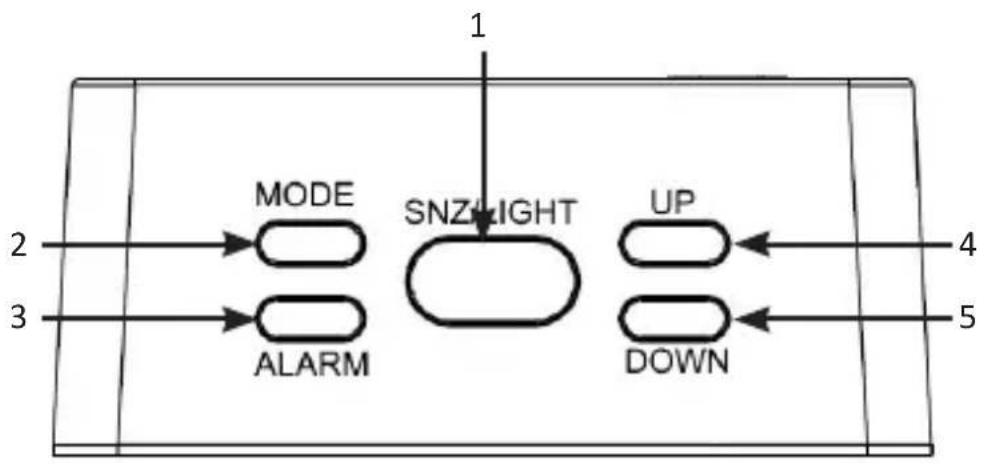

4 Product details

1 Snooze/light button

2 Mode button

3 Alarm button

4 UP button

5 Down button

5 Initial use

Take the product out of the package and remove all the packaging material. Open the battery compartment at the back of the device and insert three 1.5 v AAA batteries. Pay attention to the correct polarity of the contacts. Alternatively, you can operate the device with a 4.5V-5V DC mains adapter or with the supplied USB to DC plug cable.

Note: If you want to use the device with batteries, then the backlight is not permanently switched on. The backlight is permanently switched on only in combination with a USB power supply unit and the supplied USB to DC plug cable.

By repeatedly pressing the "MODE" button, you can toggle between the display, the time, the temperature and the night mode status (see Chapter 8).

6 Setting the time

When the time is shown in the display, press and hold the "MODE" button for about 2 seconds to access the time settings. The setting sequence is as follows: Hour - minute - 12/24 hour display.

You can adjust the time using the buttons "UP" and "DOWN" and confirm your input using the "MODE" button.

7 Alarm setting

7.1 Setting the alarm

Press and hold the "ALARM" button for about 4 seconds to access the alarm settings. The alarm time is now displayed instead of the time. You can make the desired settings using the "UP" and "DOWN" buttons. Confirm using the "ALARM" button. Then press the "ALARM" button again to save the alarm setting. The sequence is as follows: Hour - minute - snooze time (can be set between 5 and 60 minutes).

7.2 Enabling/disabling the alarm

Press the "ALARM" button to enable/disable the alarm. An alarm icon ("AL") is then displayed above the time. The alarm is enabled as long as the alarm icon is shown in the display. If the "AL" icon is not displayed, then the Alarm is disabled.

7.3 Snoozing the alarm

Press the "SNZ/LIGHT" button to snooze an alarm. The alarm now sounds for the snooze time previously set in the alarm settings and then sounds again.

7.4 Turning off the alarm

To turn off the alarm, press the "MODE", "ALARM", "UP" or "DOWN" button.

8 Night mode

The night mode dims the LED light during the night time. Press the "MODE" button twice in the time display. The display shows "OFF". Press the "DOWN" button once. As soon as the display shows "ON", press and hold the "MODE" button until the start time of the night mode is displayed. You can set this using the "UP" and "DOWN" buttons. Confirm using the "MODE" button and repeat the procedure for the end time. The setting sequence is as follows: Starting hour - Starting minute - Ending hour - Ending minute.

The display is automatically dimmed during the set duration.

9 Manually dimming the LED light

Press the "UP" button to dim the backlight or to make it bright once again.

10 Temperature display

Press the "MODE" button once during the time display to display the temperature. Press the "DOWN" button to change between °C and °F.

To change between temperature and time, press and hold the "MODE" button in the temperature display until you hear a beep. The display now alternately shows the temperature for 5 seconds and the time for 10 seconds. Repeat the procedure if you want to switch off this mode.

11 Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

12 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

13 Instructions on the disposal of batteries

With regard to the sale of batteries or the supply of devices containing batteries, the supplier is obliged to draw the customer's attention to the following:

As the end user, the customer has a statutory obligation to return used batteries. He can return old batteries stocked or previously stocked by the supplier in the form of new batteries to the supplier's despatch warehouse (despatch address) free of charge. The symbols shown on the batteries have the following meanings: Pb = battery contains more than 0.004 percent by mass of lead, Cd = battery contains more than 0.002 percent by mass of cadmium, Hg = battery contains more than 0.0005 percent by mass of quicksilver.

The symbol of the rubbish bin with a cross through it indicates that the battery may not be put in household waste.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 303224/20180201FZ009 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
