USER MANUAL 302049 CSL

Thank you for having chosen this CSL product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual.

1 Scope of delivery

• Wireless Gamepad
• Driver CD
• OTG adapter
• miniUSB charging cable
• User manual

2 Technical specifications

Port USB, via 2.4GHz receiver
Buttons • 10 buttons• 2 analogue sticks• Control pad• HOME button
Battery capacity 380mAh, 3.7V
Features Dual vibration function
Compatibility PS3	Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10, Android

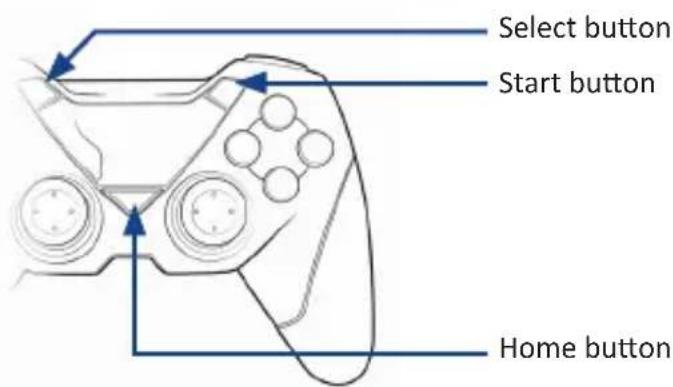

3 Product details

4 Dual vibration function

The gamepad has two strong vibration motors. Due to the effect of vibration, is the control represented very realistically.

Note: Please bear in mind that the vibration only works if the game or programme is supporting this function and corresponding function has been activated in the gaming options.

You can test the dual vibration function on your computer. Therefore call up the gamepad's settings in the "system control" under "devices and printer" (Windows Vista / 7 / 8/ 10) respectively under "game controller".

5 Configuration

Some PC-Games require a custom configuration of the gamepad. Please check the configuration in the Windows options for the controller and then the settings in the game (some have an external configuration file) or use an additional emulation-software for a custom configuration.

6 Driver installation (PC only)

To be able to use the complete range of functions, the installation of drivers is necessary.

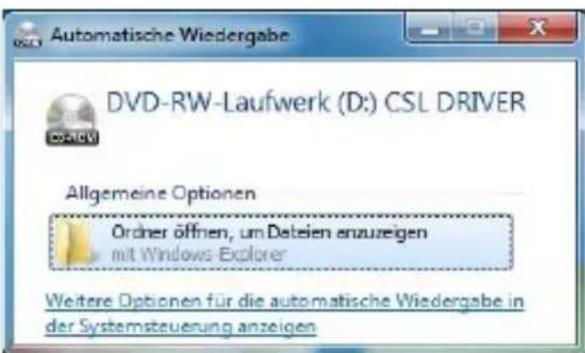

Insert the driver CD into the open drive and close it again. The automatic playback opens. Clicking once on "Open folder to view files" the CD contents is displayed.

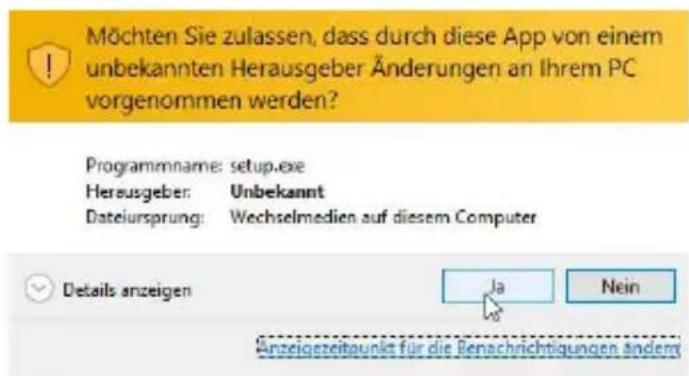

You will be asked to confirm this by clicking "Yes".

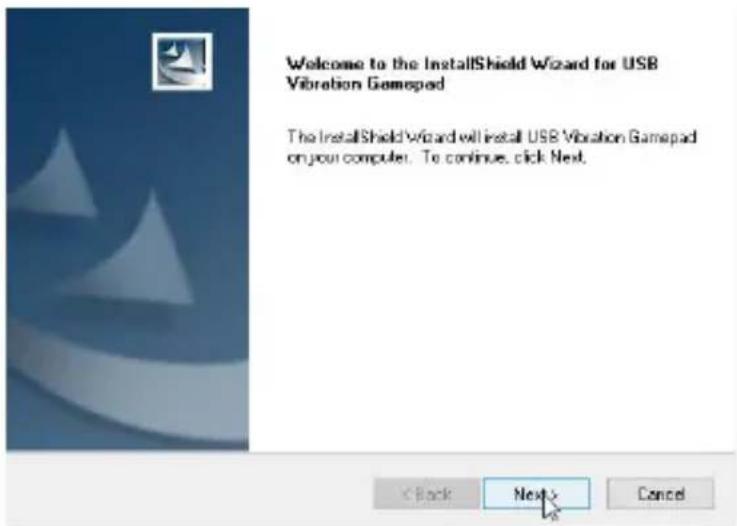

The installation wizard opens. Please click the "Next" button to start the installation.

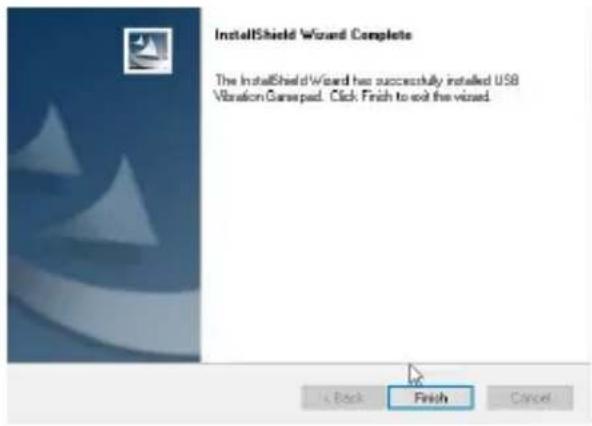

To complete the installation click the "Finish" button.

The driver has been completely installed.

7 Switching operating mode

In order to switch between different switching modes, you have to hold and press the "Home" key until the LEDs change the status at the top of the gamepad. The LED indicators show the current status of the gamepad.

LED Function
LED 1 and 2 lights up X-Input
LED 1 and 3 lights up Direct-Input
LED 3 and 4 lights up Android

8 Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the de-

vice to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

9 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

10 Instructions on the disposal of batteries

With regard to the sale of batteries or the supply of devices containing batteries, the supplier is obliged to draw the customer's attention to the following: As the end user, the customer has a statutory obligation to return used batteries. He can return old batteries stocked or previously stocked by the supplier in the form of new batteries to the supplier's despatch warehouse (despatch address) free of charge. The symbols shown on the batteries have the following meanings: Pb = battery contains more than 0.004 percent by mass of lead, Cd = battery contains more than 0.002 percent by mass of cadmium, Hg = battery contains more than 0.0005 percent by mass of quicksilver.

The symbol of the rubbish bin with a cross through it indicates that the battery may not be put in household waste.

WEEE guideline: 2012/19/EU

WEEE register number: DE 94495668

CSL Computer GmbH & Co. KG, herewith declares that this product 49694/20161116TW001 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: CSL Computer GmbH & Co. KG, Sokelantstraße 35, 30165 Hanover
