USER MANUAL 303843 CSL

Important safety instructions for this device

• Read all instructions in this manual carefully before using the product.
• Check the voltage indicated on the nameplate.
• This device may be used by children 8 years of age and older and by persons with limited physical, sensory or mental abilities or lack of experience and knowledge, if they have been supervised or instructed on the safe use of the device and understand the dangers involved. Children must not play with the device.

- Cleaning and maintenance by the user must not be carried out by children without supervision.

- Children between the age of 3 years and less than 8 years may only switch the appliance on and off if it has been set up or installed in its intended normal operating position and they have received supervision or instructions for the safe use of the appliance and understand the hazards involved. Children between the age of 3 and 8 years must not connect, regulate, clean or service the appliance.

• Charge the device to its rated voltage.
• Before use, place the fan on a level, firm and safe surface.

• Do not insert your fingers or other objects into the front grille while the fan is in operation. When using the fan near children, make sure that no children play with the fan.

• Do not allow hair, curtains, table-cloths, clothing, curtains, etc. near the fan openings. They can get caught in the fan and cause damage or injury.

• Do not use this fan outdoors, it is for indoor use only.
• Do not use the fan in a humid area such as a bathroom.
• Please do not use the unit near a window or in direct sunlight.
• The fan must not be operated without a base.
• Do not use the fan in an area where petrol or paint is used or stored, or in such flammable liquids.

• Disconnect the USB cable before moving, cleaning, or storing.

• Use this fan only as described in this manual.

• Do not attempt to disassemble the fan. The device does not have any parts that can be repaired by the user. If you have problems with this product, contact our customer service.
• This equipment is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or lack of experience and knowledge. Do not allow them to use the equipment without the supervision of a person responsible for their safety.
• Do not use an extension cord to charge or operate the equipment.

Thank you for choosing a CSL product. Please read the following user manual carefully so that you can enjoy your purchased device for a long time.

1. Scope of delivery

• USB Table Fan
• microUSB charging cable
• User manual

2. Technical data

Charging voltage 5V DC
Power consumption max. 5 W
Battery type 1x ICR 18650, 4000mAh, 3.7V
Dimensions (H x W x D) 272 mm x 180 mm x 150,5 mm
Weight approx. 495 g

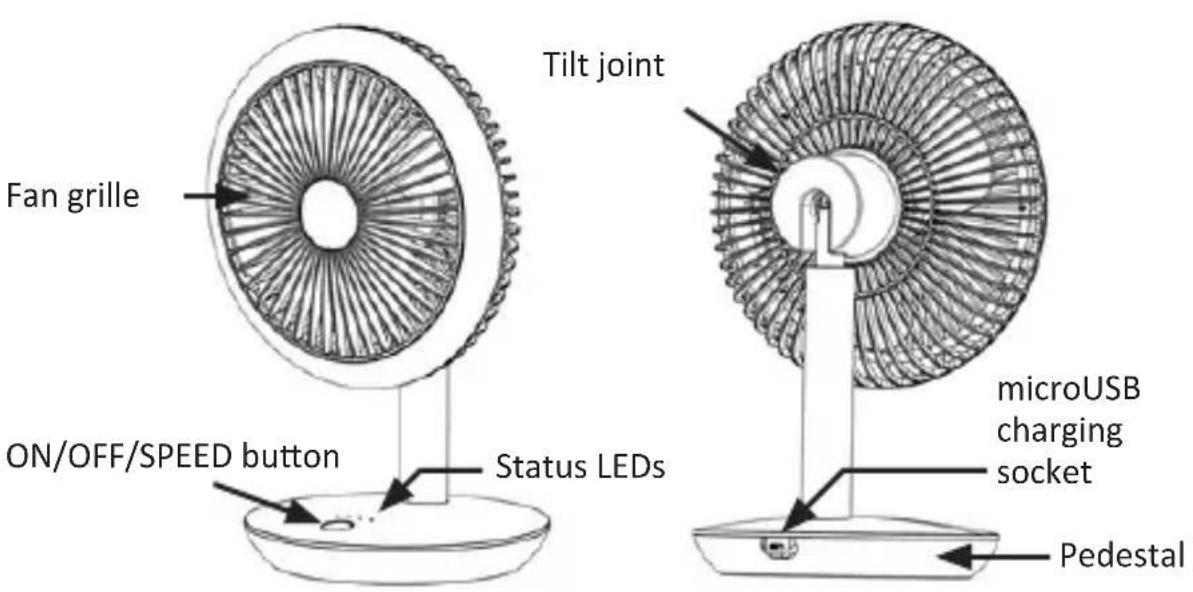

3. Product details

4. Initial start-up

Take the device and the accessories out of the packaging and remove any packaging material. Fully charge the device with the delivered microUSB cable. Make sure that you do not exceed the voltage indicated on the nameplate.

The charging process is indicated by LED 1 on the left side. LED 1 flashes until the unit is fully charged. When the unit is fully charged, the LED will light continuously.

Once the fan is fully charged, you can start to use it. Press the “ON/OFF/SPEED” button on the front of the device.

5. Operation

Switch on the device using the "ON/OFF/SPEED" button. By pressing the button again, you can switch the speed of the fan through. The following table shows the speed levels:

LED Funktion
LED 1 (far left) on Speed level 1
LED 1 + LED 2 on	Speed level 2
LED 1 + LED 2 + LED 3 on Speed level 3
LED 1-4 on Speed level 4

You can switch off the device by holding down the "ON/OFF/SPEED" button for approx. 3 seconds.

6. Cleaning and care

Before cleaning and care, make sure that the device is switched off. Use a soft damp cloth for cleaning. Do not use aggressive or chemical cleaning agents. After wiping the device, allow it to dry completely before using it again.

7. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

8. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

9. Instructions on the disposal of batteries

With regard to the sale of batteries or the supply of devices containing batteries, the supplier is obliged to draw the customer's attention to the following:

As the end user, the customer has a statutory obligation to return used batteries. He can return old batteries stocked or previously stocked by the supplier in the form of new batteries to the supplier's despatch warehouse (despatch address) free of charge. The symbols shown on the batteries have the following meanings: Pb = battery contains more than 0.004 percent by mass of lead, Cd = battery contains more than 0.002 percent by mass of cadmium, Hg = battery contains more than 0.0005 percent by mass of quicksilver.

The symbol of the rubbish bin with a cross through it indicates that the battery may not be put in household waste.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 303843/20190825SZ256 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
