Product Type	Self-balancing electric scooter (Balance Board)
Model	BCBB6522GD
Brand	Be Cool
Dimensions	590 x 194 x 178 mm
Weight	6.9 kg
Power Input	AC 100-240V, 50-60Hz
Motor Power	400W (2 x 200W)
Battery Type	Lithium-ion, 4.0 Ah
Charging Time	Approx. 3 hours
Range	Up to 15 km (optimized use)
Maximum Speed	12 km/h
Climbability	15° maximum incline
Weight Limit	30 kg to 100 kg
Wheels	6.5" solid rubber tyres
Age Recommendation	10 years and above (with restrictions)
Battery Indicator	Green (sufficient), Red (low, 15-20%), Red with alarm (empty)
Protective Functions	Tilt alarm (>10° tilt), speed alarm, low battery alarm, auto shut-off (15 sec at low battery, immediate at >35° tilt)
Calibration	Manual calibration available
Water Resistance	Water resistant, not waterproof; avoid rain and puddles
Included Items	Balance Board, charger, power cord, user manual
Storage Temperature	7-15°C recommended for battery
Operating Temperature	10-30°C (optimal)

Frequently Asked Questions - BCBB6522GD Be Cool

How do I charge the Be Cool BCBB6522GD Balance Board?

First, ensure the charging port is clean and dry. Plug the power cord into the charger and connect to mains (the charger light turns green). Then, with the board off, connect the charger to the board (light turns red). When fully charged after about 3 hours, the light turns green again. Disconnect both ends.

What is the maximum weight limit for this scooter?

The maximum weight limit is 100 kg, and the minimum is 30 kg. Exceeding these limits can cause instability and increase the risk of accidents.

How can I calibrate the balance board if it feels uneven?

Place the board on a flat, level surface. Press and hold the ON/OFF button until you hear a beep followed by a repeating warning sound. The board calibrates itself. Then press the button again to save the calibration.

What does the red battery indicator with alarm mean?

It means the battery is nearly empty and the board will shut down automatically. Stop riding immediately to avoid losing balance and falling. Charge the board as soon as possible.

Can I ride the balance board in the rain?

No, the board is water resistant but not waterproof. Riding in rain, on wet surfaces, or through puddles can damage the electronics and cause loss of control. Avoid all moisture.

How fast does the BCBB6522GD go?

The maximum speed is 12 km/h. The board has a speed alarm that activates if you exceed a safe speed. Always ride at a speed appropriate for your skill and environment.

What is the range of a full charge?

Under optimized conditions (smooth terrain, moderate weight, steady speed), the range can be up to 15 km. Factors like hills, heavy weight, and frequent acceleration reduce the range.

How should I clean the balance board?

Use a soft, damp cloth for basic cleaning. For stubborn dirt, use mild soapy water or plastic polish. Never use alcohol, benzene, or harsh chemicals. Ensure the board is off and unplugged before cleaning.

What should I do if the board tilts more than 10 degrees and the alarm sounds?

Reduce your speed immediately and check your posture. The tilt alarm indicates you are leaning too far forward or backward. If the board tilts more than 35 degrees, it will shut off suddenly. Always maintain a stable stance.

Is there a warranty for the BCBB6522GD?

Yes, the mechanical parts have a 2-year warranty (Austria only) and the battery has a 6-month warranty. Damage from improper use, water, or unauthorized repairs is not covered. Keep your purchase receipt and warranty certificate.

USER MANUAL BCBB6522GD Be Cool

Side-by-side line drawing of a person wearing a helmet and holding a device (no text or symbols)

BE COOL

AUFSTEIGEN

Two identical line drawings of a person in a dynamic pose, showing hand gestures and foot positions (no text or symbols)

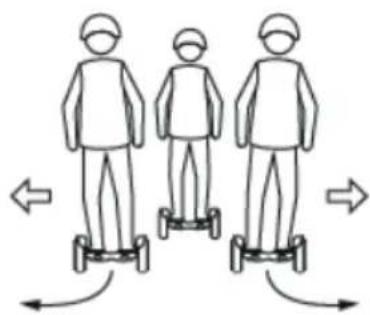

STEUERN

BE COOL

ABSTEIGEN

Side view of a black and white electric scooter with visible wheels and mode (no text or symbols)

8. TIPPS ZUM KORREKTEN FAHREN

Four sequential line drawings showing a person performing different actions: standing, swinging, rolling, and moving (no text or symbols)

BE COOL

Illustration of two figures in dynamic poses with circular wheels, one jumping and the other standing on a track (no text or symbols)

www.becool.at/downloads

The exclamation point within the triangle is intended to alert the user to the presence of important operating and/or maintenance (servicing) instructions in the literature accompanying the appliance. Please read the operating instructions carefully before using the device.

WARNING!

To reduce the risk of electric shock, do not remove the case of this unit. There are no parts inside that can be repaired by the user. Therefore, do not attempt to repair or service internal parts yourself. Refer repairs to qualified service personnel.

ATTTENTION!

- The Balance Board MUST NOT be used in traffic!

- Riding the Balance Board must not endanger or obstruct other road users.

BE COOL

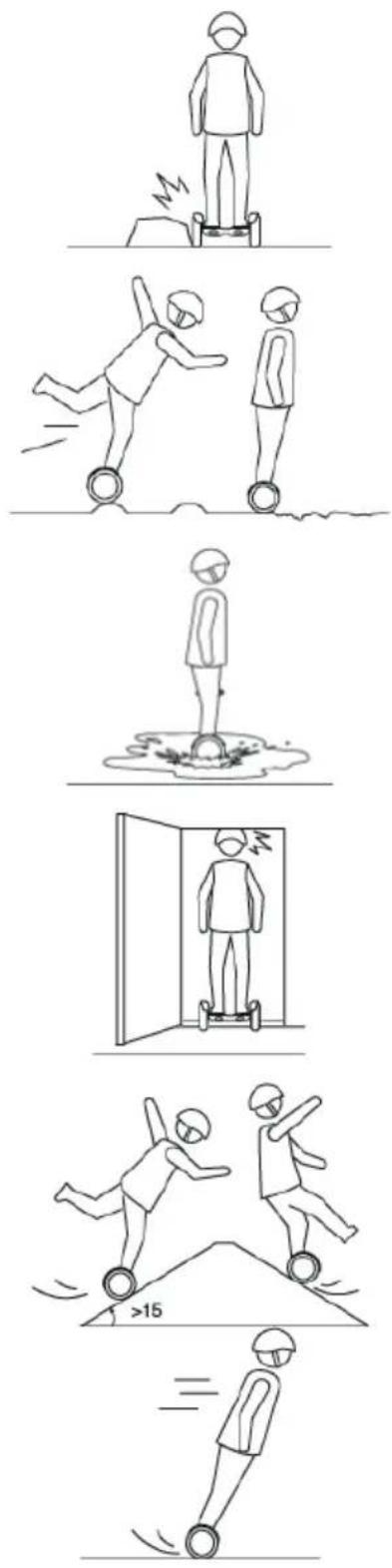

• Do not use for jumps or stunts!
• Do not use in wet, rainy or slippery conditions!
• Do not use under the influence of drugs or alcohol!
• Avoid paths with obstacles such as branches, rubbish or stones!
• Avoid steep inclines!
• Do not drive faster than recommended!
• Do not load the device more than permitted!

ATTENTION!

Persons with impaired vision, balance, coordination, reflexes, muscles or bones MUST NOT use this vehicle!

ATTENTION!

Children under the age of 10 are NOT allowed to use the device. Children from the age of 10 with a cycling licence and children up to the age of 12 accompanied by a supervisor who is at least 16 years old are allowed to use the Balance Board - however, detailed instructions on how to use the Balance Board in a safe manner must be provided beforehand, as well as a description of the existing dangers.

2. GENERAL SAFETY INSTRUCTIONS

1. Carefully remove the packaging and make sure that the Balance Board is not damaged.

BE COOL

1. Do not use the device if it shows visible signs of damage.

2. Do not open or modify the Balance Board, otherwise the manufacturer's warranty will be voided and malfunctions may occur that could result in serious physical injury - even death.

3. Only ride the Balance Board in places where riding is expressly permitted. Never use the Balance Board when you are overtired or unfocused. Always have presence of mind and recognize the dangerous situation early.

4. We recommend the wearing of qualified and according to own experience necessary protective clothing such as helmet, hand and knee protectors, etc. as in comparable sports.

5. Avoid sudden changes of direction - especially at high speeds.

6. Drive on sight and always be ready to brake.

7. Do not drive in bad weather such as snow, rain, hail, icy roads or in extreme heat - DANGER OF CRASHING!

8. Do not use the board in an ambient temperature above 50^ degrees and do not ride for too long in temperatures above 40^ degrees.

9. Do not drive near swimming pools or other large accumulations of water.

10. Do not ride the Balance Board near to other motor vehicles, public roads and streets.

11. Do not talk on the phone or text while driving. Drive attentively and be consciously aware of your surroundings: road conditions, people, objects, etc.

BE COOL

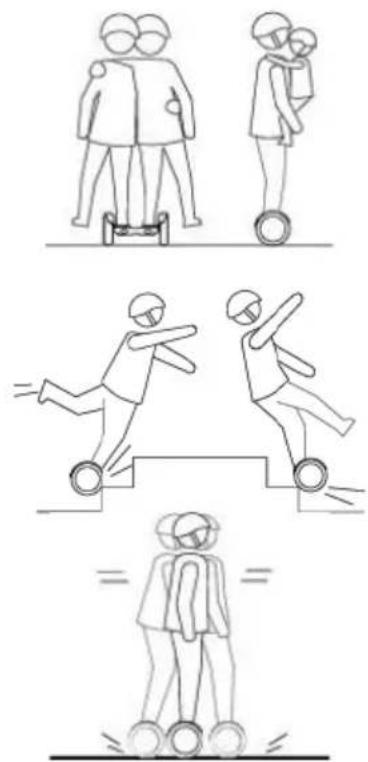

1. Do not ride the balance board in places where there are many people. Ride with extreme consideration and pay attention to people and objects around you.
2. Do not ride up and down steep hills ( >15^ ). For gentle hills and terrain with slight bumps, it helps to bend the knees slightly while riding to absorb shocks and vibrations. This will help you maintain balance on slight bumps up to a certain intensity.
3. Never attempt to ride with more than one person at a time. The Balance Board is only suitable for riding with a single person.
4. Do not transport any objects while driving.
5. Do not pick up the switched-on Balance Board from the floor, as a rotating wheel (despite automatic switch-off) could lead to injuries.
6. Do not ride the Balance Board during pregnancy.
7. Children and the elderly may only ride under the supervision of experienced and adult persons.
8. Never get on or off the balance board with a jump. Do not attempt any stunts or tricks with the balance board.
9. Never drive in the dark or in poorly lit areas.
10. Do not exceed or fall below the specified weight limit (weight restriction) of the Balance Board.
11. Avoid driving in dangerous places to prevent fire and explosion accidents caused by, for example: flammable gases, vapours, liquids, dust, fibres.
12. Follow all national and local laws that apply to your area regarding the use of your balance board.
13. Do not let anyone ride the Balance Board who is not familiar with its handling and has not read the manual. The same guidelines apply to every user.

BE COOL

1. Please check the Balance Board before each ride. If any parts are loose or damaged, or if there are any other abnormal operating conditions, the Balance Board must be put in order before it is operated.
2. However, there is always a risk of injury from a fall, collision or loss of control.
3. Also keep in mind that the motor or battery can be overloaded and cause „buckling“!
4. If unusual noises or an alarm from the vehicle occur while driving, stop driving immediately.

RIDING THE BALANCE BOARD IS AT YOUR OWN RISK AND RESPONSIBILITY.

NOT ALL HAZARDS THAT COULD LEAD TO INJURY OR EVEN DEATH CAN BE COVERED IN THIS MANUAL.

3. NOTE ON DEEP DISCHARGE

ATTENTION!: Note on deep discharge of the battery

The life and performance of a battery depends on its age, care and how often it has been used. Compared to other battery models, lithium-ion batteries have a very low self-discharge rate and therefore need to be charged periodically.

Even if you do not use your Balance Board, the battery must be charged for at least 2 hours every 2 months, otherwise it will lose capacity. Regular charging protects the battery from deep discharge.

Please note that a deeply discharged battery is irreparably damaged and must be replaced at the customer's expense. For this reason, the battery should never be completely discharged, even during operation!

BE COOL

4. RECYCLING, DISPOSAL AND DECLARATION OF CONFORMITY

	RECYCLINGThe packaging materials can be recycled. It is recommended that you dispose of them in separated waste.
	DISPOSALThe pictogram with the crossed out dustbin indicates that electrical and electronic appliances must be disposed of separately from household waste (WEEE). Electrical and electronic appliances can contain harmful and environmentally hazardous materials. Do not dispose of them in unsorted residual waste, but at a registered collection centre for waste electrical and electronic equipment. By doing so, you will help to conserve resources and protect the environment. For further information please consult your dealer or your local authorities. Directive 2012/19/EU
	DISPOSAL OF BATTERIESIn accordance with Legislative Decree no. 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and their associated waste, the symbol of the crossed-out dustbin shown on the battery indicates that it is prohibited to dispose of batteries in household waste. Batteries and accumulators contain environmentally hazardous substances. Users are obliged to dispose of used batteries at municipal collection centres or in collectors set up for the purpose. This service is free of charge. This ensures that the legal requirements are complied with and the environment is preserved.
	DECLARATION OF CONFORMITYWe hereby confirm that this article complies with the essential requirements, regulations and guidelines of the EU. The detailed declaration of conformity can be viewed at any time via following link:https://www.schuss-home.at/downloads

Errata and technical changes reserved.

BE COOL

5. SCOPE OF DELIVERY

• BE COOL Balance-Board
- Charger
- Separate power cord for the charger
- User manual

6. INTRODUCTION

The BE COOL Balance Board is an intelligent fun sports device.

This device is an intuitive, technologically advanced solution that enables locomotion with the help of a gyroscope and accelerometers, through weight transfer

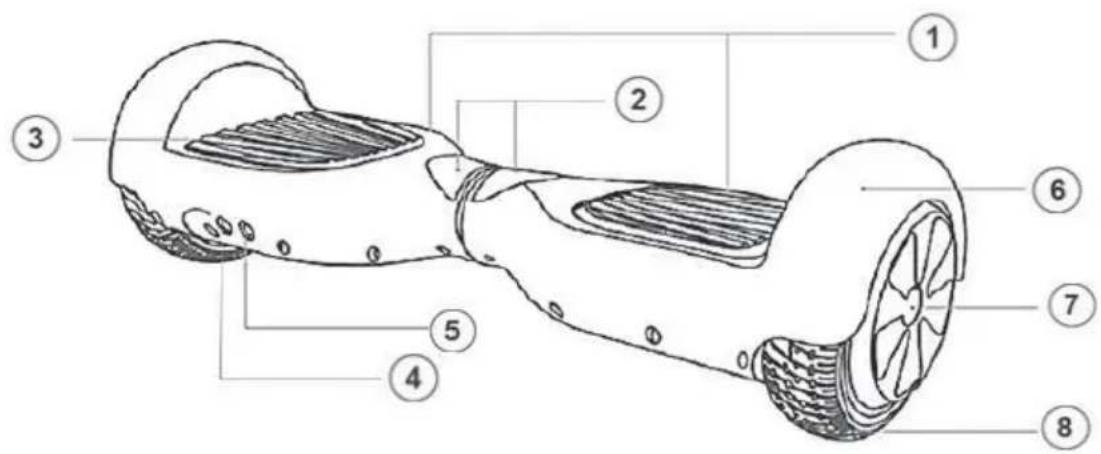

6.1. PRODUCT DISCRIPTION

1. LED lights (on front)
2. Battery indicator lights
3. Stands

4. ON/OFF switch

5. Charging socket

6. Mudguard
7. Wheels
8. Tyres

BE COOL

6.2 WEIGHT AND SPEED RESTRICTIONS

WARNING!

Please observe the weight and speed limits for your own safety.

Never exceed or fall below the limits specified in this manual.

Weight Limit:

Maximum weight: 100kg

Minimum weight: 30kg

Speed limit:

Maximum speed in conventional operation: 12 km/h

6.3 RANGE

Below are some factors that affect the range of the balance board.

The terrain: A smooth, flat surface will increase the range of the Balance Board, while a ride with incline and/or uneven surfaces will decrease the range.

The weight: The weight of the user affects the range. A person with a lower weight will achieve a higher range than a person with a higher weight.

Speed and riding style: Maintaining a moderate speed will have a positive effect on the Balance Board's range. Riding at high speed for an extended period of time, frequent starting, frequent stopping, frequent acceleration and deceleration, on the other hand, will reduce the range of the Balance Board.

NOTE!

Depending on the situation, the Balance Board can cover a distance of 15 km with a fully charged battery.

BE COOL

7. COMMISSIONING

7.1 CHARGING THE BATTERY

ATTENTION! Fully charge the device before using it for the first time.

WARNING!

Charge the device after each ride to prevent deep discharge.

Please note the following when charging the Balance Board:

• Make sure that the rated voltage of the Balance Board matches the local voltage ratings, otherwise the Balance Board may be damaged. (100V \~ 240V; 50-60Hz).
• Plug the power cord into the charger and connect it to the mains the → light on the charger will illuminate GREEN
• Before plugging the power cord into the Balance Board, make sure that the charging port on the bottom of the board is clean and, most importantly, dry, otherwise you may get an electric shock.
• While the unit is turned off, plug the power cord into the charger socket the → light on the charger will turn RED indicating that the Balance Board is charging.
• Once the battery is fully charged, the light on the charger will turn GREEN.
• Then disconnect both the plug from the Balance Board and the power supply.

NOTE!

The average charging time battery is about 3 hours depending on the discharge of the battery.

WARNING!

Avoid overcharging the battery, as it could overheat due to the permanent current charge and even explode in the worst case.

BE COOL

WARNING!

Charge the Balance Board only with the supplied charger and power cord.

7.2 TIPS FOR CORRECT BATTERY HANDLING

• Never remove the battery from the Balance Board.
• When you are not using the Balance Board, charge the battery for 2 hours at least every 2 months.
• It is best to store the battery at 7-15°C room temperature and in a dry environment, this reduces self-discharge.
• Never heat the battery or throw it into an open fire.
  • Never dispose of the battery cells in the household waste.
• Never allow the battery contacts to come into contact with moisture.
• The best operating temperatures for the battery are between 10-30°C. Above and also below this, the power output deteriorates, this leads to a reduced range.
• Please note that in hot weather conditions, do not store the Balance Board in a parked car for extended periods of time. The heat could endanger the battery and cause a fire.

7.3 BATTERY INDICATORS

Please pay attention to the display on the Balance Board which shows the battery status:

Battery indicator on the Balance Board will show green color as long as there is sufficient power on the battery to drive.

Battery indicator on the Balance Board will show red color when battery power is down (15-20% left) and you will you need to stop driving and start to recharge the Balance Board.

Battery indicator on the hoverboard will show RED and have WARNING ALARM SOUND when battery power has run out and you must stop driving immediately. The hoverboard will now shut down without further notice and the hoverboard will then loose balance.

BE COOL

WARNING!

As soon as the indicators light up red, stop driving immediately. The lack of electricity can lead to loss of balance and, as a result, accidents.

7.4 CALIBRATION

The Balance Board is delivered already correctly calibrated - however, it can happen that the Balance Board makes an asymmetrical impression after some time. The Balance Board then feels during the ride as if it does not implement the movement correctly.

This can be remedied by balancing the balance board as follows:

• Place the device flat on the floor and align it parallel to the floor.
• Press and hold the ON/OFF button until you hear a beep, followed by a repeating audible warning signal.
• The board now calibrates itself.
• Now switch off the instrument by pressing the ON/OFF button again to save the calibration.

7.5 PROTECTIVE FUNCTIONS

If a malfunction occurs during operation, the Balance Board will respond in a variety of ways, including stopping operation, alarm displays, and beeps.

These reactions and malfunctions can be the following:

• The alarm indicator lights up and a beep is heard:
- if the Balance Board is tilted more than 10 degrees forward or backward
• if you reach too high a speed
• when the battery level is too low

• The device switches off automatically after 15 seconds:

- when the battery is too weak and reaches a certain protection value

- The device switches off immediately:

• if the board is tilted more than 35 degrees forward or backward
- if the battery is excessively discharged for more than 15 seconds (such as during long uphill climbs)

BE COOL

WARNING!

As soon as the alarm indicator lights up or a signal tone sounds, we recommend:

• to reduce the speed
• to change the way of driving
- check the display of the battery

Do not ignore the alarm indicator or the beep, as the Balan-ce Board may automatically shut down due to the protective function, and the sudden and abrupt stop could lead to accidents.

8. RIDING WITH THE BALANCE BOARD

Please read the following instructions carefully before using the Balance Board:

PREPARATION

It is recommended that you take your first ride with a second person who can assist you with balancing.

You should also ensure that there is plenty of space and that there are no obstacles in the way.

CLOTHING

When riding, wear comfortable casual or athletic clothing and sturdy, closed-toe shoes with flat heels, as well as a hard hat and protectors on your knees and elbows.

GOING UP

Place the Balance Board on a straight and level floor, making

sure that the LED lights are facing forward.

Press the ON/OFF button on the back, both battery indicators will now light up green.

Side-view illustration of a person wearing a helmet and holding a device (no text or symbols)

Simple line drawing of two people shaking hands with a ball (no text or symbols)

BE COOL

Stand behind the balance board and ask your helper to stand in front of it.

First, step onto the surface with your strong foot and adjust the balance board so that you can easily step onto it with your other foot. As soon as you place a foot on the stand surface, the respec- tive LED light illuminates.

Make sure your feet are positioned correctly right when you climb on and avoid climbing unevenly on the balance board, as it can cause you to lose control and increase the risk of injury.

DRIVE

FORWARD RIDING: Shift your weight forward.

RIDING BACKWARD: Shift your weight backward.

RIGHT RIDE: Shift your left foot forward.

RIDING LEFT: Shift your right foot forward.

Line drawing of two people shaking hands, one standing and one kneeling (no text or symbols)

Three human figures standing on a platform with directional arrows indicating movement or posture (no text or symbols)

Three human figures standing on a scooter with directional arrows indicating motion (no text or symbols)

Side view of a black and white electric vehicle (no visible text or symbols)

GET OFF

Before you get off the Balance Board, bring it to a complete stop. Always descend to the rear. Quickly remove one foot from the balance board and make sure it is firmly planted on the floor. Do not shift your weight to the foot that is still on the balance board as you may lose control. Then you can take the second foot off the balance board.

BE COOL

9. TIPS FOR CORRECT DRIVING

Avoid collisions of any kind to prevent falls and injuries.

Adjust the speed to your riding ability. The initial speed should be max. between 3-5km/h. If it cannot be avoided and you have to drive over an obstacle, bend your knees when driving over it so that you do not lose your balance in the run-off zone.

The Balance Board is water resistant but not waterproof - so avoid riding through puddles, on wet surfaces or in the rain.

When driving through obstacles, be careful not to hit your head.

When driving through doors, make sure that the Balance Board is not wider than the door. Also pay attention to door thresholds and the height of the door frame to avoid collisions.

Avoid driving on inclines or declines of more than 15^ , as the Balance Board could otherwise lose stability.

Avoid heavy acceleration or braking.

BE COOL

The operation by 2 persons or the transport of passengers is prohibited.

Avoid driving over steps or stairs.

Abrupt pendulum movements are prohibited.

Illustration of three sequential motion sequences showing a person pushing a speed skater on a platform, with no text or symbols present.

10. CARE AND MAINTENANCE

Cleaning

Only use a soft and damp cloth for basic cleaning of the Balance Board.

Dirt that cannot be removed in this way can be removed with a plastic polish or warm soapy water.

Never use alcohol, benzene, acetone or other corrosive and volatile chemical solvents that attack the plastic surface. These substances can damage the appearance and the outer structure. Never clean the Balance Board with a strong water jet or high- pressure cleaner.

Make sure that the Balance Board is turned off and the charging cable is unplugged before you start cleaning, otherwise you risk electric shock or damage to the Balance Board.

Storage

Store the Balance Board in a dry and cool place.

Do not store outdoors.

BE COOL

Exposing the Balance Board to sun, hot or cold environment will especially accelerate the aging of the plastic surfaces and reduce the battery life.

Battery

A well-maintained battery can continue to perform well even after many miles. Charge the battery after each ride and avoid driving the battery „empty“. Please note that the performance of the battery continuously decreases at low or very high temperatures.

If the battery is deeply discharged, the cells are irreparably damaged.

Damage caused by incorrect handling is not covered by the warranty.

Removing or opening the battery is prohibited.

BE COOL

1. TECHNICAL INFORMATION

Item number	BCBB6522RB; BCBB6522GD; BCBB6522CB
Engine power	400W (2x200W)
Akku	4,0 Ah
Optimum operating temperature	10 – 30°C
Climbability	15°
Maximum speed	12 km/h
Range with optimized use	15 km
Input	AC 100-240V/50-60Hz
Tyres	6,5", Solid rubber tyres
Dimensions	590 x 194 x 178 mm
Weight	6,9 kg
Contact address for further information:	Schuss Home Electronic GmbH Scheringgasse 3 A-1140 Vienna Tel: [phone] – 544 www.becool.at FB-No: 236974 t / FB-Court: Vienna
Service Line:	DEC – Digital Electronic Center Service GmbH Kelsenstraße 2 1030 Vienna Tel. [phone] Email: [e-mail]

BE COOL

WARRANTY

With this quality product from BE COOL you have made a decision for innovation, durability and reliability.

We grant the following warranty periods for this BE COOL device: On mechanical parts → 2 years from date of purchase valid in Austria! On the battery → 6 months from date of purchase valid in Austria!

If, contrary to expectations, service work should nevertheless be necessary on your device during this period, we hereby guarantee to repair it free of charge (spare parts and working time) or (at the discretion of Schuss) to exchange the product. Should neither repair nor exchange be possible for economic reasons, we reserve the right to issue a current value credit note.

Please contact your specialist dealer or us directly for this purpose. We would like to point out that repair work which has not been carried out by our authorised workshops in Austria will immediately terminate the validity of this warranty.

This warranty does not cover:

• In the case of improper use, we do not accept any liability for consequential damage Repair or replacement of parts due to normal wear and tear
• Damage due to non-observance of the operating instructions
- Water damage
• Equipment that is used - even only partially - for commercial purposes
• Equipment mechanically damaged by external influence (fall, impact, breakage, improper use, etc.) as well as wear and tear of an aesthetic nature.
• Devices that have been improperly handled
• Damage caused by force majeure, water, lightning, overvoltage.
• Devices where the type designation and/or serial number on the device has been changed, deleted, made illegible or removed.
• Services outside our authorised workshops, the transport costs to an authorised workshop or to us and back, as well as the associated risks.
• Compatibility issues with other devices, even if they are from the vendor.

We expressly point out that within the warranty period, a lump sum of € 60,- (indexed basis CPI 2015, June 2020) will be charged in case of operating errors or if no error was detected.

The provision of warranty service (repair or replacement of the device) does not extend the absolute warranty period of 2 years from the date of purchase.

The 2-year warranty is only valid on presentation of the purchase receipt (must contain the name and address of the dealer as well as the complete device designation) and the associated warranty certificate, on which the device type and serial number must be noted! Without presentation of the warranty certificate, only the statutory warranty applies! We expressly point out that the statutory warranty rights are not affected by this guarantee and continue to apply undiminished.

Schuss Home Electronic GmbH and its vicarious agents shall only be liable for damages in the event of gross negligence or intent. In any case, liability for lost profit, expected but not occurred savings, consequential damages and damages from third party claims is excluded. Damages to or for recorded data are always excluded from the liability for damages.

Congratulations on your choice. We wish you much pleasure with your BE COOL device!

ANSCHRIFT

BE COOL Vertrieb

Schuss Home Electronic GmbH

Scheringgasse 3, 1140 Wien
