0070-24127-F-W - Monitor Ernitec - Free user manual and instructions

Product Type	27\" Surveillance Monitor
Model	0070-24127-F-W
Display Size	27 inches (diagonal)
Resolution	1920 x 1080 (Full HD)
Aspect Ratio	16:9
Input Connectivity	HDMI, DisplayPort, DC 12V power
Power Supply	DC 12V (external adapter included)
Power Consumption	Typically < 30W (estimated)
On-Screen Display (OSD)	Color, Advance, Input, Audio, Other, Information menus
Audio	Built-in speakers with volume control
Controls	Power, Menu, Auto, Volume +/-
VESA Mount Compatible	Yes (standard VESA pattern, estimated 100x100mm)
Safety Features	Overload protection, polarized plug, grounding
Operating Conditions	Indoor use only; avoid moisture, heat sources
Cleaning	Soft dry cloth for screen; dry cloth for cabinet
Accessories Included	User manual, power supply
Warranty	Standard manufacturer warranty (contact dealer)
Certifications	WEEE compliant; RoHS (estimated)
Weight	Approximately 5-7 kg (estimated)
Dimensions (W x H x D)	Approximately 620 x 370 x 50 mm (without stand, estimated)
Disposal	Do not dispose with household waste; follow local WEEE regulations

Frequently Asked Questions - 0070-24127-F-W Ernitec

What should I do if there is no picture?

Check all cable connections, ensure the monitor is powered on by pressing the POWER button, and verify the picture contrast/brightness settings.

Why is there no sound from the speakers?

Increase the volume using the +/- buttons, check if the audio cables are properly connected, or try a different input source to isolate the issue.

How do I clean the monitor screen?

Turn off and unplug the monitor. Wipe the screen gently with a soft, damp, lint-free cloth. Allow to dry completely before reconnecting power. Do not use abrasive cleaners.

The power turns off suddenly. What could be the cause?

Check if the sleep timer is set, inspect power control settings, ensure the power cord is secure, and verify that the outlet is not overloaded.

How can I adjust the display settings?

Press the MENU button to open the OSD. Use AUTO to select input, +/- to navigate and adjust, and MENU to exit. The OSD includes Color, Advance, Input, Audio, Other, and Information menus.

What input options does this monitor support?

It supports HDMI and DisplayPort video inputs. Power is supplied via DC 12V.

Is the monitor VESA mount compatible?

Yes, it is expected to support a standard VESA mount (likely 100x100mm). Consult the manual or manufacturer for exact specifications.

What should I do if I see small colored dots on the screen?

Minute red, green, or blue spots are normal for LCD panels and do not affect performance. If the issue is severe, contact Ernitec support.

How should I dispose of this monitor?

Do not throw it in household trash. Follow local WEEE regulations and take it to a designated collection point for recycling.

What is the recommended storage condition if not used for a long time?

Disconnect the power cable and store the monitor in a cool, dry place away from direct sunlight and moisture.

USER MANUAL 0070-24127-F-W Ernitec

27 " Surveillance Monitor 24/7

User Manual

• Please read this manual carefully before operating your set.
• Retain it for future reference.
• Record model number and serial number of the set.
  • See the label attached on the back cover and quote this information to your dealer when you require service.

Table of contents ...... 1

Warning 2

Safety instructions .... 3

1. Introduction ...... 5

1.1 Controls 5

1.2 Accessories 5

1.3 Connection Options....6

2. Basic OSD setup ..... 7

2.1 Color Settings Menu....7

2.2 Advance Menu....8

2.3 Input Menu....8

2.4 Audio Menu....9

2.5 Other Menu....9

2.6 Information Menu.... 10

3. Trouble shooting....11

1. Maintenance....12

WEEE/DEEE/RAEE info.... 13

Notes (Record your important notes here)....14

WARNING

RISK OF ELECTRIC SHOCK DONOT OPEN

CAUTION

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER(OR BACK). NO UESR SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions accompanying the appliance.

REGULATORY INFORMATION

This equipment generates, and can radiate electromagnetic emissions (energy). If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications however, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or experienced radio/monitor technician for help.

CAUTION:

Do not attempt to modify this product in any way without written authorization from Ernitec Technical Support. Unauthorized modification could void the user's Warranty and in worst case be dangerous to persons, animals and property.

Safety instructions

WARNING:

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Apparatus shall not be exposed to dripping or splashing area. Objects filled with liquids such as vases shall not be placed on the apparatus.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions.
   3.Heed all warnings.
   4.Follow all instructions.

8.Do not install near any heat source

such as radiators,hea registers, stoves, or other apparatus (including amplifiers) that produce heat.

1. Do not use this apparatus near water.

1. Unplug this apparatus during lightning storms or when unused for

long period of time.

1. Clean only with a dry cloth.

1. Protect the power cord from being walked on or pinched particularly at

plugs, convenience receptacles, and the point where they exit from the apparatus.

1. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.

1. Only use the attachments/accessories specified by the manufacturer.

2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

1. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, be cautious when moving the cart\apparatus combination to avoid injury from tip-over.

1. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit for your outlet, consult an electrician for replacement of the obsolete outlet.

Note

-If the CCTV monitor feel cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with CCTV monitor.
- Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However there have no adverse effect on the monitor's performance.
-Avoid touching the LED screen or holding your finger(s) against it for long periods of time. In that case, it may produce some temporary distortion effect on the screen.

CAUTION connecting the Power Cord

Most appliances are suggested to be placed upon a dedicated circuit; that is a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits.

Do not overload wall outlets! Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and its if appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer. Protect the power cord from physical or mechanical abuse, such as being wisted, kinked, pinched, closed in a door, or walded upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

On Disposal

-The fluorescent lamp used in this product contain a small amount of mercury.
-Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of your local authority.

1. Introduction

1.1 Controls

-Simplified control panel
-Here show may be some what different from your monitor.

ITEM	BUTTON NAME	FUNCTION DESCRIPTION
1	AUTO	Press to select the input source and make menu selections.
2	-	Lower audio volume.
3	+	Increase audio volume.
4	MENU	Press to enter and exit the monitor's configuration menu.
5	POWER	Press to turn the monitor on and off.

1.2 Accessories

The following accessories are included with the monitor:

User's Manual

Power Supply

1.3 Connection Options

ITEM	NAME	DESCRIPTION
1	DC 12V	POWER SUPPLY INPUT
2	HDMI	HDMI VIDEO INPUT
3	DP	DP VIDEO INPUT

2. Basic OSD setup

Button OSD Function:

● "Power": Turn on/off Device
● “Menu” : (1) Open Menu OSD (2) Come back last Menu
● "AUTO": select the input source
● “+”: (1) Confirm Menu Selection (2) Adjust Option “1-100” Selection
● “-”: (1) Adjust Menu Selection (2) Adjust Selection

2.1 OSD "Color" Menu

2.2 OSD "Advance" Menu

2.3 OSD "Input" Menu

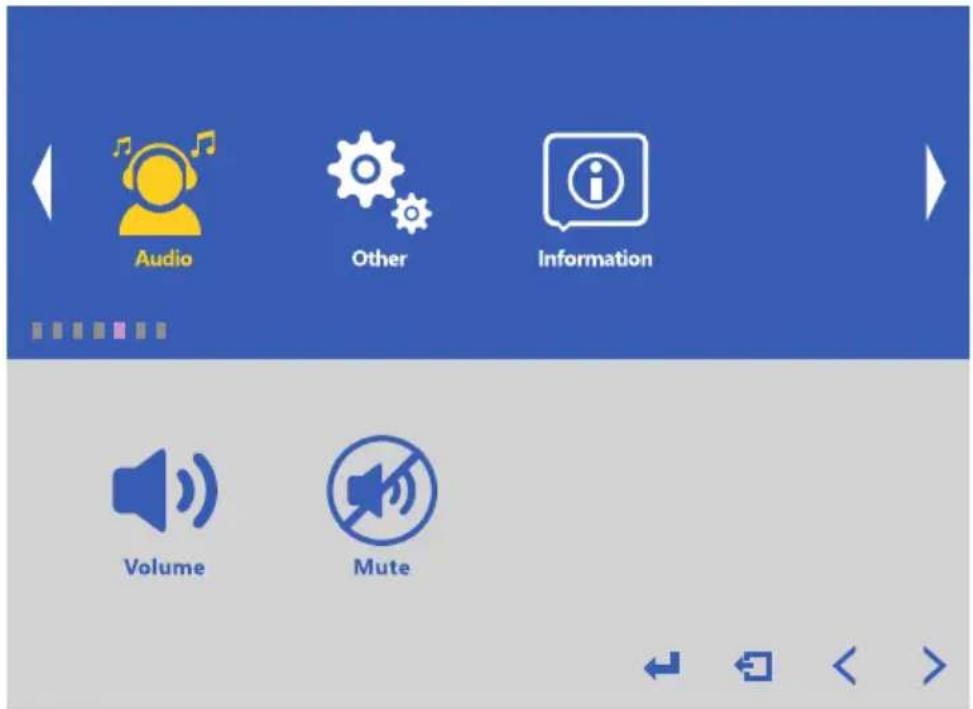

2.4 OSD "Audio" Menu

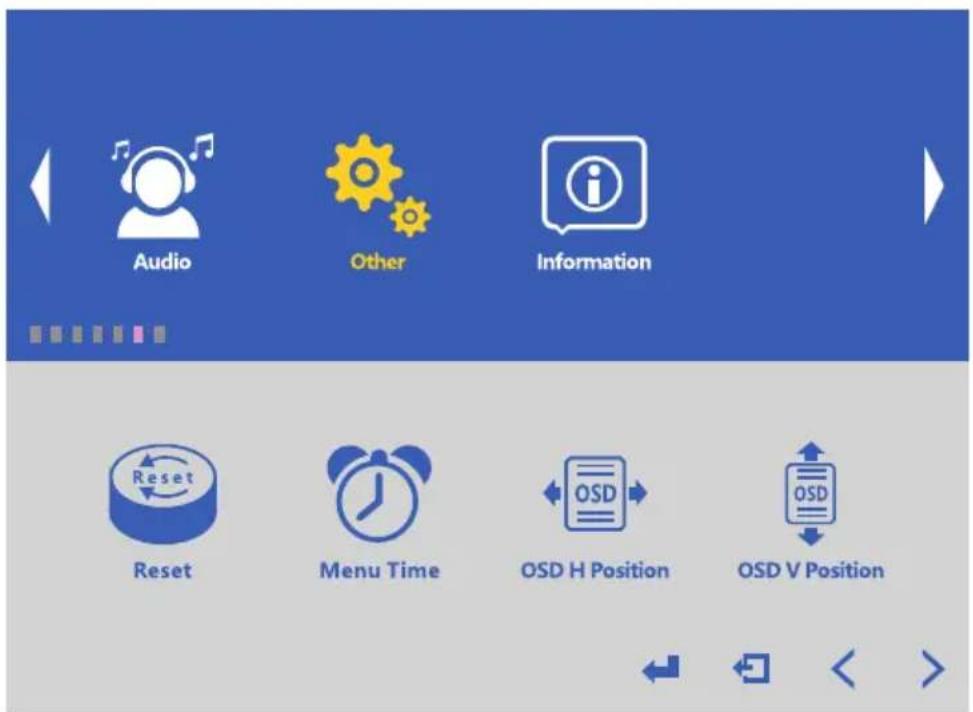

2.5 OSD "Other" Menu

2.6 OSD "Information" Menu

3. Trouble shooting

If any problems or issues with the monitor please consult below possible solutions before contacting the Ernitec Technical Support.

PROBLEM	POSSIBLE SOLUTION
No sound; picture	-Check all cables are connected correctly.-Check that you have pressed the POWER button on the front of monitor set.-Check the picture contrast and broughtness settings.
Normal picture but no sound	-Check the volume.-Try another channel the problem may be with the broadcast.-Are the audio cables installed properly.
The remote control does not work	-Check go see if there any object between the product and remote control-Are batteries installed with correct poalrity(+to+,-to-).-Install new batteries.
Power is suddenly turned off	-Is the sleep timer set.-Check the power control settings.Power interrupted.-No broadcast on station tuned with auto activated.
Picture appears slowly after switching on	-This is normal,the image is muted during the product startup process.Please contact Ernitec Support, if the picture has not appeared after five minutes.
No or poor color or poor picture	-Adjust the color in menu option.-Keep a sufficient distance between the product and the VCR.-Try another channel,the problem may be with the broadcast.-Are the VIDEO cables installed properly?
Horizontal/vertical bars or picture shaking	-Check for local interference such as an electrical appliance or power tool.
No output from one of the speakers	-Adjust balance in menu option.

4. Maintenance

Early malfunctions can be prevented by maintaining the monitor.

Careful and regular cleaning can extend the lifetime. Be sure to turn of the power and unplug the power cord before maintaining or cleaning the monitor

Cleaning the screen

Wipe the screen with a soft, damp, lint-free cloth. Allow the screen to dry before connecting the power cable and turning on the monitor.

Do not use abrasive cleaners.

Cleaning the cabinet

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth. Please be sure not to use a wet cloth. Do not use abrasive cleaners.

Extended Storage

If you expect not to use your monitor for extended periods of time be sure to disconnect the monitor's power cable.

Important WEEE information

This symbol on the product and /or accompanying documents indicates that, under Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), product(s) used electrical and electronic equipment (WEEE) should not be mixed with general household waste.

For proper treatment, recovery, and recycling, please take this product to designated collection points where it will be accepted free of charge.

Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.

Please contact your local authority or for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation.

For professional users in the European Union If you wish to discard electrical and electronic equipment (WEEE), please contact your dealer or supplier for further information.
