Product Type	LED Television
Screen Size	32 inches (81 cm diagonal)
Display Resolution	1366 x 768 pixels (HD Ready)
Refresh Rate	60 Hz
Smart TV	No (basic TV)
Dimensions (with stand)	730 x 475 x 180 mm (approx.)
Weight (with stand)	5.5 kg (approx.)
Power Consumption (max)	60 W
Standby Power	< 0.5 W
Input Voltage	100-240 V AC, 50/60 Hz
Connectivity	HDMI x2, USB x1, VGA, RF, AV, Headphone
Tuner	DVB-T2, DVB-C
Cleaning Instructions	Disconnect power; use soft dry cloth; avoid liquids
Safety Precautions	Stable placement; avoid heat/moisture; ventilation
Spare Parts Availability	Contact Allview support for remote, stand, power cord
Manual Language	English (PDF available)

Frequently Asked Questions - 32ATC6000-H Allview

How do I connect external devices like a game console?

Use the HDMI ports on the back or side of the TV. Press the Source button on the remote to select the correct input.

Why is there no picture but sound is working?

Check if the screen is set to a blank input or the brightness is set to minimum. Try pressing the Menu button and adjusting backlight or resetting picture settings.

How can I improve the picture quality?

Access the Picture menu via the remote. Adjust brightness, contrast, sharpness, and color temperature. For HD sources, ensure the input resolution matches the TV's native 1366x768.

Can I mount this TV on a wall?

Yes, the TV is VESA compatible (200x200 mm). Use a standard wall mount kit. Ensure the wall is sturdy and follow the instructions carefully.

How do I reset the TV to factory settings?

Go to Settings > System > Reset or Factory Default. Confirm the action. All settings will be cleared.

What should I do if the remote control stops working?

First, replace the batteries (AAA). Check for obstructions between remote and TV. If still not working, try using the buttons on the TV itself. You may need to pair a new remote.

How do I scan for TV channels?

Press Menu, go to Channel or Installation, select Auto Scan. Choose Antenna or Cable depending on your signal source.

Is this TV suitable for use with a PC?

Yes, connect via VGA or HDMI. Use the TV as a monitor. Set PC output to 1366x768 for best results.

How do I clean the screen safely?

Turn off and unplug the TV. Use a microfiber cloth slightly dampened with water. Wipe gently in circular motions. Never spray liquid directly on the screen.

Where can I download the full manual?

Visit the Allview or notice-facile.com website. Search for 32ATC6000-H and download the free PDF manual in your preferred language.

USER MANUAL 32ATC6000-H Allview

The lightning flash and arrow head within the triangle is a warning sign alerting you of "dangerous voltage" that can cause electric shocks.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within the triangle is a warning sign alerting you of important instructions accompanying the product.

WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR SERIOUS PERSONAL INJU

order to avoid any hazard, if the cord is damaged, it must be repaired by the manufacturer, the thorized service unit or qualified personnel.

• The cord should always be easily accessible.
• In order to prevent fires, electric shocks or injuries, DO NOT INSERT THE POWER CABLE, THE SOCKET OR THE DEVICE in water or other liquids and do not place objects with water on the surface of the device.

- Do not block the ventilation holes, in order to avoid overheating the device.

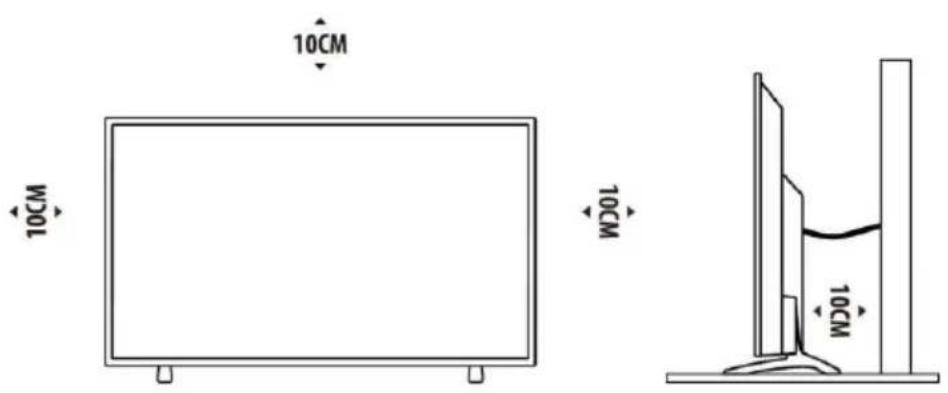

- The product must be used only in a vertical position and, for ventilation, leave at least 10cm of free space around the device.

● Naked flame sources, such as candles, should not be placed near the device.

● The device is intended for use only in a temperate climate.

- Do not place the product on/near radiators, heat registers, stoves, or any other hot surfaces.

- Clean the product only as recommended by the manufacturer (see "Maintenance" section from the user guide). Unplug the power plug from the wall outlet before cleaning.

● Unplug the power plug from the wall outlet if it is unused for an extended period.

- Do not spill liquids and do not insert objects in the device.

- Operate the product only with the supplied power cord. Place power cords so they are not walked on or pinched by items placed upon or against them, paying particular attention to plugs, convenience receptacles, and the point where the power cord exits the product.

- If you're using a network connector or an extension cord to disconnect the device, the disconnecting device shall have easy access.

- Do not operate this product under the following conditions:

• When the power-supply cord or plug is damaged.
• If liquid has been spilled or objects have been inserted into the product.
• If the product has been exposed to rain or water.
• If the product does not operate properly or it is not used according to the instructions.
• If the product has been dropped or damaged in any way.

- Do not attempt to repair the product. Any intervention on the device must be made by the authorized service unit.

- Do not overload wall outlets or the extension cords.

- Connect this product to a power outlet which has grounding.

CAUTION - TO REDUCE THE RISK OR PERSONAL INJURY OR PRODUCT DAMAGE:

- This product is intended solely for non-commercial, non-industrial use as a television. Do not use this product for any other purpose.

- Do not subject the product to violent shocks, extreme temperatures, or lengthy periods of direct sunlight exposure.

- Keep the product away from magnetic objects, engines and transformers.

- Do not use outdoors, in bad weather.

- Do not use the TV while driving. It is dangerous and illegal in some areas.

BATTERY HANDLING AND USAGE:

• CAUTION: Danger of explosion if the batteries are incorrectly placed or not replaced by the same type or equivalent.
  ● The batteries should not be exposed to excessive heat such as sunshine, fire or a similar source.
  ● Different types of batteries, new and used batteries, should not be mixed.
  ● The batteries must be installed according to the polarity.
• If the battery is worn, it must be removed from the product.
• The battery must be safely disposed. Always use the collection bins provided (check with your provider) to protect the environment.
• Keep batteries away from children and pets. Only adults should handle batteries.
• Follow the battery safety and usage instructions.

INSTRUCTIONS REGARDING RECYCLING

According to the European Directive 2002/96/EC on electrical and electronic waste exploitation (WEEE) and to Directive 2008/112/CE of the European Parliament and Council from December 16, 2008, the old household electrical appliances must not be disposed of in the normal municipal solid waste stream.

Old appliances must be collected separately in order to optimize the recovery and recycling rhythm for their components, and in order to prevent the possible negative impact on human health and the environment. The crossed out “wheeled bin” symbol should be on all products of this type in order to remind the people that they have the obligation to contact the local authorities or the selling points and ask for information regarding the adequate places of disposal of old electrical appliances.

To avoid possible hearing damage, do not listen at high audio volume for long periods of time.

NOTE: This user guide contains only general instructions. For detailed instructions, please access https://www.allviewmobile.com/index.php/products/tv.html. If there are differences, the online manual will be taken into consideration.

CHARACTERISTICS

32" LED DISPLAY

Hotel mode, auto TV scanning, digital broadcasting reception

TV guide function, TELETEXT function (Europe)

USB multimedia playback, multi-language on screen display, complete control from remote

HDMI, AV and CI Card inputs

COAXIAL output

Recording function, TIME SHIFT function

Detachable stand holder

External antenna jack

Built-in speakers

Front View

Bottom View

Technical line drawing of a server rack with front and side views (no text or symbols)

Back View

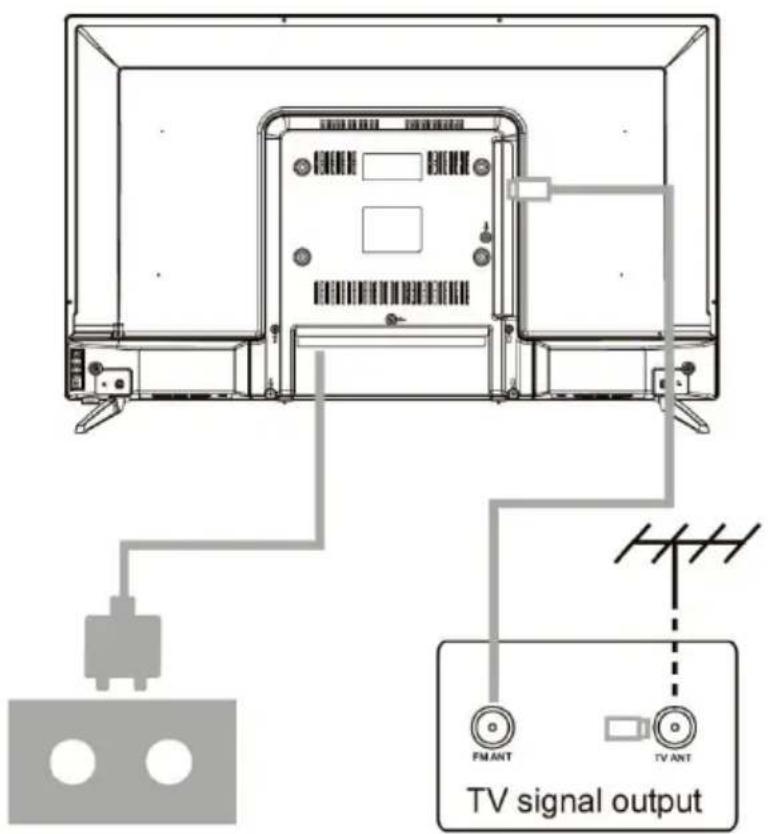

BASIC CONNECTIONS

• Ensure all the cables are connected to the main unit before connecting it to a socket.
  ● Make sure all the equipment and power plugs are properly connected and the unit is set in a correct mode before any kind of operation.
  ● Carefully read the instructions before connecting the device to other equipment.

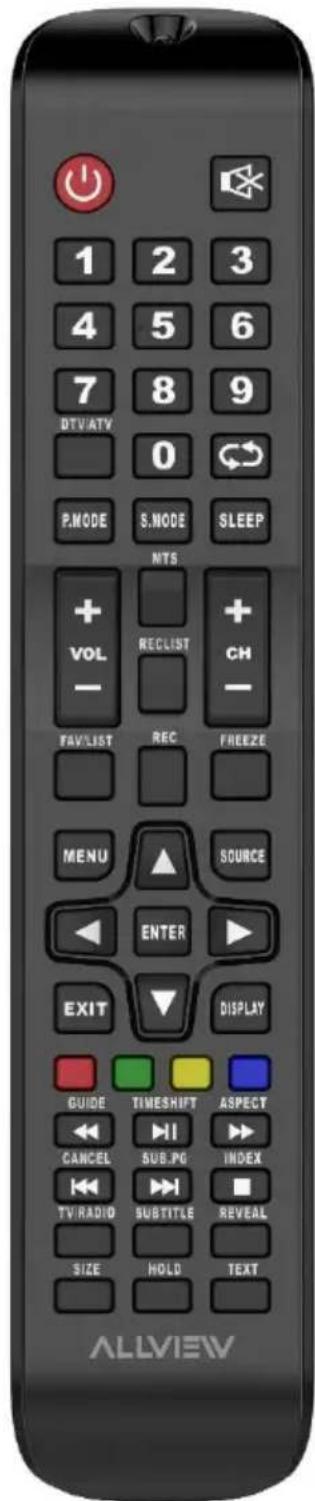

BASIC OPERATIONS

- Press the POWER button on the unit or remote control to power ON the unit; press it again to power OFF (standby mode) the unit (indicator will glow red).

- Press the SOURCE button on the remote control to set the unit in DTV or ATV mode.

- Certain actions require inserting a password (8888 - default)

VOLUME CONTROL, MUTE CONTROL

SOURCE SETTING, MULTI-AUDIO SETTING

INFORMATION DISPLAY

TV GUIDE (FOR DTV MODE ONLY), FAVORITE LIST

QUICK SELECT, TELETEXT

TV/RADIO (FOR DTV MODE ONLY)

SUBTITLE

RECORDER (FOR DTV MODE ONLY)

TIME SHIFT (FOR DTV MODE ONLY)

MEDIA PLAYBACK (Photos, Music, Movies, e-Book)

NOTE: To play your multimedia files, make sure you have selected the correct icon in the main menu of MEDIA PLAYBACK. That means that you can only play photo files in PHOTO item, music files in MUSIC item and so on.

MAINTENANCE

• Be sure to press the POWER button to set the TV in standby mode and disconnect the power plug before cleaning the TV.
  ● Never use alcohol, benzene, thinner, cleaning fluid or other chemicals. Do not use compressed air to remove dust.
• Wipe the TV with a dry, soft cloth. The scratches present on the display are not subject to the warranty certificate.

WALL MOUNTING

• Contact a professional for assistance when wall mounting your TV. We are not responsible for any damage to the product or injury to yourself, if you mount the TV on your own.
• Do not wall mount the TV while TV is turned on. It may cause personal injury due to electric shock.

STAND INSTALLATION

Your TV may be packed with the stand separately. Before using this TV, please carry out the stand installation according to the detailed instructions from the online user guide.

EU DECLARATION OF CONFORMITY

No. 1661

We, S.C. Visual Fan S.A., with the headquarters in Brasov, 61, Brazilor St., CP 500313 Romania, registered at the Trade Commerce Brasov under no. J08/818/2002, CUI RO14724950, as the manufacturer, assure, guarantee and declare on our own responsibility, according to the provisions from article 4 HG no. 325/2017, regarding the regime of the products and services, which can be harmful for life and health, that the product 32ATC6000-H from ALLVIEW, does not jeopardize the life, health and labor protection, does not produce a negative impact over the environment and is in accordance with:

- Directive no. 2011/65/UE, modified by 2014/8/UE regarding the usage restrictions of certain dangerous substances in electric and electronic equipment

- Directive regarding the radio equipment RED 2014/53/EU (HG 740/2016)

- Directive 2014/35/UE regarding the assurance of users of low voltage equipment

- Directive regarding the electromagnetic compatibility EMC 2014/30/EU (HG 487/2016)

- The safety requests of the European Directive 2001/95/EC and the EN 60065:2002/A12:2011 and EN 60950-1:2006/A1:2010/A11:2009/A12:2011 standards, regarding the level of decibels emitted by the sold appliances.

The product has been assessed according to the following standards:

- Health and safety: EN 62368-1:2014/A11:2017; EN 50360:2017; EN 50566:2017; EN 62209-1:2016; EN 50663:2017; EN 61000-4-3: 2006; EN 60065: 2014+A11: 2017

- EMC EN 301 489-1 V1; EN 301 489-17 V3.2.2; EN 301 489-19 V2.1.1; EN 301 489-17 V3.; EN 55032:2015; EN 55035:2017; EN 62479: 2010; EN 303 340 V1.1.2 (2016-09); EN 301 489-3 V2.1.1 (2017-03)

- Radio spectrum: EN 301 489-3/2017; EN 301 489-1; EN 301 908-2 V11.1.2; EN 303 413 V1.1.1; EN 303 345-1 V1.1.1; EN 55032: 2015; EN 61000-4-3: 2006:2006; EN 61000-4-4:2006

The evaluation procedure of the conformity was made according to Directive 2014/53/EU, the documentation being stored at S.C. Visual Fan S.A., Brasov, 61, Brazilor St., CP 500313, Romania and will be offered at request.

The product has the CE mark on it. The declaration of conformity is available at www.allviewmobile.com.

Brasov

03.12.2021

Director

COTUNA GHEORGHE

INSTRUCTIUNI DE BAZA

Technical line drawing of a server rack with front panel and rear connectors (no text or symbols)

Vedere din spate

CONEXIUNI DE BAZA

Technical line drawing of a server rack with ventilation ducts and control panel (no text or symbols)

Vaade tagant

14EE

PEAMISED ÜHENDUSED

TV/RAADIO (AINULT DTV)

SUBTIITRID

SALVESTAJA (AINULT DTV)

AJANIHE (AINULT DTV)

Technical line drawing of a server rack with front panel and control panel (no text or symbols)

Galinis vaizdas

PAGRINDINÈS JUNGTYS

Technical line drawing of a server rack with front and rear ports (no text or symbols)

Aizmugurējais skats

29LV

PAMATSAVIENOJUMI

Technical line drawing of a server rack with ventilation slots and control panel (no text or symbols)

Widok z tyłu

34PL

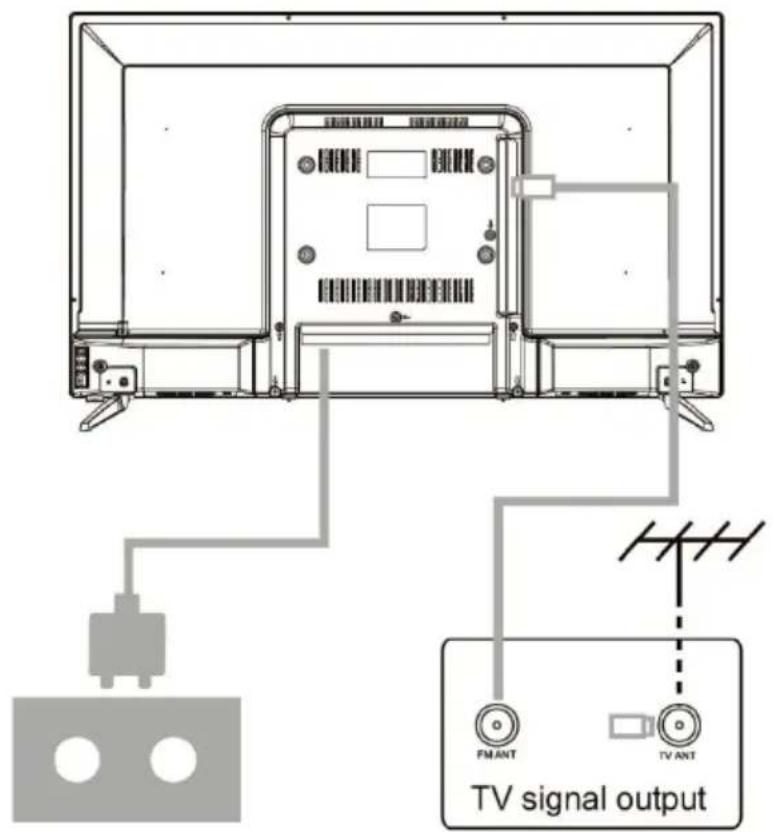

GŁÓWNE POŁĄCZENIA

REJESTRATOR (TYLKO DLA TRYBU DTV)

PRZESUNIĘCIE CZASU (TYLKO DLA TRYBU DTV)

Display Device / Ecran / Ekraan / Készülék kijelző / Ekranas / Displeja ierice / Urządzenie wyświetlające		81 cm LED TV
Resolution / Rezolutie / Eraldusvõime / Felbontás / Raiška / Izškirtspēja / Rozdzielczość		1366x768 HD
Contrast Ratio / Contrast / Kontrastsusmäär / Kontraszt Arány / Kontrasto santykis / Kontrasta attiecība / Współczynnik kontrastu		3000:1
Aspect Ratio / Format ecran / Ekraanisuhe / Képarány / Proporcijos / Attēla formats / Współczynnik proporcji		16:9
Tuner		DVB-T/T2/C/S/S2
Color System / Sistem culoare / Värvisüsteem / Szín rendszer / Spalvų sistema / Krāsu sistēma / Sytem kolorów		PAL/SECAM
Sound System / Sistem sunet / Helisüsteem / Hang Rendszer / Garso sistema / Skaņas sistēma / System dźwiękowy		BG/DK/I
Inputs / Intrari / Sisendid / Bemenetek / Ivestys / leejas / Wejscia		1x RF, 1x F, 3x HDMI, 2x USB, 1x AV IN, 1x Cl+
Outputs / Iesiri / Väljundid / Kimenet / Išvestys / Izejas / Wyjscia		1x Coaxial
USB Multimedia Playback Format / USB formate multimedia redate / USB multimeedia taasesituse format / USB Multimédia / USB daugiaformačių įrašų atkūrimas / USB multivides atskanošanas formats / Format odtwarzania multimediów USB	Movie, music, photo, text (according to their format) / Film, muzica, poze, text (vor putea fi rulate in functie de formatul lor) / Film, muusika, foto, tekst (vastavalt nende formaadile) / Film, zene, fénykép, szöveg (formátumtól függően) / Filmai, muzika, nuotraukos, tekstas (priklausomai nuo jų formato) / Filmas, mūzika, fotoattēli, teksts (atbilstoši formātam) / Film, muzyka, zdjęcie, tekst (w zależności od ich formatu)
Power Source / Alimentare / Toitepinge ühendamine / Áramellátás / Maitinimo šaltinis / Energijas avots / Źródło prądu		AC 100-240 V, 50/60 Hz
Power Consumption / Consum / Energiatarve / Fogyasztás / Energijos sąnaudos / Energijas patēriņš / Pobór energii		<56W
Operation Temperature / Temperatura de operare / Kasutustemperatuur / Mūködési hőmérséklet / Darbo temperatūra / Darbības temperatūra / Temperatura działania		-5°C -> +45°C
VESA		100 x 100
Measurement / Dimensiuni / Mõõtmised / Méretek / Matmenys / Svars lzmēri / Wymiary (mm)		732(W)x81.8(D)x434(H)
Weight / Masa / Kaal / Súly / Svoris / Svars / Waga		3.5 kg
Specifications are subject to change without notice / Specificatiile pot suferi modificari fara notificare / Andmed võivad muutuda ilma ette teatamata / A műszaki jellemzők módosulhatnak / Specifikacijos gali būti keičiamos be išankstinio įspėjimo / Tehniskie dati var tikt mainīti bez iepriekšēja brīdinājuma / Dane techniczne mogą ulec zmianie bez powiadomienia.
