303273 - Leaf blower Brandson - Free user manual and instructions

Product Type	Leaf blower
Brand	Brandson
Model	303273
Power Supply	Battery 18V DC / Charger 220-240V AC 50/60Hz
Battery	18V 2000mAh Lithium-ion
Air Speed	60 m/s
Air Flow	3 m³/min
Sound Power Level (Lwa)	78.2 dB(A), K=3dB(A)
Sound Pressure Level (Lpa)	69.5 dB(A), K=3dB(A)
Vibration Level	0.941 m/s², K=1.5 m/s²
Dimensions (HxWxL)	200mm x 150mm x 1020mm
Nozzle	Adjustable length
Handle	Rubber grip
Battery Level Indicator	Yes
Includes	Leaf blower, battery, charger
Safety Equipment Recommended	Ear protection, safety glasses, protective mask, cap
Cleaning	Dry soft cloth only; do not immerse
Usage	Outdoor, not in rain
Disposal	WEEE compliant, do not dispose with household waste
Certification	CE, WEEE Reg. No. DE 67896761
Service	WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover

Frequently Asked Questions - 303273 Brandson

How do I charge the battery?

Use the provided charging station. Connect the charger to a 220-240V AC outlet. Insert the battery into the charger. The LED will be red during charging and turns green when fully charged. Charging time depends on the battery state but typically a full charge takes a few hours.

How do I replace the battery?

Press the Battery unlocking button on the battery pack, then slide the battery out of the appliance. To insert a new battery, slide it in until it locks into place. Always switch off the blower before removing or inserting the battery.

What safety precautions should I take?

Always wear protective glasses, ear protection, a cap, and a protective mask. Never point the nozzle at people or animals. Do not use in rain. Keep hands away from moving parts. Read the full safety instructions in the manual.

Can I use the blower in the rain?

No, do not expose the blower to rain. It is not waterproof. Using it on wet surfaces increases the risk of electric shock. Store indoors in a dry place.

How do I clean the leaf blower?

Switch off the appliance and remove the battery. Use a dry, soft cloth to wipe the exterior. Do not use alcohol, thinners, or aggressive cleaning agents. Do not immerse in water or allow liquids to enter the device.

What is the air speed and air flow?

The air speed is 60 m/s and the air flow is 3 m³/min, providing efficient blowing for leaves and garden debris.

How loud is the blower?

The sound power level is 78.2 dB(A) and the sound pressure level is 69.5 dB(A). Always wear ear protection during use.

Is the blower cordless?

Yes, it operates on a rechargeable 18V battery, giving you freedom of movement without a power cord. The charger is included.

What accessories are included in the box?

The package includes the leaf blower, one 18V 2000mAh battery, and a charging station. The nozzle is adjustable and attached to the blower.

How do I adjust the nozzle length?

The nozzle is adjustable in length. Simply pull or push the nozzle sections to extend or retract it to your desired length for optimal airflow control.

USER MANUAL 303273 Brandson

Diagram showing two stages of a camera lens assembly process, with no text or symbols present.

Illustration of a hand using a tool to adjust or install a device component (no text or symbols visible)

Illustration of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

ACHTUNG!

Line drawing of a car rear bumper with a black arrow pointing to the nose area (no text or symbols)

Warning! This appliance can be dangerous! Careless or improper use may result in injuries to yourself and others.

Please read all instructions carefully so that you understand how to operate the appliance and always know what you are doing.

Do not allow pedestrians or un- qualified persons to come close to the appliance.

Always wear ear protection and protective glasses.

Switch the appliance off! Always disconnect the plug from the outlet before adjusting or cleaning or if the appliance or mains cable is faulty.

Do not expose the appliance to rain. Do not keep it in the open and do not leave it in the rain.

IMPORTANT SAFETY GUIDELINES FOR THIS AP-PLIANCE

Read all the safety guidelines and instructions carefully! Not following the safety guidelines and instructions may result in electric shock, fire and/or serious injuries.

Retain all the safety guidelines and instructions for future reference. The term "Power tool" used in the following safety instructions refers to power tools with a mains cable or to cordless power tools without a mains cable.

Workplace safety

• Keep the workplace organised and well lit. Dirty or dark workplaces result in accidents.
• Do not operate power tools in potentially explosive surroundings, e.g., near flammable liquids, gases, etc.

Power tools may generate sparks, which can ignite flammable materials!

- Keep bystanders and children away when using the power tool. You could lose control of the appliance if you become distracted.

Electrical safety

- The power tool plug must fit into a properly installed socket. The plug should not be changed or modified. Never use adapters with earthed power tools. Proper plugs and sockets reduce the risk of electric shock.

- Avoid body contact with earthed surfaces such as heaters, refrigerators or pipes. There is a risk of electric shock.

- Keep power tools away from moisture and rain. The risk of electric shock increases if water gets into power tools!

- Do not misuse the cable under any circumstances! Never carry the power tool by its cable. Do not hang it by the cable or do not pull the cable to disconnect the plug from the socket. Keep the cable away from heat, oil, sharp edges or moving parts! Damaged or entangled cable increases the risk of electric shock!

- If you operate the power tool outdoors, make certain to use an extension cable suitable for outdoor use. Using a cable suitable for outdoor use reduces the risk of electrical shock.

Personal safety

• Ensure that you are always alert. Be aware of what you are doing and use common sense when working. Do not use a power tool if you are under the influence of alcohol, drugs or medication, or are tired! Carelessness when using power tools may result in serious physical injuries.
• Always wear personal protective equipment and safety glasses when using the power tool. Wearing appropriate protective clothing, such as ear protection, safety glasses, safety shoes and helmet, can reduce the risk of injuries depending on the type and use of the power tool.
• Prevent the power tool from starting unintentionally. Always check whether the appliance is switched off before connecting it to the battery or the power supply, picking it up or carrying it. Accidents may occur if you keep your finger on the switch while carrying the tool or if you connect the power tool to the power supply when the tool is switched on.

• Remove any setting tools or wrench before switching on the power tool. Any tool or object left in a rotating part of the appliance may result in injuries.

• Always maintain a normal posture when using power tools and ensure that your footing is secure at all times and that you maintain your balance. This allows you to control the power tool better in unexpected situations.

• Always wear suitable clothing when using a power tool. Never wear loose clothing or jewellery. Always keep your hair, clothing and gloves away from moving parts. This type of clothing or hair can get caught in moving parts!
• If connecting attachments for dust extractors and collectors are available, they should be properly mounted and used. The use of dust extractors can reduce risks caused by dust.

Use and handling of power tools

• Never overload the power tool under any circumstances. Always use the appropriate power tool for your work. Working with the incorrect power tool reduces safety considerably.

• Never use a power tool if the switch is faulty. An appliance that cannot be switched on or off must at all costs be repaired and may not be used.

• Before changing the settings or the accessories on the power tool, or storing the appliance, it must be disconnected from the mains supply and/or the battery. These measures reduce the risk of the appliance switching on accidentally.

• Keep the unused power tool out of reach of children. Do not allow those who are not familiar with the usage instructions of the appliance to use it. Power tools are dangerous in the hands of inexperienced users.
• Maintain your power tools properly. Check your tool for misalignment, damage and other conditions that may affect the operation. In case it is damaged, have the power tool repaired by a specialist before using it again.
• Keep the cutting tools clean and sharp. Well-maintained tools with sharp blades are less prone to damage, and are easier to handle.
• Use the power tool, accessories and tool inserts in accordance with to these instructions. Take the conditions and the work to be carried out into account.

Use and handling of cordless tools

- Charge the battery using the charger specified by the manufacturer only. A charger that is suitable for a certain type of battery can be a fire hazard if used with a different battery.

- Use power tools only with the explicitly specified batteries. There is a risk of fire and injury if other batteries are used!

- Never store the battery when it is not being used along with other metal objects, such as paper clips, coins and screws. The battery terminals may be shorted under certain circumstances and cause a fire.

- In the event of misuse, fluid may start leaking from the battery. Avoid contact with the fluid. In the event of accidental contact, rinse the affected area immediately with water. If the fluid gets into the eye, obtain additional medical treatment. The fluid from the battery may cause burns and skin irritation.

Maintenance

• Have the appliance serviced by a qualified technician and use only identical spare parts.
• Keep the handles free of oil, grease and other liquids to ensure a firm grip.

Safety warnings for blower

• Always wear protective glasses, a cap and a protective mask when using the blower.
• Never point the nozzle of the blower at people or animals nearby.
• Hold the appliance firmly and securely.
• Do not use the appliance during rain. Make sure you keep it in a dry condition indoors. There is a risk of electric shock when using on wet surfaces!
• Do not insert your hands, fingers, hair or other body parts and objects into the appliance.
• Never block the blower outlet.
• Never use the blower with a nozzle other than the original nozzle.
• Do not use the blower to inflate air mattresses, balls or similar objects.
  • High motor speed may severely damage the blower

and cause injuries. Overheating of the motor or the control circuit can result in a fire.

• Keep persons, pets and children away from the blower when it is being used.
• Never operate the blower near an open window or an open door.
• Do not use the appliance during rest periods or very early in the morning or late at night. Make sure that you do not disturb other people nearby.
• Loosen the leaves if necessary before using a broom to make blowing easier.
• Wet the surface slightly in dusty conditions or use a commercially available spraying device.
• Wherever possible, use the long nozzle so that the air-flow is as close as possible to the ground and is effective.
• The blower should not be used by persons with reduced physical, sensory or mental abilities or lack of experience and knowledge.
• Small children should be supervised to ensure that they do not play with the appliance.
• Keep body parts and objects away from rotating parts.

Ensure that you keep these safety instructions carefully!

Caution!: Always follow these safety guidelines! Familiarise yourself with the corresponding product! Not following and misusing the safety guidelines given in this manual may cause serious injuries!

Important safety instructions for batteries

• Please note all the safety instructions and warnings given in this manual and the warnings related to the battery, charger and power tool before using the battery.
• Do not disassemble the battery!

• If the operating time of the battery is significantly lower than usual, then stop using the appliance immediately. There is a risk of overheating or explosion.

• If battery fluid gets into your eyes, wash it out immediately! Obtain medical treatment immediately! There is a risk of losing your eyesight.

• Do not short-circuit the battery. Do not touch the contacts using conductive materials. Do not store the appliance along with conductive materials.
• Do not allow any liquid to come into contact with the battery. A short circuit generates a very high flow of current and can result in overheating or burns.
• Do not store the power tool or the battery in places where the temperature exceeds 50°C!
• Never try to burn the battery even if it is damaged. The battery may explode in the fire!
• Ensure that the battery is never dropped or exposed to any impact. Do not use the battery if it has been dropped or has been shaken.

Notes on battery service life

- Charge the battery only when it is completely empty. Switch off the power tool if you notice that its capacity has reduced. Charge the battery subsequently.

• Overcharging the batteries reduces its service life. Avoid charging a fully charged battery.
- Allow the battery to cool down before charging it. Charge the battery at a room temperature between 10^ and 40^ .

Ensure that you keep these safety instructions carefully!

Thank you for choosing a Brandon product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time.

1. Scope of delivery

• Leaf blower
• Battery
• Charging station

2. Technical data

Power supply	18V DC 2Ah battery220-240V AC 50/60Hz (charger)
Dimensions (HxWxL) 2	00mm x 150mm x 1020mm
Battery 18V 2000mAh
Sound power level (Lwa) 7	8.2 dB(A), K=3dB (A)
Sound level (Lpa) 69.5 dB(A), K=3dB (A)
Vibration level 0.941 m/s2, K= 1.5m/s2
Air speed 60 m/s
Air flow 3m3/min
Features	Adjustable (length) nozzleBattery level indicationRubber handle

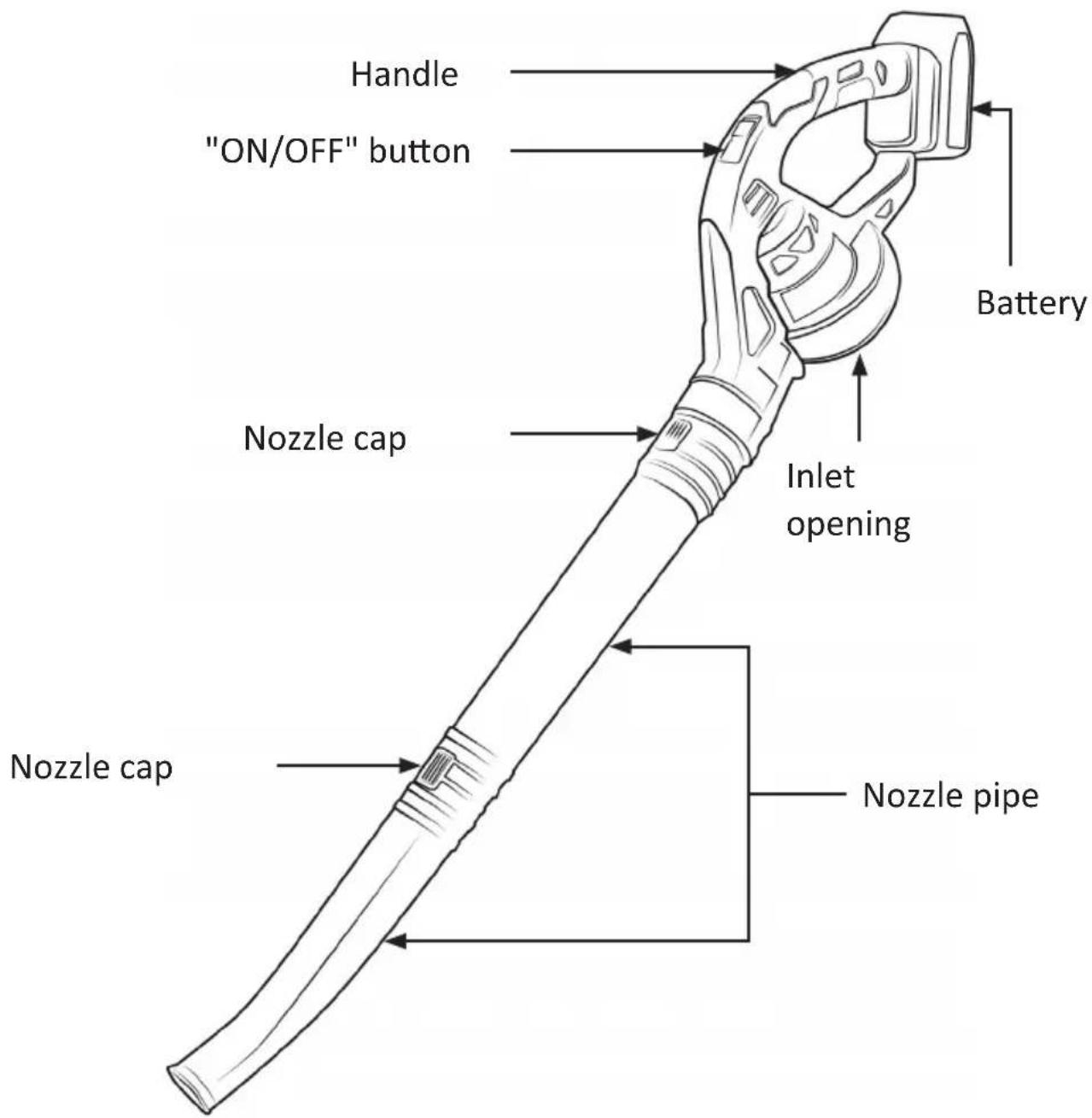

3. Product details

4. Commissioning

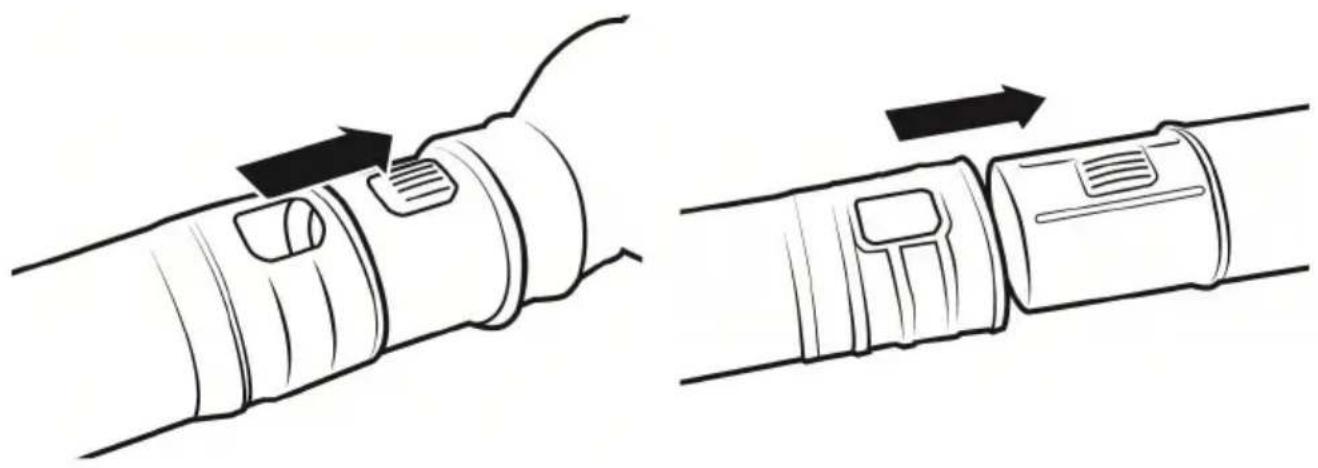

Take the appliance out of the package and remove all the packaging material. Check the scope of delivery for completeness. Charge the battery before initial use with the provided charger. Connect the nozzle pipe to the leaf blower, insert them into one another so that they fit tightly.

Diagram showing two stages of a camera lens assembly, with no text or symbols present.

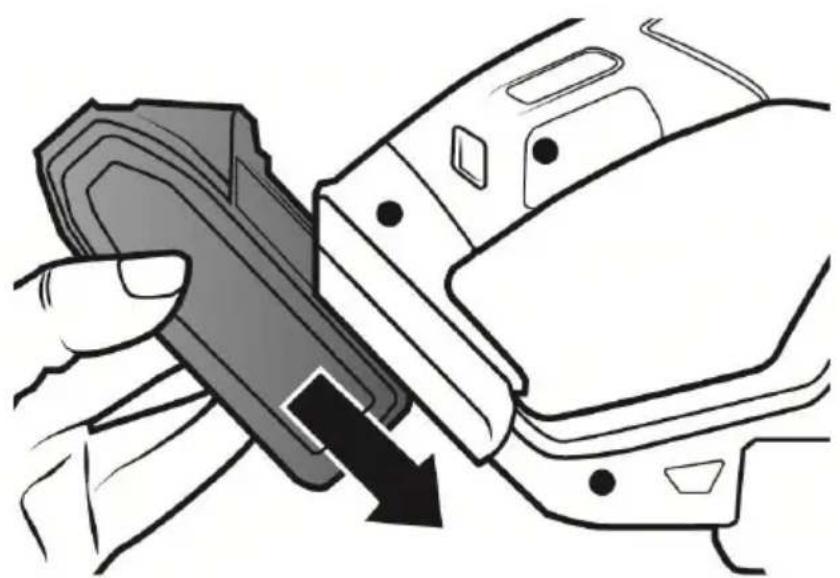

Insert the charged battery at the bottom of the appliance into the port and make sure that it locks into place.

Illustration of a hand using a tool to adjust or install a device component, showing a black arrow indicating the process (no text or symbols present)

When using the blower, hold the handle firmly to operate the blower properly. The appliance is now ready for use.

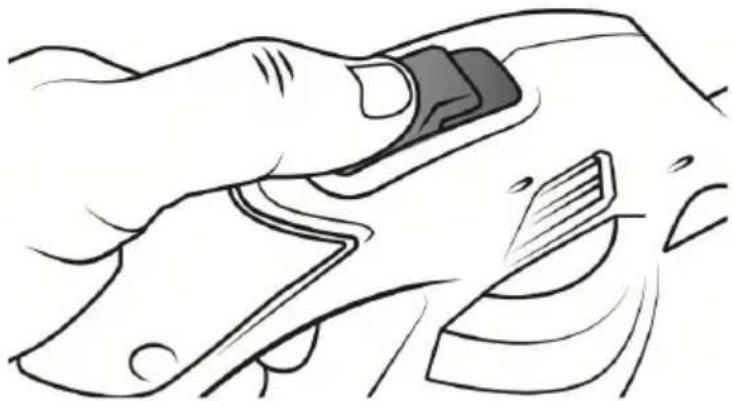

Set the "ON/OFF" button to the "ON" position to start the appliance. Setting the "ON/OFF" switch to the "OFF" position switches off the appliance.

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

CAUTION!

• Always switch off the appliance before inserting or removing the battery. Hold the appliance firmly while doing so!
- Do not cover the air vents or the intake opening!
- Always push the battery into the appliance as far as it will go. If the battery does not slide without any resistance on the battery guide bar, then it is not properly aligned.
- Before inserting the new battery, allow the appliance to rest for at least 15 minutes after using it continuously and discharging the battery.
• Always grip the appliance firmly! Always ensure secure footing when using the appliance!

5. Changing the battery

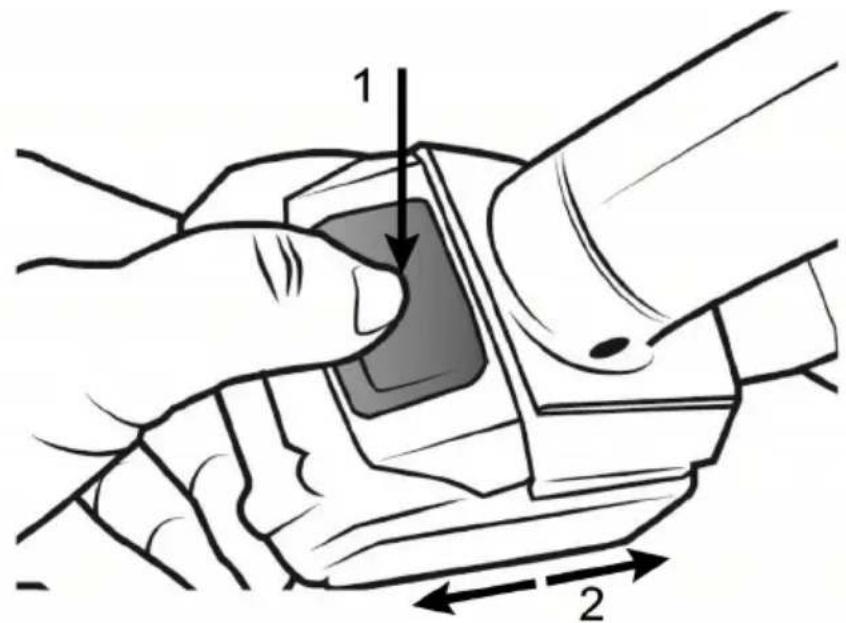

Unlock the battery by pressing the "Battery unlocking" button (1) and then slide the battery out of the appliance (2). To insert a new battery, slide the battery into the leaf blower on (2) until it locks into place.

6. Charging the battery

Charge the battery using the charging station provided. A status LED is located on the charging station. As long as the LED is red, then charging is in progress. When the LED turns green, the battery is then fully charged and can be reused.

There is a charging level indicator on the battery itself. Press the button shown in the figure below.

Line drawing of a car rear bumper with a black arrow pointing to the nose area (no text or symbols)

The table below shows the charging level indication and its meaning:

Charging level indication Approximate charging level
	0-10%
	10-25%
	25-50%
	50-75%
	75-100%

7. Cleaning and Care

Before cleaning and servicing, ensure that the appliance has been switched off and the battery has been removed. Do not use alcohol, thinners or other chemical and aggressive cleaning agents for cleaning purposes. Use only a dry and soft cloth to wipe the appliance. Do not immerse the appliance in water and ensure that liquids do not get into the appliance!

Before cleaning and servicing or maintenance work, ensure that the appliance has been switched off and the battery has been taken out.

CAUTION!

8. Safety instructions and disclaimer

Please do not try to open the device to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof. Please use it only in dry surroundings. Protect it from high humidity, water and snow.

Do not expose the device to high temperatures.

Do not expose the appliance to sudden changes in temperature or strong

vibrations, as this could damage the electronic components. Check the appliance for any damage before using it. The device should not be used if it has been subject to impact or has been damaged in any other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual.

This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repairs or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims. The appliance should be used only by persons who have read and understood this user manual. The specifications of the appliance may be changed without special prior notice.

9. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components must be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol on the product, in the user manual or/and the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

10. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries

mean the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery must not be disposed of in household waste.

WEEE Guideline: 2012/19/EU WEEE Register no.: DE 67896761

WD Plus GmbH hereby certifies that the device 303273/20180428CZ009 complies with the fundamental requirements and the other relevant stipulations of the guideline 2006/42/EC. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, https://www.ganzeinfach.de

SERVICE

We hope you enjoy your new product in every way!

If there is still something you're concerned about please feel free to let us know.

You're welcome to contact our service team at any time.
