Product Type	Cart Seat for Balance Board (Sitting Bull)
Brand	Be Cool
Model	BCBB6522KRT
Weight	5.0 kg
Maximum Load	100 kg
Wheel Size	4 inches
Recommended User Height	From 120 cm
Suitable For	Balance boards (not included)
Material	Plastic, metal
Color	Black
Assembly Required	Yes (tools included)
Operation	Push handles forward/backward to move; push one forward, pull the other to turn
Safety Warnings	Not for traffic, stunts, wet conditions; avoid steep inclines; max speed not specified
Cleaning	Soft damp cloth; no alcohol, benzene, acetone, or high-pressure water
Storage	Dry and cool place; not outdoors
Warranty	2 years on mechanical parts (valid in Austria)
Included Accessories	Front pole, pedal covers, extension pole, seat holder, velcro straps, handles, rubber plugs, wheel, rear shaft, screws, nuts, adjustment screw/knob, rubber pads, seat, wrench, Allen key
Manufacturer	Schuss Home Electronic GmbH, Vienna, Austria

Frequently Asked Questions - BCBB6522KRT Be Cool

What is the BCBB6522KRT Cart Seat?

The BCBB6522KRT is a cart seat accessory designed to attach to a balance board, converting it into a go-kart. It is sold by Be Cool under the model name 'Sitting Bull'.

How does the Cart Seat work?

You sit on the seat and use the handles to control movement: push both handles forward to go forward, pull both back to reverse, and push one forward while pulling the other to turn.

What is the maximum weight capacity?

The maximum load is 100 kg (220 lbs). Do not exceed this limit.

Can children use this product?

Yes, for children from a height of 120 cm and above, but detailed safety instructions and adult supervision are required.

Is it safe to use on public roads?

No. The cart seat must not be used in traffic or on public roads. It is intended for closed, safe areas.

How should I clean and maintain the Cart Seat?

Use a soft damp cloth for cleaning. Never use alcohol, benzene, acetone, or high-pressure water. Store in a dry, cool place.

What tools are included for assembly?

The package includes a wrench and an Allen key for assembly. All necessary screws and nuts are provided.

Does the Cart Seat require assembly?

Yes, some assembly is required. The manual provides step-by-step instructions for attaching handles, seat, and mounting to the balance board with velcro straps.

What is the warranty period?

The warranty is 2 years on mechanical parts, valid in Austria. It does not cover normal wear, improper use, or water damage.

Can I use the Cart Seat in rain or wet conditions?

No. Do not use in wet, rainy, or slippery conditions to avoid accidents and damage.

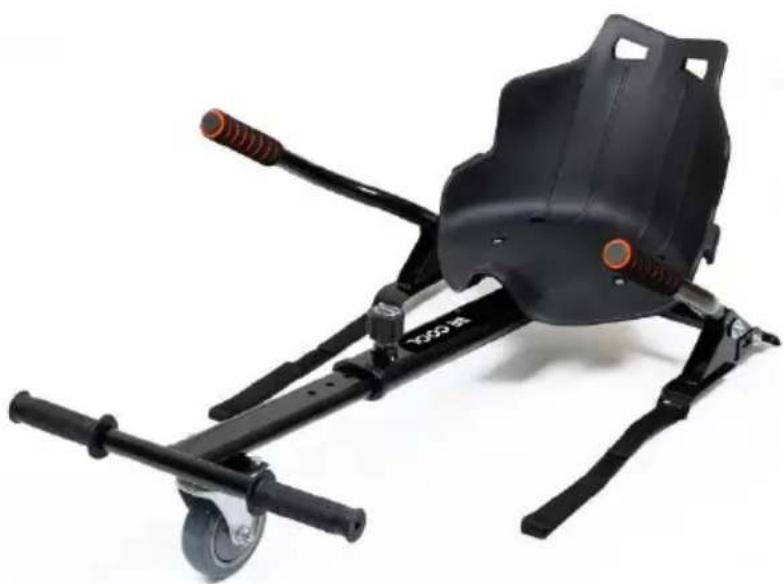

USER MANUAL BCBB6522KRT Be Cool

Cart-Seat for Balance Board

Sitting Bull (BCBB6522KRT)

Black YDDA bicycle leg device with wheels and suspension components (no visible text or symbols)

HERZLICHEN GLÜCKWUNSCH!

Technical line drawing of a mechanical linkage system with pulleys and brackets (no text or symbols)

Technical line drawing of a mechanical exercise frame with levers and wheels (no text or symbols)

Technical line drawing of a mechanical exercise frame with levers and wheels (no text or symbols)

BE COOL

Montage des Sitzes

Technical line drawing of a stationary bike with levers and wheels (no text or symbols)

Line drawing of a two-wheeled vehicle with wheels and a handle (no text or symbols)

Technical line drawing of a mechanical lever system with two wheels and a handle (no text or symbols)

BE COOL

6. BEDIENUNG

Technical line drawing of a mechanical device with rotating wheels and a handle (no text or symbols)

BE COOL

The exclamation point within the triangle is intended to alert the user to the presence of important operating and/or maintenance (servicing) instructi-ons in the literature accompanying the appliance. Please read the operating instructions carefully before using the device.

ATTENTION!

• The Cart seat MUST NOT be used in traffic!
- Riding the cart seat must not endanger or obstruct other road users.
- Do not use for jumps or stunts!
- Do not use in wet, rainy or slippery conditions!
- Do not use under the influence of drugs or alcohol!
- Avoid paths with obstacles such as branches, rubbish or stones!

BE COOL

• Avoid steep inclines!
• Do not drive faster than recommended!
• Do not load the device more than permitted!

ATTENTION!

Persons with impaired vision, balance, coordination, reflexes, muscles or bones MUST NOT use this vehicle!

ATTENTION!

This cart Seat is suitable for children from a height of 120 cm - however, detailed instructions on how to use the Cart seat in a safe manner must be provided beforehand, as well as a description of the existing dangers.

2. GENERAL SAFETY INSTRUCTIONS

• Carefully remove the packaging and make sure that the Cart seat is not damaged.
• Do not use the device if it shows visible signs of damage.
• Do not open or modify the Cart seat, otherwise the manufacturer's warranty will be voided and malfunctions may occur that could result in serious physical injury - even death.
• Only ride the Cart seat in places where riding is expressly permitted. Never use the Cart seat when you are overtired or unfocused. Always have presence of mind and recognize the dangerous situation early.
  • We recommend the wearing of qualified and according

BE COOL

to own experience necessary protective clothing such as helmet, hand and knee protectors, etc. as in comparable sports.

- Avoid sudden changes of direction - especially at high speeds.

- Drive on sight and always be ready to brake.

- Do not drive in bad weather such as snow, rain, hail, icy roads or in extreme heat - DANGER OF CRASHING!

- Do not use the board in an ambient temperature above 50^ degrees and do not ride for too long in temperatures above 40^ degrees.

- Do not drive near swimming pools or other large accumulations of water.

- Do not ride the Cart seat near to other motor vehicles, public roads and streets.

- Do not talk on the phone or text while driving. Drive attentively and be consciously aware of your surroundings: road conditions, people, objects, etc.

- Do not ride the cart seat in places where there are many people. Ride with extreme

- consideration and pay attention to people and objects around you.

- Do not ride up and down steep hills ( >15^ ). For gentle hills and terrain with slight bumps, it helps to bend the knees slightly while riding to absorb shocks and vibrations. This will help you maintain balance on slight bumps up to a certain intensity.

- Never attempt to ride with more than one person at a time. The Cart seat is only suitable for riding with a single person.

- Do not transport any objects while driving.

BE COOL

• Do not pick up the switched-on Cart seat from the floor, as a rotating wheel (despite automatic switch-off) could lead to injuries.
  • Do not ride the Cart seat during pregnancy.
  • Children and the elderly may only ride under the supervision of experienced and adult persons.
• Never get on or off the cart seat with a jump. Do not attempt any stunts or tricks with the cart seat.
  • Never drive in the dark or in poorly lit areas.
• Do not exceed or fall below the specified weight limit (weight restriction) of the Cart seat.
• Avoid driving in dangerous places to prevent fire and explosion accidents caused by, for example: flammable gases, vapours, liquids, dust, fibres.
• Follow all national and local laws that apply to your area regarding the use of your cart seat.
• Do not let anyone ride the Cart seat who is not familiar with its handling and has not read the manual. The same guidelines apply to every user.
• Please check the Cart seat before each ride. If any parts are loose or damaged, or if there are any other abnormal operating conditions, the Cart seat must be put in order before it is operated.
  • However, there is always a risk of injury from a fall, collision or loss of control.
• If unusual noises or an alarm from the vehicle occur while driving, stop driving immediately.

BE COOL

RIDING THE CART SEAT IS AT YOUR OWN RISK AND RESPONSIBILITY.

NOT ALL HAZARDS THAT COULD LEAD TO INJURY OR EVEN DEATH CANBE COVERED IN THIS MANUAL.

3. RECYCLING AND DECLARATION OF CONFORMITY

	RECYCLINGThe packaging materials can be recycled. It is recommended that you dispose of them in separated waste.
	DECLARATION OF CONFORMITYWe hereby confirm that this article complies with the essential requirements, regulations and guidelines of the EU. The detailed declaration of conformity can be viewed at any time via following link:https://www.schuss-home.at/downloads

Errata and technical changes reserved.

BE COOL

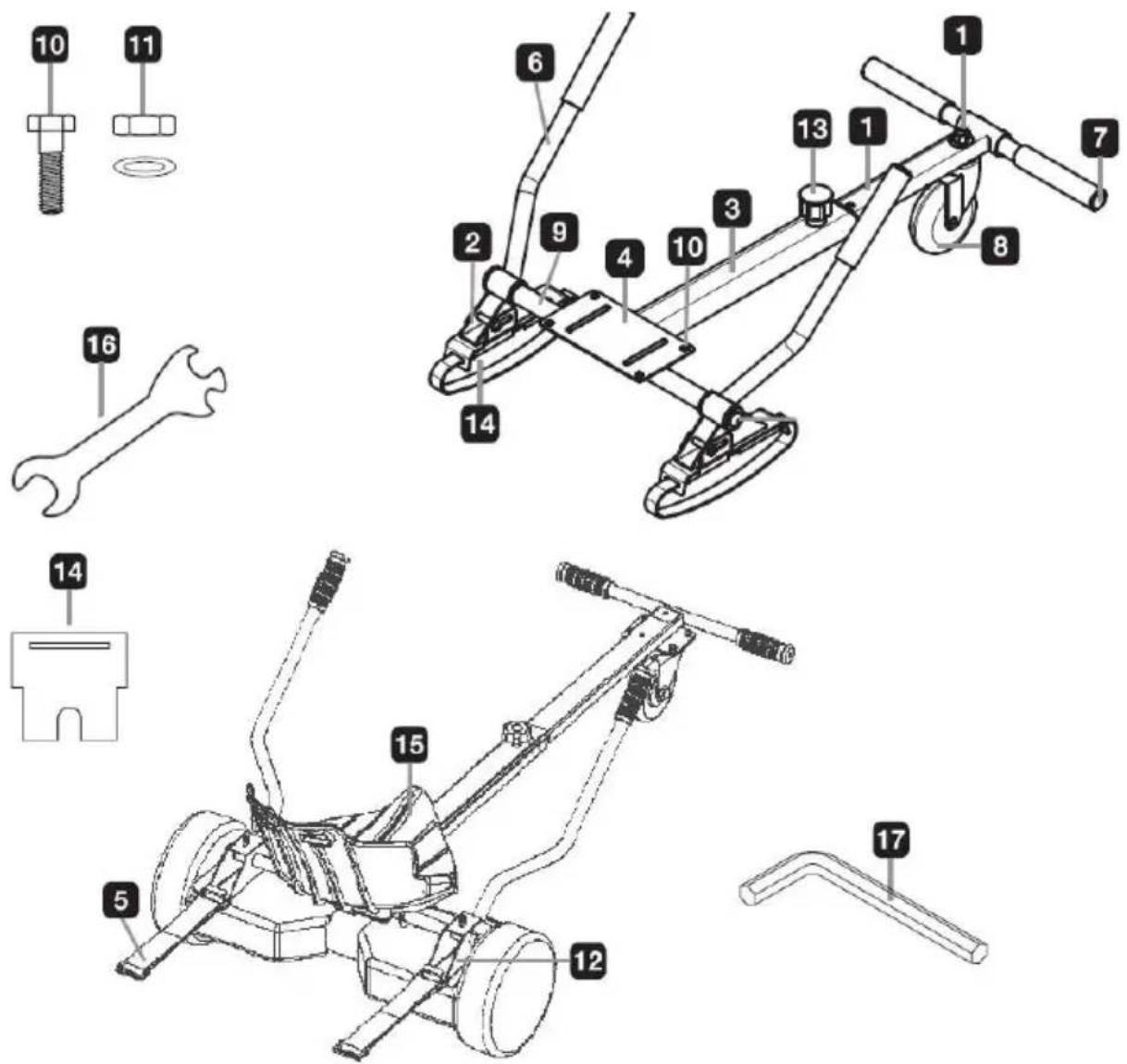

4. SCOPE OF DELIVERY

1.	Front pole (1x)	10.	M8 x H16 Screw (4x)
2.	Pedal cover (2x)	11.	M10 Nut + Shim (2x)
3.	Extension Pole (1x)	12.	Adjustment Screw
4.	Seat Holder (1x)	13.	Adjustment Knob (1x)
5.	Velcro Strap (4x)	14.	Rubber Pad (4x)
6.	Handle (2x)	15.	Seat (1x)
7.	Rubber Plug (2x)	16.	Wrench (1x)
8.	Wheel (1)	17.	Allen Key (1x)
9.	Rear Shaft (1)

BE COOL

5. ASSEMBLY INSTRUCTIONS

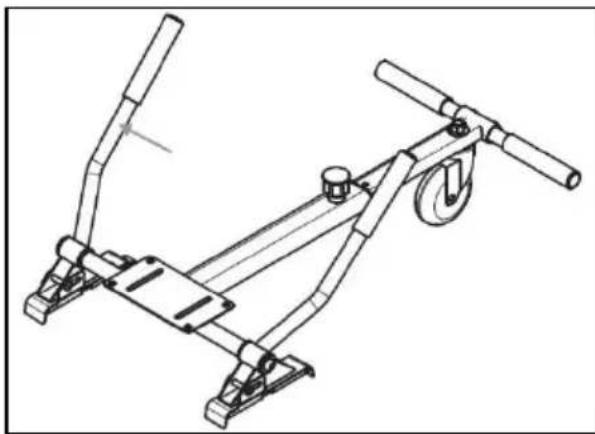

Mounting the handles

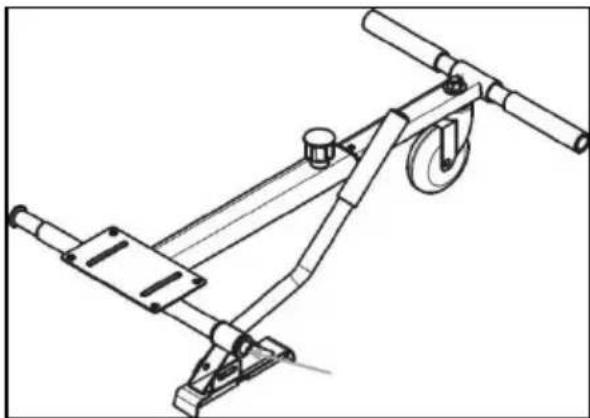

1. Remove the M10 nut and washer (11) which are already attached at delivery from the axis (9). Place the handle (6) on the axis. Now put the washer over the axis again and fix the parts with the M10 nut (11). Use the wrench (16) to tighten the nut.schlüssel (16) um die Mutter fest zu ziehen.

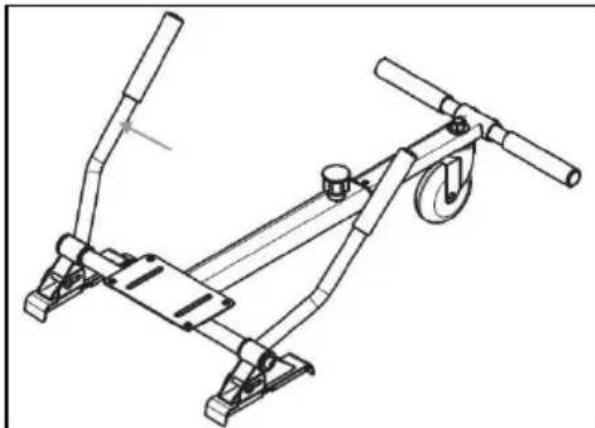

2. Mount the other handle in the same way as described in point 1.

Technical line drawing of a mechanical linkage system with pulleys and brackets (no text or symbols)

Technical line drawing of a mechanical device with articulated arms and a wheel (no text or symbols)

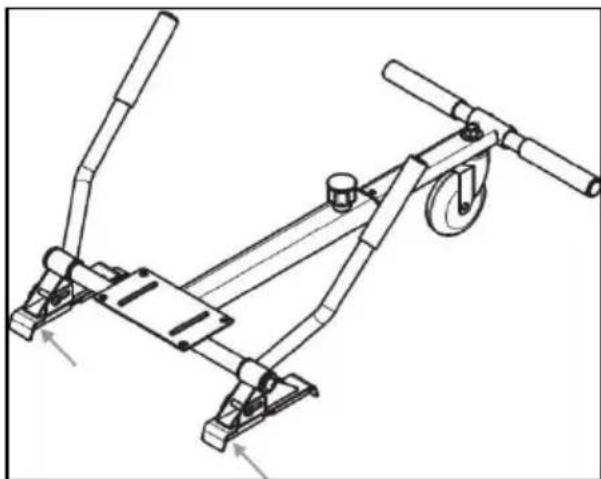

Mounting the rubber pads

1. Attach the 4 rubber pads (14) to the contact surface on the bottom of the handle by sliding them over the edges.

Technical line drawing of a mechanical linkage system with no visible text or symbols

BE COOL

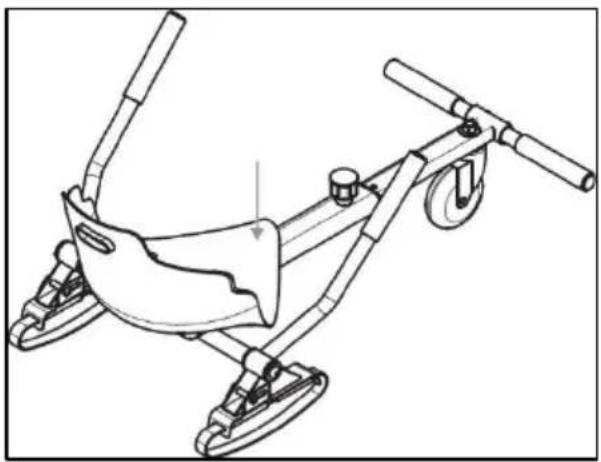

Assembly of the seat

1. Attach the seat (15) to the seat bracket (4) using the Allen wrench (17) and the four M8 x H16 bolts (10). Make sure that the seat is firmly tightened.

Technical line drawing of a stationary exercise bike (no text or symbols)

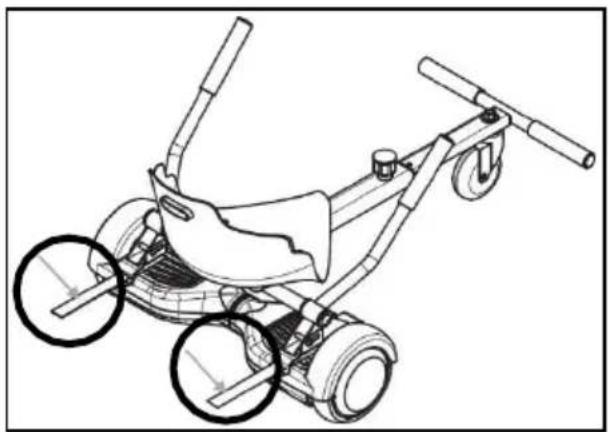

1. Add the kart attachment to the balance board using the Velcro strap.

Line drawing of a two-wheeled stroller with wheels and a handle (no text or symbols)

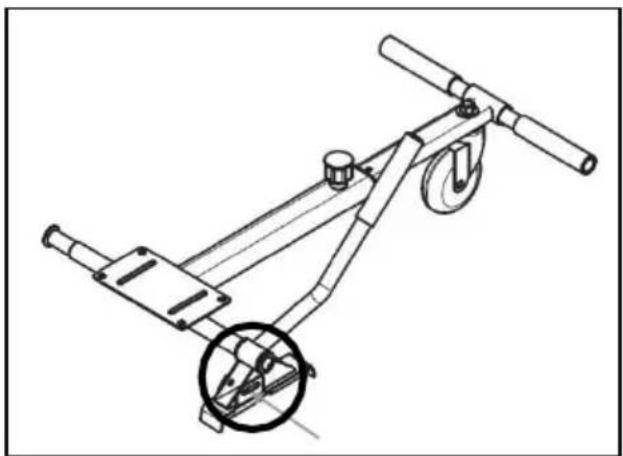

1. To adjust the kart attachment to your balance board, loosen the nut marked in the picture with the wrench (16). Now adjust the length of the support to your balance board. Then tighten the nut again with the wrench (16).

Technical line drawing of a mechanical lever system with two wheels and a handle (no text or symbols)

BE COOL

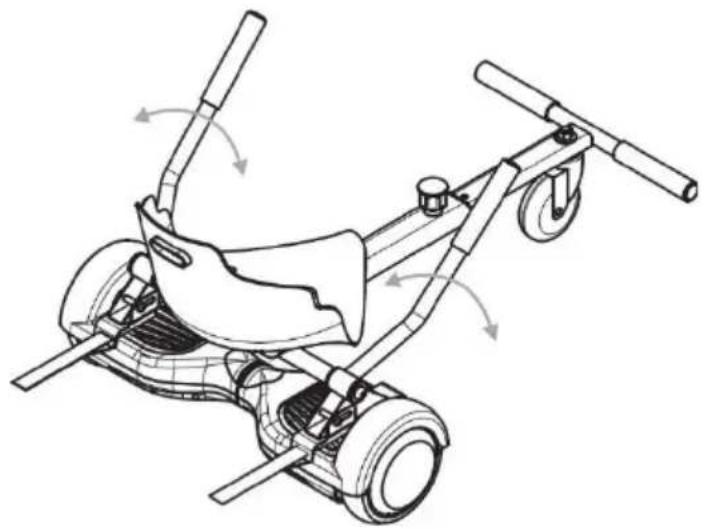

6. OPERATION

Go forward: Push both left and right handle forward.

Go backward: Pull both left and right handle back.

Turn: Push one handle forward and pull back the other handle. The go-kart turns around towards the direction you pull back.

Note: : Before starting the cart-seat, adjust the handles to ensure the cart-seat is at a hori-zontal level. This is to avoid fast moving once it is started. Before switching off the balance board, lift the go-kart to make the balance board balanced, then turn it off.

Technical line drawing of a mechanical device with rotating components and a handle (no text or symbols)

BE COOL

7. WEIGHT AND SPEED RESTRICTIONS

WARNING!

Please observe the weight and speed limits for your own safety. Never exceed or fall below the limits specified in this manual

Weight Limit:

Maximum Weight: 100kg

Minimum Weight: Depending on the used balance board

8. CARE AND MAINTENANCE

Cleaning

Only use a soft and damp cloth for basic cleaning of the Cart seat.

Dirt that cannot be removed in this way can be removed with a plastic polish or warm soapy water.

Never use alcohol, benzene, acetone or other corrosive and volatile chemical solvents that attack the surface. These substances can damage the appearance and the outer structure.

Never clean the cart-seat with a strong water jet or high-pressure cleaner.

Storage

Store the Cart-Seat in a dry and cool place.

Do not store outdoors.

BE COOL

1. Technical Information

Item number	BCBB6522KRT
Model description	Sitting Bull – Cart seat for balance boards
Tire size	4 inch
Max. load	100 Kg
Weight	5,0 Kg
Delivery	Cart seat incl. accessoriesUser manual
Contact address for further information:	Schuss Home Electronic GmbHScheringgasse 3A-1140 WienTel: [phone] – 544www.becool.atFB-Nr: 236974 t / FB-Court: Vienna
Serviceline	DEC Digital-Electronic-CenterService GmbHKelsenstrasse 21030 ViennaTel. 01/961 66 33Email: [e-mail]

BE COOL

WARRANTY

With this quality product from BE COOL you have made a decision for innovation, durability and reliability.

We grant the following warranty periods for this BE COOL device:

On mechanical parts → 2 years from date of purchase valid in Austria!

If, contrary to expectations, service work should nevertheless be necessary on your device during this period, we her- eby guarantee to repair it free of charge (spare parts and working time) or (at the discretion of Schuss) to exchange the product. Should neither repair nor exchange be possible for economic reasons, we reserve the right to issue a current value credit note.

Please contact your specialist dealer or us directly for this purpose. We would like to point out that repair work which has not been carried out by our authorised workshops in Austria will immediately terminate the validity of this warranty.

This warranty does not cover:

In the case of improper use, we do not accept any liability for consequential damage Repair or replacement of parts due to normal wear and tear

Damage due to non-observance of the operating instructions

Water damage

Equipment that is used - even only partially - for commercial purposes

Equipment mechanically damaged by external influence (fall, impact, breakage, improper use, etc.) as well as wear and tear of an aesthetic nature.

Devices that have been improperly handled

Damage caused by force majeure, water, lightning, overvoltage.

Devices where the type designation and/or serial number on the device has been changed, deleted, made illegible or removed.

Services outside our authorised workshops, the transport costs to an authorised workshop or to us and back, as well as the associated risks.

Compatibility issues with other devices, even if they are from the vendor.

We expressly point out that within the warranty period, a lump sum of € 60,- (indexed basis CPI 2015, June 2020) will

be charged in case of operating errors or if no error was detected.

The provision of warranty service (repair or replacement of the device) does not extend the absolute warranty period

of 2 years from the date of purchase.

The 2-year warranty is only valid on presentation of the purchase receipt (must contain the name and address of the dealer as well as the complete device designation) and the associated warranty certificate, on which the device type and serial number must be noted! Without presentation of the warranty certificate, only the statutory warranty applies! We expressly point out that the statutory warranty rights are not affected by this guarantee and continue to apply undiminished.

Schuss Home Electronic GmbH and its vicarious agents shall only be liable for damages in the event of gross neg- ligence or intent. In any case, liability for lost profit, expected but not occurred savings, consequential damages and damages from third party claims is excluded. Damages to or for recorded data are always excluded from the liability for damages.

Congratulations on your choice. We wish you much pleasure with your BE COOL device!

ADRESS

BE COOL SALES

Schuss Home Electronic GmbH

Scheringgasse 3, 1140 VIENNA

Tel.: [phone]

Type designation:....

Serialnumber:......

In the event of a warranty claim, this warranty certificate must be handed over together with the device to the dealer from whom you purchased the device!
