BCALKT2023 - Breathalyzer Be Cool - Free user manual and instructions

Product Type	Alcohol Tester with Digital Display
Brand	Be Cool
Model	BCALKT2023
Category	Breathalyzer
Dimensions	95 x 36 x 18 mm
Power Supply	2 x 1.5V AAA batteries (not included)
Detection Range	0.00-0.19% BAC & 0.0-1.9 g/l (or 0.00-0.95 mg/l BRAC)
Accuracy	±0.01% BAC (0.1 g/l)
Sensor Type	Advanced Semiconductor Oxygen Alcohol Sensor
Warm-up Time	Approx. 10 seconds
Test Result Time	Approx. 5 seconds
Automatic Switch-off	After approx. 35 seconds
Display	LCD digital display
Acoustic Signal	Yes, for test completion and danger level
Low Battery Indicator	Flashing "L" symbol when batteries are low
Hanging Function	Loop provided on device
Preparation	Press power button, warm-up countdown from 10 to 0
Usage	Hold inhaler about 4 cm from mouth, blow for 3-5 seconds
Caution Symbol	Displayed at 0.02-0.05% BAC or 0.2-0.5 g/l
Danger Symbol	Displayed above 0.05% BAC or 0.5 g/l, with acoustic signal
Battery Replacement	Slide open cover, insert AAA with correct polarity
Maintenance	Clean sensor regularly; replace device annually or after 200 uses
Disposal	Do not dispose in household waste; follow local regulations

Frequently Asked Questions - BCALKT2023 Be Cool

How do I use the Be Cool BCALKT2023 breathalyzer?

Press the power button to turn on. Wait for the warm-up countdown (10 to 0). When the 'Blow' symbol appears, hold the inhaler about 4 cm from your mouth and blow steadily for 3-5 seconds or until you hear a beep. Read the result on the LCD display.

How do I insert the batteries?

Slide open the battery compartment cover on the back of the unit. Insert two 1.5V AAA alkaline batteries with the correct polarity as indicated inside. Replace the cover.

What do the warning symbols mean?

The 'Caution' symbol appears for BAC levels between 0.02-0.05% (or 0.2-0.5 g/l). The 'Danger' symbol appears for levels above 0.05% (or 0.5 g/l) and is accompanied by an acoustic signal.

How accurate is the BCALKT2023?

The device has an accuracy of ±0.01% BAC (0.1 g/l). However, it is intended as a rough estimate only and should not be solely relied upon for official purposes.

When should I replace the batteries?

Replace the batteries when the 'L' symbol flashes during startup, or if the device fails to turn on or warm up properly. Use two new AAA batteries.

Can I rely on this device to decide if I can drive?

No. The breathalyzer provides a rough estimate only. Factors like food, smoke, and time after drinking can affect accuracy. Always follow legal limits and do not drive if you have consumed alcohol.

How often should I replace the device?

It is recommended to replace the breathalyzer annually or after about 200 uses to maintain accurate measurements.

What factors can affect the reading?

Readings can be affected by recent drinking (wait at least 30 minutes), use of mouthwash or cough medicine, smoking, rapid breathing, and environmental contaminants like alcohol fumes. Clean the sensor regularly.

How do I clean the sensor?

The sensor should be cleaned regularly. Avoid using chemicals; instead, follow the manual's instructions for warming up the sensor by pressing the power button multiple times if the device has not been used for a while.

What is the detection range of this breathalyzer?

The detection range is 0.00-0.19% BAC and 0.0-1.9 g/l (or 0.00-0.95 mg/l BRAC).

USER MANUAL BCALKT2023 Be Cool

Diagram of a remote control panel showing internal components and wiring (no text or labels)

Hinweis

Simple line drawing of a person's face with a magnifying glass, next to a stack of books (no text or symbols)

Simple line drawing of a device with a tool extending into the top part (no text or symbols)

Spezifikationen

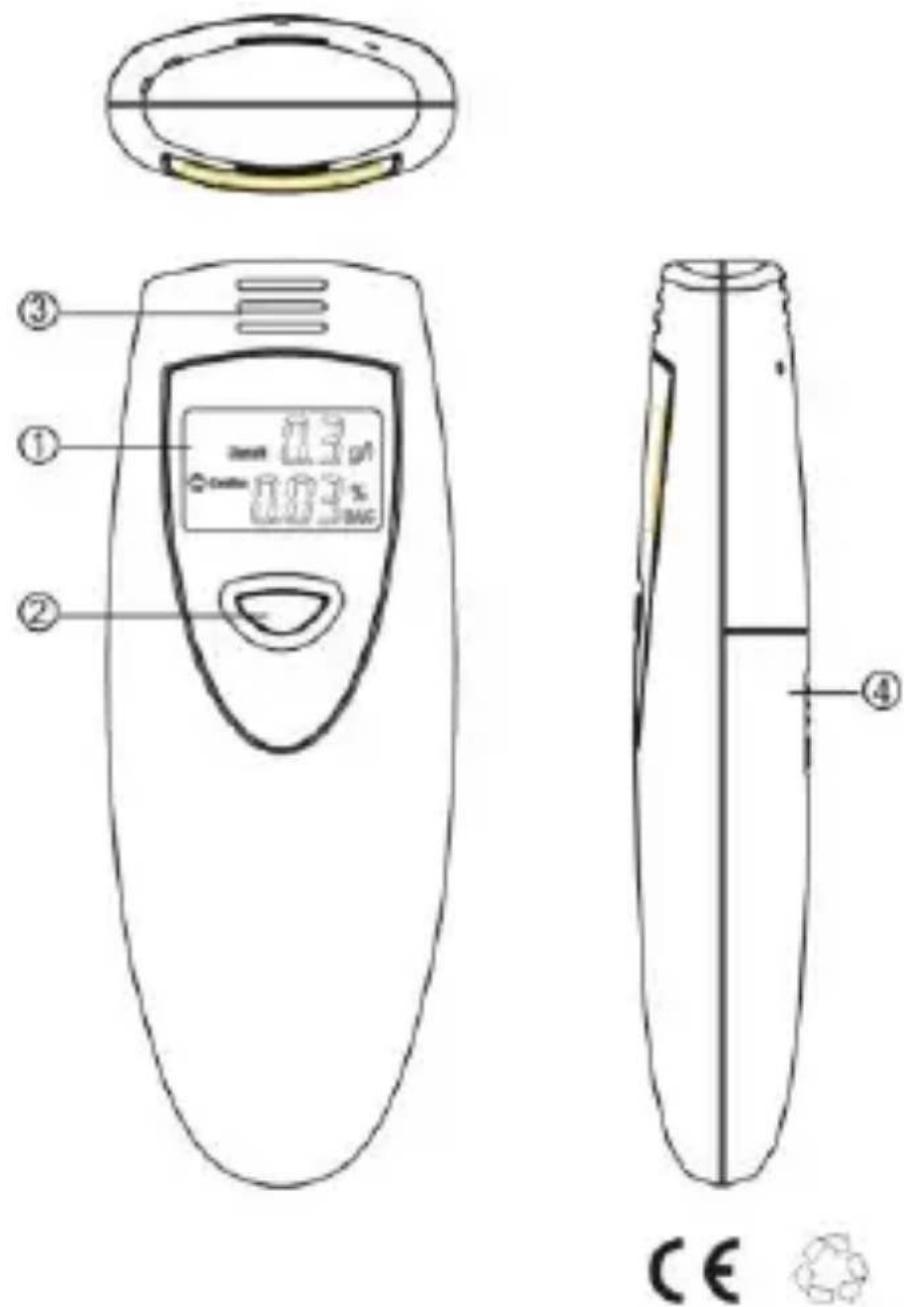

ALCOHOL TESTER WITH DIGITAL DISPLAY

1. LCD display	2. power button
3. breath inhaler	4. battery compartment

Properties

1. Digital alcohol test with acoustic signal
2. Range: 0.00-0.19% BAC & 0.0-1.9g/l (or 0.00-0.95mg/l BRAC)
3. Quick response and result
4. Automatic switch off
5. Operation with 2* AAA 1.5V batteries (not included)

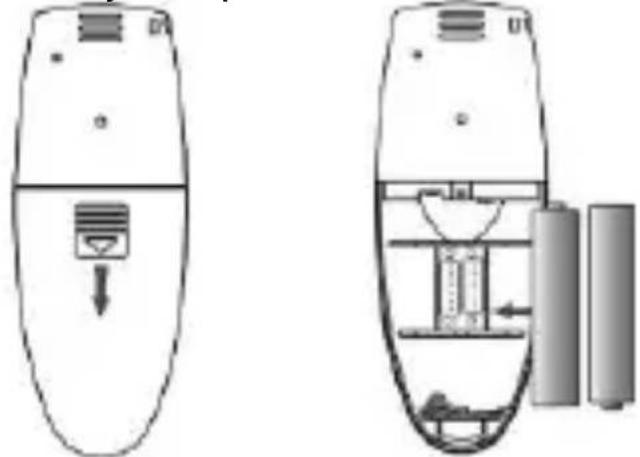

Inserting the battery

1. Slide open the battery compartment cover on the back of the unit.

Diagram of a remote control device showing internal components and battery pack (no text or labels)

1. Insert two 1.5V AAA alkaline batteries with the correct polarity as indicated.
2. Replace the battery compartment cover.

Use of the breathalyser

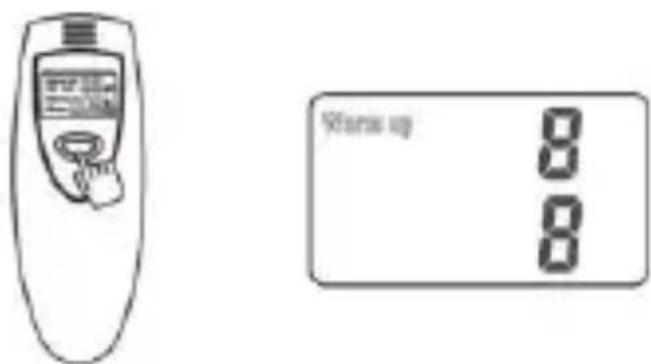

Preparation:

Press the ON/OFF button (2) once → the display (1) switches on and a signal tone sounds.

The display shows the "Warm up" symbol and a countdown counts down from 10 to 0 → the tester is now in preparation mode.

Note

Contaminants may accumulate on the surface of the sensor in the alcohol tester. If you are unpacking the unit for the first time or have not used it for a long time, you will need more time to clean and warm up the sensor by pressing the power button again and trying several times.

Test

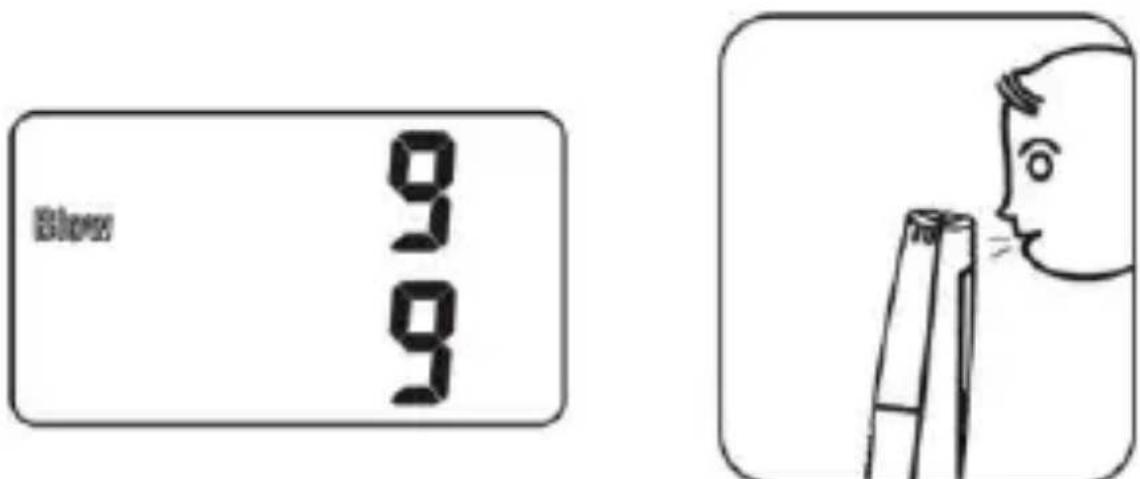

The "Blow" symbol is displayed when the warm-up time is reached and the countdown from 10 to 0 is started, indicating that the breathalyser is in test mode.

Hold the inhaler about 4 cm from your mouth and blow into it for 3-5 seconds. Alternatively, keep blowing until you hear a beep. Read the test result on the LCD display of the breathalyser.

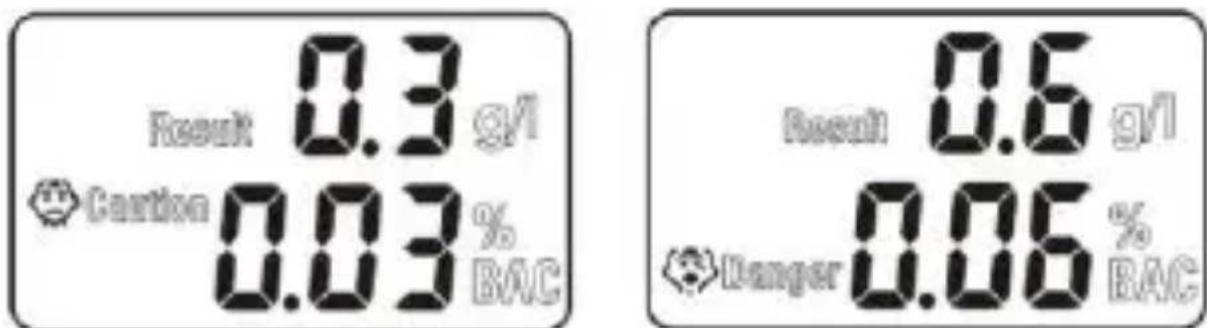

1. the "Caution" symbol is displayed when the alcohol concentration corresponds to the level:

0.02 % BAC (or 0.2 g/l) to 0.05 % BAC (or 0.5 g/l). 0.05 % BAC (or 0.5 g/l) to 0.08 % BAC (or 0.8 g/l).

1. The "Danger" symbol is displayed and an acoustic signal sounds when the alcohol concentration corresponds to the level:

above & equal to 0.05% BAC (or 0.5g/l). above & equal to 0.08% BAC (or 0.8g/l)

Automatic switch off

1. after the result has been displayed for about 15 seconds, the display shows "OFF".

The symbol appears for 2-3 seconds and the alcohol tester is switched off.

If you do not blow into the inhaler in test mode, the value "0.00" is shown on the LCD display.

Note

To obtain a more accurate result, we recommend performing the test 2 - 3 times.

Low battery indicator

If the "L" symbol flashes when switching on, the batteries are exhausted, please replace them. Replace the batteries at the latest when their capacity is no longer sufficient for switching on and preparing.

Replace battery

Replace the batteries if the breathalyser can no longer be switched on or does not warm up properly and replace them with two "AAA" batteries.

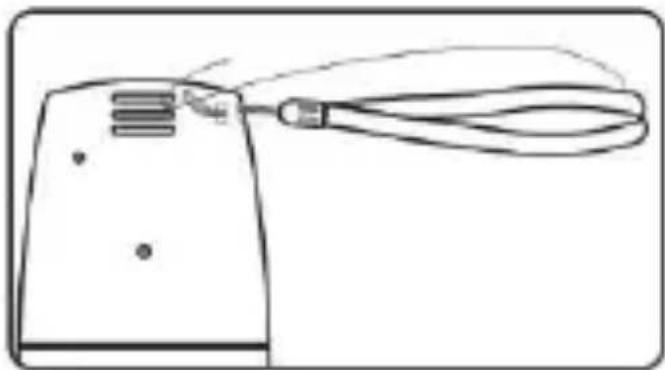

Hanging function

Please use the loop provided according to the following illustration:

Line drawing of a kitchen knife with a handle, showing blade tip and blade arrangement (no text or symbols)

Specifications

• Advanced Semiconductor Oxygen Alcohol Sensor
• Detection range 0.00-0.19% BAC & 0.0-1.9g/l (or 0.00-0.95mg/l BRAC)
• Accuracy: 0.01% BAC (0.1g/l)
• Power supply: 2 x 1.5V AAA batteries
• Preparation time → 10 seconds
• Test result → 5 seconds
• Automatic switch-off: After approx. 35 seconds
- Dimensions: 95 x 36 x 18mm

IMPORTANT - PLEASE READ

The breathalyser, when used properly, can give a rough estimate of blood alcohol concentration (BAC), but it should not be used as the sole method of assessment. It is important to note that no testing device is completely reliable and inaccurate results may occur. The BAC value can fluctuate greatly within a short period of time. It is therefore recommended to consume alcohol responsibly and not to drive under the influence of alcohol.

Things that can affect the reading of your breath test

There are certain circumstances that can affect the accuracy of breathalysers. If one is aware of these circumstances, one can use the breathalyser to make estimates of the amount of alcohol, but it should not be considered an absolutely reliable method.

Please note:

• Use the breathalyser in the morning after a few drinks to get an estimate of the previous evening.
- Read the instructions carefully to ensure that you use the appliance correctly.
- Refill the sensor regularly to ensure the accuracy of the measurements.
- Wait at least 30 minutes after drinking and drink a glass of water before using the device. Clean the sensor thoroughly before each use.
• Take several measurements and leave at least 4 minutes between each measurement to ensure that residues from previous measurements do not affect it.
- Replace the device annually or after about 200 uses to maintain the accuracy of the measurements.
• Do not use the appliance immediately after drinking
- Do not rely solely on the Alcoholtester result to make decisions regarding alcohol consumption or driving ability.
- Do not use the unit after it has not been used for a long time without first cleaning and calibrating it thoroughly.
- Do not use the unit if the sensor or other parts are damaged or look worn.
• Use the breathalyser at least 30 minutes after drinking alcohol (we recommend using it the morning after to get an estimate of the previous evening).
- Use the breathalyser for at least 30 minutes after using breath spray, cough medicine, cigarettes, overripe fruit or other products containing alcohol as these may affect the test results.
- Conduct the test in a clean environment and not in an

environment where alcohol is present as this may affect the results.

- Wait until you are breathing normally again before using the breathalyser if you have been breathing rapidly (e.g. climbing stairs) or holding your breath, as this may affect the results.

- Do not use the breathalyser near chemicals such as benzene, thinner or petrol as these may affect the measurement results.

- Do not clean the breathalyser with chemicals or blow liquids into it.

- Do not use accelerating substances near the breathalyser, such as paint thinner, insecticides, alcohols, as these may affect the measurement results.

- Do not modify or tamper with the internal components of the unit as this may cause malfunction.

It is safest not to have alcohol in your blood when you are driving. Therefore, we recommend that you only use the breathalyser when you are sure that your blood alcohol content is below the legal limit. The device is intended as an aid only and should not be used to make decisions regarding driving ability or the operation of vehicles, machinery or equipment. Everyone reacts differently to alcohol and a person may already be unfit to drive below the legal blood alcohol limit.

Before using the breathalyser, make sure you have read the operating instructions and know the legal alcohol limits in your country. The manufacturers, distributors and sellers of the breathalyser accept no liability for improper use or loss or damage caused by actions you take after using the device.

How alcohol is absorbed by the body

Alcohol is absorbed into the bloodstream through the mouth, throat and primarily through the stomach and small intestine. The more alcohol consumed, the higher the blood alcohol content (BAC) in the body. Approximately 90 minutes after consuming alcohol, it has evenly distributed in the bloodstream. This is called the "equilibrium point".

The liver is responsible for breaking down the alcohol in the body. Approximately 90% of the alcohol is converted into water and carbon dioxide through a process called oxidation, while the remaining 10% is excreted through the lungs and kidneys. A healthy liver can normally break down one unit of alcohol per hour, but the more alcohol consumed, the longer it takes to process each unit.

When one stops drinking alcohol, the state of intoxication can remain constant or even increase for up to 2 hours, depending on how much alcohol has been consumed and how quickly the alcohol enters the bloodstream. If one has eaten something while drinking, this process can be delayed because the alcohol is absorbed by the food in the stomach.

Important note

It is important to note that the manufacturer or importer accepts no responsibility for inaccurate measurement results or any consequences resulting therefrom, as the breathalyser is not approved for official measurement and is intended solely to provide a rough estimate of the alcohol concentration in the body. Due to the fact that many factors such as air pollution, smoke or different smells in the mouth can influence the measurement of the breath alcohol concentration, the results can only be used as a rough indication. We therefore recommend waiting about 30 minutes after eating, drinking or smoking a cigarette before performing the test.

Dispose of the appliance

The appliance must not be disposed of in household waste. Please dispose of it and the batteries in an environmentally friendly manner and in accordance with the applicable local regulations.
