BC23IV03 - Insect Repellent Be Cool - Free user manual and instructions

Product Type	2-in-1 Insect Killer and LED Lamp
Brand	Be Cool
Model	BC23IV03
Dimensions (approx.)	150 mm (height) x 80 mm (diameter)
Weight (approx.)	200 g
Power Supply	Rechargeable lithium battery 1800 mAh, 3.7 VDC; USB input DC 5V 1000 mA
Light Flux	70 lm
Total Power	5 W (2 W lamp + 3 W insect trap)
High Voltage Grid	750 V
UV-A Lamp Type	SMD2835
Main Functions	LED lighting (warm white) and mosquito attracting & killing via blue light and high-voltage grid
Usage	Indoor and outdoor; place away from competing light sources for best results
Charging Time	Approximately 3 hours for full charge
Cleaning Instructions	Switch off and wait; use included brush; do not use metal objects or water
Safety Warnings	Do not touch grid; keep away from children; avoid flammable substances; do not use near water
Spare Parts & Repairability	Only use manufacturer-recommended parts; servicing by authorized workshop (Austria) recommended
Warranty	2 years from date of purchase (valid in Austria)
Included Accessories	USB cable, cleaning brush, user manual
Declaration of Conformity	Available at https://www.schuss-home.at/downloads
Manufacturer Contact	Schuss Home Electronic GmbH, Scheringgasse 3, A-1140 Vienna, Austria, Tel: [phone]

Frequently Asked Questions - BC23IV03 Be Cool

How does the BC23IV03 insect killer work?

The device uses a blue LED light to attract mosquitoes and other flying insects. Once they approach, a high-voltage grid (750 V) electrocutes them. The dead insects then fall into the inner space for easy removal.

Can I use the lamp and insect killer at the same time?

Yes, the BC23IV03 has two separate switches: one for the lighting function and one for the mosquito killer. You can turn on both simultaneously or use only one, as needed.

How long does the battery last after a full charge?

Battery life depends on usage. With both functions on, it typically lasts several hours. For best performance, fully charge the device (approx. 3 hours) before first use.

Is the BC23IV03 safe to use indoors?

Yes, it is designed for both indoor and outdoor use. However, always follow safety instructions: keep away from flammable materials, do not touch the grid, and avoid using near water or in damp areas.

How should I clean the insect killer?

First, switch off and unplug the device. Wait a few minutes for the grid to discharge. Use the included cleaning brush to gently remove dead insects. Never use metal objects or water, as this may damage the device or cause electric shock.

What power source does it require?

The BC23IV03 has a rechargeable lithium battery (1800 mAh, 3.7 V) and can be charged via the included USB cable with a standard 5V/1A USB adapter (not included).

Can I replace the UV-A lamp or other parts?

The device is designed with non-replaceable LEDs. For any repairs, contact Schuss Home Electronic GmbH or an authorized workshop. Using non-original parts voids the warranty.

Why is the insect catching rate lower than expected?

For best results, place the device away from competing light sources (e.g., other lamps). The blue light is most effective in darkness. Also, ensure the grid is clean and the battery is fully charged.

Is there a warranty for the BC23IV03?

Yes, the device comes with a 2-year warranty valid in Austria. Keep the original invoice and warranty certificate. The warranty covers manufacturing defects but not normal wear, improper use, or damage from external forces.

Can I use this device near food or in a kitchen?

No, do not use the insect killer over places where food is being prepared or served. Also, avoid using directly on windows or doors, and keep away from curtains or other flammable objects.

USER MANUAL BC23IV03 Be Cool

Green and white 3D-rendered object resembling a coiled spring or mechanical device with a hook (no text or symbols visible)

HERZLICHEN GLÜCKWUNSCH!

Schuss Home Electronic GMBH

A-1140 Wien, Scheringgasse 3

IMPORTANT SAFETY INFORMATION

1. Please read all instructions carefully before using the device.
2. Use this device only as described in the Operation manual. Any other use that is not recommended by the manufacturer could result in fire, electric shock, or personal injury.
3. The manufacturer assumes no liability for damage resulting from improper use, improper use or failure to observe these operating instructions.
4. This device is only intended for use in private areas. The device is not intended for use in commercial or industrial areas.

BE COOL

1. Remove the packaging and make sure that the device is not damaged. If in doubt, do not use the device and contact your dealer.
2. Before connecting to the mains, you must check whether the type of current and mains voltage match the specifications of the device.
3. Children are NOT ALLOWED to play with this device.
4. Do not leave the device unattended, especially if the device is used near children or people with disabilities. If you leave the room, always switch off the device or pull the plug out of the socket.
5. The device can be used by children and people from the age of 8 years. Persons with limited physical, psychological, sensory, intellectual abilities as well as lack of experience and knowledge may only use this device if it is done under appropriate supervision and if detailed instructions for using the device have been obtained in a safe manner, as well as the existing dangers have been described.
6. Avoid using an extension cord as this could overheat and cause a fire.
7. RISK OF ELECTRIC SHOCK
   NEVER touch the device, charging cable or plug with wet or damp hands while it is connected to the mains. NEVER operate the device standing on wet ground. NEVER touch the grille while the device is in operation. DO NOT reach or insert objects into the device while it is in operation.
8. FIRE AND SHORT CIRCUIT HAZARD

BE COOL

DO NOT submerge the device in water and do not use it near water or excessive moisture, e.g. next to a swimming pool or a bathtub.

13. EXPLOSION

Operation of the device near to all highly flammable or explosive liquids or gases is FORBIDDEN.

DO NOT use the device in rooms where there is a risk of fire, in which flammable or explosive vapors or dusts may be present (e.g. in stables, barns or paint halls).

1. Avoid direct sunlight, as this could irreparably damage the device.

2. Always disconnect the device from the mains when you are not using it, when it needs to be serviced or cleaned.

3. Before installing the device, make sure that the appropriate construction can hold the weight of the device.

4. Cleaning and maintenance must NOT be carried out by children without supervision.

5. If the power cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person to avoid any hazards.

6. Only use parts recommended by the manufacturer (if non-original spare parts are used, the guarantee and warranty are void).

7. Store the device in a safe, dry and childproof place when not in use.

BE COOL

Recycling, Disposal, Declaration of Conformity

	RECYCLINGThe packaging materials can be recycled. Therefore, it is recommended to dispose of them in sorted waste.
	DisposalThe symbol "crossed-out dustbin" requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally dangerous substances. Therefore, do not dispose of this in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. By doing so, you will contribute to the protection of resources and the environment. For more information, please contact your dealer or the local authorities. Directive 2012/19/EU
	Declaration of ConformityWe hereby confirm that this article complies with the basic requirements, regulations and directives of the EU. You can view the detailed declaration of conformity at any time under the following link:https://www.schuss-home.at/downloads

Errata and technical changes reserved.

LIEFERUMFANG

• 2 In 1 BC23IV03 Insect Killer
- USB Cable
- Brush for cleaning
- User Manual

BE COOL

FUNCTIONALITY

The rechargeable 2 in 1 mosquito killer bulb is with both function of lighting and mosquito killing.

Our design optimizes the lamp structure to ensure that the light distribution curve of the LED is comparable to that of a filament bulb.

The lamp offers efficient LED technology combined with the styling of the classic filament bulb.

The blue light with special wavelength to attract insects to the high

voltage grid leading to the death of the insect by electric shock,

The insect bodies will fall down through the inner space of the lamp and the dead insects can be brushed away.

INSTALLATION

• Remove the device from the packaging.
• Remove all packaging materials and check the device for damage.

• Charge the bulb by USB cable. (1 pc of USB cable is included in each pack.).

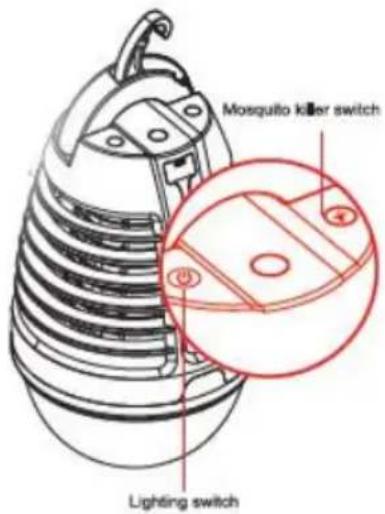

• Touch the switch button on the top of the appliance. Touch "light" switch, the lighting light will be on and can be used as a lighting torch or lamp.

Touc "killing" switch, the mosquito killer lamp will be on, which can attract mosquito and kill it by high voltage grid inside.

BE COOL

• Both function of lighting and killing can be on at the same time, or you can choose to have one function on per your request.
• Mosquito killer switch
• Three hours of charging can fully charge the appliance. 5. Please follow strictly to the "IMPORT SAFETY INSTRUCTION" when using the appliance.
• Catch rate activity be higher at nigh. For best catch result it is recommended to the unit away from competing light source.
• For both indoor and outdoor use.

ENTION - Please note:

• Do not use the device directly on windows or doors.
• Do not use the device over places where food is being prepared or served.
• Use the device out of the reach of flammable objects, e.g. curtains.

CLEANING TIPS

• First switch off the appliance and wait a few minutes.
• To clean the insect trap, do not try to remove it with a metal object, but use the cleaning brush provided.

ENTION - Please note:

• Do not use solvents or abrasives (thinners), metal cutlery or hard brushes for cleaning, as these can damage the device.
• Do not immerse the insect killer in water or other liquids.
• No water should drip on or into the device.

BE COOL

Technical Informations
Nominal Voltage	3,7VDC
Light Flux	70lm
Power	5W (2W Lamp 3W Insect Trap)
Voltage	750 Volt
UV-A Lamp	SMD2835
Battery	Lithium 1800 mAh
Input	DC5V 1000mA
Contact address for further informations and Serviceline:	Schuss Home Electronic GmbHScheringgasse 3,A-1140 ViennaTel: [phone] - 545www.becool.atFB-Nr: 236974 t / FB-Court: Vienna

BE COOL

WARRANTY

By purchasing a BE COOL quality product you have acquired an innovative, long lasting and reliable item.

For this BE COOL device we grant a warranty of 2 years from the date of purchase, valid in Austria only.

In the unlikely event that service work is required on your device in this period we warrant free repair (spare parts and labour) or (subject to Schuss's decision) to replace the product. In the event that neither repair nor exchange make sense from an economical perspective we reserve the right to issue a credit based on current value.

When dealing with air conditioning devices you should always contact the customer hotline first (see label on the device or the title page of the instruction manual), in case of fans contact your dealer or us directly. Please note that repair not performed by the authorised workshop in Austria immediately renders this warranty void.

This warranty does not include:

• We will not cover any follow-up damages caused by improper use.
  • Repair of replacement of parts due to normal wear
• Damage due to non-compliance with the instruction manual
  • Devices that are used commercially – even in part
  • Devices damaged by external forces (falling, impact, cracking, improper use etc.) as well as aesthetic wear
  • Devices that have been used improperly
  • Devices that were not opened by our authorised workshop.
• Unfulfilled customer expectations.
• Damage caused by force majeure, water, lightning and overvoltage.
• Devices on which type denomination and/or serial number on the device have been erased, rendered illegible or removed.
• Service work not performed by our authorised workshops, transport costs to an authorised workshop or us and back as well as associated risks.

Please note that within the warranty period we charge a flat rate of 60 € (indexed as per consumer price index 2010, June 2015) in case of operating errors or if no fault can be found.

BE COOL

The total warranty period of 2 years is not extended if warranty service is performed (repair or device replacement).

The 2 year warranty is only valid if the original invoice (must contain name and address of the dealer as well as full device name) and the respective warranty certificate are produced, on which the device type and serial number (can be found on the box and the device's rear or bottom) are to be noted! If the guarantee certificate is not presented, only the statutory guarantee applies! Please note that the statutory warranty coverage is not altered by this warranty and that it applies in full regardless.

Schuss Home Electronic GmbH and its vicarious agents are only liable for damages in case of gross negligence or intent. Liability for loss of profit, expected but not incurred savings, consequential damages and damages from third party claims is excluded in any case. Damages to or for recorded data are always excluded from the liability for damages.

Congratulations on your choice. We hope you will enjoy using your BE COOL device!

BE COOL Sales

Schuss Home Electronic GmbH

A-1140 Wien, Scheringgasse 3

Tel.: [phone]

Type Name: ....

Serialnumber: ....

Together with the device, this warranty certificate must be handed to the authorised workshop or dealer you bought the device from in the event of a warranty claim!
