| Product Type | Server |
| Brand | Ernitec |
| Model | CORE-3200R-8R-V4 |
| Form Factor | Rackmount 2U |
| Dimensions (H x W x D) | 3.5 in (8.9 cm) x 17.5 in (44.5 cm) x 20 in (50.8 cm) |
| Weight | 30 kg (66 lbs) |
| Power Supply | Dual redundant 800W hot-swappable |
| Processor Support | Dual Intel Xeon Scalable |
| Memory Support | Up to 512GB DDR4 ECC RDIMM |
| Storage Bays | 8 x 3.5" hot-swappable SATA/SAS |
| Network Interface | Dual 10GbE ports |
| Main Functions | High-performance computing, virtualization, data storage |
| Maintenance | Hot-swappable components, front accessible drives, tool-less chassis |
| Cleaning | Use compressed air for fans and vents; avoid liquids |
| Safety | Operate in well-ventilated area; complies with EMC/safety standards |
| Spare Parts | Power supplies, fans, drive caddies available from manufacturer |
| Repairability | Modular design with field-replaceable units (FRUs) |
| General Information | Designed for data centers, supports remote management via IPMI |
Frequently Asked Questions - CORE-3200R-8R-V4 Ernitec
How do I power on the CORE-3200R-8R-V4?
Connect both power cords to redundant power supplies, then press the front power button.
What type of storage drives are supported?
The server supports 8 hot-swappable SATA or SAS 3.5" drives.
Can I upgrade the memory?
Yes, up to 512GB DDR4 ECC RDIMM in 16 DIMM slots. Refer to manual for compatible modules.
How do I access the remote management interface?
Connect to the dedicated IPMI port and configure the IP address via BIOS or DHCP.
What is the maximum power consumption?
Under full load, the server consumes up to 1200W with dual CPUs and all drives active.

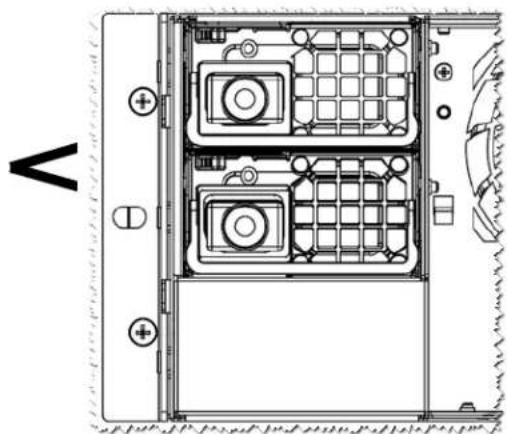

How do I replace a failed power supply?
The power supplies are hot-swappable. Unlatch the handle, pull out the failed unit, and insert a new one.
What operating systems are compatible?
Compatible with Windows Server, Linux (Ubuntu, RHEL), and VMware ESXi.
How often should I clean the server?
Every 3-6 months, use compressed air to remove dust from fans and vents to prevent overheating.
What is the warranty period?
Ernitec offers a standard 3-year warranty with options for extended support.
How do I reset the BIOS settings?
Locate the CMOS reset jumper on the motherboard, move it to the reset position for 10 seconds, then return.
