USER MANUAL INN-524B Innoliving

innoliving easy tech, easy life

VENTILATORE PIEGHEVOLE

RICARICABILE 15 CM

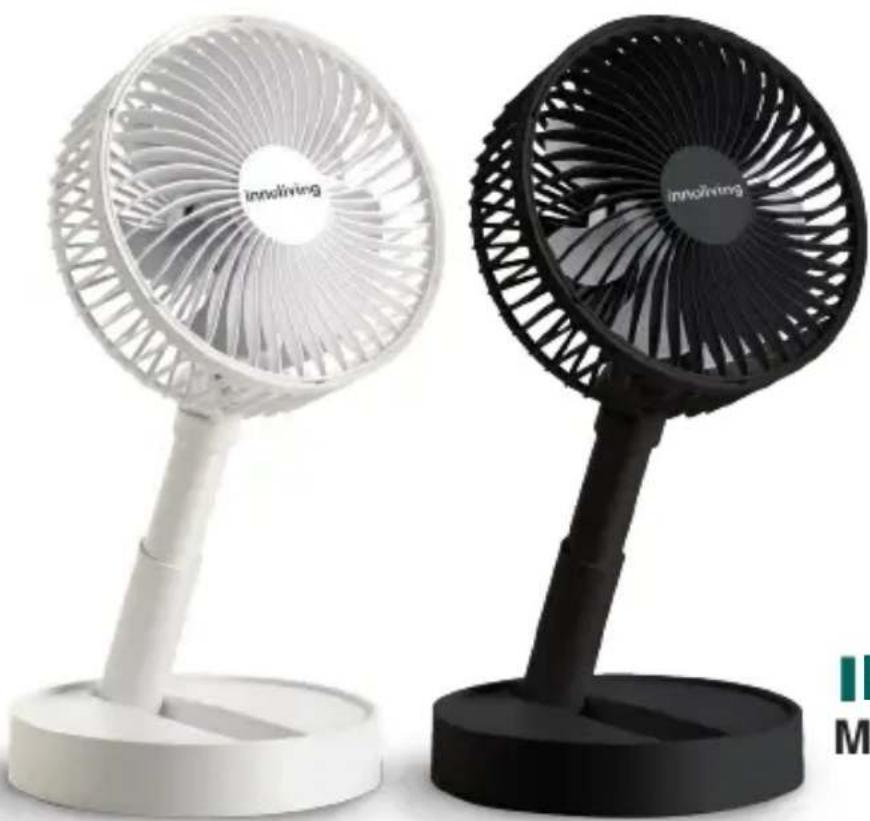

FOLDABLE RECHARGEABLE

ELECTRIC FAN 15 CM

Two modern office fans with black and white designs, one white and one black, displayed on a stand (no text or symbols visible on the fans themselves)

INN-524B/W

MANUALE D'USO

USER MANUAL

Simple gray rectangular shape with two vertical lines above it, no text or symbols present.

VENTILATORE PIEGHEVOLE RICARICABILE 15 CM

|

PRIMA DELL'USO LEGGERE ATTENTAMENTE IL SEGUENTE MANUALE DI ISTRUZIONI E CONSERVARLO PER FUTURE CONSULTAZIONI.

Line drawing of a standard electric fan with blades and base, no text or symbols present

• TASTO ON/OFF - VELOCITÀ
• TASTO TIMER

Technical line drawing of a mechanical device with a cylindrical component and support bracket (no text or symbols)

Porta USB

Before using the appliance, carefully read the instructions for use and in particular the safety warnings and follow them. Keep this manual for the entire useful life of the appliance, for reference purposes.

Failure to follow the instructions could cause accidents and void the warranty, relieving the manufacturer of any liability

WARNINGS

• Packaging elements (plastic bags, cardboard, polystyrene, etc.) must not be left within the reach of children as they are potential sources of danger and must be disposed of in accordance with current regulations.
• Before use, check the USB cable for visible damage. If the cable is damaged, replace it with an equivalent one.
• This appliance must be used solely for the purpose for which it was designed, i.e. as a fan for domestic use. Any other use is considered non-compliant and therefore dangerous.
• This appliance can be used by children over the age of 8 and by

people with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge if under supervision or if they have received instructions regarding the safe use of the appliance and whether they understand the dangers involved.

Cleaning and maintenance operations carried out by the user must not be carried out by children, unless they are over 8 years of age and operated under supervision. Keep the appliance and its cord out of reach of children under the age of 8.

• Make sure that children do not play with the appliance.
• Remove the cable from the USB port when the device is not in use.
• Always make sure that the cable is fully inserted into the USB port before turning on the product.
• Use the product by placing it only on flat and stable surfaces, avoid inclined surfaces.
• Do not use the device outdoors or near tubs, swimming pools, showers, etc.
• Do not insert foreign bodies inside the device. Do not insert fingers or other objects into the grill to avoid mechanical risks during use. Do not block the air inlets or outlets in any way.
• Avoid prolonged exposure of children and the elderly to the direct

flow of the product.

• Do not leave the appliance exposed to direct sunlight for a long period of time.
• Do not use aggressive detergents to clean the product.
• Do not let the appliance and/or cable come into contact with incandescent surfaces.
• This appliance must be used solely for the purpose for which it was designed.
• Avoid dropping the appliance.
• Do not use the product if it has been dropped, if there are visible signs of damage or leaks. Avoid bumps and falls.
• In the event of a breakdown or malfunction of the appliance, turn it off and do not tamper with it. Don't try to repair it yourself. For any repairs, contact an authorized technical assistance center exclusively.
• Use the appliance in a well-ventilated area. During use, the appliance must be kept at a distance of at least 20 cm from the walls to ensure the correct functioning of the air vents. The appliance must not be placed immediately under or beyond a curtain or similar. Do not cover the appliance with blankets or

similar during use.

• Do not place the USB cable under carpets, cloths or similar. Keep cords away from walking areas or where there is a risk of tripping or falling.
• Do not place objects on top of the appliance.
• Turn off the device before disconnecting the cable from the USB port.
• The product works best in clean environments, free of smog and pollution. The presence of dust or dirt particles reduces the useful life of the product.
• Use in dry environments is recommended, if used in a humid environment, take care that water never comes into contact with the appliance.
• In the event of a water leak or spill, turn off the appliance, disconnect it from the USB port and let it dry for at least 24 hours before using it again.
• Do not place the fan near open flames or heat sources.
• Always use the original USB cable supplied in the package.
• Do not touch the cable or the product connected to the USB port with wet hands.

GB

• Always disconnect the fan from the USB port for cleaning and maintenance operations or to move the fan.
• Do not place the fan in high traffic areas, where you could easily trip over the USB cable and/or overturn the device.
• Do not turn the fan upside down.
• Do not immerse the fan in water or other liquids.
• The product must be powered only at a very low safety voltage corresponding to the marking on the appliance.
• The battery of this product is not replaceable

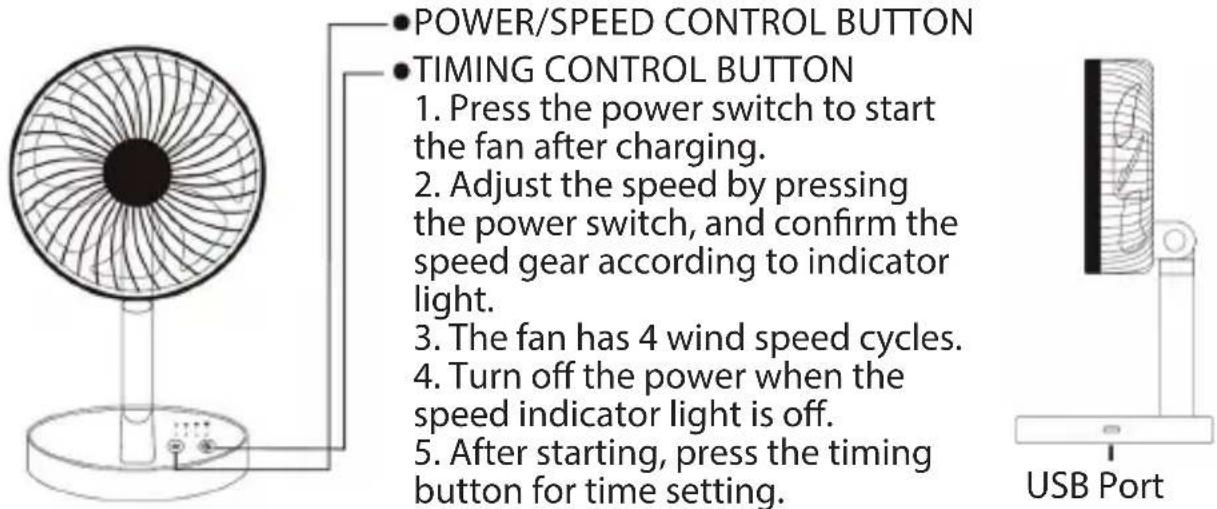

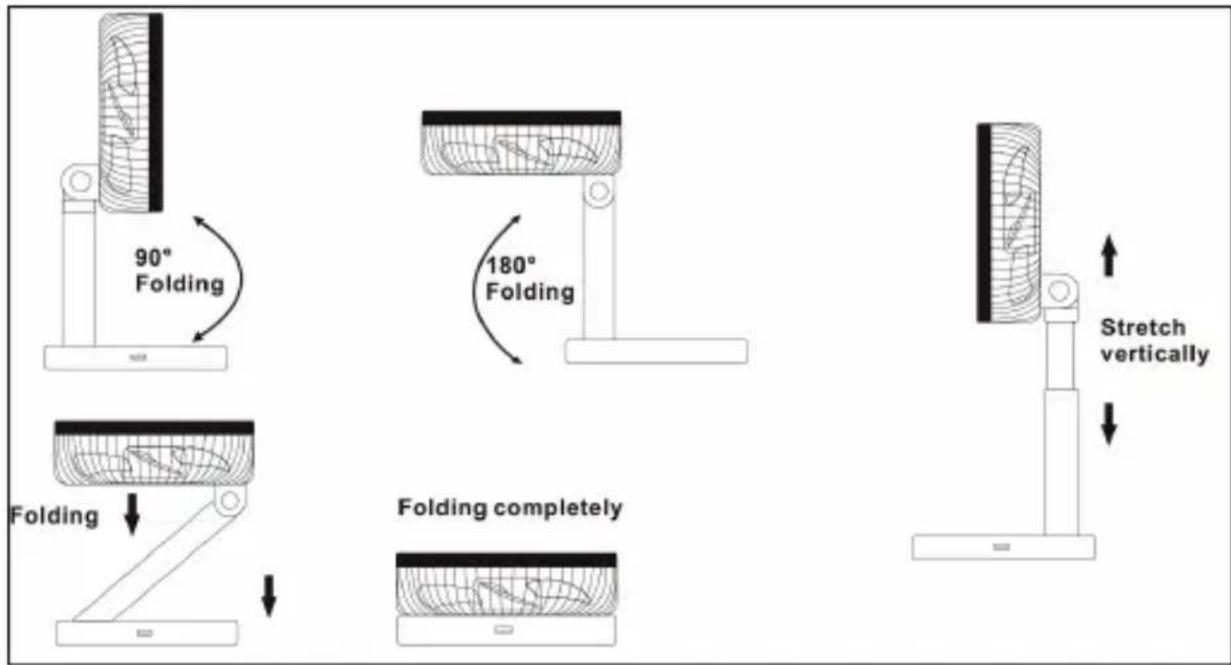

DESCRIPTION AND OPERATION OF THE PRODUCT

●POWER/SPEED CONTROL BUTTON
•TIMING CONTROL BUTTON

1. Press the power switch to start the fan after charging.

2. Adjust the speed by pressing the power switch, and confirm the speed gear according to indicator light.

3. The fan has 4 wind speed cycles.

4. Turn off the power when the speed indicator light is off.

5. After starting, press the timing button for time setting.

GB

●○○○ Press the power button once 1 speed slight wind
●○○○ Press the timing button once 1 hours timing
●●○○ Press the power button twice 2 speeds soft wind
Press the timing button twice 2 hours timing
●●●○ Press the power button three times 3 speeds cool wind
Press the timing button three times 4 hours timing
●●●● Press the power button four times 4 speeds strong wind
Press the timing button four times 8 hours timing

RECHARGE

To charge the fan, simply connect the charging cable to the USB port and the power supply. It is important to disconnect the power once charging is complete.

The output of the power supply to be used must correspond to the input data shown on the fan's rating label.

CHARGING REMINDER

The indicator light turns green while the product is being used. During the charging phase, it will flash; when charging is complete, all four speed indicators will light up.

CLEANING AND MAINTENANCE

Before cleaning and maintenance, switch off the device and disconnect the USB cable if necessary. Do not use detergents, solvents or abrasive substances. Use a soft, damp cloth to clean the exterior surfaces of the fan.

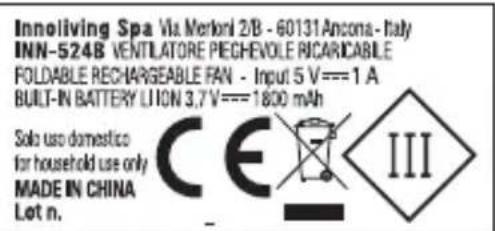

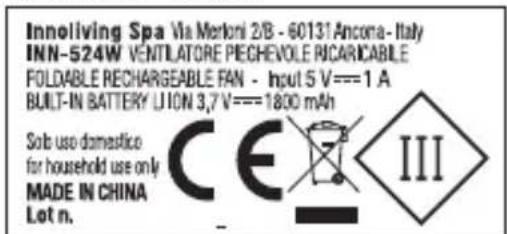

RATING LABEL

This product complies with all the applicable European regulations

Class III insulated electrical appliance

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)".The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The

separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014.

The batteries used in this device cannot be removed by user and must be disposed of in the special bins at the end of their life. Please inform yourself about the local rules on separate collection of batteries. The correct disposal of batteries helps preventing potentially negative consequences on the environment. The battery will have to be disassembled directly by the treatment center. Voltage and capacity of the lithium battery included: 3.7V 1800mAh
