Norelco NT3610 - Nose trimmer PHILIPS - Free user manual and instructions

Product Type	Nose Trimmer (also for ears, eyebrows, neck)
Brand	Philips Norelco
Model	Norelco NT3610
Power Source	1 AA lithium battery (1.5V)
Battery Type	Replaceable lithium AA
Attachments Included	Trimming head, short eyebrow comb (3mm), long eyebrow comb (5mm), rotary trimmer, cleaning brush, pouch (NT3610 only)
Cutting Element Material	Precision stainless steel (estimated)
Usage	Trimming nose, ear, eyebrow, and neck hair
Safety Features	Do not use in bath/shower; do not insert more than 5mm into ear or nostril; keep away from eyes; use on dry skin only
Cleaning Method	Rinse cutting element with lukewarm water; use cleaning brush; do not immerse motor unit
Storage	Store in dry location; ensure parts are dry before storage
Warranty	2-year limited warranty (excluding cutters and combs); 45-day money-back guarantee
Support	www.philips.com/support or 1-800-243-3050
Dimensions	Not specified; typical travel size (estimated 15 cm length)
Weight	Not specified; lightweight (estimated 50g with battery)
Battery Life	Not specified; depends on usage (estimated several months with moderate use)

Frequently Asked Questions - Norelco NT3610 PHILIPS

How do I insert the battery in the Philips Norelco NT3610?

Ensure hands and product are dry. Turn the battery compartment cover clockwise to the unlocked position, pull it off, insert the AA lithium battery with correct polarity, then slide the cover back and turn counterclockwise to lock.

Can I use the NT3610 in the shower?

No, the product is for dry use only. Do not use while bathing or in a shower to reduce risk of electric shock.

How do I clean the trimming head?

Remove excess hair with the cleaning brush, then rinse the cutting element with hot water. Switch on the product and rinse again to remove remaining hairs. Shake off excess water and let it air dry.

How far should I insert the trimmer into my nose or ear?

Do not insert more than 5 mm (13/64 inch) into your nostril or ear channel to avoid injury to the eardrum or nasal passages.

What batteries does the NT3610 use?

It uses one replaceable lithium AA 1.5-volt battery. The product comes with a battery included.

How do I trim my eyebrows with this trimmer?

Comb eyebrows in growth direction. Attach the desired eyebrow comb (short for 3mm, long for 5mm). Switch on and move the comb from the outer tip towards the nose base against hair growth.

Is the NT3610 suitable for sensitive skin?

Do not use on irritated or sensitive skin. Apply gentle pressure; pressing too hard may cause skin irritation.

What is the warranty period for the NT3610?

Philips offers a 2-year limited warranty against defects in materials and workmanship (excluding cutters and combs) and a 45-day money-back guarantee.

How do I remove the battery for disposal?

Remove the battery compartment cover by turning clockwise, pull off, remove the battery, and dispose of it properly. Do not incinerate.

Can I use the rotary trimmer for ear and nose hair?

Yes, the rotary trimmer attachment is designed for ear and nose hair. Use it carefully, inserting no more than 5 mm.

USER MANUAL Norelco NT3610 PHILIPS

Specifications are subject to change without notice.

All rights reserved.

4222.002.9249.4 (2/24/2020)

English

IMPORTANT SAFETY INSTRUCTIONS

When using an electric product, basic precautions should always be followed, including the following:

Read all instructions before using this product.

WARNING

To reduce the risk of burns, fire, electric shock, or injury to persons:

• Use product only in dry condition. Do not use while bathing or in a shower.
• Close supervision is required when this product is used by, on, or near children, or persons with limited physical, sensory, or mental capabilities or invalids.
• Use this product only for its intended household use as described in this manual. Do not use attachments not recommended by Philips North America LLC.
• Never drop or insert any object into any opening.
• Never operate this product if it is not working properly, after it has been dropped or damaged, or after the product has been dropped into water. For assistance call 1-800-243-3050.
• Do not use this product outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
• Never put the product in direct sunlight or store at a temperature above 140 °F (60 °C).
• Always check cutters, cutting unit and guards before using the product. Do not use the product if cutters, cutting unit or guards are damaged, as injury may occur.
• Only use the accessories supplied with the product.
• If product will not be used on a regular basis, remove the battery to prevent possible damage due to chemical leakage. If battery does leak, remove it carefully. Do not allow bare skin to touch leaking fluid.
• The batteries used in this product may present a fire or chemical burn hazard if mistreated. Do not disassemble, heat above 100 °C (212 °F) or incinerate.
• Do not recharge non-rechargeable batteries.

SAVE THESE INSTRUCTIONS

Introduction

Congratulations on your purchase and welcome to Philips Norelcol!

To fully benefit from the support that Philips Norelco offers, register your product

at www.norelco.com/register

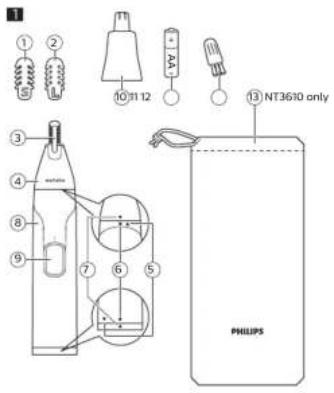

General description (Fig. 1)

1 Short eyebrow comb (1/8 in, 3 mm)

2 Long eyebrow comb (13/64 in, 5 mm)

3 Cutting element

4 Trimming head

5 'Unlocked' indication

6 'Locked' indication

7 Setting indicator

8 Handle

9 On/off slide

10 Rotary trimmer

11 AA Lithium battery

12 Cleaning brush

13 Pouch (NT3610 only)

Preparing for use

Inserting the battery

Note: Make sure your hands and product are dry when you insert the battery.

1 To remove the battery compartment cover, turn it clockwise until the setting indicator points to the 'unlocked' indication (^) (Fig. 2).

2 Pull the battery compartment cover off the handle (Fig. 3).

3 Put the battery in the battery compartment (Fig. 4). Make sure the + and - poles of the battery point in the right direction.

Note: The product operates on one replaceable lithium AA 1.5-volt battery (included).

4 Slide the battery compartment cover back onto the handle (Fig. 5).

5 Turn the battery compartment cover counterclockwise until the setting indicator points to the 'locked' indication (0) (Fig. 6).

Using the product

Use the product for the following purposes:

- Trim your eyebrows with the eyebrow comb attached to the trimming head.

- Trim your ear, nose and neck hair with the trimming head.

- The rotary trimmer can also be used to trim ear and nose hair.

Rinse the cutting element of each attachment with lukewarm water after each use.

Be careful to always keep cutting element away from eyes and eyelashes.

For hygienic reasons, the product should only be used by one person.

Apply gentle pressure. Pressing too hard may cause skin irritation, and the trimmer will not function properly.

Do not use trimmer on sensitive areas or irritated skin.

Switching the product on and off

1 To switch on the product, slide the on/off slide upwards.

2 To switch off the product, slide the on/off slide downwards.

Detaching and attaching the attachments

Note: Switch off the product before attempting to detach or attach the attachments.

1 To detach an attachment from the handle, firmly grip the attachment below the cutting element and turn it until the setting indicator points to the 'unlocked' indication (^).

2 Lift the attachment off of the handle.

1 To attach an attachment, place the attachment on the handle with the setting indicator pointing to the 'unlocked' indication (^).

2 Firmly grip the attachment below the cutting element and turn it until the setting indicator points to the 'locked indication (0).

Trimming eyebrows with the eyebrow guard

1 Comb your eyebrows in the direction of hair growth (Fig. 7).

2 Make sure the product is switched off. Slide the eyebrow comb onto the trimming head (Fig. 8). The short eyebrow comb trims the hairs to a length of 1/8 in, 3 mm. The long eyebrow comb trims the hairs to a length of 13/64 in, 5 mm.

Note: Make sure the comb slides into the grooves on both sides of the trimmer.

3 Switch on the product.

4 Move the comb over the eyebrow from the outer tip of the eyebrow towards the base of the nose (against the direction of hair growth) (Fig. 9).

5 Clean thoroughly after each use (see 'Cleaning').

Trimming ear hair

Make sure your outer ear channels are clean and free from wax.

Note: Remove eyebrow combs before trimming nose or ear hair. (Fig. 10)

1 Switch on the product.

2 Slowly move the trimming head along the rim of the ear to remove hairs that stick out beyond the rim.

Do not insert the trimming head more than 13/64 in, 5 mm into your ear channel, as this could damage the eardrum.

1 Carefully insert the trimming head into the outer ear channel.

2 Slowly turn the trimming head around to remove all unwanted hairs from your outer ear channel (Fig. 11).

Tip: The rotary trimmer can also be used to trim hairs in the outer ear channel.

3 Clean thoroughly after each use (see 'Cleaning').

Trimming nose hair

Make sure both the product and nasal passages are clean before trimming. Dried nasal mucus can block the cutting element, preventing the product from turning on.

Note: Remove eyebrow combs before trimming nose or ear hair. (Fig. 10)

1 Switch on the product.

2 Slowly move the trimming head along the rim of the nostril to remove hairs that stick out beyond the rim.

3 Carefully insert the trimming head into one of your nostrils.

Do not insert the trimming head more than 13/64 in, 5 mm into your nostrils.

4 Slowly move the trimming head around inside each nostril (Fig. 12), making sure the side of the trimmer is held firmly against the skin. (Fig. 13) This will reduce the tickling effect that can occur.

Tip: The rotary trimmer attachment can also be used to trim hairs in the nostrils.

5 Clean thoroughly after each use (see 'Cleaning').

You can also trim your neck hair using the trimming. Pull skin taut with one hand and place the trimming head gently on the skin. Move the trimming head slowly over the skin against the direction of hair growth making sure the trimming head is in complete contact with the skin.

Clean the trimming head thoroughly after each use.

Cleaning

Cleaning the trimming head

Do not immerse the motor unit in water or any other liquid, or rinse it under the tap.

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as gasoline or acetone to clean the product or any attachments or accessories.

Do not tap on the cutting elements.

Do not use any sharp objects to clean the cutting elements.

Clean the trimming head immediately after use and when a lot of hair or dirt has accumulated on the cutting elements.

1 Use the cleaning brush to remove any excess hair from the cutting element. (Fig. 14)

2 Rinse the cutting element of the trimming head with hot water.

3 Switch on the product and rinse the cutting element and trimming head again (Fig. 15) to remove any remaining hairs. Then switch off the product again.

Tip: If rinsing the trimming head under the tap is not sufficient, immerse the trimming head in a glass with warm water

for a few minutes (Fig. 16). Then switch on the product and rinse it under the tap.

4 Rinse the combs with lukewarm water (Fig. 17). You can also use the cleaning brush to clean the eyebrow combs.

5 Carefully shake off excess water and let all parts air dry (Fig. 20).

Cleaning the rotary trimmer

Clean the rotary trimmer immediately after use and when a lot of hair or dirt has accumulated on the cutting elements.

1 Use the cleaning brush to remove any excess hair from the cutting element.
2 Switch on the product and rinse the nose hair trimmer with hot water (Fig. 18).
3 Turn off the product and remove the rotary trimmer attachment.
4 Turn the attachment upside down, and rinse it with lukewarm water (Fig. 19).
5 Carefully shake off excess water and let all parts air dry (Fig. 20).

Storage

Store the product in a safe, dry location. Ensure that the product and accessories are completely dry before storage, or before inserting them into the pouch if provided.

Assistance

For assistance, visit our website:

www.philips.com/support or call toll free 1-800-243-3050.

Online information is available 24 hours a day, 7 days a week.

Disposal

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. For recycling information, please contact your local waste management facilities or visit www.recycle.philips.com.

This product contains batteries:

- Dispose of batteries properly. Do not incinerate. Batteries may explode if overheated.

• Do not wrap in metal or aluminum foil. Tape the waste battery terminals before discarding.
• It is suggested that you contact your local town or city to determine proper battery redemption site(s) in your area.

Removing the disposable battery

To remove the disposable battery, see chapter 'Preparing for use'.

45-DAY MONEY-BACK GUARANTEE

If you are not fully satisfied with your product send the product back and we'll refund you the full purchase price.

The product must be shipped prepaid by insured mail, insurance prepaid, have the original sales receipt, indicating purchase price and date of purchase, and the money-back guarantee return authorization form enclosed.

We cannot be responsible for lost mail.

The product must be postmarked no later than 45 days after the date of purchase. Philips reserves the right to verify the purchase price of the product and limit refunds not to exceed suggested retail price.

To obtain the money-back guarantee service, please go to www.PhilipsMoneyBack.com and follow the simple 3-step process.

Delivery of refund check will occur 6–8 weeks after receipt of returned product.

Full Two-Year Warranty

Philips North America LLC warrants each new Philips Norelco Razor (except cutters and combs) against defects in materials or workmanship for a period of two years from the date of purchase, and agrees to repair or replace any defective product without charge.

IMPORTANT: This warranty does not cover damage resulting from accident, misuse or abuse, lack of reasonable care, the affixing of any attachment not provided with the product or loss of parts or subjecting the product to any but the specified voltage.*

NO RESPONSIBILITY IS ASSUMED FOR ANY SPECIAL, INCIDENTAL, OR

CONSEQUENTIAL DAMAGES.

In order to obtain warranty service, simply go to www.philips.com/norelco or call 1-800-243-3050 for assistance. It is suggested that for your protection, you return shipments of product by insured mail, insurance prepaid. Damage occurring during shipment is not covered by this warranty.

NOTE: No other warranty, written or oral, is authorized by Philips North America LLC. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion and limitations may not apply to you.

* Read enclosed instructions carefully.
