921461 - Hot plate Max Pro - Free user manual and instructions

Product Type	Hot Plate (Single Burner)
Brand	Max Pro
Model	921461
Dimensions (H x W x D)	43.0 cm x 26.3 cm x 29.0 cm
Volume	4.5 L
Voltage	220-240 V
Frequency	50 Hz
Power	250 W
Temperature Range	30°C - 90°C
Controls	Thermostat dial
Heating Element	Electric heating
Material	Stainless steel (exterior)
Safety Features	Grounded plug, automatic temperature control, overheat protection
Clearance Required	Sides >10 cm, back >20 cm from obstacles
Power Cord	Fixed, must be replaced by a professional
Cleaning Method	Warm water, mild detergent, soft cloth; do not immerse
Storage Conditions	Dry, well-ventilated indoor area
Warranty	Valid only if instructions are followed; type plate must not be removed
Disposal	WEEE compliant; do not dispose with household waste
Intended Use	Food service equipment (bain-marie / hot plate)
Certifications	CE, type plate on back

Frequently Asked Questions - 921461 Max Pro

How do I use the Max Pro 921461 hot plate for the first time?

Remove all packaging and protective film. Clean the device with warm water, a wet cloth, and a small amount of detergent. Dry thoroughly before use. Fill the bain-marie with water (warm water saves energy) to the insert pan level, then connect to a grounded outlet and turn the thermostat clockwise to set the desired temperature (30-90°C). Never let it boil dry.

What are the safety precautions I should follow?

Place the device on a stable, heat-resistant surface with at least 10 cm clearance on sides and 20 cm at the back. Do not use extension cords or multi-plug adapters. Always plug into a grounded socket. Never touch the hot surface during operation or cooling down. Keep children away, and never move the appliance while it is hot. Turn off and unplug after use.

How do I clean the hot plate?

After turning off and unplugging, allow the appliance to cool completely. Clean with a soft cloth dampened with warm water and a mild detergent. Do not use abrasive cleaners, scouring pads, or immerse the device in water. Dry thoroughly before storing. For stainless steel parts, avoid using steel wool.

What should I do if the device does not heat up?

First, check if the plug is securely inserted into the socket. Inspect the power cord for damage. If the cord is damaged, it must be replaced by a professional electrician. Ensure the thermostat is turned clockwise. If the problem persists, contact your local dealer or authorized service technician.

Can I use the hot plate without water?

No, the device is designed for use with water (bain-marie operation). Operating it dry can cause overheating and damage. Always maintain sufficient water level and check every 15 minutes to prevent boiling dry.

What is the correct way to store the appliance?

After cleaning and drying, store the appliance indoors in a well-ventilated, dry place. Avoid exposure to rain or moisture. Do not store outdoors even if packed. Ensure the power cord is not coiled tightly.

How do I dispose of the Max Pro 921461?

Do not dispose of this product with household waste. Follow local regulations for Waste Electrical and Electronic Equipment (WEEE). Return it to a designated collection point or contact your dealer for proper disposal.

Can I repair the device myself?

No, do not attempt to repair the appliance yourself. Always contact a qualified technician. Using non-original spare parts or unauthorized repairs will void the warranty.

What is the temperature range and how to adjust it?

The thermostat allows adjustment from 30°C to 90°C. Turn the dial clockwise to increase temperature. The device will maintain the set temperature automatically. For gentle heating, start lower and adjust as needed.

What does the type plate contain and why is it important?

The type plate is located on the back of the device and includes model number, voltage, power, and manufacturing information. Do not remove it, as it is essential for warranty claims and identifying compatible spare parts.

USER MANUAL 921461 Max Pro

Exterior view of a Max Pro kitchen appliance with a circular top and handle (no visible text or symbols on the device itself)

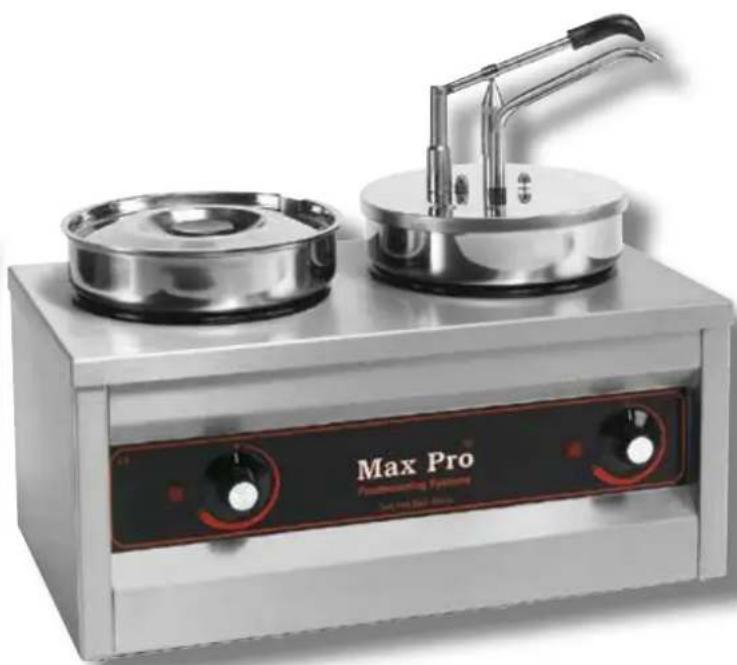

Exterior view of a Max Pro industrial appliance with two circular burners and a handle (no text or symbols visible on the device itself)

Before starting up, please read this manual carefully in order to ensure the correct and safe installation and usage. Damage caused by not following the instructions of this manual will always invalidates the warranty. Mach would like to emphasize that this instruction manual needs to be readed carefully before usage and should be stored for later use.

TECNICAL SPECIFICATIONS:

MODEL	LIT.	DIMENSIONS (CM)	VOLTAGE (V)	HERTZ (HZ)	POWER (W)
921.461 4,5		43,0(H) × 26,3 × 29,0	220-240 V 50 Hz		250
921.462	2 × 4,5	43,0(H) × 50,3 × 29,0	220-240 V 50 Hz		500

For more information we would like to ask you to go to our website www.emga.com.

You could for example search on item nr. and go to downloads.

Here, you will be able to find more information like the exploded views and the spare part lists.

TYPE PLATE

The type plate (the picture is an example) is located on the back of the device. You are requested not to remove it. The type plate can for example be used to determine, when the item was purchased (view PO) and from which production line (view SN) it originates. This information may be essential with regard to warranty. It also contains important information such as the voltage and power supply which determines the ability to connect the device safe.

TRANSPORT AND STORAGE:

As long as the products are packed, please make sure you never place them upside down. This could damage the appliance. During transport, the product should be placed carefully. Make sure you prevent any drastic vibration during transport. You should never place or store this product outside or in open air for a longer period of time than a few hours (not even packed). It should be stored in a well-ventilated warehouse without corrosive

gasses. When, in case of an emergency, you need to store them temporarily outside, you should take measures to protect them from rain or moisture.

SAFETY PRECAUTIONS AND USAGE ENVIRONMENT:

1. Remove all packaging material and any protective film from the device.
2. This product should be placed in a balanced and well ventilated spot and its left and right sides should be free from obstacles for more than 10cm. It's back-side should be free from the obstacles (like a wall etc.) for more than 20cm.
3. During operation, do not place any stuff in front of the appliance to make sure it could be operated at any time needed.
4. Do not place the appliance on a carpet, a tea towel, tablecloth (vinyl) or another surface that cannot withstand high temperatures. This could cause fire hazard.
5. Do never cover the appliance with foil; this could cause overheating and therefore danger.
6. Never plug the power cord into an extension cord or wall outlet to which multiple devices are connected.
7. Never put the plug in the socket with wet hands.
8. When disconnecting the device from the power, never pull from the cord, only the plug.
9. The power pressure of this equipment should conform to the supply voltage of this product.
10. The user should install the suitable power switch, fuse and leakage-protector near to the equipment.
11. Before usage, this equipment must be connected (safe) to a grounded socket.

12. Before starting up, you should check whether the socket you want to use is grounded.

13. Ensure whether all the connections of all the electric elements of the product are firm or not, and whether the safety grounding is reliable or not.

14. When you change the power cable, you should select the same model cable and: it is only allowed to let a professional electrician do this.
15. Never use other parts than the ones which are from Mach. Mach is not taking any responsibility for damage caused by the use of other (non-related) parts.
16. If there are any abnormal phenomenons during usage, you must stop the appliance directly. After checking you can continue to use it as long as it is safe. Do not repair the appliance by yourself. This should always been done by a technical professional.
17. During operation or cooling down: always keep the appliance out of reach of children. This, mainly to prevent burning injuries.

DEGREASE:

Before operating for the first time, clean the device with warm water, a wet cloth and a small amount of detergent. Do not rinse the appliance under the tap, this could cause serious damage to the appliance. In addition, make sure that you have dried it properly before you start operating the device.

SAFETY INSTRUCTIONS:

1. Never leave the area around the appliance during use. (Use also includes the cooling down period).
2. Never move the appliance during use.
3. Never touch the inner pan during use.
4. The device should only be used for its intended purpose.
5. Cooling down: After usage (and after turning thermostat back to 0 and turning the switch OFF), the appliance needs to cool down for a minimum time of 30 minutes. To prevent any burning injuries or other danger, do not touch, move or use the appliance during this period of time.
6. After usage the electricity needs to be cut from the socket to prevent fire hazard. This to prevent short circuit or danger.
7. When you move the product from its place, always pick it up from the lower side of the appliance. Never pick it up from the upper side (baking tray) to prevent any damage to the appliance.

USERS INSTRUCTIONS:

1 Fill the bain-marie with water (TIP: using warm water saves energy and time). Fill the water pan with enough water to make sure it reaches the insert pan.

1. You should also take into account the amount of water in connection with overflow of the bain-marie. This must be done to avoid short-circuit.
2. Operation: You can activate the device by connecting it to the mains and then turning the thermostat clockwise to the right. The temperature range is 30 - 90°C.
3. Prevent the appliance from boiling dry, this creates technical problems. Check the amount of water every 15 minutes and refill if necessary.

CLEANING AND MAINTENANCE:

- Only empty the bain-marie (the water) after it has completely cooled down and has been switched off. To do this, turn the thermostat/switch to 0.

Step 1: After usage, the device must first be switched OFF, after which you must remove the plug from the socket. Always do this in the order described to prevent short circuit or other possible dangers.

Step 2: Clean the parts and the device with warm water, a wet cloth and a small amount of cleaning-detergent and then dry it thoroughly. Do not use benzine, thinner, scouring brush or polishing powder to clean the device.

• Pay attention! Do not rinse the device with water (don't wash it by using the tap).
  This could cause damage to the device and could therefore lead to dangerous situations;
• Never clean the device with a stainless steel brush. This causes scratches and damages to the device;
  • Always store the appliance inside and keep it dry;
• Before maintaining the appliance, always make sure you have removed the plug from the socket.

If the appliance does not work or is damaged, check the following:

1. Whether the plug is in the socket;
2. Whether the plug and / or the cord is damaged.

If it is nr. 2 or if another problem occurs, contact your local dealer or authorized service technician.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.
