9234-010 - Saw Hazet - Free user manual and instructions

Product Type	Cordless Reciprocating Saw
Brand	Hazet
Model	9234-010
Battery Voltage	18 V
Battery Capacity	2 Ah (included) / 5 Ah (optional)
No-Load Speed	0 – 3100 min⁻¹ (variable)
Stroke Length	28.5 mm (1 1/8")
Weight (without battery)	2.26 kg

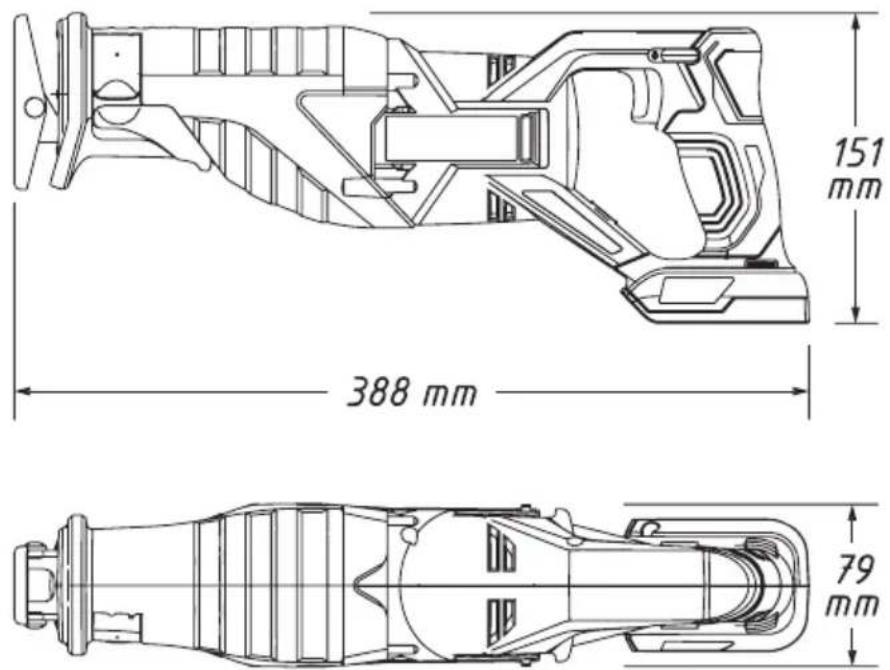

Dimensions (L x W x H)	388 x 79 x 151 mm
Sound Pressure Level	86.13 dB(A)
Sound Power Level	97.13 dB(A)
Vibration Acceleration	32.18 m/s²
Charger Input	100 – 240 V~, 50/60 Hz, 110 W
Charger Output	12 – 18 V, 4.0 A
Battery Type	Li-Ion
Adjustable Shoe	Yes, 5 positions
Tool-Free Blade Change	Yes (blade clamp release lever)
Variable Speed Trigger	Yes

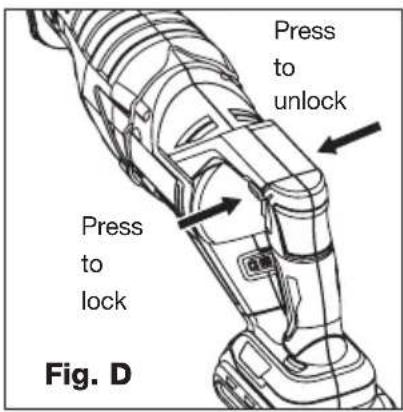

Lock Button	Yes (prevents accidental start)
Remaining Power Display	Yes (4 LED indicator)
Safety Features	Overheat protection, low voltage cutoff
Included Accessories	1 battery (2 Ah), 1 charger
Maintenance	Clean with soft cloth, avoid solvents, store in dry place

Frequently Asked Questions - 9234-010 Hazet

What type of battery does the Hazet 9234-010 use?

The saw uses an 18 V Li-Ion battery. It comes with a 2 Ah battery, and an optional 5 Ah battery is available.

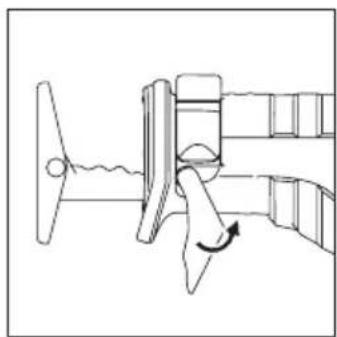

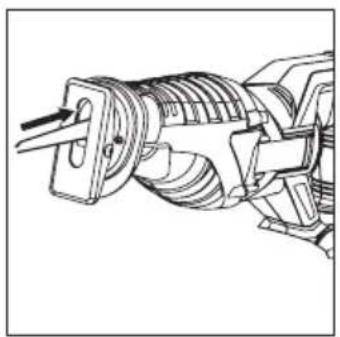

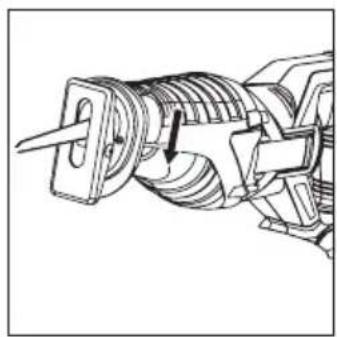

How do I install or remove a saw blade?

Pull the blade clamp release lever upward, insert the blade shaft from the front, then press the lever down to lock. To remove, open the lever and pull the blade out.

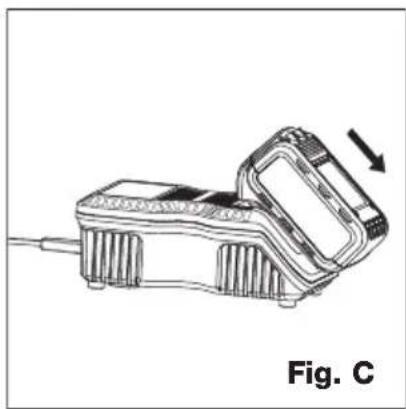

What is the charging time for the battery?

Charging time is approximately 40 minutes for the 2 Ah battery and 80 minutes for the 5 Ah battery using the included quick charger.

Can I use the saw for metal cutting?

Yes, the saw is suitable for cutting metal, plastic, and wood. Select the appropriate saw blade for the material.

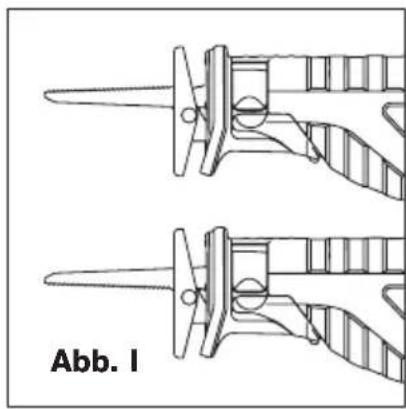

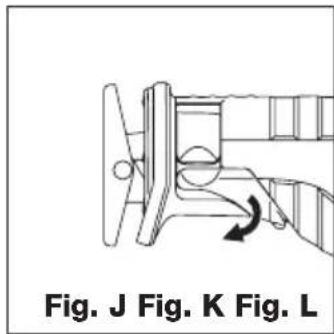

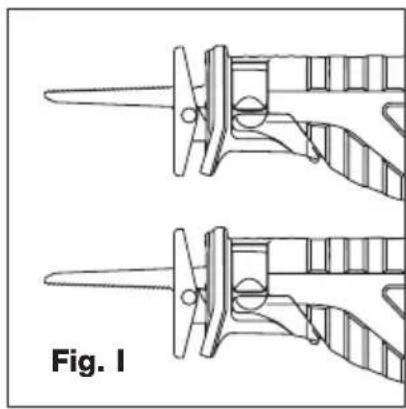

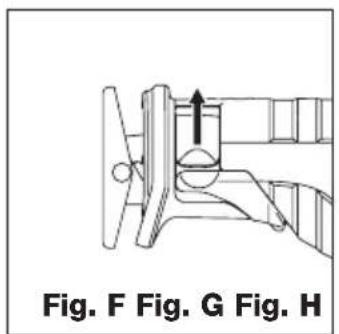

How do I adjust the cutting depth?

Pull the shoe adjustment lever down, slide the shoe to one of five positions, then push the lever up to lock.

What safety precautions should I take when using the saw?

Always wear eye protection, hearing protection, and gloves. Secure the workpiece, keep hands away from the blade, and disconnect the battery before adjustments.

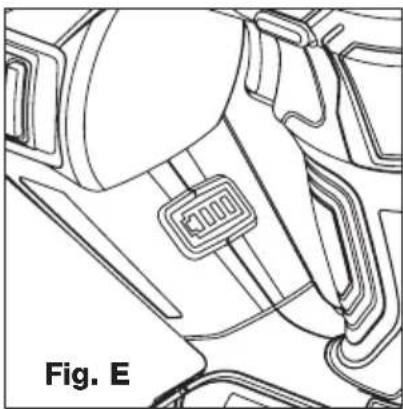

How do I check the remaining battery charge?

When the saw is on, the remaining power display lights up for 5 seconds showing the charge level via 4 LEDs (1 LED = 0-25%, 4 LEDs = 76-100%).

What should I do if the charger shows flashing lights?

If all three lights flash simultaneously, the battery is overheated – let it cool. If two lights flash, the battery may need service. If three lights flash on the charger, unplug for 2 minutes and retry.

How should I clean and maintain the saw?

Use a soft cloth dampened with soapy water. Avoid solvents. Store in a dry, dust-free place. Always remove the battery before cleaning.

Can I use non-Hazet replacement parts?

No, only use original Hazet spare parts to ensure safety and warranty. Unauthorized parts may cause damage and void liability.

USER MANUAL 9234-010 Hazet

Operating Instructions Cordless Reciprocating Saw

Technical line drawing of a firearm component (no text or symbols)

CE

Inhaltsverzeichnis

1 For your information ..... 21
2 For your safety 22
3 Design and Function...... 27
4 Maintenance and Cleaning .. 36

Circular icon with a white hand symbol, no text or numbers present.

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical line drawing of a mechanical device with an arrow indicating motion, labeled Abb. C (no text or symbols on the device itself)

ACHTUNG!

Line drawing of a car seatbelt and belt switch (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a shaft and housing with internal components (no text or labels)

WARNUNG!

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of two mechanical components with no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with a rotating arrow (no text or symbols)

WARNUNG!

Illustration of a hand using a tool to lift a wooden block, with a vise and labeled 'Abb. N' (no other text or symbols)

• Please make sure that the user of this tool carefully reads these operating instructions and fully understands all the information provided before using the tool for the first time.
• These operating instructions contain important advice that is necessary for safe and trouble-free operation of your HAZET tool.
• For intended use of the tool, it is essential that all safety and other information in these operating instructions is adhered to.
• For this reason, always keep these operating instructions together with your HAZET tool.
• This tool has been designed exclusively for specific applications. HAZET emphasises that any modification to the tool and/or use in a way that does not correspond to its intended application is strictly forbidden.
• HAZET will not be liable for any injuries to persons or damage to property originating from improper or inappropriate application, misuse of the tool or a disregard of the safety instructions.
• Furthermore, the general safety regulations and regulations for the prevention of accidents in the application range of this tool must be observed and respected.

2. Explanation of symbols

ATTENTION: Pay strict attention to these symbols!

READ THE OPERATING INSTRUCTIONS!

The owner of this tool is obliged to observe the operating instructions and instruct any users of this tool according to the operating instructions.

NOTE!

This symbol indicates advice that is helpful when using the tool.

WARNING!

This symbol indicates important descriptions, dangerous conditions, safety risks and safety advice.

CAUTION!

This symbol indicates advice which, if disregarded, results in damage, malfunction and/or functional failure of the tool.

QUALIFIED PERSONNEL!

The tool may be used by qualified personnel only. Handling by non-qualified people may lead to injuries to persons or damage to the tool or the workpiece.

Electrical energy may cause serious injuries!

Always wear personal protective equipment!

1. Owner's liability

• This tool was developed and manufactured according to the technical norms and standards valid at the time and is considered to be operationally reliable. Nevertheless, the tool may present a danger when it is not used as intended or used in an inappropriate way by non-qualified personnel. Please make sure that any person using this tool or carrying out maintenance work carefully reads and fully understands these operating instructions before using the tool.
• Modifications of any kind or any additions or modifications to the tool are prohibited.
• All safety instructions, warning and operation notices on the tool must be kept legible at all times. All damaged labels or stickers must be replaced immediately.
• All specified installation values or setting ranges must be observed.
• Keep the operating instructions together with the tool at all times.
• The tool may only be used if it is in good working order.
• All safety equipment must always be within reach and should be checked regularly.

2. Intendeduse

Operational reliability is only guaranteed if the tool is used as intended in accordance with the information in the operating instructions. In addition to the safety advice in these operating instructions, the general safety regulations, regulations for the prevention of accidents and regulations for environmental protection valid for this tool's application range must be observed and respected.

Use and maintenance of the tool must always comply with relevant local and national regulations.

• The HAZET cordless reciprocating saw is used for sawing metal, plastic and wood with a fixed stop. Always use appropriate saw blades and follow the application instructions of the saw blade manufacturers.
• With the HAZET cordless reciprocating saw it is possible to make straight and curved cuts as well as flush cutting. Suitable saw blades must be selected according to the application!
• The tool must only be used if it is in good working condition.
• All safety equipment must always be within reach and should be checked regularly.
• Any incorrect use of the cordless reciprocating saw or use that fails to comply with the safety precautions can result in serious injury or even death.
• Any deviation from the intended use and/or any misapplication of the tool is not permitted and will be considered as improper use.
• Any claims against the manufacturer and / or its authorised agents resulting from damage caused by improper use of the tool are excluded.
• Any personal injury or material losses caused by improper use of the tool are the sole responsibility of the operator.

Electrical energy may cause serious injuries!

Always wear personal protective equipment!

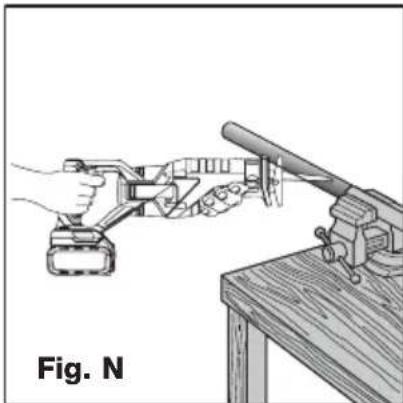

• Secure and fasten the workpiece to be sawn with suitable screw clamps or other suitable fasteners and stops, on a stable and non-slip work surface. Never hold the workpiece with your hand and / or against your body! There is a risk that you will not be able to control the tool and of serious damage to health, that can result in serious injury or even death.
• Never reach into the working area of the saw and never touch the workpiece from below! Keep your hands away from the sawing area. There is a risk of injury on contact with the saw blade.
• Hold the HAZET cordless reciprocating saw with both hands when working and always maintain a safe and balanced position during operation.
• To avoid injury, guide the saw against the workpiece only when switched on. There is a risk of kickback if the inserted saw blade gets stuck in the workpiece.

3. Dangers that may arise from using the tool

Check the full functionality of the HAZET cordless reciprocating saw before each use. Do not use the reciprocating saw if its functionality cannot be ensured or if damage is detected. If the reciprocating saw is used when it is not in full working order, there is risk of severe injuries to persons and damage to property.

Electric energy may cause serious injuries. The following fundamental safety instructions must be observed and adhered to in order to avoid electric shock, injuries or fire:

• The connecting cables and housing must not be damaged. Tools/chargers that have been dropped or damaged must be checked by qualified personnel before being used again.
• Never use tools with a defective on/off switch. Any tools that cannot be switched on or off with the On/Off switch are dangerous and must be repaired.
• The cables must not touch hot or sharp parts or become damaged in any other way. The cables must be laid in such a way that they do not present a tripping hazard.
• The charger and reciprocating saw must not be exposed to water or other liquids. Dangerous voltage discharge may occur.
• Keep any unused rechargeable batteries away from metallic objects such as paper clips, coins, keys, nails, screws, etc. These objects can establish a connection between the poles and cause a short-circuit, which can cause sparks, flames or fires.

Electrical energy may cause serious injuries!

Always wear personal protective equipment!

• The charger and/or the reciprocating saw must not be disassembled. Any improper assembly can impair its functionality and cause a fire, an electrical shock and/or injuries.
• All service or repair work must be carried out by qualified personnel only. Only use original spare parts so as to guarantee its long-term operational safety.
• Safety devices and/or cover parts may not be removed.
• Never operate the tool when a protective cover is missing or when not all of the safety devices are fitted and in perfect working order.
• If an extension cord is necessary, it must be sufficiently dimensioned for the charger. Cables that are not designed for the necessary amperage may overheat.
• The battery may only be recharged with the expressly designated charger. A charger that is designed for a different type of rechargeable battery can cause a fire in this type of rechargeable battery.
• Only use the tool with the designated rechargeable battery. Using any other battery may cause a fire.
• The battery and the charger heat up slightly when recharging. This does not impair its functionality. Appropriate caution is required for operation.
• Only use the cordless reciprocating saw at places that are governed and regulated by applicable provisions for work areas and electrical systems.
• For safety reasons, any modification to the HAZET cordless reciprocating saw is strictly forbidden. Any modification of the tool will result in immediate exclusion from warranty and liability.

Circular icon with a pair of white gloves on a gray background (no text or symbols)

• Wear working gloves and safety glasses. Electric tools can raise chips, dust and other abraded particles at high speed, which may result in severe eye injuries.
• Wear hearing protection. Long exposure to the working noise of a reciprocating saw may result in permanent hearing loss.
• Wear a face mask or breathing protection. Material abrasive tools generate dust and other debris that can cause damage to your lungs and airways. Breathing in the vapours of some materials like adhesives and tar that contain dangerous chemicals can, over a longer period of time cause serious harm to the lungs and respiratory tracts.
• Wear tight-fitting protective clothing. Tools with rotating parts or tools that drive other tools, such as drills, etc., can get caught in your hair, clothes, jewellery, or other loose objects, which can lead to serious injury. Never wear loose clothing and / or clothing with bands or loops, etc. which may get caught in the moving parts of the tool. Take off

any jewellery, watches, identification tags, bracelets, necklaces, etc. that could get caught in the tool during work. Never touch the moving parts of a tool. Tie or cover long hair.

Electrical energy may cause serious injuries!

Always wear personal protective equipment!

• Keep electric tools out of the hands of children. Unattended tools could be used by unauthorised persons and could cause injury to them or to other persons.
• Use only flawless saw blades. Substandard, inappropriate or damaged tools can become loose when operated and hurled across the work area, which can lead to serious injuries. Only use tools that are approved for the speed of the tool. Do not use tools that have fallen down or been hit, damaged or altered during use. Please observe the reaction torque. Pay attention to the reaction moment and to a possible breakage of the tool to be actuated. In confined spaces, reaction torques may lead to severe injuries. Countermeasures must be taken against unexpected reaction torques.
• Do not use the tool in rooms where there is a risk of explosion. Electric tools such as reciprocating tools can cause sparks or ignite combustible materials. Never operate tools in proximity to combustible substances like petrol, naphtha, detergents, etc. Work in well-cleaned and well-ventilated areas only. Keep combustible materials out of the work area.
• Do not point the device at another person. Keep children and other persons out of the work area when operating the tool.
• Do not operate the tool at idle speed with the saw blade installed. Tools may come loose, break off and be hurled around and may cause severe injury to the user or to third persons in the work area.

• Stop using any tool immediately if you feel unwell or jittery or if you start feeling pain.

• Vibrations, repetitive movements or uncomfortable posture may be harmful to the hands and arms.
  • Electric tools may vibrate when in use.

• Before changing the accessories, adjusting and storage, remove the rechargeable battery from the tool or set the switch to OFF or in the locked position. These kinds of preventive safety measures may prevent accidental actuation.
• Only use parts, supports and accessories that are recommended by the manufacturer.
• Never carry the tool with your finger on the quick-release press-button.
• Avoid unintentional operation.
• Keep the handle dry, clean and free of oil and grease.
  • Make sure the work area is clean, well ventilated and always well lit.
• Never use the unit when under the influence of alcohol or drugs.
  • Repairs may only be performed by authorised personnel.
• Do not clean plastic parts with solvents.
• Solvents such as petrol, benzene, carbon tetrachloride and alcohol can deform or crack plastic parts. Do not come into contact with the above solvents.
• When working at elevated places, always make sure that no one is below the work area before starting work.

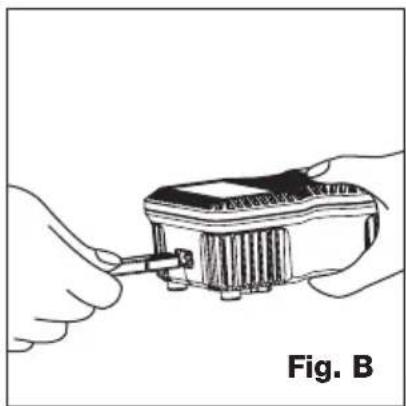

Important safety precautions for the quick charger:

This section contains important safety and operating instructions for the quick charger:

Before you put the charger into operation, please read all instructions and markings on the

1. charger
2. battery

- Operating temperature for Li-ion battery:

10 to +40 °C for discharging

0 to +40 °C for charging

- Operating temperature for the charger:

0 to +40 °C

• To avoid electric shock, disconnect the charger from the socket before cleaning or starting maintenance. Removing the battery does not reduce the risk.
• Any unauthorised use of the charger may result in serious injury.

To avoid these hazards:

• Never disassemble the battery.
• Never throw the battery into a fire even if it is damaged or completely depleted. Explosion hazard!
• Never short circuit the battery.
• Never push objects into the ventilation holes of the charger, otherwise you risk electric shock or damage to the charger.
• Never charge the battery outdoors.
• Never expose the battery to direct sunlight.
• Recharge only in well-ventilated areas with low humidity.
• Never charge the battery when the temperature is below 0°C (32°F) or above 40°C (104°F).
• Never combine two chargers.
• Never insert objects into the battery holder.
• Never use an amplifier transformer when charging.
• Never use a motor generator or DC power to recharge.
• Never store the battery and charger where the temperature can reach 40°C (104°F).
  • Always use the charger with 230 V standard electrical connections. Using the charger at higher voltages can overheat and damage the charger.
• Always take at least 15 minutes of wait time between multiple recharges to avoid overheating the charger.
  • Always disconnect the charger from the power source when not in use.

Electrical energy may cause serious injuries!

Always wear personal protective equipment!

1. Technical data / tool components: Cordless reciprocating saw HAZET 9234-1

Battery power	18 V - 5 Ah
Saw stroke	0-3100 min ^-1
Stroke length	28.5 mm (1 1/8")
Weight without battery pack	2,26 kg
Sound pressure level LpA / Sound Pressure	86.13 dB(A)
Sound power level LpW / Sound Power	97.13 dB(A)
Vibration acceleration	32.18 m/s ^2

Battery charger HAZET 9212-03
Input voltage 100 - 240 V~ 50/60 Hz 110 W
Output voltage 12 - 18 V - 4.0 A
Battery type Li-Ion
Charging time 80 min

Accessories (optional)

HAZET No. Designation

9212-02 Replacement battery 2 Ah

9212-05 Replacement battery 5 Ah

Included in delivery

HAZET 9234-1 cordless reciprocating saw

The package includes:HAZET 9234-010HAZET 9212-02 18 V / 2.0 A Ah Li-Ion batteryHAZET 9212-03 quick charger

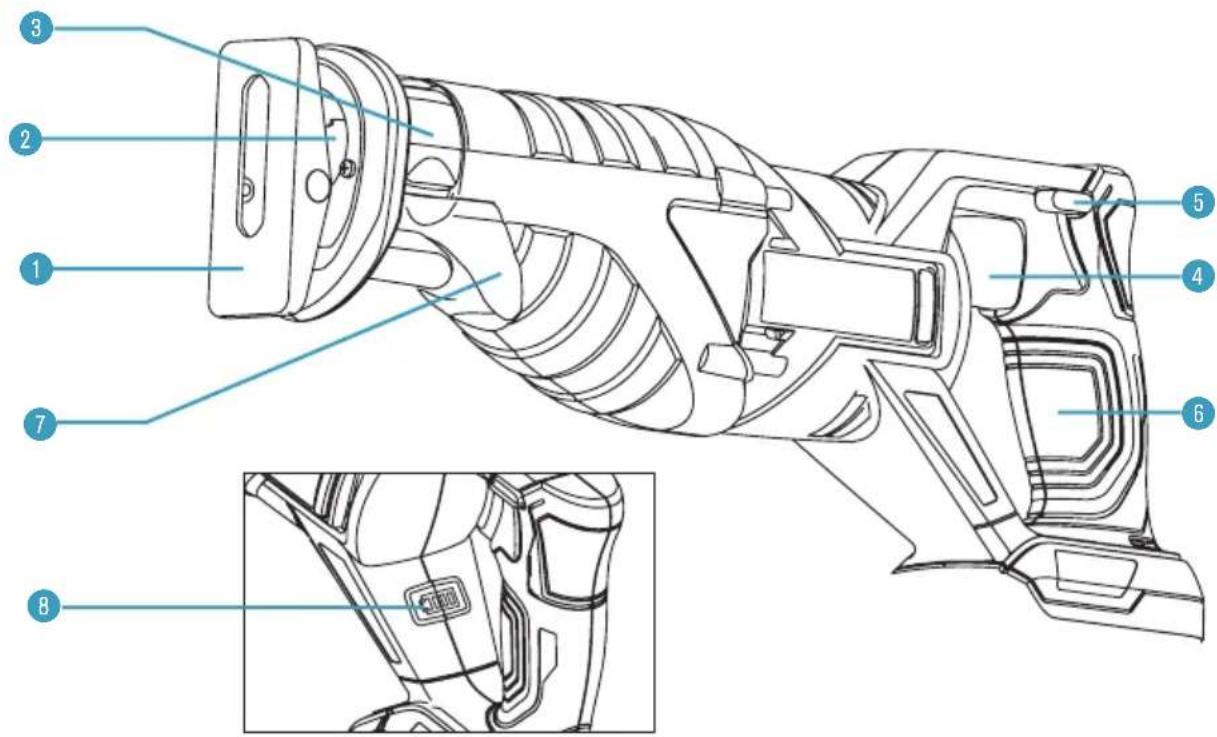

Pos. Designation Pos. Designation
1 Shoe	5 Locking button
2 Blade	clamp 6 Handle
3 Blade	clamp release lever 7 Lever for adjusting	the	shoes
4 Toggle	switch 8 Display of remaining		power

Electrical energy may cause serious injuries!

Always wear personal protective equipment!

ATTACHING THE BATTERY

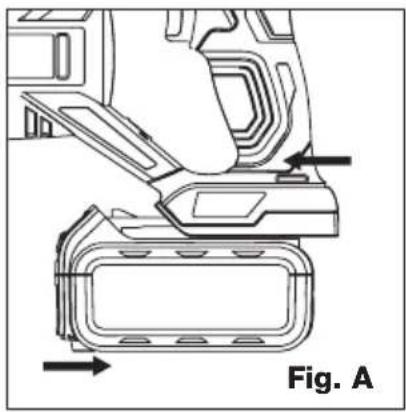

• To insert the battery pack into the tool, align the raised part of the battery pack with the grooves on the underside of the tool handle and push it firmly into the handle until the lock engages audibly (Fig. A).
• To remove the battery pack from the tool, press the battery pack unlock button and slide the battery pack completely out of the tool handle.

CHARGING

• Connect the plug cable to the charger (Fig. B) and insert the plug into a suitable socket before inserting the battery. All three charging lights are switched on for two seconds and then switched off again.

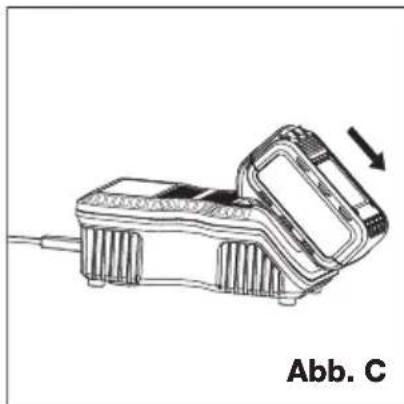

• Insert the battery pack into the charger, making sure that the pack is fully inserted in the charger (Fig. C). During the charging process the charging lights indicate the charging status as follows:
• Less than 30% charged: all three charging lamps flash one after the other.
• Less than 60% charged: one lamp remains on while the other two lamps flash one after the other.
• Over 60% charged: two lamps stay on while the remaining light flashes continuously.
• Fully charged: all three lights remain on continuously.
• Charging takes around 40 minutes (2.0 Ah battery) or 80 minutes (5.0 Ah battery), and continuous illumination of all three charging lamps indicates that charging is complete.

Diagram of a hand using a device to press or install a component, labeled Fig. A (no text or symbols on the diagram itself)

Illustration of hands using a tool to adjust or install a mechanical component labeled Fig. B (no text or symbols on the diagram itself)

Line drawing of a handheld electronic device with an arrow indicating motion, labeled 'Fig. C' (no text or symbols on the device itself)

WARNING!

• Always remain careful and attentive when handling cordless tools. Even minor inattention during handling can lead to injuries and damage to the tool.
• Please make sure that the user of this tool carefully reads these operating instructions and fully understands all the information provided before using the tool for the first time.

- To avoid the risk of serious injury, switch off the tool and disconnect the battery pack before making adjustments or removing/installing attachments or accessories.

CAUTION!

- When inserting the battery pack into the tool, make sure that the raised rib of the battery pack is aligned with the underside of the tool and engages properly. Improper installation of the battery pack may cause damage to internal components.

Electrical energy may cause serious injuries!

Always wear personal protective equipment!

CHARGER DIAGNOSTICS

• The charger is designed to detect certain problems that can occur with battery packs.
• If the charger detects that the battery pack has overheated, all three charging lights flash simultaneously. Please remove the battery, let it cool down for 15-30 minutes and then reinsert it.
• If the charger detects a malfunction in the battery, two charging lights flash simultaneously. Please remove the battery and let it cool down for 15-30 minutes. Then put the battery pack back into the charger. If two charging lights are still flashing, the battery may require maintenance.
• If the charger detects a malfunction of the charger itself, three charging lights flash simultaneously. Please remove the battery pack and unplug the charger from the socket for at least 2 minutes. After 2 minutes, plug the charger back in and put the battery pack back in the charger. If all three charging lights are still flashing at the same time, the charger may need maintenance.

NOTE!

- Charging times may be longer depending on ambient temperature and battery condition.

CAUTION!

• Before trying to charge the battery, check the charger and battery to ensure that the charging equipment matches the battery. The battery may only be recharged with the expressly designated charger. A charger that is designed for a different type of rechargeable battery can cause a fire in this type of rechargeable battery.
• Please note that the battery is not fully charged when delivered. Please charge it completely before the first use.
• Make sure that you fully recharge the batteries after use. Never discharge the batteries completely to avoid damage to the batteries.
• The operating temperature of the charger is 4-40°C (40-104°F).

Electrical energy may cause serious injuries!

Always wear personal protective equipment!

LOCKING BUTTON AND TRIGGER SWITCH

The HAZET cordless reciprocating saw features a locking button.

To lock the trigger switch, press the locking button as shown in Fig. D. Always lock the trigger switch when carrying or storing the tool to prevent accidental starting.

To unlock the trigger switch, press the locking button as shown in Fig. D. Pull the trigger switch to switch on the HAZET cordless reciprocating saw. The saw is switched off when you release the trigger switch.

VARIABLE SPEED

The toggle switch with variable speed offers you additional versatility. The further the trigger is pressed, the higher the speed of the HAZET cordless reciprocating saw.

REMAINING POWER DISPLAY

When the switch is on, the remaining capacity indicator lights up for 5 seconds and the remaining battery power can be checked (Fig. E).

Line drawing of a car seatbelt assembly (no text or symbols)

Charge capacity indicator Charge level
1 LED	1 0 - 25 %
2 LED	1, 2		26 - 50 %
3 LED	1, 2, 3		51 - 75 %
4 LED	1, 2, 3, 4		76 - 100 %

WARNING!

- This tool is not designed to lock the switch in the ON position and should never be locked ON in any other way.

CAUTION!

- Prolonged use at very slow speed can damage your saw.

Electrical energy may cause serious injuries!

Always wear personal protective equipment!

INSTALLING AND REMOVING SAW BLADES

Choose the right type and length when choosing saw blades. Many types of saw blades are available for a wide range of applications: cutting metal, wood, wood with driven-in nails, fretwork, roughing and contouring. Use the appropriate saw blade for the application. The saw blade should be longer than 89 mm (3 1/2") and project beyond the shoe and the thickness of the workpiece during the cut. Do not use sabre saw blades with this tool.

Please always observe the respective safety regulations of the saw blade manufacturers to avoid dangers and injuries!

INSTALLING THE SAW BLADE IN THE HAZET RECIPROCATING SAW

• Pull the release lever of the blade clamp upwards (Fig. F).
• Insert the blade shaft from the front (Fig. G).
• Press the release lever of the blade clamp down (Fig. H).

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a shaft and housing with a directional arrow indicating motion (no text or labels)

WARNING!

- To reduce the risk of serious injury, switch off the tool and disconnect the tool from the battery pack before making adjustments or removing/installing attachments or accessories. Accidental startup can lead to injuries.

WARNING!

- Be aware that the saw blade can break and become damaged if it does not project beyond the shoe and the workpiece. As a result, it can jam very easily, causing damage and injury.

Electrical energy may cause serious injuries!

Always wear personal protective equipment!

Depending on its use, the saw blade can be inserted with the teeth facing up or down (Fig. I).

REMOVING THE SAW BLADE FROM THE HAZET CORDLESS RECIPROCATING SAW

• Open blade clamp release lever.
• Remove blade.

ADJUSTABLE SHOE

• Your HAZET cordless reciprocating saw features an adjustable shoe. The shoe can be adjusted to limit the cutting depth.
  • Pull the shoe adjustment lever down (Fig. J).
• Slide the shoe out to one of the five settings (Fig. K).
• Push shoe adjustment lever up, and make sure the shoe is locking in position (Fig. L).

Technical line drawing of two mechanical components with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with a rotating arrow (no text or symbols)

WARNING!

• Always use eye protection. All users and bystanders must wear eye protection that complies with ANSI Z87.1.

WARNING!

- Never cut in the direction of the user to avoid injury! Always hold the HAZET cordless reciprocating saw with both hands.

Electrical energy may cause serious injuries!

Always wear personal protective equipment!

SAWING

Secure and fasten the workpiece to be sawn with suitable screw clamps or other suitable fasteners and stops, on a stable and non-slip work surface. Never hold the workpiece with your hand and / or against your body! There is a risk that you will not be able to control the tool and of serious damage to health, which can result in serious injury or even death! Place the saw blade lightly against the workpiece to be cut, switch on the saw motor and let it reach maximum speed before applying pressure. Whenever possible, the saw shoe must be held firmly against the material to be cut. This prevents the saw from jumping or vibrating and minimises blade breakage. All cuts that exert pressure on the sheet, such as angles or curved cuts, increase the potential for vibration, kickback and sheet breakage.

PIERCING - WOOD ONLY

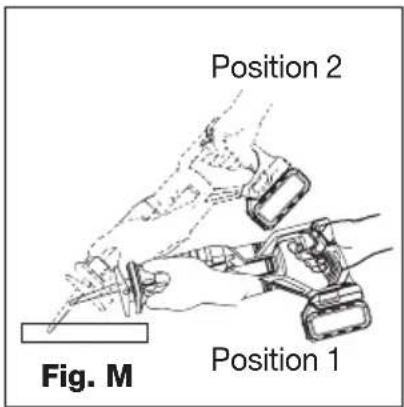

The first step in piercing is to measure the area to be cut and clearly mark it with a pencil, chalk or scriber. Use the appropriate blade for the application. The saw should be longer than 89 mm (3 12 ") and project beyond the shoe and the thickness of the workpiece during the cut. Insert the blade into the blade clamp.

Next, tilt the saw backwards until the rear edge of the shoe rests on the work surface and the blade releases the work surface (position 1, Fig. M). Now switch on the motor and let the HAZET cordless reciprocating saw reach maximum speed. Hold the saw with both hands and start a slow, deliberate upward movement with the saw handle, keeping the bottom of the shoe firmly in contact with the workpiece (Position 2, Fig. M). The saw blade starts advancing into the material. Always make sure that the saw blade is guided completely through the material before you continue with the piercing.

WARNING!

- Inspect the construction site for hidden gas and water pipes or electrical lines before making blind or submerged cuts. Disregard can lead to explosions, damage to property, electric shock and/or serious injury.

Electrical energy may cause serious injuries!

Always wear personal protective equipment!

METAL CUTTING

The HAZET cordless reciprocating saw has different metal cutting capacities depending on the type of saw blade used and the metal to be cut. Use a finer blade for ferrous metals and a coarser blade for non-ferrous materials. For thin sheets it is best to clamp wood on both sides of the sheet. This ensures a clean cut without excessive vibration or tearing of the metal. Always remember not to cut the blade by force, as this will shorten the life of the blade and cause expensive blade breakage (Fig. N).

TEMPERATURE CUT-OFF

When used as intended, the reciprocating saw cannot be overloaded. However, continuous operation under full load for a longer period of time will cause the battery to overheat. If the permissible battery temperature range is exceeded, the saw will automatically stop operation and will not start again until it has cooled down to a safe level.

LOW VOLTAGE CUT-OFF

The battery pack used in this tool is equipped with a low voltage cut-off in the circuit. The low voltage cut-off is activated when the voltage drops below a preset value.

Illustration of a hand using a tool to measure a mechanical component on a workbench (no text or symbols)

This function automatically stops operation of the tool. When this condition occurs, you must either insert another battery pack into the tool or recharge the existing battery pack.

NOTE!

- In areas where visibility of the saw blade is restricted, use the edge of the saw shoe as a guide. The lines for a particular cut should extend beyond the edge of the cut to be made.

NOTE!

- When cutting metals before the saw cut, we generally recommend applying a thin film of oil or other lubricant along the line in front of the saw cut to make operation easier and prolong the life of the saw blade.

NOTE!

- The HAZET cordless reciprocating saw has a temperature cut-off and is only started again when the battery pack has cooled down.

- The battery must NOT be forcibly cooled. Do not place in the refrigerator or freezer. To allow the HAZET cordless reciprocating saw to cool down again, remove the battery and place the HAZET cordless reciprocating saw in a safe storage area at room temperature. Keep out of direct sunlight.

Electrical energy may cause serious injuries!

Always wear personal protective equipment!

GENERAL MAINTENANCE

Avoid the use of solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and can be damaged by their use. Use clean cleaning cloths to remove dirt, dust, oil, grease, etc.

Batteries

The battery pack is equipped with rechargeable lithium-ion batteries. The duration of use of each charge depends on the type of work carried out. The batteries in this tool have been designed for maximum trouble-free life. Like all batteries, they wear out over time. Do not disassemble the battery pack or attempt to replace the batteries. To attain the longest possible battery life, read and understand the instructions for use.

MAINTENANCE AND CARE

• Disconnect the battery from the tool before performing any maintenance or repair work.
• Check the saw blades and the HAZET cordless reciprocating saw regularly. Worn or damaged tools can slip off, reduce power and thus damage the motor.

MOTOR MAINTENANCE

- The motor unit winding/coil is the most important part of the power tool. Handle the tool with care to ensure that the winding/coil is not damaged or made wet by water or oil.

CARE

- The HAZET cordless reciprocating saw should be regularly treated with a commercial solvent-free cleaning agent without grinding additives.

WARNING!

• To avoid serious injury, always remove the battery pack from the tool during cleaning and maintenance work.
• Only use identical spare parts when servicing. The use of other parts can pose a danger or lead to product damage. To ensure safety and reliability, all repairs should be carried out by a qualified service technician.
• We do not recommend using dry compressed air to clean the tool. If cleaning with compressed air is the only available method, always wear safety glasses or safety goggles with side protection. If the operation is dusty, wear a dust mask.
• Never allow brake fluids, petrol, petroleum-based products, penetrating oils, etc. to come into contact with plastic parts. Chemicals can damage, weaken or destroy plastic, which can cause serious personal injury.

Electrical energy may cause serious injuries!

Always wear personal protective equipment!

INSPECTING FOR DUST

• Dust can be removed with a soft cloth or a cloth moistened with soapy water.
• Do not use bleach, chlorine-based detergents, benzene or thinners, as these may damage the plastic.
• Wash and dry plastic parts with a soft cloth moistened with soapy water.

SPARE PARTS

• Only use original spare parts from the manufacturer.
• Unsuitable or defective parts may cause damage, malfunction or total failure of the machine.
• The use of non-approved spare parts will invalidate all warranty, service and liability claims and all claims for damages against the manufacturer or its representatives, distributors and sales agents.

STORAGE

The tool must be stored under the following conditions:

• Store the tool in a dry and dust-free place.
• Do not expose the tool to liquids and/or aggressive substances.
• Do not store the tool outdoors.
• Keep the tool out of the reach of children.
  • Storage temperature: -10^ to +40^ .
  • Relative air humidity: max. 60%.

DISPOSAL

• Worn-out rechargeable batteries (Li-Ion) and electric devices must not be disposed of in domestic waste, but at suitable collecting points.
• Electronic waste, electronic components, lubrication and other auxiliary materials must be treated as hazardous waste and may only be disposed of by authorised specialists!
• Reducing environmental pollution and preserving the environment are the main focus of our activities!

Electrical energy may cause serious injuries!

Always wear personal protective equipment!

Notizen / Notes

Notizen / Notes

9234-1 BAI. 11.2020/∞ Ho/114
