GZ-343 - Contact grill Guzzanti - Free user manual and instructions

Product Type	Contact grill
Brand	Guzzanti
Model	GZ-343
Plate Material	Non-stick coating
Plate Detachability	Yes, removable for easy cleaning
Temperature Control	Adjustable with 5 grades
Power Indicator	Yes, power-on light
Lid	Detachable tempered glass lid with handle
Grease Tray	Detachable for easy oil collection
Lock Mechanism	Auto-clip lock for secure closure
Anti-Slip Feet	Yes, rubber pads
Housing Material	Cool-touch plastic
Carrying Handle	Yes, for easy transport
Cleaning	Wipe with damp cloth; do not immerse in water
Safety Features	Cool-touch housing, anti-slip base, auto-clip lock, do not operate if damaged
Usage	Household use only

Frequently Asked Questions - GZ-343 Guzzanti

How do I clean the Guzzanti GZ-343 contact grill?

Unplug the appliance and allow it to cool completely. Wipe the lid, base, and cooking plates with a damp cloth and a non-abrasive soap or dishwashing detergent. Wipe with a clean, soft, damp cloth and towel dry. Never immerse the machine in water or any other liquid.

Can I use metal utensils on the non-stick plates?

No, do not use metal utensils as they can damage the non-stick coating. Always use a spatula, wooden utensils, or silicone heat-resistant tools.

How do I close the glass lid properly?

Lift the glass lid up to the up baffle (as shown in the manual) to close smoothly. Pressing the lid downward forcefully may damage it. Ensure the lid is in the correct position before closing.

Is the Guzzanti GZ-343 dishwasher safe?

No, the plates and parts are not dishwasher safe. Clean them by hand with a damp cloth and mild detergent, then dry thoroughly.

What should I do if steam releases during cooking?

Steam may be released between the cooking plates. Keep your hands and face away from the steam to avoid burns. Use the handle to open the lid carefully.

Can I grill frozen food directly?

The manual does not specify, but it is generally recommended to thaw food before grilling for even cooking. Adjust the temperature accordingly.

How do I adjust the temperature?

Turn the temperature control knob to the desired grade. There are 5 grades available. Preheat on a low grade before adjusting to the suitable level for your food.

What is the power rating of the GZ-343?

The specific wattage is not mentioned in the manual. However, typical contact grills range from 1200-1800W. Check the rating label on the appliance for exact information.

Can I use the grill without the glass lid?

Yes, you can use it without the lid, but the lid serves as a windscreen, keeps food warm, and traps juices. It is detachable for easy storage.

How should I store the contact grill?

Clean the appliance thoroughly and allow it to cool completely. Store in a clean, dry place. Never wrap the cord tightly around the appliance to avoid damage.

USER MANUAL GZ-343 Guzzanti

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

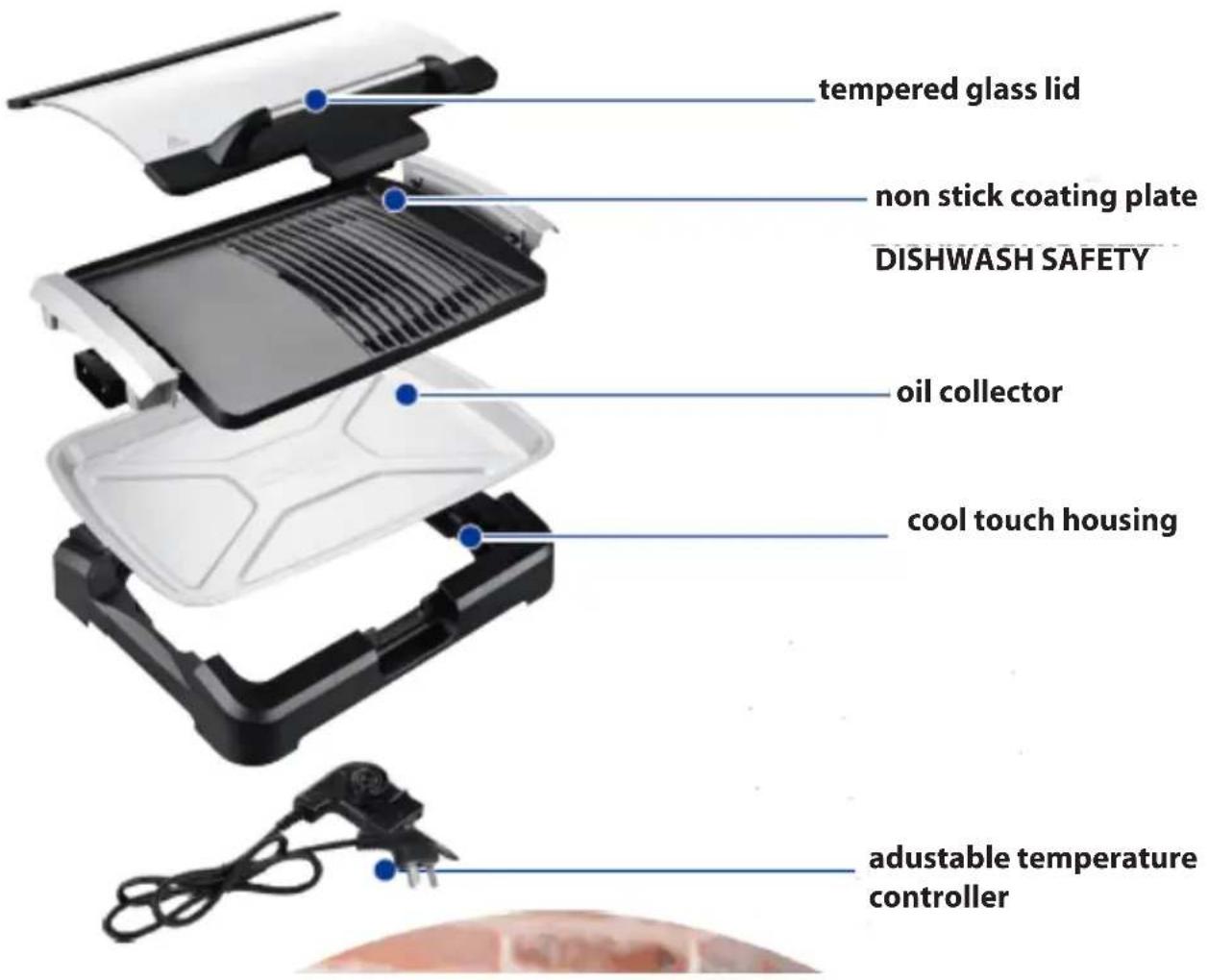

1. Detachable non-stick Grill/Griddle plates ensure effortless food release and quick clean up.
2. Detachable Tempered Glass Lid for viewing as a wind shield, keep warm of food and make food juice.
3. Detachable grease tray
4. Adjustable temperature control probe with power-on indicator for more precise cooking;
5. Auto-clip lock
6. Anti slip rubber pad
7. With a handle for easy carrying

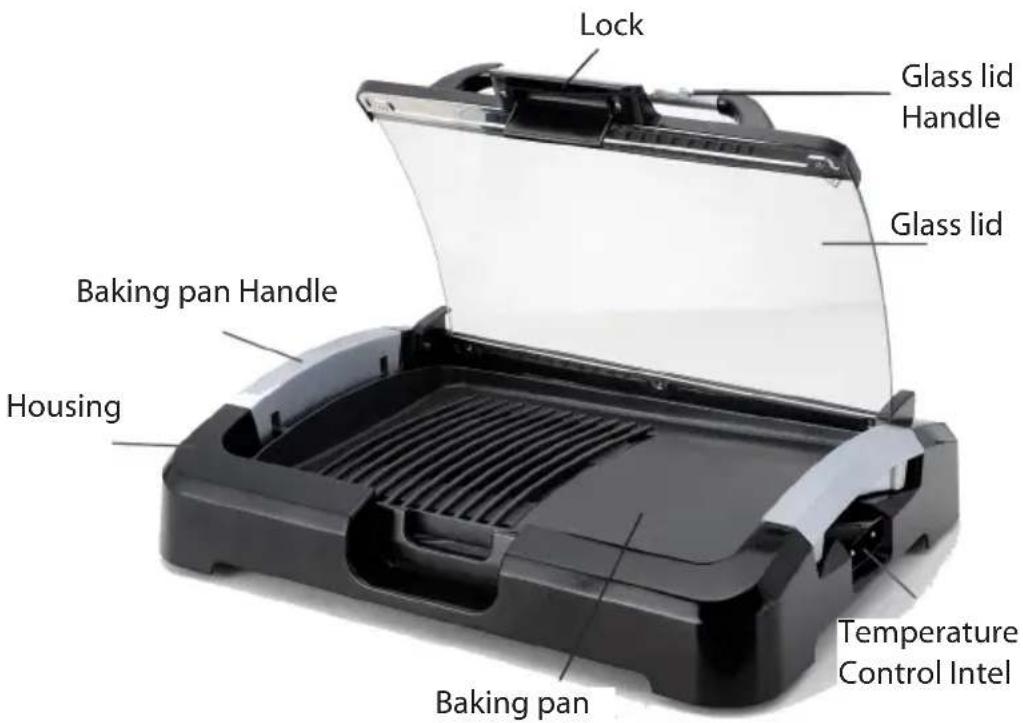

Components :

Detachable

Important safeguards

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions and save them for future reference later
2. After removing the packaging, make sure the product is complete. If in doubt, do not use the unit and refer to a Authorized Technical Assistance Center
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities reduced, or lack of experience or knowledge, unless they have been via a person responsible for their safety, supervision or instruction prior regarding the use of this device
4. Do not leave packing materials (plastic bags, polystyrene ...) the reach of children because they can be dangerous.
5. It should supervise children to ensure they do not play with device.
6. The electrical safety of the appliance is guaranteed only if it is plugged into an efficient grounded outlet as safety standards electric current provide. The manufacturer can not be held responsible for damage that occurs due to a lack of earth device. In case of doubt, please contact a qualified professional
7. In case of incompatibility between the socket and the appliance fiche, have the plug replaced by another suitable by contacting a qualified staff.
8. We recommend the use of adapters and / or extension. If these elements are essential, only use adapters extensions that meet the safety standards in force, ensuring do not exceed the power limit indicated on the adapter and / or on the extension.
9. If the appliance stops working, you send only a Centre Technical Assistance approved. In case of failure and/or errors, switch off the device without trying to fix it. Addressed an authorized Technical Assistance Centre and ask to get parts and accessories of original spare parts.
10. The appliance must be used for domestic purpose for which it was designed and as described in this manual.
11. Any other use is considered as not being consistent and therefore dangerous. The manufacturer can not be worn responsible any damage caused as a result of misuse, erroneous and irresponsible and / or damages for repairs performed by non-qualified personnel
12. Before first use, you should see your tension from your network.domestic coincides with that indicated on the appliance.
13. As protection against electric shock, do not immerse the device or the cable or the fiche, in water or any other liquid.
14. Do not touch hot surfaces, using the handle.

CAUTION: When the appliance is in operation, it causes very high temperatures. Necessary measures must be taken to avoid the risk of burns, fire and other damage to persons or materials in contact with the baking pan (part 1) and its extension that exposed outside without cover. during use or cooling thereof, Use handle to open or close the pan.

1. After cooking your dish, be careful not to put your head on or close to hot plate when the unit opening, it has a very hot steam.
2. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning or storing the appliance.
3. Do not let cord hang over the edge of the table or worktop where it is based, do not leave the tangle or be in contact with hot surfaces. Where present any damage.
4. Do not leave your device on a gas burner or electric hot or near This burner, or in or near a hot oven or a microwave oven operating.
5. Do not use abrasives or caustic cleaners,
6. Before using the device, leave a sufficient over air space and sides for correct air circulation. Do not let the device in contact with curtains, wallpaper, towels kitchen and other inflammable materials during use
   CAUTION: on surfaces where heat may be a problem, it is recommended to use a small insulating pad
7. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment..
8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries. The device is not intended to be operated by a external timer or a remote control system separated.
9. Do not use outdoors.

How to Use

This product is for household use only.

Getting started

1. Remove all packing material and any stickers.
2. Wipe plates with a damp cloth or sponge to remove any dust. Wipe dry with a soft cloth or paper towels.
3. Select a location where the unit is to be used, leaving enough space between back of unit and wall to allow heat to flow without damage to cabinets and walls.
4. Turn off the temperature controller, plug to machine with its upward.
   5 Plug the appliance into the mains supply, as per the rating label showing
   6 Adjust the dial to low grade for preheat . then Adjust the controller to suitable grade to suit frying difference food . they are five grade temperature adjustable
   7 To remove the flat, do not use metal utensils, they can indeed damage the nonstick coating. Always use a spatula, wooden utensils or silicone heat resistant.
   8 When cooking, be careful not spilling sauce or juice or any liquid that not easy cleaning after cooling down to the gap between baking pan and housing ..
   9 Important: Steam may be released between the cooking plates. Caution should be taken to prevent hands or face from coming into contact with the steam.
   10 After use, turn the temperature knob to 0 position,, unplug unit from the electrical outlet and allow it to cool down until reach to room temperature before cleaning.
   11 Take out the detachable grease Tray carefully and pour the cold oil to clean up.

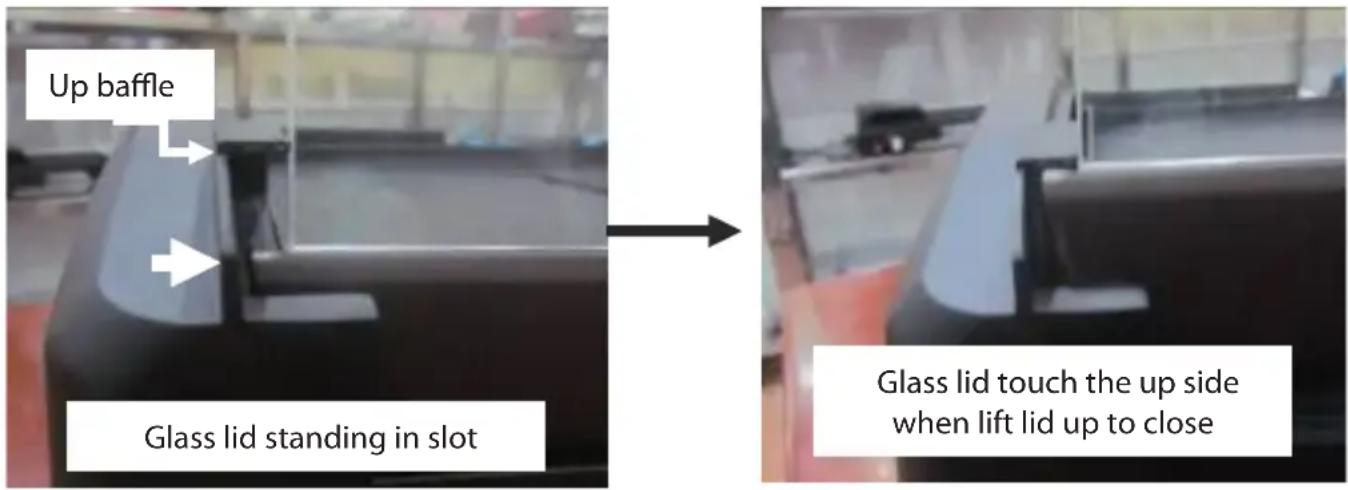

HOW TO CLOSE GLASS LID :

PIs be sure lift up glass lid to up baffle as per belowing instruction in order to close glass lid smooth .The lid will be damaged if you press downward glasslid forcefully :

How to open glass lid :

Have one lock under handle to clamp the bottom housing when close clamshell glass lid. Please use hand to clamp to loose lock when you open the shell glass lid .then slip glass lid to slot for standing. Please refer to attachment below.

Care and Cleaning

Important: Unplug and allow it to cool before cleaning. Never immerse the machine in water or any other liquid.

1. Wipe lid, base, and cooking plates with a damp cloth and a non-abrasive soap or dish-washing detergent. Wipe with a clean, soft, damp cloth and towel dry.
2. Storage: Store cleaned machine in a clean, dry place.
3. Important: Never take out the detachable grease tray out to clean when the oil still hot
4. Important: Never store while it is still hot or still plugged in.
5. Important: Never wrap cord tightly around the appliance. Do not put any stress on cord where it enters unit, as this could cause it to fray and break.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
