Pianosa - Media player Gold Note - Free user manual and instructions

Product Type	Turntable (Media Player)
Brand	Gold Note
Model	Pianosa
Dimensions (W x H x D)	425 mm x 170 mm x 360 mm
Weight	13.5 kg
Power Supply	18V output, 100-240V / 50-60Hz, max 27W
Speed	33 1/3 rpm and 45 rpm (electronic with fine pitch control)
Wow & Flutter	0.1%
Rumble	-77 dB
Motor	High torque 12V synchronous
Platter	23mm thick dampened Poly-Vinyl
Platter Spindle	Split-spindle™ clamping design, 60mm long
Platter Bearing	Chrome Steel 5mm ball bearing
Tonearm	Gold Note B-5.1 (or optional B-7 Ceramic)
Dust Cover	Transparent acrylic with detachable hinges
Plinth Material	Italian Walnut or Black Lacquered MDF, 50mm curved
Feet	Adjustable aluminium spikes
Package Contents	Turntable, dust cover with spacers, 18V power supply, anti-skating, counterweights (110g & 28.5g), tonearm pre-installed, drive belt, platter spindle tip, turntable clamp, Allen keys, spike washers, oil jar, protractor/overhang and stroboscope, GN stylus gauge, felt mat, ball bearing, user manual
Recommended Accessories (optional)	PST-10 external power supply, PH-10 phono stage, IS-1000 amplifier, Donatello cartridge

Frequently Asked Questions - Pianosa Gold Note

How do I set up the turntable for the first time?

Remove protective foam, place on a level surface, install the counterweight, install the drive belt around the motor pulley and platter, connect the power adapter, and plug into AC. Then calibrate the cartridge if needed.

How do I adjust the speed (33/45 rpm) and fine pitch?

Press the inner button for 33 1/3 rpm or outer button for 45 rpm. For fine pitch control, press and hold both buttons for 4 seconds until LED turns off, then press 33 button to decrease or 45 button to increase speed. Hold both buttons again to exit.

How do I install the anti-skating system?

Slip the loop of the anti-skating nylon wire over the groove of the adjustment bar, feed the wire through the support hoop, and adjust force by choosing the correct groove on the bar.

How do I adjust the VTA (vertical tracking angle)?

Use the supplied 1.5mm Allen key to loosen one hex bolt in the tonearm collar, adjust VTA, then retighten.

How do I remove the dust cover?

Lift the dust cover to 90° (where it stops), then gently slide it to the left (facing the turntable) to detach. Reinsert only when in the 90° position.

What is the recommended cleaning method?

Use only a very soft 100% cotton dry cloth to remove dust. Do not use any liquids, alcohol, or rough cloth as they may damage the finish.

What should I do if the motor heats up?

AC synchronous motors can warm up to 50°C without issue. If excessive, ensure ventilation is not blocked. Contact Gold Note if abnormal.

How do I level the turntable?

Use a spirit level on the platter. Adjust the height by screwing or unscrewing the aluminium feet. Unscrewing increases height at that corner.

What is the warranty coverage and registration?

Register the product within 15 days at www.goldnote.it/product-registration. Warranty covers defects but not tubes, styli, or batteries. Unauthorized opening voids warranty.

What accessories are included in the box?

Turntable, dust cover with spacers, 18V power supply, anti-skating, counterweights (110g & 28.5g), pre-installed tonearm, drive belt, platter spindle tip, turntable clamp, Allen keys (2.5, 2.0, 1.5mm), spike washers, oil jar, protractor/overhang and stroboscope, GN stylus gauge, felt mat, ball bearing, and user manual.

USER MANUAL Pianosa Gold Note

Thank you for purchasing one of our units and welcome into the Gold Note world, where we turn High-End audio and music into a new experience.

Maurizio Aterini, founder of Gold Note

IMPORTANT SAFETY INFORMATION

PLEASE NOTE

1 Do not disassemble any part of the product.
2 Do not use any part of the product for other purposes.
3 For service and problems of any kind, contact qualified Gold Note personnel.
4 Protect the product from rain, humidity and keep away from heat sources, electric and electronic motors etc. The power cord supplied must be used only on this unit.
5 Gold Note does not have responsibility for any improper use of this unit.

GENERIC INFORMATION

Read these instructions and store them.
Heed all warnings.
Follow the instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block the ventilation openings and install in accordance with the manufacturer's instructions.
Do not install near heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarised or grounding-type plug: a polarised plug hastwo blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong. The wide blade or

the third prong are provided for your safety.

If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

| Only use attachments/accessories specified by the manufacturer.

Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Unplug this apparatus during lightning storms or when unused for long periods of time. Refer all servicing to qualified service personnel only. Servicing is required when the apparatus has been damaged in any way (such as when the power cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture) and in any case when the apparatus does not operate normally or has been dropped.

This appliance has a serial number located on the rear panel.

Please record the model and serial number and retain them for your records.

MODEL

SERIAL NUMBER

CAUTION!

To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer only to qualified Gold Note service personnel for service.

WARNING!

To prevent fire or shock hazard, do not expose this appliance to rain or moisture.

GOLD NOTE - Information on the correct management of waste from household Equipment pursuant to the European Directive 2012/19/EU

The crossed-out wheelie bin symbol shown on the equipment or its packaging indicates that the product, at the end of its useful life, must be collected separately from other waste to allow its proper treatment and recycling. The user must therefore deliver, free of charge, the end-of-life equipment to the centres for the separate collection of waste electrical and electronic equipment, or return it to the dealer in accordance with the procedures established by the legislation.

The appropriate separate collection of discarded equipment allows for proper recycling, treatment and environmentally compatible disposal, helping to avoid the possible dispersion of hazardous substances and negative effects on the environment and health, favouring the reuse and/or recycling of the materials of which the equipment is composed of. Illegal dumping of the product by the user involves the application of administrative sanction provided for by the legislation in force. We invite you consult the current legislation and the measures adopted by the public service operating in your country or territory.

| INDEX

INTRODUCTION AND FEATURES 1

DESIGN AND PERFORMANCE

TECHNICAL SPECIFICATIONS

SET-UP INSTRUCTIONS

UNBOXING

INSTALLING THE TURNTABLE 6

POWER ADAPTER AND SPEED CONTROL

CARTRIDGE CALIBRATION

DETACHABLE DUST COVER

PRODUCT REGISTRATION

TROUBLESHOOTING

RELATED PRODUCTS

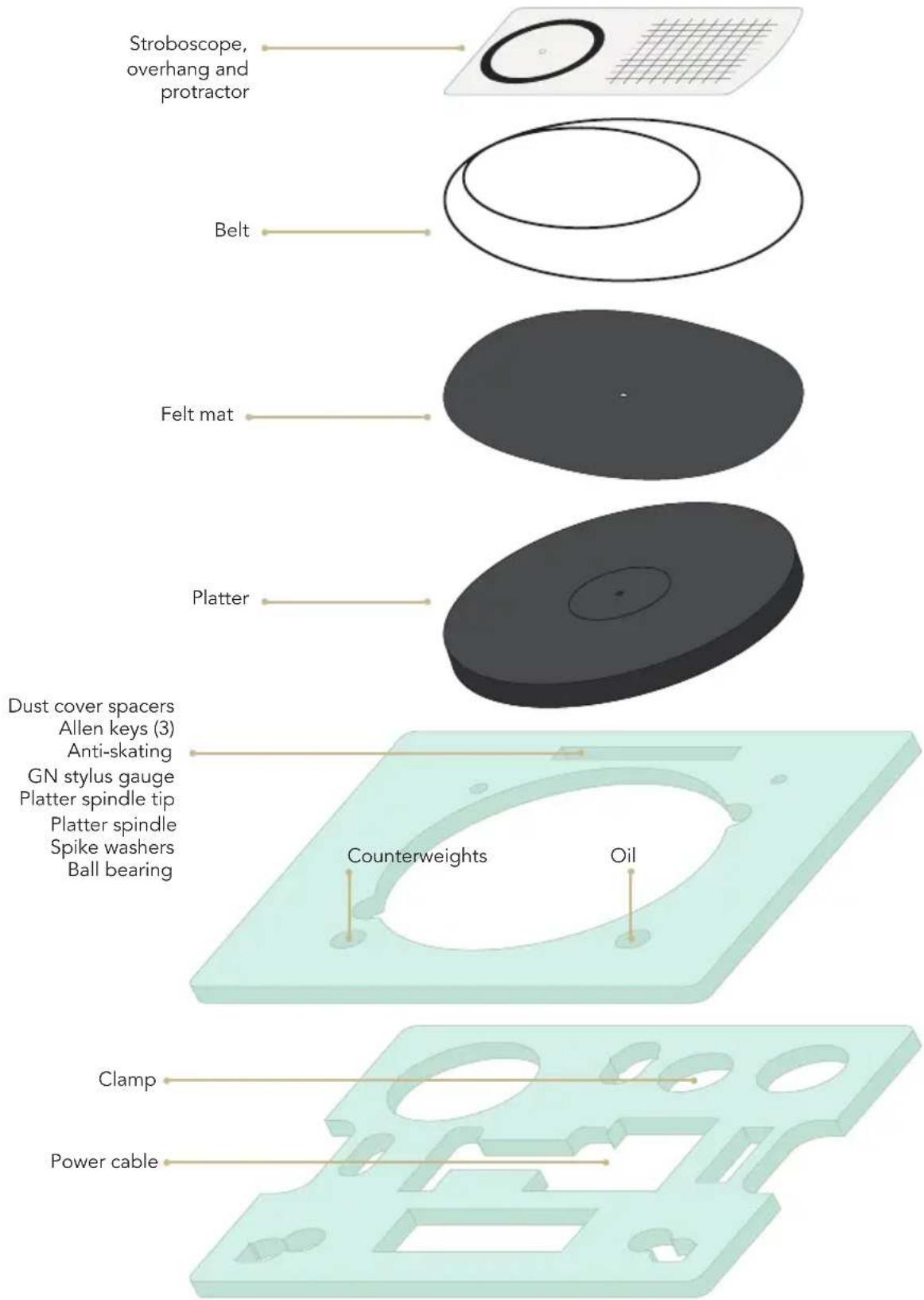

PACKAGE CONTENT

1xPIANOSA		1xDUSTCOVER(with spacers)	1x18V POWER SUPPLY(with cable)	1xANTI-SKATING
2xCOUNTERWEIGHTS|110g |28.5g		1XTONEARM(pre-installed and calibrated)		1xDRIVEBELT
1xPLATTERSPINDLE TIP	1xTURNTABLECLAMP	3xALLEN KEYS|2.5mm | 2.0mm | 1.5mm		3xSPIKEWASHERS
1xOIL JAR	1xPROTRACTOR/OVERHANGAND STROBOSCOPE		1xGN STYLUSGAUGE	1xFELT MAT
1xBALLBEARING	1xUSERMANUAL

| INTRODUCTION AND FEATURES

The Pianosa follows the beauty and technical innovation of the new generation of turntables designed by Gold Note to deliver exceptional audio performance.

The Pianosa features a 50mm curved plinth made of Italian Walnut or Black Lacquered MDF, high-quality materials chosen for their fantastic density, strength and elasticity. The curved plinth made in wood creates a strong bond between our Italian heritage, the Tuscan landscape, the finished product and our people - the skilful local craftsmen who made it by hand.

The curved plinth is precisely shaped to perfectly tune the wood, and then interfaced with a 3mm stainless steel board. The structure is completed with a 20mm thick plinth made in MDF, where the electronic board of the turntable is installed.

The curved wooden plinth is the result of years of research aimed at improving the traditional rectangular shape structure; the extra rigidity given by the curves of the plinth allows for a sophisticated technical design and exclusive look.

The Pianosa features a 12V synchronous motor directly derived from Mediterraneo.

Thanks to our proprietary power control generator based on a Quadral-Core microcontroller, Pianosa can effectively minimise vibrations and deliver high torque for the greatest dynamic and resolution possible.

The Power Supply electronically controls the 33^1/3 and 45 rpm speed modes, and the fine speed adjustment.

The new perfectly polished hourglass motor pulley also allows the turntable belt to spin smoothly thus reducing the wow&flutter and noise.

The 60mm long platter Spindle/bearing comes directly from the top quality design of the Mediterranean; it is fully recessed into the MDF top plinth in order to keep the thick platter as close as possible to the surface, reducing any turbulences generated by the rotation.

The platter is 23mm thick and made of dampened Poly-Vinyl, a very elastic but deaf material, it features an extraordinary ability to reduce vibrations while the high-mass helps the rotational stability.

The Pianosa redefines the concept of functional design for traditional turntables, exploring innovative shapes and materials in an unprecedented way.

A new audio experience awaits you, welcome to the Italian Sound.

| DESIGN AND PERFORMANCE

The sound delivered by our turntables is the result of the synergy of a large number of components. Your Pianosa features refined details and technical solutions developed to play your vinyl records to perfection.

The main plinth is made of Italian Walnut hardwood or MDF, it's 50mm thick and reinforced with a 3mm stainless steel plate and a 20mm MDF plinth to provide an extremely rigid structure, offering high stability to prevent vibrations.

Three adjustable aluminium feet contribute to the insulation of the structure eliminating external vibrations while allowing perfect levelling of the turntable.

The platter of Pianosa is 23mm thick and made of dampened Poly-Vinyl, a particularly deaf polymer we chose to guarantee the ideal balance between mass, speed control and insulation.

The spindle is made of high-quality stainless steel, a solid piece machined with the utmost precision to clamp the platter with the special conical shape Split-Spindle™ we developed. The spindle is 60mm long to ensure top-class performance and features a large longitudinal groove on its axis for the lubricating oil to run constantly. With its unique design and the perfect spindle/housing ratio, the spindle distributes the inertial energy along its entire axis completely cancelling lateral friction and preventing the pendulum effect of the platter.

Particular attention and care went into designing the spindle housing, which is recessed to allow the platter to be located as close as possible to the turntable plinth in order to minimise potential air turbulence and guarantee perfectly controlled rotation and speed.

The bronze bearing is finely machined and rectified to guarantee smooth rotation

and stability to the spindle, along with the custom platter bearing that is designed to reduce potential noise.

The platter bearing is threaded on the outside in order to be tightly locked into the plinth on its own axis achieving extremely precise coupling.

Our engineers have developed a custom AC 12V micro-controlled motor fine-tuned for accuracy, with 33^1/3 rpm & 45rpm electronic speed control and pitch adjustment. It delivers a flawless balance of power and torque while operating in complete silence.

| TECHNICAL SPECIFICATIONS

MAIN FEATURES

| Wow & flutter: 0,1%

Rumble: -77dB

Speed: 33 ^1/3 rpm and 45rpm ±0,1%

Speed changing: Electronic with fine pitch control

Transmission: 70 shores rectified NBR belt

Motor: High torque 12V synchronous

Platter: 23mm thick dampened Poly-Vinyl

Platter spindle: Split-spindle™ clamping design

Platter bearing: Chromed Steel 5mm ball bearing

Tonearm: Gold Note B-5.1 (or opt. B-7 Ceramic)

Dust cover: Transparent acrylic with hinges

POWER

Power supply: 18V output, 100-240V / 50-60Hz

Power consumption: max 27W

DIMENSIONS AND WEIGHT

Dimensions: 425mm W | 170mm H | 360mm D 550mm W | 480mm H | 480mm D - boxed

Weight: Kg. 13.5 Kg. 18 - boxed

| SET-UP INSTRUCTIONS

FIRST OPERATION

1 Please remove carefully the protecting foam and check if all the listed items are supplied.
2 Place the turntable on a levelled surface, then level the turntable.
3 Install the counterweight on the tonearm, ensure the tracking weight matches the requirements of your cartridge.
4 Install the drive belt around the motor pulley first, then carefully run it around the platter.
5 Plug the power adapter cable into the turntable, then connect it to the AC.

POSITIONING THE TURNTABLE

Your turntable has been designed for Hi-Fi systems. It must be protected from direct sun and humidity. Do not place it near heating sources, electrical and electronic motors, mobile phones etc. The levelling and positioning on a solid shelf, is crucial to achieve the best audio performances possible.

SPEED CONTROL ADJUSTMENTS

The turntable is fully controlled by an electronic power supply.

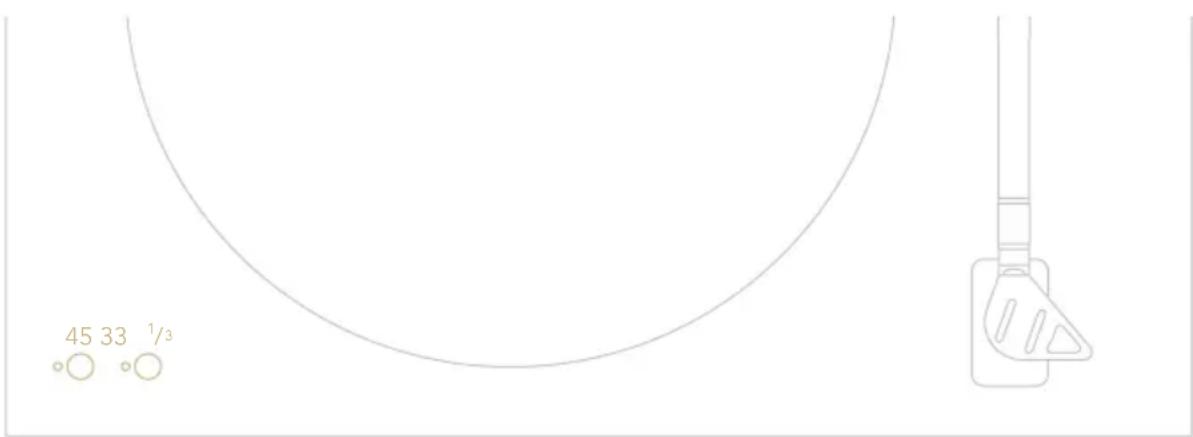

1 Inner button starts and stops the 33^1/3 rpm speed. When this speed is playing, the red LED light is on.
2 Outer button starts and stops the 45rpm speed. When this speed is playing, the red LED light is on.

The turntable also features a fine speed adjustment "Pitch Control" function to allow for precise calibration of the speed.

PITCH CONTROL MODE

To adjust the speed, press and hold for 4 seconds both the 33^1/3 rpm and 45rpm buttons while the turntable is playing either speed until the red LED light shuts down.

PITCH -

Press the 33^1/3 rpm button until the correct speed is reached. The LED light flashes every time the button is pressed.

PITCH +

Press the 45rpm button until the correct speed is reached. The LED light flashes every time the button is pressed.

To switch off of the PITCH CONTROL MODE press and hold for 4 seconds both the 33 ^1/3 rpm and the 45rpm buttons until the LED light is on and steady again.

UNBOXING

INSTALLING THE TURNTABLE

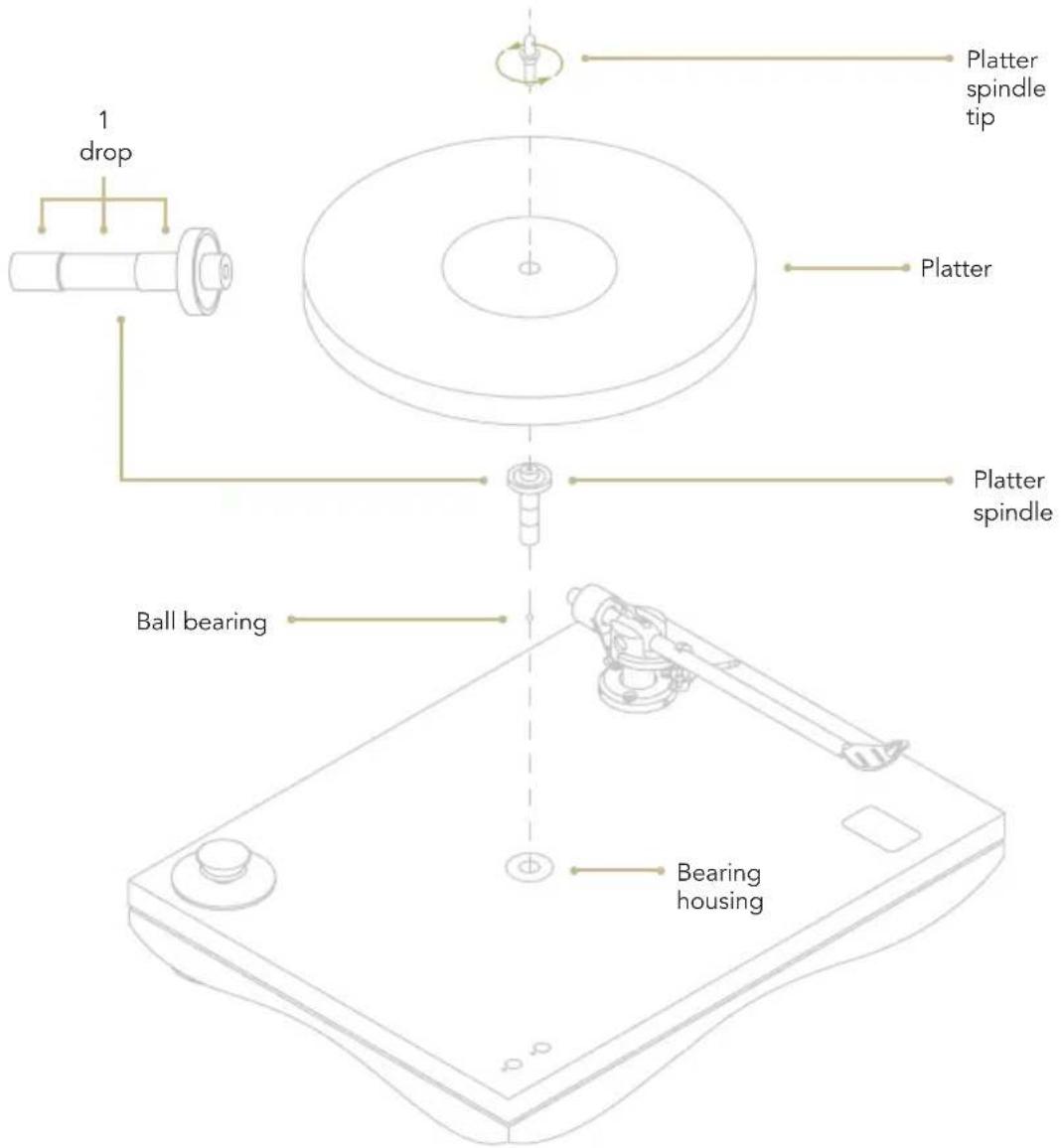

PLATTER

1 Remove the cap from the center of the turntable.
2 Insert the ball bearing into the bearing housing of the turntable taking care to centre it on the bottom seat.
3 Add oil to spindle as shown in figure.
4 Insert the spindle into the bearing housing.

5 Position the platter on the spindle.
6 Tighten the spindle tip onto the spindle to lock the platter in place.

*PLEASE NOTE: the bearing housing is already installed in the plinth of the turntable. Do not remove it.

BELT AND THE TONEARM CABLE

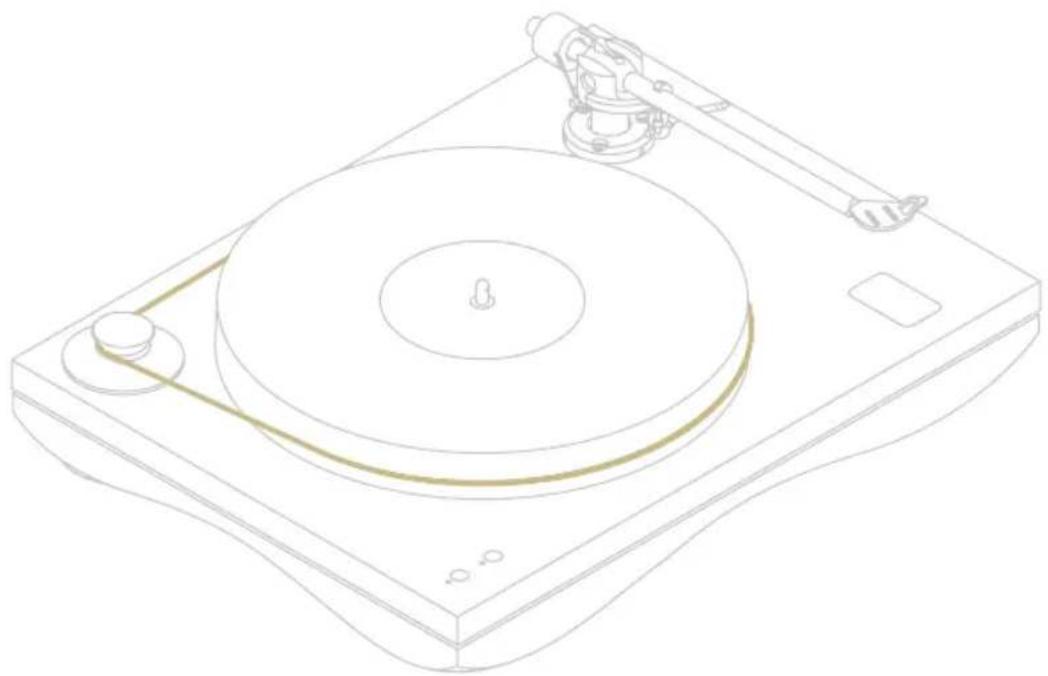

Wrap the belt around the pulley and the platter as shown in the picture.

Line drawing of a vintage rotary disc with a flat top and stand (no text or symbols)

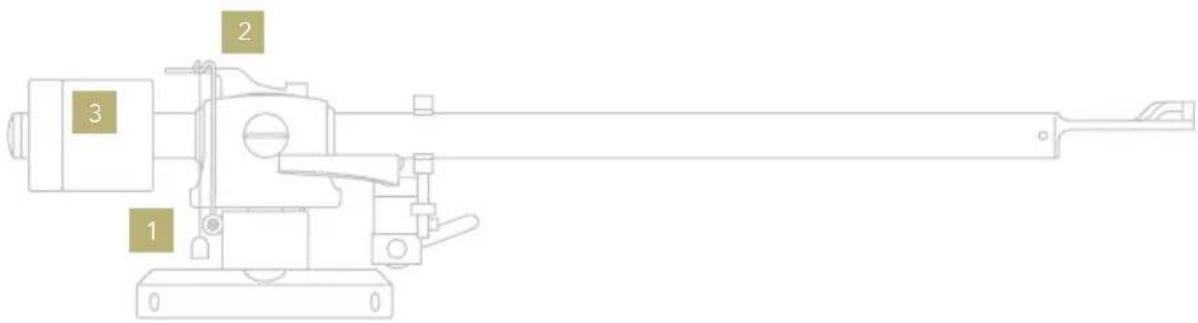

ANTI-SKATING AND COUNTERWEIGHT

1 Anti-skating: Nylon wire with bullet counterweight.
2 Anti-skating: Adjustment bar.

3 Tonearm counterweight: to set up the correct tracking force depending on the phono cartridge in use.

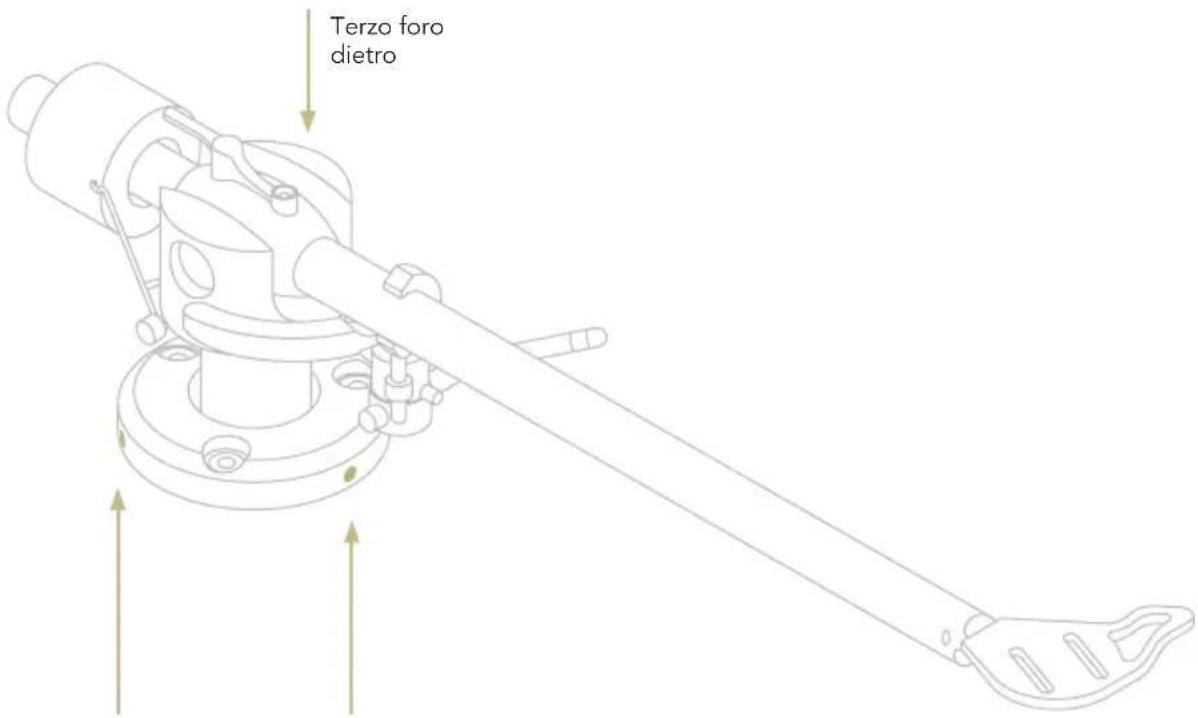

INSTALLING THE ANTI-SKATING SYSTEM

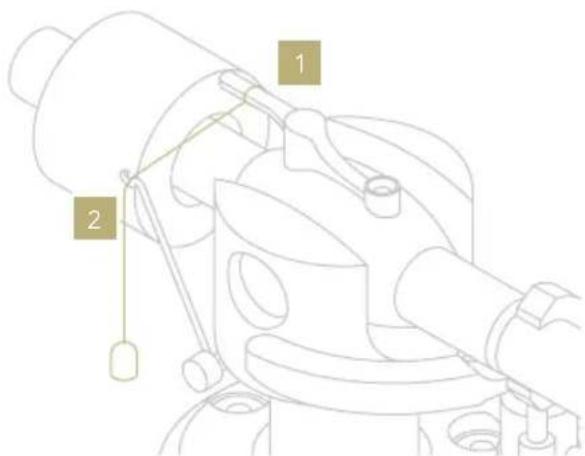

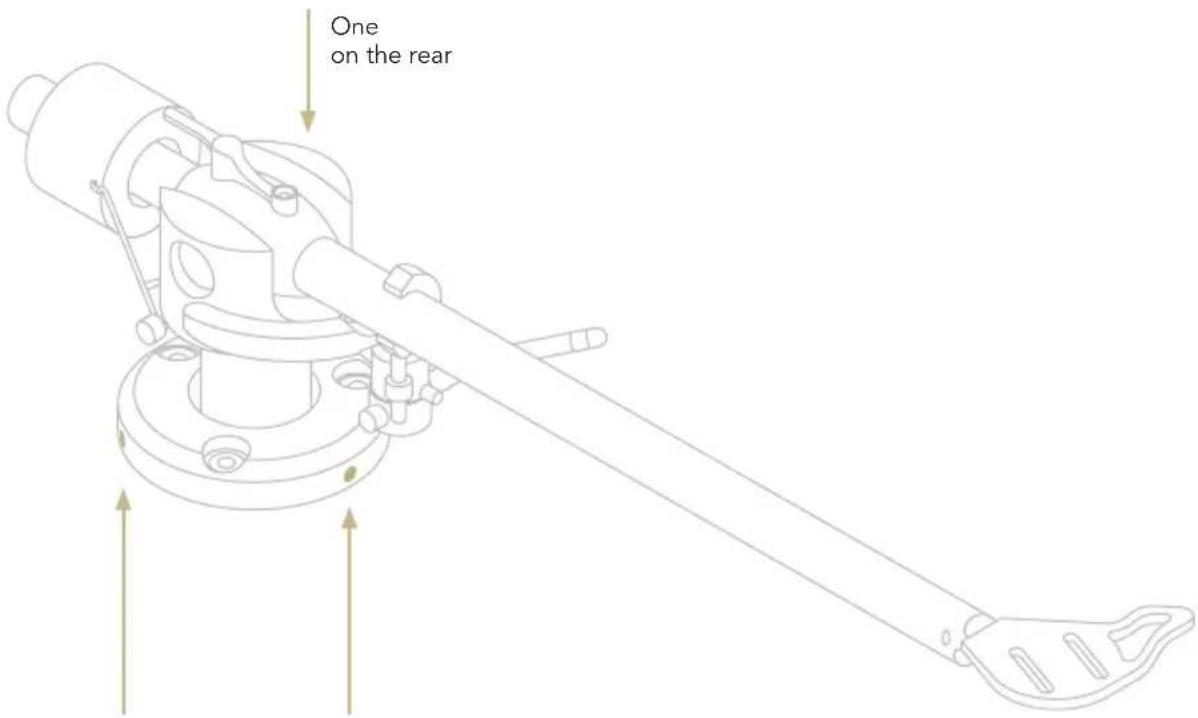

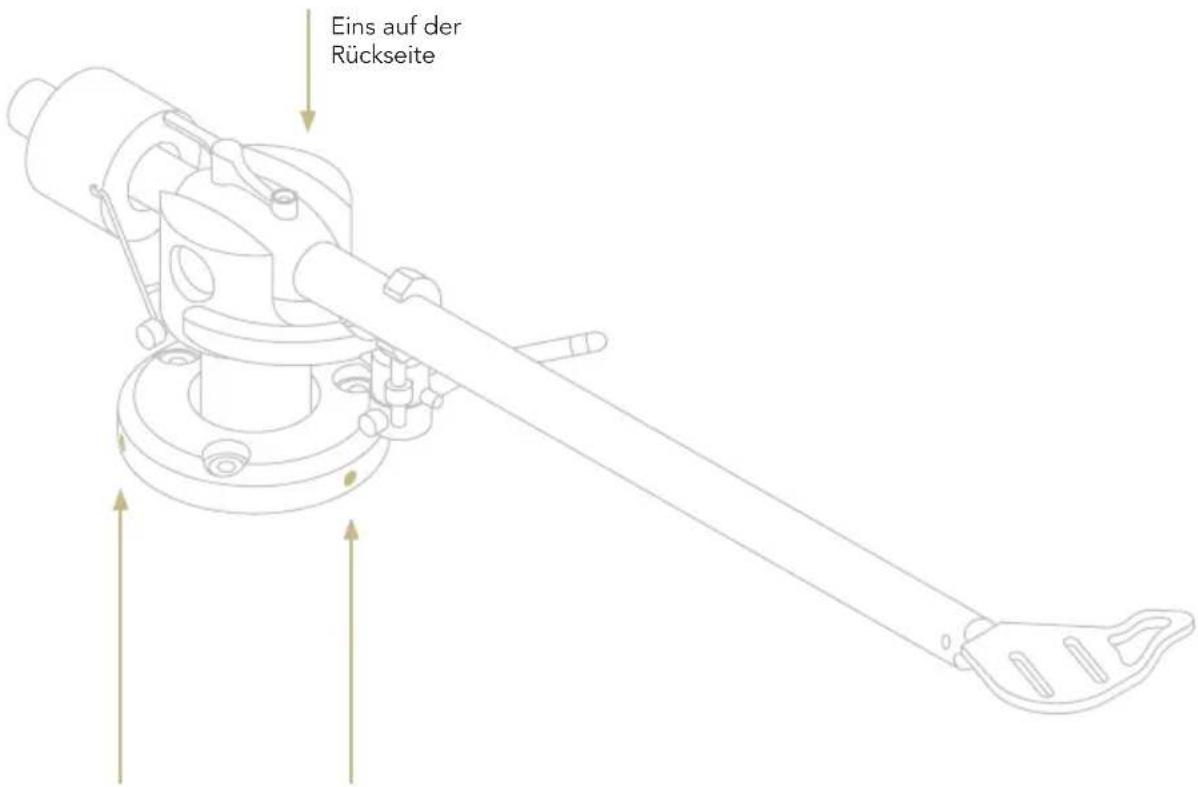

1 Slip the loop of the ANTI-SKATING nylon wire over the groove of the ADJUSTMENT BAR.
2 Feed the wire through the loop of the SUPPORT HOOP.
3 Adjust the ANTI-SKATING force choosing the correct groove on the ADJUSTMENT BAR.

VTA SETUP

Use the 1.5mm Allen key supplied to adjust the VTA. Before moving the tonearm, loosen the hex bolts found in the tonearm collar. We recommend to loosen one hex bolt at a time (usually loosening one is enough to adjust the VTA).

POWER ADAPTER AND SPEED CONTROL

CONNECTING THE POWER SUPPLY ADAPTER

Before plugging the power adapter in to the AC make sure the connector is plugged into the turntable.

PLEASE NOTE

Use only the original power adapter to power the turntable to ensure the correct functioning.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

TURNTABLE SPEED CONTROL

33 ^1 /3rpm:

Starts and stops the 33^1/3 rpm speed. The LED light flashes every time the button is pressed.

45rpm:

Starts and stops the 45rpm speed. The LED light flashes every time the button is pressed.

PITCH CONTROL MODE

Please check page 4 for detailed instructions on how to fine adjust the speed of your turntable.

| CARTRIDGE CALIBRATION

Our turntables and tone arms are always pre-calibrated at our factory but you can use the GN Calibration tool to adjust the:

A Phono Cartridge alignment.
B Overhang.
C 45rpm and 33 ^1/3 rpm speed (requires a strobe light).

SPEED ADJUSTMENTS

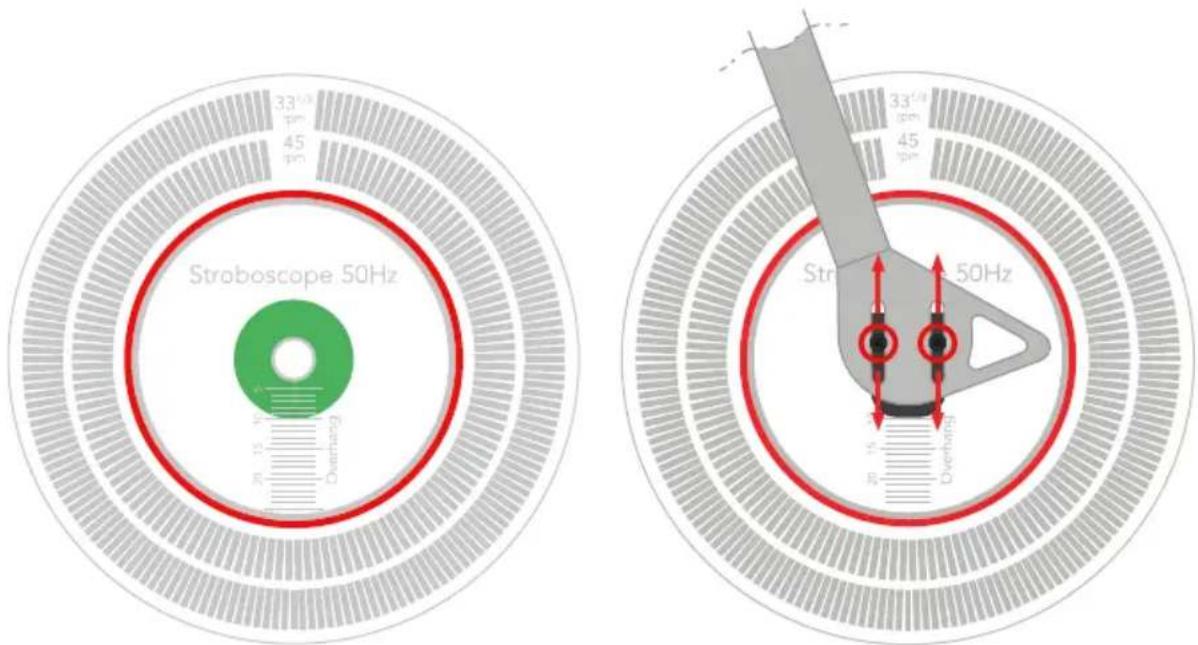

Check the speed with the help of a strobe light while the platter is spinning.

The outer line is to check the 33^1/3 rpm.

The inner line is to check the 45rpm.

OVERHANG

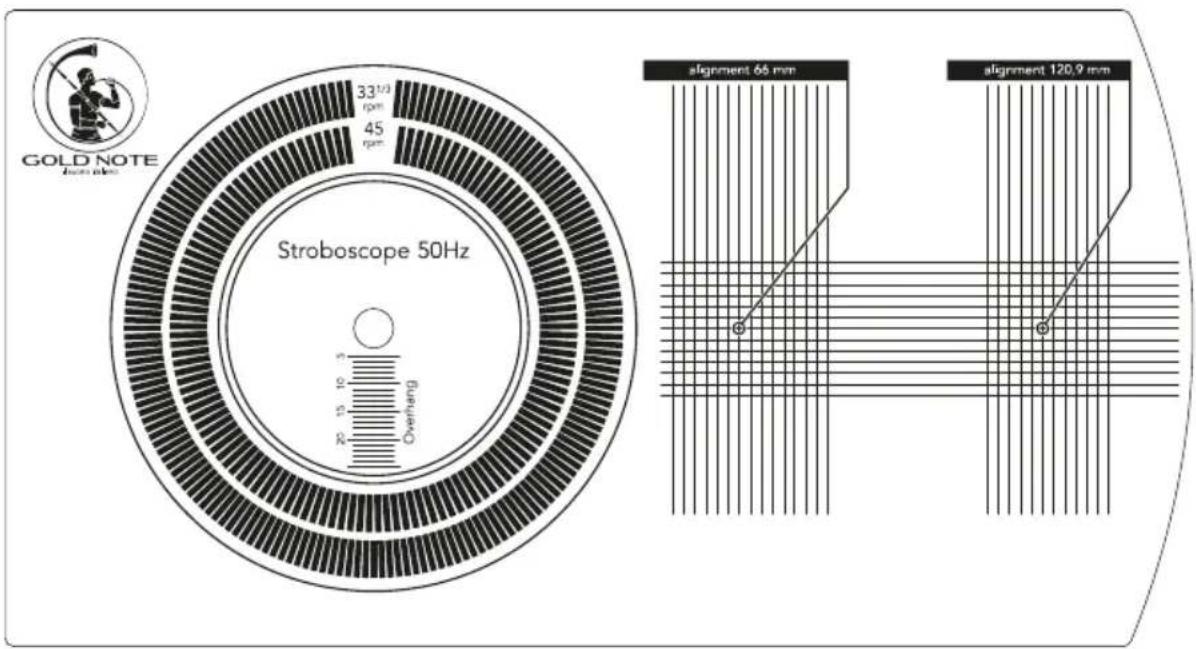

To set the correct overhang the Calibration Tool must be inserted on to the turntable record pin and the cartridge Tip must be positioned on top of the pin.

Adjust the position of the cartridge until the overhang of the phono cartridge matches the manufacturer's specifications.

ALIGNMENT

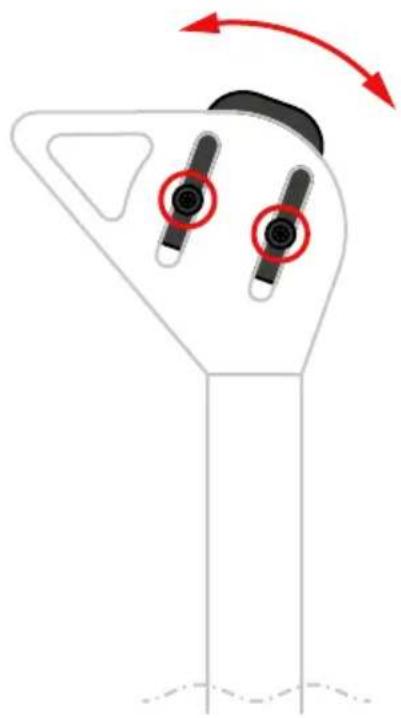

To correctly align the phono cartridge and achieve the best tracking position, point the tip of the phono cartridge into the circles as in the picture below.

The body of the phono cartridge must be aligned to the vertical lines.

Diagram of a device with two sensors and red circular indicators, no text or symbols present

| DETACHABLE DUST COVER

The dust cover features detachable hinges, a new proprietary design developed to let you enjoy your turntable at the best.

The hinges provide a stop point at about 90^ : in this position the dust cover is stable and held in place by the hinges.

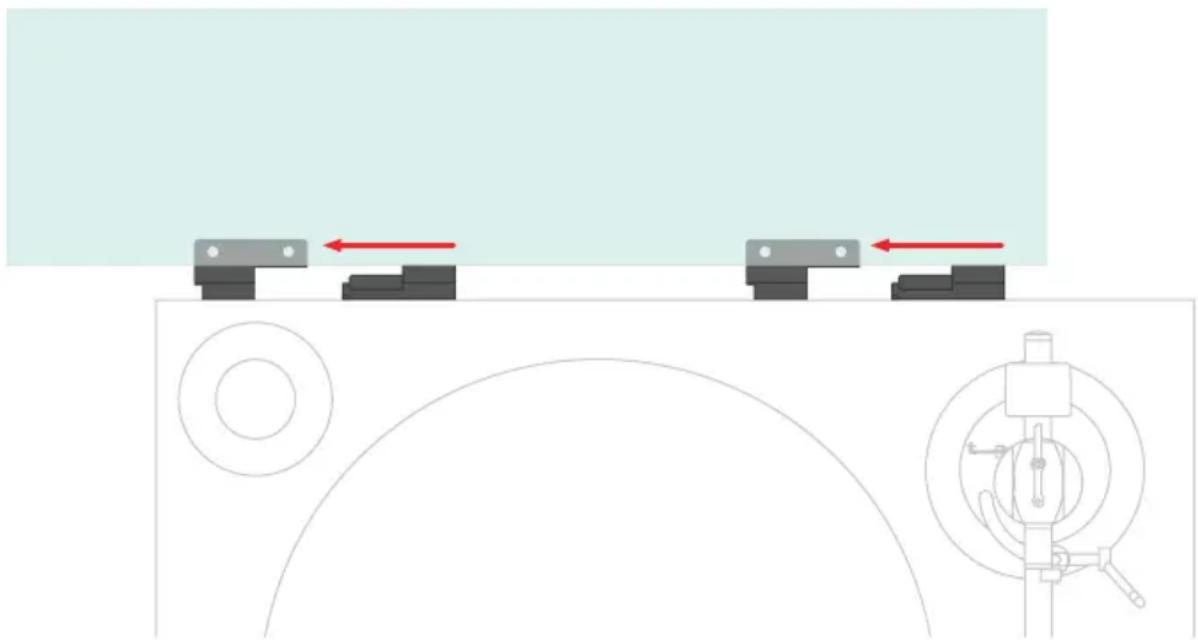

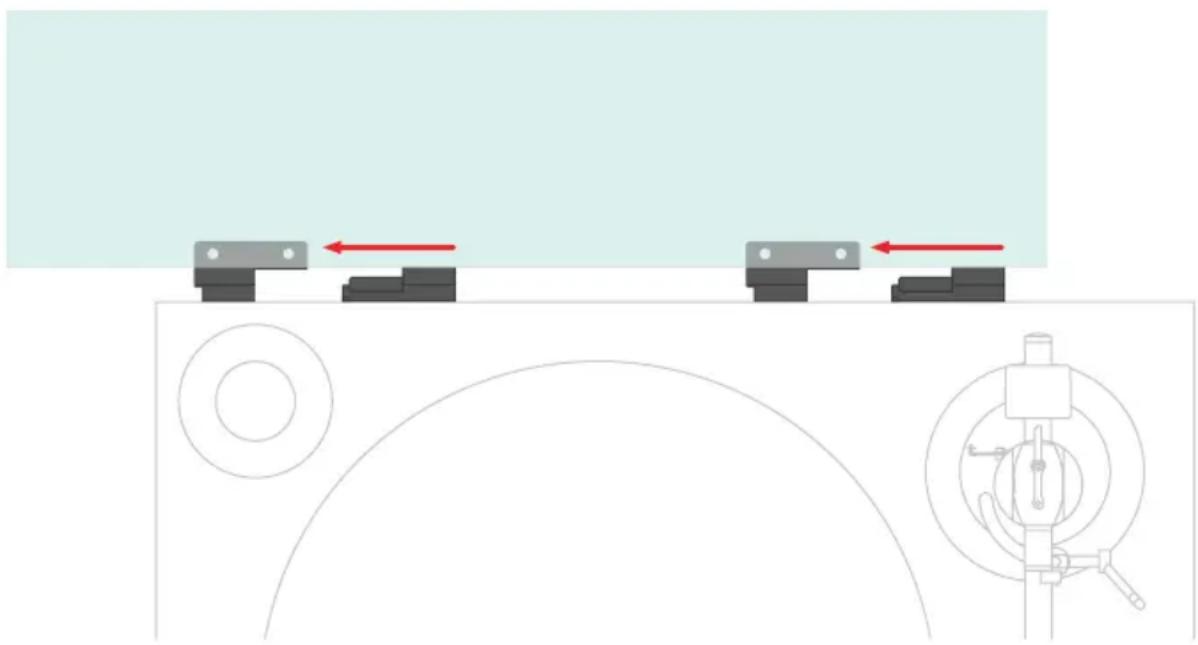

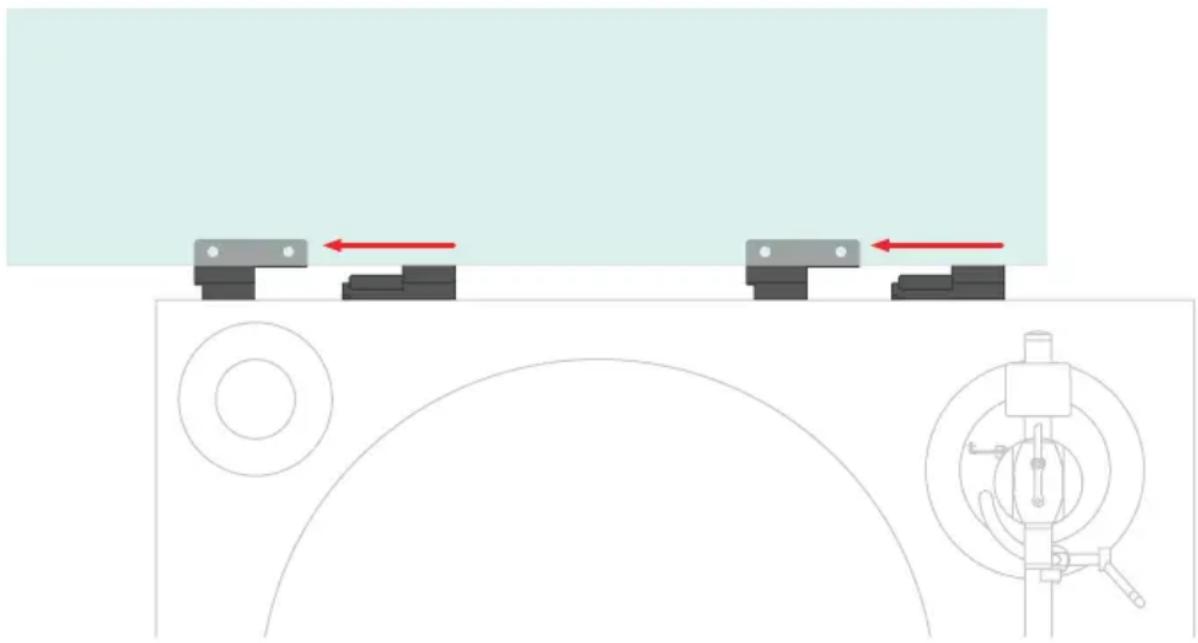

Removing the dust cover is simple and quick: lift the dust cover until it reaches the 90^ stop point and it's completely opened, then gently slide it towards LEFT (facing the turntable) to detach it from the plinth.

Please note: the dust cover can be removed and reinserted only when it's in its resting position, at 90°.

3D technical illustration of a mechanical component mounted on a bracket (no text or symbols)

Technical diagram showing mechanical components with red arrows indicating motion or force direction (no text or symbols)

PRODUCT REGISTRATION

PRODUCT REGISTRATION

We recommend to register the unit on our internet website within 15 days from the purchase at

www.goldnote.it/product-registration

If the unit is not registered correctly or has been purchased from a different country of the purchaser home address the unit will not be covered by any warranty and the registration will be refused.

Please note that the warranty does not cover in any case: Tubes, Phono Cartridge Stylus and Batteries.

www.goldnote.it/product-registration

WARNING

Gold Note products should only be opened, serviced and inspected by certified Gold Note technicians and dealers. Work performed by unqualified personnel may cause serious damage or personal injury. Opening of the product by non-authorised personnel will void the guarantee.

In this case, contact your dealer to be advised on how the fault can be solved.

Do not return any object directly to the factory or to the distributor without being authorised to do so.

WARRANTY

All Gold Note products come with a warranty against defective materials and workmanship.

Any service and inspection must be carried out by a Gold Note dealer or distributor so in case you need any assistance with this product, please contact the seller.

PLEASE NOTE

Descriptions and technical characteristics may vary at any time and without notice.

TROUBLESHOOTING

PROBLEM CAUSE SOLUTION
Levelling the turntable.	The turntable is not levelled.	Use a spirit level to help yourself and adjust the levelling by screwing or unscrewing the feet.Unscrewing a foot increase the height of that corner.
Cleaning the turntable.	The turntable is dusty or requires cleaning.	With EXTREME care use ONLY very soft 100% cotton cloth to sweep dust and stains out.Any acid, alcohol or not extremely soft cloth will irreversibly damage the turntable fine aesthetic.Only dry cloth is allowed.
Motor heating.	The motor is too hot.	AC synchronous motors as the ones used by Gold Note may warm up to 50°Celsius without creating any problem.
Noise on startup.	The turntable produces a slight rubbing noise upon startup.	It is normal for the belt to produce a slight noise before the optimal speed is reached.

RELATED PRODUCTS

CARTRIDGES

DONATELLO

Lightweight MC phono cartridge with top-of-the-range performance. Features Micro Elliptical diamonds, copper coils and Duraluminium body.

ELECTRONICS

IS-1000

Class-A/B streaming integrated amplifier delivering 125Watt @ 8Ω per ch. with High-Current Mosfet technology. Features UPnP streamer, BurrBrown PCM1796 DAC, MM/MC phono stage.

PHONO STAGES

PH-10

The PH-10 is a fully analogue phono preamplifier that offers unique features, including EQ CURVES, LOAD and GAIN adjustments, and an intuitive UX thanks to its SKC (Single Knob Control) and display.

POWER SUPPLIES

PST-10

The PST-10 is the external power supply dedicated to Gold Note turntables. Improves the soundstage and the dynamic range, delivering even finer details and realism.

Discover more on our website

www.goldnote.it

Line drawing of a vintage rotary disc with a flat top and stand (no text or symbols)

ANTISKATING FADEN ANBRINGEN

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Diagram of a device with two black components and red circular indicators, no text or symbols present

ABNEHMBARE SCHUTZHAUBE

3D technical illustration of a mechanical bracket mounted on a vertical surface (no text or symbols)

Technical diagram showing mechanical components with red arrows indicating motion or force direction (no text or symbols)

Line drawing of a vintage CD or DVD machine with a circular disc and stand (no text or symbols)

ANTI-SKATING E CONTRAPPESI

REGOLAZIONE DELL'ANTI-SKATING

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

CONTROLLO DELLA VELOCITÀ

33 ^1 /3rpm:

Diagram of a mechanical device with two circular components and red arrows indicating rotation (no text or symbols)

| CAPPA PARA-POLVERE

3D technical illustration of a mechanical component mounted on a bracket (no text or symbols)

Technical diagram showing mechanical components with red arrows indicating motion or force direction (no text or symbols)

https://www.goldnote.it/download/manual/FR_PIANOSA.pdf
