Product Type	Motherboard
Form Factor	Micro-ATX
Dimensions	244 mm x 244 mm (9.6" x 9.6")
Weight	Approx. 0.8 kg (1.76 lb)
CPU Socket	AMD Socket AM5
Supported CPU	AMD Ryzen 7000 series processors
Chipset	AMD B650
Memory Type	DDR5
Memory Slots	4 x DIMM, dual channel
Max Memory	128 GB
Memory Speed	DDR5 4800/5200/5400(OC)/5600(OC)/6000+(OC)
Storage Interfaces	4 x SATA III (6 Gb/s); 2 x M.2 (PCIe 4.0 x4)
USB Ports (Rear)	1x USB 3.2 Gen2 Type-C, 1x USB 3.2 Gen2 Type-A, 4x USB 3.2 Gen1, 2x USB 2.0
Video Outputs	1x HDMI (4096x2160@30Hz), 1x DisplayPort (4096x2160@60Hz)
Audio Codec	Realtek ALC897, 7.1 channels, HD Audio
LAN	Realtek RTL8125B, 2.5 GbE
Expansion Slots	1x PCIe 4.0 x16 (x16 mode), 3x PCIe 4.0 x1
Power Connectors	24-pin ATX, 8-pin CPU
Operating System Support	Windows 10 (64-bit), Windows 11 (64-bit)
Maintenance & Cleaning	Disconnect power before cleaning; use dry cloth; avoid static discharge
Safety Precautions	Keep away from heat, moisture; handle by edges; ensure proper grounding
Spare Parts & Repairability	Standard components; BIOS update via USB and button; CMOS clear jumper
Warranty (Typical)	3 years (check local policy)

Frequently Asked Questions - B650MP-E PRO BIOSTAR

What CPU is compatible with the Biostar B650MP-E PRO?

The motherboard supports AMD Ryzen 7000 series processors with Socket AM5. Refer to the official CPU support list for updates.

How much memory can I install?

Up to 128 GB of DDR5 memory across four DIMM slots, supporting dual-channel configurations. Speeds up to 6000+ MHz (OC).

How to update the BIOS?

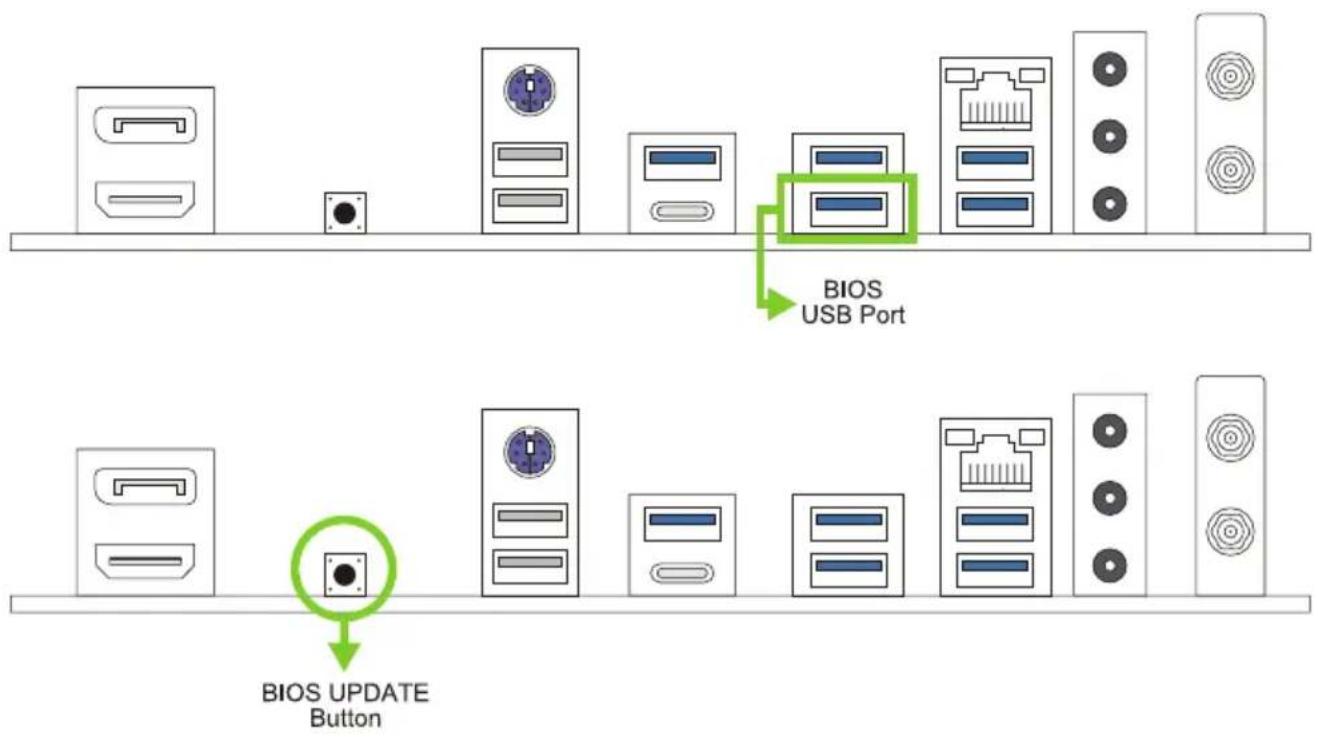

Use the BIOS Update button on the rear I/O panel with a USB drive containing the renamed BIOS file (PSPBIOS.IMG). Alternatively, use the BIOSTAR BIO-Flasher utility in the BIOS or the Windows-based BIOS Update Utility.

How do I clear the CMOS?

Disconnect AC power, then short the JCMOS jumper pins (1-2) for five seconds using a screwdriver. Return the jumper to open position and power on. Load optimized defaults in BIOS.

What storage options are available?

Four SATA III ports (6 Gb/s) and two M.2 slots: M2M_CPU (2242/2260/2280, PCIe 4.0 x4) and M2M_SB (2280, PCIe 4.0 x4). Supports RAID 0, 1, 10 on SATA.

How to connect RGB LED strips?

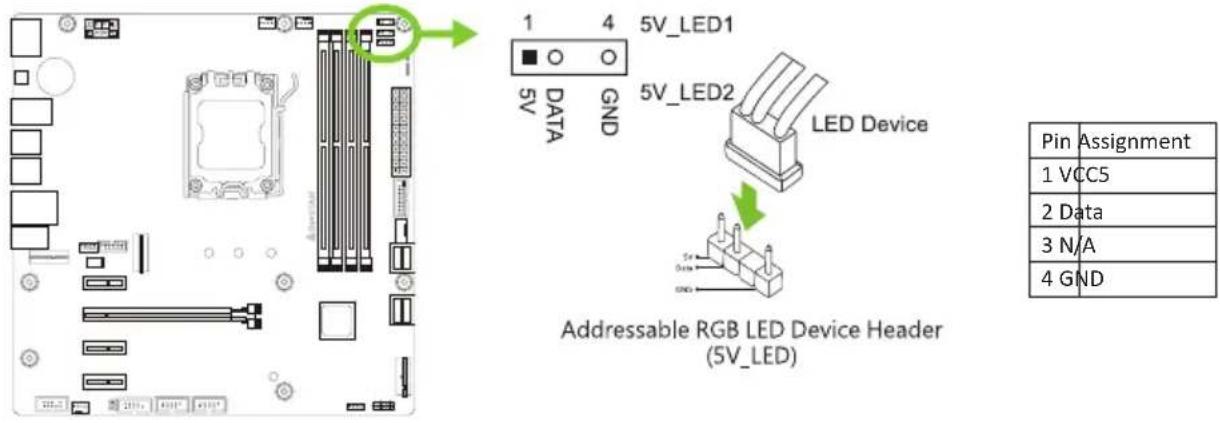

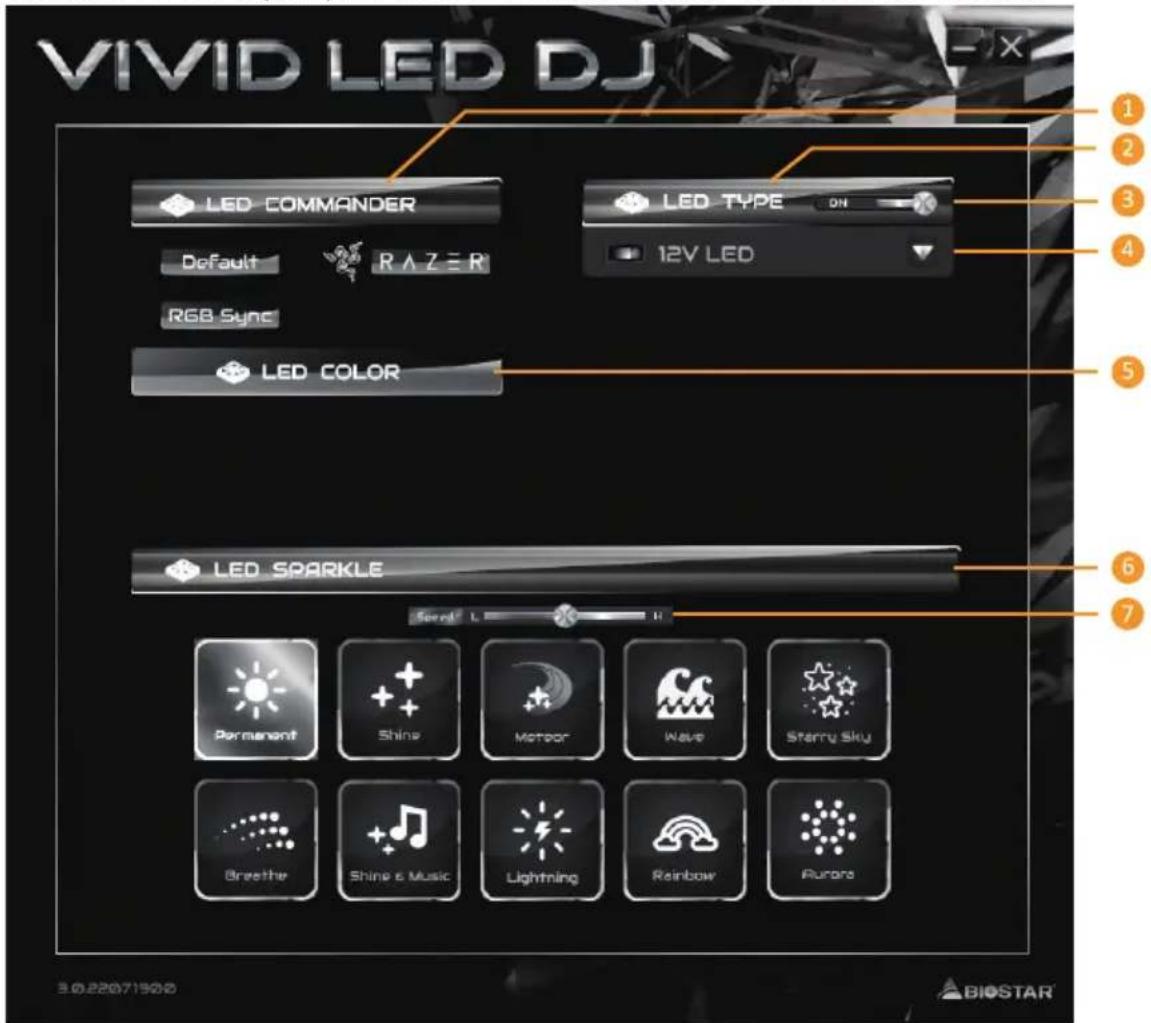

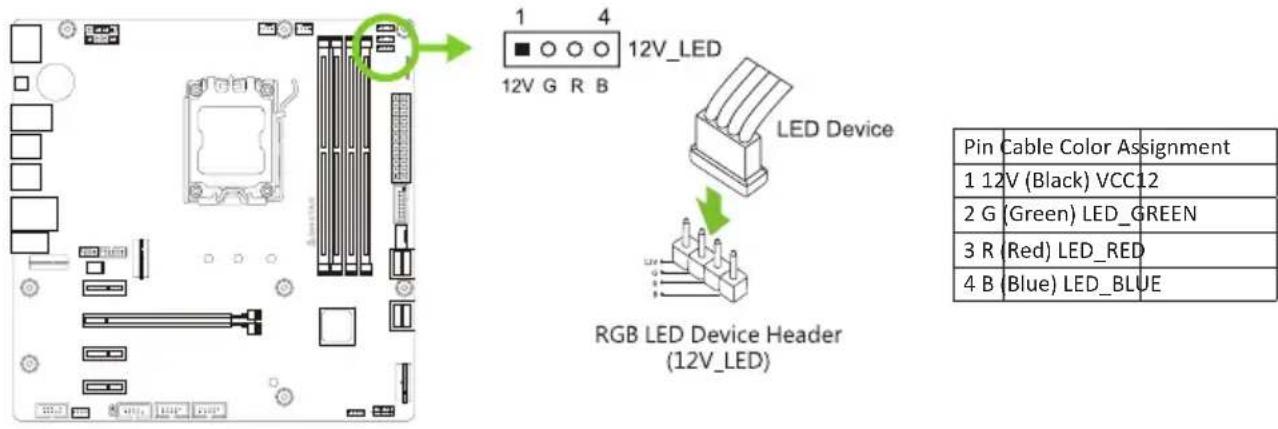

Use the 12V_LED header for 5050 RGB strips (3A max) or the 5V_LED headers for addressable WS2818B strips (300 LEDs, 3A max). Control via Vivid LED DJ software.

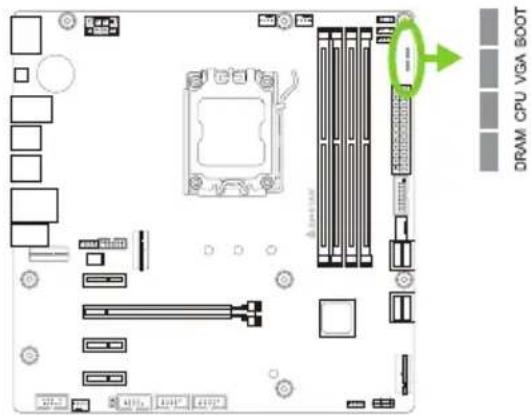

What do the debug LEDs indicate?

Four LEDs (DRAM, CPU, VGA, BOOT) light up during POST. If an error occurs, the corresponding LED stays on to indicate the faulty component. No light means normal operation.

Can I use a Wi-Fi or Bluetooth module?

Yes, the M2E_WIFI slot (E key) supports a 2230 Wi-Fi/Bluetooth module. Antenna ports are provided on the rear I/O panel. Module not included.

Does the motherboard support PCIe 5.0?

No, the B650 chipset provides PCIe 4.0 lanes. The PCIe x16 slot and M.2 slots operate at PCIe 4.0 speeds.

What is the maximum resolution for display outputs?

HDMI supports up to 4096x2160@30Hz, DisplayPort supports up to 4096x2160@60Hz (DP 1.2).

USER MANUAL B650MP-E PRO BIOSTAR

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the contents here and specially disclaims any implied warranties of merchantability or fitness for any purpose. Further the vendor reserves the right to revise this publication and to make changes to the contents here without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first obtaining the vendor's approval in writing.

The content of this user's manual is subject to be changed without notice and we will not be responsible for any mistakes found in this user's manual. All the brand and product names are trademarks of their respective companies.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Table Of Contents

FCC Information and Copyright 1

Chapter 1: Introduction....3

1.1 Before You Start 3
1.2 Package Checklist.... 3
1.3 Specifications....4
1.4 Rear Panel Connectors....6
1.5 Motherboard Layout 7

Chapter 2: Hardware installation....8

2.1 Install Central Processing Unit (CPU) 8
2.2 Install a Heatsink....9
2.3 Connect Cooling Fans 11
2.4 Install System Memory 12
2.5 Expansion Slots 14
2.6 Jumper & Switch Setting 17
2.7 Headers & Connectors....18
2.8 LEDs 24

Chapter 3: UEFI BIOS & Software....25

3.1 UEFI BIOS Setup 25
3.2 BIOS Update 25
3.3 Motherboard BIOS Update 25
3.4 Software.... 31

Chapter 4: Useful help....34

4.1 Driver Installation 34
4.2 AMI BIOS Beep Code 35
4.3 Troubleshooting 35
4.4 RAID Functions.... 36

APPENDIX: Specifications in Other Languages 38

Arabic....38
German 40
Spanish 42
Thai 44
Japan 46

Chapter 1: Introduction

1.1 Before You Start

Thank you for choosing our product. Before you start installing the motherboard, please make sure you follow the instructions below:

• Prepare a dry and stable working environment with sufficient lighting.
  • Always disconnect the computer from power outlet before operation.
• Before you take the motherboard out from anti-static bag, ground yourself properly by touching any safely grounded appliance, or use grounded wrist strap to remove the static charge.
• Avoid touching the components on motherboard or the rear side of the board unless necessary. Hold the board on the edge, do not try to bend or flex the board.
• Do not leave any unfastened small parts inside the case after installation. Loose parts will cause short circuits which may damage the equipment.
• Keep the computer from dangerous area, such as heat source, humid air and water.
• The operating temperatures of the computer should be 0 to 45 degrees Celsius.
  • To avoid injury, be careful of:
  Sharp pins on headers and connectors Rough edges and sharp corners on the chassis Damage to wires that could cause a short circuit

1.2 Package Checklist

• Serial ATA Cable x2
  • Rear I/O Panel for ATX Case x1
  • WIFI antenna accessories x1
• Quick Installation Guide x1
  • Fully Setup Driver DVD x1

Note

» The package contents may be different due to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.

1.3 Specifications

Specifications
CPU Support	Socket AM5 support AMD® RyzenTM 7000 series ProcessorsSupport for future AMD Ryzen processors with BIOS update* Please refer to www.biostar.com.tw for CPU support list.
Chipset AMD B650
Memory	AMD Ryzen 7000 series Processors:Supports Dual Channel DDR5 4800/ 5200/ 5400(OC)/ 5600(OC)/ 6000+(OC)4 x DDR5 DIMM Memory Slot, Max. Supports up to 128 GB MemoryEach DIMM supports non-ECC 8/ 16/ 32 GB DDR5 module* Please refer to www.biostar.com.tw for Memory support list.
Storage	4x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10Total support 2 x M.2 Socket and 4 x SATA (6Gb/s) ports1x M.2 (Key M) Socket (M2M_CPU) :Supports M.2 Type 2242/ 2260/ 2280 SSD moduleSupports PCIe 4.0 x4 (64Gb/s) - NVMe/ AHCI SSD1x M.2 (Key M) Socket (M2M_SB) :Support M.2 Type 2280 SSD moduleSupport PCIe 4.0 x 4 (64Gb/s) - NVMe / AHCI SSD
LAN	Realtek RTL8125B10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability
Audio Codec	ALC8977.1 Channels, High Definition Audio, Hi-Fi
USB	2x USB 3.2 Gen2 Type-C port (1 on rear I/Os and 1 via internal headers)1x USB 3.2 Gen2 port (1 on rear I/Os)6x USB 3.2 Gen1 port (4 on rear I/Os and 2 via internal headers)6x USB 2.0 port (2 on rear I/Os and 4 via internal headers)
Expansion Slots	1x PCIe 4.0 x 16 Slot (x16 mode)3x PCIe 4.0 x 1 Slot (x1 mode)
Rear I/Os	2x WiFi Antenna Port1x PS/2 Keyboard/ Mouse Port1x BIOS update Button1x HDMI Port (HDMI1.4)1x DP Port (DP1.2)1x USB 3.2 (Gen2) Type-C Port1x USB 3.2 (Gen2) Type-A Port4x USB 3.2 (Gen1) Type-A Port2x USB 2.0 Type-A Port1x 2.5G LAN port3x Audio Jack

» Continued on Next Page

Specifications
Internal I/Os	4x SATA III Connector (6Gb/s)1x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module2x USB 2.0 Header (each header supports 2 USB 2.0 ports)1x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)1x USB 3.2 (Gen2) Type-C Header (each header supports 1 USB 3.2 (Gen2) Type-C ports)1x 8-Pin Power Connector1x 24-Pin Power Connector1x CPU Fan Connector1x CPU water cooling connector (CPU_OPT)1x System Fan Connector1x Front Panel Header1x Front Audio Header1x Internal Stereo Speaker Header1x Clear CMOS Header1x COM Port Header1x TPM Header2x LED Header (5V)1x LED Header (12V)* M.2 (E Key) Wi-Fi card is not provided
Form Factor u-ATX Form	Factor, 244 mm x 244 mm
OS Support	Windows 10(64bit) / Windows 11(64bit)Biostar reserves the right to add or remove support for any OS with or without notice.

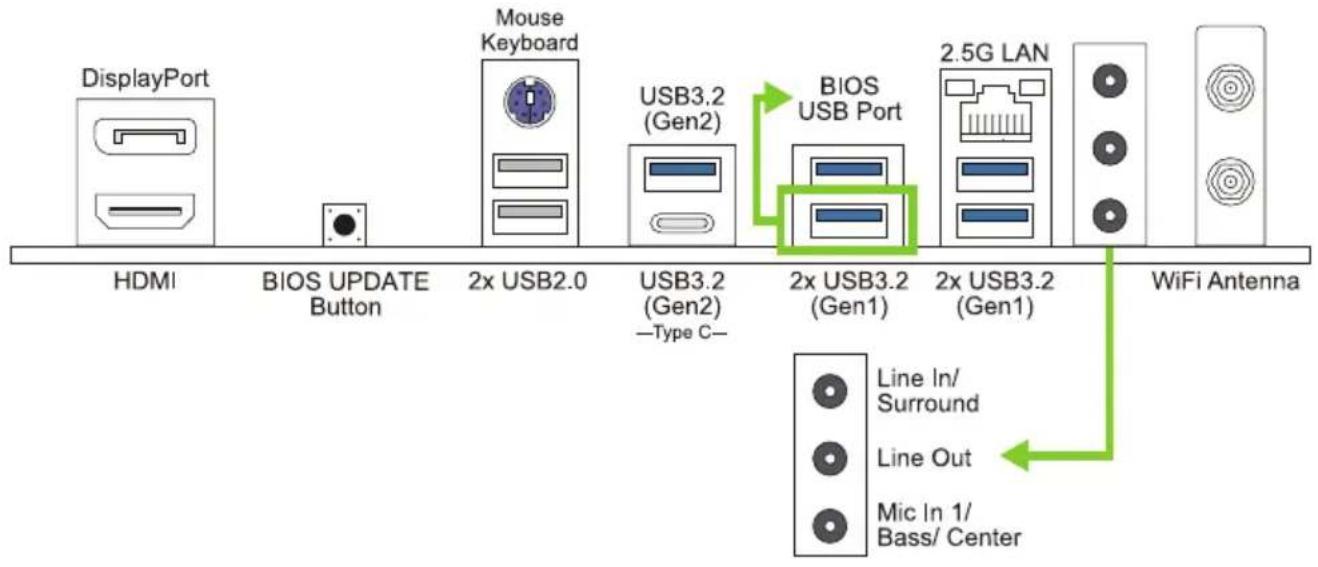

1.4 Rear Panel Connectors

Note

» Maximum resolution

HDMI: 4096 x 2160 @30Hz, compliant with HDMI 1.4.

DP: 4096 x 2160@60Hz, compliant with DP 1.2

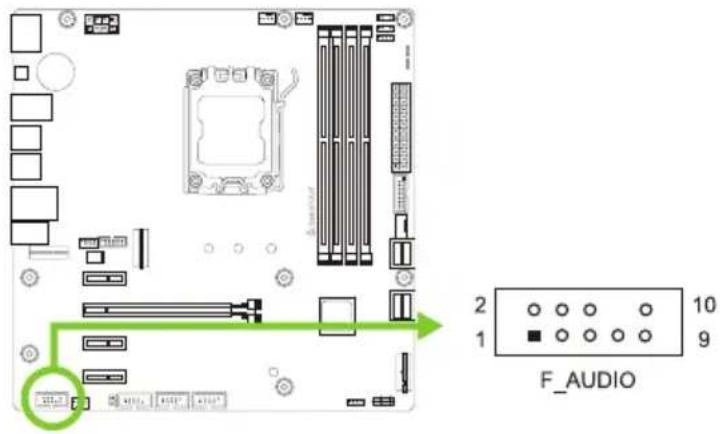

» When using the front HD audio jack and plug in the headset, the rear sound will be automatically Disabled.
» The WiFi antenna port allows you to connect to the E Key module and use the WiFi & Bluetooth function.

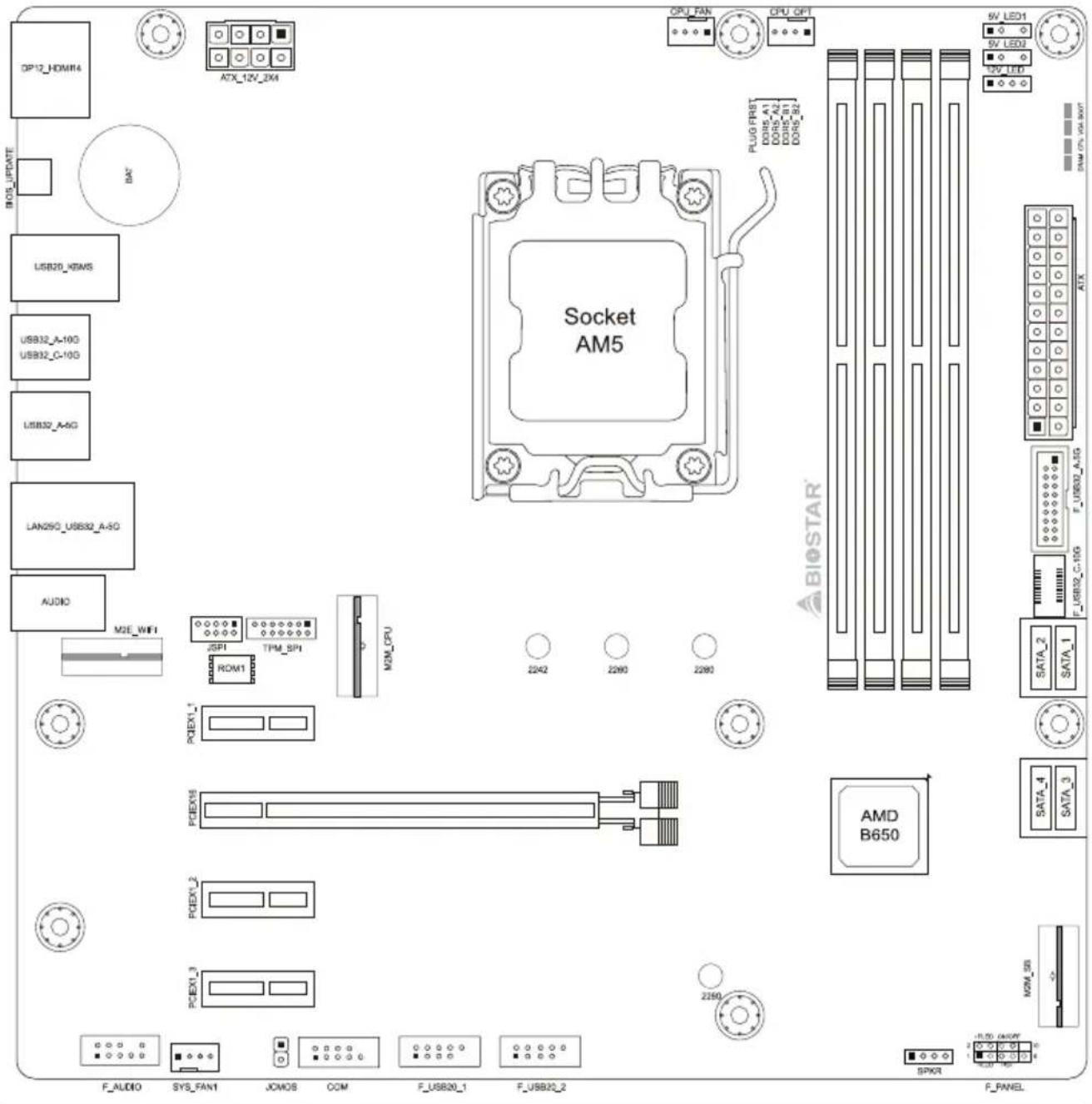

1.5 Motherboard Layout

Note

» ■ represents the 1st pin.

Chapter 2: Hardware installation

2.1 Install Central Processing Unit (CPU)

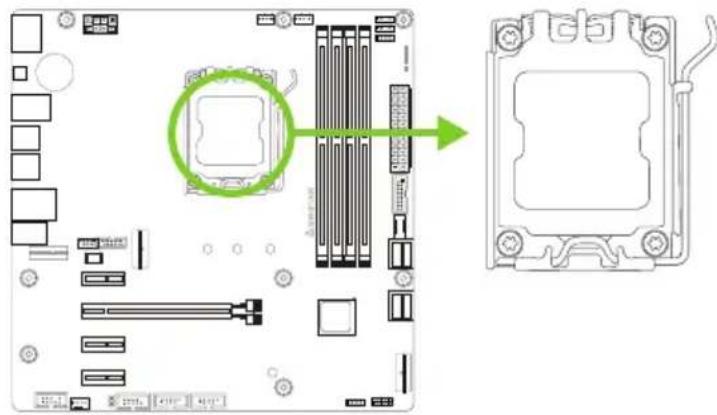

Step 1: Locate the CPU socket on the motherboard

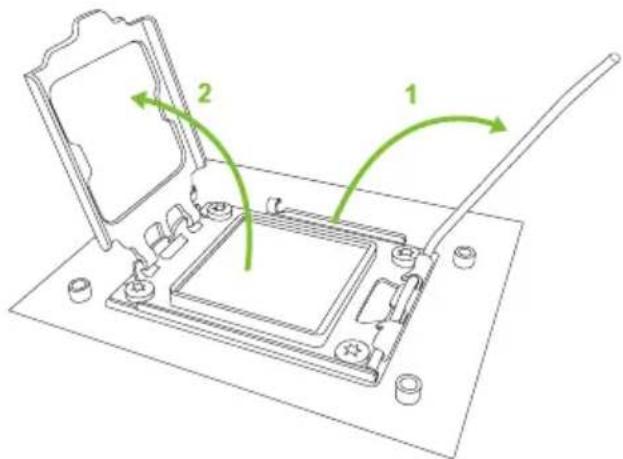

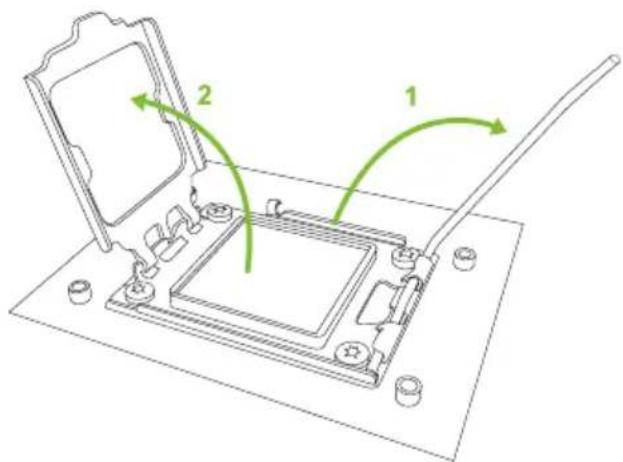

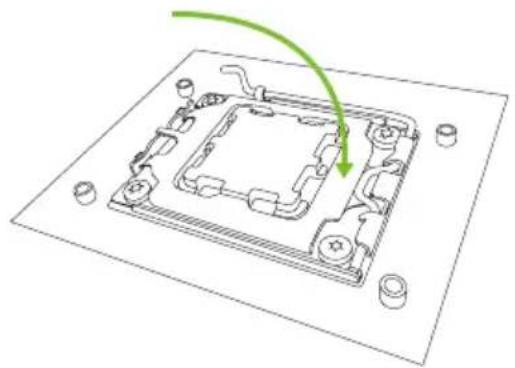

Step 2: Open Lever and then load plate using finger tab.

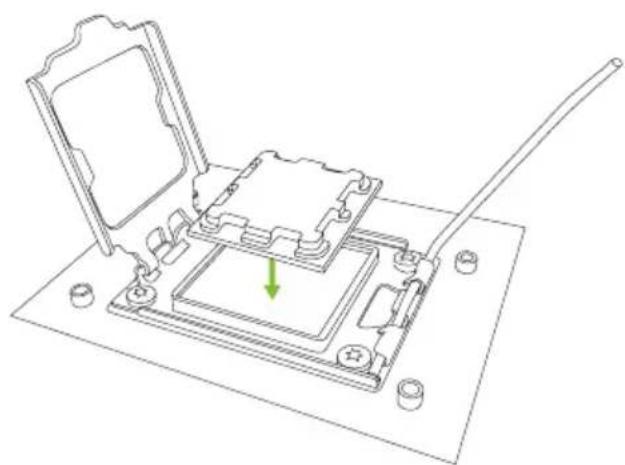

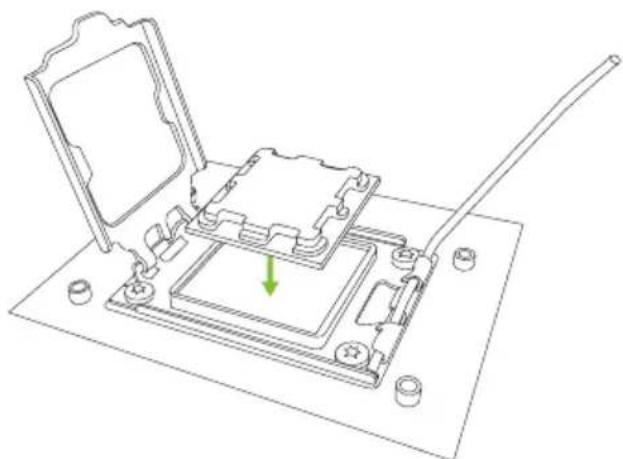

Step 3: Align and seat processor package on socket.

Technical line drawing of a mechanical assembly with a green arrow indicating a component (no text or symbols present)

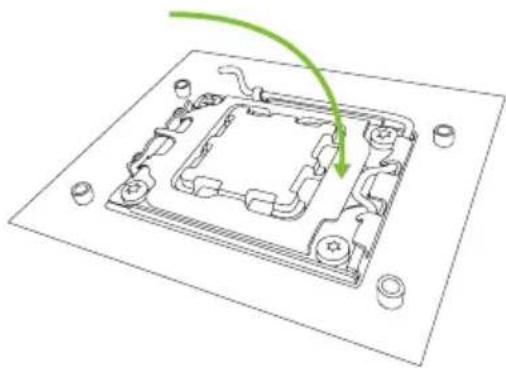

Step 4: Rotate lever and press lever finger, then locked the position.

Technical line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

Note

» Ensure that you install the correct CPU designed for AM5 socket.

2.2 Install a Heatsink

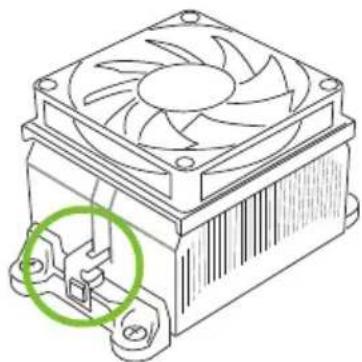

Step 1: Place the heatsink and fan assembly onto the retention frame. Match the heatsink clip with the socket mounting-lug. Hook the spring clip to the mounting-lug.

Technical line drawing of a computer cooling fan with a highlighted internal component (no text or symbols)

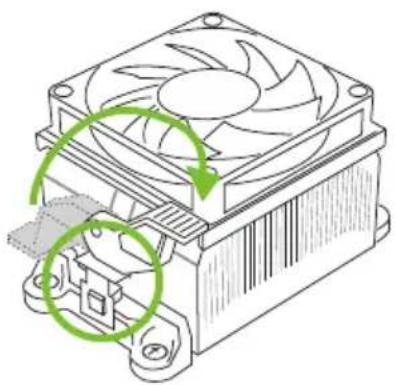

Step 2: On the other side, push the retention clip straight down to lock into the plastic lug on the retention frame, and then press down the locker until it stops.

Technical line drawing of a computer CPU fan with green arrows indicating rotation or adjustment (no text or symbols)

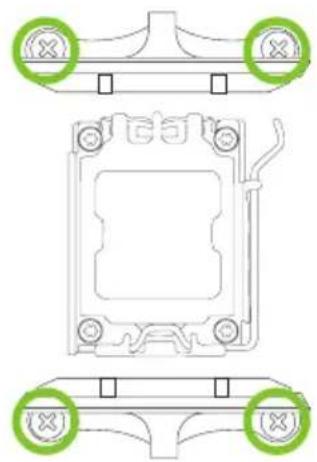

Step 1: Remove the heatsink and fan assembly bracket on the motherboard and keep the cooler backplane under the motherboard.

Technical line drawing of a mechanical component with three views (top, front, side) and green circular annotations indicating features (no text or symbols present)

Step 2: Place the heatsink and fan assembly on top of the installed CPU and make sure that the fan cable is closest to the CPU fan connector. Please refer diagram to the following screw into the screw hole in the order shown.

Note

» Do not forget to connect the CPU fan connector.
» For proper installation, please kindly refer to the installation manual of your CPU heatsink.

2.3 Connect Cooling Fans

These fan headers support cooling-fans built in the computer. The fan cable and connector may be different according to the fan manufacturer.

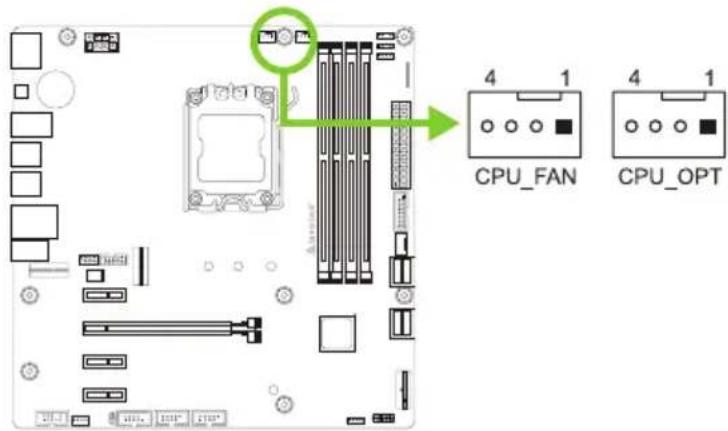

CPU_FAN/ CPU_OPT: CPU Fan Header

PWM Mode DC Mode
Pin	Assignment Pin Assignment
1 Ground 1 Ground
2 +1	2V 2 Voltage Control
3 Sense 3 Sense
4 Speed Control Signal 4 NC

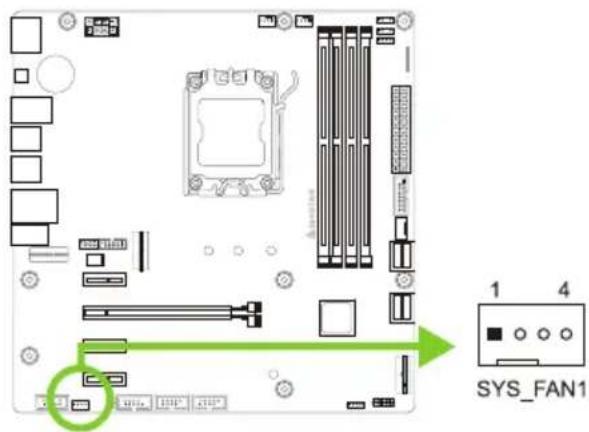

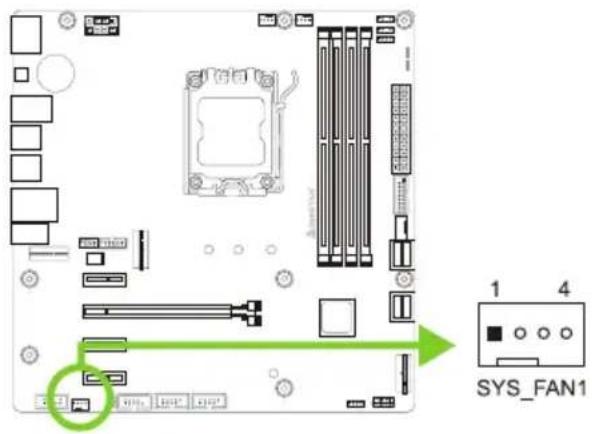

SYS_FAN1: System Fan Header

PWM Mode DC Mode
Pin Assignment Pin Assignment
1 Ground 1 Ground
2 +12V 2 Voltage Control
3 Sense 3 Sense
4 Speed Control Signal 4 NC

Note

» CPU_FAN, CPU_OPT, SYS_FAN1 support 4-pin and 3-pin head connectors. When connecting with wires onto connectors, please note that the red wire is the positive and should be connected to pin#2, and the black wire is Ground and should be connected to pin#1(GND).
» CPU Fan Header (CPU_FAN1): Support water cooling fan and CPU fan.

2.4 Install System Memory

DDR5 Modules

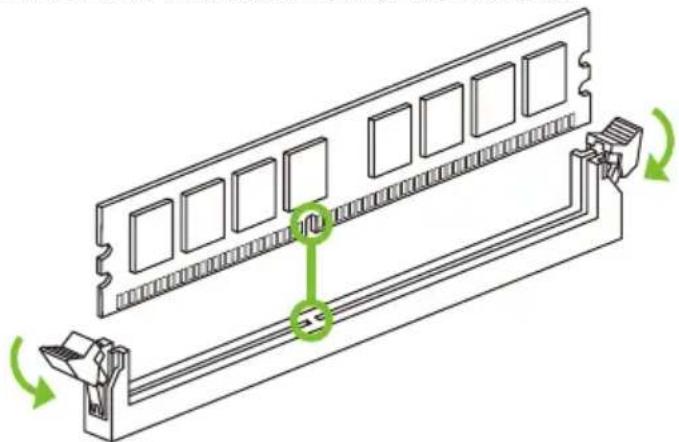

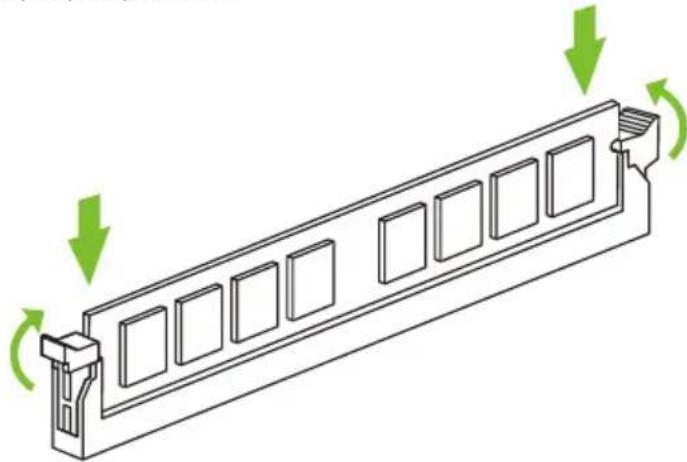

Step 1: Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot such that the notch on the DIMM matches the break on the slot.

Diagram of a computer RAM module with directional arrows indicating rotation and component movement (no text or symbols)

Step 2: Insert the DIMM vertically and firmly into the slot until the retaining clips snap back in place and the DIMM is properly seated.

Technical line drawing of a mechanical component with green directional arrows indicating motion or force (no text or symbols)

Note

» If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.

Memory Capacity

DIMM Socket Location DDR5 Module Total Memory Size
DDR5_A1 8GB/16GB/32GB	Max is 128GB.
DDR5_A2 8GB/16GB/32GB
DDR5_B1 8GB/16GB/32GB
DDR5_B2 8GB/16GB/32GB

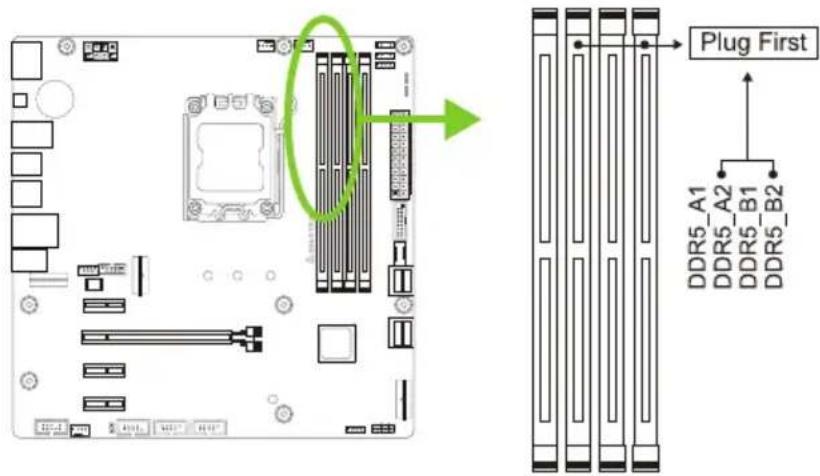

Dual Channel Memory Installation

Please refer to the following requirements to activate Dual Channel function: Install memory module of the same density in pairs, shown in the table.

Dual Channel Status DDR5_A1 DDR5_A2 DDR5_B1 DDR5_B2
Enabled X O X O
Enabled O O O O

(O means memory installed, X means memory not installed.)

Note

» When installing more than one memory module, we recommend to use the same brand and capacity memory on this motherboard.
» When installing a single memory, we recommend that you install it in the DDR5_B2.

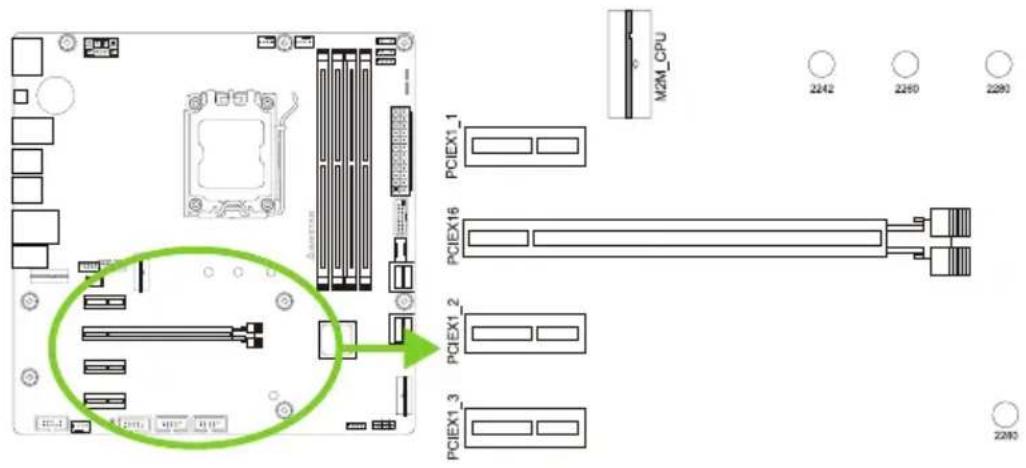

2.5 Expansion Slots

PCIEX16: PCI-Express Gen4 x16 Slots (x16 mode)

• PCI-Express 4.0 compliant.
- The maximum bandwidth of the PCIe slot is 64GB/s in total.

PCIEX1\_1/ PCIEX1\_2/ PCIEX1\_3: PCI-Express Gen4 x1 Slots (x1 mode)

• PCI-Express 4.0 compliant.
- The maximum bandwidth of the PCIe slot is 4GB/s in total.

M2M\_CPU: M.2 (M Key) Socket

• Supports M.2 Type 2242/ 2260/ 2280 SSD module
• Supports PCIe 4.0x 4 (64Gb/s) - NVMe/ AHCI SSD

M2M\_SB: M.2 (M Key) Socket

• Supports M.2 Type 2280 SSD module
• Supports PCIe 4.0x 4 (64Gb/s) - NVMe/ AHCI SSD

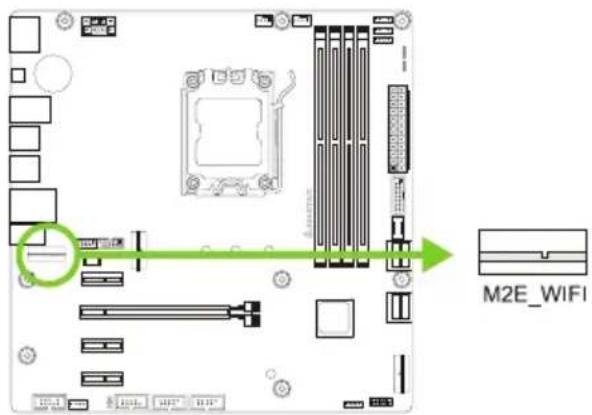

M2E-WIFI: M.2 (E Key) Socket (M.2 (E Key) Wi-Fi card is not provided)

• Support M.2 (E Key) socket module.
• Supports WiFi/ Bluetooth module.

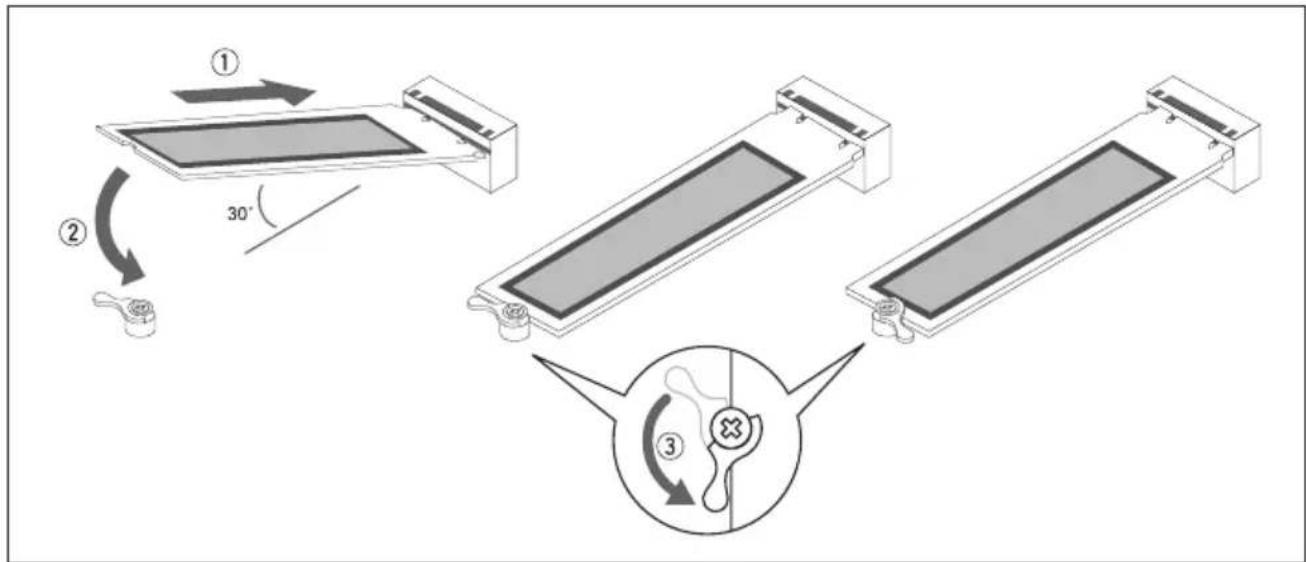

Install M.2 Latch

1. Please insert the M.2 SSD into the M.2 socket at 30 degree angle.
2. Check the M.2 latch and rotate it to fix the M.2 SSD.

Install an Expansion Card

You can install your expansion card by following steps:

• Read the related expansion card's instruction document before install the expansion card into the computer.
• Remove your computer's chassis cover, screws and slot bracket from the computer.
• Place a card in the expansion slot and press down on the card until it is completely seated in the slot.
• Secure the card's metal bracket to the chassis back panel with a screw. (This step is only for installing a VGA card.).
• Replace your computer's chassis cover.
  • Power on the computer, if necessary, change BIOS settings for the expansion card.
  • Install related driver for the expansion card.

Note

» Please be note that you will need to use M2 type screwdriver if you want to install or uninstall the screw. It is recommended not to use a screwdriver that does not meet the specifications, otherwise the screw may be damaged.

2.6 Jumper & Switch Setting

The illustration shows how to set up jumpers. When the jumper cap is placed on pins, the jumper is "close", if not, that means the jumper is "open".

Pin opened Pin closed Pin 1-2 closed

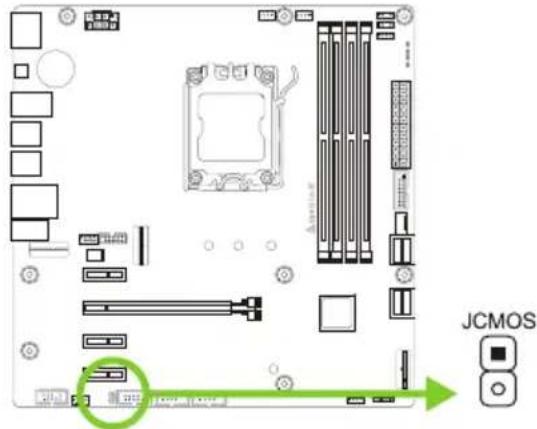

JCMOS: Clear CMOS Jumper

The jumper allows users to restore the BIOS safe setting and the CMOS data. Please carefully follow the procedures to avoid damaging the motherboard.

Pin 1-2 Open: Normal Operation (default).

Pin 1-2 Short: Clear CMOS data.

Clear CMOS Procedures:

1. Remove AC power line.
2. Set the jumper to "Pin 1-2 short", you can use a metal object like a screwdriver to touch the two pins.
3. Wait for five seconds.
4. After clearing the CMOS values, be sure the jumper is "Pin 1-2 open".
5. Power on the AC.
6. Load Optimal Defaults and save settings in CMOS.

2.7 Headers & Connectors

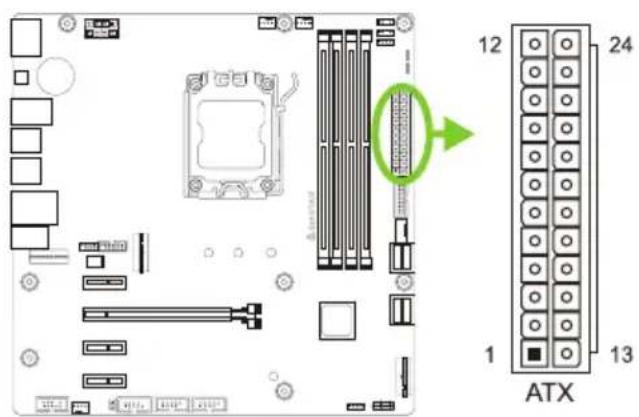

ATXPWR: ATX Power Source Connector

For better compatibility, we recommend to use a standard ATX 24-pin power supply for this connector. Make sure to find the correct orientation before plugging the connector.

Pin Assignment Pin A	Assignment
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 Ground 3 Ground
16 PS_ON 4 +5V
17 Ground 5 Ground
18 Ground 6 +5V
19 Ground 7 Ground
20 NC 8 PW_OK
21 +5V 9 Standby Voltage+5V
22 +5V 10 +12V
23 +5V 11 +12V
24 Ground 12 +3.3V

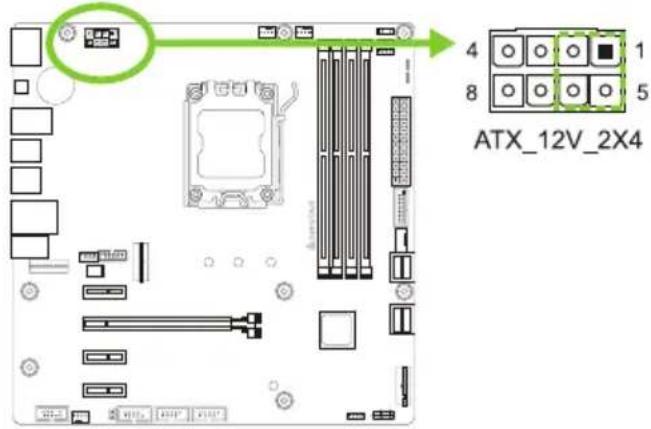

ATX\_12V\_2X4: ATX Power Source Connector

The connector provides +12V to the CPU power circuit. If the CPU power plug is 4-pin, please plug it into Pin 1-2-5-6 of ATXPWR2.

Pin Assignment

1 +12V

2 +12V

3 +12V

4 +12V

5 Ground

6 Ground

7 Ground

8 Ground

Note

» Before you power on the system, please make sure that both ATX/ATX_12V_2X4 connectors have been plugged-in.
» Insufficient power supplied to the system may result in instability or the peripherals not functioning properly. Use of a PSU with a higher power output is recommended when configuring a system with more power-consuming devices.

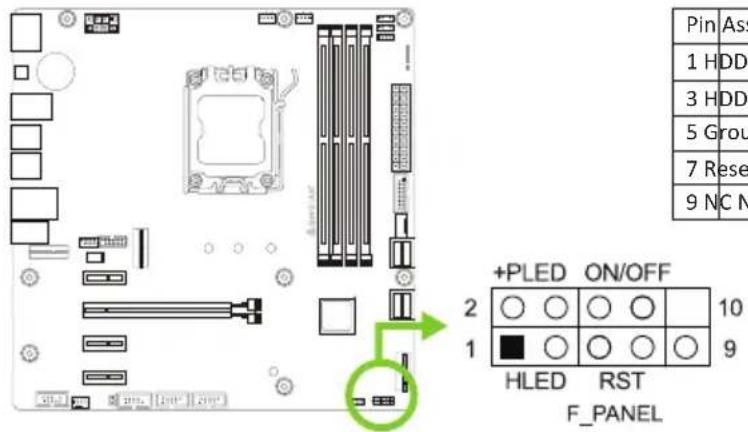

F\_PANEL: Front Panel Header

This 10-pin header includes Power-on, Reset, HDD LED, Power LED connection.

Pin	Assignment Function Pin	Assignment Function
1 HDD LED(+)	HDDLED	2 Power LED (+)	PowerLED
3 HDD LED(-) 4 PowerLED (-)
5 Ground	ResetGButton	6 Power Button	Power-OnButton
7 Reset Control 8
9 NC NC 10 Key Key

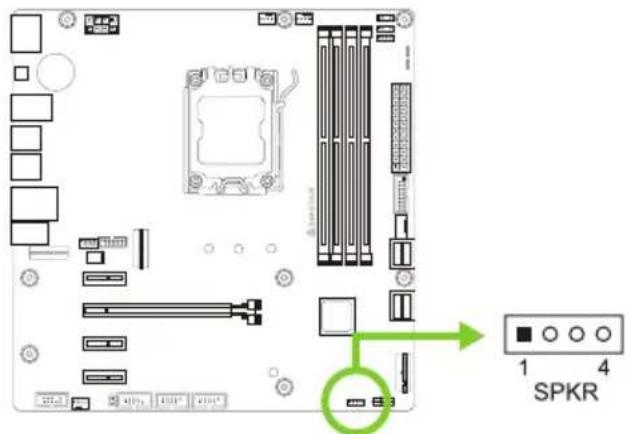

SPKR: Chassis Speaker Header

Please connect the chassis speaker to this header.

Pin	Assignment
1 +5V
2 N/A
3 N/A
4 Speaker

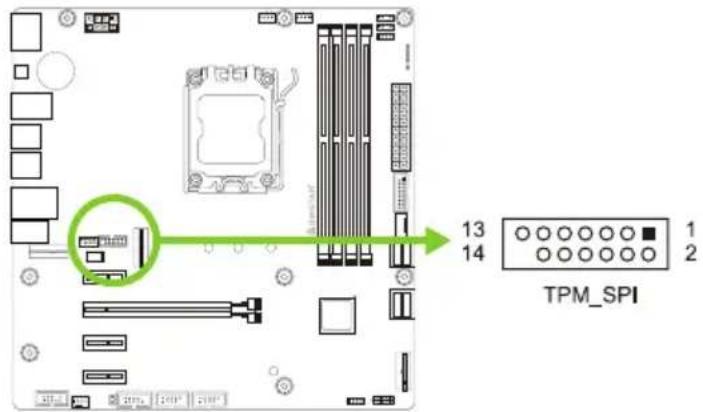

TPM\_SPI: Trusted Platform Module Header

This header allows you to store cryptographic keys that protect information.

Pin	Assignment	Pin	Assignment
1	+1.8V	2	SPI_PIRQ
3	TPM_RST#	4	TPM_CS
5	N/A	6	N/A
7	+1.8V	8	GND
9	N/A 10 SPI_CLK
11	SPI_MISO 12	SPI_MOSI
13	N/A 14 KEY

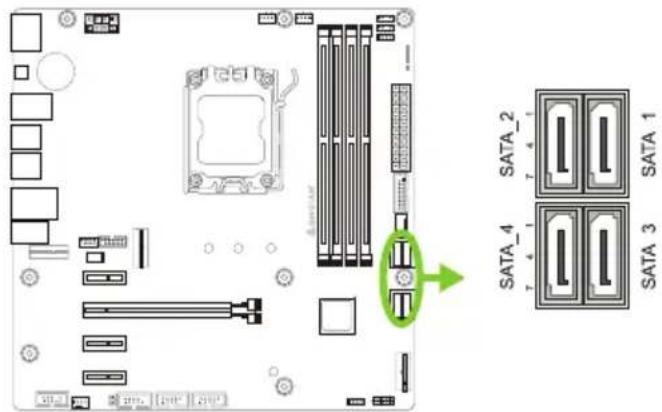

SATA\_1/ SATA\_2/ SATA\_3/ SATA\_4: Serial ATA 6.0 Gb/s Connectors

These connectors connect to SATA hard disk drives via SATA cables.

Pin Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

7 Ground

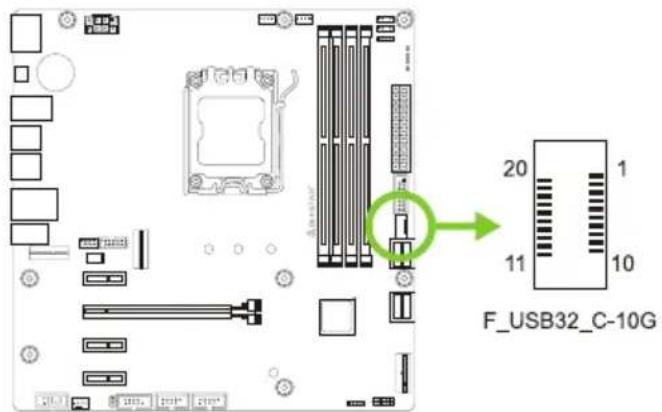

F\_USB32\_C-10G: Header for USB 3.2 (Gen2) Ports at Front Panel

This USB type-C header allows user to add additional USB ports on the PC front panel, and also can be connected with a wide range of external peripherals.

Pin	Assignment Pin	Assignment
1 VBUS 11 VBUS
2 SSTX1+ 12 SSTX2+
3 SSTX1- 13 SSTX2-
4 Ground 14 Ground
5 SSRX1+ 15 SSRX2+
6 SSRX1- 16	SSRX2-
7 VBUS 17 Ground
8 CC1 18	D-
9 SBU1 19	D+
10	SBU2	20 CC2

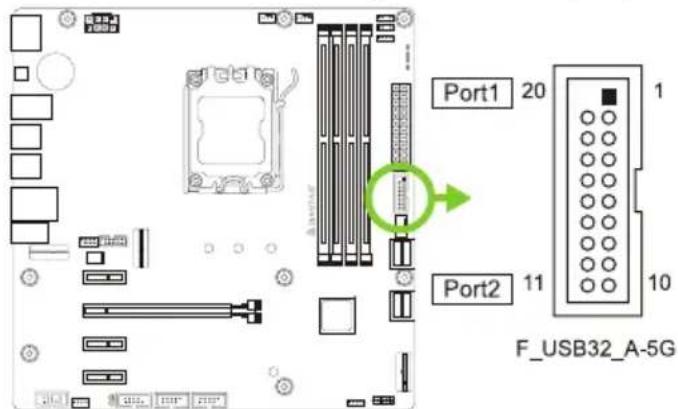

F\_USB32\_A-5G: Header for USB 3.2 (Gen1) Ports at Front Panel

This header allows user to add additional USB ports on the PC front panel, and also can be connected with a wide range of external peripherals.

Pin Assignment Pin		Assignment
1 VBUS0 11 D2+
2 SSRX1- 12		D2-
3 SSRX1+ 13 Ground
4 Ground 14 SSTX2-
5 SSTX1- 15 SSTX2-
6 SSTX1+ 16 Ground
7 Ground 17 SSRX2-
8 D1- 18		SSRX2-
9 D1+ 19		VBUS1
10 ID		20 Key

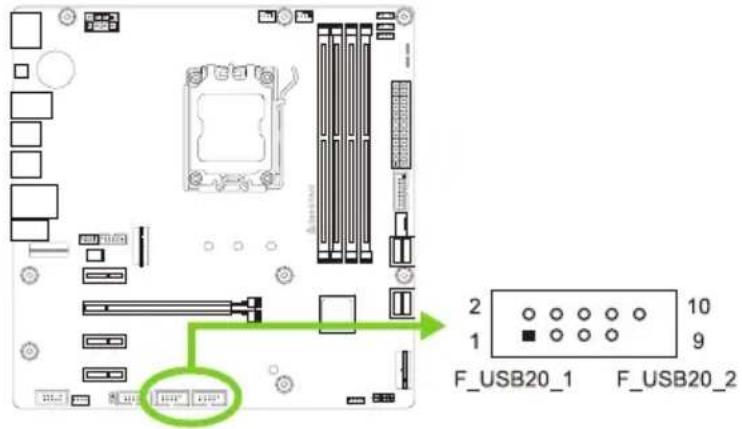

F\_USB20\_1/ F\_USB20\_2: Header for USB 2.0 Ports at Front Panel

This header allows user to add additional USB ports on the PC front panel, and also can be connected with a wide range of external peripherals.

Pin Assignment

1 +5V (fused)

2 +5V (fused)

3 USB-

4 USB-

5 USB+

6 USB+

7 Ground

8 Ground

9 Key

10 NC

F\_AUDIO: Front Panel Audio Header

This header allows user to connect the chassis-mount front panel audio I/O which supports HD.

HD Audio

Pin Assignment

1 Mic Left in

2 Ground

3 Mic Right in

4 GPIO

5 Right line in

6 Jack Sense

7 Front Sense

8 Key

9 Left line in

10 Jack Sense

Note

» When using the front HD audio jack and plug in the headset, the rear sound will be automatically Disabled.
» It is recommended that you connect a high-definition front panel audio module to this connector to avail of the motherboard's high definition audio capability.

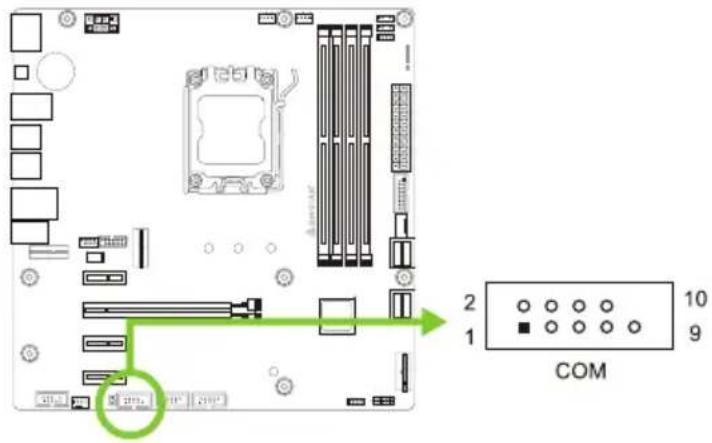

COM: Serial Port Connector

The motherboard has a serial port header for connecting RS-232 Port.

Pin Assignment

1 Carrier detect

2 Received data

3 Transmitted data

4 Data terminal ready

5 Signal ground

6 Data set ready

7 Request to send

8 Clear to send

9 Ring indicator

10 Key

12V\_LED: RGB LED Device (5050 SMD) Header

This header providers 12V power and RGB control pins for RGB LED Device (5050 SMD).

5V\_LED1/ 5V\_LED2: Addressable RGB LED Device (WS2818B) Header

This header providers 5V power and Data control pins for ARGB LED Device (WS2818B).

Note

» Ensure proper pin connecting to your LED device, wrong connection may damage your LED device or motherboard.
» The 12V_LED connector supports to 5050 RGB LED strips with the maximum power rating of 3A (12V).
» The 5V_LED connector supports up to 300 LEDs WS2818B individually Addressable RGB LED strips with the maximum power rating of 3A (5V).
» Please use the Vivid LED DJ software to control the LEDs. For detailed software setting information, refer to chapter 3.3.

2.8 LEDs

Debug LED: Debug LED Indicators

This LEDs indicate the status of the motherboard.

DRAM - indicates DRAM is not detected or fail.

CPU - indicates CPU is not detected or fail.

VGA - indicates GPU is not detected or fail.

BOOT - indicates booting device is not detected or fail.

Note

» After starting the computer, the LED indicators will light up in the following order: DRAM → CPU → VGA → BOOT
» When the computer is ready, the LED indicator will show where the error occurred and will stay on until the problem is solved.
» After the computer is started, the Debug LED will not light up if there is no abnormality detected.

Chapter 3: UEFI BIOS & Software

3.1 UEFI BIOS Setup

• The BIOS Setup program can be used to view and change the BIOS settings for the computer. The BIOS Setup program is accessed by pressing the key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins.
• For further information of setting up the UEFI BIOS, please refer to the UEFI BIOS Manual on our website.

3.2 BIOS Update

The BIOS can be updated using either of the following utilities:

• BIOSTAR BIO-Flasher: Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM.
• BIOSTAR BIOS Update Utility: It enables automated updating while in the Windows environment. Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM, or from the file location on the Web.

3.3 Motherboard BIOS Update

1. First prepare a USB drive in FAT32 format, and copy the BIOS file "BIOSUBU.BIN" into the USB drive.
2. Change the BIOS file name to "PSPBIOS.IMG" for update BIOS.
3. The motherboard for updating the BIOS needs to be connected with power supply, and the CPU needs to be installed, and the power supply switch is set to OFF.
4. Insert the USB drive with the prepared file "PSPBIOS.IMG" into the designated USB port (BIOS USB Port).
5. Set the power supply switch to ON, press and hold the "BIOS UPDATE" button, and turn on the motherboard. After 3 seconds, release the "BIOS UPDATE" button and wait for the update.
6. After a period of time, the motherboard system will shut down directly, and restart after 4-5 seconds.
7. After the normal boot process, you can check whether the BIOS version has been updated in SETUP.

BIOSTAR BIO-Flasher

Note

» This utility only allows storage device with FAT32/16 format and single partition.
» Shutting down or resetting the system while updating the BIOS will lead to system boot failure.

Updating BIOS with BIOSTAR BIOS Flasher

1. Go to the website to download the latest BIOS file for the motherboard.
2. Then, copy and save the BIOS file into a USB flash (pen) drive.(Only supported FAT/FAT32 format)
3. Insert the USB pen drive that contains the BIOS file to the USB port.

4. Power on or reset the computer and then press during the POST process.

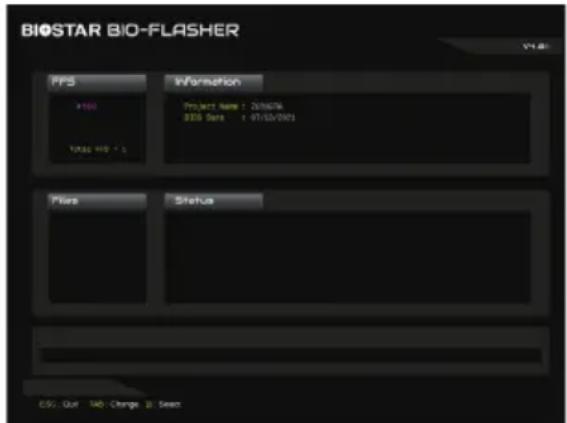

5. After entering the POST screen, the BIOS-FLASHER utility pops out. Choose to search for the BIOS file.

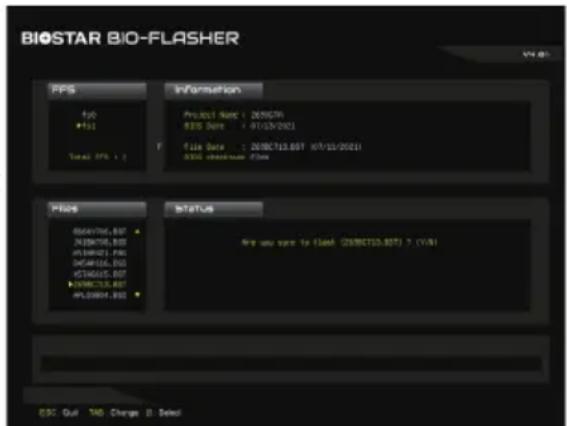

6. Select the proper BIOS file, and a message asking if you are sure to flash the BIOS file. Click "Yes" to start updating BIOS.

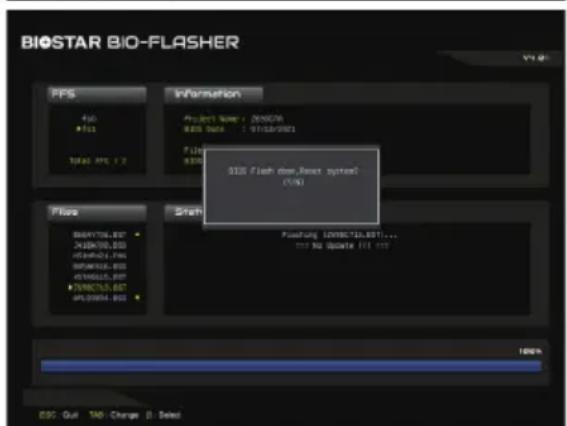

7. A dialog pops out after BIOS flash is completed, asking you to restart the system. Press the key to restart system.

1. While the system boots up and the full screen logo shows up, press key to enter BIOS setup.

After entering the BIOS setup, please go to the , using the function to load Optimized Defaults, and select to restart the computer. Then the BIOS Update is completed.

BIOS Update Utility (through the Internet)

1. Installing BIOS Update Utility from the DVD Driver.

2. Please make sure the system is connected to the internet before using this function.

3. Launch BIOS Update Utility and click the "Online Update" button on the main screen.

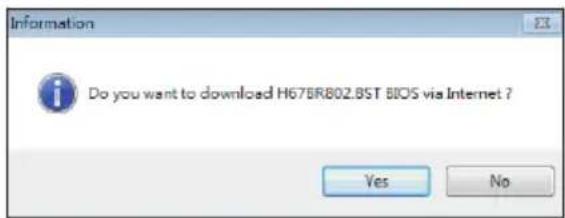

4. An open dialog will show up to request your agreement to start the BIOS update. Click "Yes" to start the online update procedure.

5. If there is a new BIOS version, the utility will ask you to download it. Click "Yes" to proceed.

6. After the download is completed, you will be asked to program (update) the BIOS or not. Click "Yes" to proceed.

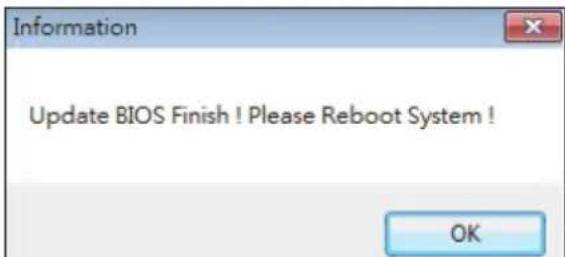

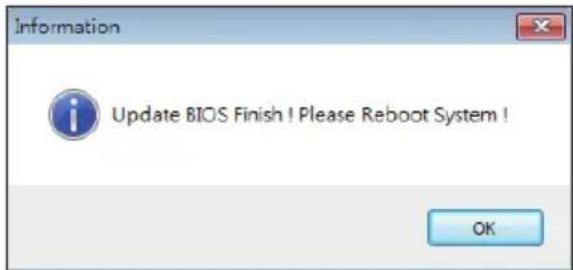

7. After the updating process is finished, you will be asked you to reboot the system. Click "OK" to reboot.

8. While the system boots up and the full screen logo shows up, press key to enter BIOS setup.

After entering the BIOS setup, please go to the , using the function to load Optimized Defaults, and select and to restart the computer. Then, the BIOS Update is completed.

BIOS Update Utility (through a BIOS file)

1. Installing BIOS Update Utility from the DVD Driver.

2. Download the proper BIOS from http://www.biostar.com.tw/

3. Launch BIOS Update Utility and click the "Update BIOS" button on the main screen.

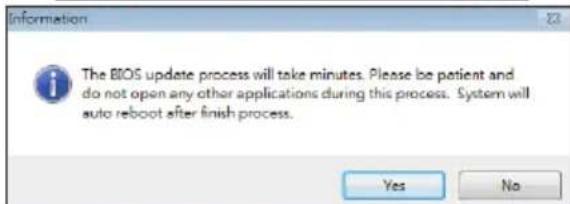

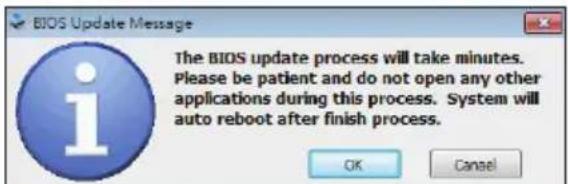

1. A warning message will show up to request your agreement to start the BIOS update. Click "OK" to start the update procedure.

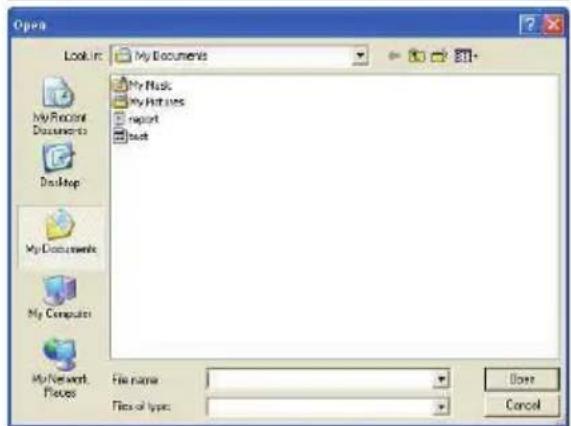

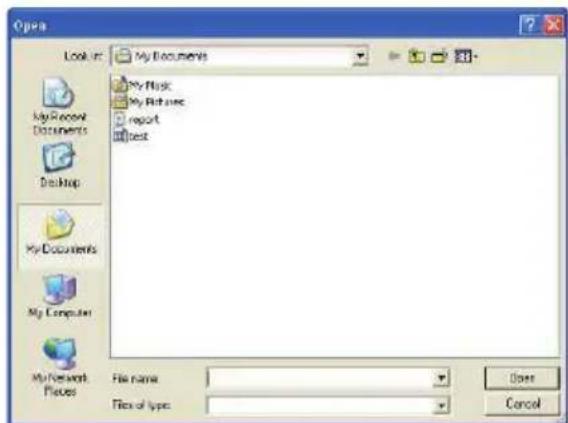

1. Choose the location for your BIOS file in the system. Please select the proper BIOS file, and then click on "Open". It will take several minutes, please be patient.

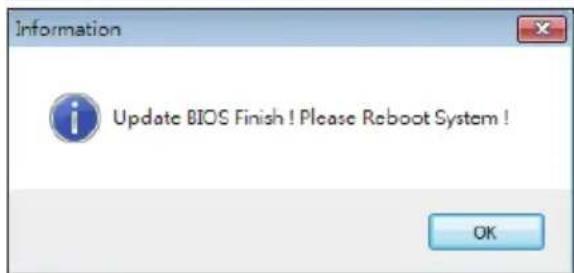

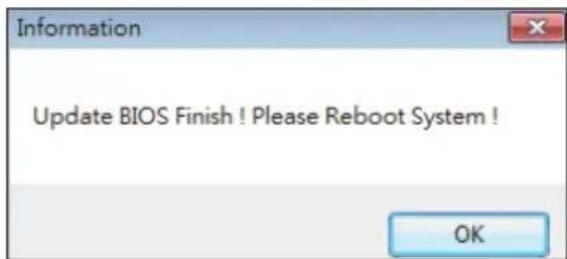

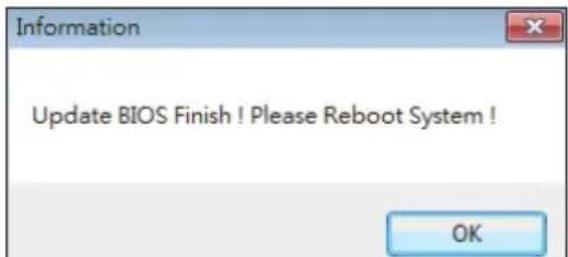

1. After the BIOS Update process is finished, click on "OK" to reboot the system.

1. While the system boots up and the full screen logo shows up, press key to enter BIOS setup.

After entering the BIOS setup, please go to the , using the function to load Optimized Defaults, and select to restart the computer. Then, the BIOS Update is completed.

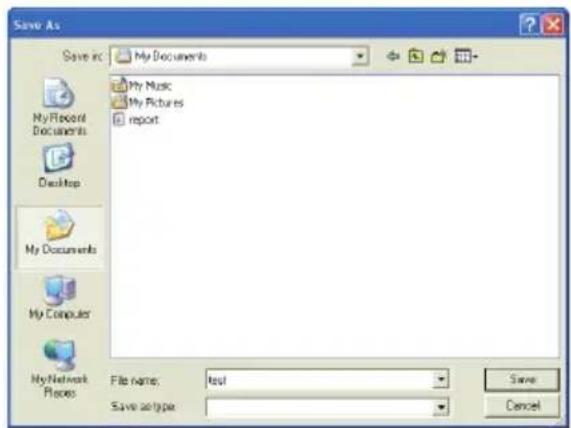

Backup BIOS

Click the Backup BIOS button on the main screen for the backup of BIOS, and select a proper location for your backup BIOS file in the system, and click "Save".

3.4 Software

Installing Software

1. Insert the Setup DVD to the optical drive. The driver installation program would appear if the Auto-run function has been enabled.
2. Select Software Installation, and then click on the respective software title.
3. Follow the on-screen instructions to complete the installation.

Launching Software

After the installation process is completed, you will see the software icon showing on the desktop. Double-click the icon to launch it.

Note

» All the information and content about following software are subject to be changed without notice. For better performance, the software is being continuously updated.
» The information and pictures described below are for your reference only. The actual information and settings on board may be slightly different from this manual.

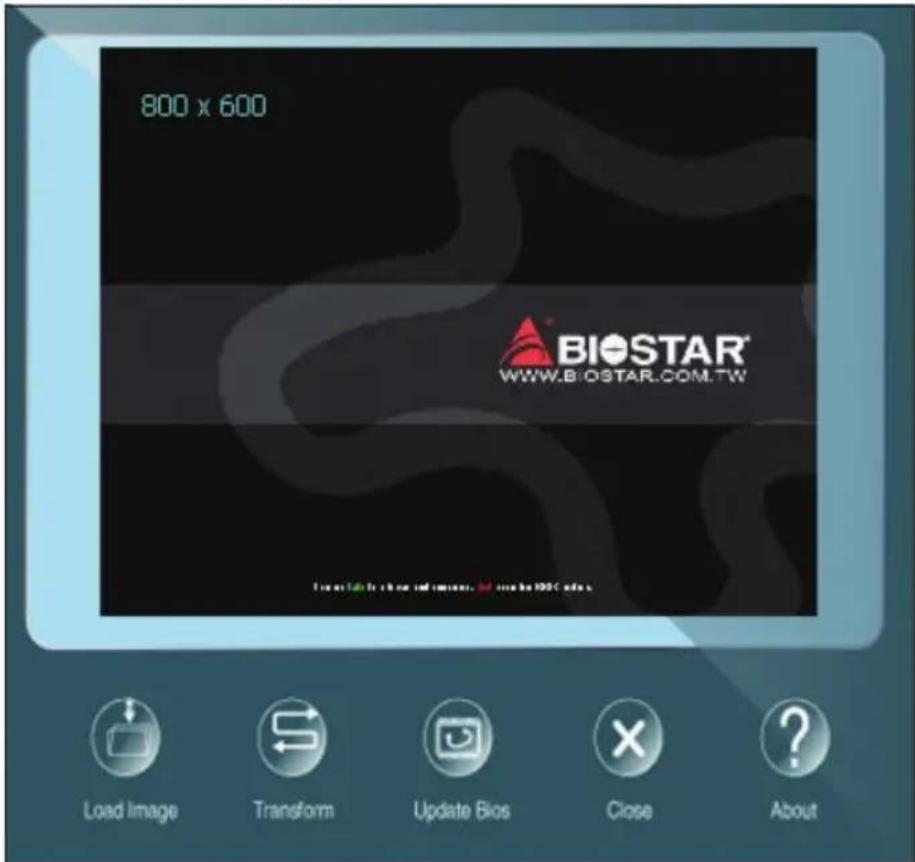

BIOScreen Utility

This utility allows you to personalize your boot logo easily. You can choose BMP as your boot logo so as to customize your computer.

Please follow the step-by-step instructions below to update boot logo:

• Load Image: Choose the picture as the boot logo.
• Transform: Transform the picture for BIOS and preview the result.
• Update Bios: Write the picture to BIOS Memory to complete the update.

Vivid LED DJ

Vivid LED DJ can adjust your color scheme of ARMOR GEAR, RGB LED Device.

1. LED COMMANDER: Allows you to select the LED mode.

2. Default: Default LED illuminations. (Blue light)

3. RAZER: Allows you to connect to the RAZER app to sync the motherboard lights.
   » When using RAZER mode, turn off SILVER LIGHTNING Software and LED illumination will return to the default state.
   » RAZER mode is to achieve LED illumination synchronization through the connection with RAZER software.
   » RAZER software must be installed to use RAZER mode. RAZER ICON will appear after the software is installed.
   » When using RAZER mode, it must be used with RAZER related devices and peripheral devices.
   » RAZER related information please go to RAZER official website download.

4. RGB Sync : Allows you to synchronize the LED Type item settings.

5. LED Type: Select the LED lighting blocks.

• System : System LED illuminations. (SILVER ARMOR)
• 12V LED : The 12V LED illumination. (12V_LED Device)
- 5V LED: The 5V LED illumination. (5V_LED Device)
• Memory Sync : The RGB Audio LED illumination. (Memory LED)

1. ON/OFF: To enable or disable VIVID LED function.

2. ON/OFF: Allows you to enable or disable LED of a single item.

3. LED COLOR: LEDs change the Color Palette and LED Brightness.

4. LED SPARKLE: Allows to you choose sparkle of the LEDs.

• Permanent: LEDs are constantly lit.
• Shine: LEDs flash at a specific frequency.
- Breath: LEDs gradually flash on and off.
- Shine & Music: LEDs will flash according the music played on your system.

» Please make sure your speaker or earphone is properly connected to audio jack before using SILVER LIGHTNING program.

• Meteor: LEDs slide at a specific frequency.
  • Wave: LEDs are presented in a water wave rhythm.
  • Starry sky: LEDs flicker at a specific rhythm.
  • Lightning: LEDs flash and slide at a specific frequency.
• Rainbow: LEDs lights to dazzling colorful rhythm.
• Aurora: LEDs shows soft light and flickers lightly.
  • Starry night: LEDs two-color flashing.
• Colourful Permanent: LEDs are constantly lit with colorful loop.
• Colourful Shine: LEDs flash at a specific frequency with colorful loop.

• Colourful Breathe: LEDs gradually flash on and off with colorful loop.

• High/Low Speed Switch: Allows you to control the flicker speed.

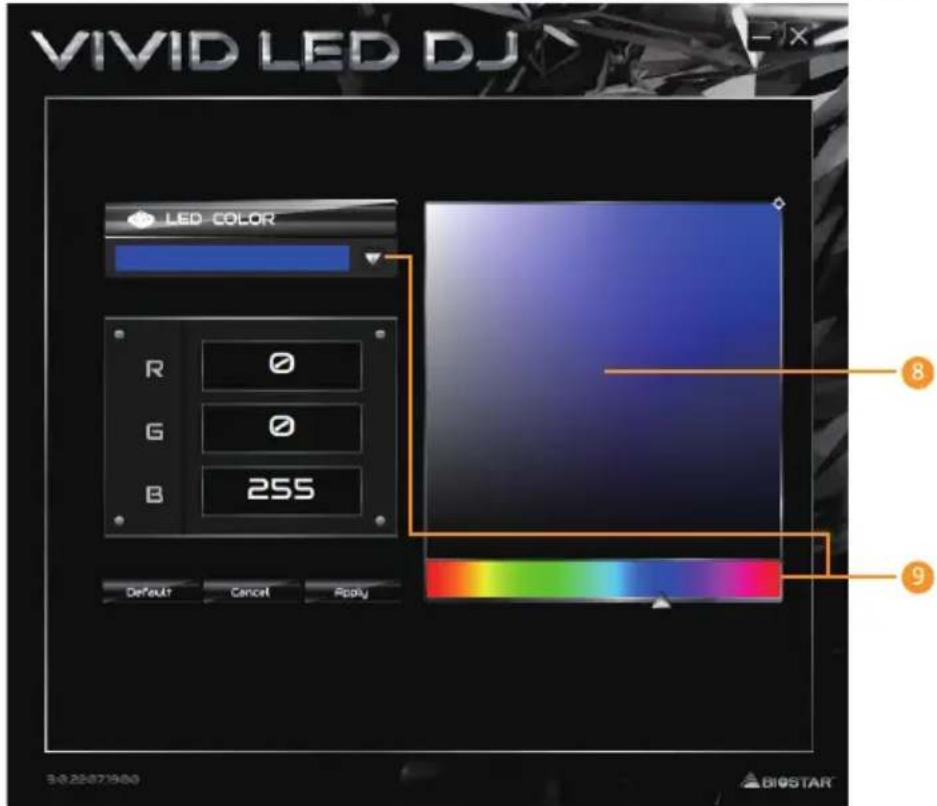

1. LED Brightness Bar: Allows you to adjust the LED brightness.
2. Color Palette: Allows to you choose specific color of the LEDs.

Note

» With VIVID LED DJ users can control the four LED light zones independently with different flashing modes (LED SPARKLE).

Chapter 4: Useful help

4.1 Driver Installation

After you installed your operating system, please insert the Fully Setup Driver DVD into your optical drive and install the driver for better system performance.

You will see the following window after you insert the DVD

The setup guide will auto detect your motherboard and operating system.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will list the compatible driver for your motherboard and operating system. Click on each device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide will list the software available for your system, click on each software title to launch the installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver DVD. Click on the Manual icon to browse for available manual.

Note

» If this window didn't show up after you insert the Driver DVD, please use file browser to locate and execute the file SETUP.EXE under your optical drive.
» You will need Acrobat Reader to open the manual file. Please download the latest version of Acrobat Reader software from http://get.adobe.com/reader/
» The motherboard used in the illustrations may not resemble the actual board. these illustrations are for reference only.

4.2 AMI BIOS Beep Code

Boot Block Beep Codes

Number of Beeps Description
Continuing Memory sizing	error or Memory module not found

POST BIOS Beep Codes

Number of Beeps Description
1 Success booting.
8 Display memory error (system video adapter)

4.3 Troubleshooting

CPU Overheated

If the system shutdown automatically after power on system for seconds, that means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown automatically to avoid a damage of the CPU, and the system may not power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.
2. CPU fan is rotated normally.
3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection function.

1. Remove the power cord from power supply for seconds.
2. Wait for seconds.
3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data. (See "Close CMOS Header: JCMOS1" section)
2. Wait for seconds.
3. Power on the system again.

4.4 RAID Functions

RAID Definitions

In a RAID 0 system data are split up in blocks that get written across all the drives in the array. By using multiple disks (at least 2) at the same time, this offers superior I/O performance. This performance can be enhanced further by using multiple controllers, ideally one controller per disk.

Features and Benefits

• Drives: Minimum 2, and maximum is up to 6 or 8. Depending on the platform.
• Uses: Intended for non-critical data requiring high data throughput, or any environment that does not require fault tolerance.
• Benefits: provides increased data throughput, especially for large files. No capacity loss penalty for parity.
• Drawbacks: Does not deliver any fault tolerance. If any drive in the array fails, all data is lost.
• Fault Tolerance: No.
  • Total Capacity: (Minimal. HDD Capacity) x (Connected HDDs Amount)

Data are stored twice by writing them to both the data disk (or set of data disks) and a mirror disk (or set of disks). If a disk fails, the controller uses either the data drive or the mirror drive for data recovery and continues operation. You need at least 2 disks for a RAID 1 array.

Features and Benefits

• Drives: Minimum 2, and maximum is 2.
• Uses: RAID 1 is ideal for small databases or any other application that requires fault tolerance and minimal capacity.
• Benefits: Provides 100% data redundancy. Should one drive fail, the controller switches to the other drive.
• Drawbacks: Requires 2 drives for the storage space of one drive. Performance is impaired during drive rebuilds.
• Fault Tolerance: Yes.

RAID 10 (1+0)

RAID 10 combines the advantages (and disadvantages) of RAID 0 and RAID 1 in one single system. It provides security by mirroring all data on a secondary set of disks (disk 3 and 4 in the drawing below) while using striping across each set of disks to speed up data transfers.

Features and Benefits

• Drives: Minimum 4, and maximum is 6 or 8, depending on the platform.
• Benefits: Optimizes for both fault tolerance and performance, allowing for automatic redundancy. May be simultaneously used with other RAID levels in an array, and allows for spare disks.
• Drawbacks: Requires twice the available disk space for data redundancy, the same as RAID level 1.
• Fault Tolerance: Yes.

APPENDIX: Specifications in Other Languages

Arabic

» Continued on Next Page

Technical line drawing of a mechanical assembly with a green arrow indicating a specific component (no text or symbols present)

Technical line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

Примечание

Technical line drawing of a computer cooling fan with a highlighted internal component (no text or symbols)

Technical line drawing of a computer CPU fan with green arrows indicating rotation or adjustment (no text or symbols)

Technical line drawing of a mechanical component with three views (top, front, side) and green circular annotations indicating features (no text or symbols present)

Примечание

PWM Mode DC Mode
Pin	Assignment Pin Assignment
1 Ground	1 Ground
2+12V	2Voltage Control
3Sense	3Sense
4Speed	Control Signal 4NC

PWM Mode DC Mode
Pin Assignment Pin Assignment
1 Ground 1 Ground
2+12V 2Voltage Control
3Sense 3Sense
4Speed Control Signal 4NC

Примечание

Technical line drawing of a RAM module with directional arrows indicating rotation or movement (no text or symbols)

Technical line drawing of a mechanical component with green directional arrows indicating motion (no text or symbols)

Примечание

Pin Assignment

1+12V

2+12V

3+12V

4+12V

5 Ground

6Ground

7Ground

8Ground

Примечание

Pin	Assignment Function Pin	Assignment Function
1 HDD LED(+)	HDDLED (-)	2Power LED (+)	PowerLED
3HDD LED(-) 4PowerLED (-)
5 Ground	ResetButton	6Power Button	Power-OnButton
7Reset Control 8G
9NC NC 10 Key Key

Pin Assignment

1 +5V

2N/A

3N/A

4Speaker

Pin	Assignment
1	Ground
2TX+
3TX-
4Ground
5 RX-
6RX+
7Ground

HD Audio
Pin	Назначение
1 Mic	Left in
2Ground
3Mic	Right in
4GPIO
5 Right line in
6Jack Sense
7Front Sense
8Key
9Left	line in
10 Jack Sense

Примечание

Pin Assignment

1 Carrier detect

2Received data

3Transmitted data

4Data terminal ready

5 Signal ground

6Data set ready

7Request to send

8Clear to send

9Ring indicator

10 Key

단계2: Open Lever and then load plate using finger tab.

단계3: Align and seat processor package on socket.

Technical line drawing of a mechanical assembly with a green arrow indicating a specific component (no text or symbols present)

단계4: Rotate lever and press lever finger, then locked the position.

Technical line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

주의

» Ensure that you install the correct CPU designed for AM5 socket.

2.2 CPU 콜러 설치

<타입A>

Technical line drawing of a computer cooling fan with a highlighted internal component (no text or symbols)

Technical line drawing of a computer cooling fan with green circular annotations indicating rotation or adjustment (no text or symbols present)

<타입B>

Technical line drawing of a mechanical component with three views (top, front, side), no text or symbols present.

주의

PWM Mode DC Mode
핀 배열 핀 배열
1 Ground 1 Ground
2 +12V 2 Voltage Control
3 Sense 3 Sense
4 Speed Control Signal 4 NC

SYS_FAN1: 시스템 팬 헤더

PWM Mode DC Mode
핀 배열 핀 배열
1 Ground 1 Ground
2 +12V 2 Voltage Control
3 Sense 3 Sense
4 Speed Control Signal 4 NC

주의

Technical line drawing of a computer RAM module with green directional arrows indicating rotation or movement (no text or symbols)

Isometric line drawing of a mechanical component with green directional arrows indicating motion or force (no text or symbols)

주의

확장 카드 설치

Pin opened Pin closed Pin 1-2 closed

JCMOS: CMOS 클리어 점퍼

핀	배열
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7Ground

HD Audio
핀	배열
1 Mc Left in
2 Ground
3 Mc Right in
4 GPIO
5 Right line in
6 Jack Sense
7Front Sense
8 Key
9 Left line in
10 Jack Sense

주의

5V\_LED1/ 5V\_LED2: Addressable RGB LED 장치 (WS2818B) 헤더

DRAM → CPU → VGA → BOOT

3.4 소프트웨어

소프트웨어의 설치

Technical line drawing of a mechanical assembly with a green arrow indicating a specific component (no text or symbols present)

步驟4: 扭動拉桿並完全閉合鎖住。

Technical line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

注意

» 請安裝正確CPU在AM5插座。

2.2 散热片

<類型A>

Technical line drawing of a computer cooling fan with a highlighted internal component (no text or symbols)

Technical line drawing of a computer CPU fan with cooling mechanism indicated by green arrows (no text or symbols)

<類型B>

Technical line drawing of a mechanical component with three views (top, front, side), no text or symbols present.

注意

Technical line drawing of a RAM module with green directional arrows indicating rotation or movement (no text or symbols)

Isometric line drawing of a mechanical component with multiple slots and green directional arrows indicating motion (no text or symbols)

注意

雙通道狀態 DDR5_A1 DDR5_A2 DDR5_B1 DDR5_B2
Enabled X O X O
Enabled O O O O

安裝擴充卡

請參照以下步驟安裝擴充卡：

3.4 軟體

安裝軟體
