Product Type	Mini Remote-Controlled Racing Car
Model Number	IAN 309476 (variants RC-5859/RC-5860/RC-5861/RC-5862)
Power Supply (Remote Control)	2 x 1.5V LR6 (AA) batteries
Power Supply (Vehicle)	1 x 1.2V NiMH rechargeable battery, 80 mAh
Charging Time	Approximately 4 minutes
Radio Frequency	27 MHz (RC-5859/RC-5861) or 40 MHz (RC-5860/RC-5862)
Remote Control Range	Up to 5 m
Maximum Speed	2 km/h
Age Recommendation	For children over 3 years (adult supervision required)
Battery Type (Remote)	Non-rechargeable AA batteries (LR6)
Number of Batteries (Remote)	2 (included with protective foil)
Antenna	Screw-in, extendable antenna on remote control
Accessories Included	4 small traffic cones, instruction manual
Material	Plastic body, electronic components
Dimensions	Approximately 10 x 5 x 4 cm (vehicle, estimated)
Weight	Approximately 100 g (vehicle, estimated)
Color Options	Multiple colors (exact colors not specified)
Cleaning Instructions	Use a dry cloth; avoid water on electronics; remove dirt, hair, etc.
Storage	Dry, dust-free, out of direct sunlight; temperature 10-25°C
Warranty	3 years from date of purchase
Manufacturer	Delta-Sport Handelskontor GmbH, Wragekamp 6, 22397 Hamburg, Germany

Frequently Asked Questions - IAN 309476 Playtive

How do I replace the batteries in the remote control?

Open the battery compartment cover on the bottom of the remote control by sliding it in the direction of the arrow. Remove old batteries and insert 2 new AA (LR6) batteries, ensuring correct polarity (+/-). Slide the cover back to close.

How long does it take to charge the car's battery?

Charging takes approximately 4 minutes. The charging control light on the remote glows during charging. Always turn the car's switch to OFF before charging.

What is the range of the remote control?

The range is up to 5 meters in open space. Obstacles may reduce range.

Why is my car not driving straight?

Use the trimming lever on the car to adjust. If the car drifts right, slide the lever left; if it drifts left, slide it right. Repeat until it drives straight.

Can I use rechargeable batteries in the remote?

No, only non-rechargeable AA (LR6) batteries should be used in the remote control. Rechargeable batteries may not be charged in the remote.

How should I clean the toy?

Use a dry cloth to remove dust, hair, or dirt. Avoid water contact with electronics, battery, and motor. Ensure the car is switched off before cleaning.

What is the recommended age for this toy?

This product is suitable for children over 3 years, but adult supervision is required during play and charging.

How do I store the product?

Store in a dry, dust-free place out of direct sunlight, ideally between 10°C and 25°C. Remove batteries from remote and switch off the car before storage.

What should I do if the car stops responding?

Check that the car's switch is ON, the remote batteries are fresh and correctly inserted, the antenna is fully extended, and you are within 5m range. Recharge the car battery if it is low.

Is the rechargeable battery replaceable?

The rechargeable battery is built-in and not intended for user replacement. If it fails, contact customer service. Dispose of the car properly at end of life.

USER MANUAL IAN 309476 Playtive

GB IE NI

MINI REMOTE-CONTROLLED RACING CAR

Instruction manual

DE

MINI RC-RACER

Gebrauchsanweisung

CE

IAN 309476

GB IE NI DE

GB IE NI

Scope of delivery (fig. A) 6

Intended use 6

Technical data 6

Symbols Used 6

Replacing batteries 7

Charging the battery 7 - 8

Using the product 8 - 9

Storage, cleaning 9

Disposal instructions 10

Disposal measures for batteries/rechargeable battery ..... 10

Notes on the guarantee and service handling 10 - 11

DE

Congratulations! By making this purchase you have selected a high-quality product.

Become familiar with the product before first using it.

For this purpose read carefully the following

instructions for use.

Use the product only as described and for the indicated fields of application.

Keep these instructions handy. Hand over all documents also when passing the product on to third parties.

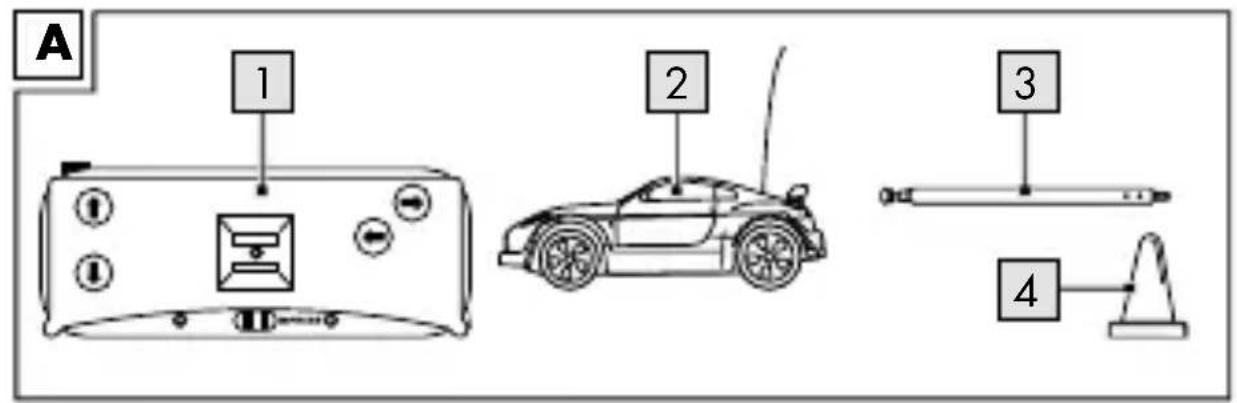

Scope of delivery (fig. A)

1 x Remote control with batteries (1)

1 x Mini RC Racer (2)

1 x Antenna (3)

4 x Small traffic cone (4)

1 x Instruction manual

Intended use

This product is intended for private use as a toy for children over the age of 3.

Technical data RC-5859/RC-5861:

Power supply - operation (battery):

2 × 1.5V = LR6, AA

Power supply - drive (rechargeable battery):

1 x 1.2V=NiMH 80 mAh

Radio frequency: 27 MHz

Range: up to 5m

Speed: 2km/h

RC-5860/RC-5862:

Power supply - operation (battery):

2 × 1.5V = LR6, AA

Power supply - drive (rechargeable battery):

1 × 1.2V = NiMH 80 mAh

Radio frequency: 40 MHz

Range: up to 5m

Speed: 2km/h

Symbols Used

CE This device meets the basic requirements and complies with the

other relevant stipulations of RED 2014/53/EU as well as the RoHS Directive 2011/65/EU.

Full conformity declarations are available under: http:// www.conformity.delta-sport.

com

Date of manufacture

(month/year): 10/2018

Replacing batteries WARNING! Follow these instructions to avoid mechanical and electrical damage.

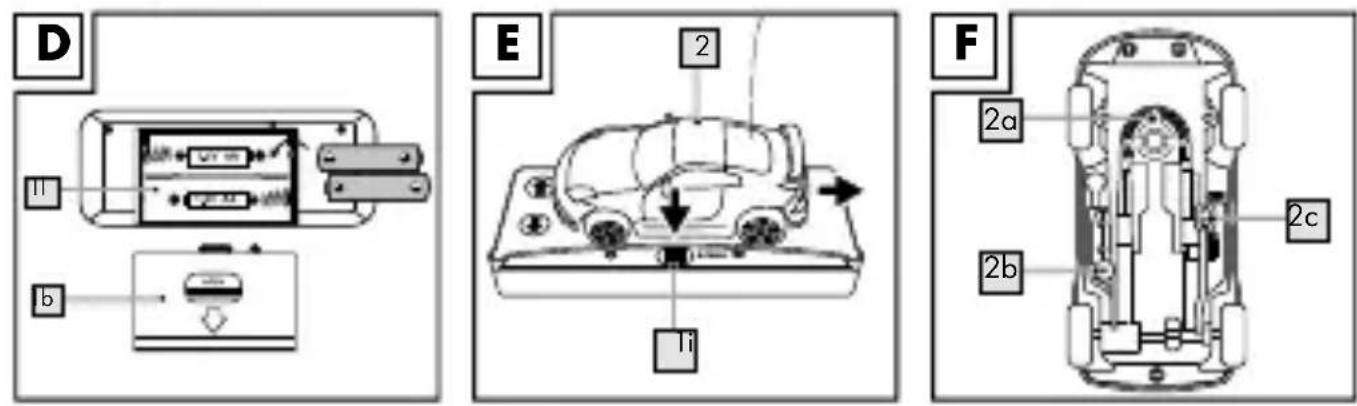

The product comes with two batteries whose protective foil (1a) must be removed before first use (fig. B). If the batteries no longer work you can replace them.

1. Open the cover (1b) of the battery compartment on the bottom of the remote control (1) in the direction of the arrow and remove the cover (fig. D).

2. Take out the batteries inside the product.

3. Insert the new batteries carefully into the battery holder (11). The batteries must fit fully into the battery holder.

Note: Pay attention to correct plus/minus polarity of the batteries and their installation.

1. Slide the cover (1b) onto the battery compartment on the bottom of the remote control (1) to close the battery compartment.

Charging the battery

1. Open the flap (1n) on the side of the remote control (1) and take the battery charger cable (1m) out of the holder (fig. H).

2. Connect the battery charger cable (1m) to the charging socket (2b) on the Mini RC Racer (fig. 1).

3. Turn the switch (2c) to OFF (fig. F).

Note: The switch (2c) must always be set at OFF when charging. If not, the battery will not charge.

Charging takes about 4 minutes. During charging the charging control light (1j) glows.

1. After charging disconnect the battery charger cable (1m) from the Mini RC Racer (2).

Clamp the battery charger cable into the holder of the flap (1n) and close the flap.

1. After charging disconnect the battery charger cable (1m) from the Mini RC Racer (2). Clamp the battery charger cable into the holder of the flap (1n) and close the flap.

Using the product Preparation

• Hold down the button (1i) and push the Mini RC Racer (2) backwards to free the vehicle from the holding device (1e) (fig. E).
• Screw the antenna (3) into the antenna socket (1d) on the remote control (1) and pull the antenna out completely (fig. G).

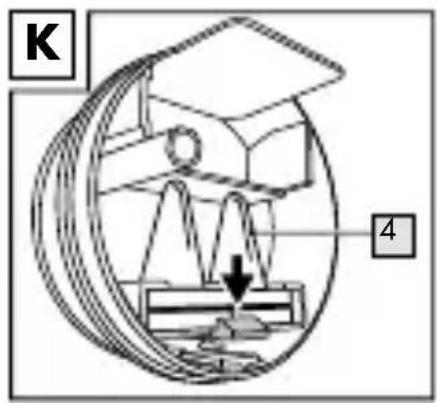

• There are small traffic cones (4) in the lid of the box. Press the lever down and take the traffic cones out (fig. K).

Switching the product on and off

• To control the Mini RC Racer (2) with the remote control (1) the Mini RC Racer must be switched on.

To switch the Mini RC Racer on or off slide the switch (2c) on the bottom of the vehicle to ON to switch it on or to OFF to switch it off (fig. F).

- When the product is not being used the Mini RC Racer (2) must be switched off. To do this slide the switch (2c) to OFF.

Operating the Mini-RC Racer

The vehicle can be steered in various directions using the remote control (1). To do this press the following buttons or combinations of buttons. The signal light (1h) lights up.

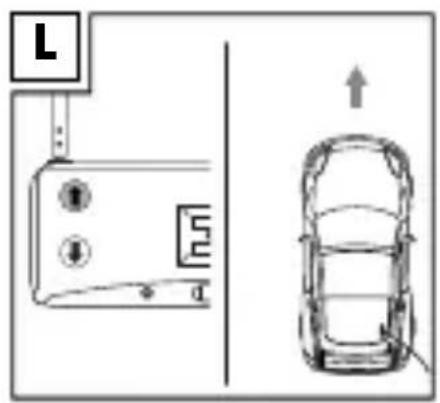

• Arrow pointing forwards (1c): Vehicle moves forwards (fig. L).
• Arrow pointing backwards (1g): Vehicle moves backwards (fig. M)
• Arrow pointing forwards (1c) + Arrow pointing to the right (1f): Vehicle turns to the right (fig. N).

- Arrow pointing forward (1c) + arrow pointing to the ft (1k): Vehicle turns to the ft (fig. O).

- Arrow pointing backwards (1g) + arrow pointing to the right (1f): Vehicle moves backwards turning to the right (fig. P). - Arrow pointing backwards (1g) + arrow pointing to the left (1k): Vehicle moves backwards turning to the left (fig. Q).

Note: To enhance your enjoyment while driving set up the traffic cones (4) at regular distances apart and steer the Mini RC Racer around the traffic cones.

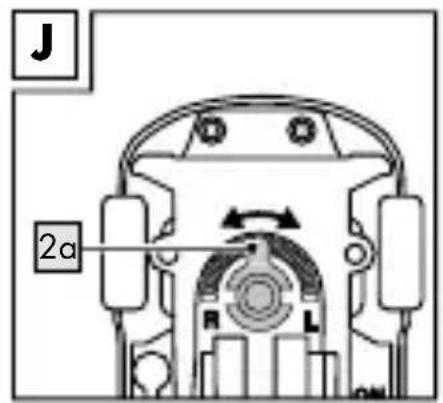

Trimming the front axle (fig. J)

If the Mini RC Racer no longer travels in a straight line, even though you are pressing the forward arrow on the remote control, proceed as follows:

1. If the Mini RC Racer drifts to the right, slide the trimming lever (2a) a bit to the left.

2. If the Mini RC Racer drifts to the left, slide the trimming lever (2a) a bit to the right.

3. Repeat step 1 or step 2 if the Mini RC Racer continues not driving in a straight line.

Storage, cleaning CAUTION: Before you clean the product the on/ off switch of the Mini RC Racer must be in the OFF position.

The Mini RC Racer must be kept dry and after each use any soiling, for example woollen threads, hair, dust, etc. must be removed. To do this use a dry cloth for cleaning and avoid contact with water on electronics, rechargeable battery, and motor. Fasten the Mini RC Racer to the remote control and store it away in the box. Store the product in a dry and dust-free location out of direct sunlight. The optimal storage temperature is between 10°C and 25°C. Switch the Mini RC Racer off when it is not being used. Remove the batteries from the remote control.

Disposal instructions

Dispose of the product and the packaging materials in accordance with current local regulations. Children should not be allowed to have packaging materials, for example plastic bags. Keep the packaging material out of the reach of children.

Devices marked with the adjacent symbol may not be disposed of together with household waste. You are obliged to separate for disposal such electric and electronic waste. Please obtain information from your local council regarding controlled disposal. Before disposal remove the batteries/rechargeable battery from the product.

Dispose of the product and the packaging in an environmentally safe

manner.

The Recycling Code is used to mark different materials to be returned for recycling.

The Code consists of the recycling symbol, which is intended to match the recycling process, and a number, which identifies the material.

Disposal measures for batteries/rechargea- ble battery

Please note:

Batteries/rechargeable battery are hazardous waste that may not be disposed of together with household waste.

You can leave used batteries/rechargeable batteries at the council collection points or at the trade outlet free of charge. Special collection containers are available there.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling.

Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible.

We will be personally available to discuss the situation with you. Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts.

Repairs after the warranty are subject to a charge.

IAN: 309476

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

1 × 1,2V = NiMH 80 mAh

• Warning. Not suitable for children under 36 months of age! Danger of suffocation, since small pieces can be swallowed or inhaled!
• Warning. None of the packaging and fastening materials are considered part of the toy and must always be removed for safety reasons before the product can be given to children to play with.
  • Children can only play with the product under adult supervision.

Warnings regarding batteries/rechargeable battery

GENERAL WARNINGS

• Always store batteries out of reach of children.
- Cleaning and user maintenance may not be performed by children without supervision.
- When necessary clean the battery terminals and device contacts using a clean, dry cloth.
- Do not expose the batteries to extreme conditions (e.g. radiators or direct sunlight).
- Handle a damaged or leaking battery with extreme care and dispose of it immediately as per regulations. Wear gloves for this.
- If you come into contact with battery acid, wash the affected area with soap and water. If battery acid gets into your eye, rinse it out with water and seek medical treatment immediately!
- Do not swallow batteries! If this does happen, you must consult a doctor immediately!
- Never throw the batteries or the rechargeable battery onto a fire and never set them down on hot surfaces (e.g. radiator or stove). Never open the casing or the foil and do not short-circuit the contacts. There is a danger of fire or explosion!

• Avoid external mechanical effects (e.g. bumps and blows, sharp objects or crushing). There is a danger of fire or explosion!
• Do not expose the batteries and the rechargeable battery to temperatures below 10°C and above 45°C .

ADDITIONAL WARNING INSTRUCTIONS FOR BAT- TERIES (REMOTE CONTROL)

• Use only batteries made by the same manufacturer and of the same type.
• Remove the batteries if they are dead or if the product is not going to be used for an extended period of time.
• Do not use new and old batteries together.
• Exchange all batteries together at the same time.
  • Non-rechargeable batteries may not be charged.
• Warning: Batteries may not be charged or reactivated by other means, nor may they be disassembled, thrown onto a fire, or short-circuited. There is a danger of fire or explosion!
• Observe correct polarity (+/-) when inserting.
• Dispose of dead batteries properly at the council collection points or at the trade outlet.

ADDITIONAL WARNING INSTRUCTIONS FOR THE RECHARGEABLE BATTERY (RC VEHICLE)

• Never charge batteries unattended.
• Rechargeable batteries may only be charged under the supervision of adults.
• Never charge the battery immediately after use. Always allow the battery to cool down first (min. 5-10 minutes).

• Because of the special battery plug connection it is not possible to charge the rechargeable battery using traditional chargers.

• To charge the rechargeable battery use only the remote control charger cable.

• Charge only intact and undamaged batteries. If the external insulation of the rechargeable battery is damaged or if the battery is warped or swollen it may not under any circumstances be charged.

In such a case there is a danger of fire and explosion!

• Since both the charger cable and the rechargeable battery heat up during the charging process, it is necessary to ensure adequate ventilation. Never cover up the charger cable and the battery!
• Disconnect the rechargeable battery from the charger cable when it is fully charged.
• Never charge and store rechargeable batteries near major heat sources or open flame as this could cause a fire or an explosion.
• Do not leave a rechargeable battery unattended during the charging process and be wary of any overheating of the battery.
• Never charge a rechargeable battery that is swollen because of overheating, being dropped/falling, or overcharged.
• If the battery catches fire during the charging process do not extinguish this type of battery with water; instead use sand or a CO2 fire extinguisher.
• The charger cable may be operated only in dry, enclosed interior spaces. Charger cable and rechargeable battery may not become damp or wet.
• Never try to manipulate, modify, or repair a rechargeable battery.
• Dispose of dead rechargeable batteries correctly at the end of their service life at the council collection points or at the trade outlet.

DELTA-SPORT HANDELSKONTOR GMBH

Wragekamp 6 • DE-22397 Hamburg

GERMANY
