Product Type	RDNet network interface board for RCF DMA amplifiers
Compatible Amplifiers	RCF DMA series amplifiers
Network Protocol	Proprietary RDNet
Functions	Network connection, parameter configuration, real-time monitoring of amplifier status
Software Requirement	RDNet software (latest version from www.rcf.it)
Installation	Internal installation into DMA amplifier unit; device must be powered off and disconnected from mains
Dimensions (approx.)	100 x 70 x 15 mm (typical PCIe card form factor)
Weight (approx.)	50 g
Power Supply	Powered directly by the DMA amplifier mainboard
Operating Temperature	0°C to 40°C (controlled by amplifier environment)
Storage Temperature	-20°C to 60°C
Humidity	10% to 90% non-condensing
Connectors	RJ45 for RDNet network (via DMA backplane)
LED Indicators	Status LEDs on board (network activity, power)
Maintenance	Keep dry; clean with a soft, dry cloth; no user-serviceable parts
Safety	Install only with amplifier off; follow DMA user manual safety precautions
Spare Parts / Repairability	Not user-repairable; replace entire board if defective
Documentation	This manual is an addendum to the DMA amplifier user manual

Frequently Asked Questions - RDNET BOARD RCF

What is the RDNET BOARD?

The RDNET BOARD is an optional internal board for RCF DMA amplifiers that enables connection to an RDNet network for remote control and monitoring.

Which amplifiers are compatible with the RDNET BOARD?

It is designed for RCF DMA series amplifiers. Check your amplifier model compatibility on the RCF website.

How do I install the RDNET BOARD?

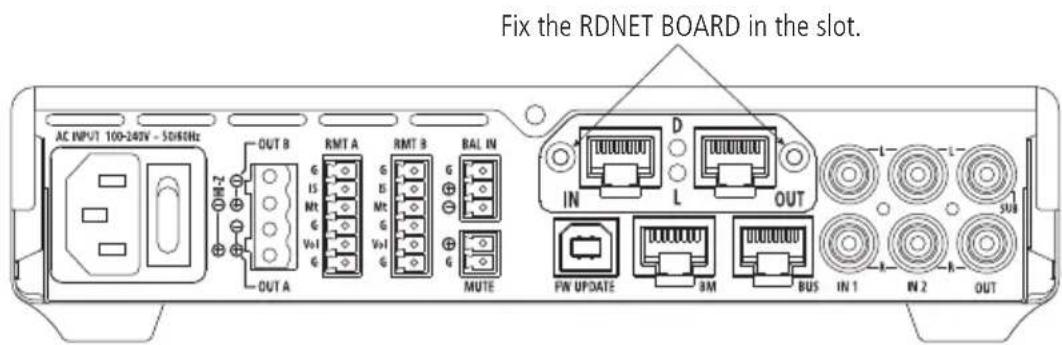

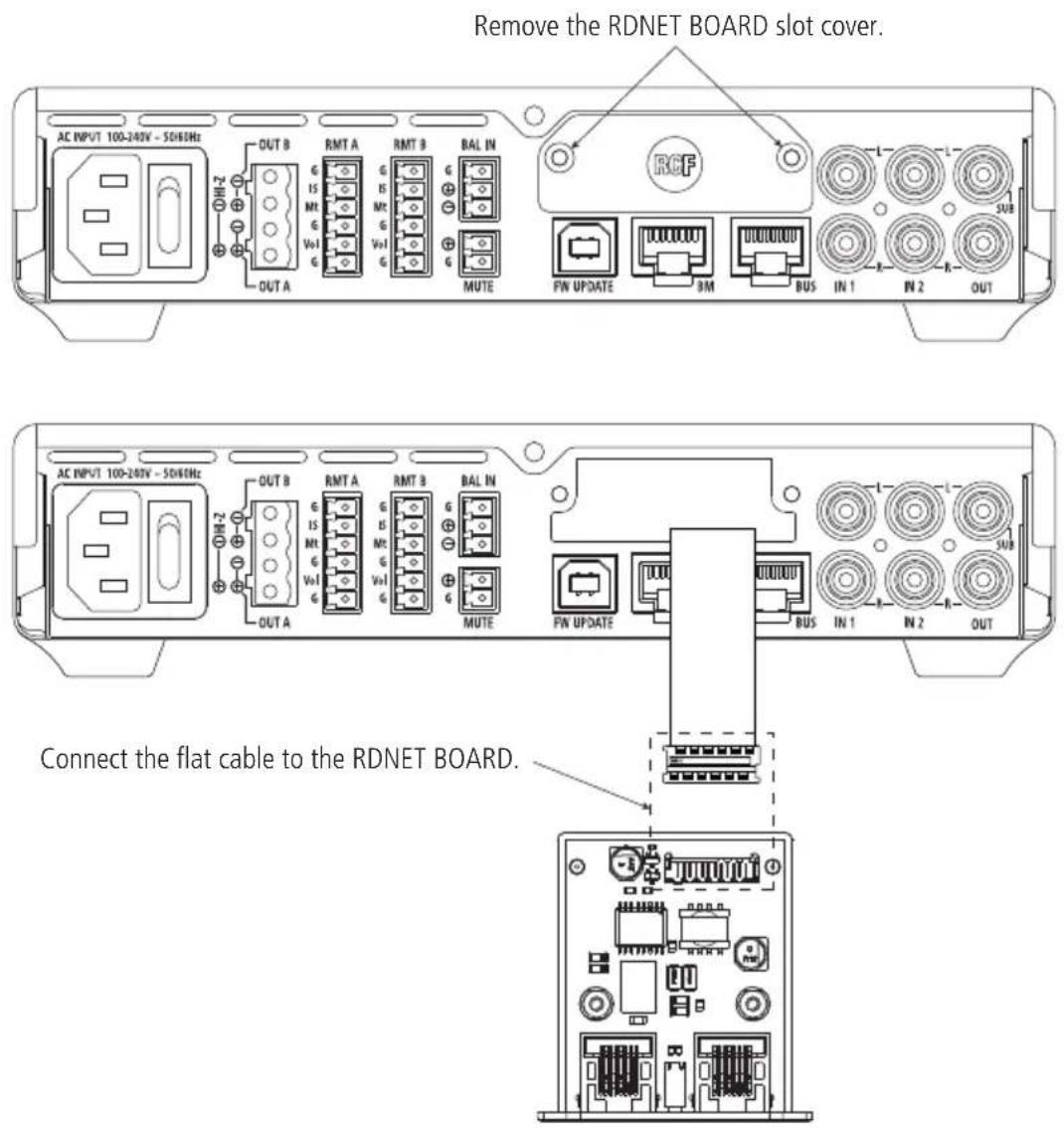

Turn off and unplug the amplifier. Open the amplifier chassis, insert the board into the dedicated slot, secure it, and close the chassis. Refer to the full installation guide in the manual.

Do I need special software to use the RDNET BOARD?

Yes, you must install the latest RDNet software from www.rcf.it. The software provides a graphical interface to configure and monitor connected devices.

Can I use the RDNET BOARD with multiple amplifiers?

Yes, multiple RDNet-compatible devices can be daisy-chained or networked via Ethernet to form a large system controlled from a single computer.

What parameters can I monitor with the RDNET BOARD?

You can monitor real-time data such as output power, temperature, limiter status, and fault conditions of each amplifier.

Does the RDNET BOARD require additional power?

No, it is powered directly by the DMA amplifier's internal power supply via the expansion slot.

What should I do if the RDNET BOARD is not recognized by the software?

Check that the board is properly seated, the amplifier is on, the network cable is connected, and you have the latest RDNet software. Restart the software or amplifier if needed.

Is the RDNET BOARD hot-swappable?

No, the amplifier must be powered off and disconnected from mains before installing or removing the board.

Where can I find the full user manual for the RDNET BOARD?

The full manual is available as a PDF on notice-facile.com or on the RCF support page. This manual is an addendum to the DMA amplifier manual.

USER MANUAL RDNET BOARD RCF

USER MANUAL MANUALE D'USO

RDNET BOARD FOR FOR DMA AMPLIFIERS UNITS

SCHEDA RDNET PER UNITÀ AMPLIFICATORE DMA

TABLE OF CONTENTS INDICE

SAFETY PRECAUTIONS

IMPORTANT

This manual is an addendum to DMA amplifiers units user manuals.

Refer to DMA user manual for safety precautions and system use.

Before installing RDNET BOARD, please read this instruction manual carefully and keep it on hand for future reference, as it is to be considered a part of DMA units and must accompany it when it changes ownership as a reference for correct installation.

RCF S.p.A. will not assume any responsibility for the incorrect installation and / or use.

IMPORTANT

DESCRIPTION

RDNET BOARD is an additional board for DMA amplifiers units that allows to connet your devices into an RDNet network.

Thanks to this board it is be possible to setup all the amplifiers parameters and a real time monitoring of their functioning.

Before proceed with RDNET BOARD installation, be sure the DMA device is tuned off and disconnected from main power supply source.

RDNet is a robust management network and control platform for small, medium and large sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, the software provides intuitive control and monitoring of every connected device/object in the RCF audio system.

To use the RDNET BOARD it is necessary to download the latest RDNet software version on the RCF website www.rcf.it.

Refer to RDNet software user manual for system requirements and installation procedure.

AVVERTENZE PER LA SICUREZZA E PRECAUZIONI D'USO

IMPORTANTE

Except possible errors and omissions.

RCF S.p.A. reserves the right to make modifications without prior notice.
