Product Type	Office Desk
Model Number	650811
Brand	Equip
Overall Dimensions (W x D x H)	47.2 x 23.6 x 29.5 inches (120 x 60 x 75 cm)
Weight	33 lbs (15 kg)
Material	Particle board with melamine finish
Color	Black or White (available options)
Maximum Load Capacity	110 lbs (50 kg)
Assembly Required	Yes, tools included
Number of Shelves	1 main surface, no additional shelves
Leg Type	Straight metal legs with adjustable floor glides
Power Supply	None (manual product)
Warranty	2 years
Cleaning Method	Wipe with a damp cloth, avoid abrasive cleaners
Safety Features	Anti-tip strap included, stable base
Spare Parts Availability	Contact customer service for replacement parts
Repairability	Modular design; legs and hardware replaceable
Recommended Use	Home office or small workspace

Frequently Asked Questions - 650811 Equip

How do I assemble the Equip 650811 desk?

Follow the included instruction manual step by step. Use the provided hex key and screws. Attach legs to the tabletop, then install the crossbar and adjustable glides. Ensure all bolts are tight.

What is the weight capacity of this desk?

The maximum load capacity is 110 lbs (50 kg) evenly distributed.

Can I use this desk for a heavy computer setup?

Yes, as long as the total weight of your equipment does not exceed 110 lbs. It is suitable for a monitor, keyboard, and desktop computer.

Is the desk height adjustable?

No, the desk height is fixed at 29.5 inches (75 cm). The adjustable floor glides allow leveling on uneven floors.

What tools are needed for assembly?

All necessary tools are included in the package: a hex key and screwdriver. No additional tools required.

How do I clean the desk surface?

Wipe with a soft, damp cloth and mild soap if needed. Avoid harsh chemicals or abrasive pads to prevent damage to the melamine finish.

Does the desk come with a warranty?

Yes, Equip offers a 2-year limited warranty against manufacturing defects. Contact customer service for claims.

Are replacement parts available?

Yes, you can order replacement parts such as legs or hardware by contacting Equip support. Provide your model number 650811.

How do I prevent the desk from tipping over?

The desk includes an anti-tip strap that should be attached to the wall for stability. Ensure the desk is on a level surface.

Can I use this desk in a standing configuration?

No, this model is designed for seated use only. The fixed height is not suitable for standing.

USER MANUAL 650811 Equip

ERGO Electric Sit-Stand Desk Frame with Desktop, Grey/Black

Line drawing of a simple wooden table with two legs and a side support (no text or symbols)

Digital Data Communications GmbH

Im Defdahl 10F

44141 Dortmund, Germany

Tel: [phone]

650811(Grey)

650812(Black)

■ Checklist and Installation

Please check all of the components shown in the component checklist. If any of the components are missing or damaged, contact your point of purchase for a replacement.

Simple 3D rectangular block diagram with no text or symbols

A (x2)
Desktop

Pure mechanical bracket diagram without any text, numbers, or symbols

B (x1)
Crossbar

C (x3)
Connecting Plate

Side Bracket

Pure diagonal line with two black square markers at endpoints (no text or symbols)

G (x1)
Sync Rod

Simple line drawing of a rectangular object with rounded ends and a dotted line on top (no text or symbols)

H (x2)
Foot

I (x1)
AC Adapter

J (x4)
Wooden Dowel Pins

K (x1)
Power Cord

L (x1)
Controller

The picture of the controller is for your reference only. Actual product may vary.

S-A (x4)
M6×12
Hex Head Screw

S-B (x4)
M6x8
Hex Head Screw

S-C (x8)
M6×30
Hex Head Screw

S-D (x23)
ST4.2×13
Phillips Head Screw

S-E (x10)
ST4.8×16
Phillips Head Screw

S-F (x3)
Cable Clip

S-G (x1)
5mm
Allen Wrench

S-H (x1)
4mm
Allen Wrench

What important specifications should know before installation?

Weight Capacity
70kg (154lbs)

Power Input
(100\~240V)

Operation Temperature
(-5^ +40^)

What tools are needed to assemble the desk frame?

Bubble Level

Allen Wrench
(Included)

Drill

Phillips Screwdriver

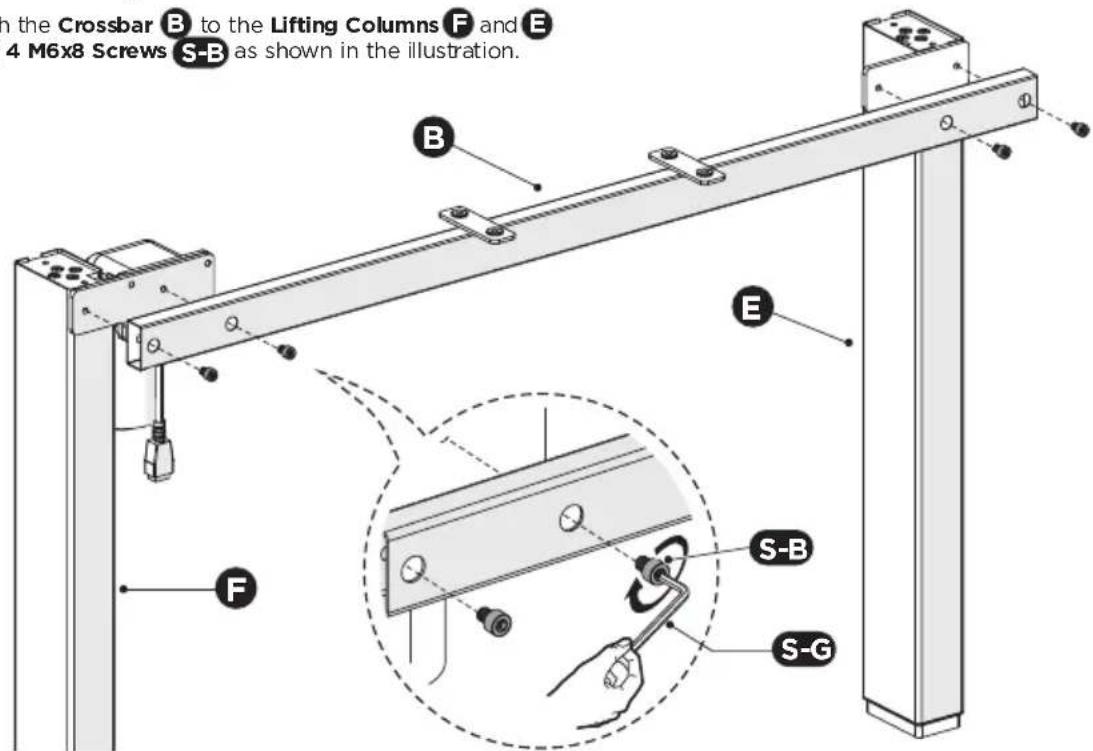

1. Attaching the Crossbar

- Attach the Crossbar B to the Lifting Columns F and E using 4 M6x8 Screws S-B as shown in the illustration.

2. Attaching the Side Brackets

• Attach each Side Bracket D to the Lifting Column using 2 M6x12 Screws S-A.
• Repeat the same process to attach the other side bracket.

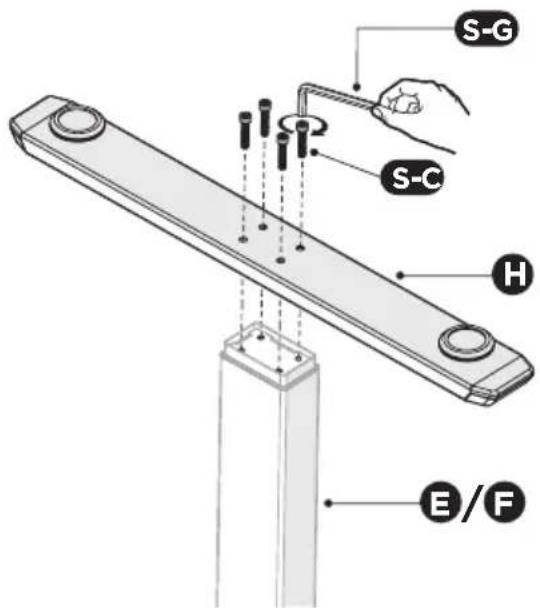

3. Attaching the Feet

• Turn over the desk frame with the help of another person.
• Place the Lifting Column E / F upside down on the floor.
• Attaching the Foot H to the Lifting Column using 4 M6x30 Screws S-C.
• Repeat the same process to attach the other foot.

CAUTION: At least two people are required when turning over the desk, or serious bodily injuries might occur.

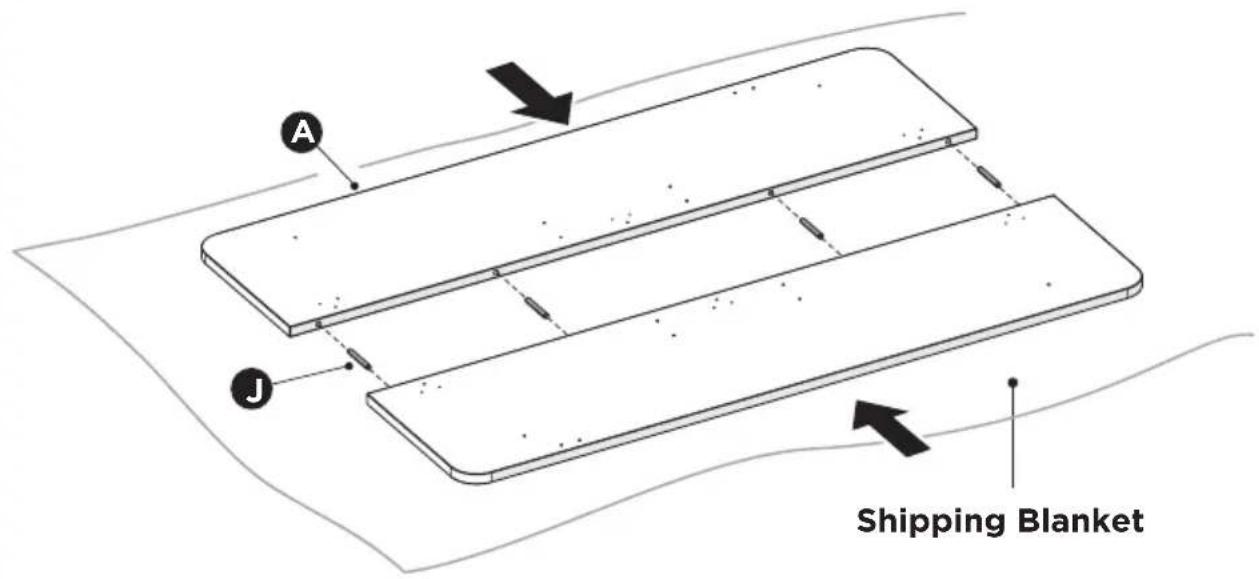

4. Assembling the Desktop

• Carefully place the dissassembled Desktop A upside down on the floor as shown.
• Assemble the desktop with 4 Wooden Dowel Pins and 3 Connecting Plates using 18 ST4.2x13 Screw S-D

Note: Please make sure the desktop keep facing down while installation.

5. Attaching the Sync Rod

• Place the assembled desk frame to the backside of the desktop.
• Align the screw holes on the desktop with mounting holes found on the crossbar and side brackets.

Technical line drawing of a mechanical assembly with a downward arrow indicating motion or force (no text or symbols present)

• Turn the knob as shown in the illustration to loosen and adjust the Sync RodG.
• Insert both ends of Sync Rod into holes found on the desk frame as shown in the illustration.
• Re-tighten the knob.

6. Attaching the Desk Frame to the Desktop

- Attaching the assembled desk frame to the desktop through the mounting holes found on the Side Brackets and Crossbar as shown in the illustration using 8 ST4.8x16 Screws S-E .

7. Attaching the AC Adapter

• Attach the AC Adapter ① to the desktop using 2 ST4.8x16 Screws S-E.
• Attach the Controller L to the desktop with 2 ST4.2x13 Screws S-D

8. Inserting Cords into the AC Adapter

• Insert Motor Cord F into the port marked M1 on the side of the AC Adapter I.
• Insert the Controller L into the port marked HS.
• Insert the Power Cord K into the port marked AC.

Note:

- Don't connect the plug to the socket before the desk is fully assembled.

9. Cable Management

- Run the cables through the Cable Clips S-F on j attach the cable clips to the desktop with 3 ST4.2x13 Screws to ensure clean and neat surface.

10. Adjusting the Desk

- Turn over the desk with the help of another person.

- There are two adjustable foot pads under each foot. If the floor isn't even, simply turn the pad to adjust the level to make the desk stable.

Tip: Use a bubble level (not included) to check if the desktop is even.

- Connect the desk to power. Long press the up and down buttons to adjust the height.

CAUTION: At least two people are required when turning over the desk, otherwise serious bodily injuries might occur.

■ Instructions of Safety and Warnings:

• Any failure to comply with the safety and installation instructions in this manual may cause serious bodily injury.
• Overlooking any part of the instructions, wings and additional information marked with the "Note" and "⚠️" may result in serious damage to the system or its components.
• Children should never be allowed to operate or touch the product without direct supervision of an adult. Users should prevent children from being near or around the desk during operation.
• Disabilities and/or lack of experience and knowledge should be prevented from using the product unless under supervision or assisted during use and operation.
• Never sit on or exceed the rated weight of the desk.

Electrical Safety Instructions:

The product is powered by electricity. In order to avoid burns, fire and electric shock, please read the instructions carefully.

Don't clean the product with water while the power is still connected.

Never operate the system if it's in moist environment or its electrical components have contact with liquids.

Don't disassemble or replace components while the power is still connected.

Don't operate the system if the control box makes noise or odor. Alterations of the given power unit and control box aren't allowed.

Never operate the system with a damaged cord or plug. Please contact your point of purchase to replace the damaged parts.

Other Safety Instructions:

• Remove any obstacles from the area around the desk during assembly and subsequent use.
• Organize all cords and wires to prevent any possible tripping or accidents from occurring.
• Never attempt to modify or change the desk frame or components that operate the desk.
• Don't add anything to the adjustable junctions of the desk frame.
• The desk is rated for Indoor Use Only.

Disposal: The product with this mark indicates that this product shouldn't be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the local recycle service or contact your point of purchase to withdrawn the product.
