ACA-021 - Frying Pan Aroma - Free user manual and instructions

Brand	Aroma
Model	ACA-021
Product Type	Wok
Material	Handcast Aluminum
Nonstick Coating	Premium-quality, scratch-resistant
PFOA Free	Yes
Thermal Base	Superior thermal conductivity for even heat
Usage	Household use only
Compatible Stovetops	Ceramic stovetops (always lift, do not drag)
Cleaning Instructions	Hand wash with hot water; mild soap for stubborn stains; boil water for residue
Dishwasher Safe	Glass lid only
Prohibited Cleaners	Abrasive cleaners, scouring pads, steel wool
Recommended Utensils	Heat-resistant plastic or wood
Warranty Period	5 years limited
Warranty Coverage	Evenness of thermal base and uniformity of nonstick coating
Customer Service	1-800-276-6286 (M-F 8:30am-4:30pm PT) or [e-mail]
Energy Efficiency	Saves up to 1/3 energy compared to conventional pans
Preheating	Briefly heat empty pan, then reduce heat before adding food
Smoke Point Consideration	Do not heat fats to smoke point; choose oils appropriately
Stovetop Movement	Always lift pan, do not drag to avoid scratching
Food Storage	Not designed for storing food; clean immediately after use

Frequently Asked Questions - ACA-021 Aroma

How should I clean the Aroma ACA-021 wok for the first time?

Remove all packaging, rinse and dry thoroughly. Wipe the wok body with a damp cloth. Wash the glass lid if needed.

Can I put the wok in the dishwasher?

No, only the glass lid is dishwasher safe. The wok body should be hand washed with hot water to preserve the nonstick coating.

What utensils are safe to use with the nonstick surface?

Use heat-resistant plastic or wood utensils. Avoid metal, sharp objects, or abrasive pads to prevent scratching.

How can I save energy while cooking with this wok?

Preheat briefly, cook with the lid on, use minimal liquid for steaming, and take advantage of the thermal base that retains heat even after turning off the stovetop.

Is the nonstick coating PFOA free?

Yes, the Aroma ACA-021 wok is PFOA free and safe for household use.

Can I use the wok on a ceramic stovetop?

Yes, but always lift the wok when moving it, do not drag, to avoid scratching both the pan and the stovetop surface.

What is the warranty on the Aroma ACA-021 wok?

Aroma offers a 5-year limited warranty covering defects in materials and workmanship, specifically the evenness of the thermal base and uniformity of the nonstick coating.

How do I prevent food from sticking?

Use the kitchen spoon test: heat oil and hold a dry wooden spoon in it; if bubbles form, the oil is ready. Avoid overheating fat to its smoke point.

What oils are recommended for frying?

Use refined oils with high smoke points, such as peanut oil (refined) or sunflower oil (refined). Avoid cold-pressed oils and butter for high-heat frying.

What should I do if the nonstick coating shows wear?

Minor wear does not impair the nonstick properties. However, avoid using sharp objects and continue to use soft utensils. If the coating is severely damaged, contact Aroma customer service.

USER MANUAL ACA-021 Aroma

Black and white photo of a cooking pot with lid and handle, no visible text or symbols

instruction manual

ACA-021

Ultimate Wok

AROMA®

To Enhance and Enrich Lives.

A silver rice cooker with black control panel and 'AROMA' branding (no visible text beyond label)

Multicookers/Rice Cookers

Here at Aroma we strive to make a difference —to design and distribute products that enhance and enrich people's lives.

Black and white photo of a rice cooker with control panel (no visible text or symbols)

Pressure Cookers
Aroma offers an array of exceptional products to make cooking simple and satisfying. Discover other countertop appliances and cookware from our current product lineup to complement your kitchen.

Exterior view of a modern stainless steel water heater (no text or symbols visible)

Water Kettles

Stay connected for more recipe ideas and monthly giveaways!

AROMA®

TEST KITCHEN

www.AromaTestKitchen.com

Black and white photo of a modern kitchen appliance with a lid and side arm (no visible text or symbols)

Indoor Grills

/AromaHousewares

Black rectangular appliance with circular top and side legs, no visible text or symbols

Induction Cooktops

BEFORE FIRST USE

1. Read all instructions and important safeguards.
2. Remove all packaging materials and check that all items have been received in good condition.
3. Tear up all plastic bags and dispose of them properly as they can pose a risk to children.
4. Rinse and dry thoroughly.
5. Wipe wok body clean with a damp cloth.

TO CLEAN

1. Simply clean your Aroma ^® cookware with hot water before using for the first time and after every use.
2. Stubborn stains can also be removed with a little soap or by boiling some water in the cookware, which will allow you to remove residue and oil with ease.
3. To avoid damaging the nonstick surface coating, never use scouring pads, steel wool or other abrasives.
4. Glass lid can be hand washed or placed in the dishwasher.
5. Your Aroma ^® cookware is designed for cooking, not for storing food, so always be sure to clean it immediately after use.

Note:

- Do not use harsh abrasive cleaners, scouring pads or products that are not considered safe to use on nonstick coatings.

- Any other servicing should be performed by Aroma® Housewares.

Nonstick surface and kitchen utensils

• Aroma ^ cookware features a premium-quality, robust nonstick surface coating, which is highly resistant to scratches and cuts
• Applying extreme pressure or using very sharp, pointed objects can result in damages to the surface
• Signs of wear may result in what appear to be flaws, but will in no way impair the cookware's nonstick properties
• Aroma ^ cookware is PFOA free
• We recommend that you use kitchen utensils made of soft materials such as heat-resistant plastic or wood with your Aroma® cookware

THIS COOKWARE IS FOR HOUSEHOLD USE ONLY.

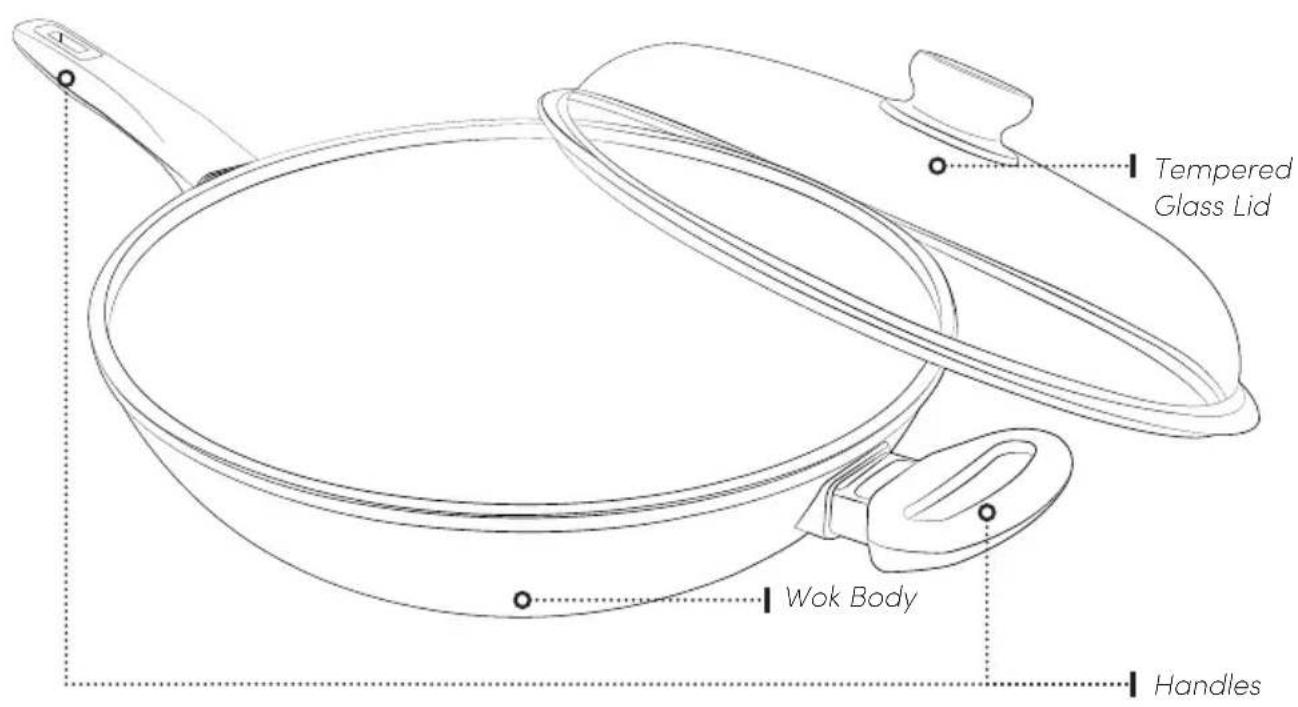

Parts Identification

ENERGY SAVING COOKING

With today's rising utility costs, saving energy is of interest to nearly every household. Aroma® cookware is known for its outstanding thermal conductivity and tremendous heat storage capacity – characteristics that are highly advantageous and extremely important when it comes to saving energy.

After briefly heating up your empty Aroma ^® cookware, add your ingredients, and keep the temperature low during cooking. Consistent heat distribution and optimum cooking temperatures are guaranteed thanks to the exceptional thermal base. This saves you one third more energy compared to conventional pans and helps prevent overheating.

Measure out the proper amount of food; cookware should always be around 2/3 full.

Steam vegetables with the lid on and very little liquid. This not only reduces the cooking time by 30% to 40%, but also enhances flavor and helps retain valuable nutrients in the food.

Ensure that the base of your cookware and the surface of your stovetop are always clean; residue can inhibit thermal conductivity and result in needless energy waste.

Your Aroma ^® cookware features an extremely strong thermal base that keeps food warm long after the stovetop has been turned off.

The right cooking temperature plays a key role in preparing a healthy meal!

Empty pans made of handcast aluminum reach a temperature of approx. 572°F after just three minutes when heated at the highest level. Fats can burn extremely fast at these high temperatures, creating "tar resin" that can burn into the surface coating. Once this happens the tar resin impairs the nonstick surface properties and can no longer be removed. In general, fats and oils should never be heated up to the smoke point.

USING ON CERAMIC STOVETOPS

- Always lift pots and pans when moving them on stovetops. Stovetops of this type are subject to low manufacturer tolerances. Even when there is light residue between the surface of the stovetop and the base of the pan (from salt, sugar, etc.), dragging pots or pans can scratch the aluminum base or the surface of ceramic stovetops.

HEATING AROMA® COOKWARE

1. Briefly heat up your Aroma ^® cookware.
2. The thermal base ensures rapid, even heating.
3. Lower the heat by a third and then place your food into the cookware.
4. If you are cooking with oil or fat, the kitchen spoon test will help you determine whether the cookware has reached the right cooking temperature. Simply hold a dry wooden spoon in the oil or fat – if bubbles form, it is the perfect time to add food to the cookware.
5. The cookware should never get hot enough to produce smoke or burn oil or fat.

Helpful Hints:

- It is important to choose oils or fats suited for the desired cooking temperature you use when preparing your dishes because different types of fats and oils have varying levels of heat stability.

- This is known as the smoke point – the temperature at which fat begins to burn and visible smoke forms.

Note:

- Dietary fats, margarines and most native or cold-pressed oils (e.g. native safflower or sunflower oil) are generally not suitable for frying! Always observe the manufacturer's specifications on the packaging.

Smoke Point Table

The following table shows the smoke points (fats begin to burn at this point) of various fats:

Product	Smoke Point °F
Peanut oil (refined = hot-pressed)	446
Peanut oil (unrefined = cold-pressed)	338
Palm oil 428
Coconut oil 365 - 401
Lard 250 - 424
Clarified butter 401
Butter 347
Most refined oils > 392
Cold-pressed grapeseed oil 266 - 374
Cold-pressed olive oil 266 - 347
Soybean oil 415
Sunflower oil (refined) 410 - 437
Sunflower oil (unrefined) 225
Sesame oil (unrefined)	351
Safflower oil	302

LIMITED WARRANTY

Aroma Housewares Company warrants the product against defects in materials and workmanship for five years from a provable date of purchase in the United States. This warranty covers the evenness of the thermal base and the uniformity of the nonstick coating. This warranty does not cover stains, scratch marks, dents or discoloration. If this product is discontinued, we will replace it with similar product of equal value.

Within this warranty period, Aroma Housewares Company will repair or replace, at its discretion, defective parts at no charge, provided the product is returned, freight prepaid with proof of purchase and U.S. \$25.00 for shipping and handling charges payable to Aroma Housewares Company. Before returning an item, please call the toll free number below for a return authorization number. Allow 2-4 weeks for return shipping.

This warranty does not apply if the warranty period expired; the product has been modified by any unauthorized service center or personnel; the defect was subject to abuse, improper use not conforming to product manual instructions, or environmental conditions more severe than those specified in the manual and specification, neglect of the owner or improper installation; the defect was subject to Force Majeure such as flood, lightning, earthquake, other natural calamities, war, vandalism or theft.

This warranty gives you specific legal rights, which may vary from state to state, and does not cover areas outside of the United States.

SERVICE & SUPPORT

In the event of a warranty claim, or if service is required for this product, please contact Aroma® customer service toll-free at:

1-800-276-6286

M-F, 8:30am-4:30pm, Pacific Time

Or we can be reached by email at:

[e-mail]

For your records, we recommend stapling your sales receipt to this page along with a written record of the following:

- Date of Purchase:

- Place of Purchase:

Note:

• Proof of purchase is required for all warranty claims.

NOTES

NOTES

Black and white photo of a cooking pan with lid and handle (no text or symbols visible)

To Enhance and Enrich Lives.

Line drawing of multiple fork shapes arranged in two rows (no text or symbols)

www.AromaCo.com
