Blade V40 Pro - Mobile Phone ZTE - Free user manual and instructions

Brand	ZTE
Model	Blade V40 Pro
Type	Mobile Phone
Dimensions	163.5 x 73.8 x 8.5 mm (approx)
Weight	190 g (approx)
Display	6.67-inch AMOLED
Operating System	Android
Processor	MediaTek Helio G88 (approx)
RAM	6 GB (approx)
Storage	128 GB (approx)
Rear Camera	64 MP + 8 MP + 2 MP (approx)
Front Camera	16 MP (approx)
Battery	4000 mAh, non-removable
Charging	USB Type-C, use ZTE-approved charger
SIM	Dual nano-SIM
Network	4G/3G/2G; supports GSM, WCDMA, LTE bands (see manual)
Wi-Fi	2.4 GHz and 5 GHz
Bluetooth	5.0
NFC	Yes
GPS	Yes
Audio	DTS:X Ultra
Security	Fingerprint sensor, face unlock
SAR	Head: 1.223 W/kg, Body: 1.389 W/kg (5 mm distance)
Operating Temperature	0°C to 55°C (storage), 0°C to 40°C (charging)
Certification	CE, EU Declaration of Conformity

Frequently Asked Questions - Blade V40 Pro ZTE

How do I insert the SIM cards?

Use the tray eject tool included in the box. Insert it into the hole on the card tray to eject it. Place the nano-SIM cards in the slots and slide the tray back in. You can install or remove the cards while the phone is on.

How do I charge the phone?

Connect the ZTE-approved charger to a USB Type-C cable and plug it into the phone. Then connect the charger to a standard AC outlet. The battery is non-removable. If the battery is extremely low, charge for at least 20 minutes before powering on.

How do I turn on the phone?

Press and hold the Power key (located on the side) until the screen lights up. To turn off, press and hold the Power key and tap the power icon.

What should I do if the screen freezes?

Press and hold the Power key for over 10 seconds to force a restart. This should resolve most temporary issues.

How do I unlock the phone?

Press the Power key to wake the screen, then swipe up. If you have set a security method (face, fingerprint, pattern, PIN, or password), you must use that to unlock.

What is the SAR value of this phone?

The Specific Absorption Rate (SAR) limit is 2 W/kg. For ZTE Blade V40 Pro, the highest SAR value at the head is 1.223 W/kg and at the body (5 mm distance) is 1.389 W/kg.

Is the battery removable?

No, the battery is non-removable. Do not attempt to remove the back cover, as it may cause fire or explosion.

Can I use third-party chargers?

It is recommended to use only ZTE-approved chargers and USB Type-C cables. Unapproved accessories may damage the phone or cause the battery to explode.

How to perform a factory reset?

The manual does not specify, but typically you can go to Settings > System > Reset options and select 'Erase all data (factory reset)'. Ensure you back up important data first.

Can I use the phone while driving?

No, do not make or receive calls while driving, and never text while driving. Always prioritize safety.

USER MANUAL Blade V40 Pro ZTE

Copyright © 2022 ZTE CORPORATION.

All rights reserved.

No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation.

Notice

ZTE Corporation reserves the right to make modifications on print errors or update specifications in this guide without prior notice.

We offer self-service for our smart terminal device users. Please visit the ZTE official website (at

https://ztedevices.com) for more information on user manual, self-service and supported product models. Information on the website takes precedence.

Disclaimer

ZTE Corporation expressly disclaims any liability for faults and damages caused by unauthorized modifications of the software.

Images and screenshots used in this guide may differ from the actual product. Content in this guide may differ from the actual product or software.

Trademarks

ZTE and the ZTE logos are trademarks of ZTE Corporation.

Android ^TM is a trademark of Google LLC.

The Bluetooth ^® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by ZTE Corporation is under license.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together, DTS:X, the DTS:X logo, and DTS:X Ultra are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

Other trademarks and trade names are those of their respective owners.

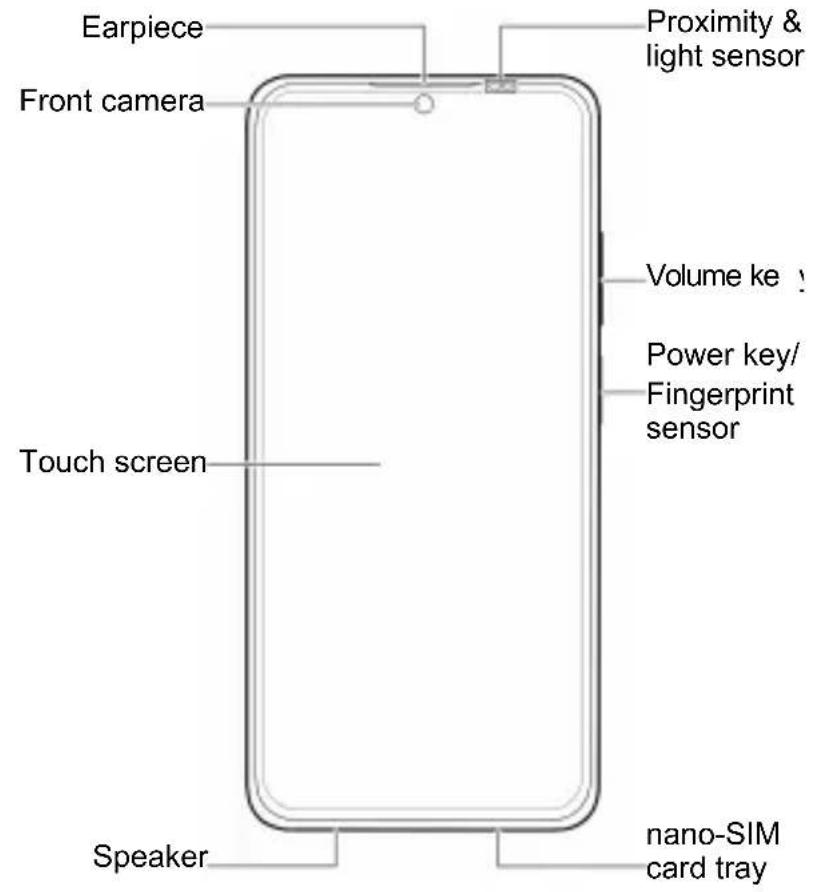

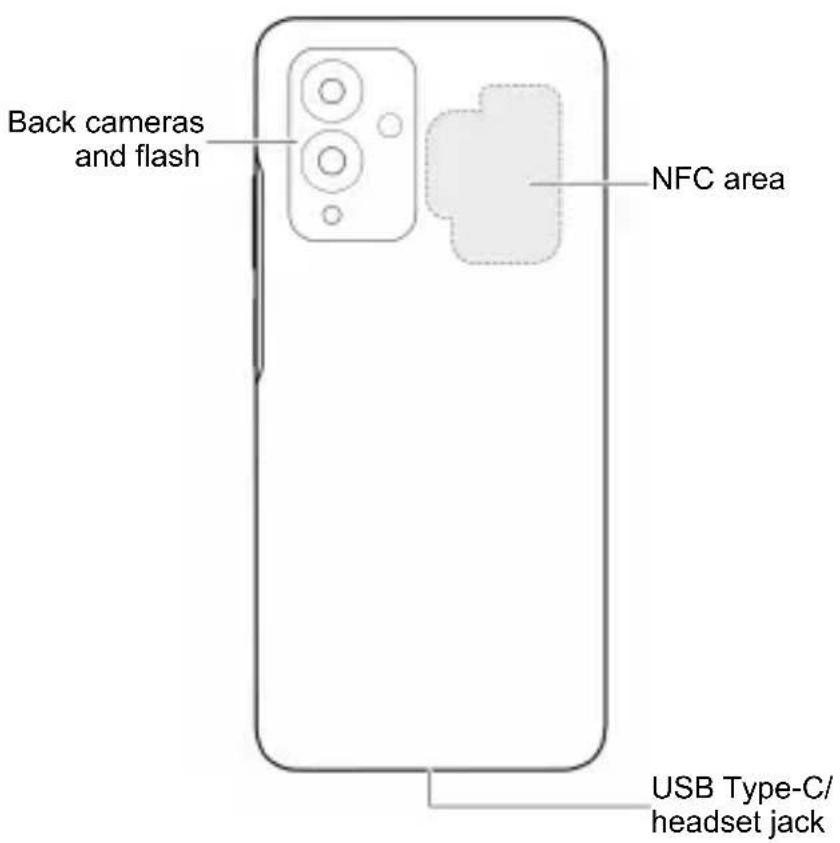

Getting to Know Your Phone

Your phone supports 2.4 GHz and 5 GHz Wi-Fi.

Setting Up Your Phone

The nano-SIM card(s) can be installed or removed while the phone is turned on.

WARNING!

To avoid damage to the phone, do not use any other kind of SIM cards, or any non-standard nano-SIM card cut from a SIM card. You can get a standard nano-SIM card from your service provider.

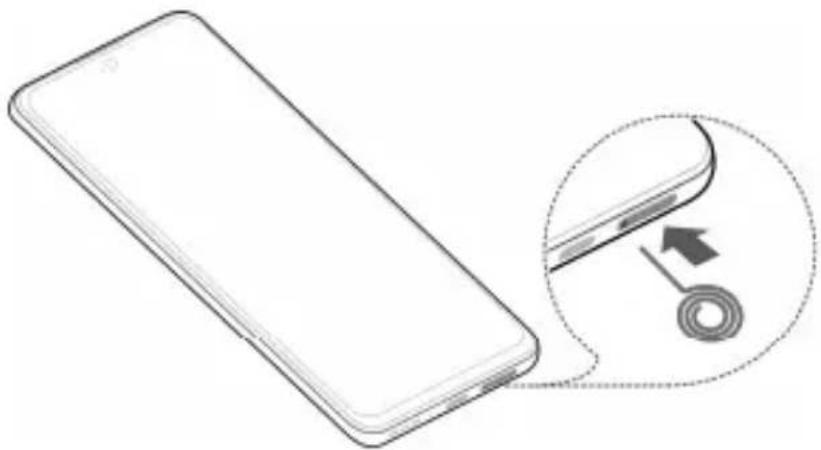

1. Insert the tip of the tray eject tool into the hole on the card tray.

Illustration of a smartphone with an inset showing the cable being inserted into it (no text or symbols present)

NOTE:

Please use the tray eject tool included in the box. Otherwise the card tray may not be ejected.

CAUTION:

Never replace the included tray eject tool with sharp objects. Ensure that the tray eject tool is perpendicular to the hole. Otherwise, the phone may be damaged.

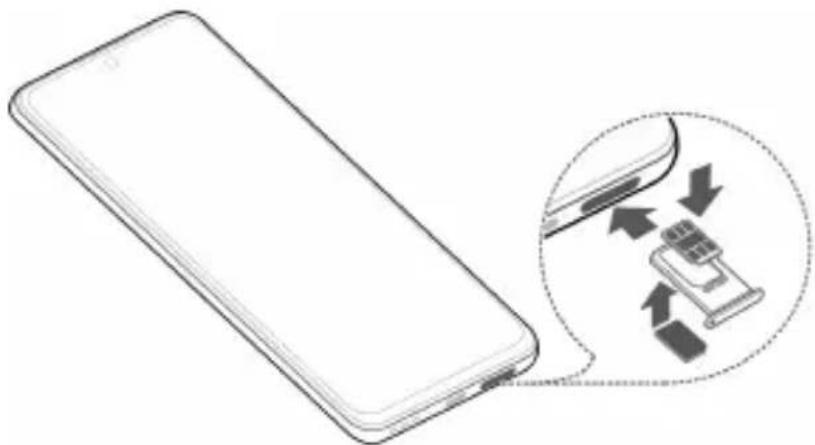

1. Pull out the card tray and install the nano-SIM card(s) into the card slot(s) as shown. Carefully slide the tray back into place.

Illustration of a smartphone with an inset showing a close-up of its cable and a device with arrows indicating rotation (no text or symbols present)

NOTE:

If two nano-SIM cards are installed, both cards can connect to the 4G, 3G, or 2G network, and either card can be used for mobile data.

Charging the Phone

Your phone's battery should have enough power for the phone to turn on, find a signal, and make a few calls. You should fully charge the battery as soon as possible.

WARNING!

Use only ZTE-approved chargers and USB Type-C cables. The use of unapproved accessories could damage your phone or cause the battery to explode.

WARNING!

Do not remove the back cover. The battery is not removable. Removal may cause fire or explosion.

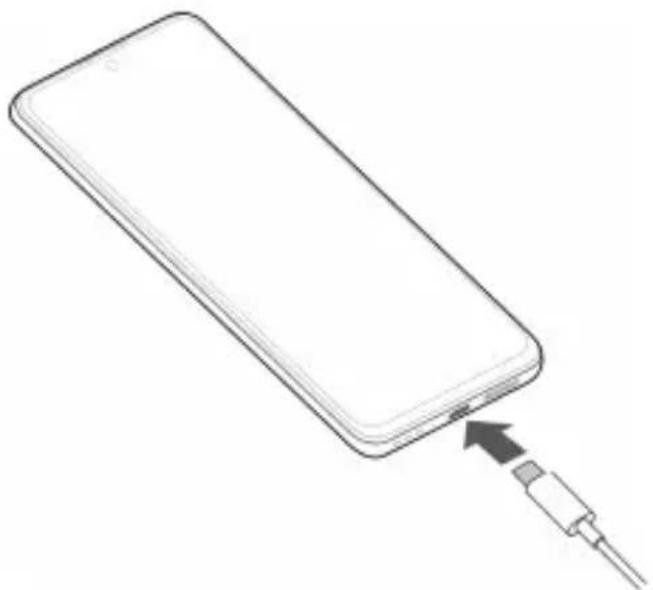

1. Connect the adapter to the charging jack.

Line drawing of a smartphone with an attached cable, showing no text or symbols

1. Connect the charger to a standard AC power outlet.
2. Disconnect the charger when the battery is fully charged.

NOTE:

If the battery is extremely low, you may be unable to power on the phone even when it is being charged. In this case, try again after charging the phone for at least 20 minutes. Contact the customer service if you still cannot power on the phone after prolonged charging.

Powering On/Off Your Phone

Make sure the battery is charged before powering on.

• Press and hold the Power key to turn on your phone.
• To power off, press and hold the Power key to open the options menu, and touch ⏻ > ⏻

NOTE:

If the screen freezes or takes too long to respond, try pressing and holding the Power key for over 10 seconds to restart the phone.

Waking Up Your Phone

Your phone automatically goes into sleep mode when it is not in use for some time. The display is turned off to save power and the keys are locked to prevent accidental operations.

You can wake up your phone by turning on the display and unlocking the keys.

1. Press the Power key to turn the screen on.
2. Swipe up on the screen.

NOTE:

If you have set a face verification, a fingerprint, an unlock pattern, a PIN or a password for your phone, you'll need to use your face or fingerprint, draw the pattern, or enter the PIN/password to unlock your screen.

Product Safety Information

	Don't make or receive phone calls while driving. Never text while driving.
	Keep your phone at least 5 mm away from your body while making calls.
	Small parts may cause choking.
	Your phone can produce a loud sound.
	To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your phone near your ear while the loudspeaker is in use.
	Avoid contact with anything magnetic.
	Keep away from pacemakers and other electronic medical devices.
	Turn off when asked to in hospitals and medical facilities.
	Turn off when told to on aircraft and at airports.
	Turn off when near explosive materials or liquids.
	Don't use at gas stations.
	Your phone may produce a bright or flashing light.
	Don't dispose of your phone in fire.
	Avoid extreme temperatures.
	Avoid contact with liquids. Keep your phone dry.
	Do not attempt to disassemble your phone.
	Only use approved accessories.
	For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible.
	Don’t rely on your phone as a primary device for emergency communications.

Specific Absorption Rate (SAR)

Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health.

The guidelines use a unit of measurement known as Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg and the highest SAR value for this device when tested at the head was 1.223 W/kg*, and when tested at the body was 1.389 W/kg* with 5 mm distance. As mobile devices offer a range of functions, they can be used in other positions, such as on the body as described in the user manual**.

As SAR is measured utilizing the device's highest transmitting power, the actual SAR of this device while operating is typically below that indicated above. This is due to automatic changes to the power level of the device to ensure it only uses the minimum power required to communicate with the network.

* The tests are carried out in accordance with EN 50360, EN 50566, EN 50663, EN 62209-1 and EN 62209-2.

** Please see body worn operation in the user manual.

Specification

EUT tested radios application	GSM900/1800WCDMA Band 1,8FDD LTE Band 1, 3, 7,8,20,28TDD LTE Band 38,40,41802.11a/b/g/n/acBluetooth V5.0+BR/EDR/LENFCGPS
	WCDMA Version Rel.9LTE Version Rel.12
Maximum RF output power	GSM900: 32.38 dBmGSM1800: 28.71 dBmWCDMA Band 1: 21.9 dBmWCDMA Band 8: 22.6 dBmFDD LTE Band 1: 23.0 dBmFDD LTE Band 3: 22.5 dBmFDD LTE Band 7: 22.2 dBmFDD LTE Band 8: 22.9 dBmFDD LTE Band 20: 22.6 dBmFDD LTE Band 28: 22.2 dBmTDD LTE Band 38: 21.5 dBmTDD LTE Band 40: 23.1 dBmTDD LTE Band 41: 22.2 dBm802.11b/g/n: 16.79 dBm802.11a/n/ac: 10.825 dBmBluetooth BR/EDR: 6.09 dBmBluetooth LE: 4.23 dBmGPS (RX Only)

CE Caution

Battery Caution

• There is a risk of explosion if battery is replaced by an incorrect type.
• Dispose of used batteries according to the instructions.
• Do not dispose of a battery into fire or a hot oven, or mechanically crush or cut a battery. Doing so can result in an explosion.
• Leaving a battery in an extremely high temperature surrounding environment can result in an explosion or the leakage of flammable liquid or gas.
• A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas.

USB Port

This product shall only be connected to a USB interface of version USB 2.0.

Proper Use

As described in this guide, your device can be used only in right location. If possible, please do not touch the antenna area on your device.

Do not expose your device to extreme temperatures lower than 0 °C and higher than +55 °C .

Charge your device only between 0 °C and +40 °C.

Disposal of Your Old Appliance

1. When this crossed-out wheeled bin symbol is attached to a product, it means the product is covered by the European Directive 2012/19/EU.2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

For this product's recycling information based on WEEE directive, please send an e-mail to [e-mail]

EU DECLARATION OF CONFORMITY

CE

Hereby, ZTE Corporation declares that the radio equipment type ZTE 9046 is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following Internet address:

https://certification.ztedevices.com

The device is restricted to indoor use only when operating in the 5150 to 5250 MHz frequency range.

	AT	BE	BG	HR	CY	CZ	DK
	EE	FI	FR	DE	EL	HU	IE
	IT	LV	LT	LU	MT	NL	PL
	PT	RO	SK	SI	ES	SE	UK(NI)

ErP Conformity

The external power supply of this product conforms to the Energy-related Product Directive (ErP) 2009/125/EC of the European Parliament and the Council.

The detailed ErP information is available on ZTE website https://certification.ztedevices.com.
