Product Type	Subwoofer
Brand	Ground Zero
Model	GZPW 10SQ
Series	Plutonium Series
Nominal Diameter	10 inch (250 mm)
Voice Coil Diameter	2 inch (50 mm)
Impedance	Dual 2 ohms
Power Handling (RMS/Max)	400 W RMS / 700 W max
Recommended Amplifier Power	300 – 700 W RMS @ 4 ohms (or 1 ohm)
Sensitivity	83.8 dB @ 1W/1m
Frequency Response (Fs)	34 Hz (resonance frequency)
Total Q (Qts)	0.58
Equivalent Compliance (Vas)	23.54 liters (0.831 cu.ft.)
Moving Mass (Mms)	153.8 grams
Linear Excursion (Xmax)	30 mm (1.18 inch)
Cone Material	Anodized aluminum
Basket Material	Solid aluminum cast
Surround Material	Rubber
Optimization	Klippel optimized for sealed enclosures
Recommended Enclosure (Sealed)	20 – 30 liters net (0.70 – 1.06 cu.ft.)

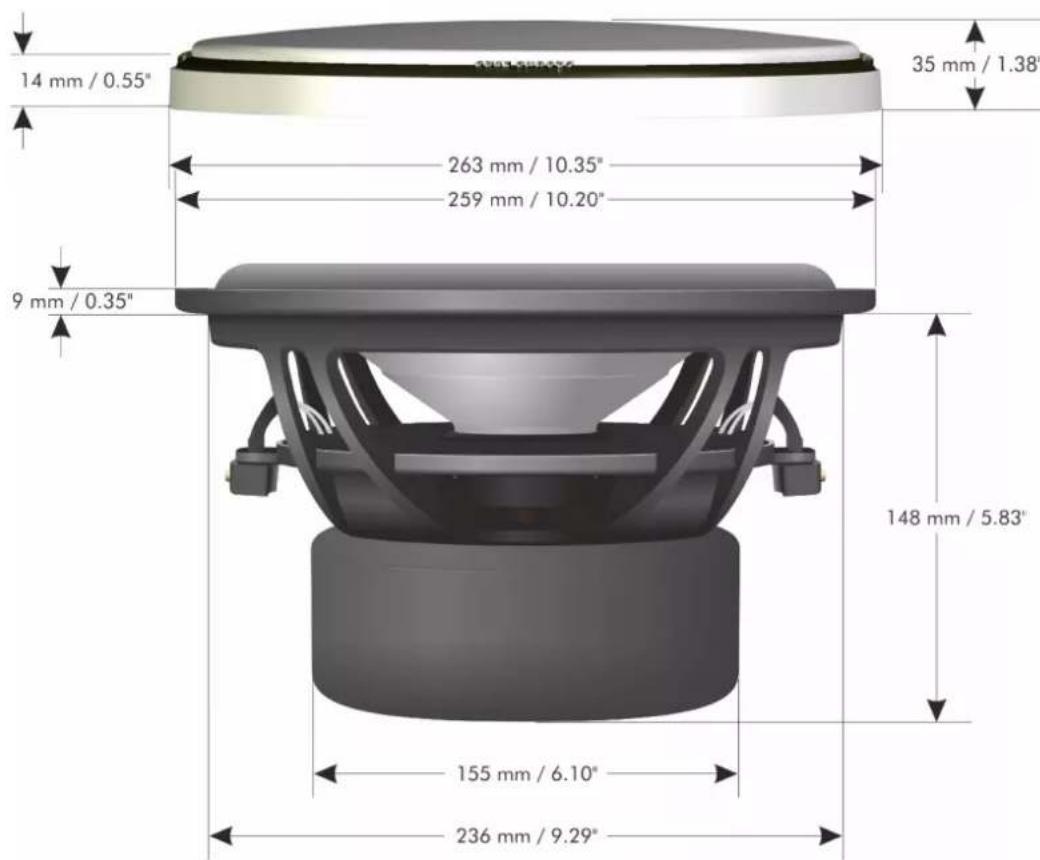

Overall Diameter	263 mm (10.35 inch)
Mounting Depth	155 mm (6.10 inch)
Included Accessories	Aluminum cast fastening rim, protection grill, rubber rims

Frequently Asked Questions - GZPW 10SQ Ground Zero

What is the recommended enclosure type for the GZPW 10SQ?

The GZPW 10SQ is optimized for sealed enclosures. The recommended net volume is 20 to 30 liters (0.70 - 1.06 cu.ft.), with an optimal target of 26 liters.

How do I wire the dual voice coils?

The subwoofer has dual 2-ohm voice coils. You can wire them in parallel for a 1-ohm load or in series for a 4-ohm load. See the wiring diagram in the manual.

What is the power handling of this subwoofer?

The GZPW 10SQ has a RMS power handling of 400 watts and a maximum power handling of 700 watts. The recommended amplifier power is 300–700 watts RMS at the final impedance.

What is the sensitivity of the GZPW 10SQ?

The sensitivity is 83.8 dB @ 1W/1m (86.7 dB @ 2.83V). This is a typical value for a high-end subwoofer.

Can I use this subwoofer in a ported enclosure?

The manual recommends sealed enclosures for optimal sound quality. However, you can experiment with ported designs, but it is not factory-optimized. Consult an audio specialist.

Does the subwoofer come with mounting hardware?

Yes, it includes an aluminum cast fastening ring, a protection grill, and two types of 3D rubber rims (flat and for grill). Screws are also included.

What is the mounting depth of the GZPW 10SQ?

The mounting depth is 155 mm (6.10 inches). Ensure your enclosure or mounting location can accommodate this depth.

How do I break in the subwoofer?

Break-in is recommended by playing music at moderate volumes for about 20-30 hours. This allows the suspension to loosen and achieve optimal performance.

What is the warranty coverage?

Warranty is provided by Ground Zero's regional distribution partners. Terms vary by region. Contact your local dealer or distributor for details.

Can I clean the subwoofer cone?

Use a soft, dry cloth to gently wipe the anodized aluminum cone. Avoid any liquids or abrasive materials. The rubber surround can be cleaned with a damp cloth.

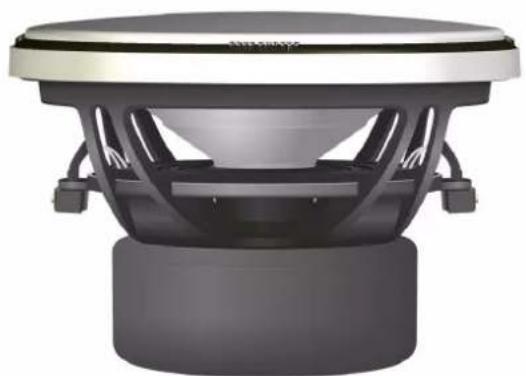

USER MANUAL GZPW 10SQ Ground Zero

3D rendering of a speaker component with exposed microphone and base (no text or symbols)

2

Exterior view of a modern speaker with visible sound waves and base (no text or symbols)

Erlenweg 25, 85658 Egmating, Germany

Tel. [phone]

www.ground-zero-audio.com

GROUND ZERO®

GERMAN ENGINEERING

PLUTONIUM SERIES

Subwoofer

GZPW 10SQ

Owner's Manual

Introduction

Thank you for choosing a GROUND ZERO product and welcome to your new PLUTONIUM series loudspeaker!

This is the owner's manual providing instructions on the operation and installation of this high-end subwoofer. Please, read it carefully. If you have any further questions, please contact your local GROUND ZERO dealer or our regional distribution partner.

This subwoofer is one of the most important parts of your car audio system. However, it will only be able to deliver its full performance when each part of the whole system is tuned carefully matching each other. Therefore, we recommend consulting a car audio specialist to compile the desired sound system, as well as for installation and tuning.

We hope you will enjoy the sound quality of an enthusiastic development by the GROUND ZERO engineering team!

PLUTONIUM Series – The High-End Experience

Products belonging to the GROUND ZERO PLUTONIUM series stand for high-end sound quality or extreme power handling capability.

To achieve one of these targets, exceptional materials and technologies are applied during the development.

The technical, electrical and mechanical skills of the resulting products convince not only during worldwide sound quality competitions but also satisfy the demands of high-end enthusiasts with outstanding audio reproduction ability.

The new GZPW SQ line of subwoofers marks the start of a new generation of low frequency drivers, delivering an outstanding sound performance.

The GZPA SQ amplifiers have been developed by experienced sound quality engineers and tuned by music loving enthusiasts. They are being built with highest care using some of the best quality parts available and run through numerous tests prior to handing over to GROUND ZERO partners and retail shops.

Terms of Warranty

The limited warranty for this product is covered by GROUND ZERO's regional distribution partners and their terms and conditions. For further information contact your local retailer or regional distributor.

General installation note

• Never drill a hole to the vehicle's gas tank or brake lines, to wirings or any other important vehicle parts!
• Never pass wires over sharp edges or vehicle parts due to avoid any kind of damage
• Keep the wiring away from the antenna and electronic devices contributing to radio reception
• Lay the power supply wiring always separated from speaker wiring to avoid disturbance

GROUND ZERO®

GERMAN ENGINEERING

PLUTONIUM SERIES

Subwoofer

GZPW 10SQ

Features

• High-end sound quality subwoofer
- Klippel ^ optimized (for sealed enclosures)
• Anodized aluminum cone
• Solid aluminum cast basket
- Rubber surround
• Copper wire voice coil
• 250 mm / 10" nominal diameter
• Aluminum cast fastening rim and grill included

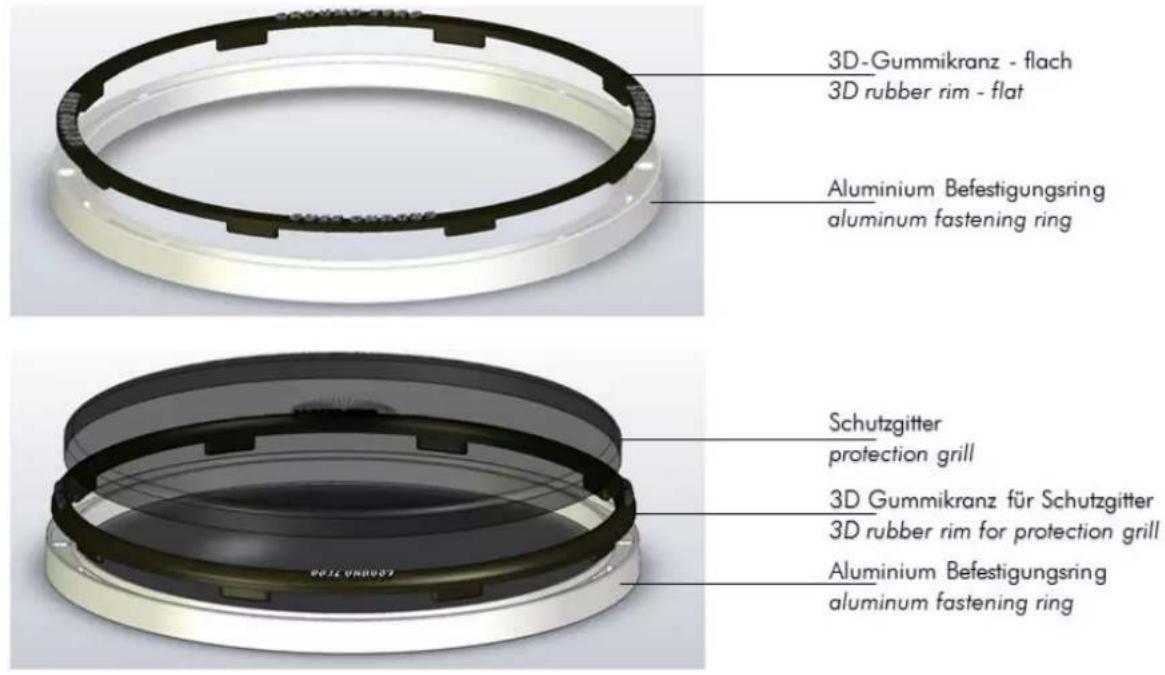

Mounting ring

The aluminum cast fastening ring can be used with either the 3-D flat logo rim only covering the mounting screws or the 3-D logo rubber rim together with the protection grill.

3D-Gummikranz - flach
3D rubber rim - flat
Aluminium Befestigungsring
aluminum fastening ring
Schutzgitter
protection grill
3D Gummikranz für Schutzgitter
3D rubber rim for protection grill
Aluminium Befestigungsring
aluminum fastening ring

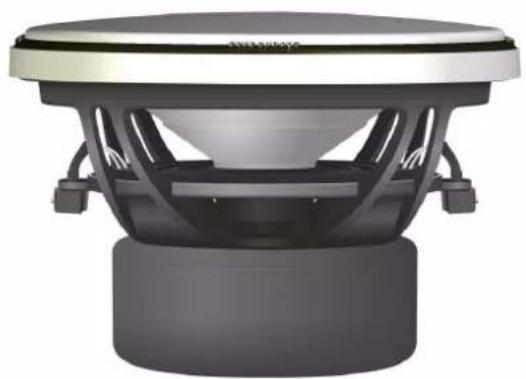

Installation

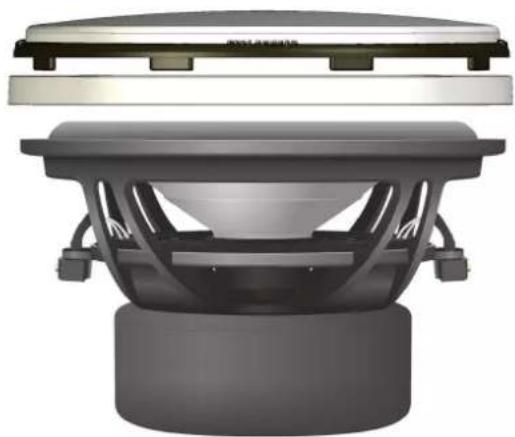

1

3D rendering of a speaker base with exposed microphone and speaker grille (no text or symbols)

2

Exterior view of a speaker with exposed microphone and base (no text or symbols visible)

First, connect the wiring and put the subwoofer to the cutout*. Place the aluminum fastening on top and fasten it using the screws included (or other matching threaded countersunk screws)

* sealing tape or foam is recommended, if necessary

Next, insert the rubber rim to the matching recesses in the fastening ring. And finally, cover the subwoofer with the protection grill by inducting it into the gap of the logo rubber rim.

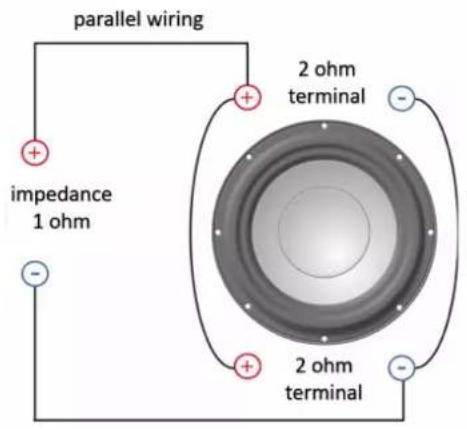

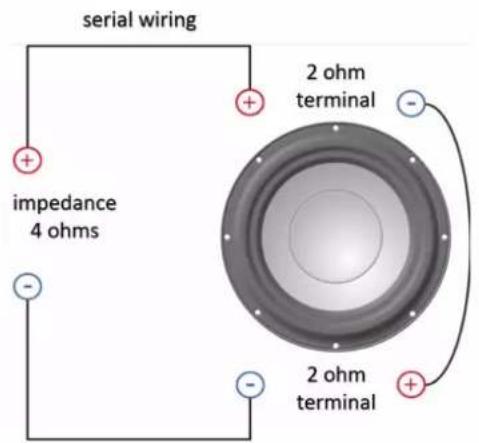

Impedance / parallel or serial wiring

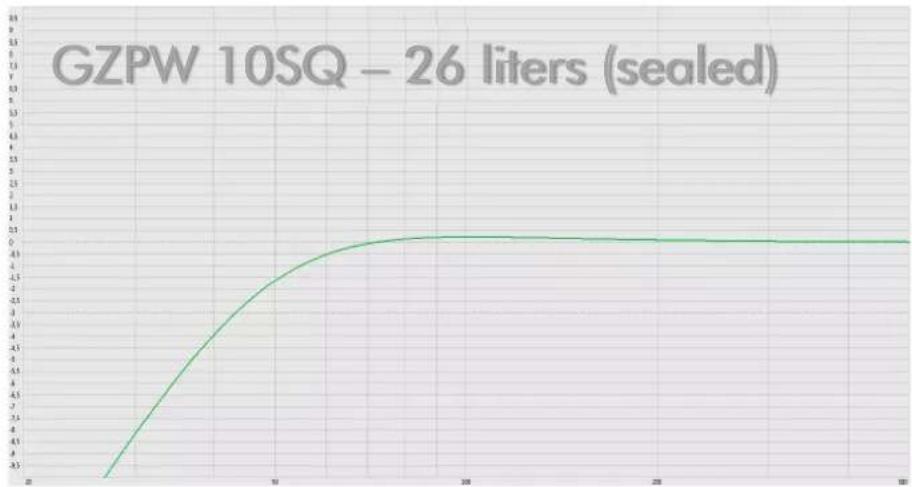

Enclosure recommendation

Sealed	26 liters net / 0.92 cu. ft. net
Enclosure Q	0.79
Sealed (volume range)	20 - 30 liters net / 0.70 – 1.06 cu.ft. net
Enclosure Q (range)	0.85 – 0.78

Note: Individual customer enclosures need to be calculated according the audio target!

Above-mentioned enclosures are just general suggestion! Please note that you should find the enclosure matching your very personal requests regarding the enclosure type, frequency response and resonance tuning based on your car and own taste.

Ground Zero GmbH

Erlenweg 25, 85658 Egmating, Germany

Tel. [phone]

www.ground-zero-audio.com

Specifications

GZPW 10SQ
Voice coil diameter (mm / inch)	50 / 2"
Impedance	2x 2 ohms
Re (in serial)	4.0 ohms
Resonance frequency ( F_s )	34 Hz
Qms	4.89
Qes	0.66
Qts	0.58
Vas (Liter / cu.ft.)	23.54 / 0.831
Mms (grams)	153.8
Xmax (mm / inch)	30 / 1.18"
Efficiency (dB SPL 1W/1m)/(dB SPL 2.83 Vrms)	83.8 / 86.7
B_L	14.5
Le (@ 10 kHz)	1.492 mH
Cms	0.134 mm/N
Power handling (Watts RMS/max.)	400 / 700
Empfohlene Verstärkerleistung /Recommended amplifier power	300 – 700 W RMS@ 4 ohms ( 1 ohm)

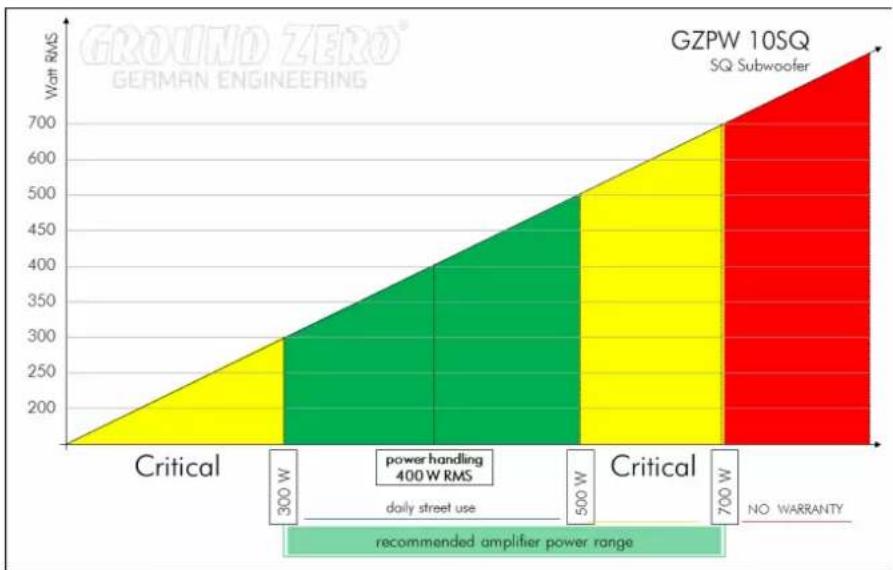

Power handling

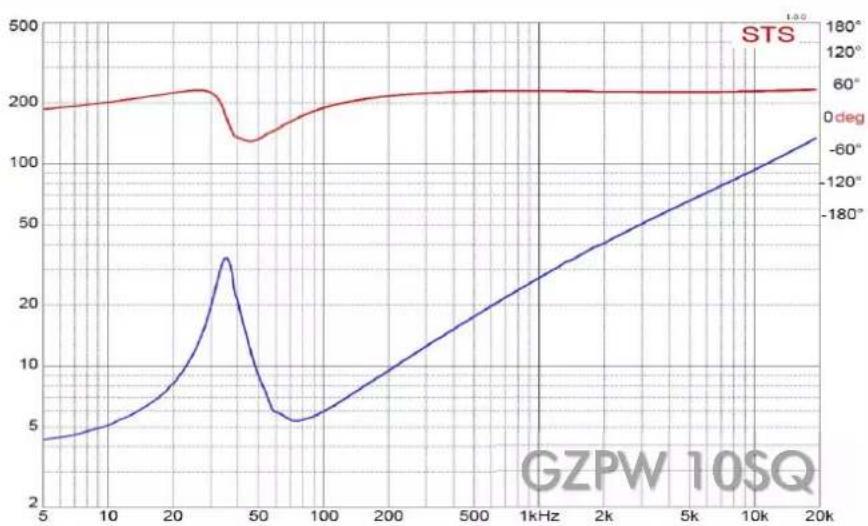

Frequency diagram / Impedance curve
