Product Type	Wall Charger
Model	IB-PS103-PD
Brand	Icy Box
Ports	1x USB Type-C, 1x USB Type-A
USB-C Power Output	5V/3A (15W), 9V/2.25A (20W), 12V/1.5A (18W)
USB-A Power Output	3.6-6.5V/3A (19W), 6.5-9V/2A (18W), 9-12V/1.5A (18W)
Combined Output (Both Ports)	5V/3.4A max (17W)
Input Voltage	AC 100-240 V
Input Frequency	50/60 Hz
Input Current	0.5 A
Charging Standards	USB Power Delivery 3.0, Quick Charge 3.0
Safety Features	Overcharge, overvoltage, overheating, short circuit protection
Included Accessories	1x IB-PS103-PD, 1x Manual
Cable Requirements	USB cables not included (purchase separately)
Compatibility	Smartphones, tablets, and other devices supporting USB PD or QC 3.0
Cleaning	Disconnect before cleaning; use dry, anti-static cloth; avoid aggressive solvents
Disposal	Do not dispose with household waste; recycle per local regulations (WEEE)
Plug Type	EU plug

Frequently Asked Questions - IB-PS103-PD Icy Box

What is the maximum charging power of the IB-PS103-PD?

The IB-PS103-PD delivers up to 20W via USB-C using USB Power Delivery 3.0 and up to 18W via USB-A using Quick Charge 3.0. When both ports are used simultaneously, the total output is limited to 17W at 5V.

Can I charge my smartphone and tablet simultaneously?

Yes, you can charge two devices at the same time using the USB-C and USB-A ports. Note that the combined output is 5V/3.4A max (17W), so charging may be slower than using a single port.

Does the charger support fast charging for Samsung or iPhone?

The charger supports USB Power Delivery 3.0 and Quick Charge 3.0, making it compatible with fast charging for many smartphones, including Samsung Galaxy devices (QC) and newer iPhones (PD). Check your device's compatibility.

Are USB cables included?

No, USB cables are not included. You need to use your own USB-C to USB-C or USB-A to micro-USB/USB-C cables.

What should I do if the charger gets hot?

The charger has overheating protection. If it becomes excessively hot, unplug it and let it cool. Ensure proper ventilation and avoid covering it. If the problem persists, stop use and contact support.

Is the charger compatible with laptops?

The charger provides a maximum of 20W, which is typically insufficient for most laptops. It is designed for smartphones and tablets.

How do I clean the charger?

Disconnect the charger before cleaning. Use a dry, anti-static cloth. Do not use aggressive solvents or moisture.

What does the short circuit protection do?

In case of a short circuit, the output power drops below 5W to prevent damage to the charger and connected device. After the short circuit is removed, operation automatically resumes.

Can I use the charger abroad with 220-240V?

Yes, the charger accepts 100-240V AC input, making it suitable for worldwide use. You may need a plug adapter for different outlets.

How do I dispose of the charger properly?

Do not dispose of the charger in household waste. Follow local regulations for WEEE (Waste Electrical and Electronic Equipment) recycling. Return it to a retailer or designated recycling point.

USER MANUAL IB-PS103-PD Icy Box

2-port USB 20 W fast charger for mobile devices

Handbuch IB-PS102-PD

Black ICY BOX 3.0 charging plug with Type-C and Type-A labels, no visible text beyond branding

Safety information IB-PS102-PD

Please read carefully the following information to prevent injuries, damage to material and device as well as data loss:

Warning levels

Signal words and safety codes indicate the warning level and provide immediate information in terms of the probability of occurrence as well as the type and severity of the consequences if the measures to prevent hazards are not complied with.

DANGER

WARNING

CAUTION

IMPORTANT

Warns of a directly hazardous situation causing death or serious injury.

Warns of a potentially hazardous situation that may cause death or serious injury.

Warns of a potentially hazardous situation that may cause minor injury.

Warns of a potential situation that may cause material or environmental damage and disrupt operative processes.

1. Risk of electrical shock

WARNING

Contact with parts conducting electricity

Risk of death by electrical shock

• Read the operating instructions prior to use
  • Make sure the device has been de-energised prior to working on it
• Do not remove contact protection panels
• Avoid contact with conducting parts
• Do not bring plug contacts in contact with pointed and metal objects
  • Use in intended environments only
• Operate the device using a power unit meeting the specifications of the type plate only!
• Keep the device/power unit away from humidity, liquid, vapour and dust
• Do not modify the device
  • Do not connect the device during thunderstorms
• Approach specialist retailers if you require repairs

Safety information IB-PS102-PD

2. Hazards during assembly (if intended)

CAUTION

Sharp components

Potential injuries to fingers or hands during assembly (if intended)

- Read the operating instructions prior to assembly

• Avoid coming into contact with sharp edges or pointed components
  • Do not force components together
• Use suitable tools
  • Use potentially enclosed accessories and tools only

3. Hazards caused by a development of heat

IMPORTANT

Insufficient device/power unit ventilation

Overheating and failure of the device/power unit

• Prevent externally heating up components and ensure an exchange of air
• Do not cover the fan outlet and passive cooling elements
• Avoid direct sunlight on the device/power unit
  • Guarantee sufficient ambient air for the device/power unit
• Do not place objects on the device/power unit

4. Hazards caused by very small parts and packaging

WARNING

Risk of suffocation

Risk of death by suffocation or swallowing

• Keep small parts and accessories away from children
  • Store/dispose of plastic bags and packaging in an area that is inaccessible to children
• Do not hand over small parts and packaging to children

5. Potential data loss

IMPORTANT

Data loss during commissioning

Potentially irreversible data loss

• Always comply with the information in the operating instructions/quick installation guide
• Use the product only wonce the specifications have been met
• Back up data prior to commissioning
• Back up data prior to connecting new hardware
• Use accessories enclosed with the product

Safety information IB-PS102-PD

6. Cleaning the device

IMPORTANT

Harmful cleaning agents

Scratches, discolouration, damage caused by moisture or short circuit in the device

• Disconnect the device prior to cleaning
• Aggressive or intense cleaning agents and solvents are unsuitable
  • Make sure there is no residual moisture after cleaning
  • We recommend cleaning devices using a dry, anti-static cloth

7. Disposing of the device

IMPORTANT

Environmental pollution, unsuitable for recycling

Potential environmental pollution caused by components, recycling circle interrupted

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

This icon on product and packaging indicates that this product must not be disposed of as part of domestic waste. In compliance with the Waste Electrical and Electronic Equipment Directive (WEEE) this electrical device and potentially included batteries must not be disposed of in conventional, domestic waste or recycling waste. If you would like to dispose of this product and potentially included batteries, please return it to the retailer or your local waste disposal and recycling point.

The included batteries must be completely discharged before return.

Take precaution to protect the batteries from short circuits (e.g. by insulating the contact poles with adhesive tape)

If you have any questions, please do not hesitate to contact our support at [e-mail] or visit our website at www.icybox.de.

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

USB Type-C® Power Delivery or QC 3.0 enabled tablet or smartphone. Additional USB charging cables are not included.

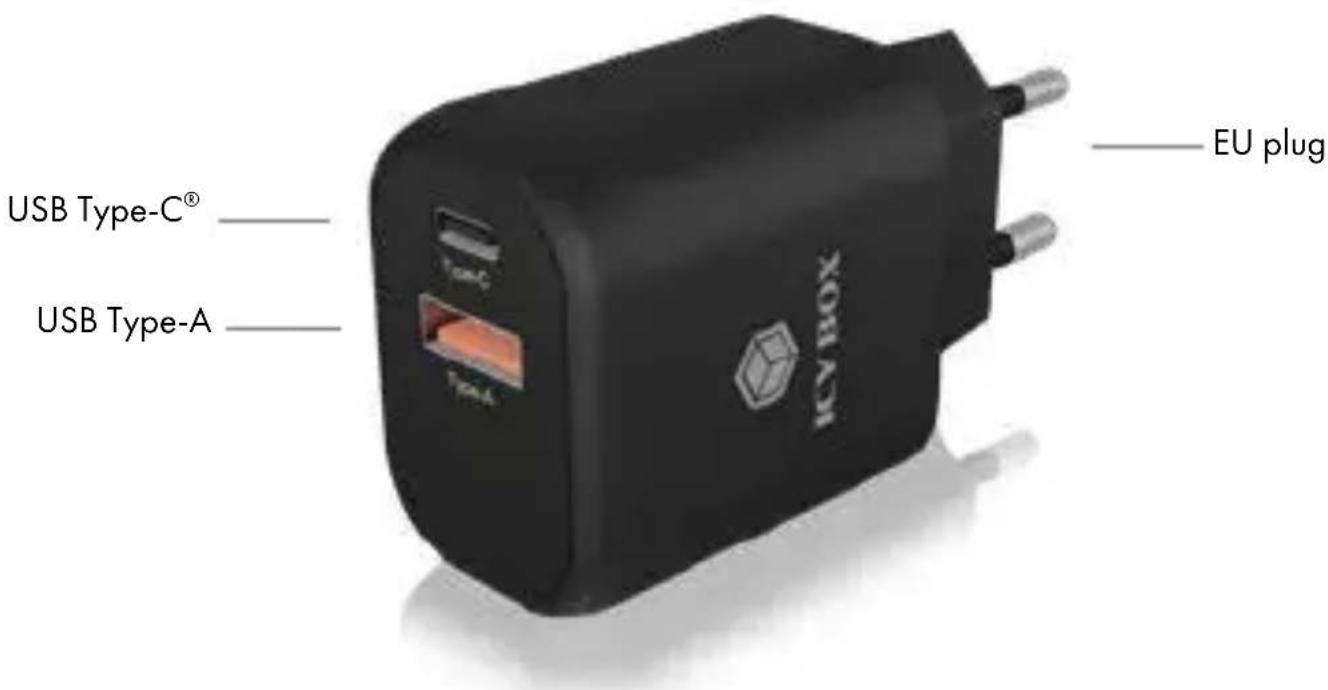

Overview

The IB-PS102-PD is a small wall power adapter with three interfaces for mobile devices. With up to 20 W Power Delivery, it can easily charge smartphones and tablets. OneUSB Type-C® and one USB Type-A port are available. The small, compact design is perfect for on-the-go use.

Manual IB-PS102-PD

Key features

• Compact and energy efficient Power Delivery 3.0 charger
• Charges compatible devices with USB Power Delivery technology in the shortest possible time
  • Power your mobile devices with up to 20 Watts via USB Type-C ^® Power Delivery
  • Additional USB Type-A QC 3.0 port with up to 18 Watts
  • Universal compatibility with many smartphones and tablets
  • Intelligent chipset automatically recognizes the charging mode
• Safe use due to protection against overcharging, overvoltage, overheating and short circuit

Installation

Note: Charging cables are not included.

1. Check the information on the device to be operated to ensure that the specified maximum current is applicable.
2. Connect a USB Type-C ^ cable (not included) to the USB Type-C ^ interface of the IB-PS102-PD and the USB Type-C ^ interface of your supported device.
3. Connect a USB Type-A cable (not included) to the USB Type-A interface (Type-A) of the IB-PS102-PD and the according interface of your supported device.
4. Connect the EU plug to a 100-240 V AC compatible power outlet.

Manual IB-PS102-PD

Usage

Connection	Max. input:AC 100-240 V ~50/60 Hz 0.5 A
Type-C®	5 V@3 A = 15 W; 9 V@2.25 A = 20 W; 12 V@1.5 A = 18 W
Type-A	3.6 - 6.5 V@3 A = 19 W; 6.5 - 9 V@2 A = 18 W; 9 - 12 V@1.5 A = 18 W
Type-C® + Type-A 5 V @3.4 A (Max. 17 W)

Note: In the event of a short circuit, the output power is less than 5 W and neither the IB-PS102-PD nor the connected device will be damaged. After the short circuit is removed, operation is automatically resumed.
