Funky - Toy Chipolino - Free user manual and instructions

Product Type	Toy Scooter
Brand	Chipolino
Model	Funky
Age Recommendation	3 years and older
Maximum User Weight	50 kg (110 lbs)
Weight Capacity	50 kg
Number of Wheels	3 (2 front, 1 rear)
Brake Type	Rear foot brake
Handlebar Grip	Rubber anti-slip grips
Handlebar Height Adjustment	3 positions
Folding Mechanism	Yes, with push-button
Steering	Tilt steering (lean to turn)
Materials	Plastic and metal
Assembly Required	No assembly needed; unfolds and folds
Intended Use	Smooth, paved surfaces only
Safety Warnings	Use under adult supervision; wear protective gear (helmet, knee/elbow pads, shoes)
Not For	Aggressive riding, tricks, jumps, or rough terrain
Maintenance	Periodic check of screws and moving parts; clean with damp cloth and mild soap
Storage	Clean and dry place away from direct sunlight, heat, and moisture
Spare Parts	Use only original parts recommended by manufacturer
Warranty	Contact dealer or authorized service for repairs

Frequently Asked Questions - Funky Chipolino

How do I unfold the Funky scooter?

Press the unfolding button (1) and pull the T-bar upward (2) until it locks with a click.

How do I fold the scooter for storage?

Press the unfolding button (1), then push the handlebar downward (2) until you hear a click indicating it is folded.

What is the maximum weight limit?

The scooter is suitable for children up to 50 kg (110 lbs). Do not exceed this weight.

What age is the scooter recommended for?

The Funky scooter is intended for children ages 3 and older.

Do children need to wear protective gear?

Yes, it is strongly recommended to wear a helmet, knee and elbow protectors, and appropriate shoes.

How do I steer the scooter?

Lean the handlebar in the direction you want to go. Tilt left to turn left, right to turn right. Do not twist the handlebar.

How does the brake work?

Press the rear wheel brake with your heel to slow down or stop. Use only one foot.

Can I adjust the handlebar height?

Yes. Release the fixing bracket, press the pin, move the handlebar tube to one of 3 height positions until the pin clicks into place, then tighten the lever.

How should I clean and maintain the scooter?

Wipe with a soft damp cloth and neutral liquid soap. Do not use aggressive detergents. Regularly oil moving parts. Store in a dry, clean place.

Is the scooter suitable for tricks or jumps?

No. This scooter is not intended for aggressive riding, tricks, or jumps. Use only on smooth surfaces away from traffic.

USER MANUAL Funky Chipolino

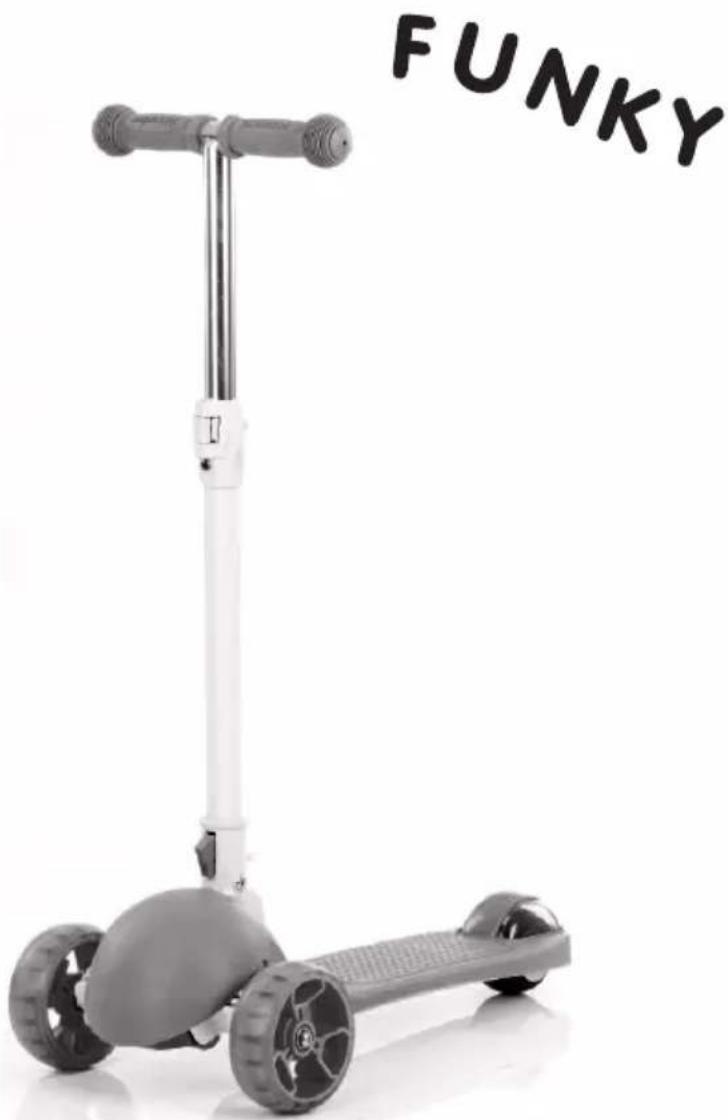

INSTRUCTION MANUAL FOR USE OF KID'S TOY SCOOTER „FUNKY”

This product is produced in conformity with the requirements of the Toy Safety Directive 2009/48/EC of the European Parliament and the Council, national legislation and the applicable to the product European Standards.

TO GUARANTEE THE SAFE USE OF THIS PRODUCT, FOLLOW THE WARNINGS, GUIDELINES AND RECOMMENDATIONS IN THIS MANUAL:

IMPORTANT! WARNINGS!

✿ WARNING! USE ONLY UNDER DIRECT ADULT SUPERVISION – DANGER OF FALLING!
✿ WARNING! THE TOY IS SUITABLE FOR CHILDREN ABOVE 3 YEARS AND WEIGHT UP TO 50KG!
✿ WARNING! DO NOT OVERLOAD! THE TOY IS NOT SUITABLE FOR CHILDEN WITH WEIGHT ABOVE 50kg.
✿ WARNING! BEFORE USING THE TOY, TEACH THE CHILD THE CORRECT WAY TO USE IT AND THE SAFETY RULES. Using the toy requires special skills and increased WARNING to avoid falling and collisions.
- WARNING! WEAR PROTECTIVE EQUIPMENT – helmet, knee and elbow protectors, appropriate shoes.
✿ WARNING! BEFORE EACH USE, CHECK IF THE HANDLEBAR IS WELL FIXED TO THE DECK AS WELL AS IF ALL SCREWS, NUT AND BOLTS ARE WELL TIGHTENED.
✿ WARNING! USE THE TOY ONLY DURING THE DAY ON SECURED PLAYGROUNDS AT A SAFE DISTANCE FROM STREETS AND VEHICLE ROADS.
WARNING! KEEP AWAY FROM FIRE!
WARNING! USE THE TOY ONLY FOR ITS PURPOSE.
✿ WARNING! THIS TOY IS NOT INTENDED FOR AGGRESSIVE RIDE, TRICKS AND JUMPS!
✿ ONLY an adult should open and fold the TOY!
DO NOT allow presence of children under 3 years before having assembled the TOY completely, to avoid access to small and dismantled parts!
This TOY is intended for one child ONLY!
DO NOT use the TOY if you find missing or damaged parts.
DO NOT use the brake while turning left or right, this can cause the child to fall!
DO NOT attach strings or accessories to the TOY to avoid risk of entanglement!
DO NOT put items or luggage on the handlebar to avoid risk of balance disturbance!
The child must hold the handlebar with both hands to ride safely.
DO NOT put heavy items or objects on the TOY in order not to damage its construction.
DO NOT use another transport means to move the TOY by hauling!
DO NOT let the child using the TOY or other children close to it to touch the wheels with hands and/or put items on them!
Use away from rivers, pools, stairs and hurdles!
DO NOT make changes or modifications to the construction of the TOY! If necessary, contact the dealer or an authorized service for advice and repair.
DO NOT use spare parts or other components, which are not supplied by the producer! The producer revokes all responsibility in case you have used spare parts different from the original ones or recommended by him.
- Keep the plastic bags away from children to avoid risk of suffocation!

MAIN FEATURES

The TOY is suitable for children above 3 years and weight up to 50kg;
The child must grip the handlebar with two hands, step on the deck with one foot and push with the other foot;
◆ Rubber anti-slip handle grips;
✿ Rear wheel brake.

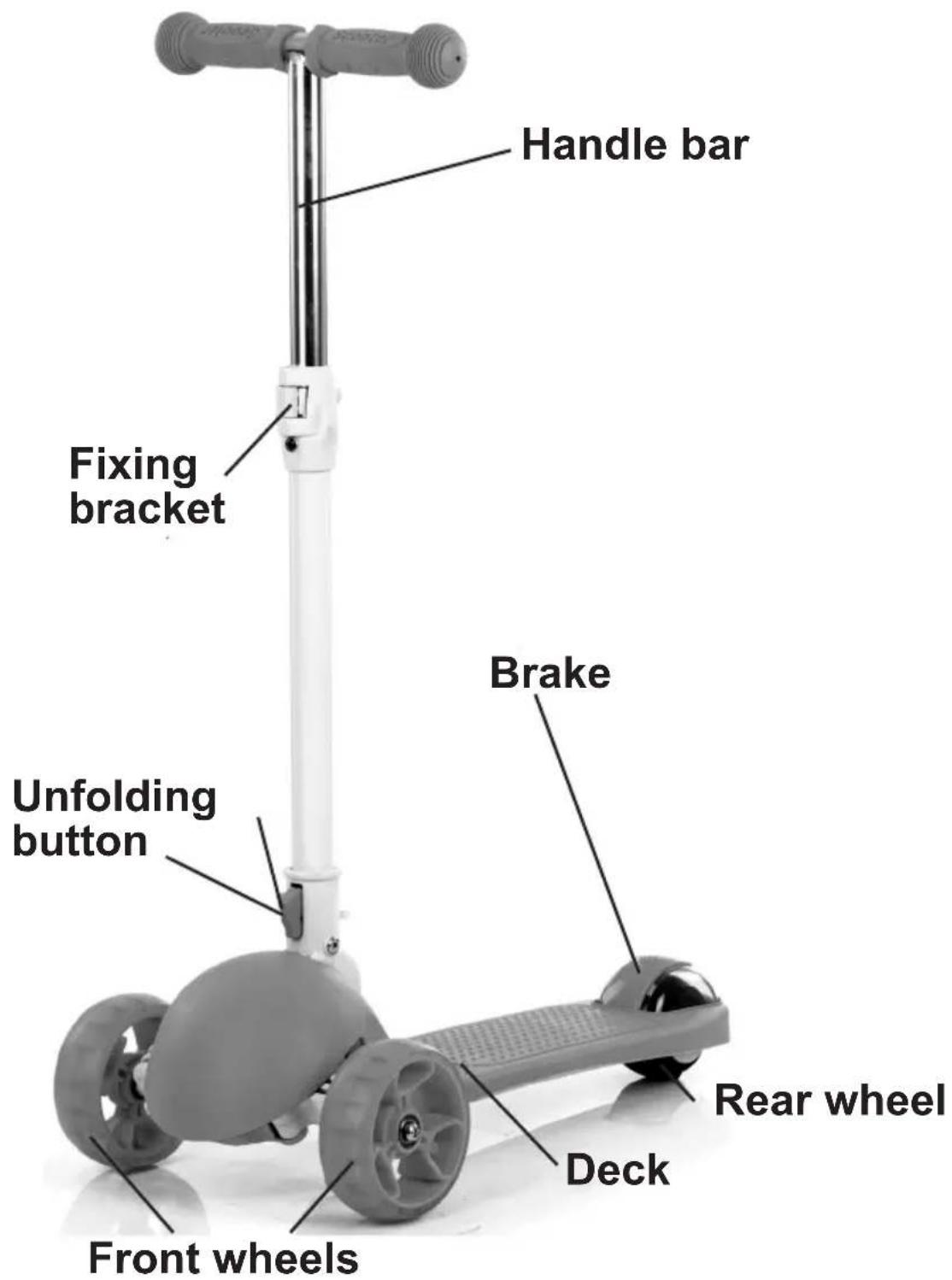

MAIN PARTS

ASSEMBLY AND SAFE USE

WARNING! FOLLOW EXACTLY THE GUIDELINES AND SEQUENCE OF ASSEMBLY AND USE GIVEN IN THE BELOW TEXT AND FIGURES.

WARNING! CHECK THE SECURITY OF FIXING UPON COMPLETING EACH OPERATION!

WARNING! THE TOY MUST BE USED WITH INCREASED WARNING BECAUSE IT REQUIRES SKILLS TO BALANCE. IN THIS WAY YOU WILL AVOID FALLING OR COLLISIONS WHICH MAY CAUSE INJURY TO THE CHILD OR OTHER PEOPLE.

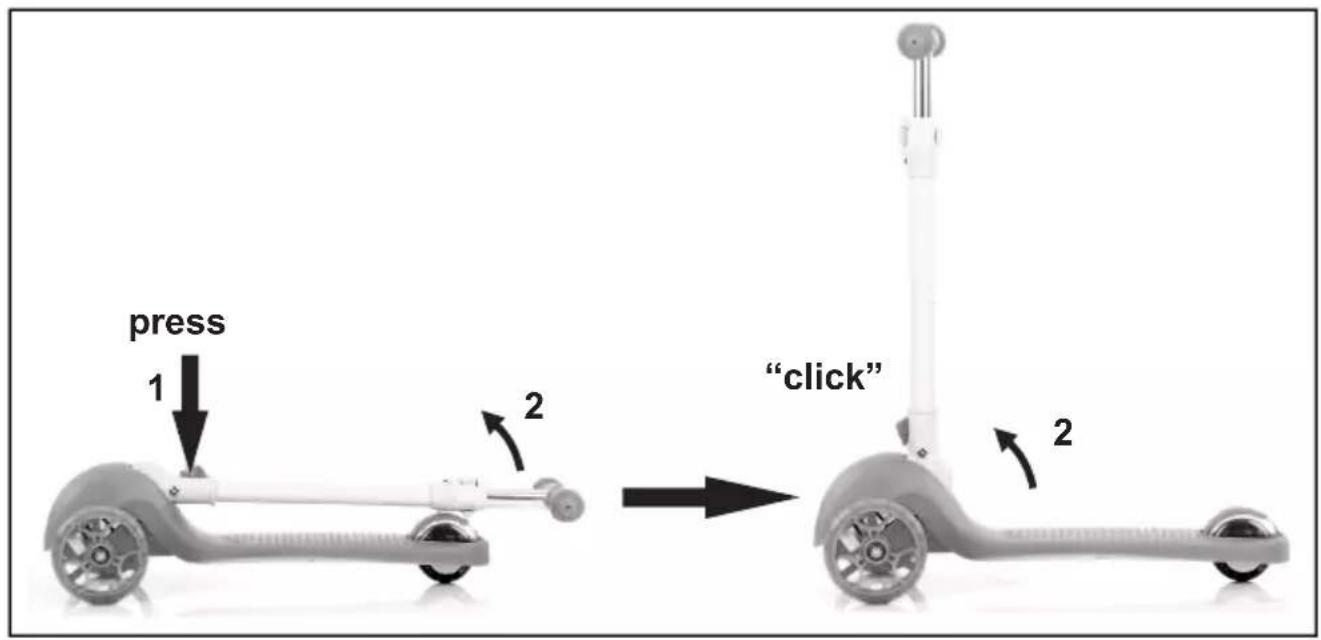

UNFOLDING SCOOTER

Press the unfolding button (1). Pull the T-bar up (2), until it is fixed and you hear a click.

SCOOTER MOVEMENT

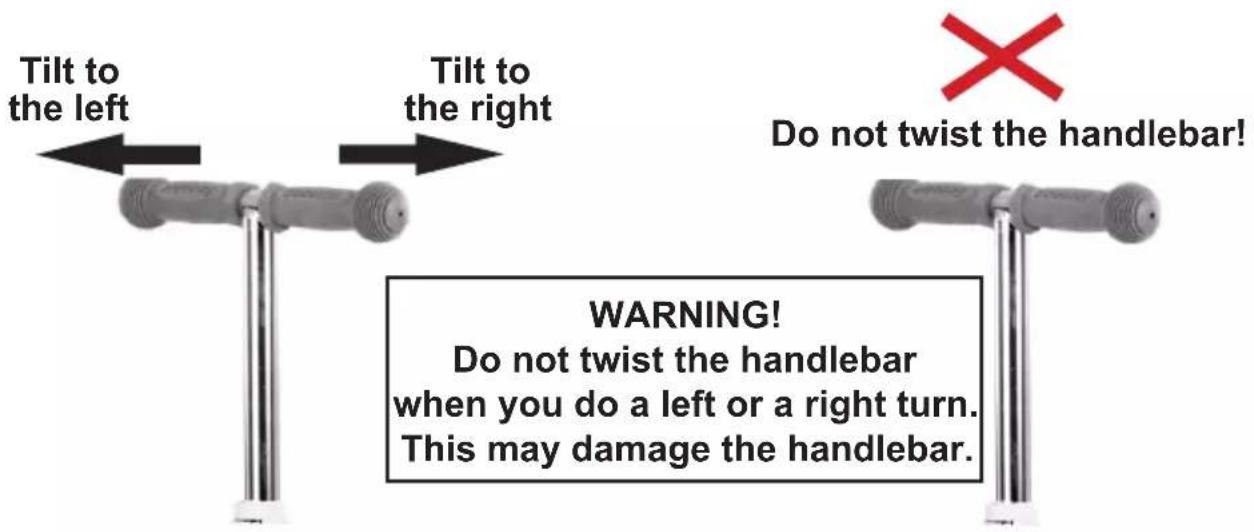

When you tilt the handlebar to the right, the wheels will turn RIGHT and the scooter will turn right. When you tilt the handlebar to the left, wheels will turn LEFT and the scooter will turn left. When in upright position, the scooter will move STRAIGHT.

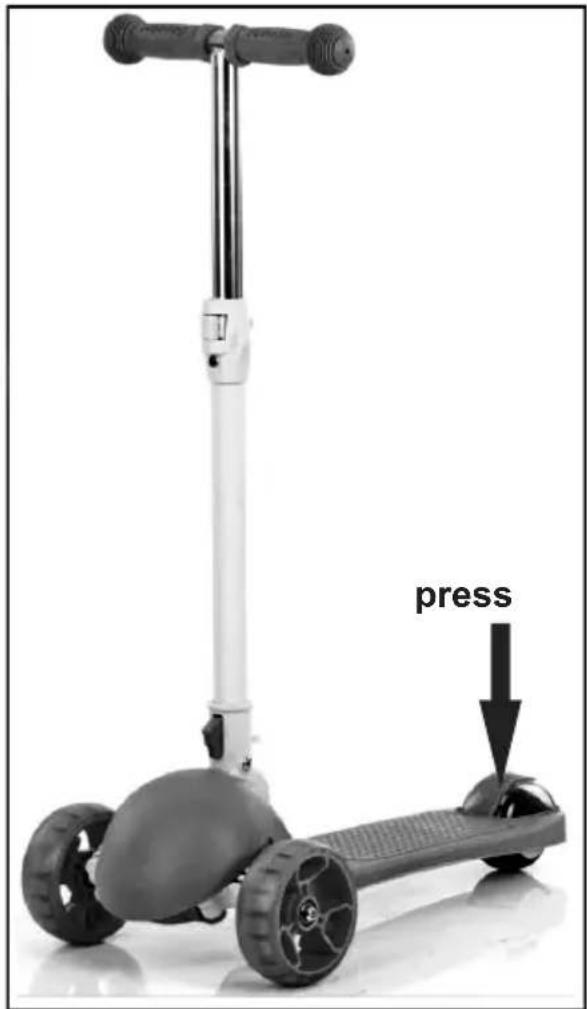

The rear wheel has a BRAKE. To use the brake during movement, the child can step with its heel on it and press it until the scooter stops.

WARNING! The brake must be used with only one foot!

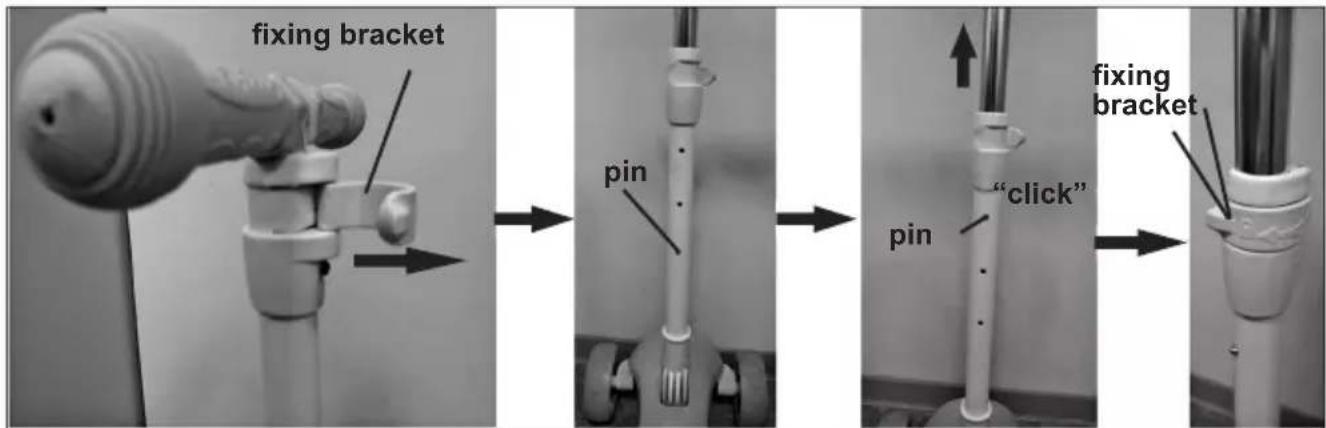

ADJUSTING THE HANDLEBAR HEIGHT - 3 positions

• Release the fixing bracket by pulling it out.
• Press the pin and move the tube of the handlebar in the desired height until you hear a click and the pin shows through the respective opening.
• Tighten the lever, which adjusts the height of the handlebar.

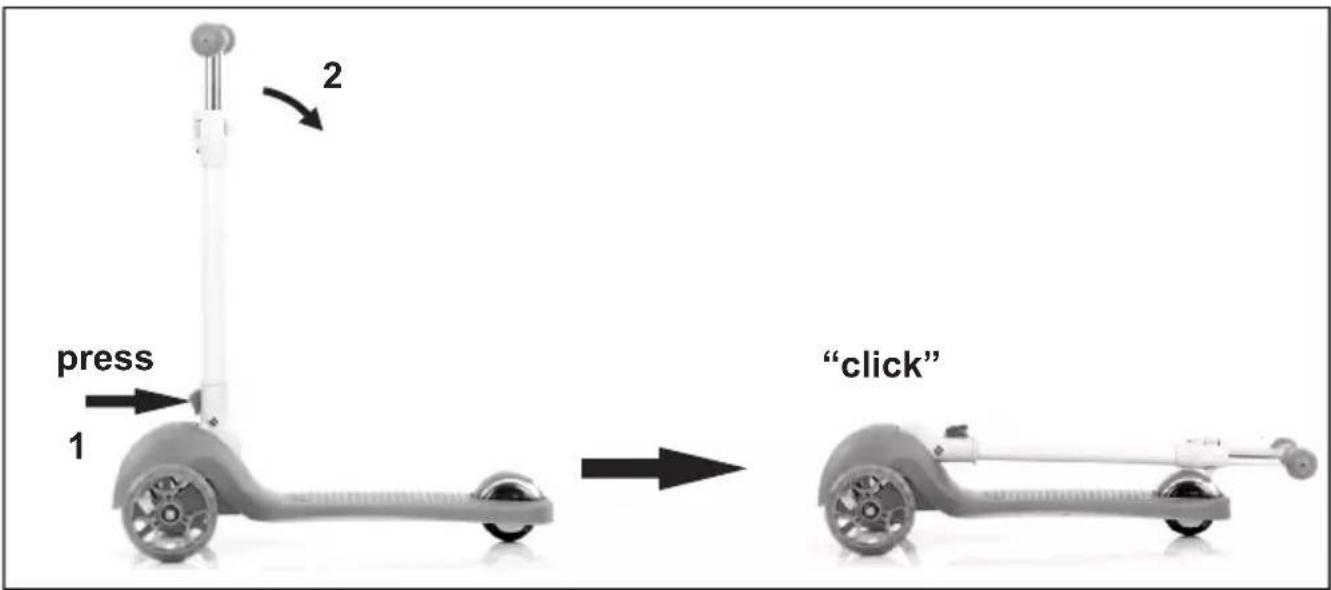

FOLDING

Press the unfolding button (1), then press the handlebar down (2), until the scooter is folded and you hear and click.

Use of helmet, knee and elbow protectors, shoes

For more safety, the child must wear a helmet on the head, knee and elbow protectors and shoes while using the toy!

The helmet must be steady on the head and not tilted back or not protecting the forehead.

Side-by-side comparison of a person wearing a helmet, showing front and side views with no text or symbols

CARE AND MAINTENANCE

Periodically check the good working order of the separate parts.
Do not cover the TOY with liquid. Clean with soft damp towel and a neutral liquid soap.
Do not clean with aggressive detergents containing abrasive particles, ammonia, bleach or spirit.
◆ Regularly oil the moving parts.
Do not use on sandy terrains.
Do not store the TOY in places with very warm air or close to heat sources, it will deform.
- Store the TOY in a clean and dry space. Do not subject to direct environmental influence – sun, rain, moisture or harsh temperature changes!
❖ Always dry the TOY or leave it to dry before storing it or using it again. Mildew may appear if you store the product damp.
In case or problems related to the normal exploitation of the product, turn to authorized service for advice and repair.

Materials used: plastic, metal.

DSFUN023xxx/WX-824
