Brand	Heinner
Model	HHPD-V10T2KA++
Product Type	Heat pump tumble dryer
Loading Capacity	10 kg
Energy Efficiency Class	A++
Dimensions (Height x Width x Depth)	845-855 mm x 596 mm x 609 mm
Net Weight	45.3 kg
Voltage / Frequency	220-240 V / 50 Hz
Power Consumption	1000 W
Refrigerant / Quantity	R290 / 110 g
Annual Energy Consumption	282 kWh
Standard Cotton Programme Time (full/partial load)	239 min / 130 min
Condensation Efficiency Class	B
Sound Power Level	65 dB(A)
Programs	16 programs including Cotton, Synthetics, Delicate, Time Drying, Baby Care, Duvet, Sport, Mix, Wool Refresh, Refresh, Express 34', Shirts 20'
Additional Functions	Delay Start (1-23h), Anti-Crease, Child Lock, Buzzer Cancel, Drying Level (3 steps), Delicate Drying, Time Drying (10-180 min)
Lint Filter Cleaning	After each use
Condenser Cleaning	Every 30 cycles or once a month
Water Tank Capacity	Empty after each use
Drum Light	LED (auto on/off)
Installation Options	Free-standing or under counter (min 3 cm clearance); stackable on compatible washing machine with optional kit
Optional Accessories	Drain hose (for direct water outlet), Stacking kit
Safety Features	Child lock, door open detection, overheating protection, R290 flammable refrigerant warnings
Minimum Room Size (R290 safety)	13.75 m³

Frequently Asked Questions - HHPD-V10T2KA++ Heinner

What is the maximum load capacity of the Heinner HHPD-V10T2KA++?

The maximum load capacity is 10 kg of dry laundry.

How do I clean the lint filter?

Open the loading door, pull up the lint filter, open the outer and inner filters, clean both with hands or a soft cloth, then reassemble and refit. Clean after each use.

How often should I clean the heat exchanger (condenser)?

Clean the heat exchanger after every 30 drying cycles or once a month, even if the warning light is not on. Follow the steps in the manual.

Can the dryer be installed under a counter?

Yes, but you must leave at least 3 cm clearance on the sides, rear, and above. The assembly/disassembly for under-counter installation must be done by an authorized service agent.

What should I do if the drying process takes too long?

Possible causes: clogged lint filter, clogged condenser, room temperature too high, overloaded drum, or insufficient spin speed. Clean the filter and condenser, ensure good ventilation, do not overload, and select a higher spin speed on your washing machine.

Is the dryer safe for delicate fabrics?

Yes, use the Delicate programme or select the Delicate Drying option to dry thin, silk, or sensitive fabrics at low temperature. Always check care labels first.

Can I place the dryer on top of a washing machine?

Yes, but only on a washing machine with equal or larger capacity. You must use an optional stacking kit (contact customer service) and ensure the total weight does not exceed 150 kg.

How do I activate the child lock?

Press and hold the Delayed Start and Anti-Crease buttons simultaneously for 3 seconds. 'CL' will appear on the display. Deactivate by repeating the same action.

What does the error code E03 mean?

E03 indicates the water tank is full. Empty the water tank. If the problem persists, contact an authorized service agent.

Can I use an extension cord?

No, do not use extension cords, multi sockets, or adapters. Connect the dryer directly to an earthed socket protected by a 16 A fuse to avoid fire or electric shock.

USER MANUAL HHPD-V10T2KA++ Heinner

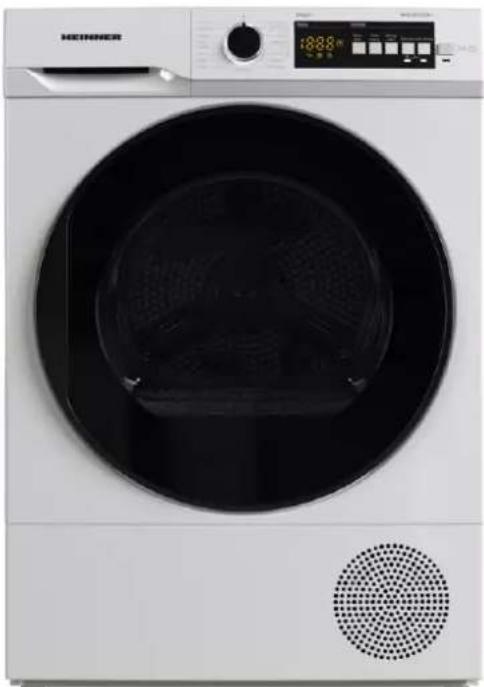

Front view of a white HEINER washing machine with black vent and control panel (no visible text or symbols)

• Heat pump dryer
• Loading capacity: 10 kg
• Energy class: A++

Thank you for purchasing this product!

I. INTRODUCTION

Before using the appliance, please read carefully this instruction manual and keep it for future reference.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

Icon	Caption	Description
	WARNING	Risk of serious injury or death
	RISK OF ELECTRIC SHOCK	Dangerous voltage
	FIRE	Risk of fire
	ATTENTION	Risk of injury or material damage
	IMPORTANT/NOTE	Information on correct operation of the system
	Read the instructions
	Hot surface

II. CONTENT OF YOUR PACKAGE

▶ Heat pump dryer
User manual
Warranty card

III. SAFETY PRECAUTIONS

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be made by children without supervision.
• This tumble dryer is intended only for household and indoor use. The warranty will be void in case of commercial use.
• Use this product only for laundry with a label that indicates it is suitable for drying.
• The manufacturer will not accept responsibility for damages resulting from incorrect use or transport.
• The service life time of your tumble dryer is 10 years. This is the period during which the spare parts required for the tumble dryer to operate properly will be commercially available
• Do not allow floor coverings to obstruct the ventilation openings.
• Installation and repair of the machine should only be made by an authorised repair agent. The manufacturer cannot be held responsible for damages resulting from un-authorised repairs.

WARNING: Never spray or pour water onto the dryer to wash it! There is risk of electric shock!

• Leave at least 3 cm of space between the side and rear walls of the product and above if you plan on placing your appliance under a worktop.
• Assembly / disassembly for under-counter installation if necessary must be done by an authorised service agent.
• Before installation, check the product for visible damage. Never install or operate a damaged product.
• Keep pets away from the dryer.
• Fabric softeners, or similar products, should be used in accordance with the manufacturers instructions.
• Remove all objects from pockets such as lighters and matches.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, if it prevents the door from being fully opened.

WARNING: In the appliance enclosure or in the built-in structure, keep ventilation openings clear of obstruction.

• The plug socket must be freely accessible at all times after installation.
  a. A damaged power cord/plug can cause fire or give you an electric shock.
  b. When damaged it must be replaced, this should only be done by qualified personnel.

To avoid the risk or fire or electric shock, do not use extension cords, multi sockets or adapters to connect the dryer to mains power.

1.2. Children's Safety

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.s
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be made by children without supervision.
• Do not leave children unattended near the machine.
• Children might lock themselves in the machine resulting in risk of death.
• Do not allow children to touch the glass door during operation. The surface becomes extremely hot and may cause skin damage.
• Keep packaging material away from children.
• Poisoning and irritation may occur if detergent and cleaning materials are consumed or come into contact with the skin and eyes.
• Keep cleaning materials out of the reach of children Electrical products are dangerous for children.
• Keep children away from the product while it is running.
• To prevent children from interrupting the dryer cycle, you can use the child lock to avoid any changes in the running programme.
• Do not allow children to sit/climb on or climb inside the product.

1.3. Product Safety

Due to risk of fire, the following laundry items and products should never be dried in the dryer:

• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
• Cleaning cloths and mats that have residues of flammable cleaning agents or acetone, gas, patrol, stain remover, turpentine, candle, wax, wax remover or chemicals.
• Laundry that has residues of hair sprays, nail polish remover and similar substances.
• Laundry on which industrial chemicals have been used for cleaning (such as chemical cleaning).
• Laundry that has any kind of foam, sponge, rubber or rubber-like parts or accessories. These include latex foam sponge, shower caps, waterproof fabrics, fitted clothes and foam pillows.
• Items with filling and damaged items (pillows or jackets). Foam protruding from these items might catch fire during the drying process.
• Operating the dryer in environments that contain flour or coal dust may cause explosion.

Attention: Underwear that contains metal reinforcements should not be put in the dryer. The dryer may be damaged if metal reinforcements come loose ad break off during drying.

FIRE:R290

Risk of fire and damage!

This product contains environmental friendly but flammable R290 gas. Keep open flame and fire sources away from the product.

1.4. Correct Use

ATTENTION: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

ATTENTION: Make sure that pets do not enter the dryer. Check the inside of the dryer before using it.

ATTENTION: Superheating of clothes inside of the dryer can occur if you cancel the programme or in the event of a power failure whilst the dryer is running. This concentration of heat can cause self-combustion so always activate the Refresh programme to cool down or quickly remove all laundry from the dryer in order to hang them up and dissipate the heat.

• Use the dryer only for household drying and to dry fabrics with a label that indicates they are suitable for drying. All other uses are out of the scope of intended use and are prohibited.
• The warranty will be void in case of any commercial use.
• This appliance is designed to be used inside domestic residences only, and should be placed on a straight and stable surface.
• Do not lean against or sit on the door of the dryer. The dryer may tip over.
• To maintain a temperature that will not harm the laundry (e.g. to prevent the laundry from catching fire), a cooling process starts after the heating process. After this, the programme ends. At the end of the programme, always remove the laundry promptly.

ATTENTION: Never use the dryer without a lint filter or with a damaged lint filter.

Lint filters must be cleaned after each use as indicated in Cleaning the Lint Filter.

• Lint filters must be dried after wet cleaning. Wet filters might cause malfunction during the drying process.
• Lint accumulation must not to be allowed around the tumble dryer (not applicable for appliances intended to be vented to the exterior of the building).

IMPORTANT: The clearance between the dryer and the floor should not be reduced with objects such as carpets, wood or panel, otherwise, sufficient air intake cannot be ensured for the machine.

• The maximum load capacity is 7 kilograms (dry laundry).
• Do not install the dryer in rooms where there is risk of freezing. Freezing temperatures negatively affect the dryers performance. Condensation that freezes in the pump and hose may cause damage.

1.5. Installing On Top Of a Washing Machine

ATTENTION: A washing machine cannot be placed on the dryer. Pay attention to the warnings below when installing the dryer on a washing machine.

ATTENTION: The dryer can only be placed on washing machines that have a same capacity and above.

• To use the dryer on the washing machine, a fixing part must be used between the two products. The fixing part must be attached by an Authorised Service Provider.
• When the dryer is placed on the washing machine, the total weight of these products may reach almost 150 kilograms (when loaded). Place the products on a solid floor that has a load bearing capacity!

Appropriate installation table for washing machine and tumble dryer
Tumble dryer (depth)	Washing machine
	37-41 cm	42-45 cm	46-49 cm	50-56 cm	57-63 cm
52.5 cm	X	√	√	√	√
56 cm	X	X	√	√	√
61 cm	X	X	X	√	√
64 cm	X	X	X	X	√

In order to put the dryer machine onto the washing machine, a special stacking kit is required as an optional extra. Please contact customer service to acquire. The assembly instruction will be served together with the stacking kit.

IV. INSTALLATION

Connection to water outlet (with optional drain hose, not included in the package)

In products with a heat pump unit, water accumulates in the water tank during the drying process. You must empty the accumulated water after each drying process. Instead of periodically emptying the water tank, you can also use the water drain hose*, to directly drain the water outside.

Connecting the Water Discharge Hose

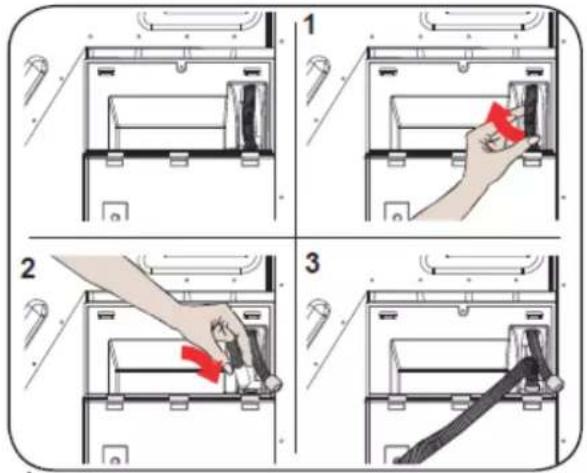

1. Pull and take out the end of the hose at the back of the dryer. Do not use any tools to take out the hose.
2. Fit one end of the water discharge hose to the slot from which you have removed the hose.
3. Fix the other end of the water discharge hose directly to the water outlet or sink.

ATTENTION: The hose must be connected in a manner that it cannot be displaced. If the hose comes out during water discharge, there might be flooding in your house.

IMPORTANT: The water discharge house must be installed at a height of 80cm maximum.

IMPORTANT: The water discharge hose must not be sent between the outlet and the product, folded or stepped over.

* The water drain hose can be purchased separately as a spare part

Adjusting the feet

1. For the dryer to work with less noise and vibration, it must be stable and balanced on its feet. Adjust the feed to ensure that the product is balanced.
2. Rotate the feet to the right and to the left until the dryer is even and stable.

IMPORTANT: Never remove the adjustable feet.

Electrical connection

ATTENTION: There is risk of fire and electric shock.

1. Your dryer is set to 220-240 V and 50 Hz.
2. The mains cable of the dryer is equipped with a special plug. This plug must be connected to an earthed socket protected by a fuse of 16 Amperes as indicated on the type plate. The fuse current rating of the power line where the outlet is connected must also be 16 amperes. Consult a qualified electrician if you do not have such an outlet or fuse.
3. Our company cannot be held responsible for damages resulting from usage without earthing.

IMPORTANT: Operating your machine at low voltage values will shorten the service life and decrease the performance of your machine.

Under counter installation

1. Leave at least 3 cm of space between the side and rear walls of the product and the underside of the worktop when installing your product under a counter.
2. Assembly / disassembly under the counter if necessary must be done by authorized service.

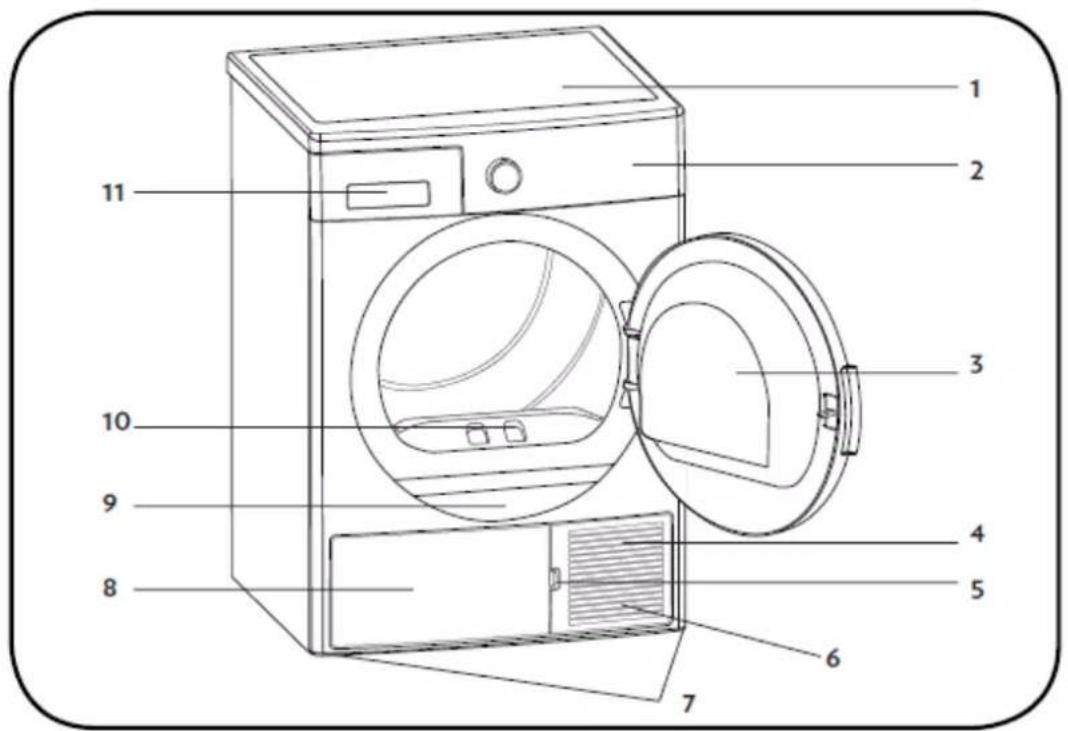

V. PRODUCT DESCRIPTION

1. Upper tray
2. Control panel
3. Loading door
4. Plinth
5. Plinth opening slot

6. Ventillation grills

7. Adjustable feet

8. Plinth cover
9. Type plate
10. Lint filter
11. Drawer cover

VI. USING THE APPLIANCE

1. Sorting the laundry to be dried

Follow the instructions on the labels of the laundry to be dried. Only dry items that have a statement/symbol that indicates "they can be dried in a dryer".

- Do not operate the product with load amounts and laundry types other than those given in 4.3. Load Capacity.

Suitable for drying in a dryer	Does not need ironing	Sensitive/Delicate drying	Not suitable for drying in a dryer
No drying	Do not dry-clean	At any temperature	At high temperatures
At medium temperatures	At low temperatures	Heatless	Hang to dry
Spread to dry	Hang wet to dry	Spread in shadow to dry	Suitable for dry cleaning

Do not dry thin, multi-layer or thick-layer fabrics together as they dry at different levels. For this reason, dry clothes together that have the same structure and fabric type. This way, you can get an even drying result. If you think that the laundry is still wet, you can select a time programme for additional drying.

Please dry your big (like duvets) and small sizes of laundries separately in order to not to have a damp laundries.

IMPORTANT: Delicate fabrics, embroided fabrics, woolen/silk fabrics, clothes made of delicate and expensive fabrics, airtight clothes and tulle curtains are not suitable for drying in the dryer.

2. Preparing the laundry to be dried

Risk of explosion and fire!

Remove all objects from pockets such as lighters and matches.

ATTENTION: The drum of the dryer and the fabrics may get damaged.

• The clothes may have become entangled during the washing process.
• Separate them from each other before placing them in the dryer.
• Remove all objects in the pockets of the clothes and apply the following:
• Tie fabric belts, apron laces etc. to each other or use a laundry bag.
• Lock the zips, clasps and fasteners, do up the buttons of covers.
• To get the best drying result, sort the laundry according to the textile type and drying programme.
• Remove clips and similar metal parts from the clothes.
• Woven goods such as t-shirts and knit clothes generally shrink in the first drying. Use a protective programme.
• Do not over-dry synthetics. This will cause creases.
• When washing the laundry to be dried, adjust the amount of softener according to the data from the manufacturer of the washing machine.

3. Load capacity

Follow the instructions in the "Programme selection and consumption table". (Do not load the product with more laundry than the capacity values specified in the table.

IMPORTANT: It is not recommended to load the dryer with more laundry than the amount shown in the figure. When overloaded, the drying performance of the dryer will decrease and the dryer and laundry might be damaged.

Laundry	Dry load weight (gr)
Bedsheet	725
Pillowcase	240
Bath towel	700
Hand towel	225
Shirt	190
Cotton shirt	200
Duvet	650
Fabric	400
T-shirt	120

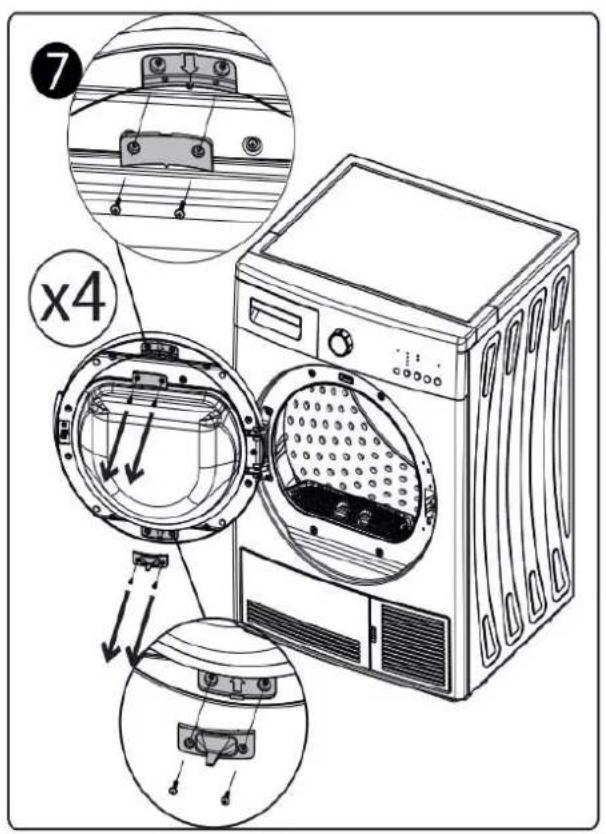

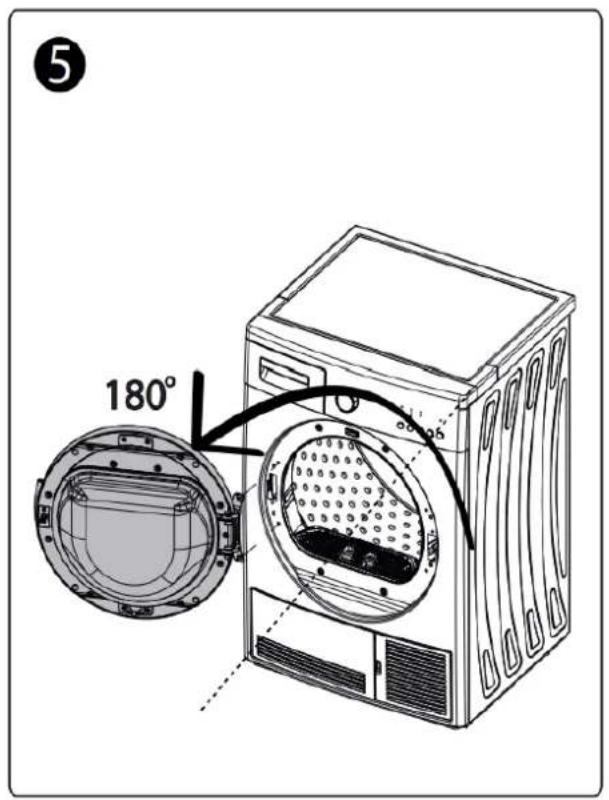

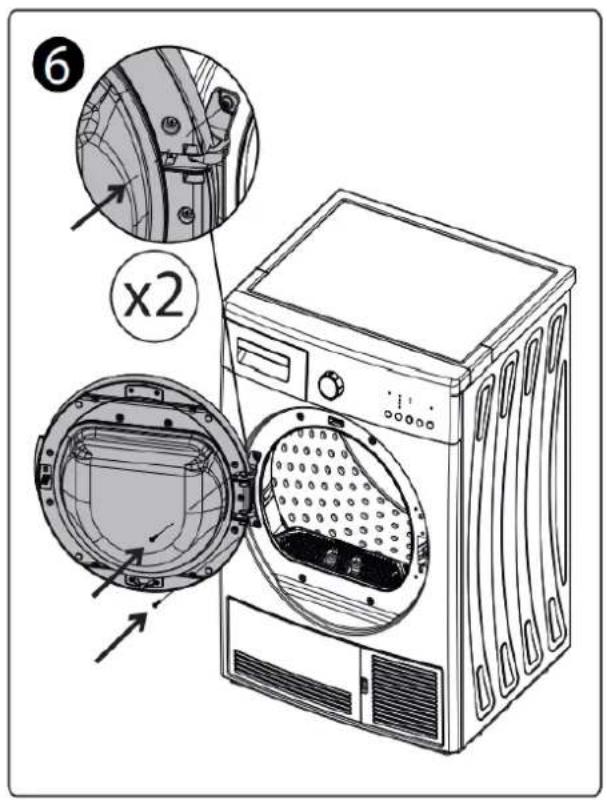

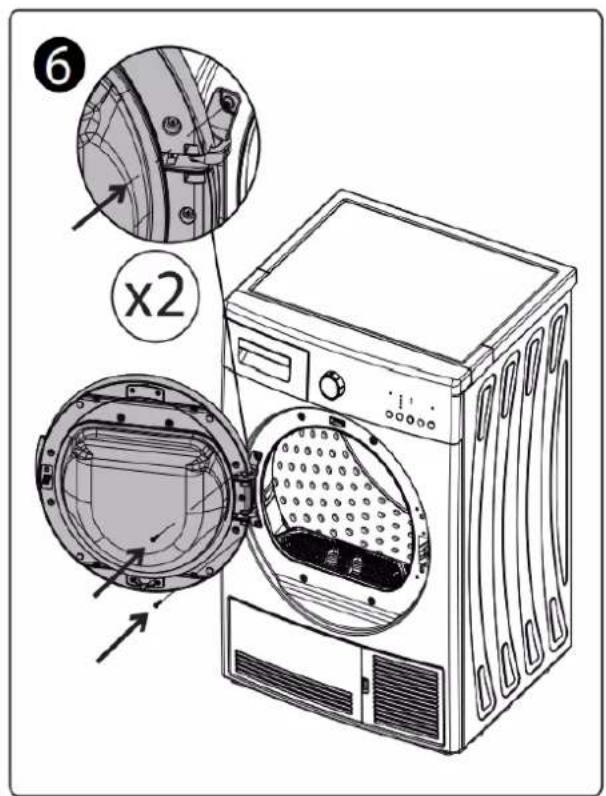

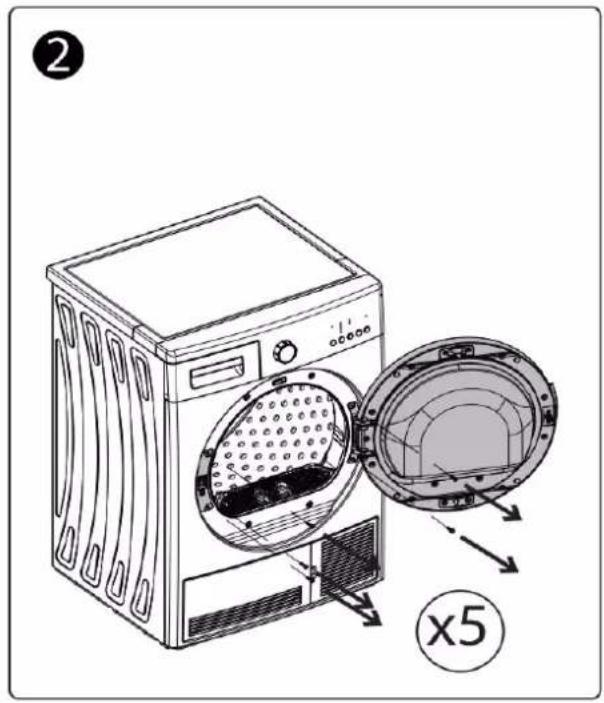

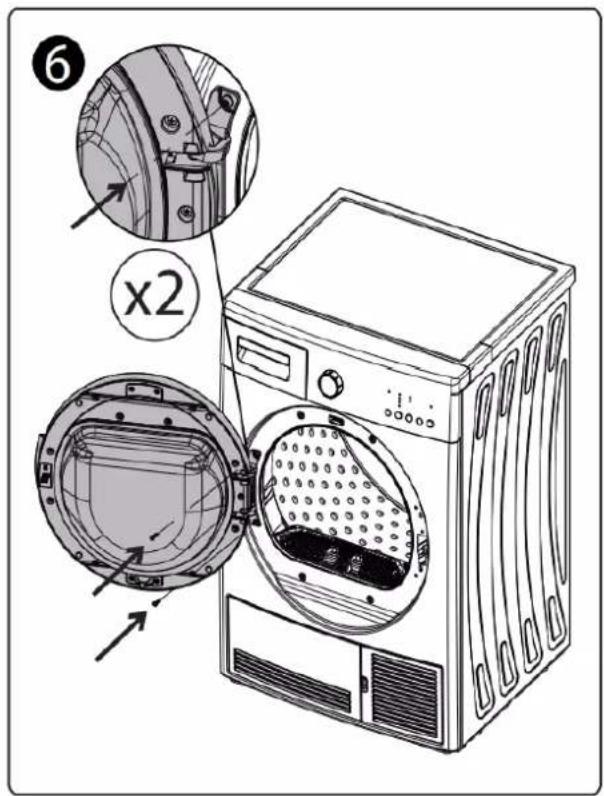

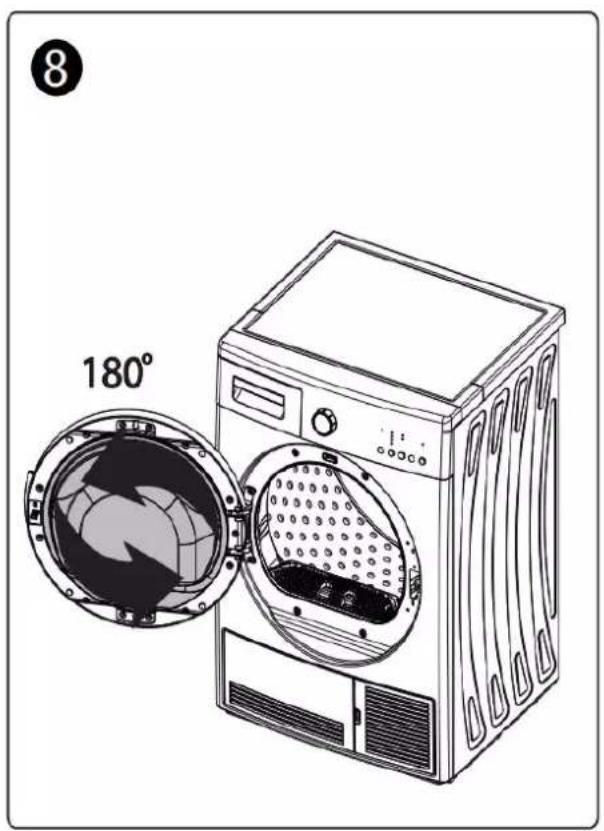

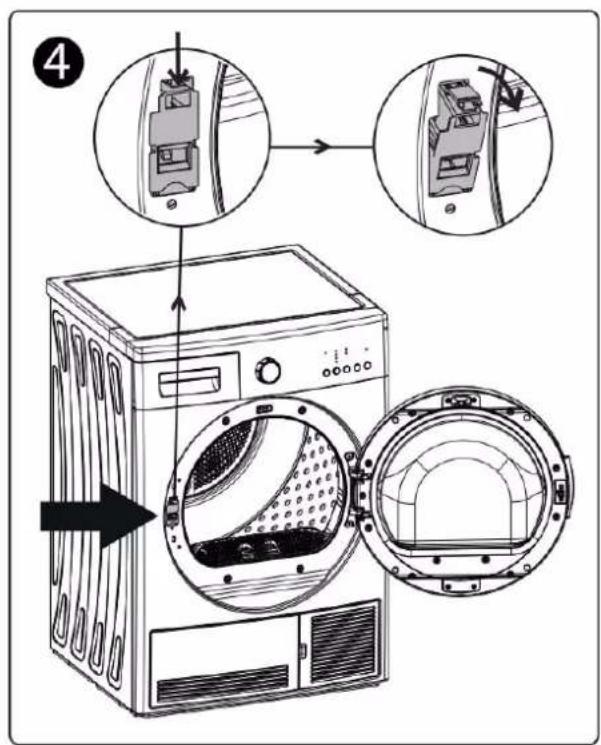

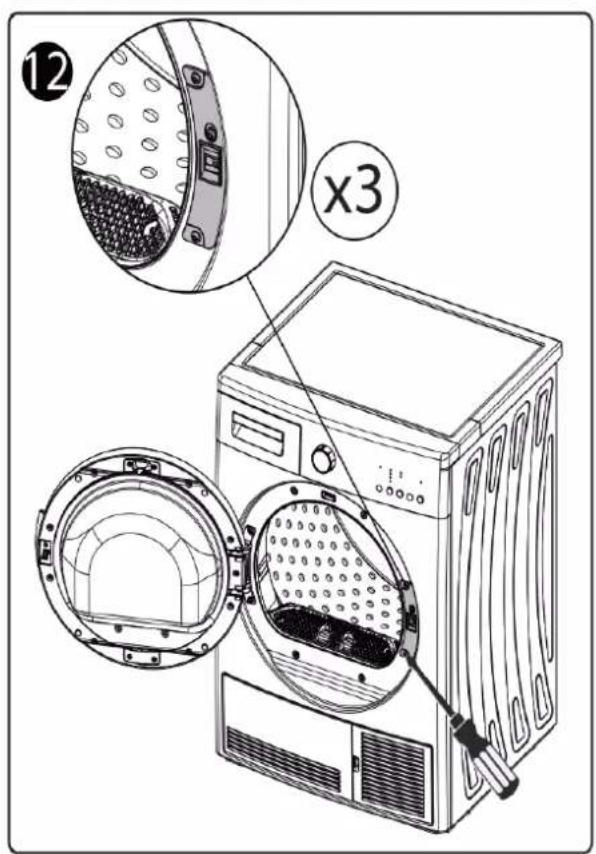

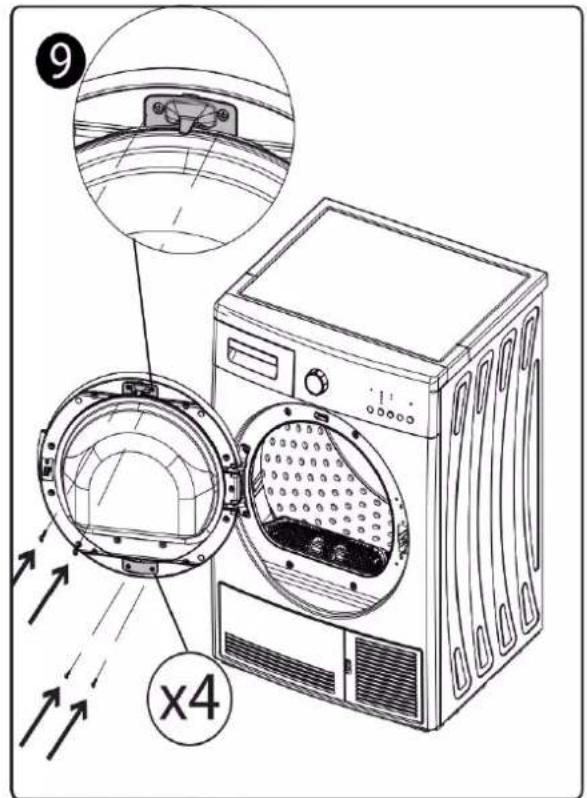

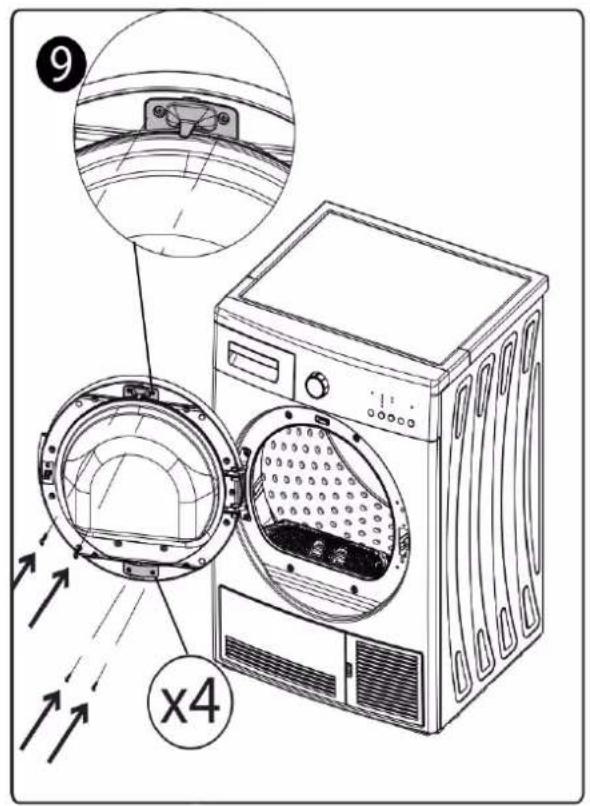

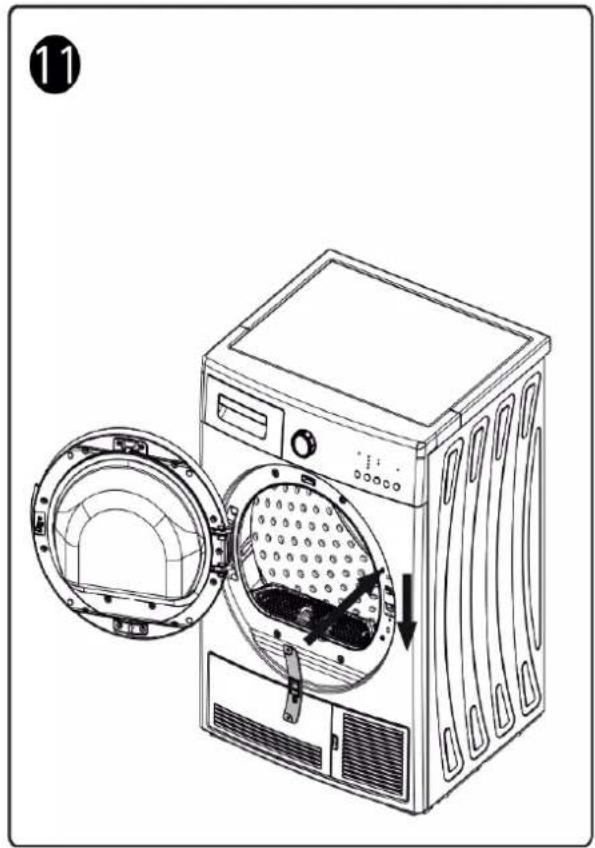

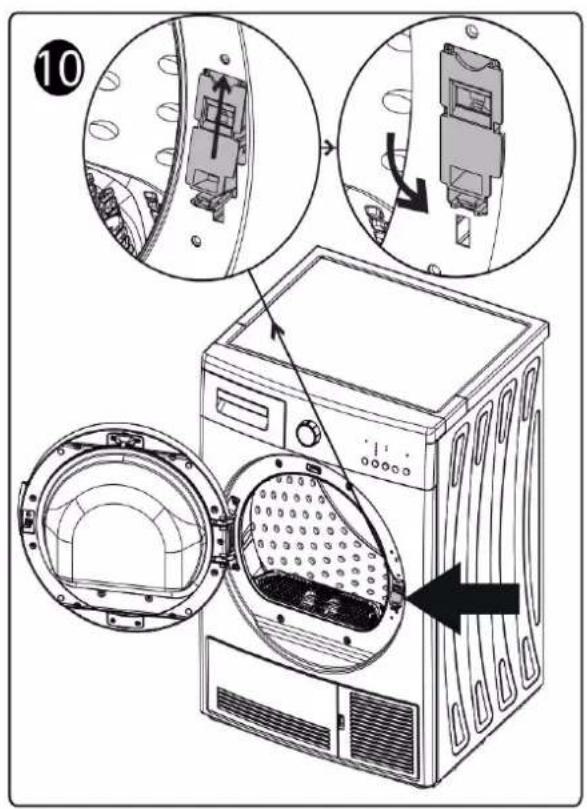

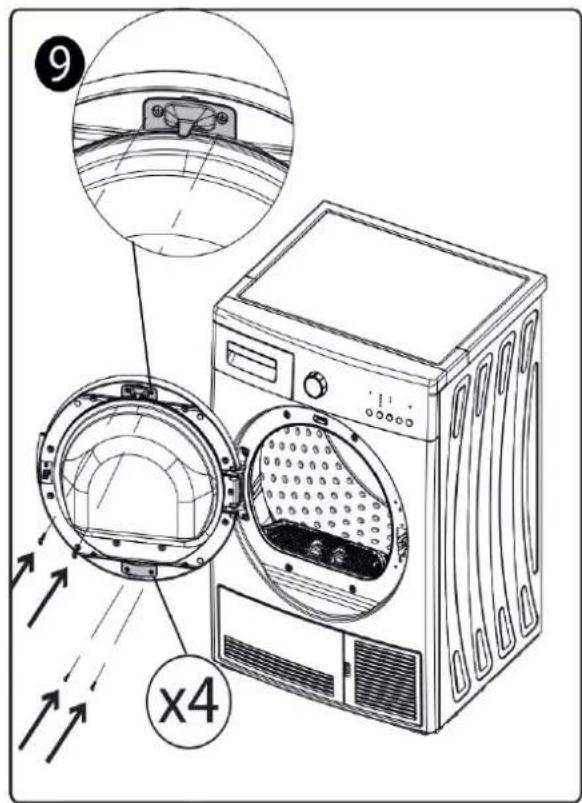

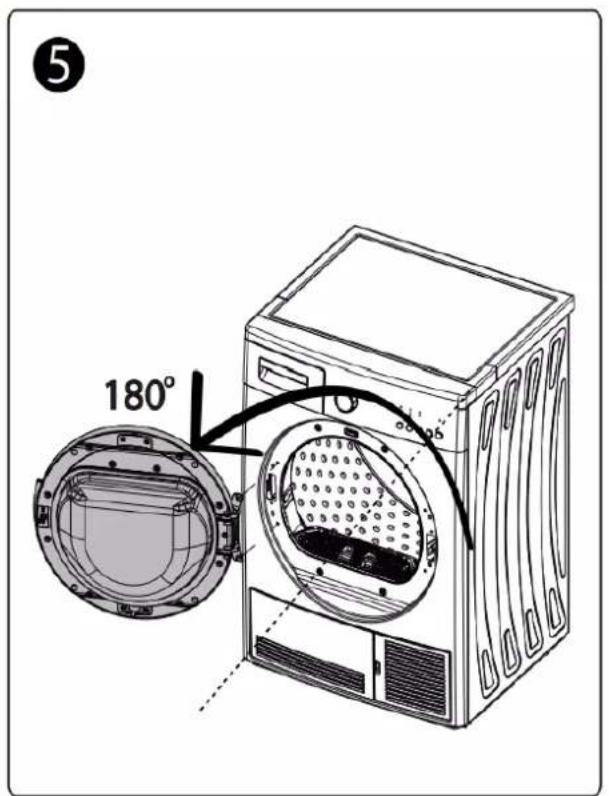

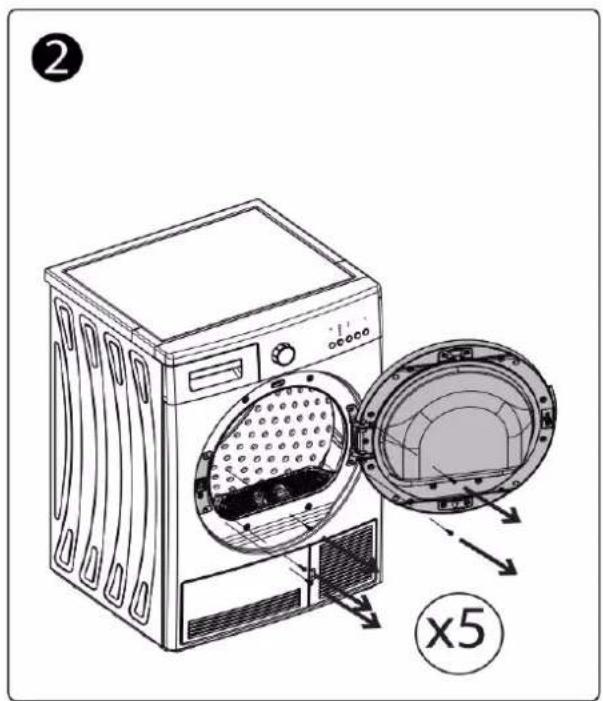

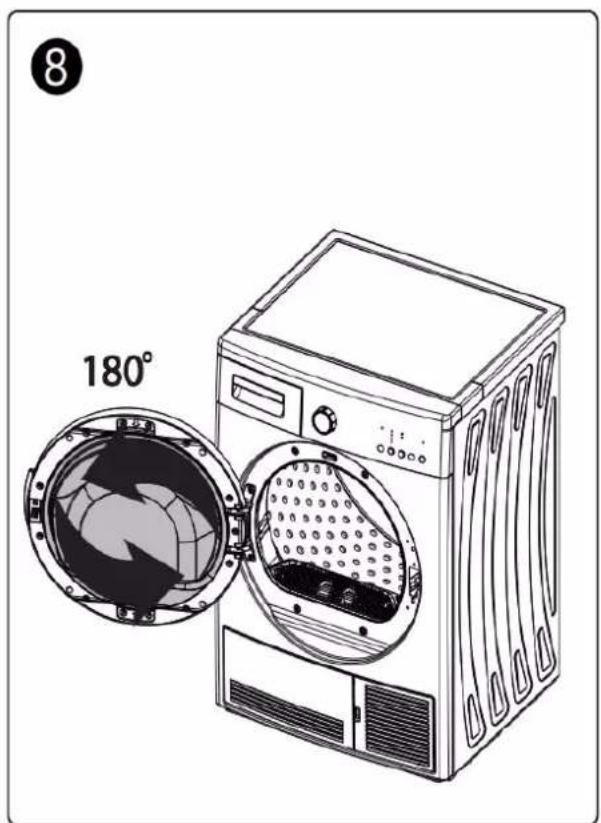

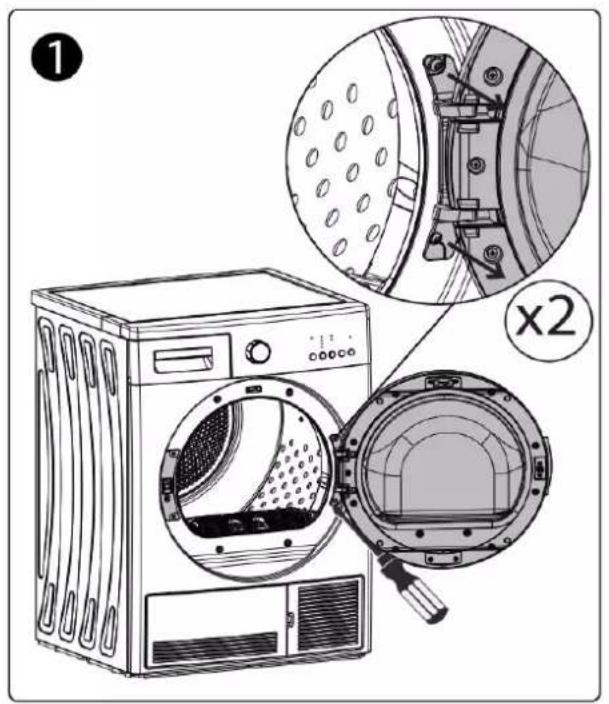

User guide for the reversible door

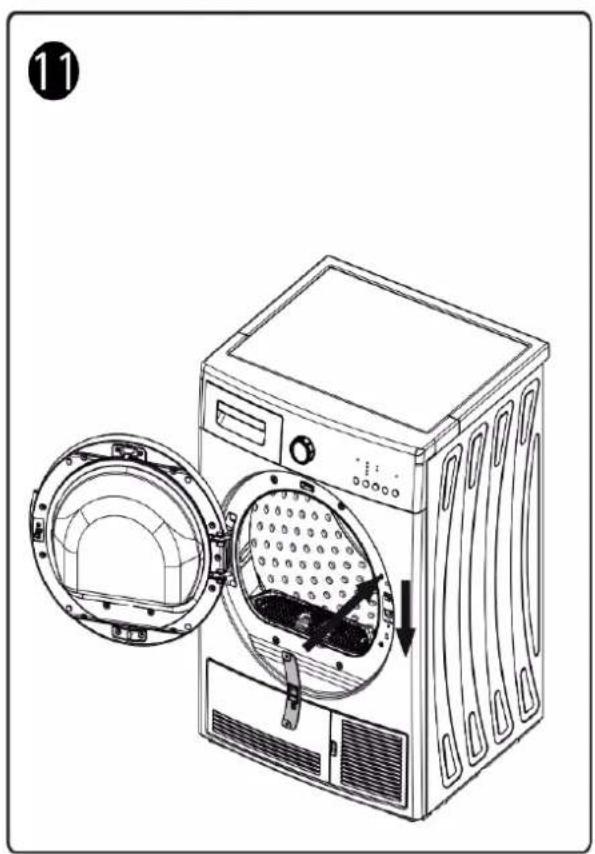

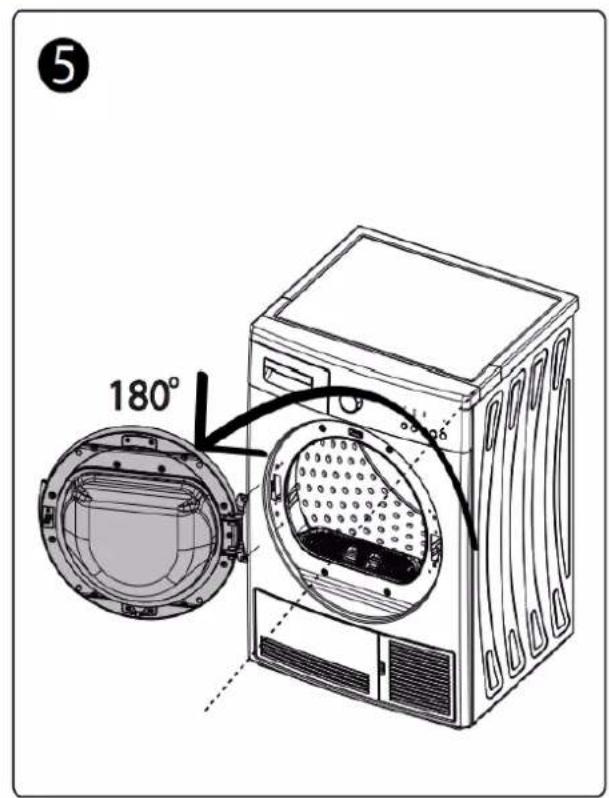

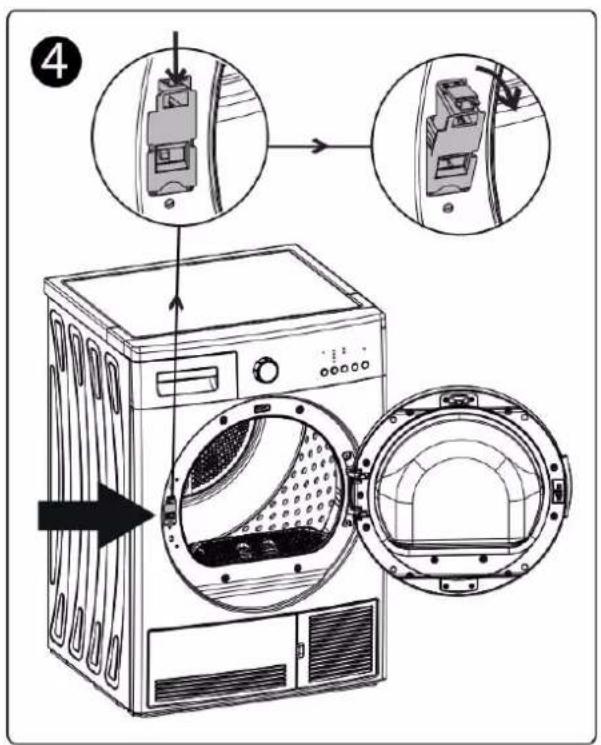

Line drawing of a washing machine with an open lid and internal components, no text or symbols present

Line drawing of a washing machine with an open lid and internal components, showing no text or symbols.

VII. CONTROL PANEL

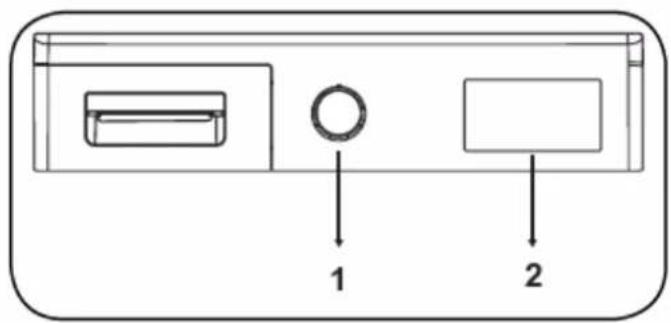

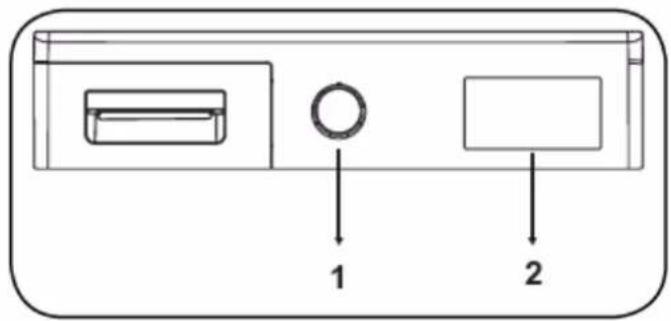

1. Programme selection knob

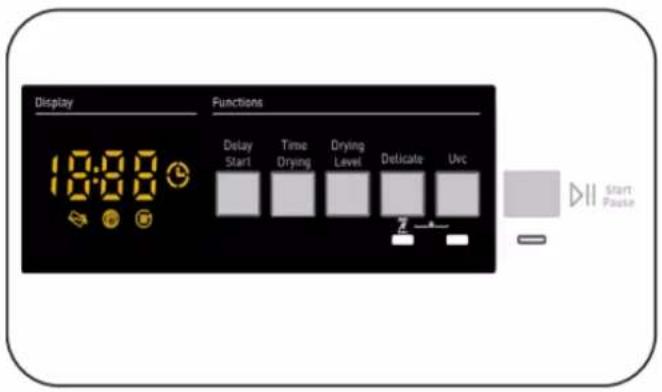

2. Electronic indicator and additional functions

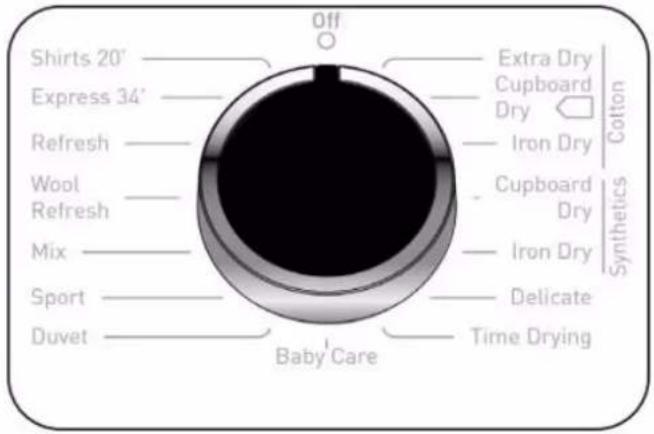

1. Programme selection knob

Use the programme selection knob to select the desired drying programme:

2. Electronic indicator and additional functions

Display symbols:

Water tank indicator
Lint filter cleaning warning indicator
Condenser cleaning warning indicator

Programme selection and consumption table

Programme	Load (kg)	Washing machine spin speed	Approximate amount of remaining humidity	Duration (min)
Cotton extra dry	10	1000	60%	245
Cotton cupboard dry	10	1000	60%	239
Cotton iron dry	10	1000	60%	171
Synthetics cupboard dry	5	800	40%	76
Synthetics iron dry	5	800	40%	62
Delicate	2	600	50%	55
Time drying	-	-	-	-
Baby care	3	1000	60%	78
Duvet	2.5	800	60%	140
Sport	4	800	40%	103
Mix	4	1000	60%	112
Wool Refresh	-	-	-	5
Refresh	-	-	-	10
Express 34'	1	1200	50%	34
Shirts 20'	0.5	1200	50%	20

Energy consumption values

Programme	Load (kg)	Washing machine spin speed	Approximate amount of remaining humidity	Energy consumption values (kWh)
Cotton cupboard dry	10	1000	60%	1.29
Cotton iron dry	10	1000	60%	1.67
Synthetics cupboard dry	5	800	40%	0.79
Power consumption in the „off mode” P (w)				0.5
Power consumption in the „on mode” P (W)				1.0

3. Auxiliary functions

Options:

Drying Level - The humidity level obtained after drying can be increased by 3 levels. This way, level of required dryness can be selected. The levels that can be selected other than the standard setting: 1, 2, 3. After selection, the LED of the relevant drying level will turn on.

Delicate Drying - Delicate fabrics are dried for a longer time at a low temperature

Delayed start - You can delay the start time of the programme by selecting the 1-hour to 23-hour option. You can activate the desired delay time by pressing the Start/Pause button. When the time is up, the selected programme will start automatically. During the delay time, options compatible with the programme can be activated/deactivated. Long pressing on Delayed Start button changes delay time continuously.

Anti-Crease- If you select the "Anti-Crease" option and do not open the door of the dryer at the end of the programme, the 1-hour anti-crease phase will extend to 2 hours. After selecting the Anti Crease option, you will hear an audible warning. You can press the same button again to cancel the option. If you open the door or press the Start/ Pause key while the anti-crease step is in progress, the said step will be cancelled.

Buzzer Cancel - The dryer gives an audible warning when program selection knob is turned, buttons are pressed and at the end of programme. To cancel the warnings, press and hold the "Anti-Crease Option" button for 3 seconds. When you press the button, you will hear an audible warning that the option has been cancelled.

Time drying - When knob is positioned to Time Drying programme, option can be selected by pressing Time Drying option button and program starts by pressing Start/Pause button. Long pressing on time drying button changes time continuously.

Child lock - There is a child lock option to avoid changes in the programme flow when keys are pressed during the programme. To activate the child lock, press and hold the "Delayed Start" and "Anti-Crease" keys simultaneously for 3 seconds. When the child lock is active, all keys will be deactivated. Child lock will be deactivated automatically at the end of the programme. When activating/deactivating the child lock, "CL" will visualize on display for 2 sec and then becomes off; and an audible warning will be heard. Warning; when the product is running or the child lock is active, if you turn the programme selection knob, you will hear an audible warning and "CL" will visualize on display for 2 sec and then becomes off. Even if you set the programme knob to another programme, the previous programme will continue running. To select a new programme, you need to deactivate the child lock and then set the programme selection knob to "Off" position. Then, you can select and start the desired programme.

VIII. USING PROGRAMMES

The Start/Pause LED will flash during programme selection. Press the Start/Pause button to start the programme. The Start/Pause LED that indicates that the programme has started and the drying LED will come on.

Programme	Description
Cotton extra dry	This programme dries thick and multi-layer fabrics, such as cotton towels, bedsheets, pillowcases, bathrobes, at a high temperature to allow you to place them in a closet.
Cotton cupboard dry	This programme dries cotton pyjamas, underwear, tablecloths etc. to allow you to place them in a closet.
Cotton iron dry	This programme dries cotton laundry to prepare it for ironing. Laundry removed from the machine will be damp.
Synthetics cupboard dry	This programme dries synthetics, such as shirts, t-shirts, blouses, at a lower temperature compared to the cottons programme to allow you to place them in a closet.
Synthetics iron dry	This programme dries synthetics, such as shirts, t-shirts, blouses, at a lower temperature compared to the cottons programme to prepare them for ironing. Laundry removed from the machine will be damp
Delicate	This programme dries thin clothes like shirts, blouses and silk garments at a low temperature to make them ready to wear.
Time Drying	To reach the required drying level at a low temperature, you can use the time programmes of 10 min. to 180 min. Regardless of the drying level, the programme stops at the desired time.
Baby care	This programme dries delicate infant clothes at a low temperature to make them ready to wear.
Duvet	This programme is used to dry duvet.
Sport	Sport program is used for synthetic sport laundries like shorts, t-shirts at low temperature
Mix	This programme is suitable for outdoor clothing, waterproof jackets, jackets with inner insulation, etc.
Wool refresh	Wool refresh helps wool textiles to remove excess water after washing by applying low temperature and gentle movements of drum
Refresh	This programme provides ventilation for 10 minutes without applying heat to help freshen up your garments
Express 34'	1 kg of cotton shirts spun at a high speed in the washing machine are dried in 34 minutes.
Shirts 20'	2 to 3 shirts are ready for to be ironed in 20 minutes.

IMPORTANT: Do not open the loading door while the programme is running. If you have to

open the door, do not keep it opne for a long time.

PROGRAMME PROGRESS

During the Programme

If you open the door when the programme is running, the product will switch to standby mode. Once the door has been closed, press the Start/Pause key to resume the programme.

Do not open the loading door when the programme is running. If you have to open the door, do not keep it open for a long time.

Programme End

Once the programme is over, the warning LEDs for Start/Pause, water tank level, filter cleaning and condenser cleaning will turn on. Additionally, an audible warning will be given at the end of the programme. You can remove the laundry to make the machine ready for a new load.

IMPORTANT: Clean the lint filter after every programme. Empty the water tank after every programme.

IMPORTANT: If you do not take out the laundry after the programme has ended, the 1-hour Anti Crease phase will automatically be activated. This programme rotates the drum at regular intervals to prevent creases.

Drum Light Information

• This product includes LED Drum Light.
- The light works automatically when you open the door. And closes itself after a while automatically.
- It is not an adjustable option for user to open or close it.
- Please do not try to replace or modify the LED Light.

Programmes	Options
	Delay start	Buzzer cancel	Child lock	Delicate	Time Drying	Drying level	Delicate
Cotton extra dry	√	√	√	√	X	√	√
Cotton cupboard dry	√	√	√	√	X	√	√
Cotton iron dry	√	√	√	√	X	√	√
Synthetics cupboard dry	√	√	√	√	X	√	√
Synthetics iron dry	√	√	√	√	X	√	√
Delicate	√	√	√	√	X	X	√
Time drying	√	√	√	X	√	X	√
Baby Care	√	√	√	√	X	√	√
Duvet	√	√	√	√	X	X	√
Sport	√	√	√	√	X	√	√
Mix	√	√	√	√	X	√	√
Wool refresh	√	√	√	X	X	X	√
Refresh	√	√	√	X	√	X	√
Express 34'	√	√	√	X	X	X	√
Shirts 20'	√	√	√	X	X	X	√

IX. CLEANING AND MAINTENANCE

IMPORTANT: Do not use industrial chemicals to clean your dryer. Do not use a dryer that has been cleaned with industrial chemicals.

1. Cleaning the lint filter

IMPORTANT: Do not forget to clean the lint filter after each use.

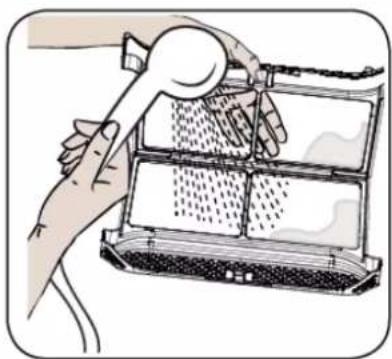

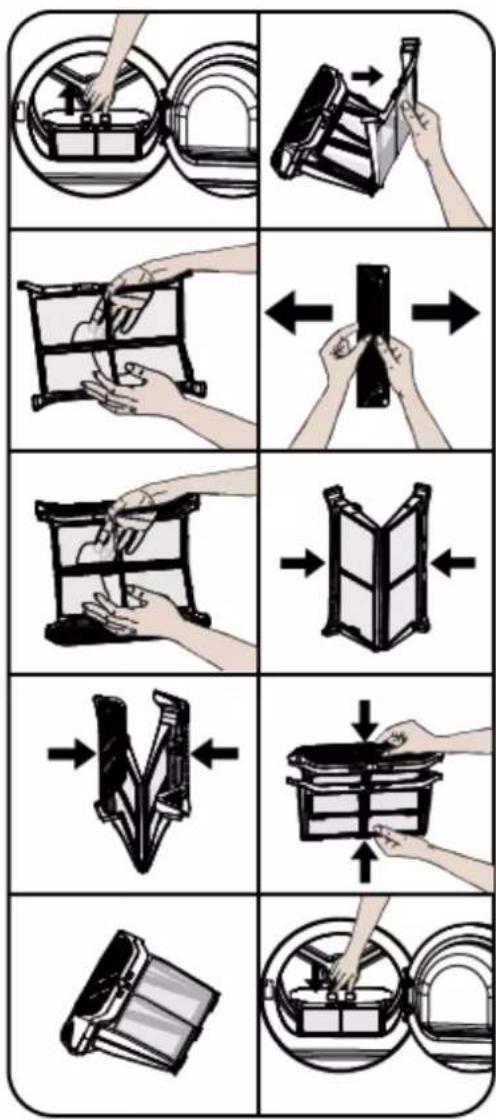

To clean the lint filter:

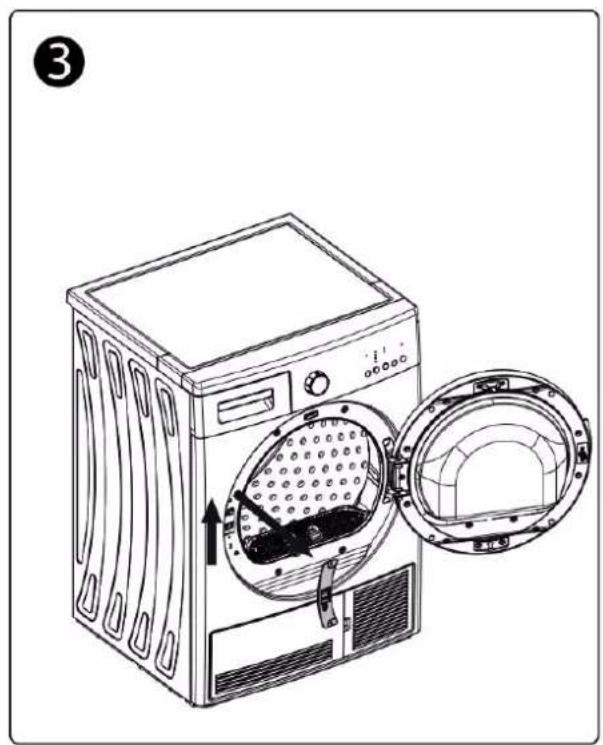

1. Open the loading door.
2. Pull up the lint filter to remove it.
3. Open the outer filter.
4. Clean the outer filter by rou hands or using a soft cloth.
5. Open the inner filter.
6. Clean the inner filter by your hands or using a soft cloth.
7. Close the filters and fit the hooks.
8. Place inner filter inside of outer filter.
9. Refit the lint filter.

After the dryer has been used for a certain period of time, if you encounter a layer that will cause obstruction on the filter surface, wash the filter with warm water to clean the layer. Dry the filter thoroughly before reinstalling it again.

Illustration of a hand using a tool to clean or store food items on a tray (no text or symbols visible)

2. Emptying the water tank

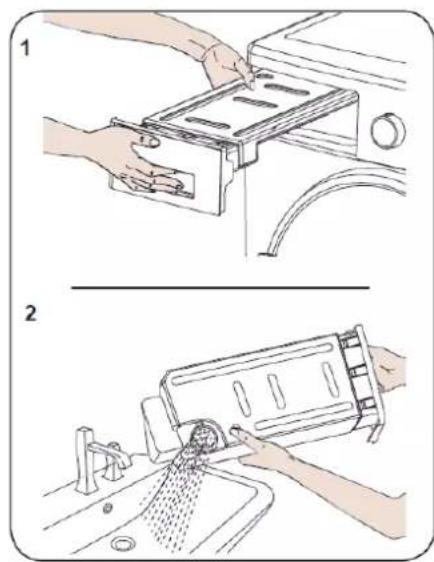

1. Pull the drawer cover and carefully take out the tank.
2. Empty the water in the tank.
3. If there is lint accumulated on the discharge cap in the tank, clean it with water.
4. Refit the water tank.

IMPORTANT: Never remove the water

tank when the programme is running. The water condensed in the water tank is not suitable for human consumption.

IMPORTANT: Do not forget to empty the

water tank after each use.

3. Cleaning the heat exchanger

IMPORTANT: Clean the heat exchanger when you see the warning "Heat Exchanger

cleaning".

IMPORTANT: EVEN IF THE "HEAT EXCHANGER CLEANING WARNING LED" IS NOT ON:

CLEAN THE HEAT EXCHANGER AFTER EVERY 30 DRYING PROCESSES OR ONCE A MONTH.

If the drying process is completed, open the loading door and wait for it to cool down.

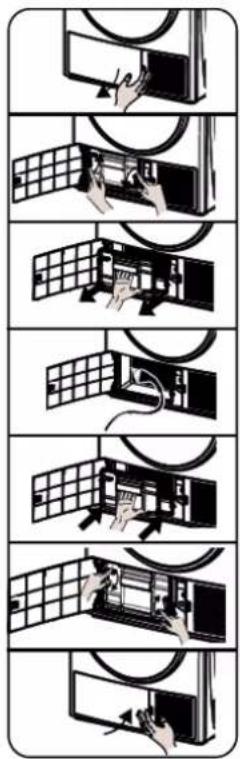

1. Open the kick plate cover as shown.
2. Unlock the exchanger cover by turning in the direction shown with arrows.
3. Take out the exchanger cover as shown.
4. Clean the front surface of the exchanger as shown.
5. Fit the exchanger cover as shown.
6. Lock the exchanger cover by turning in the direction shown with arrows.
7. Close the kick plate cover as shown.

WARNING: DO NOT CLEAN WITH BARE HANDS SINCE THE

EXCHANGER FINS ARE SHARP. THEY MAY HURT YOUR HANDS.

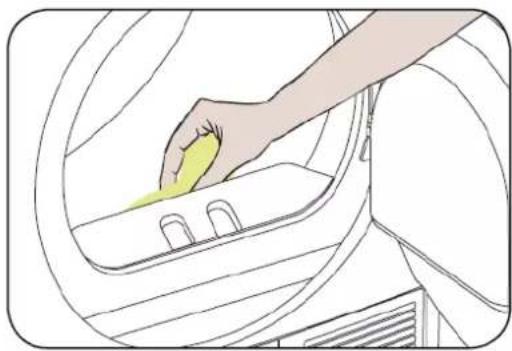

4. Cleaning the humidity sensor

Illustration of a hand placing a yellow substance into a car intake manifold (no text or symbols)

Inside the machine, there are humidity sensors that detect whether the laundry is dry or not.

To clean the sensors:

1. Open the loading door of the machine.
2. If the machine is still hot due to the drying process, wait for it to cool down.
3. Using a soft cloth soaked in vinegar, wipe the metal surfaces of the sensor and dry them.

IMPORTANT: CLEAN THE METAL SURFACES OF THE SENSOR 4 TIMES A YEAR.

IMPORTANT: Do not use metal tools to clean the metal surfaces of the sensor.

WARNING: Due to the risk or fire and explosion, do not use solution agents, cleaning agents or similar products when cleaning the sensors.

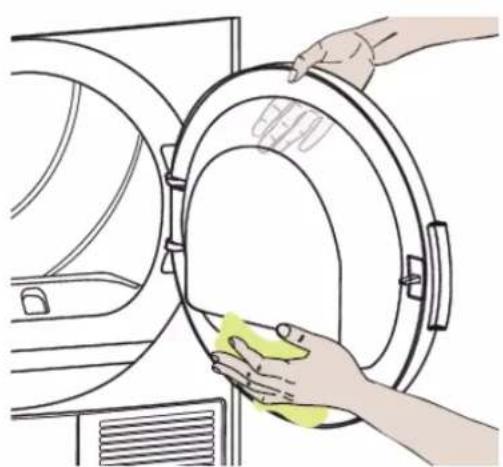

5. Cleaning the inner surface of the loading door

IMPORTANT: DO NOT FORGET TO CLEAN THE INNER SURFACE OF THE LOADING R AFTER EACH DRYING PROCESS.

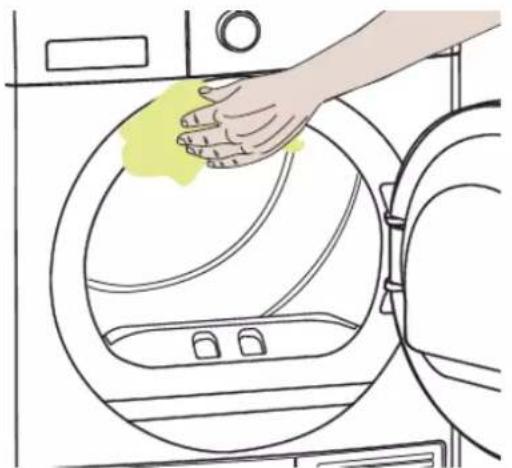

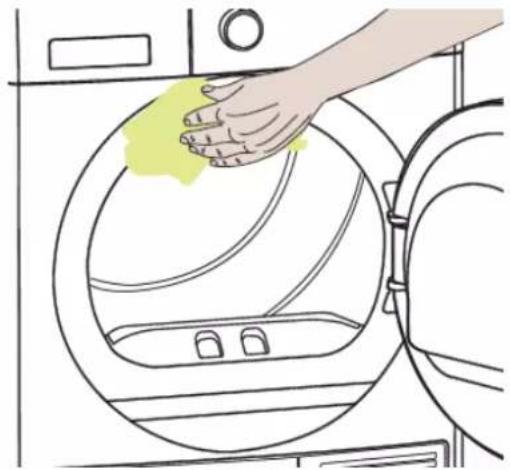

Open the loading door of the dryer and clean all of the inner surfaces and the gasket with a soft, damp cloth.

Illustration of hands cleaning a large washing machine with a yellow cloth (no text or symbols)

Line drawing of a hand cleaning a washing machine with a cloth (no text or symbols)

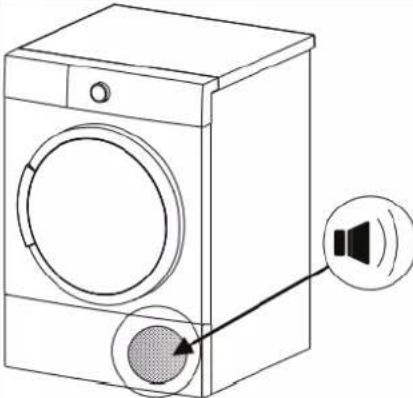

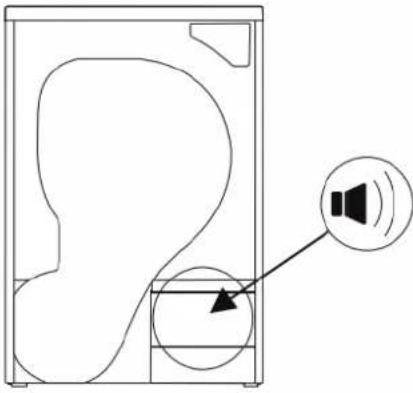

SOURCE OF SOUND	DEFINITION
	Pump Sound
	Pump is activated when the machine starts to work and during the operation at certain intervals. It is normal to hear pump and water sound during this process.
	Compressor Sound
	It is normal to hear a metallic sound from the compressor from time to time while the machine is running.

X. TROUBLESHOOTING

Your dryer is fitted with systems that continuously perform checks during the drying process to take the necessary measures and warn you in case of any malfunction.

WARNING: If the problem persists even if you have applied the steps in this section,

please contact the your dealer or an Authorised Service Provider. Never try to repair a nonfunctional product.

PROBLEM	REASON	SOLUTION
The drying process takes a long time.	The surface of the lint filter might be clogged.	Wash the filter with lukewarm water.
	The condenser might be clogged.	Wash the condenser.
	The ventilation grills in front of the machine might be closed.	Open the door/windows to prevent the room temperature from rising too much.
	There might be a layer of limescale on the humidity sensor	Clean the humidity sensor.
	The dryer might be poverloaded with laundry.	Do not overload the dryer.
	The laundry might be insufficiently spun.	Select a higher spin speed on your washing machine.
Laundry comes out damp at the end of the drying process.	The laundry that comes out hot at the end of the drying process generally feels more humid.
	The programme used might not be suitable for the type of laundry.	Check the care labels on the laundry items, select a suitable programme for the type of laundry and additionally, use the time programmes.
	The surface of the lint filter might be clogged.	Wash the filter with lukewarm water
	The condenser might be clogged.	Wash the condenser.
	The dryer might be overloaded with laundry.	Do not overload the dryer.
	The laundry might be insufficiently spun.	Select a higher spin speed on your washing machine.

PROBLEM	REASON	SOLUTION
The dryer cannot be opened or the programme cannot be started. The dryer does not get activated when adjusted.	The dryer might not be plugged in.	Make sure that the plug is fitted in the socket.
	The loading door might be open.	Make sure that the loading door is properly closed.
	You might not have set a programme or pressed the Start/Pause key.	Make sure that the programme has been set and the dryer is not in the Standby (Pause) mode.
	Child lock might be active.	Deactivate the child lock.
The programme has been interrupted for no reason	The loading door might not be closed properly.	Make sure that the loading door is properly closed.
	There might have been a power failure.	Press the Start/Pause key to start the programme.
	The water tank might be full.	Empty the water tank.
Clothes have shrunk, felted or deteriorated.	The programme used might not be suitable for the type of laundry.	Check the care labels on the laundry items, select a suitable programme for the type of laundry.
Water leaking from the loading door.	There might be lint accumulated on the inner surfaces of the loading door and on the surfaces of the gasket of the loading door.	Clean the inner surfaces of the loading door and the surfaces of the gasket of the loading door.
The loading door opens on its own.	The loading door might not be closed properly.	Push the loading door until you hear the closing sound
The water tank warning symbol is on/flashing.	The water tank might be full.	Empty the water tank.
	The water discharge hose might be bent.	If the product is connected directly to the water outlet, check the water discharge hose
The filter cleaning warning symbol is on.	The lint filter might be unclean.	Clean the filter.
The filter cleaning warning symbol is flashing.	The filter seat might be clogged by lint.	Clean the filter seat.
	There might be a layer that causes obstruction on the surface of the lint filter.	Wash the filter with lukewarm water.
	The condenser might be clogged.	Wash the condenser.

XI. AUTOMATIC FAULTS

Your tumble dryer is equipped with a built-in fault detection system, indicated by a combination of flashing operation lights. The most common failure codes are shown below.

ERROR CODE	SOLUTION
E03 /	Empty the water tank, if problem does not solved, contact the nearest authorised service agent.
E04	Contact the nearest authorised service agent.
E05	Contact the nearest authorised service agent.
E06	Contact the nearest authorised service agent.
E08	There may be voltage fluctuation in mains.Wait until voltage is appropriate for working range.

TECHNICAL SPECIFICATIONS

Brand	HEINNER
Model name	HHPD-V10T2KA++
Height	Min: 845 mm / Max: 855 mm*
Width	596 mm
Depth	609 mm
Capacity (max.)	10 kg**
Net weight (with glass door)	45.3 kg
Voltage	220-240 V
Power	1000 W

*Min. height: Height with the adjustable feet not used. Max. height: Height with the adjustable feet extended to the maximum.

**Dry laundry weight before washing.

IMPORTANT: To improve the quality of the dryer, technical specifications are subject

to change without prior notice.

IMPORTANT: The values declared have been obtained in a laboratory environment

according to the relevant standards. These values may change depending on the environmental conditions and use of the dryer.

ATTENTION:

1. Due to safety reasons, legislation forces a room of at least 1 ~m^3 per 8 g refrigerant for such equipment. For 110 g propane, the minimum allowed room size would be 13.75 ~m^3 .

2. Coolant: Risk of fire/risk of poisoning/risk of material damage and damage to the appliance. The appliance contains refrigerant which, although it is environmentally friendly, is flammable R290. Failure to dispose of it properly may result in a fire or poisoning. Dispose of the appliance properly and do not damage the pipes in the refrigerant circuit.

3. Type of refrigerant : R290

4. Quantity of gas : 110 g
5. ODP (Ozone Depletion Potential) : 0

6. GWP (Global Warning Potential) : 3

7. Risk of explosion or fire. Remove any cigarette lighters and matches from pockets.

8. Do not place the dryer near open fires and ignition sources.

XII. ENERGY EFFICIENCY

You should operate the dryer to full capacity, but make sure that it is not overloaded.

• When the laundry is being washed, the spin speed should be at the highest level possible. This will shorten the drying time and reduce energy consumption.
• Make sure that the same kinds of laundry are dried together.
• Please follow the recommendations in the user manual for programme selection.
• For air circulation, leave an appropriate clearance on the front and back sides of the Dryer. Do not cover the grills on the front side of the machine.
• Unless necessary, do not open the door of the machine when drying. If you have to open it, do not keep it open for a long time.
• Do not add new (wet) laundry during the drying process.
• Hairs and lint that detach from the laundry and merge in the air are collected by the "Lint Filters". Please make sure that the filters are cleaned before and after each use.
• For models with a condenser, make sure that the condenser is cleaned at least once a month or after each 15 uses.
• During the drying process, the environment where the dryer is installed must be well ventilated.

XIII. PRODUCT FICHE

PRODUCT FICHE HEAT PUMP DRYER
Brand	Heinner
Model	HHPD-V10T2KA++
Rated capacity (kg)	10
Type of Tumble dryer	Heat pump
Energy efficiency class	A++
Annual energy consumption (kWh)	282
Model type (automatic / non-automatic)	Automat
Energy Consumption of the standard cotton programme at full load (kWh)	2.30
Energy Consumption of the standard cotton programme at partial load (kWh)	1.29
Power consumption of the off-mode for the standard cotton programme at full load P_D (W)	0.50
Power consumption of the left-on mode for the standard cotton programme at full load P_L (W)	1
The duration of the left mode on (min)	N/A
Standard cotton programme^(3)	-
Programme time of the standard cotton programme at full load , T_dry	239
Programme time of the standard cotton programme at partial load , T_dry1/2	130
Weighted programme time of the standard cotton programme at full and partial load ( T_t )	177
Condensation efficiency class^(4)	B
Average condensation efficiency of the standard cotton programme at full load C_dry	81%
Average condensation efficiency of the standard cotton programme at partial load C_dry1/2	81%
Weighted condensation efficiency of the standard cotton programme at full load and partial load C_t	81%
Sound power level for the standard cotton programme at full load^(5)	65
Built-in	No

(1) Scale from A+++ (most efficient) to D (least efficient)
(2)Energyconsumption based on 160 drying cycles of the standard cotton programme at full and partial load,and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.
(3) "Cotton cupboard dry programme" used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet cotton laundry and that it is the most efficient programme in terms of energy consumption for cotton
(4) Scale from G (least efficient) to A (most efficient)
(5) Weighted average value - L wA expressed in dB(A) re 1 pW

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

http://www.heinner.com, http://www.nod.ro

CE

This product is in conformity with norms and standards of European Community

Importer: Network One Distribution

Marcel Iancu Street, 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro

HEINNER

USCATOR DE RUFE CU POMPA DE CALDURA

Model: HHPD-V10T2KA++

Front view of a white HEINER air purifier with black lid and control panel (no visible text or symbols)

• Uscator de rufe cu pompa de caldura
- Capacitate: 10 kg
- Clasa energetica: A++

Line drawing of a front-loading washing machine with internal components and a close-up view showing internal structure (no text or symbols)

Line drawing of a front-loading washing machine with an open lid and internal components, showing no text or symbols.

VII. PANOU DE CONTROL

Program	Optiuni
	Delay start	Buzzer cancel	Child lock	Delicate	Time Drying	Drying level	Delicate
Cotton extra dry	√	√	√	√	X	√	√
Cotton cupboard dry	√	√	√	√	X	√	√
Cotton iron dry	√	√	√	√	X	√	√
Synthetics cupboard dry	√	√	√	√	X	√	√
Synthetics iron dry	√	√	√	√	X	√	√
Delicate	√	√	√	√	X	X	√
Time drying	√	√	√	X	√	X	√
Baby Care	√	√	√	√	X	√	√
Duvet	√	√	√	√	X	X	√
Sport	√	√	√	√	X	√	√
Mix	√	√	√	√	X	√	√
Wool refresh	√	√	√	X	X	X	√
Refresh	√	√	√	X	√	X	√
Express 34'	√	√	√	X	X	X	√
Shirts 20'	√	√	√	X	X	X	√

IX. CURĂTARE SI ÎNTRETINERE

Illustration of a hand using a tool to clean or store food items on a multi-tiered shelf (no text or symbols visible)

Illustration of a hand cleaning a car interior with a yellow substance inside (no text or symbols)

Illustration of hands cleaning a large washing machine with a yellow cloth (no text or symbols)

Line drawing of a hand cleaning a washing machine with a yellow cloth (no text or symbols)

Front view of a HEINER washing machine with black vent and control panel (no visible text or symbols)

Line drawing of a front-loading washing machine with an open lid showing internal components (no text or symbols)

Line drawing of a washing machine with an open lid and internal components, showing no text or symbols.

ПРОГРАМИ	ОПЦИИ
	Delay start	Buzzercancel	Child lock	Delicate	Time Drying	Drying level	Delicate
Cotton extra dry	√	√	√	√	X	√	√
Cotton cupboard dry	√	√	√	√	X	√	√
Cotton iron dry	√	√	√	√	X	√	√
Synthetics cupboard dry	√	√	√	√	X	√	√
Synthetics iron dry	√	√	√	√	X	√	√
Delicate	√	√	√	√	X	X	√
Time drying	√	√	√	X	√	X	√
Allergy safe	√	√	√	√	X	√	√
Express 34'	√	√	√	√	X	X	√
Shirts 20'	√	√	√	√	X	√	√
Mix	√	√	√	√	X	√	√
Crystalight Refresh	√	√	√	X	X	X	√
Quick Hygiene	√	√	√	X	√	X	√
Crystalight Baby Care	√	√	√	X	X	X	√
Crystalight Dry	√	√	√	X	X	X	√

Illustration of a hand using a tool to clean or store items on a device (no text or symbols visible)

Illustration of a hand cleaning a car interior with a yellow tool on the rim (no text or symbols)

Illustration showing two steps of washing machine cleaning: one with hand cleaning the air gap, the other with hand cleaning the back (no text or symbols)

X. ОТСТРАНЯВАНЕ НА НЕИЗПРАВНОСТИ

Front view of a HEINER washing machine with black vent and control panel (no visible text or symbols)

V. PRODUCT DESCRIPTION

Line drawing of a front-loading washing machine with internal components and a close-up view showing internal structure (no text or symbols)

Line drawing of a washing machine with an open lid and internal components, showing no text or symbols.

VII. A SZÁRÍTÓGÉP HASZNÁLATA

PROGRAMOK	OPCIÓK
	Delay start	Buzzer cancel	Child lock	Delicate	Time Drying	Drying level	Delicate
Cotton extra dry	√	√	√	√	X	√	√
Cotton cupboard dry	√	√	√	√	X	√	√
Cotton iron dry	√	√	√	√	X	√	√
Synthetics cupboard dry	√	√	√	√	X	√	√
Synthetics iron dry	√	√	√	√	X	√	√
Delicate	√	√	√	√	X	X	√
Time Drying	√	√	√	X	√	X	√
Allergy Safe	√	√	√	√	X	√	√
Express 34'	√	√	√	√	X	X	√
Shirts 20'	√	√	√	√	X	√	√
Mix	√	√	√	√	X	√	√
Crystallight Refresh	√	√	√	X	X	X	√
Quick Hygiene	√	√	√	X	√	X	√
Crystallight Baby Care	√	√	√	X	X	X	√
Crystalight Dry	√	√	√	X	X	X	√

Illustration of a hand using a tool to clean or store food items (no text or symbols visible)

Illustration of a hand placing a yellow substance into a car intake manifold (no text or symbols)

Illustration of hands cleaning a large washing machine (no text or symbols present)

Line drawing of a hand cleaning a washing machine with a yellow cloth (no text or symbols)

X. HIBAELHÁRÍTÁS
