Product Type	Induction Cooker
Brand	Thermex
Model	TH1NC 60
Number of Cooking Zones	3
Dimensions (L x W x H)	590 x 520 x 60 mm
Cutout Dimensions (A x B)	560 x 490 mm
Power Supply	220-240 V ~ 50/60 Hz
Total Installed Power	7200 W
Energy Consumption (Left Down)	196.2 Wh/kg
Energy Consumption (Left Up)	183.5 Wh/kg
Energy Consumption (Right)	187.7 Wh/kg
Functions	Boost, Timer, Lock, Automatic Shut-off
Safety Features	Residual Heat Indicator, Pan Detection, Child Lock
Cleaning	Glass ceramic surface; clean with damp cloth and mild detergent
Installation Clearance	At least 50 mm around the hob
Installation Restrictions	Not above dishwashers, washing machines, or refrigerators
Error Codes	E2/E3: supply voltage; E4/E5: IGBT sensor; E7/E8: temperature sensor; E6/E9: heat radiation; Eb/EC: PCBA communication
Warranty Service	Contact Thermex service department with proof of purchase
Material	Glass ceramic top

Frequently Asked Questions - TH1NC 60 Thermex

How do I turn on the hob?

Press the ON/OFF button. All indicators will show '-'. Place a suitable pan on a cooking zone, then press the corresponding zone selector and use + and - to set the power level.

How do I use the Boost function?

After selecting a cooking zone, press the Boost button (usually marked 'b') to activate a temporary power increase. You can cancel it by selecting a different power level.

What does the 'H' indicator mean?

The 'H' symbol indicates that the cooking zone is still hot after use. It disappears when the surface cools to a safe temperature.

How do I lock the control panel?

Press the Lock icon to lock the panel. To unlock, press and hold the same icon for 3 seconds. The ON/OFF button remains active even when locked.

What should I do if the hob shows error E2?

Error E2 indicates abnormal supply voltage. Check that the power supply is normal. If the voltage returns to normal, the hob should work again after restarting.

How do I clean the glass surface?

For everyday dirt, turn off the hob and clean with a damp cloth and mild detergent. For sugary spills, remove immediately with a razor scraper at a 30° angle while the glass is still warm (but not hot). Never use abrasive cleaners.

Can I install the hob above an oven?

Yes, but only if the oven has a built-in cooling fan. Do not install above an oven without cooling, or above dishwashers, washing machines, tumble dryers, or refrigerators.

What type of pans are suitable?

Use pans with a magnetic bottom suitable for induction cooking. The hob will automatically detect if a pan is present; if not, it will show an error and not heat.

How do I set the timer?

Select the cooking zone, then press the Timer button. Use + and - to set minutes (enter two digits individually). Press Timer again to confirm. The timer will switch off the zone after the set time.

What should I do if the hob doesn't start?

Check that the power supply is connected and the mains voltage matches the nameplate. Ensure the hob is unlocked. If the problem persists, disconnect power for 5 minutes and try again. If still not working, contact Thermex service.

USER MANUAL TH1NC 60 Thermex

Silhouette of a person reading a book (no text or symbols)

Simple line drawing of an open book with gears and a small box, no text or symbols present.

Simple line drawing of a rectangular block with two vertical arrows indicating width, no text or symbols present.

THERMEX SCANDINAVIA A/S

www.thermex.dk

THERMEX SCANDINAVIA AS

www.thermex.no

THERMEX SCANDINAVIA AB

www.thermex.se

THERMEX SCANDINAVIA S.L.U.

www.thermex.es

THERMEX SCANDINAVIA A/S

www.thermex.fi

THERMEX SCANDINAVIA A/S

www.thermexscandinavia.nl

3 THERMEX TH1NC 60 M 900211101212062023

Languages

English

4

Espanol translation 17

4 THERMEX TH1NC 60 M 900211101214062023

CONTENTS

General warning 5

Installation

6

Electrical installation 8

Operation of the device 9

Technical specifications 12

Error codes 12

Cleaning and maintenance 13

Service

14

GENERAL WARNING

• The hob has been developed and produced in accordance with DS/EN 60335-1.
• This product is only intended for use in private homes, if it is used for other purposes, the right to complain is void.
• All installation must be carried out by a qualified technician in accordance with the instructions from Thermex Scandinavia A/ S (Thermex) and applicable legislation.
• Thermex disclaims all liability for damage caused by incorrect installation, assembly, use or incorrect settings.

BEFORE ASSEMBLY/COMMISSIONING

• Check the unit for transport damage, errors and defects immediately upon receipt.
• Transport damage is reported immediately on receipt to the transport company and Thermex.
• Faults and defects must be reported to Thermex within 8 days of receipt, and at the latest before installation/commissioning.
  .
• Do not store magnetizable objects, e.g. credit cards, calculators and diskettes close to a hot hob, as they may be damaged.
• People with pacemakers should bear in mind that in the immediate vicinity of a switched-on induction hob, a magnetic field arises, which may may affect the pacemaker. In case of doubt, you should contact your doctor.
• When scrapping a hob, you should make sure to cut all the cables right inside the hob so that it cannot be a danger to
• children. Be sure to take the product to an authorized recycling center to ensure environmentally correct disposal. Also consider that the product may contain parts that can be reused.
• NEVER try to put out a fire with water. Instead, switch off the hob and smother the fire, e.g. with a lid or a fire blanket.
• The plate must be extra protected (earthed) cf. the High Current Regulations. The manufacturer/importer cannot be held responsible for damage caused by a missing or damaged earth connection.

• Never let children play with the hob or use it without adult supervision.

• Don't forget that a cooking zone gets very hot in use and that it is also hot for some time after it is switched off. Therefore, never leave a pot or pan containing hot oil/hot fat on the cooking zone without keeping an eye on it.

• Never leave the hob unattended when working with fat or oil. Overheated fat or oil can self-ignite and set the hood on fire.
• Fire hazard! If fat or oil starts to burn, never try to extinguish the fire with water. The fire must be smothered with a cloth or with foam from a fire extinguisher.
• The upper plate on your new hob is made of glass ceramic. It is very strong, but can break if you e.g. drop pointed or sharp objects onto it.
• An induction hob must not be installed above an oven that does not have a cooling fan.
• If the plate is installed above a pyrolysis oven, it must not be used during the pyrolysis cleaning of the oven.
• A possibly the drawer directly below the hob must not contain flammable objects, such as spray bottles.
• The hob must not be installed above dishwashers, washing machines, tumble dryers or refrigerators, as the rather high radian t heat from the hob could damage said products.

INSTALLATION

Assembly and installation should only be carried out by qualified personnel who are familiar with applicable building regulations.

Ensure the following before installation begins:

• The surface / table top where the unit is to be mounted must be horizontal and have sufficient space.
• The surface / table top is sufficiently resistant to heat.
• If the unit is mounted above an oven, the oven must have a built-in cooling fan or be insulated.
• If there is any doubt about the applicable building element, it is recommended to consult the local authorities.
  • Always use heat-resistant cleaning agents on and around the unit.

• The installation must comply with the applicable rules and standards for installation, as well as the space requirements around the unit.

Location of the device:

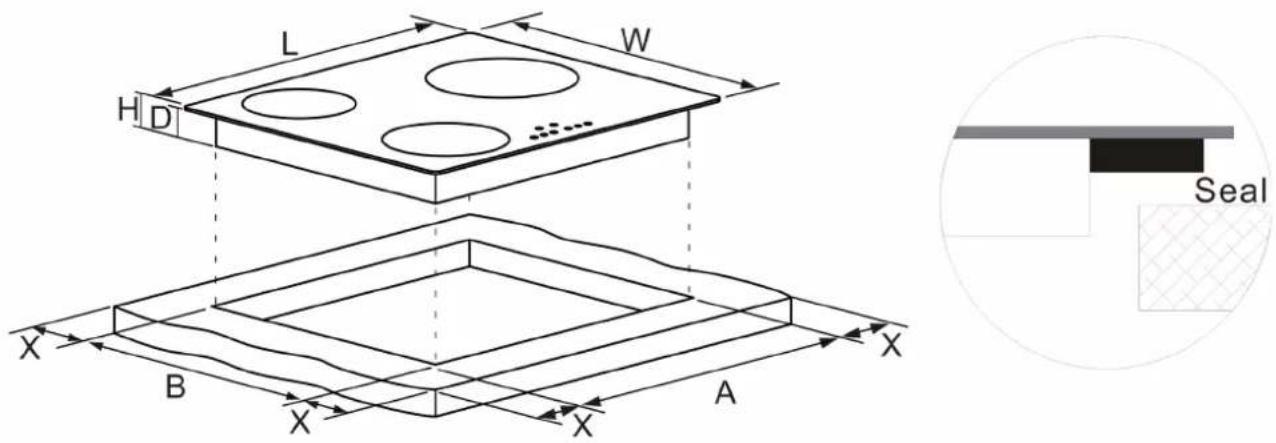

Cut out the hole in the table top according to the sizes shown in the drawing,

For installation and use of the hob, there should be at least 50 mm of space around the hole. This is to protect the table top material from the high heat of the unit.

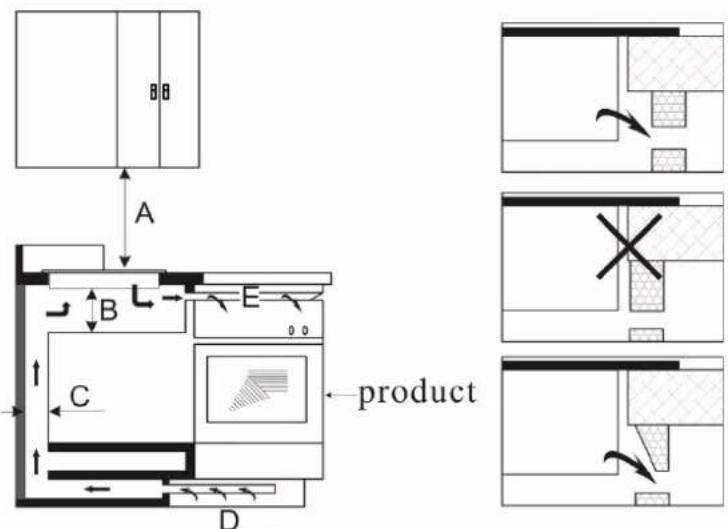

Make sure that the hob is well ventilated and that the air inlet and outlet are not blocked. Make sure the hob is in good working condition. As shown below.

If the hob is installed above an oven, the oven must have a built-in cooling fan.

The installation must comply with all clearance requirements and applicable standards and regulations.

Type	L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
AI320	590	520	60	56	560	490	50

Technical line drawing of a computer motherboard with fans and screwdrivers (no text or symbols)

- The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob.

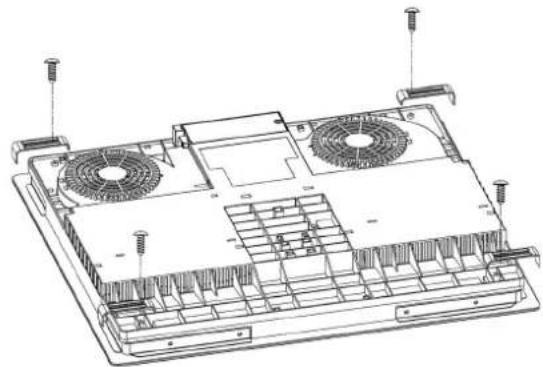

- Fix the hob on the desktop by screwing four brackets on the bottom of hob. - Adjust the direction of bracket according to different cabinet thickness.

Cautions

• The hob must be installed by qualified personnel or technicians, we have professionals at your service. Please never conduct the operation by yourself.
• Do not mount the hob above cooling equipment, dishwashers and touble dryers.
• The hob shall be installed such that better heat radiation can be ensured to enhance its reliability.
• The wall and induced heating zone above the work surface shall withstand heat.
• To avoid any damage, the sandwich layer and adhesive must be resistant to heat.
  • A steam cleaner is not to be used.
• This hob can be connected only to a supply with system impedance no more than 0.427 ohm. In case necessary, please consult your supply authority for system impedance information.

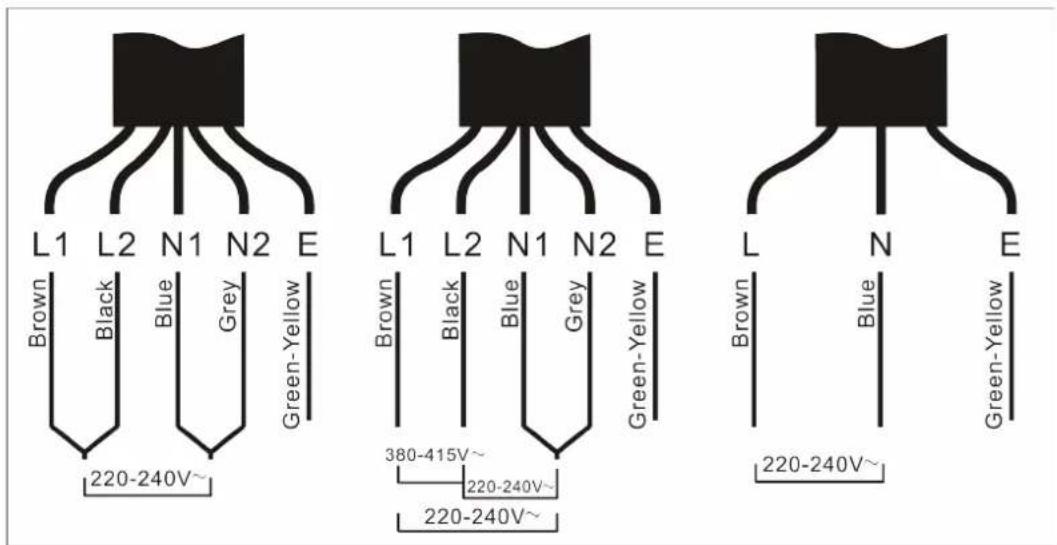

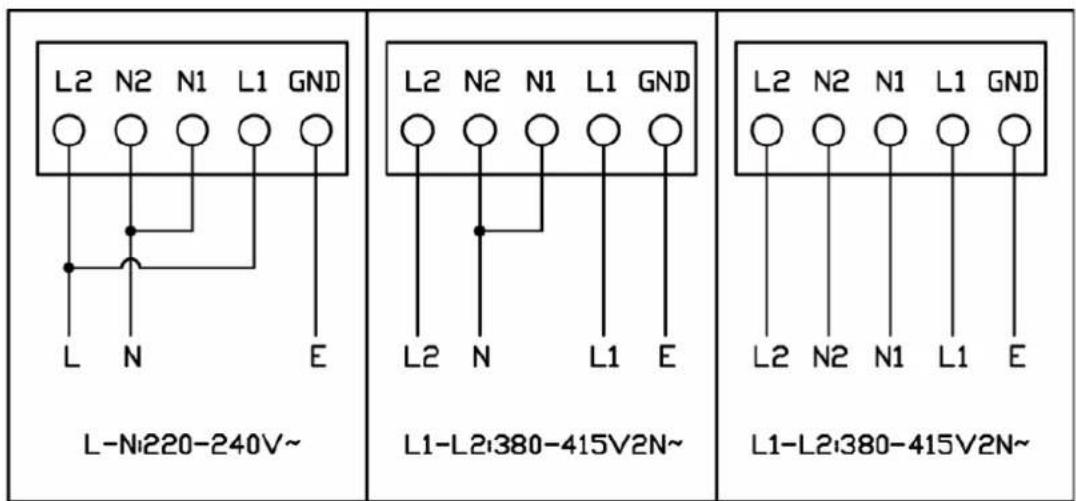

ELECTRICAL INSTALLATION

Connection should only be carried out by qualified personnel who are familiar with the applicable building element.

Before connection, it should be ensured that the mains to which the device is to be connected is suitable for the purpose and meets the requirements:

• Check that the mains is suitable for the device's power consumption.
• The mains voltage must match the values specified on the unit's nameplate.
• The power supply cable must be suitable for the load specified on the device nameplate.
• The power supply cable must be free of surrounding hot bodies.

IkonBeskrivelse

ON/OFF - Turn the device on/off

CHIDD-DOCK:Press the button once to unlock. Then press the button 3 times. to unlock.

+: Increase the effect on the cooking zone or increase the time on the timer.

- : Reduce the power on the cooking zone or reduce the time on the timer.

Boost function

Timer function.

Select the upper left cooking zone.

Select the lower left cooking zone.

Select the right cooking zone.

Display, shows power level on the cooking zone, or possible error code.

Display, shows hours.

Using the hob:

Press the ON/OFF button to activate the hob. All indicators now show "-"

Place a pot/pan on the desired cooking zone. Make sure that the surface of the hob and the underside of the pot/pan are clean and dry.

Press the cooking zone selector and the indicator next to it will start to flash.

Select the desired heat setting using + and - .

If a heat setting is not selected within 1 minute, the hob switches off automatically.

After the use of the hob is finished, there will be excess heat.

When the "H" icon is displayed, it means that the cooking zone is still hot. When the cooking zone has cooled down to a safe temperature, "H" switches off again.

BOOST

Activate the boost function by pressing "b". Boost provides a significant temporary increase in the heat efficiency of the cooking zone.

Boost can be canceled at any time by choosing a different speed.

LOCK

Using the lock function:

Press the lock icon to lock the control panel. The control panel can be unlocked again by pressing the lock icon for 3 seconds. ON/OFF is still active even when the lock function is active.

Timer function

Press the hotplate selector for the hotplate for which the timer is desired.
“0” is now shown in the display.
Set the desired time in minutes using + and -. The two digits must be entered individually. When the first digit is selected, the timer is pressed again and the second digit can now be selected.	03
The timers can be canceled at any time by following the procedure for hob timers from scratch and setting the time to “0”.After the time is up, switch off the hob.

Automatic switch off of the hob

The hob is equipped with automatic switching off of the hobs, in the event that a hob is not switched off after use. The following table indicates how long each hotplate is active before it switches off automatically:

Power level 1 2 3 4 5 6 7 8 9
Default working time (hour) 8 8 8 4 4 4 2 2 2

When the pot/pan is removed from the cooking zone, it switches off automatically after 1 min.

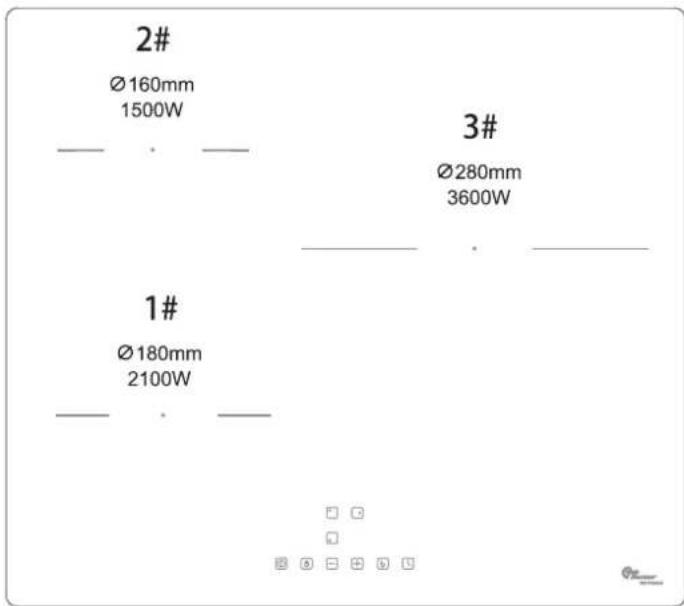

Overview of power level per cooking zone

The table below shows the maximum effect on each of the zones.

Model identification TH1NC 60

Cooking zones 3 zones

Supply voltage 220-240V\~50/60Hz

Installed electrical power 7200W

Product size D x W x H (mm) 590×520×60

Built-in dimensions A x W (mm) 560×490

Energy consumption per cooking zone or area calculated per kg EC electric cooking (Wh/kg)

Left down: 196.2

Left up: 183.5

Right : 187.7

ERROR CODES

If an abnormality occurs, the induction hob will automatically go into protection mode and display corresponding protection codes:

Problem Possible cause
What to do

	No pan or pan is not suitable	Replace the pan
E2/E3	Abnormal supply voltage	Please check whether the power supply is normal. Switch on after the power supply is normal.
E4/E5	Temperature sensor for the IGBT fault	Please contact the supplier.
E7/E8	Temperature sensor error	Please contact the supplier.
E6/E9	Poor heat radiation from the induction hob	Please restart after the induction hob has cooled down.
Eb/EC	PCBA communication error	Please contact the supplier.

CLEANING AND MAINTENANCE

DAILY CLEANING

• Surfaces and glass plate are cleaned with a damp cloth with washing-up liquid.
• Lacquered surfaces are cleaned with a damp cloth with sulfo/detergent. NEVER use abrasives.

What? How Important!
Everyday dirt on glass (finger-prints, marks, food stains or non-sugary spill-overs on the glass)	1. Turn off the power to the hob.2. Apply a hot plate while the glass is still warm (but not hot!)3. Rinse and dry with a clean cloth or paper towel.4. Switch on the power to the stove again.	·When the power to the hob is switched off, there will be a 'no hot surface' indication, but the cooking zone may still be hot! ·Powerful scrubbers, some nylon scrubbers and harsh/abrasive cleaners can scratch the glass. Always read the label to check if your cleaning or scrubbing machine is suitable. ·Never leave cleaning residue on the hob: the glass may become stained.
Overboil, melted and hot sugary spill on the glass	Remove these immediately with a fish slicer, palette knife or razor blade scraper suitable for induction glass hobs, but beware of hot cooking zone surfaces:1. Turn off the power to the hob at the wall.2. Hold the blade or utensil at a 30° angle and scrape the dirt or spill onto a cool area of the hob.3. Clean the dirt or spill with a dish cloth or paper towel.4. Follow steps 2 to 4 for 'Everyday dirt on glass' above.	·Remove stains left by melts and sugary foods or spills as soon as possible. If left to cool on the glass, they can be difficult to remove or even permanently damage the glass surface. ·Cutting hazard: When the safety cover is retracted, the blade of a scraper is razor sharp. Use with extreme caution and always keep safe and out of the reach of children.
Spill on the touch control	1. Turn off the power to the hob.2. Absorb the spill.3. Wipe the touch control area with a clean damp sponge or cloth.4. Dry the area completely with a paper towel.5. Switch on the power to the hob again.	The hob may beep on and off by itself and the touch buttons may not work while there is liquid on them. Be sure to wipe the touch control area dry before switching the hob back on.

SERVICE

Before reporting service on your Thermex produkt, it is important that you read the installation and/or user instructions carefully. It ensures that Thermex can provide you the best possible assistance.

Service department at Thermex can be contacted in preparation to:

• Technical support for installation and installation of your range product.
• Clarification of functionalities in your produkt.
  • Service Request during the warranty on your product.

Before a service request during the warranty always try to disconnect the power to the product for about 5 min. Then plug the power back on to see if the problem is corrected.

If the problem is not corrected, disconnect the power supply to the product for one hour. If the product is still not functioning properly, and the troubleshooting charts are reviewed, contact the service department.

NOTE: For inquiries within the warranty, you will be asked for proof of your purchase in the form of a sales receipt. Therefore, always store your sales receipt

Before the request for service within the warranty, it is important to have all the necessary information ready:

• Error Description
• Product/Model
  • The type and serial number of the product (on the chassis plate)
  • Information of purchase

CONTENDIO

Advertencia general 18

Asamblea

19

Type	L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
AI320	590	520	60	56	560	490	50

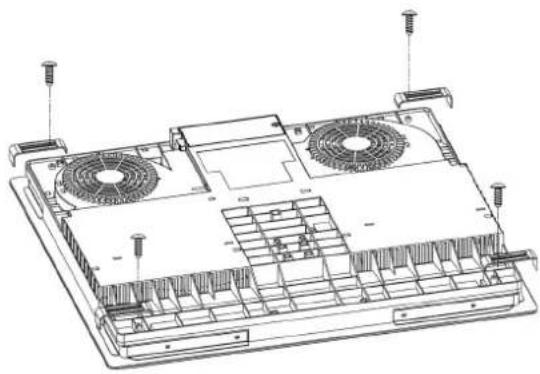

Technical line drawing of a computer chassis with cooling fans and mounting screws (no text or symbols)

IkonBeskrivelse

SKROTNING AF PRODUKTET

The packaging must be disposed of in accordance with local regulations on waste management.

SCRAPPING OF THE PRODUCT

The symbol _1 on the product or accompanying documentation indicates that this product may not be disposed of as household waste but must be delivered to the nearest collection center for the recycling of electrical and electronic equipment.
