Deli WA100S - Waffle Maker Eldom - Free user manual and instructions

Product Type	Waffle Maker
Brand	Eldom
Model	Deli WA100S
Power	1000W
Voltage	230V ~ 50Hz
Control Lights	Green (power on), Orange/red (ready to bake)
Baking Plates	Non-stick coated
Lid Lock	Interlock handle
Housing Material	Plastic with heat-resistant surfaces
Dimensions (approx.)	25 x 20 x 10 cm
Weight (approx.)	1.2 kg
Cord Length	0.8 m (approx.)
Safety Features	Hot surface warning, do not immerse, keep away from children
Cleaning	Wipe with damp cloth after unplugging; no detergents or abrasives
Recipe Included	Yes (basic waffle recipe)
Warranty	Domestic use only; improper use voids guarantee
First Use	May produce slight odor; ventilate room
Baking Time	6-8 minutes

Frequently Asked Questions - Deli WA100S Eldom

How do I clean the waffle maker?

Unplug the appliance and let it cool completely. Wipe the baking surfaces with a dry paper towel to remove grease, then clean all surfaces with a lightly dampened cloth. Never submerge in water or use detergents.

Why does the waffle maker produce a smell on first use?

A light odor may occur from production residues. This is normal and will disappear after a short time. Ensure good ventilation, e.g., open a window.

What do the indicator lights mean?

The green light (A) shows the appliance is connected to power. The other light (B) indicates the waffle maker has reached the correct temperature for baking.

Can I use metal utensils on the baking plates?

No, avoid hard or metal objects as they can damage the non-stick coating. Use wooden or silicone utensils instead.

How long does it take to bake waffles?

Typically 6-8 minutes, depending on the batter and desired browning level. Check after 6 minutes.

What is the recommended recipe?

Mix 2 glasses of flour, 500 ml milk, 4 eggs, 1 tsp baking powder, 50 ml oil, pinch of salt, and 1/2 glass sugar. Pour batter to fill half the mold.

Can I make other foods besides waffles?

The appliance is designed specifically for waffles. Using it for other foods may damage the non-stick surface and void the warranty.

Is the waffle maker safe for children to use?

Children aged 8+ may use it under supervision. The appliance gets hot, so only hold by the handgrip. Children should not clean or maintain it.

What should I do if the power cord is damaged?

Do not use the appliance. Have it repaired by an authorized service center only. A list is available at www.eldom.eu.

How should I store the waffle maker?

Ensure it is clean and completely cool. Store in a dry place, away from children. The cord can be wrapped loosely.

USER MANUAL Deli WA100S Eldom

Black plastic briefcase with handle and side panel, no visible text or symbols

Simple gray rectangular shape with two vertical lines and a horizontal line at the bottom (no text or symbols)

WSKAZÓWKI BEZPIECZEŃSTWA

1. Read the whole content of this user manual before using the appliance for the first time connect the connection cord to a socket which complies with the specification provided in the manual.
2. Set the appliance on a flat, stable and high temperature resistant surface.
3. Always disconnect the appliance from the mains by pulling the plug, not the power cord.
4. Disconnect the appliance from the mains whenever it is not used or before cleaning it.
5. Do not immerse the cord or the appliance in water.
6. Do not use in open air.
7. Do not use nearby inflammable materials such as furniture, bedding, paper, clothes, lace curtains, linings etc.
8. Do not leave children without care nearby the appliance parts of the appliance become hot when the appliance is being used. You should hold the appliance only by the handgrip.
9. Be careful when taking out the sandwiches. Ready made sandwiches are hot and can burn.
10. Do not leave the appliance unattended when it is being used.
11. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
12. Pay attention to make sure that the appliance is not played with by children.
13. Do not carry or move the appliance when it is being used.
14. Do not cover the appliance when it is being used.

15. Do not put any products in metal foils into the appliance.

16. Do not grasp the appliance with wet hands.

17. The appliance is intended for household use only.
18. A very hot stream of steam may come out of the appliance when the cover is being opened do not use the appliance if the power cord has been damages or when the appliance has fallen down or was damaged in another way. The appliance should be repaired by an authorized service shop; see the annexe or visit the site www.eldom.eu for the list of authorized service shops.
19. The appliance may be repaired only by an authorized service outlet.
20. Modernizing the appliance or using other spare parts or components for the appliance with the genuine ones is forbidden and threatens the safety of use.
21. Eldom Sp. z o. o. is not responsible for any potential damages caused by improper use of the appliance.

This symbol is a warning against the high temperature of the appliance surface.

CLEANING AND MAINTENANCE

• Before commencing with the cleaning of the appliance, remove the plug from the mains power socket and allow the appliance to cool down.
• Never submerse any ports of the appliance in water or other liquids. This would bring about the risk of a potentially fatal electric shock.
• First of all, clean the baking surfaces with a dry paper towel to soak up any grease residue.
• Then clean all surfaces and the power cable with a lightly moistened dish cloth. Always dry the appliance well before using it again.
• Do not use detergents or solvents. These could not only cause damage to the appliance, they can also leave traces that could be baked into the next waffles.
• In the case of stubborn residues never make use of hard objects. These could damage the coatings of the baking surfaces. It is better to lay a wet wash cloth on the encrusted residues in order to soften them.

ENVIRONMENTAL PROTECTION

- The appliance is made of materials which can be recycled.

- It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

WARRANTY

• This appliance is designed for domestic use only.
• It cannot be used for professional purposes or for other than the intended use.
• Improper use will nullify the guarantee.

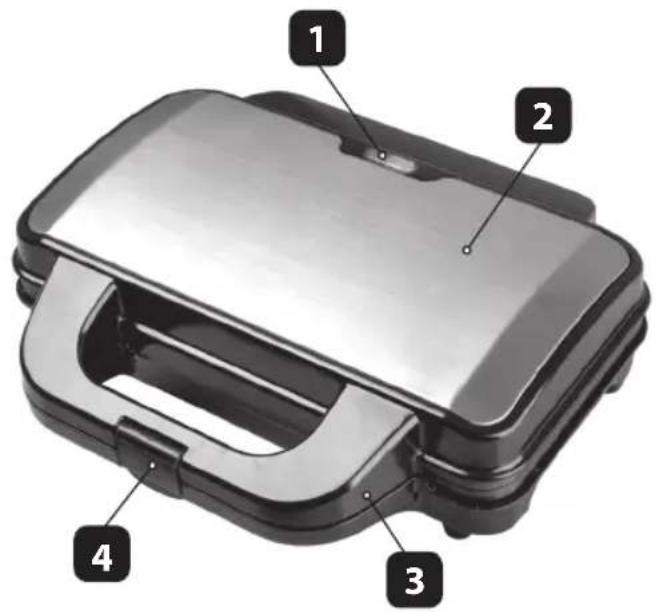

GENERAL DESCRIPTION

1. Control lamps A i B
2. Lid
3. Handgrip
4. Interlock handle

SPECIFICATION

• power: 1000W
• power supply voltage:

230V \~ 50Hz

OPERATING

Before taking the appliance into use check to ensure that the appliance, the power plug and the power cable are all in a serviceable condition and that all packaging materials have been removed.

Note

On first use the development of a light odour may occur, caused by production residues. This is normal and stops after a short time. Provide for sufficient ventilation. Open a window, for example.

OPERATION

• Wipe the heating plates with a damp cloth.
• Position the device on a level, stable and high-temperature resistant surface.

• Oil the plates slightly with butter, margarine or oil to make them ready for making waffles.

• Close the lid (2) and secure the handle with interlock (4).

• Plug in the appliance operation of the appliance is signalled by the green light (A).
• Control light (B) signals when the waffle-maker is heated and ready for operation.
• open the lid (2) and pour the batter in so that it fills the form halfway up (any excess batter will flow out from the form after closing the lid).
• Close the lid gently and secure the handle with interlock (4).
• Bake waffles for 6-8 minutes.

The baking time is dependant on:

• The type of cake.
• Expected baking level of waffles and the number of waffles in the waffle iron.

USEFUL TIPS

- Mix all ingredients together uniformly, this will ensure a constant level of browning.

- If you use milk instead of water, the waffles will be softer and darker.

- Never lay crisply baked waffles on top of each other. This causes them to become soft quickly. To keep them crispy, lay them next to each other on a kitchen grill.

RECIPE

Ingredients:

• 2 glasses of flour
• 500 ml milk
  -4 eggs
• 1 teaspoon of baking powder
• 50 ml oil
• a pinch of salt
• approx 1 / 2 glass of sugar

Mix eggs with sugar, and then pour flour, which has been previously mixed with baking powder. Add milk and oil and mix until the cake is homogeneous. Add salt to taste. Waffle recipes are also available on various Internet sites.
