Product Type	Microwave Oven
Brand	Clas Ohlson
Model Number	44-3979 / SMH207E9H-P
Capacity	20 liters
Power Input	1200 W
Power Output	700 W
Frequency	2450 MHz
Voltage	220–240 V / 50 Hz
Dimensions (W x D x H)	45.2 x 34.2 x 26.2 cm
Weight	Approx. 10.8 kg
Control Type	Mechanical knobs (power selector and timer)
Turntable	Glass turntable with ring drive
Timer	30-minute countdown timer with end bell
Power Levels	5 levels: Low (17%), Defrost/Med Low (33%), Medium (55%), Medium High (77%), High (100%)
Safety Features	Safety interlock system, door seals, child supervision required
Installation Clearance	20 cm sides, 30 cm above, min height 85 cm
Cleaning	Wipe with damp cloth; wash turntable and ring separately
Intended Use	Domestic, staff kitchens, hotel rooms
Color	White
Included Accessories	Glass turntable, turntable ring

Frequently Asked Questions - 44-3979 Clas Ohlson

How do I set the cooking time on the microwave?

Turn the countdown timer knob clockwise to the desired time (maximum 30 minutes). The oven starts automatically when the door is closed and both power and time are set.

What power levels are available and what are they used for?

Five power levels: Low (17%) for softening ice cream; Defrost/Med Low (33%) for defrosting and heating soup; Medium (55%) for stews and fish; Medium High (77%) for rice, chicken, meat; High (100%) for warming milk, vegetables, and drinks.

Can I use metal containers or aluminum foil in the microwave?

No. Metal and aluminum foil can cause arcing (sparks) and damage the oven. Only use microwave-safe materials such as glass or porcelain.

Why does my microwave produce sparks or arcing?

Sparks or arcing usually occur if metal is placed inside the oven or if the oven is operated empty. Remove any metal objects and never run the microwave without food or liquid inside.

How should I clean the microwave oven?

Unplug the oven before cleaning. Wipe the interior and exterior with a soft, damp cloth and mild detergent. Never immerse in water. Wash the glass turntable and turntable ring in warm soapy water.

What clearance is needed around the microwave for proper ventilation?

Ensure at least 20 cm clearance on both sides, 30 cm above the oven, and a minimum installation height of 85 cm above floor level. Do not block ventilation ports.

Can I use the microwave without the glass turntable?

No. The microwave must always be used with the glass turntable in place. Never restrict the turntable from rotating. Operating without it may cause uneven heating or damage.

What should I do if the oven does not start?

Check that the power cord is plugged into a wall socket and that the door is fully closed. If the problem persists, contact qualified service personnel.

Is it safe for children to use the microwave?

Children aged 8 years and above may use the microwave only if supervised or instructed on safe use. Cleaning and maintenance may be carried out by children aged 8+ under adult supervision.

How should I dispose of the microwave at the end of its life?

Do not dispose of it with household waste. Take it to a local collection facility for recycling as per EU regulations to prevent environmental harm.

USER MANUAL 44-3979 Clas Ohlson

Front view of a white microwave oven with power and time control knobs (no visible text or symbols on the main body)

Microwave Oven

Art.no 18-4812

44-3979

Model

SMH207E9H-P

SMH207E9H-P

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

To avoid the risk of exposure to harmful microwaves:

• This microwave oven may be used by children of 8 years and above and by persons with reduced physical, sensory or mental capability or lack of experience and knowledge provided they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
• Cleaning and maintenance may be carried out by children aged 8 or over, but only under adult supervision. Never let children play with the microwave oven.
• Ensure that the microwave oven and its mains lead are kept out of reach of children under the age of 8.
• This microwave oven is intended for normal domestic use or under similar conditions in staff kitchens or hotel rooms.
• Warning: The microwave oven will become hot during use. Be careful not to touch any hot parts inside the oven.
• Do not use a steam cleaner to clean the microwave oven.
• If a thermometer is used, make sure that it is approved for microwave oven use (only microwave ovens designed for use with thermometers).
• Any kitchen cabinet doors designed to conceal the microwave oven must be open when the oven is operated.

• The minimum installation height is 85 cm above floor level.

• The back of the microwave oven should be placed against a wall. A clearance of 30 cm should be left above the microwave oven and 20 cm on the sides.

• The microwave oven should not be used if the door or casing is damaged.
• The microwave oven may only be disassembled and repaired by qualified service personnel.
• Never open the casing. Certain unshielded components inside the casing carry dangerous voltages. Contact with these components could result in electric shock.
• The microwave oven should not be taken apart or modified.
• Never heat drinks or other food items in closed containers since it might cause them to explode.
• Make sure that the microwave oven has plenty of space so that no air inlet/outlet ports are blocked.
• Only use microwave-safe containers.
• Never leave the microwave oven unattended while heating food items in plastic or paper containers since there may be a risk of fire.
• If smoke is detected the microwave oven should be switched off or unplugged straight away. Keep the microwave oven door shut to smother any flames.
• The contents of feeding bottles or similar baby food containers should always be well stirred or shaken before serving. Always check the temperature of food before serving to avoid burns.
• Do not heat or cook eggs with the shell on in the microwave oven. They may explode during or after heating.
• Be aware that food containers heated in the microwave become very hot so take care when removing them. Use an oven cloth or oven glove to avoid burning yourself.

• Place the microwave oven on a dry and level surface.

• Do not place the microwave oven where it could fall into water or any other type of liquid.

• Connect the microwave oven to an earthed electrical socket complying with the specifications stated on the rating plate of the product.
• Do not subject the microwave oven or the mains lead to knocks or blows.
• Make sure that the lead does not come in contact with hot surfaces such as cooker hobs.
• Do not us the microwave oven if the mains lead or plug is damaged.
• Clean the microwave oven regularly. Make sure to wipe off any spilt food.
• Always unplug the microwave oven from the power point before cleaning it.
• The microwave oven should only be used and kept indoors.
• Never turn the microwave oven on when it is empty. Sparks may be produced and the microwave may become damaged.
• The microwave oven is only intended for heating food and drink. Drying food or heating wheat warmers in the oven could cause a fire.
• The microwave oven should be kept clean. Failure to keep the microwave oven clean could shorten its service life and result in a hazardous situation.
• Never place the microwave oven in a cupboard.
• Warning: The microwave oven must not be used if the door or door seal is damaged or leaks.
• Warning: Never open the casing of the oven or remove any cover which gives protection against exposure to microwaves. Such repairs must only be carried out by qualified service technicians.
• Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

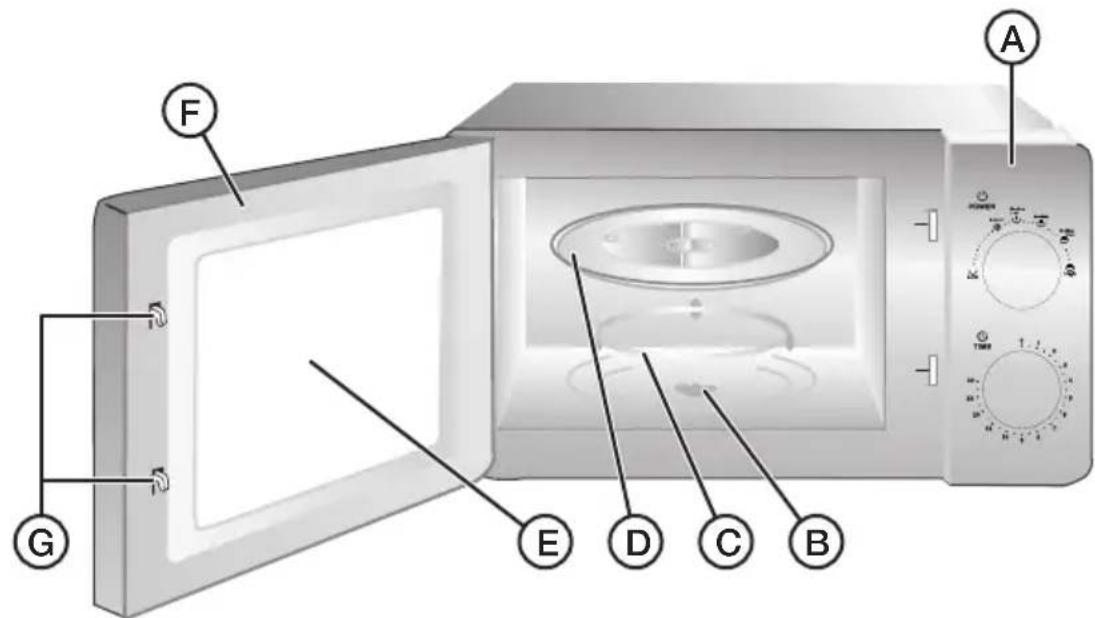

Product description

A) Control panel

B) Turntable drive

C) Turntable ring

D) Turntable

E) Window

F) Door

G) Safety interlock system (stops the oven as soon as the door is opened)

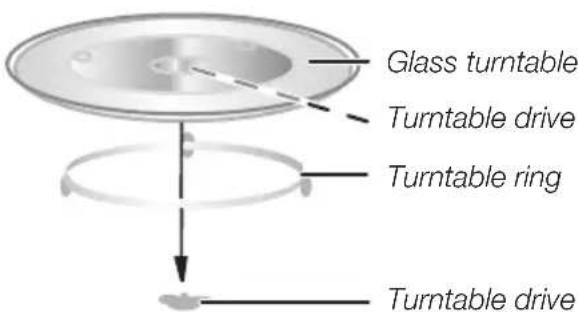

Installing the turntable

Important!

• Never place the glass turntable upside down. The glass turntable should never be restricted.
• Never use the microwave oven without the glass turntable.
  • Always place containers of food on the glass turntable during use.
• Never use a cracked or broken glass turntable.

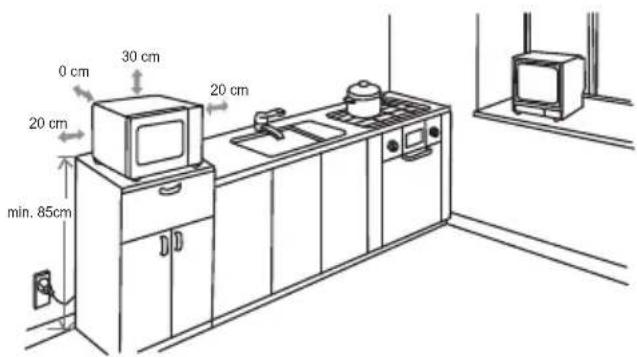

Selecting a good location

• Place the microwave on a flat and dry surface.
• Make sure that the microwave oven has plenty of space so that no air inlet/outlet ports are blocked. The oven must have clearance of at least 20 cm along both sides and 30 cm above. The minimum installation height is 85 cm above floor level.
• Do not remove the feet of the microwave oven. These are needed to provide enough ventilation underneath the oven.
• Place the oven as far away from TVs and radios as possible. Microwave ovens can interfere with television and radio signals if located too close.

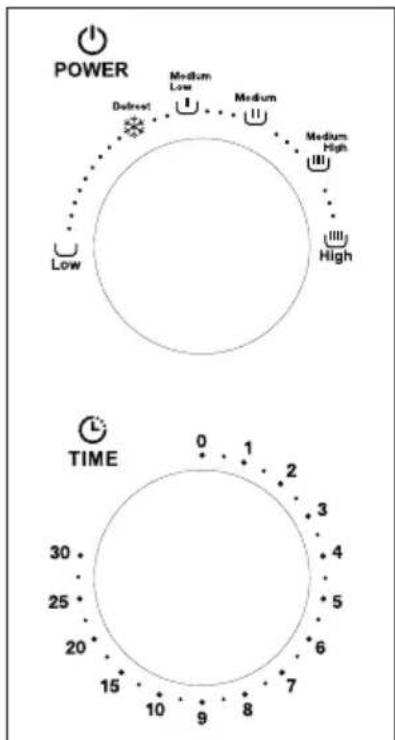

Operating instructions

1. Set the power setting by turning the power selector to the desired setting (refer to Power settings below).
2. Set the heating time by turning the countdown timer knob to the desired time (max 30 min).
3. The microwave oven will start automatically once the power and heating time have been set (if the door is closed).
4. When the time has elapsed the timer bell will ring once.
5. Reset the timer to 0 as soon as you have removed food from the oven or when the oven is not being used.
6. Never start the oven when there is nothing in it (food, beverages, etc.). Sparks may be produced and the microwave may become damaged.

Power settings

Mode/Power Output power Food
Low 17 % E.g. softening hard frozen ice cream
Defrost, M. Low (medium low) 33 % Defrosting, Heating soup, etc.
Med. 55 % Heating stews, fish, etc.
M. High (medium high) 77 % Heating rice, fish, chicken, meat, etc.
High 100 % Warming milk, vegetables, drinks, etc.		Boiling water

Note during use

• Place the oven as far away from TVs and radios as possible. Microwave ovens can interfere with television and radio signals if located too close.
• When using low power the oven light will be weaker. This is completely normal.
• Steam may appear during cooking. Most steam will exit the ventilation port but some steam may condense on cooler surfaces such as the oven door. This is completely normal.

Care and maintenance

Always unplug the product from the wall socket before cleaning. Never immerse the microwave in water to clean it.

• Wipe both the inside and outside of the oven with a soft, damp cloth using a mild cleaning solution. Avoid using solvents and abrasive cleaning agents.
• Wash the glass turntable and turntable ring in warm water with washing up liquid.
• Wipe the door, turntable ring and surrounding surfaces with a soft damp cloth.

Troubleshooting guide

Problem Possible cause	Possible solution
The oven does not start.	Power cable not connected. Door is open.	Plug into the wall socket. Close the door.
Arcing or small sparks occur.	Unsuitable material, e.g. metal inside the oven.The oven is being used empty.	Use only microwave-safe materials such as glass or porcelain.Do not use the microwave oven while it is empty.
Food is heated unevenly	Unsuitable material, e.g. metal inside the oven.The food has not been turned over or stirred.	Use only microwave-safe materials such as glass or porcelain.Turn over or stir the food.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Specifications

Voltage 220–240 V/50 Hz

Input power 1200 W

Output power 700 W / 2450 MHz

Capacity 20 litres

External size 45.2 × 34.2 × 26.2 cm

Weight Approx. 10.8 kg
