Product Type	Heavy Duty Electric Griddle (Contact Grill)
Brand	Vulcan
Model	HEG72E
Dimensions (W x D)	72 in x 24 in (183 cm x 61 cm)
Weight	Approximately 350 lb (159 kg)
Power Requirements	208/240/480 VAC, 1 or 3 phase, 32.4 kW total (two separate power supplies required)
Number of Thermostats	6 (each controls a 12 in section)
Heating Elements	Each section has two 2.7 kW elements
Cooking Surface	Flat steel griddle plate, 72 in x 24 in
Temperature Control	Thermostat with calibration adjustment, indicator light shows when heating
Grease Management	Grease chute and trough
Installation	Professional installation required, see Installation and Owners Manual
Cleaning	Daily cleaning recommended; detailed procedures in manual
Safety Features	Disconnect power before servicing; lockout/tagout required
Warranty	Refer to manufacturer
Service Manual	Available for trained technicians
Replacement Parts	Heating elements, thermostats, knobs, indicator lights available

Frequently Asked Questions - HEG72E Vulcan

Why won't the griddle heat up (indicator light off)?

Check the main power supply and circuit breakers. Ensure the thermostat is set above 300°F. If the indicator light does not glow, the thermostat may be faulty. Refer to the thermostat replacement procedure in the service manual.

Why does the griddle heat up but the indicator light stays on?

If the indicator light is on but the griddle does not heat, the heating elements may be inoperative. Check voltage to the elements and replace if necessary. See heating element replacement instructions.

How do I calibrate the thermostat?

Place a surface temperature probe in the center of the thermostat's sensing area. Set the thermostat to 350°F and allow three cycles. Note the on/off temperatures. If the average is within 15°F of the set point, it's calibrated. If not, remove the knob and adjust the calibration screw (1/4 turn = 18°F change). Recheck and reseal with nail polish.

What causes hot and cold spots on the griddle?

Possible causes include uneven loading of food, heating elements not clamped tightly to the griddle plate, incorrect voltage elements, or air drafts. Ensure elements are torqued to 30-35 inch-pounds and the thermostat bulb is flush against the plate.

Why does the grease smoke excessively?

The temperature may be set too high. Also, moisture in food can turn to steam. Reduce the thermostat setting or allow the griddle to stabilize. Clean the surface if residue is burning.

How often should I clean the griddle?

Daily cleaning is recommended to prevent gum build-up. Follow the cleaning procedures in the Installation and Owners Manual. Use a griddle stone or mild cleaner; avoid abrasive pads that may damage the surface.

Can I replace the heating element myself?

This procedure should be performed by a trained Vulcan service technician. It involves disconnecting power, lifting the griddle plate, and removing the element pressure plate. Torque nuts to 30-35 inch-pounds and use anti-seize compound.

What does the indicator light mean?

The red indicator light energizes when the thermostat calls for heat and de-energizes when the set temperature is reached. It cycles during cooking to maintain temperature.

What is the recommended voltage for the HEG72E?

The griddle can be configured for 208V, 240V, or 480V, single or three phase. The total power is 32.4 kW, requiring two separate fused branch circuits. Refer to the wiring diagrams for proper connections.

How do I lift the griddle plate for service?

Remove thermostat knobs and front trim panel. Unbolt the griddle plate from each side. Lift straight up and place two 4x4 blocks between the plate and the unit sides, about 6-7 inches high. Ensure the grease chute does not raise past the heater panel.

USER MANUAL HEG72E Vulcan

Stylized black-and-white illustration of a wolf's head (no text or symbols)

WOLF

HEG / RRE / WEG Series Griddle

Two identical stainless steel laboratory equipment units with control knobs, no visible text or symbols.

VULCAN HEG24E

HEG36E

HEG48E

HEG60E

HEG72E

RRE24E

RRE36E

RRE48E

WOLF WEG24E

WEG36E

WEG48E

WEG60E

WEG72E

This Manual is prepared for the use of trained Vulcan Service Technicians and should not be used by those not properly qualified.

This manual is not intended to be all encompassing. If you have not attended a Vulcan Service School for this product, you should read, in its entirety, the repair procedure you wish to perform to determine if you have the necessary tools, instruments and skills required to perform the procedure. Procedures for which you do not have the necessary tools, instruments and skills should be performed by a trained Vulcan Service Technician.

The reproduction, transfer, sale or other use of this Manual, without the express written consent of Vulcan, is prohibited.

This manual has been provided to you by ITW Food Equipment Group LLC (“ITW FEG”) without charge and remains the property of ITW FEG, and by accepting this manual you agree that you will return it to ITW FEG promptly upon its request for such return at any time in the future.

For additional information on Vulcan-Hart Company or to locate an authorized parts and service provider in your area, visit our website at www.vulcanequipment.com

TABLE OF CONTENTS

SERVICE UPDATES 3

SERVICE UPDATES 3

TIS DOCUMENT LIST - HEG / WEG SERIES 3

GENERAL 4

INTRODUCTION 4

MODELS COVERED 4

INSTALLATION 4

CLEANING PROCEDURES 4

TOOLS AND TEST EQUIPMENT 4

LUBRICATION 4

REMOVAL AND REPLACEMENT OF PARTS 5

GRIDDLE SERVICE POSITION 5

HEATING ELEMENT REPLACEMENT 5

THERMOSTAT REPLACEMENT 7

SERVICE PROCEDURES AND ADJUSTMENTS 9

THERMOSTAT CALIBRATION PROCEDURES 9

TESTING VOLTAGE TO HEATER(S) 10

- Added update to 60" WIRING DIAGRAM.

November, 2018

• Added TIS Document List.

August

TIS DOCUMENT LIST - HEG / WEG SERIES

SERVICE TAB
Document Title Document Type
HEG-E / WEG-E Heavy Duty Electric Griddles Service Manual	Service Manual

SERVICE TAB (Multimedia)
Document Title Document Type
Repairing Flood-Damaged Food Equipment Misc
HEG-E / WEG-E Heavy Duty Electric Griddles Operation & Installation Manual	Operator
Rating Plate Locations on Current Vulcan-Hart/Wolf Range Equipment	Technical Service Bulletin (TSB)
TSB 1037A Hobart to Vulcan "Common" Model Cross Reference List	Technical Service Bulletin (TSB)

PARTS TAB
Document Title Document Type
HEG-E / WEG-E Heavy Duty Electric Griddles Parts Catalog	Parts Catalog

GENERAL

INTRODUCTION

This manual is applicable to the models and ML numbers on the cover page. Procedures apply to all models unless specified otherwise.

MODELS COVERED

Vulcan Brand
Models Length	Depth
HEG24E 24" 24"
HEG36E 36" 24"
HEG48E 48" 24"
HEG60E 60" 24"
HEG72E 72" 24"

Vulcan Brand
Models Length	Depth
RRE24E 24" 24"
RRE36E 36" 24"
RRE48E 48" 24"

Wolf Brand
Models Length	Depth
WEG24E 24" 24"
WEG36E 36" 24"
WEG48E 48" 24"
WEG60E 60" 24"
WEG72E 72" 24"

INSTALLATION

Generally, all installation are made by the dealer or others contracted by the dealer or owner. Detailed installation instructions are included in the "Installation and Owners Manual" for the appropriate model.

CLEANING PROCEDURES

Detailed cleaning procedures are included in the "Installation and Owners Manual" for the appropriate model.

TOOLS AND TEST EQUIPMENT

Tools Required

• Standard set of hand tools.
  • VOM with AC current tester.

NOTE: VOM sensitive of at least 20,000 ohms/volt can be used.

Special

• Thermocouple type, griddle or surface mount, temperature tester.
• 2 each, 8 inch long 4 × 4 wooden blocks.

LUBRICATION

1. Anti seeing coumpound
2. Penetrating oil
3. Finger Nail Polish

OPERATING CONTROLS

Thermostat

With the dial set to the desired setting, the temperature of the griddle section is maintained. When the operator turns the thermostat dial to OFF, electrical power is removed from the heating unit. Each thermostat controls a 12 inch wide section of the griddle surface.

Indicator Light

A red light will energize automatically for each section of the griddle when the thermostat is set, and will de-energize when the section has reached the thermostat setting. The light will energize and de-energize during the cooking operation to show that current temperature is being maintained.

REMOVAL AND REPLACEMENT OF PARTS

GRIDDLE SERVICE POSITION

WARNING

Disconnect the electrical power to the machine and follow lockout / tagout procedures.

WARNING

Griddle plate might be hot.

Griddle Service Position

1. Remove thermostat knobs.
2. Remove front trim panel screws and remove front trim panel.

NOTICE

Do not damage indicator lights when removing front trim panel.

Fig. 1

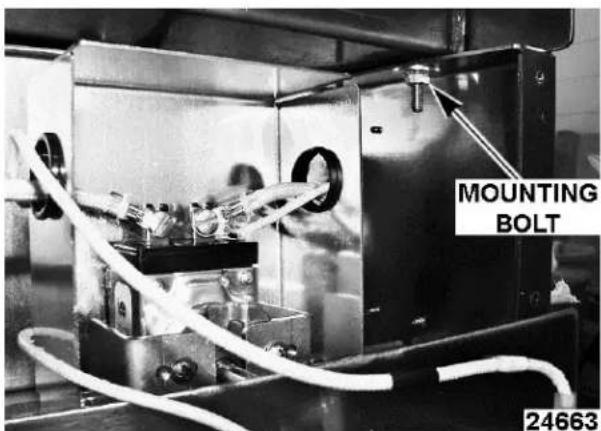

1. Remove griddle plate assembly mounting bolts, left and right side.

Fig. 2

WARNING

Lift griddle plate straight up to prevent the griddle plate from sliding to the left or right.

1. Lift griddle plate up, to add two 4 x 4 blocks between the griddle plate and left and right sides of unit, approximately 6 to 7 inches.

Fig. 3

NOTICE

Verify Grease Chute does not raise past the heater element panel. This helps prevent the top from sliding to the rear.

WARNING

Use 4 x 4, or greater, blocks to support griddle top. Do NOT use 2 x 4 blocks as they can tip over and lower griddle plate.

HEATING ELEMENT REPLACEMENT

WARNING

Disconnect the electrical power to the machine and follow lockout / tagout procedures.

WARNING

Griddle plate might be hot.

Heating Element Removal

1. Place griddle plate into GRIDDLE SERVICE POSITION.

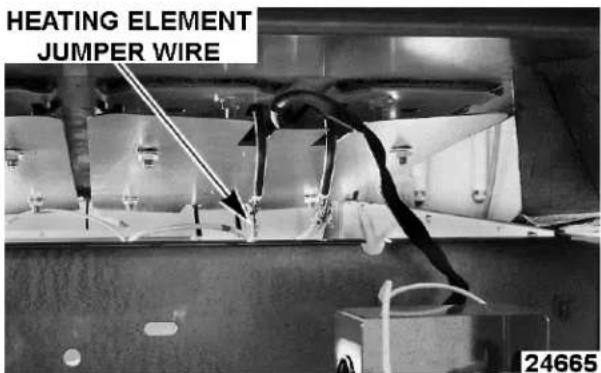

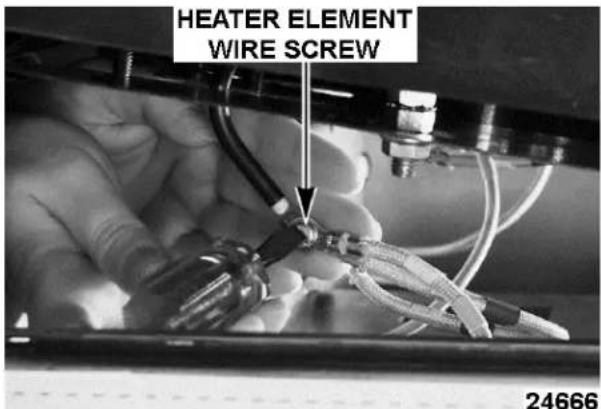

2. Remove front heater element jumper wire connection.

Fig. 4

NOTICE

When removing heater element jumper wire screw, support heater element.

Fig. 5

1. Remove element baffle shield.

Fig. 6

1. Remove bulb clamp.

NOTE: Loosen front and rear bolts and remove thermostat probe from bulb clamp. Secure thermostat probe to prevent damage.

Fig. 7

1. Remove heater element jumper wire on the back heater element connections.

NOTICE

When removing heater element jumper wire screw, support heater element. Refer to figure 24666.

1. Remove heating element pressure plate.

NOTE: Heater element is held into place by the pressure plate.

Fig. 8

1. Reverse procedures to install.

NOTE: Nuts should be torqued to 30-35 Inch Pounds.

1. See THERMOSTAT REPLACEMENT for proper installation of the thermostat.

NOTE: Coat threaded studs with high temperature anti-seize compound prior to putting bolts back on.

NOTE: Tighten nuts to 30-35 inch-pounds.

NOTICE

Over tightening the nuts can cause damage and prevent the element from moving with expansion and contraction that can lead to premature failures.

1. Check for proper operation.

THERMOSTAT REPLACEMENT

WARNING

Disconnect the electrical power to the machine and follow lockout / tagout procedures.

WARNING

Griddle plate might be hot.

Capillary Tube Removal

1. Place griddle plate into GRIDDLE SERVICE POSITION.
2. Remove front heater element jumper wire connection.

Fig. 9

NOTICE

When removing heater element jumper wire screw, support heater element.

Fig. 10

1. Remove heater element baffle shield.

Fig. 11

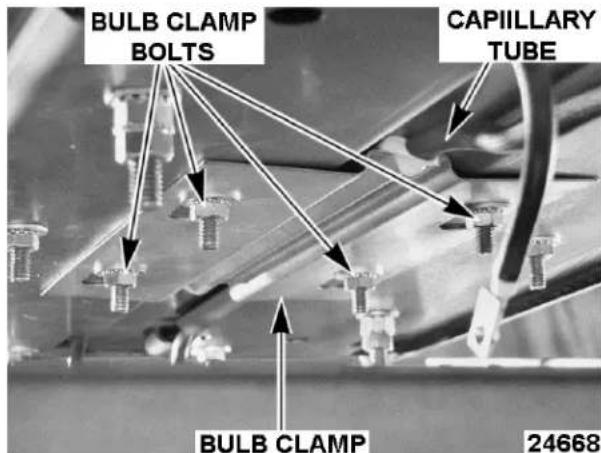

1. Loosen back bolts to bulb clamp.
2. Remove front bolts to bulb clamp.

Fig. 12

1. Pull thermostat probe to remove. NOTE: Retain capillary sleeve for new thermostat.

Thermostat Control Removal

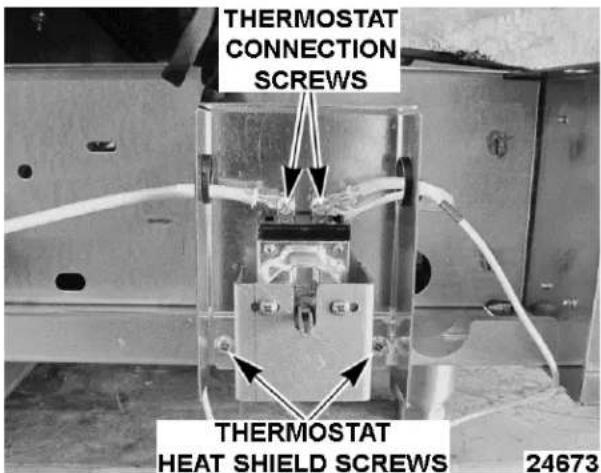

1. Remove thermostat connection screws.
   NOTE: Note heater element wire locations on the thermostat connection tabs.
2. Remove thermostat mounting screws.

Fig. 13

1. Remove thermostat heat shield screws.
2. Remove thermostat assembly from unit.

Thermostat Control Installation

1. Install capillary sleeve on replacement thermostat.
2. Install thermostat to thermostat bracket using mounting screws.
3. Thread capillary tube through opening located on the thermostat heat shield.

NOTICE

Secure thermostat capillary tube to prevent damage, while installing thermostat.

Fig. 14

1. Install thermostat bracket with the thermostat heat shield to the unit.
2. Connect heater wires to the thermostat per the wire connections noted earlier.

Fig. 15

Capillary Tube Installation

1. Slide capillary tube between bulb clamp and bottom of griddle plate.

Fig. 16

NOTE: Verify capillary tube is flush against the bottom of the griddle plate.

1. Tighten bolts. Torque to 30-35 inch pounds.
2. Install baffle shield using HEATING ELEMENT REPLACEMENT instructions.
3. Check for proper operation.

SERVICE PROCEDURES AND ADJUSTMENTS

THERMOSTAT CALIBRATION PROCEDURES

1. Clean temperature test section that is not working. Center temperature tester surface mount probe in center of thermostat probe. See table for proper testing locations according to griddle size.

NOTE: All readings taken 12" from front of griddle.

Griddle Size	Distance(s) From Left Edge of Griddle
24" 6", 18"
36" 6", 18", 30"
48" 6", 18", 30", 42"
60" 6", 18", 30", 42", 54"
72" 6", 18", 30", 42", 54", 66"

1. Set the thermostat to a temperature above 300^ F.
2. Allow the thermostat to cycle three times.
3. Note the tester reading when the indicator light turns ON and OFF.

NOTE: If the difference between the ON and OFF temperatures is greater than 25^ F, replace the thermostat.

1. Add these two temperatures together, then divide the sum by 2 to obtain an average temperature.

A. If the average temperature is within 15^ F of the set temperature, the thermostat is calibrated.
B. If the average temperature is not within 15^ F of the set temperature:

1) Remove thermostat knob.
2) Insert a flathead screwdriver into thermostat dial stem until it reaches the calibration screw.

Fig. 17

3) Turn adjustment screw CCW to increase and CW to decrease temperature.

Fig. 18

NOTE: A 1/4 turn equals 18^ F change.

1. Replace knob and repeat steps 3 and 5 until average temperature is within 15^ F of set temperature.
2. Reseal adjustment screw to prevent movement.

NOTE: Finger nail polish can be used to reseal screw to prevent movement.

1. If thermostat cannot be calibrated, replace thermostat as outlined under THERMOSTAT REPLACEMENT.

TESTING VOLTAGE TO HEATER(S)

WARNING

Disconnect the electrical power to the machine and follow lockout / tagout procedures.

1. Test supply voltage to verify it is correct.
2. Turn power off to griddle.
3. Place griddle into GRIDDLE SERVICE POSITION.
4. Connect voltmeter to leads of heating element in question.

5. Set meter on the appropriate range, determined by line voltage rating stamped on griddle data plate.

6. Turn on electrical power.

7. Turn thermostat to 350^ F.

A. Pilot light will energize.

1. Reading should agree with the voltage rating stamped on the griddle data plate.

A. If voltage reading is incorrect, and the line voltage is correct, the thermostat is not functioning properly.

B. If current draw is correct, then heating element is functioning properly. See table below for proper values.

VOLTS COLOR CODE POWER AMP RESISTANCE
208 YELLOW 2.7kW 13 16
240 RED 2.7kW 11.3 21.3
480 GREEN 2.7kW 5.6		85.7
NOTES:	1. Values in table are nominal. Tolerance is +5/-10%.2. Resistance values (ohms) are @ 77°F room temperature.

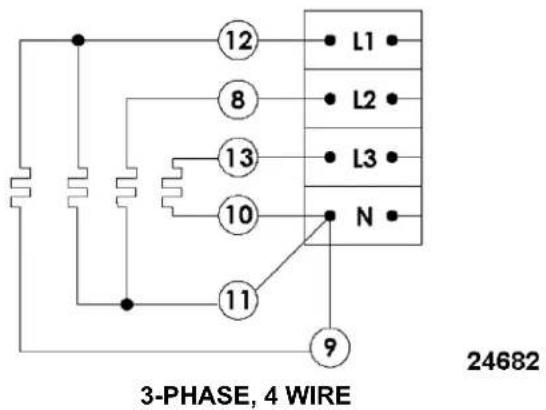

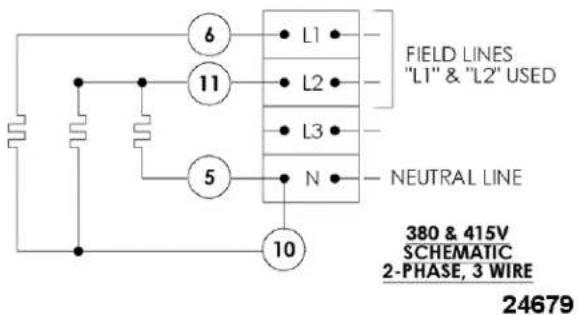

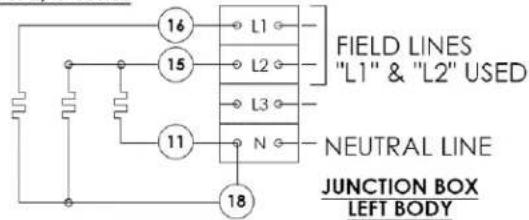

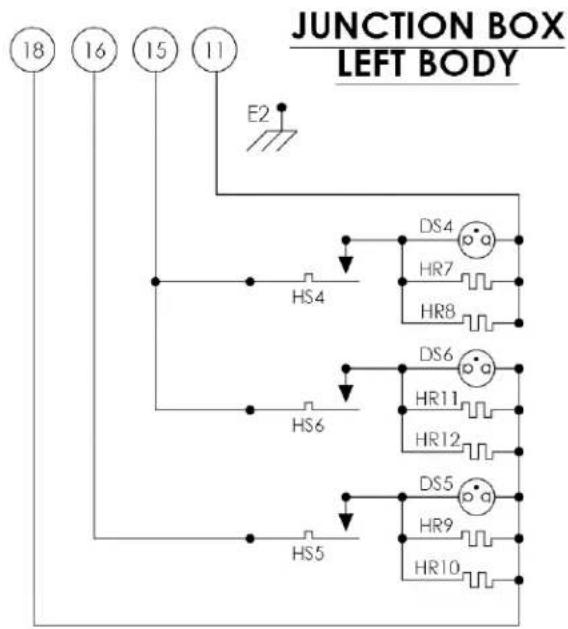

1. Refer to the schematic in the appropriate electrical diagram at the end of this section to trace circuits explained in this section.

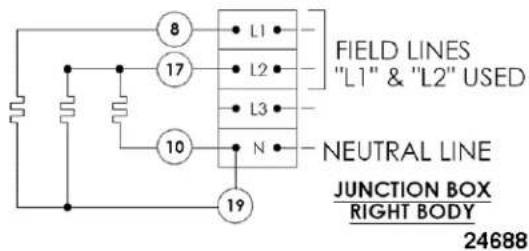

2. The electrical connection(s) to the griddle are made in the junction box.

A. Detailed information about the electrical connections to the griddle is contained in the "Installation and Owners Manual".

1. From the junction box, one electrical connection is made to the thermostat. The other electrical connection is made to the common side of the two heating elements which the thermostat controls.

2. With the dial set to "OFF", the thermostat contacts are open.

3. Turn dial to 350^ F.

A. The thermostat contacts close, electrical power is applied to the heating elements, the griddle begins to heat.
B. The indicator light energizes.

1. When the griddle surface reaches 350^ F, the thermostat contacts open and electrical power is removed from the heating elements.

A. The indicator light de-energizes.

1. The thermostat will cycle the heating elements and indicator light to maintain the griddle temperature.

24" WIRING DIAGRAM

24" WIRING DIAGRAM

Notes:

1. For supply connections, use copper wire sized in accordance with the national electrical code and suitable for at least 90°C (194°F).
2. Lead marker numbers are the same as lead item numbers unless otherwise specified.
3. Wiring to be:

A. 10G,m 532515 - leads 1, 5, 6, 10, 11, J and GRD.

B. 18GA., 532518 - leads 2 and 3.

24" SCHEMATIC

1 & 3 PHASE

208, 240, & 480 VAC, 1 & 3 PHASE
	X-Y Y-Z X-Z	TOTAL
kW PER LINE 5.4	5.4 0.0 10.8

NOMINAL AMPS PER LINE
	3-PHASE 1-PHASE
	XYZ-
208 22.5 45.0	22.5 51.9
240 19.5 39.0	19.5 45.0
480 9.7 19.5	9.7 22.5

FOR 3-PHASE:

1. Connect wire #5 to L1.
2. Connect wire #6 & #11 to L2.
3. Connect wire #10 to L3.

FOR 1-PHASE:

1. Connect wire #5 & #10 to L1.
2. Connect wire #6 & #11 to L2.

FOR 2-PHASE, 3 WIRE:

1. Connect wire #5 & #10 to neutral ("N").
2. Connect wire #11 to L1.
3. Connect wire #6 to L2.

2 PHASE, 3 WIRE

36" WIRING DIAGRAM

36" WIRING DIAGRAM

Notes:

1. For supply connections, use copper wire sized in accordance with the national electrical code and suitable for at least 90^ C ( 194^ F).
2. Lead marker numbers are the same as lead item numbers unless otherwise specified.
3. Wiring to be:
   A. 10G,m 532515 - leads 1, 4 - 6, 10, 11, J, J2 and GRD.
   B. 18GA., 532518 - leads 2 and 3.

36" SCHEMATIC

1 & 3 PHASE

208, 240, & 480 VAC, 1 & 3 PHASE
	X-Y Y-Z X-Z	TOTAL
kW PER LINE 5.4	5.4 5.4 16.2

NOMINAL AMPS PER LINE
	3-PHASE 1-PHASE
	XYZ-
208 45.0 45.0	45.0 77.9
240 39.0 39.0	39.0 67.5
480 19.5 19.5	19.5 33.8

FOR 3-PHASE:

1. Connect wire #10 to L1.
2. Connect wire #11 to L2.
3. Connect wire #5 & #6 to L3.

FOR 1-PHASE:

1. Connect wire #5 & #10 to L1.
2. Connect wire #6 & #11 to L2.

FOR 2-PHASE, 3 WIRE:

1. Connect wire #5 & #10 to neutral ("N").
2. Connect wire #6 to L1.
3. Connect wire #11 to L2.

2 PHASE, 3 WIRE

48" WIRING DIAGRAM

48" WIRING DIAGRAM

Notes:

1. For supply connections, use copper wire sized in accordance with the national electrical code and suitable for at least 90°C (194°F).
2. Lead marker numbers are the same as lead item numbers unless otherwise specified.
3. Wiring to be:

A. 10G,m 532515 - leads 1, 4, 8 - 13, J, J2 and GRD.

B. 18GA., 532518 - leads 2 and 3.

48" SCHEMATIC

1 & 3 PHASE

208, 240, & 480 VAC, 1 & 3 PHASE
	X-Y Y-Z X-Z	TOTAL
kW PER LINE 10	8 5.4 5.4 21.6
NOMINAL AMPS PER LINE
	3-PHASE 1-PHASE
	XYZ-
208 67.4 67.4 45.0 103.8
240 58.5 58.5 39.0 90.0
480 29.2 29.2 19.5 45.0

FOR 3-PHASE:

1. Connect wire #10 & #11 to L1.
2. Connect wire #8, #9 & #13 to L2.
3. Connect wire #12 to L3.

FOR 1-PHASE:

1. Connect wire #8, #12 & #13 to L1.
2. Connect wire #9, #10 & #11 to L2.

FOR 3-PHASE, 4 WIRE:

1. Connect wire #9, #10 & #11 to neutral ("N").
2. Connect wire #12 to L1.
3. Connect wire #8 to L2.
4. Connect wire #13 to L3.

380 & 415V SCHEMATIC 3-PHASE, 4 WIRE

60" WIRING DIAGRAM

NOTES:

1. FOR SUPPLY CONNECTIONS USE COPPER WIRE SIZED IN ACCORDANCE WITH THE NATIONAL ELECTRICAL CODE AND SUITABLE FOR AT LEAST 90 °C (194 °F).
   2 SERVICING ONLY EACH HALF OF THIS GRIDDLE IS WIRED SEPERATELY AND TERMINATES IN ITS OWN JUNCTION BOX. EACH JUNCTION BOX REQUIRES A SEPERATE FUSED BRANCH CIRCUIT POWER SUPPLY AS THE GRIDDLE IS NOT FUSED. BOTH POWER SOURCES HAVE TO BE DISCONNECTED BEFORE SERVICING THE DEVICE.
2. LEAD MARKER NUMBERS ARE THE SAME AS LEAD ITEM NUMBERS UNLESS OTHERWISE SPECIFIED.
3. WIRING TO BE: 10G., 532515 - LEADS 1, 4, 8, 10, 12, 15-18, J, J2 and GRD 18GA., 532518 - LEADS 2 and 3

HEG60E

60" ELECTRIC GRIDDLE

DERIVED FROM 944440 REV C

AI5318

HEG60E 60" ELECTRIC GRIDDLE

60" SCHEMATIC

1 & 3 PHASE

208, 240, & 480 VAC, 1 & 3 PHASE
		X-Y Y-Z X-Z TOTAL
kW PER LINE	LEFT 5.4 0 5.4	10.8
	RIGHT 5.4 5.4 5	4 16.2

NOMINAL AMPS PER LINE
		3-PHASE 1-PHASE
		X	Y	Z	-

NOMINAL AMPS PER LINE
		3-PHASE 1-PHASE
208	LEFT 45.0 22.5	22.5 51.9
	RIGHT 45.0 45.0	45.0 77.9
240	LEFT 39.0 19.5	19.5 45.0
	RIGHT 39.0 39.0	39.0 67.5
480	LEFT 19.5 9.7	9.7 22.5
	RIGHT 19.5 19.5	19.5 33.8

LEFT JUNCTION BOX PHASE WIRING:

FOR 3-PHASE:

1. Connect wire #18 to L1.
2. Connect wire #16 to L2.
3. Connect wire #15 to L3.

FOR 1-PHASE:

1. Connect wire #15 & #16 to L1.
2. Connect wire #18 to L2.

RIGHT JUNCTION BOX PHASE WIRING:

FOR 3-PHASE:

1. Connect wire #8 & #10 to L1.
2. Connect wire #17 to L2.
3. Connect wire #12 to L3.

FOR 1-PHASE:

1. Connect wire #10 & #12 to L1.
2. Connect wire #8 & #17 to L2.

LEFT JUNCTION BOX PHASE WIRING

1. Connect wire #18 to neutral (N).
2. Connect wire #16 to L1.
3. Connect wire #15 to L2.

RIGHT JUNCTION BOX PHASE WIRING

1. Connect wire #8 & #10 to neutral (N).
2. Connect wire #12 to L1.
3. Connect wire #17 to L2.

380 & 415V SCHEMATIC
2-PHASE, 3 WIRE

2-PHASE, 3 WIRE

72" WIRING DIAGRAM

    subgraph Module_1
        M1["MASS EQUIPMENT GROUNDING CONNECTION HERE"]
        M2["GROUNDING LIG"]
    end

    subgraph Module_2
        N1["THRESH LINE"]
        N2["THRESH LINE"]
        N3["THRESH LINE"]
    end

    subgraph Module_3
        O1["INCHOLI"]
        O2["INCHOLI"]
        O3["INCHOLI"]
        O4["INCHOLI"]
    end

    subgraph Module_4
        P1["INCHOLI"]
        P2["INCHOLI"]
        P3["INCHOLI"]
        P4["INCHOLI"]
    end

    subgraph Module_5
        Q1["INCHOLI"]
        Q2["INCHOLI"]
        Q3["INCHOLI"]
        Q4["INCHOLI"]
    end

    subgraph Module_6
        R1["INCHOLI"]
        R2["INCHOLI"]
        R3["INCHOLI"]
        R4["INCHOLI"]
    end

    subgraph Module_7
        S1["INCHOLI"]
        S2["INCHOLI"]
        S3["INCHOLI"]
        S4["INCHOLI"]
    end

    subgraph Module_8
        T1["INCHOLI"]
        T2["INCHOLI"]
        T3["INCHOLI"]
        T4["INCHOLI"]
    end

    subgraph Module_9
        U1["INCHOLI"]
        U2["INCHOLI"]
        U3["INCHOLI"]
        U4["INCHOLI"]
    end

    subgraph Module_10
        V1["INCHOLI"]
        V2["INCHOLI"]
        V3["INCHOLI"]
        V4["INCHOLI"]
    end

    subgraph Module_11
        W1["INCHOLI"]
        W2["INCHOLI"]
        W3["INCHOLI"]
        W4["INCHOLI"]
    end

    subgraph Module_12
        X1["INCHOLI"]
        X2["INCHOLI"]
        X3["INCHOLI"]
        X4["INCHOLI"]
    end

    subgraph Module_13
        Y1["INCHOLI"]
        Y2["INCHOLI"]
        Y3["INCHOLI"]
        Y4["INCHOLI"]
    end

    subgraph Module_14
        Z1["INCHOLI"]
        Z2["INCHOLI"]
        Z3["INCHOLI"]
        Z4["INCHOLI"]
    end

    subgraph Module_15
        AA1["INCHOLI"]
        AA2["INCHOLI"]
        AA3["INCHOLI"]
        AA4["INCHOLI"]
    end

    subgraph Module_16
        AB1["INCHOLI"]
        AB2["INCHOLI"]
        AB3["INCHOLI"]
        AB4["INCHOLI"]
    end

    subgraph Module_17
        AC1["INCHOLI"]
        AC2["INCHOLI"]
        AC3["INCHOLI"]
        AC4["INCHOLI"]
    end

    subgraph Module_18
        AD1["INCHOLI"]
        AD2["INCHOLI"]
        AD3["INCHOLI"]
        AD4["INCHOLI"]
    end

    subgraph Module_19
        AE1["INCHOLI"]
        AE2["INCHOLI"]
        AE3["INCHOLI"]
        AE4["INCHOLI"]
    end

    subgraph Module_20
        AF1["INCHOLI"]
        AF2["INCHOLI"]
        AF3["INCHOLI"]
        AF4["INCHOLI"]
    end

    subgraph Module_21
        AG1["INCHOLI"]
        AG2["INCHOLI"]
        AG3["INCHOLI"]
        AG4["INCHOLI"]
    end

    subgraph Module_22
        AH1["INCHOLI"]
        AH2["INCHOLI"]
        AH3["INCHOLI"]
        AH4["INCHOLI"]
    end

    subgraph Module_23
        AI1["INCHOLI"]
        AI2["INCHOLI"]
        AI3["INCHOLI"]
        AI4["INCHOLI"]
    end

    subgraph Module_24
        AJ1["INCHOLI"]
        AJ2["INCHOLI"]
        AJ3["INCHOLI"]
        AJ4["INCHOLI"]
    end

    subgraph Module_25
        AK1["INCHOLI"]
        AK2["INCHOLI"]
        AK3["INCHOLI"]
        AK4["INCHOLI"]
    end

    subgraph Module_26
        AL1["INCHOLI"]
        AL2["INCHOLI"]
        AL3["INCHOLI"]
        AL4["INCHOLI"]
    end

    subgraph Module_27
        AM1["INCHOLI"]
        AM2["INCHOLI"]
        AM3["INCHOLI"]
        AM4["INCHOLI"]
    end

    subgraph Module_28
        AN1["INCHOLI"]
        AN2["INCHOLI"]
        AN3["INCHOLI"]
        AN4["INCHOLI"]
    end

    subgraph Module_29
        AO1["INCHOLI"]
        AO2["INCHOLI"]
        AO3["INCHOLI"]
        AO4["INCHOLI"]
    end

    subgraph Module_30
        AP1["INCHOLI"]
        AP2["INCHOLI"]
        AP3["INCHOLI"]
        AP4["INCHOLI"]
    end

    subgraph Module_31
        AQ1["INCHOLI"]
        AQ2["INCHOLI"]
        AQ3["INCHOLI"]
        AQ4["INCHOLI"]
    end

    subgraph Module_32
        AR1["INCHOLI"]
        AR2["INCHOLI"]
        AR3["INCHOLI"]
        AR4["INCHOLI"]
    end

    subgraph Module_33
        AS1["INCHOLI"]
        AS2["INCHOLI"]
        AS3["INCHOLI"]
        AS4["INCHOLI"]
    end

    subgraph Module_34
        AT1["INCHOLI"]
        AT2["INCHOLI"]
        AT3["INCHOLI"]
        AT4["INCHOLI"]
    end

    subgraph Module_35
        AU1["INCHOLI"]
        AU2["INCHOLI"]
        AU3["INCHOLI"]
        AU4["INCHOLI"]
    end

    subgraph Module_36
        AV1["INCHOLI"]
        AV2["INCHOLI"]
        AV3["INCHOLI"]
        AV4["INCHOLI"]
    end

    subgraph Module_37
        AW1["INCHOLI"]
        AW2["INCHOLI"]
        AW3["INCHOLI"]
        AW4["INCHOLI"]
    end

    subgraph Module_38
        AX1["INCHOLI"]
        AX2["INCHOLI"]
        AX3["INCHOLI"]
        AX4["INCHOLI"]
    end

    subgraph Module_39
        AY1["INCHOLI"]
        AY2["INCHOLI"]
        AY3["INCHOLI"]
        AY4["INCHOLI"]
    end

    subgraph Module_40
        AZ1["INCHOLI"]
        AZ2["INCHOLI"]
        AZ3["INCHOLI"]
        AZ4["INCHOLI"]
    end

    subgraph Module_41
        BA1["INCHOLI"]
        BA2["INCHOLI"]
        BA3["INCHOLI"]
        BA4["INCHOLI"]
    end

    subgraph Module_42
        BB1["INCHOLI"]
        BB2["INCHOLI"]
        BB3["INCHOLI"]
        BB4["INCHOLI"]

72" WIRING DIAGRAM

Notes:

1. For supply connections, use copper wire sized in accordance with the national electrical code and suitable for at least 90^ C ( 194^ F).

2. SERVICING ONLY

Each half of this griddle is wired separately and terminates in its own junction box. Each junction box requires a separate fused branch circuit power supply as the griddle is not fused. Both power sources have to be disconnected before servicing the device.

1. Lead marker numbers are the same as lead item numbers unless otherwise specified.

2. Wiring to be:

A. 10G,m 532515 - leads 1, 4, 8, 10, 11, 15 - 19, J, J2 and GRD.

B. 18GA., 532518 - leads 2 and 3.

72" SCHEMATIC

1 & 3 PHASE

208, 240, & 480 VAC, 1 & 3 PHASE
		X-Y Y-Z X-Z TOTAL
kW PER LINE	LEFT 5.4 5.4 5.4 16.2
	RIGHT 5.4 5.4 5.4 16.2

NOMINAL AMPS PER LINE
		3-PHASE 1-PHASE
		XYZ-
208	LEFT 45.0 45.0	45.0 77.9
	RIGHT 45.0 45.0	45.0 77.9
240	LEFT 39.0 39.0	39.0 67.5
	RIGHT 39.0 39.0	39.0 67.5
480	LEFT 19.5 19.5	19.5 33.8
	RIGHT 19.5 19.5	19.5 33.8

LEFT JUNCTION BOX PHASE WIRING:

FOR 3-PHASE:

1. Connect wire #16 & #11 to L1.
2. Connect wire #15 to L2.
3. Connect wire #18 to L3.

FOR 1-PHASE:

1. Connect wire #11 & #18 to L1.
2. Connect wire #16 & #15 to L2.

RIGHT JUNCTION BOX PHASE WIRING:

FOR 3-PHASE:

1. Connect wire #8 & #10 to L1.
2. Connect wire #17 to L2.
3. Connect wire #19 to L3.

FOR 1-PHASE:

1. Connect wire #10 & #19 to L1.
2. Connect wire #8 & #17 to L2.

1 & 3 PHASE

2 PHASE, 3 WIRE

220/380 & 240/415 VAC. 2-PHASE, 3 WIRE
		L1-N L2-N L3-N
kW PER LINE	LEFT 5.4 10.8 0.0
	RIGHT 5.4 10.8 0.0

NOMINAL AMPS PER LINE
		L1 L2 L3	N TOTAL kW
220/380	LEFT 6.9 6.9	0.0 4.6 13.6
	RIGHT 6.9 6.9	0.0 4.6 13.6
240/415	LEFT 7.5 7.5	0.0 5.0 16.2
	RIGHT 7.5 7.5	0.0 5.0 16.2

LEFT JUNCTION BOX PHASE WIRING

1. Connect wire #11 & #18 to neutral (N).
2. Connect wire #16 to L1.
3. Connect wire #15 to L2.

RIGHT JUNCTION BOX PHASE WIRING

1. Connect wire #19 & #10 to neutral (N).
2. Connect wire #8 to L1.
3. Connect wire #17 to L2.

380 & 415V SCHEMATIC
2-PHASE, 3 WIRE

2-PHASE, 3 WIRE

TROUBLESHOOTING

TROUBLESHOOTING

Troubleshooting Guide
PROBLEM POSSIBLE CAUSES
Heat does not come on when the temperature controller is turned on.	1. Main power supply disconnected.2. Problem with thermostats. Refer to THERMOSTAT REPLACEMENT.3. Problem with heating elements. Refer to HEATING ELEMENT REPLACEMENT.
Fat appears to smoke excessively.	1. Temperature set too high.2. Moisture in food may be turning into steam.
Food sticks to griddle or burned around edges or contain dark specs.	1. Temperature set too high.2. Griddle surface requires cleaning and/or seasoning.3. Surface under food not covered with enough cooking oil.
Food under-cooked inside.	1. Temperature set too low.2. Food not cooked for long enough time.
Food tastes greasy or has objectionable off-flavor.	1. Food itself may have off-flavor.2. Food stored improperly before cooking.3. Too much griddle fat used.4. Temperature set too low.
Noticeable build-up of gum on griddle.	1. Temperature set too high.2. Griddle surface needs cleaning and/or seasoning.3. Too much griddle fat used.
Griddle does not heat. (Indicator light does not glow).	1. No power to the machine. Circuit breaker tripped.2. Thermostat inoperative. Refer to THERMOSTAT REPLACEMENT.
Griddle does not heat. (Indicator light glows).	Heating element(s) inoperative. Refer to HEATING ELEMENT REPLACEMENT.
Hot and cold spots controlled by the same thermostat.	Uneven loading patterns.Heating element(s) not clamped tight to griddle plate. Refer to HEATING ELEMENT REPLACEMENT.Different voltage heating elements.Heating elements inoperative. Refer to HEATING ELEMENT REPLACEMENT.Air drafts on griddle plate.
Too hot in area controlled by the same thermostat.	1. Incorrect voltage supply.2. Thermostat bulb not clamped tight to griddle plate.Refer toCAPILLARY BULB INSTALLATION.3. Thermostat not calibrated correctly. Refer toTHERMOSTAT CALIBRATION PROCEDURES.
Too cold in area controlled by the same thermostat.	1. Incorrect voltage supply.2. Thermostat not calibrated correctly. Refer toTHERMOSTAT CALIBRATION PROCEDURES.
