Product Type	PoE (Power over Ethernet) Injector
Model Number	EPD-4824
Brand	EnGenius
Dimensions	100 x 60 x 25 mm (3.94 x 2.36 x 0.98 in)
Weight	0.15 kg (0.33 lb)
Input Voltage	100-240 VAC, 50-60 Hz
Output Voltage	48 VDC
Max Power Output	24 W (PoE+)
Number of Ports	1 x RJ45 Input (Data+Power), 1 x RJ45 Output (Data+Power)
Ethernet Standard	IEEE 802.3af/at
Data Rate	10/100/1000 Mbps
Key Features	Power over Ethernet injection, plug-and-play, surge protection, LED indicators
Installation	Desktop or wall-mountable (screws included)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Humidity	10% to 90% non-condensing
Safety Certifications	FCC, CE, RoHS
LED Indicators	Power (green), PoE (orange), Link/Act (blinking green)
Spare Parts / Accessories	Power cord, mounting screws, user manual (available online)
Maintenance	Keep dry and dust-free; clean with a dry cloth; disconnect power before cleaning
Warranty	2 years limited

Frequently Asked Questions - EPD-4824 ENGENIUS

What is the EnGenius EPD-4824 used for?

The EPD-4824 is a PoE injector that supplies power and data to compatible devices (e.g., IP cameras, access points) over a single Ethernet cable.

How do I install the EPD-4824?

Connect your power adapter to the injector, then connect your switch/router to the Data IN port, and connect your PoE device to the Data+Power OUT port. The injector will automatically detect and supply power.

Does the EPD-4824 support PoE+ (802.3at)?

Yes, it supports both IEEE 802.3af (PoE) and IEEE 802.3at (PoE+), delivering up to 24W of power.

What is the maximum cable length for PoE?

The maximum Ethernet cable length for PoE is 100 meters (328 feet), as per standard.

Can I use the EPD-4824 outdoors?

The EPD-4824 is designed for indoor use only. Keep it away from moisture and extreme temperatures.

What do the LED indicators mean?

The Power LED is green when powered. The PoE LED is orange when power is being delivered. The Link/Act LED blinks green when data is transmitted.

Does the EPD-4824 require a specific power adapter?

Yes, use only the supplied power adapter (input: 100-240V AC, output: 48V DC) to avoid damage.

Is the EPD-4824 compatible with gigabit Ethernet?

Yes, it supports 10/100/1000 Mbps (Gigabit) data rates.

How do I clean and maintain the EPD-4824?

Disconnect power before cleaning. Wipe the casing with a soft, dry cloth. Do not use liquids or chemicals.

Where can I download the user manual?

The manual is available for free download on notice-facile.com or the EnGenius support website.

USER MANUAL EPD-4824 ENGENIUS

Gigabit Ethernet SFP Transceiver Modules

Reliable, high-performance SFP transceiver modules for Gigabit Ethernet applications

EnGenius Small Form-Factor Pluggable (SFP) transceiver is an industry standard hot-swappable device that plugs into the SFP port or slot and links the port with the network. It is small form factor pluggable module with standard LC duplex connector for fiber communications. It designed to compliant to SFI electrical specifications.

Features

Hot pluggable LC Duplex connector
IEEE 802.3z compliant
Industry standard compliance
Low power dissipation
Class 1 laser product, complies with International Safety Standard IEC 825
ROHS Compliant

1G SFP Series

	SFP2185-05	SFP2213-10
Connector Type	LC	LC
Data Rate	1.25Gbps	1.25Gbps
Wavelength	850nm	1310nm
Fiber Type	MMF	SMF
Max Transmission Distance	0.5km	10km
Transmitter Characteristics
Supply Voltage	3.15 ~ 3.45V	3.15 ~ 3.45V
Supply Current	160mA	160mA
Output Optical Power	-10 ~ -3dBm	-9 ~ -2dBm
Receiver Characteristics
Supply Voltage	3.15 ~ 3.45V	3.15 ~ 3.45V
Supply Current	100mA	100mA
Maximum Receiver Power	-3dBm	-3dBm
Optical Receiver Sensitivity	-18dBm	-20dBm
Physical Specifications
Dimensions (WxDxH)	13.72 x 56.64 x 12.43mm
Weight	25g
Environmental Limits
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)

1G SFP Bi-Di Series

	SFP2313-20	SFP2315-20
Connector Type	LC	LC
Data Rate	1.25Gbps	1.25Gbps
Wavelength	Tx: 1310nmRx:1550nm	Tx: 1550nmRx:1310nm
Fiber Type	SMF	SMF
Max Transmission Distance	20km	20km
Transmitter Characteristics
Supply Voltage	3.15 ~ 3.45V	3.15 ~ 3.45V
Supply Current	160mA	160mA
Output Optical Power	-8 ~ -2dBm	-8 ~ -2dBm
Receiver Characteristics
Supply Voltage	3.15 ~ 3.45V	3.15 ~ 3.45V
Supply Current	100mA	100mA
Maximum Receiver Power	-3dBm	-3dBm
Optical Receiver Sensitivity	-23dBm	-23dBm
Physical Specifications
Dimensions (WxDxH)	13.72 x 56.64 x 12.43mm
Weight	25g
Environmental Limits
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)

	SFP2314-20A
Connector Type	LC
Data Rate	1.25Gbps
Wavelength	Tx: 1490nmRx:1310nm
Fiber Type	SMF
Max Transmission Distance	20km
Transmitter Characteristics
Supply Voltage	3.15 ~ 3.45V
Supply Current	160mA
Output Optical Power	-8 ~ -2dBm
Receiver Characteristics
Supply Voltage	3.15 ~ 3.45V
Supply Current	100mA
Maximum Receiver Power	-3dBm
Optical Receiver Sensitivity	-23dBm
Physical Specifications
Dimensions (WxDxH)	13.72 x 56.64 x 12.43mm
Weight	25g
Environmental Limits
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)

1G SFP Fiber to Cooper

	SFP2500
Connector Type	RJ-45
Data Rate	1.25Gbps
Max Transmission Distance	100m
Supply Maximum Current	375mA
Input Voltage	3.13 ~ 3.47V
Dimensions (WxDxH)	12 x 68 x 14mm
Weight	24.5 g
Environmental Limits
Operating Temperature	-20°C to 75°C (-4°F to 167°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)

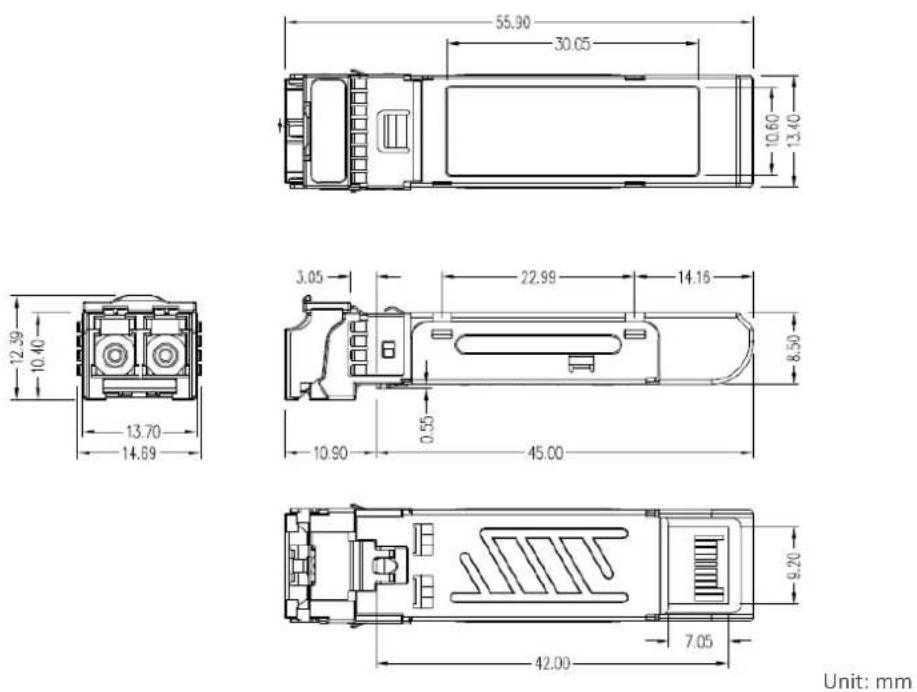

Dimensions

1G SFP Series

Unit: mm

1G SFP Bi-Di Series

Unit: mm

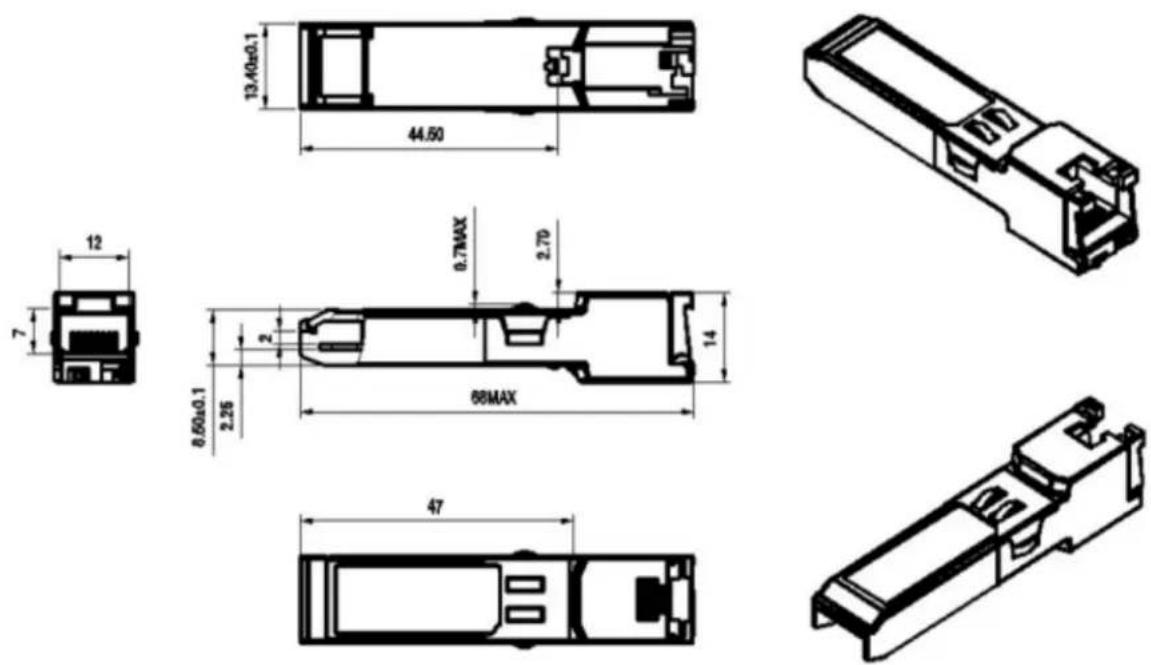

Dimensions

1G SFP Fiber to Cooper Series

Unit: mm

Ordering Information

Product No.	Product Description
10G SFP+ Transceivers
SFP3185-03	10G BASE-SX SFP+ Transceiver, 850nm; 0.3km
SFP3185-03A	10G BASE-SX SFP+ Transceiver, 850nm; 0.3km (Made in China)
SFP3213-10	10G BASE-LX SFP+ Transceiver, 1310nm; 10km
SFP3213-10A	10G BASE-LX SFP+ Transceiver, 1310nm; 10km (Made in China)
SFP3312-20	10G BASE-LX SFP+ Bi-Di Transceiver, Tx:1270nm / Rx:1330nm; 20km
SFP3312-20A	10G BASE-LX SFP+ Bi-Di Transceiver, Tx:1270nm / Rx:1330nm; 20km (Made in China)
SFP3313-20	10G BASE-LX SFP+ Bi-Di Transceiver, Tx:1330nm / Rx:1270nm; 20km
SFP3313-20A	10G BASE-LX SFP+ Bi-Di Transceiver, Tx:1330nm / Rx:1270nm; 20km(Made in China)
SFP3500	10G BASE, Fiber to cooper, 30M
10G DAC Cable
DAC1130-01	10G Direct Attach Copper Cable, passive, 1 meter
DAC1130-03	10G Direct Attach Copper Cable, passive, 3 meter
DAC1130-05	10G Direct Attach Copper Cable, passive, 5 meter
1G SFP Transceiver
SFP2185-05	1000BASE-SX SFP Transceiver, 850nm; 0.5km
SFP2185-05A	1000BASE-SX SFP Transceiver, 850nm; 0.5km (Made in China)
SFP2213-10	1000BASE-LX SFP Transceiver, 1310nm; 10km
SFP2213-10A	1000BASE-LX SFP Transceiver, 1310nm; 10km (Made in China)
SFP2313-20	1000BASE-LX SFP Bi-Di Transceiver, Tx:1310nm / Rx:1550nm; 20km
SFP2313-20A	1000BASE-LX SFP Bi-Di Transceiver, Tx:1310nm / Rx:1550nm; 20km (Made in China)
SFP2314-20A	1000BASE-LX SFP Bi-Di Transceiver, Tx:1490nm / Rx:13100nm; 20km (Made in China)
SFP2315-20	1000BASE-LX SFP Bi-Di Transceiver, Tx:1550nm / Rx:1310nm; 20km
SFP2500	1000BASE, Fiber to Cooper, 100M

HQ, Taiwan

www.EnGeniusnetworks.com

Costa Mesa, California, USA | ([phone]

www.EnGeniustech.com

Singapore | ([phone]

www.EnGeniustech.com.sg

Eindhoven, Netherlands | ([phone]

www.EnGeniusnetworks.eu

Dubai, UAE | ([phone]

www.EnGenius-me.com

EnGenius®

Features and specifications subject to change without notice. Trademarks and registered trademarks are the property of their respective owners. For United States of America: Copyright © 2018 EnGenius Technologies, Inc. All rights reserved. Compliant with FCC - This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his/her own expense. Prior to installing any surveillance equipment, it is your responsibility to ensure the installation is in compliance with local, state and federal video and audio surveillance and privacy laws.

Version 1.2—03/20/2024

Ordering Information

Product No.	Product Description
FIT Managed Switch
EWS2910P-FIT	EnGenius Fit 8-Port 55W Gigabit PoE+ Switch with 2 SFP Ports
EWS2910FP-FIT	EnGenius Fit 8-Port 110W Gigabit PoE+ Switch with 2 SFP Ports
EWS7928P-FIT	EnGenius Fit 24-Port 240W Gigabit PoE+ Switch with 4 SFP Ports
EWS7928FP-FIT	EnGenius Fit 24-Port 410W Gigabit PoE+ Switch with 4 SFP Ports
EWS7952P-FIT	EnGenius Fit 48-Port 410W Gigabit PoE+ Switch with 4 SFP Ports
EWS7952FP-FIT	EnGenius Fit 48-Port 740W Gigabit PoE+ Switch with 4 SFP Ports
Cloud Management Switch
ECS1008P	Cloud Managed Gigabit 8-Port Gigabit 55W PoE+ Switch
ECS1112FP	Cloud Managed Gigabit 8-Port Gigabit 130W PoE+ Switch with 2GbE and 2 SFP Ports
ECS1528T	Cloud Managed Gigabit 24-Port Gigabit Switch with 4 SFP+ Ports
ECS1528P	Cloud Managed Gigabit 24-Port Gigabit 240W PoE+ Switch with 4 SFP+ Ports
ECS1528FP	Cloud Managed Gigabit 48-Port Gigabit 410W PoE+ Switch with 4 SFP+ Ports
ECS1552	Cloud Managed Gigabit 48-Port Gigabit Switch with 4 SFP+ Ports
ECS1552P	Cloud Managed Gigabit 48-Port Gigabit 410W PoE+ Switch with 4 SFP+ Ports
ECS1552FP	Cloud Managed Gigabit 48-Port Gigabit 740W PoE+ Switch with 4 SFP+ Ports
ECS2512	Cloud Managed 8-Port Multi-Gigabit 2.5G Switch with 4 SFP+ Ports
ECS2510FP	Cloud Managed 8-Port Multi-Gigabit 2.5G 240W PoE+ Switch with 2 SFP+ Ports
ECS2512FP	Cloud Managed 8-Port Multi-Gigabit 2.5G 240W PoE++ Switch with 4 SFP+ Ports
ECS2528FP	Cloud Managed 24-Port Multi-Gigabit 2.5G 410W PoE+ Switch with 4 SFP+ Ports
ECS2552FP	Cloud Managed 48-Port Multi-Gigabit 2.5G 740W PoE+ Switch with 4 SFP+ Ports
ECS5512	Cloud Managed 8-Port 10 - Gigabit Switch with 4 SFP+ Ports
ECS5512FP	Cloud Managed 8-Port 10 - Gigabit 420W PoE++ Switch with 4 SFP+ Ports
ECS5512F	Cloud Managed Switch with 12 SFP+ Ports
Switch Extender
EXT1106	Cloud Managed 5-Port Gigabit Switch Extender and 1 SFP
EXT1109P	Cloud Managed 8-Port Gigabit PoE+ Switch Extender and 1 SFP
