Explore 7 E7TS1-60BP - Toaster ELECTROLUX - Free user manual and instructions

Product Type	Toaster
Brand	Electrolux
Model	Explore 7 E7TS1-60BP
Housing Material	Thermally insulated outer housing
Number of Toasting Slots	2
Controls	Browning control dial (1-7), Start lever, Defrost button, Reheat button, Stop button, Bun warmer button
Functions	Toasting, Defrosting, Reheating, Bun Warming, Cancel/Stop, Check toasting progress
Safety Features	Automatic shut-off, thermally insulated housing, crumb drawer, dust cover
Accessories Included	Bun warming rack, dust cover
Cleaning	Empty crumb drawer, wipe with damp cloth; do not immerse
Power Cord Storage	Underneath the toaster
Frequency Compatibility	50 and 60 Hz
Usage	Indoor, domestic use only
Warranty	Refer to customer service
Customer Service Contact	Varies by region (see manual)

Frequently Asked Questions - Explore 7 E7TS1-60BP ELECTROLUX

How do I clean the toaster?

Unplug the toaster and let it cool. Empty the crumb drawer. Wipe the outer surfaces with a slightly moist cloth. Never use caustic or abrasive cleaners, and never immerse the toaster in water.

How do I defrost frozen bread?

Plug in the toaster, insert frozen bread, press down the start lever, then press the defrost button. The toaster will automatically switch off when done.

Can I use the bun warming rack?

Yes. Attach the bun warming rack to the top of the toaster, place buns or pastries on it, press down the start lever, then press the bun warmer button. The toaster switches off automatically when ready.

What do the buttons on the toaster do?

The defrost button defrosts frozen bread. The reheat button warms already toasted bread. The stop button cancels the current cycle. The browning control dial (1-7) selects the toasting level.

Why is my toasted bread too brown?

The browning setting is too high. Turn the browning control dial to a lower number to reduce the toasting level.

Is it safe to leave the toaster unattended?

No. Never leave the toaster unattended while connected to the mains. Always unplug after use.

Can I use metal utensils to remove stuck bread?

No. Do not reach into the toasting slot with fingers or metal utensils as it may cause injury or damage. Unplug and allow to cool, then gently shake the toaster to release the bread.

What should I do if the toaster stops working?

Check that the toaster is switched on and the mains plug is properly connected. If it still doesn't work, contact Electrolux customer service for assistance.

Can I toast frozen bread directly?

Yes. Use the defrost function by pressing the defrost button after lowering the start lever. The toaster will defrost and toast the bread automatically.

How should I store the toaster?

Store the toaster in a dry place. Use the dust cover to protect it. Wrap the power cord around the cord storage underneath the toaster.

USER MANUAL Explore 7 E7TS1-60BP ELECTROLUX

Explore 7 Toaster E7TS1-60BP

Line drawing of a standard electric toaster with control knob and stop button (no text or symbols on body)

EN INSTRUCTION BOOK

CNS 说明书

CNT 說明手冊

KR사용설명서

ID Buku Panduan

Toasting Bread

Illustration of two different kitchen appliances with heat exchangers, showing side and front views (no text or symbols)

Bun Warmer

Illustration of a toaster with a handle and cooling effect indicated by a downward arrow (no text or symbols)

Diagram of a microwave oven with a fan-shaped lid and a blue arrow indicating airflow or cooling process (no text or symbols)

Defrost

Illustration of a toaster with three slices being placed, showing the blade being added to a tray (no text or symbols)

INSTRUCTION MANUAL

Graphics and drawings in this manual are solely for illustration purposes and are subject to variations from actual product.

Read all instructions carefully before using the appliance for the first time.

Keep this manual for future reference.

COMPONENTS

A. Toasting slot
J. Power cord and plug
B. Thermally insulated outer housing
K. Cord storage (on the underside of the toaster)
C. Crumb drawer
L. Dust cover
D. Defrost button with indicator lamp
E. Reheat button with indicator lamp
F. Stop button with indicator lamp
G. Browning control
H. Start lever
I. Bun warming rack for warming up buns and rolls

SAFETY ADVICE

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Keep the appliance and its power cord out of reach of children. Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be performed by children without supervision.
• The appliance can only be connected to a power supply which voltage and frequency comply with the specifications on the rating plate.
• The appliance must only be connected to an earthed mains socket.
• Never leave the appliance unattended while connected to the supply mains.

• Never use or pick up the appliance if

• the power cord is damaged, or

• the housing is damaged.

• If the appliance or its power cord is damaged, it must be replaced by Electrolux or its service agent in order to avoid hazard.

• Do not immerse the appliance, its power cord or plug in water or any liquid.
• Do not use or place the appliance on sink, on hot surface, near heat source, or near the edge of table or counter.
  • Always place the appliance on a flat, level and dry surface.
• The bread may burn, therefore do not use the toaster near or below combustible material, such as curtains.
• Never use the appliance without the crumb tray.
• Bread crumbs may burn, therefore clean the crumb tray regularly (Please refer to Cleaning and Care section for instructions).
• Do not cover the toasting slot while toasting.
• Do not move the appliance when it is in operation.
• Do not reach into the toasting slot with your fingers or metal utensils, as this may cause personal injury or damage to the appliance.
• Do not put oversize or packaged foods into the toaster, as this may cause fire or electrical hazards.
• The appliance and its accessories become hot during operation. Use only designated handles and knobs. Allow to cool down before cleaning and maintenance.

• CAUTION: Hot Surface on the appliance. 🚗 Surfaces are liable to get hot during use (Hot Surface symbol is marked

• The appliance must be switched off and mains plug removed from wall socket each time after use, and before cleaning and maintenance.

• Do not let the power cord come into contact with hot surfaces or hang over the edge of a table or counter.
• This appliance is not intended to be operated by means of an external timer or separate remote control system.
  • This appliance is for indoor use only.
• This appliance is intended for domestic use only. Electrolux will not accept any liability for possible damage caused by improper or incorrect use.
  • This appliance is suitable to operate on both 50 and 60Hz.
• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

GETTING STARTED

Before using your appliance for the first time, remove all packing material such as plastics, stickers or tags that may be attached to the components.

Before you start using the toaster for the first time, run the maximum browning setting without bread a few times.

USING THE PRODUCT

Toasting bread:

1. Plug the cord into the mains.
2. Insertbread.
3. Rotate the browning control dial to the desired level (1-7).
4. Press down the start lever.

When the bread has reached the desired degree of browning, the toaster switches off automatically and the bread is lifted up.

To check bread:

1. Slide the start lever half way up during toasting or defrosting.
   *NOTE: the timer will continue counting down, and will not stop while you check your bread

2. Release the lever when done checking. The lever will go back to the bottom automatically

*NOTE: If the toasting / defrost timer expires while you are checking your bread, a new toasting sequence will begin.

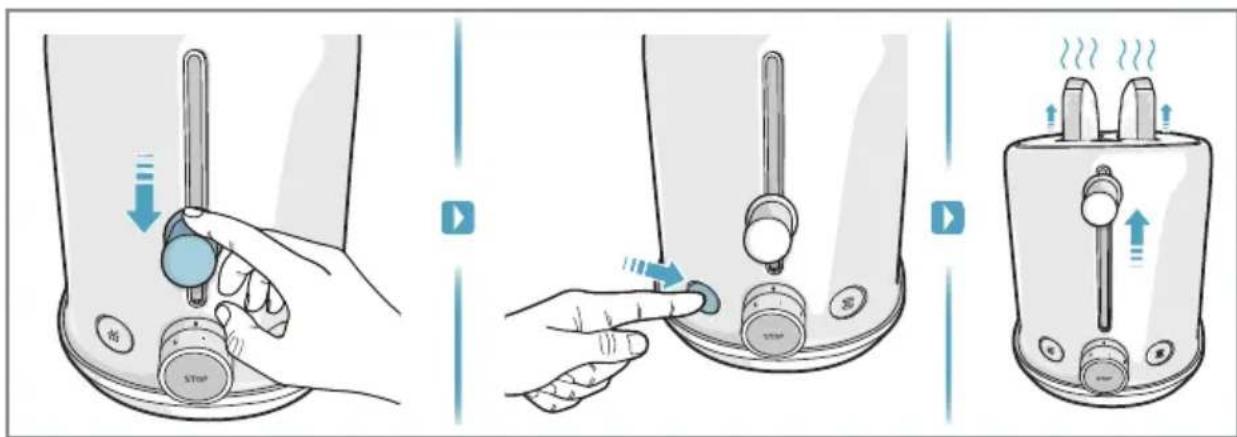

To defrost bread:

1. Plug the cord into the mains.
2. Insert frozen bread.
3. Press down the start lever, and then press the defrost button
   When the bread has been defrosted and toasted, the toaster switches off automatically and the bread is lifted up.

To use the bun warming rack:

1. Plug the cord into the mains.
2. Attach bun warming rack to the top of the toaster
3. Place your bun / pastry on the top of the rack
4. Press down the start lever, and then press the bun warmer button

The toaster switches off automatically when your bun is ready.

You can stop these functions at any point by pressing the STOP button.

CLEANING AND CARE

Unplug the toaster and allow it to cool down. Empty the crumb drawer. Wipe the outer surfaces with a slightly moist cloth. Never use caustic or abrasive cleaners, and never immerse the machine in liquid!

Enjoy your new Electrolux product!

TROUBLESHOOTING

Symptoms Possible causes Solution
The toasted bread is too brown. The	browning setting is too high. Reduce the browning setting.
The toaster is not functioning. The	toaster is not switched on.	Make sure the toaster is switched on.

DISPOSAL

This symbol on the product or on its packaging indicates that the product may not be treated as householdwaste. To recycle your product, please take it to an official collection point or to an Electrolux service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available: Model, PNC, Serial Number. The information can be found on the rating plate.

Due to the Electrolux policy of continual product development; specifications, colours, and details of our products and those mentioned in this manual are subject to change without notice.
