Explore 7 E4TS1-50SS - Toaster ELECTROLUX - Free user manual and instructions

Product Type	Toaster
Brand	Electrolux
Model	Explore 7 E4TS1-50SS
Dimensions (Approx.)	30 x 20 x 20 cm (12 x 8 x 8 in)
Weight (Approx.)	1.5 kg (3.3 lbs)
Power (Approx.)	850 W
Voltage	220-240 V
Frequency	50/60 Hz
Number of Toasting Slots	2
Browning Control	7 settings (1-7)
Functions	Defrost, Reheat, Stop, Bun Warming Rack
Defrost Function	Yes with indicator lamp
Reheat Function	Yes with indicator lamp
Stop Function	Yes with indicator lamp
Bun Warmer Rack	Included for warming rolls and buns
Crumb Drawer	Removable for easy cleaning
Cord Storage	Underneath the toaster
Dust Cover	Included
Material	Thermally insulated outer housing
Safety Features	Auto shut-off, cool-touch housing, thermal cut-out
Cleaning	Wipe with damp cloth; empty crumb drawer regularly
Usage	Indoor household use only

Frequently Asked Questions - Explore 7 E4TS1-50SS ELECTROLUX

How do I use the defrost function?

Insert frozen bread, select your desired browning setting (1-7), then press the Defrost button. The indicator lamp will light up. Press down the start lever to begin toasting. The toaster will automatically adjust the cycle to defrost and toast the bread.

How do I clean the toaster?

Always unplug the toaster and allow it to cool completely before cleaning. Empty the crumb drawer regularly. Wipe the outer surfaces with a slightly moist cloth. Do not use caustic or abrasive cleaners, and never immerse the toaster in water.

Why is my toast too dark?

The browning setting may be too high. Reduce the setting (lower number) for lighter toast. For future use, start with a lower setting and adjust according to your preference.

What should I do if the toaster doesn't turn on?

Ensure the toaster is plugged into a working mains socket and that the socket is switched on. Check that the start lever is pressed down fully. If it still doesn't work, check your home's circuit breaker. If the problem persists, contact Electrolux customer service.

Can I toast frozen bread directly?

Yes, use the Defrost function. Place frozen bread in the slots, select your browning setting, press the Defrost button, then lower the start lever. The toaster will automatically handle the defrosting and toasting.

Can I use metal utensils to remove stuck toast?

No, never use metal utensils as they can damage the heating elements and cause electric shock or fire. If toast gets stuck, unplug the toaster, allow it to cool, then gently shake it upside down to release the bread.

What types of bread can I toast?

Standard bread slices that fit easily into the toasting slots are recommended. Do not use oversized, wrapped, or highly sugary breads as they may cause fire or electrical hazards. Avoid foods that may drip or crumble excessively.

How do I use the bun warmer rack?

Place the bun warmer rack on top of the toaster. Put your buns or rolls on the rack. Select browning setting 2 and press down the start lever. Once finished, turn the bread over and repeat if needed. Caution: the rack becomes very hot!

Is it safe to leave the toaster unattended?

No, never leave the toaster unattended while plugged in or in use. Bread may burn and cause a fire. Always supervise the toaster and unplug it after each use.

What should I do if the power cord is damaged?

If the power cord is damaged, it must be replaced by Electrolux or an authorized service agent to avoid hazard. Do not use the toaster until the cord is repaired or replaced. Contact Electrolux customer care for assistance.

USER MANUAL Explore 7 E4TS1-50SS ELECTROLUX

Line drawing of a standard 3D toaster with handle and control panel (no text or symbols)

EN INSTRUCTION BOOK

CNS 说明书

CNT 說明手冊

KR사용설명서

ID Buku Panduan

Regular Toast

Illustration of two hands operating a grater, showing the press and control panel (no text or symbols)

Button Function

Bun Warmer

Cleaning

INSTRUCTION MANUAL

Graphics and drawings in this manual are solely for illustration purposes and are subject to variations from actual product.

Read all instructions carefully before using the appliance for the first time.

Keep this manual for future reference.

COMPONENTS

A. Toasting slot

J. Power cord and plug

B. Thermally insulated outer housing

K. Cord storage (on the underside of the toaster)

C. Crumb drawer*

L. Dust cover

D. Defrost button with indicator lamp

E. Reheat button with indicator lamp

F. Stop button with indicator lamp

G. Browning control

H. Start lever

I. Bun warming rack for warming up buns and rolls

SAFETY ADVICE

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Keep the appliance and its power cord out of reach of children. Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be performed by children without supervision.
• The appliance can only be connected to a power supply which voltage and frequency comply with the specifications on the rating plate.
• The appliance must only be connected to an earthed mains socket.
• Never leave the appliance unattended while connected to the supply mains.
• Never use or pick up the appliance if

- the power cord is damaged, or

- the housing is damaged.

• If the appliance or its power cord is damaged, it must be replaced by Electrolux or its service agent in order to avoid hazard.
• Do not immerse the appliance, its power cord or plug in water or any liquid.
• Do not use or place the appliance on sink, on hot surface, near heat source, or near the edge of table or counter.
  • Always place the appliance on a flat, level and dry surface.
• The bread may burn, therefore do not use the toaster near or below combustible material, such as curtains.
• Never use the appliance without the crumb tray.
• Bread crumbs may burn, therefore clean the crumb tray regularly (Please refer to Cleaning and Care section for instructions).
• Do not cover the toasting slot while toasting.
• Do not move the appliance when it is in operation.
• Do not reach into the toasting slot with your fingers or metal utensils, as this may cause personal injury or damage to the appliance.
• Do not put oversize or packaged foods into the toaster, as this may cause fire or electrical hazards.
• The appliance and its accessories become hot during operation. Use only designated handles and knobs. Allow to cool down before cleaning and maintenance.

• CAUTION: Hot Surface on the appliance. 🚗 Surfaces are liable to get hot during use (Hot Surface symbol is marked

• The appliance must be switched off and mains plug removed from wall socket each time after use, and before cleaning and maintenance.

• Do not let the power cord come into contact with hot surfaces or hang over the edge of a table or counter.
• This appliance is not intended to be operated by means of an external timer or separate remote control system.
  • This appliance is for indoor use only.
• This appliance is intended for domestic use only. Electrolux will not accept any liability for possible damage caused by improper or incorrect use.
• This appliance is suitable to operate on both 50 and 60Hz.
• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

GETTING STARTED

Before you start using the toaster for the first time, it should be placed near an open window and operated a few times at maximum browning setting without any bread.

1. How to use the toaster: Plug the cord into the mains, insert bread and select browning setting (1-7). Press down the start lever.
2. When the bread has reached the desired degree of browning, the toaster switches off automatically and the bread is lifted up.
   You can raise it higher by lifting the start lever.

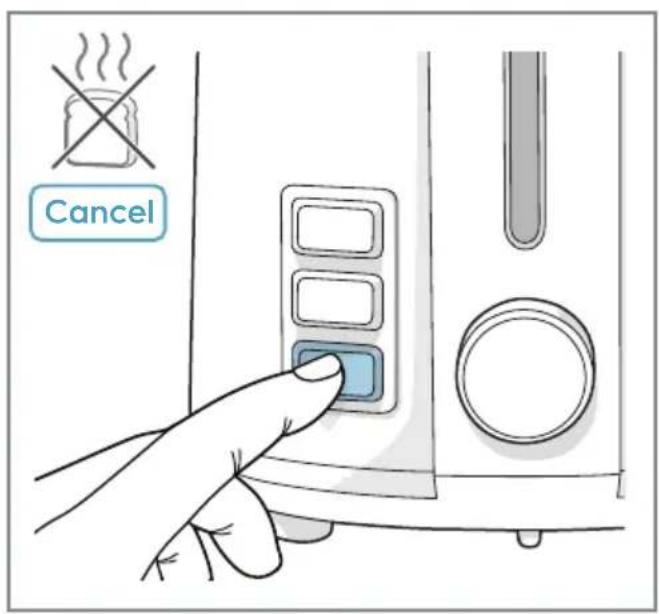

3. Operating features: to interrupt toasting, press the stop button.
   To toast frozen bread, press the defrost button and to warm up already toasted bread, press the reheat button.
4. To warm buns, rolls, or other bread, use the bun warmer rack.
   Place the bun on the rack. Select browning setting 2 and then start the toaster by pressing down the start lever.
   Once finished, turn the bread over and repeat if necessary.

Caution - Do NOT touch the rack since it becomes very hot during use!

CLEANING AND CARE

Unplug the toaster and allow it to cool down. Empty the crumb drawer. Wipe the outer surfaces with a slightly moist cloth. Never use caustic or abrasive cleaners, and never immerse the machine in liquid!

Enjoy your new Electrolux product!

TROUBLESHOOTING

Symptoms Possible causes Solution
The toasted bread is too brown. The browning setting is too high. Reduce the browning setting.
The toaster is not functioning.	The toaster is not switched on.	Make sure the toaster is switched on.

DISPOSAL

This symbol on the product or on its packaging indicates that the product may not be treated as householdwaste. To recycle your product, please take it to an official collection point or to an Electrolux service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available: Model, PNC, Serial Number. The information can be found on the rating plate.

Due to the Electrolux policy of continual product development; specifications, colours, and details of our products and those mentioned in this manual are subject to change without notice.
