Product Type	Electric Panel Heater
Brand	Wilfa
Model	Lun Miljø POE-1000
Power	1000 W
Voltage	230 V AC, 50 Hz
Dimensions (H x W x D)	1040 x 267 x 482 mm
Weight	Not specified
Control Type	Electronic with LED display
Thermostat	Adjustable (5-40 °C), calibratable
Programming Functions	Daytime reduction, night time reduction, frost protection, child lock, memory
Heating Element	Convection (panel type)
Installation	Wall-mounted with bracket (permanent or plug-in)
IP Rating	IP20 (indoor use only, not for bathrooms)
Safety Features	Overheat protection, child lock, frost guard
Maintenance	Vacuum grates twice a year; clean exterior with damp cloth
Warranty	5 years (consumer law)
WEEE Compliance	Yes

Frequently Asked Questions - Lun Miljø POE-1000 WILFA

How do I set the time and day on the heater after a power failure?

After a power failure of more than 1 minute, press and hold the P button. The display will flash for hours. Use + or - to set the correct hour, then press P to confirm. Repeat for minutes and then for the day (Monday=1 to Sunday=7).

What is the daytime reduction function and how do I activate it?

Daytime reduction lowers the temperature when you are away during the day. Press and hold the sun symbol button (for daytime) for 4 seconds. The display will show the set reduction temperature (default 17 °C). Use + or - to adjust, then press P to confirm. The heater will automatically reduce temperature at the programmed start time.

How do I activate the child lock?

Press and hold the sun symbol button (for daytime) for 4 seconds until the display shows Lc. The child lock is now active. To cancel, repeat the same action until Lc disappears.

What is the frost guard function and how do I use it?

Frost guard maintains a room temperature of 8 °C to prevent freezing during long absences. Press and hold the sun symbol button (for daytime) for 4 seconds until the display shows 8 °C. It activates immediately. To cancel, press and hold again until the current room temperature appears.

How do I calibrate the thermostat?

Press the P button three times. The display will show CA. Use + or - to adjust the temperature reading by up to ±30 °C to match a reference thermometer. Press P to confirm.

The heater is not heating. What should I check?

First, ensure the plug is inserted and the main switch is on. Check that the thermostat is set higher than the current room temperature. If the heater still does not heat, inspect for any error messages or contact Wilfa service.

How do I clean the heater?

Unplug the heater and let it cool. Vacuum the front and underside grilles to remove dust. Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners. For deep cleaning, tilt the heater forward by squeezing the top bracket lock.

Can I install the heater in a bathroom?

No, this heater has an IP20 rating and is not suitable for wet rooms like bathrooms. It must be installed in dry indoor areas only.

What is the memory function?

The heater saves all programmed settings (day/night reduction, temperatures) in memory. However, it does not have a battery, so if the power is off for more than 1 minute, you must reset the time and date. Other settings are retained.

How do I set the duration of the daytime reduction?

Press the P button briefly once. The display shows Hr. Press + or - to set the duration (1-10 hours, default 5h). Then press P to confirm. Note: Changing this cancels previously set start times.

USER MANUAL Lun Miljø POE-1000 WILFA

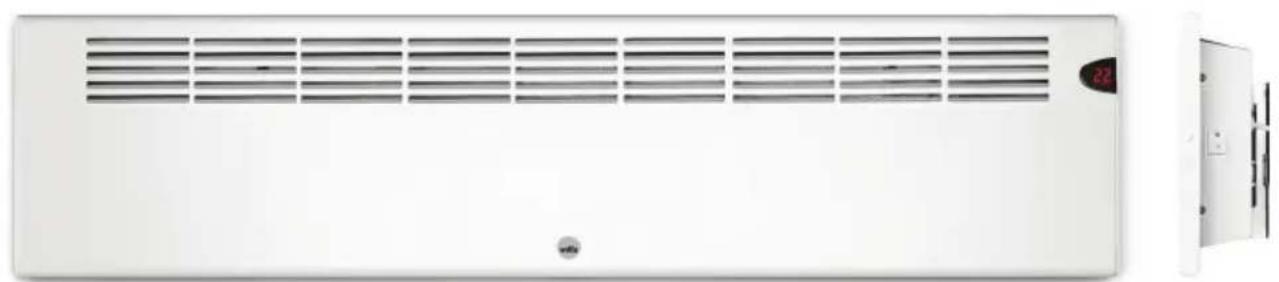

Exterior view of a white electronic device with ventilation grilles and a close-up of its side panel (no text or symbols visible)

Front view of a white air conditioner unit with ventilation grilles and a digital display (no visible text or symbols)

Lun Miljø

Panel heater

Bruksanvisning

Bruksanvisning

Brugsanvisning

Käyttöohje

Instruction manual

Ugit officia porem et

PLE 500 PLE 750 ent, inctorem resent

PLE 1000,orumplei1250

POE 500, POE 750,

POE 1000, POE 1250, POE 1500

Lun Miljø

Advarsler....3

Simple diagram with a horizontal bar and a letter 'C' at the top (no text or symbols within the bars)

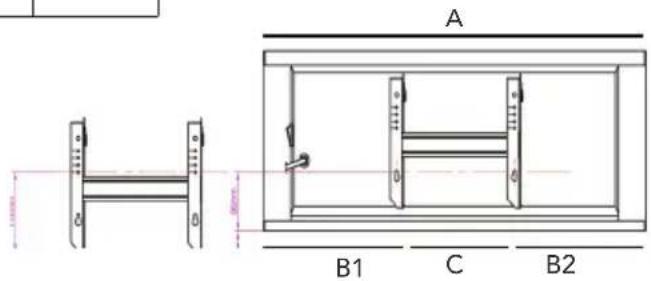

Ovn type L; panellist:

Watt A	mm	B1/B2 mm	C mm
500 700	243 214
750 810	298 214
1000 10	40 267/291	482
1250 11	50 322/346	482

Simple diagram of a rectangular grid with an oval shape on the right side (no text or symbols)

Panelovn

Panelist

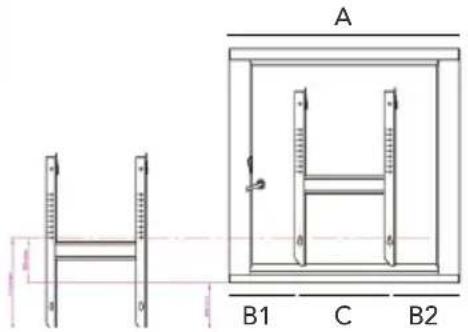

Heater type P:

Watt A	mm	B1/B2 mm	C mm
500 700	243 214
750 810	298 214
1000 104	0 267/291	482
1250 115	0 322/346	482

Pure electrical circuit lines without any symbols

The image contains only background ruled lines. According to Rule 2, these lines must be ignored. There is no actual text content to extract.

Therefore, the corrected OCR output is:

[Empty String]

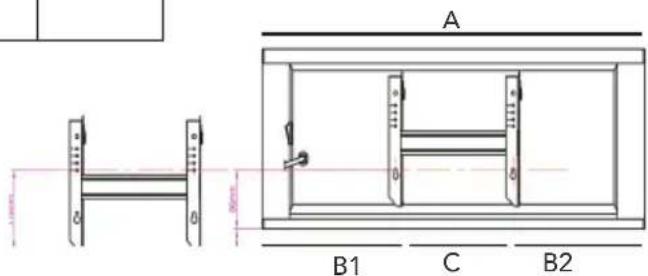

Ovntype L

Watt A	mm	B1/B2 mm	C mm
500 700	243 214
750 810	298 214
1000 1040	267/291	482
1250 1150	322/346	482

Pure electrical circuit lines without any symbols

Bemærk!

Kontakt en autoriseret

elektriker ved fast installation

af ovnen.

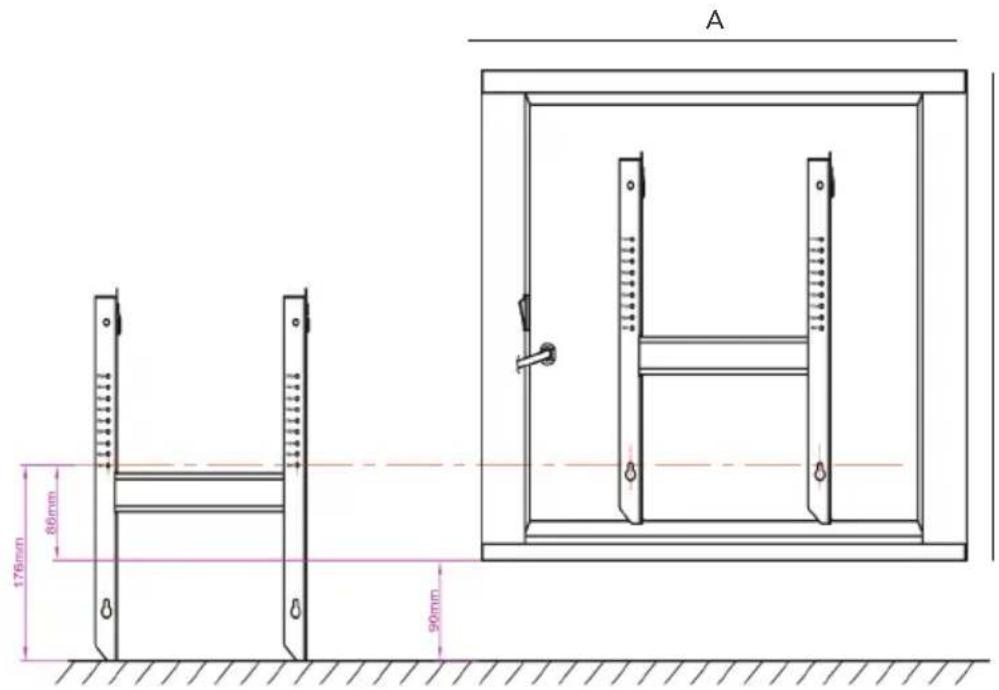

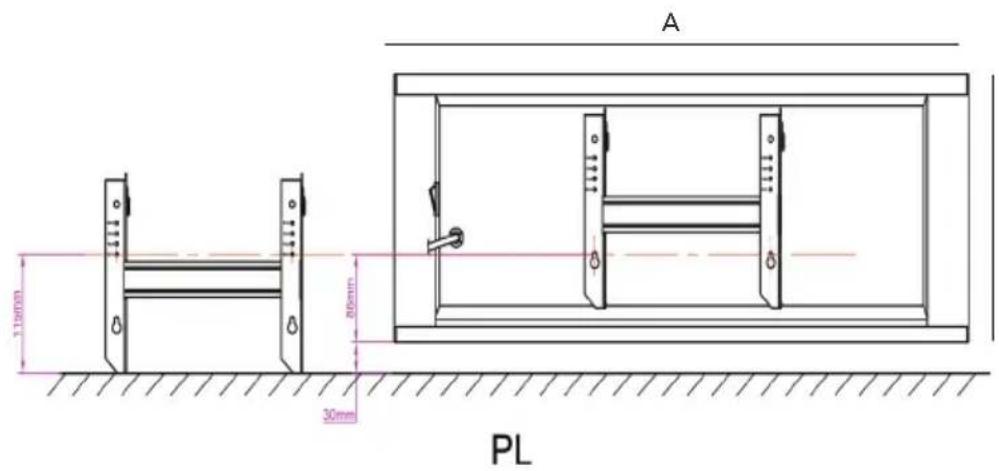

Måleskitse

PO

PL

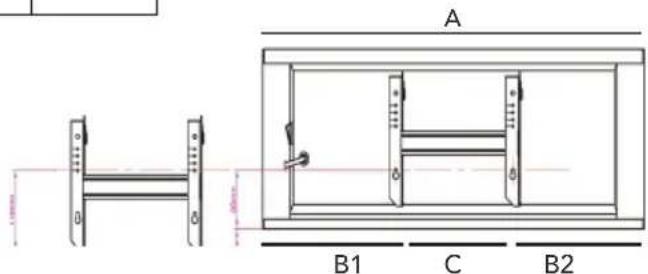

L-tyypin lämmitin

Wattia A	mm	B1/B2 mm	C mm
500 700	243 214
750 810	298 214
1000 10	40 267/291	482
1250 11	50 322/346	482

Pure electrical circuit lines without any symbols

Huomaa:

PO

PL

The image contains only background ruled lines that are stylistic or background elements. According to Rule 2, such lines must be ignored by the OCR result. Therefore, the corrected OCR text is:

[Empty String]

Where can the heater be installed....4

Fastening the wall bracket....5

Measuring sketch......6

Control panel/LED display....7

Daytime and night time reduction......8

Programming overview....9

Maintenance....20

Specifications....20

The product you have just purchased has undergone numerous tests and quality checks in order to ensure the highest possible quality. We hope that the heater will fully meet your requirements.

PLEASE READ THE USER INSTRUCTIONS BEFORE INSTALLING THE HEATER.

KEEP HOLD OF THE USER INSTRUCTIONS, EVEN AFTER INSTALLING THE HEATER.

THE USER INSTRUCTIONS PROVIDE IMPORTANT INSTRUCTIONS FOR USE, AND SAFETY DURING INSTALLATION, USE AND MAINTENANCE.

Warnings

■ The heater must not be covered.
■ Ensure that the power has been disconnected when installing the heater.
■ Do not use the heater together with a timer or other applications that automatically turn the product on.
■ If the cord is damaged it must be replaced by the manufacturer, service representative or similarly qualified person.
■ The heater must not be installed immediately below a power socket.
■ Prevent children from leaning against the front of the heater.
- Prevent the heater's air inlet (on the underside) from being blocked or covered by cushions, curtains, etc. as this could lead to overheating and fire.
■ Prevent children from sticking objects or paper etc. into the heater.
■ The heater must not be opened. It does not contain any parts that can be repaired by the user.
This appliance is not intended for use by people (including children) with reduced physical, sensory or mental ability or lack of experience and knowledge, unless they are supervised or have received training in the use of this appliance by a person responsible for their safety. Supervise children so that they do not play with the appliance.
■ The appliance is intended only for use by private households and is not for use in restaurants, cafeterias or similar.

Where the heater can be installed

■ This heater is intended for installation in the home. Please contact your supplier about all other instances.
It is equipped with an earthed plug and must only be connected to an earthed socket.
■ For indoor use only.
■ Should there be any damage to the appliance, please contact your supplier.
■ The installation must be performed correctly, and in accordance with applicable national regulations and standards.
■ The heater has been designed in IP20 classification and CANNOT be installed in bathrooms and wet rooms.
■ The heater shall not be installed straight underneath a power socket.
■ The heater must not be installed on wheels, loose feet or similar.

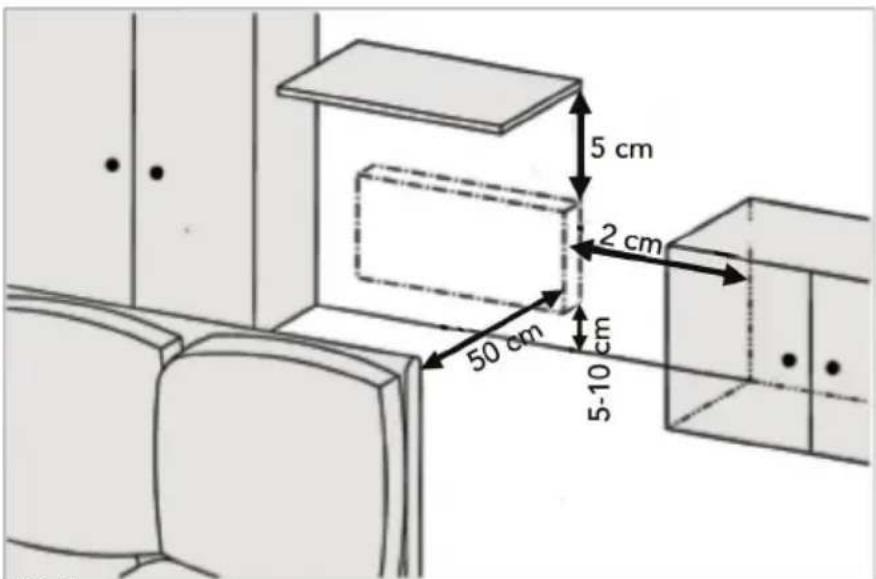

■ When positioning the heater, the minimum distance in relation to other building installations as stated in FIG.1 must be fulfilled.

FIG.1

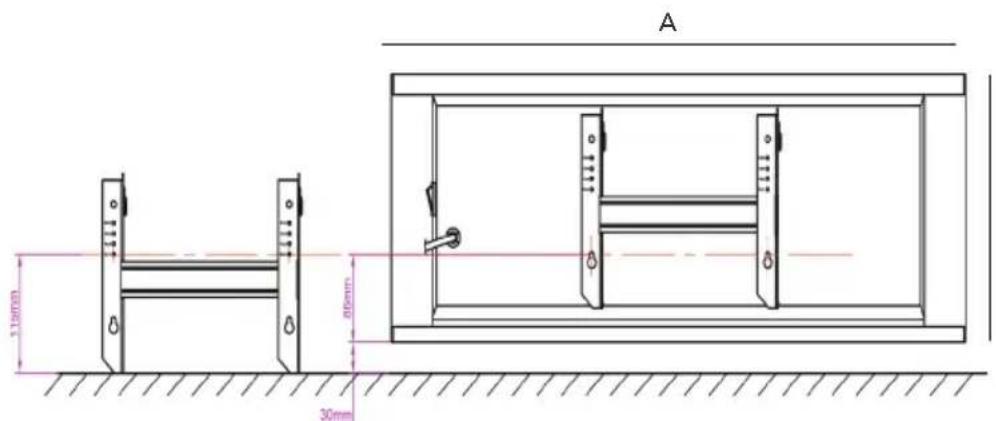

Fastening the wall bracket

Place the wall bracket directly on the floor and mark the two lowest fixing points. Lift the bracket up onto the wall and fit the points that have already been marked in order to mark the two remaining fixing points.

For distances above and to the side, please refer to the measuring diagram below.

The accompanying screws and plugs should be used for hanging the wall bracket. Hang the heater on the wall bracket and then plug it in to the power socket.

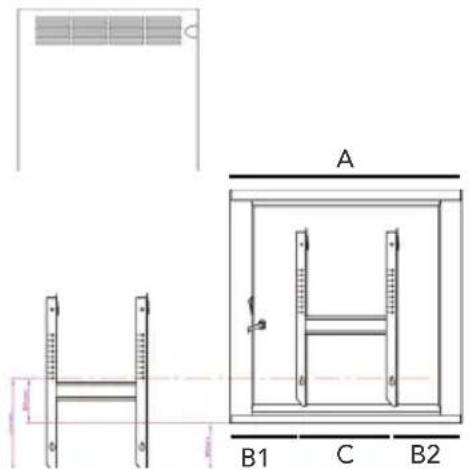

Measuring diagram

Heater type P:

Watt A	mm	B1/B2 mm	C mm
500 440	113 214
750 440	113 214
1000 550	168 214
1250 660	223 214
1500 720	253 214

Heater type P:

Watt A	mm	B1/B2 mm	C mm
500 700	243 214
750 810	298 214
1000 10	40 267/291	482
1250 11	50 322/346	482

Pure electrical circuit lines without any symbols

NB: For permanent installation of the heater, please contact an authorised electrician.

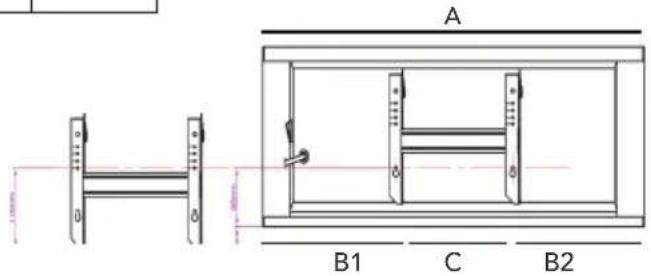

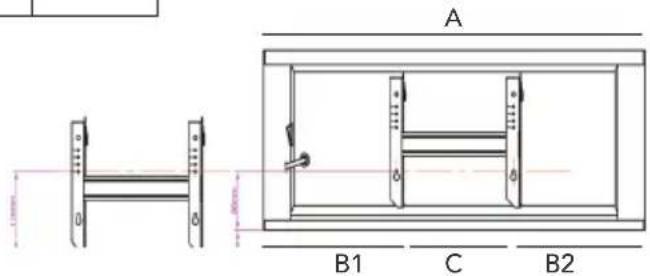

Measuring sketch

PO

PL

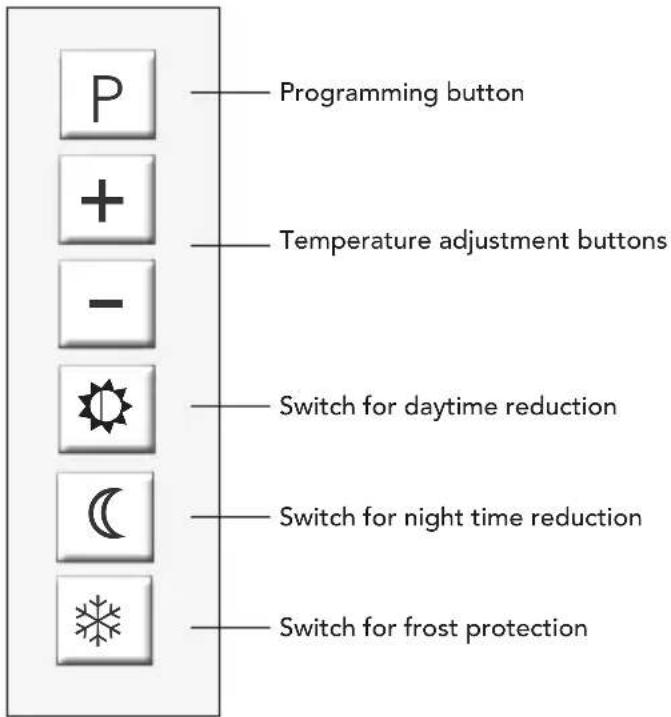

Description of the control panel

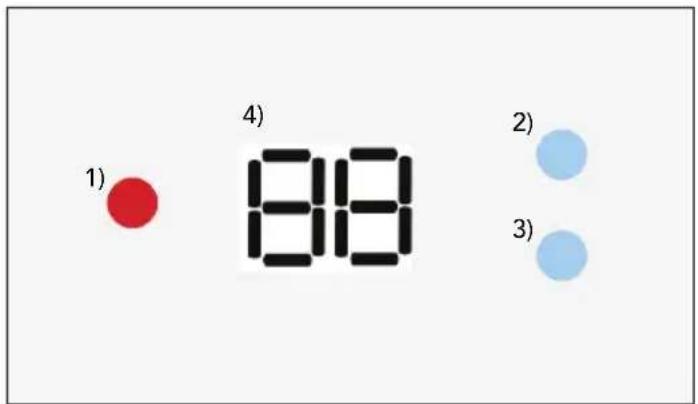

Description of the LED display

1) Indicator lamp indicating that the panel heater is heating
2) Indicator lamp for the daytime reduction mode
3) Indicator lamp for night time reduction mode
4) Temperature and programming display

Daytime and night time reduction mode

The heater is equipped with programs which make it possible to reduce the temperature during the daytime and in the night time when you are asleep. This allows you to save both the environment and electricity by having a lower temperature when you are not using the room or you are asleep. Please refer to the programming overview for daytime and night time reduction.

Child lock

It is possible to block the use of the function buttons and adjustment buttons, to prevent unwanted changes to the programming and the temperature. Please refer to the programming overview for child lock.

Frost guard

The function enables you to maintain a temperature of 8^ C in the room. This function can be used for longer absences from the home. Please refer to the programming overview for frost guard.

Memory function

The heater is equipped with a memory so that all programming is saved. This means that you do not have to re-program next season. This will save you time when you want to use the heater. The heater is not equipped with a battery, however, so the date and time have to be set for every season or every time it is turned on. (Follow the installation guidelines on page 9). If, however, you do not wish to use the various power saving functions, press "P" three times. The factory settings for time and date will then be used. The heater will then be controlled using the thermostat. When the frost guard is selected, it does not depend on the time as it is constantly on.

What to do in the event of power failure, if the power plug is disconnected or if the heater is turned off

After the heater has been without power for more than 1 minute you will need to set the time and date in order to use the heater and all functions again. (Follow the installation guidelines on page 9). This is to ensure that the power saving functions start as planned. We recommend that the heater is left on for the period during which you require heating. If you go away for prolonged periods, we recommend that you use the various settings to reduce the power consumption. However, if shorter power failures of less than 1 minute occur you will need to confirm by pressing "P" three times in order to use all functions again.

Programming overview for heaters and strip

First-time use or after a power failure with a duration of 1 min Step 1: Setting the hours

How The display shows Check that
	Press the + or - to set the correct hour	“12” flashes	off
	Confirm using P

Step 2: Adjusting the minutes

How The display shows Check that
	Press the + or - to adjust the minutes	"00" flashes	[H406] off
P Confirm using P

Step 3: Adjusting the day of the week

How The display shows Check that
	Press the + or - to set the correct day of the week(Monday=1, Sunday=7)	"1" flashes	[4825]off
P Confirm using P

The night time reduction must be activated at the desired time, for example at 10PM and will reduce the temperature from the chosen

Setting the desired room temperature

How The display shows Check that
	Briefly press the up arrow once. Increases by one degree for each press. Min. 5°C and max. 40°C.	22°C +1 flashes		Coff
	I Briefly press the down ar- row once. Decreases by one degree for each press. Min. 5°C and max. 40°C.	22°C -1 flashes		Coff
		The display shows the current room temperature after 5 seconds	on/off	on/off
The indicator light returns to the previous settings.

Programming night time reduction
Step 1:

How The display shows Check that
Press down once (4 sec)	Shows 17 degrees or previously programmed temperature. Flashes for 5 sec.	/off	flashes
Programming the night reduction.

Step 2:

The display shows Check that
The display shows the room temperature. The indicator lamp for daytime goes out.		Con

Step 3:

The display shows Check that
The display shows the current room temperature.	on/off
When the temperature for night time reduction has been reached, the display will show the room temperature and the indicator lamp for night time shows that it is programmed for night mode.The night time reduction cannot be set whilst daytime reduction is active.

Programming the daytime reduction

Step 1:

How The display shows Check that
	Press down once (4 sec) Shows 17 degrees or grammed temperature. Flashes for 5 sec.	flashed	on/off
Program the daytime reduction.

Step 2:

The display shows Check that
The display shows the room temperature. The indicator lamp is flashing. The indicator lamp for the daytime will be lit for as long as the daytime reduction is active (5h)	flashing	on/off

Step 3:

The display shows Check that
The display shows the actual room temperature.	on	on/off
When the temperature for daytime reduction has been reached, the display will show the room temperature and the indicator lamp for daytime shows that it is in day mode.The daytime reduction cannot be set whilst night time reduction is active.The daytime reduction will be activated at the same time from Monday to Friday.

The daytime reduction must be activated at the desired time, for example 8AM and will reduce the temperature from the chosen time.

Activate the frost guard

Step 1:

How The display shows Check that
Press down once (4 sec) Shows 8 degrees and flashes for 5 sec.		flashes
The frost guard will be activated immediately and will lower the temperature to 8 degrees.

Step 2:

The display shows

The display shows the current room temperature.

The display shows the room temperature. The display for other functions has now been blocked.

Cancel the frost guard

How The display shows Check that
Press down once (4 sec) The	display shows the current room temperature.	on/off	[8572]
The display returns to previously programmed settings.

Temporary cancellation of the daytime reduction

How The display shows Check that
Press briefly, once on each	The display shows the current room temperature.	off	on/off
Temporary cancelling of the daytime reduction.

Temporary cancellation of the night time reduction

How The display shows Check that
Press briefly, once on each	The display shows the current room temperature.	on/off	on
Temporary cancelling of the night time reduction.

Cancel the daytime reduction

How The display shows Check that
Press down once (4 sec) The	display flashes and shows the current room temperature.	off	on/off
Delete the programmed daytime reduction.

Cancel the night time reduction

How The display shows Check that
	Press down once (4 sec) The	display flashes and shows the current room temperature.	on/off	off
Delete the programmed night time reduction.

Activate the child lock

How The display shows Check that
	Press down once (4 sec) The	display shows "Lc" after a few seconds.		Con/off
The child lock is immediately activated. The display shows "Lc" for a few seconds before showing the room temperature.

Cancel the child lock

How The display shows Check that
	Press down once (4 sec) The	display shows the current room temperature.
The child lock has been removed

Adjusting the desired duration of the daytime reduction

Step 1:

How The display shows Check that
	Briefly press once The display flashes "Hr"
The program is now ready to change the daytime reduction time. The factory setting is 5h.

Step 2:

How The display shows Check that
Briefly press once The display shows 5 or previous settings in 10 seconds
Start the programming whilst the display is flashing.

Step 3: (cont. setting the desired duration of the daytime reduction)

How Check that
	One brief press increases the temperature for 1 h	flashes	Coff
	One brief press decreases the temperature for 1 h
Min. 1h and max. 10h

Step 4:

How The display shows Check that
One brief press confirms the new setting	The display shows the current room temperature and then returns to previous settings	off	off
If the time is changed, the previously set start time for both day and night mode will be cancelled.

Step 5:

Check that
on/off	on/off
If no changes are made it will return to the previous setting.

Setting the desired duration of the night time reduction

Step 1:

How The display shows Check that
	Briefly press once The display flashes "Hr"
The program is now ready for changing the night time reduction time. The factory setting is 7h.

Step 2:

How The display shows Check that
	Briefly press once The display shows7 or previous set-tings for 10 seconds		hes
Start the programming whilst the display is flashing.

Step 3:

How		The display shows	Check that
	One brief press increases the time by 1h		[100x] off
	One brief press decreases the time by 1h
Min. 1h and max. 12h

Step 4:

How The display shows Check that
	One brief press confirms the new setting	The display shows the current room temperature and then returns to previous settings
If the time is changed, the previously set start time for both day and night mode will be cancelled.

Step 5:

Check that
on/off
If no changes are made it will return to the previous setting.

Changing the factory setting or other set daytime reduction temperature

Step 1:

How The display shows Check that
Briefly press twice on this “°C” will flash in the display	[2x2y] off	[5x2k]
The program is now ready to change the daytime reduction temperature. The factory setting is 17 degrees.

Step 2:

How The display shows Check that
Briefly press once Shows 17	degrees or previously programmed temperature. Flashes for 10 seconds	[TOZZ] flashes
Start the programming whilst the display is flashing

Step 3:

How Check that
One brief press increases the temperature by 1°C	flashes
One brief press decreases the temperature by 1°C
Min. 1 degree and 30 degrees

Step 4:

How The display shows Check that
One brief press on this confirms the new setting	The display shows the current room temperature and then returns to previous settings	on/off	on/off
New day time reduction temperature has now been programmed!

Congratulations! You can now enjoy comfortable and energy-saving indoor temperatures. indendørs.

Changing the factory setting or other set night time reduction temperature

Step 1:

How The display shows Check that
	Briefly press twice on this "°C"	will flash in the display
The program is now ready for changing the night time reduction temperature. The factory setting is 17 degrees.

Step 2:

How The display shows Check that
Press briefly once on this Shows	17 degrees or previously programmed temperature. Flashes for 10 seconds
Start the programming while the display is flashing.

Step 3:

How Check that
	One brief press increases the temperature by 1°C
	One brief press decreases the temperature by 1°C
Min. 1 degree and 30 degrees

Step 4:

How The display shows Check that
	One brief press on this confirms the new setting	The display shows the current room temperature and then returns to previous settings	on/off
New night time reduction temperature has now been programmed!

Calibrating the thermostat

Step 1:

How The display shows Check that
Briefly press on this three times	“CA” will flash in the display	[ARCH] off
The display will flash for 10 seconds

Step 2:

How Check that
The display shows the current room temperature
Shows the measured temperature in the room

Step 3:

How Check that
One brief press increases the temperature by 1°C	F	f
One brief press decreases the temperature by 1°C
Min. 1 degree and 30 degrees

Step 4:

How The display shows Check that
One brief press on this confirms the new setting	The display shows the current room temperature and then returns to previous settings.	on/off	–
The new current room temperature has been programmed. This does not affect any other settings.

NB:

If the heater's positioning is influenced by other factors such as cold exterior walls, please follow the programming in Calibration of the thermostat termostat.

Maintenance

To maintain the heater's efficiency and prevent dust accumulation in the grates at the front and the underside, these should be vacuumed or brushed occasionally. Minimum twice a year (spring and autumn). To make it easier to clean behind the heater, the heater can be tilted forward by squeezing the locking system at the top of the wall bracket.

In polluted environments, dirt can quickly accumulate on the grates. This could be the result of poor air quality. Accumulation of dirt is not covered by warranty in accordance with the heater's warranty.

The heater's external surfaces can be cleaned using a soft, damp cloth. Never use abrasive cleaners as this could damage the heater's surface.

Specifications

MODEL POE-500 POE-750	POE-1000 POE-1250 POE-1500
EFFECT 500 750 1000 1250	1500
VOLTAGE 230V,AC/50Hz

MODEL PLE-500 PLE-750	PLE-1000 PLE-1250
EFFECT 500 750 1000 1250
VOLTAGE 230V,AC/50Hz

Troubleshooting

PrOBLEM	Possible causes	Solution
The heater is not heating	— Inspect the plug — The main switch could be turned off — The thermostat has been incorrectly adjusted	— Plug into the power socket — Turn on the main switch — Ensure that the thermostat is correctly adjusted
The heater heats for the entire time	— The thermostat has been incorrectly adjusted — Heaters have been installed on a cold wall or are influenced by a draft	— Ensure that the thermostat is correctly adjusted — Calibrate the thermostat. See programming overview on page 9

Warranty

■ Warranty in accordance with consumer laws. Always keep the receipt and bring it back to the store where the product was purchased in the event of a complaint.
■ The warranty is valid for 5 years starting from the date on which the heater was purchased. Parts with defects due to material or production faults will be replaced or repaired free of charge by your Wilfa dealer.
■ Wilfa does not accept liability for loss or transport costs for returned goods that the customer has sent via any third parties.
The warranty does not cover damages that have resulted from incorrect use, incorrect installation, negligence or use in a way other than described in the user manual.

The manufacturer reserves the right to make technical changes. Manufactured and imported on behalf of Wilfa.

The image contains only background ruled lines that are stylistic or background elements. According to Rule 2, such lines must be ignored by the OCR result. Therefore, the corrected OCR text is:

[Empty String]

According to the Waste Electrical and Electronic Equipment (WEEE) Directive, this type of waste must be collected and treated separately. If it becomes necessary to dispose of this product at some point, kindly make sure that it is not discarded with your everyday household refuse. Instead, bring the product to your closest WEEE collection centre.
