Knus S WBL-1200S - Blender WILFA - Free user manual and instructions

Product Type	Blender
Brand	Wilfa
Model	Knus S WBL-1200S
Power	1200 W
Power Supply	AC 220-240 V, 50/60 Hz
Jar Material	Glass with level indication
Jar Capacity	1.5 L (estimated)
Blade Material	Stainless steel
Speed Control	Variable from MIN to MAX
Quick-Select Functions	Crush ice, Smoothie, Pulse/Auto clean
Safety Features	Built-in safety lock, overheat protection (estimated)
Dishwasher Safe Parts	Yes, removable parts (lid, jar, blade assembly)
Housing Material	Plastic and metal
Dimensions (H x W x D)	Approx. 40 x 18 x 18 cm (estimated)
Weight	Approx. 4.5 kg (estimated)
Cord Length	Approx. 1.2 m
Included Accessories	Measuring cup, lid, blade assembly, sealed ring
Warranty	2 years (estimated, refer to warranty card)

Frequently Asked Questions - Knus S WBL-1200S WILFA

How do I assemble the blender?

Place the sealed ring on the blade assembly unit, then place the blade assembly unit on the interface. Screw the unit interface onto the glass jar bottom until fixed properly. Finally, place the glass jar on the motor unit. The handle can be positioned on the right or left side.

What can I make with the crush ice function?

The crush ice function is designed for crushing ice cubes. Do not add more than 8 ice cubes (max 20x20x20 mm each) at a time. Press the Crush Ice button; the blender will run for 30 seconds automatically.

How do I clean the blender after use?

Unplug the blender and disassemble all removable parts (jar, lid, blade assembly, measuring cup). Wash them in a dishwasher or in lukewarm water with dishwashing liquid. Wipe the motor base with a dry cloth. Be careful of sharp blades.

Can I blend hot liquids?

Be cautious when blending hot liquids as they can eject suddenly due to steam buildup. Allow hot liquids to cool slightly before blending and do not fill the jar more than halfway.

Why won't the blender start?

Ensure the jar and blade assembly are properly locked onto the motor unit. The built-in safety lock prevents operation if parts are not correctly assembled. Also check that the power cord is plugged in and the speed knob is turned to ON.

How long can I run the blender continuously?

Do not operate the blender for more than 3 minutes continuously. Let it cool down to room temperature before using it again to avoid overheating.

What is the Pulse/Auto clean function?

The Pulse/Auto clean function runs a pre-set speed profile for one minute. To clean, add water and a drop of dish soap to the jar, then press the button. It helps remove residue from blades and jar.

Are the parts dishwasher safe?

Yes, all removable parts (glass jar, lid, measuring cup, blade assembly) are dishwasher safe. However, hand washing in lukewarm water is also recommended to prolong the life of the parts.

What should I do if the blades are dull?

Blades are sharp and designed to last. If they become dull or damaged, contact Wilfa authorized service for replacement. Do not attempt to sharpen them yourself.

What is the maximum capacity for solid ingredients?

Avoid overloading. Cut ingredients into smaller pieces and do not exceed 1.5 L total capacity. For heavy mixtures like dough, reduce quantity to avoid motor strain.

USER MANUAL Knus S WBL-1200S WILFA

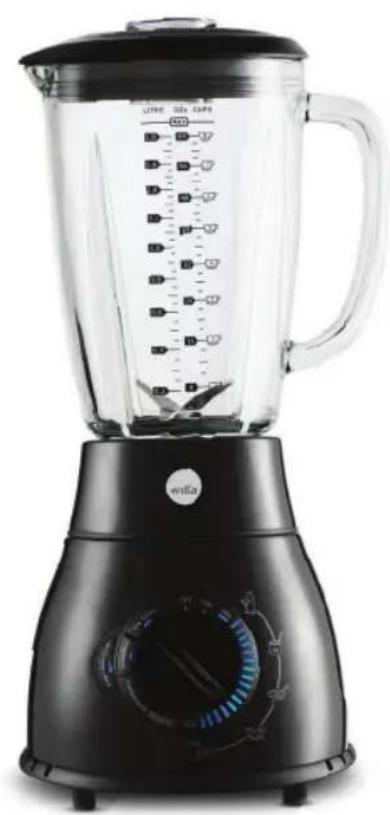

Exterior view of a modern kitchen blender with visible control knob and side blades (no text or symbols)

Black blender with water level indicator and control knob (no visible text or symbols)

Wilfa Knus S

Blender

Bruksanvisning

Bruksanvisning

Brugsanvisning

Käyttöohje

Instruction manual

BL-1200

BL-1200B

Blender

Advarsel 3

Simple diagram showing a lamp with a downward arrow and a handle, no text or symbols present.

1. Sett knivbladenheten på knivenhetsadapteren.

Diagram showing a lamp with a downward arrow and a base component (no text or symbols)

Line drawing of a blender with an arrow pointing to its base (no text or symbols)

Line drawing of a blender with a handle and lid, showing a drop from top to bottom (no text or symbols)

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

Simple line drawing showing a bucket falling into a roof, with no text or symbols present.

Simple line drawing of a lamp with a downward arrow and a handle, no text or symbols present.

Simple line drawing of a lamp with a downward arrow indicating light or illumination (no text or symbols)

Line drawing of a pitcher with an arrow pointing to its base, no text or symbols present

Line drawing of a blender with a handle and lid, showing a drop from top to bottom (no text or symbols)

1. Anslut stickkontakten.

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

Simple line drawing showing a bucket falling into a roof, with no text or symbols present.

Simple diagram showing a lamp with a downward arrow and a schematic line below (no text or symbols)

Simple line drawing of a lamp with a downward arrow indicating light or illumination (no text or symbols)

Line drawing of a pitcher with an arrow indicating upward motion, no text or symbols present

Line drawing of a blender with a handle and lid, showing a drop from top to bottom (no text or symbols)

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

Simple line drawing showing a bucket falling into a roof, with no text or symbols present.

Model: BLB-1200/BI-1200B

Strømforsyning: Vekselstrøm 220V-240V 50/60Hz

Effekt: 1200W

Simple line drawing of a lamp with a downward arrow and a handle, no text or symbols present.

Simple line drawing of a lamp with a downward arrow and a base component (no text or symbols)

Line drawing of a pitcher with an arrow pointing to its base, no text or symbols present

Line drawing of a blender with a handle and lid, showing a drop from top to bottom (no text or symbols)

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

Simple line drawing showing a bucket falling into a roof, with no text or symbols present.

Using the appliance 7

How to assemble the appliance 9

How to use the blender jar 10

Cleaning 11

Technical Data 13

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Warning

■ Never leave the appliance unattended when it is connected to the mains.
■ Never immerse the appliance in water.
■ Is the cable damaged, it must be replaced by authorized service personnel to avoid a hazard.
■ Is there damage to the device or that it does not work, it must be serviced only by authorized personnel.
■ Connect the appliance only to a properly installed wall socket with a voltage matching the technical data of the appliance.
■ Do not let the cord hang over edge of the table or counter or touch hot surface.
■ The motor must not come into contact with water or any other liquid, as there is the danger of an electric shock. Therefore, do not use the appliance near to a wash Basin, not with wet hands or while standing on a wet ground. If the appliance has turned wet, pull the mains plug immediately out of the socket before touching the appliance.
■ Do not use the appliance outdoors.
■ This product is intended for household use and not for commercial use.
■ Use the appliance only for the purpose it was designed for.

■ Do not use appliance, if it or parts of it show visible damage or if the appliance was dropped.

■ Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

■ This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

■ Appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

■ This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

■ Children shall not play with the appliance.

Caution

■ There is a potential injury from misuse. The care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

■ To reduce the risk of injury, never place cutter-assembly blades on base without jar properly attached.

■ Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

■ The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

■ Be careful is hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming.

We are very safety conscious when designing and manufacturing consumer products, but it is essential that the product user also exercise care when using an electrical appliance. Listed below are precautions which are essential for the safe use of an electrical appliance:

Safety precautions for your table blender

■ Operate the blender with lid closed
■ Blades are very sharp. Handle with care.
■ Only remove the jar while motor is off.
■ Avoid overwork of motor.
■ Handle carefully with glass jar.
■ Never place your hands into the glass jar while the motor is on.
■ Avoid contact with moving parts.

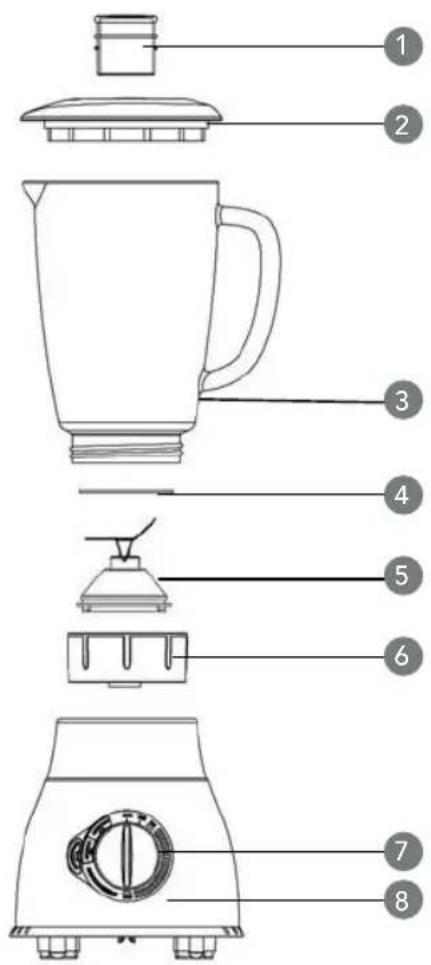

Parts description

1 Measuring cup
2 Lid
3 Glass jar with level indication
4 Sealed ring
5 Blade assembly unit
6 Blade assembly unit interface
7 Control panel
8 Motor unit

Built-in safety lock

This function ensures that user can only switch the appliance on when the accessories have been placed on the unit in correct position. When the accessories have been fixed properly, the unit can only be switched on. (i.e. Built-in safety lock function is disabled at this moment)

Before fi rst use

Clean the unit and parts thoroughly before you use the appliance for the first time.

Using the appliance

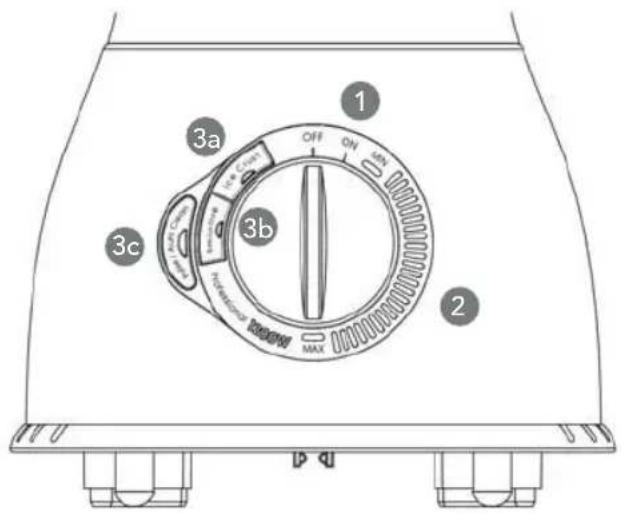

Control panel

1 ON/OFF switch
2 Speed control (MIN -> MAX)
3 Quick-select button

a) Crush ice button
b) Smoothie button
c) Pulse/Auto clean button

To switch on the appliance, turn the knob to "ON" position. The "ON" light will be illuminated.

To control the speed, turn the knob at between "MIN" & "MAX" position. The light will be illuminated at the desired position.

To use the quick function, turn the knob to "ON" position. The light on the three buttons will start to blink.

Crush ice button

Press this button to crush ice. The appliance starts crushing according to the pre-set speed profi le.

Press the button again to stop the process or wait for the unit to stop automatically after running for 30 seconds.

Warning:

Do not add more than 8pcs ice cubes (less than 20 x 20 x 20mm size of the ice) in glass jar at a time.

Smoothie button

Press this button to make delicious smoothies. The appliance starts mixing according to the pre-set speed profile. Press the button again to stop the process or wait for the unit to stop automatically after running for one minute.

Pulse/Auto clean button

Press the button to run the Auto mode. The appliance starts operating according to the pre-set speed profi le. Press the button again to stop the process or wait for the unit to stop automatically after running for one minute.

This function can be used to clean the product; you have to use water in the jar.

How to assemble the appliance

1. Place the sealed ring on the blade assembly unit.

Simple diagram showing a lamp with a downward arrow and a schematic line below (no text or symbols)

1. Place the blade assembly unit on the interface.

Simple line drawing of a lamp with a downward arrow and base plate (no text or symbols)

1. Screw the unit interface onto the glass jar bottom until it is fixed properly.

Line drawing of a pitcher with an arrow pointing to its base, no text or symbols present

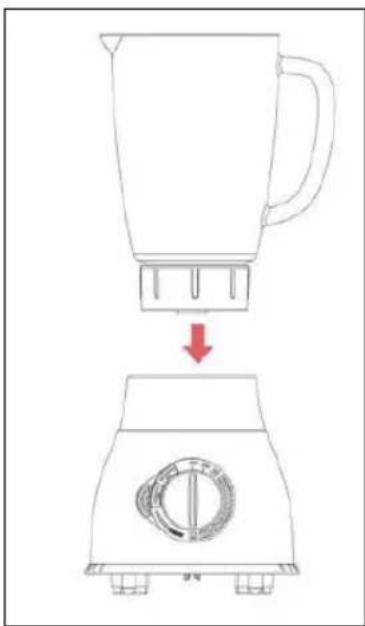

1. Place the glass jar with blade assembly unit interface on the motor unit. The handle can be placed in two positions: either located at the right hand side or left hand side.

Line drawing of a blender with a handle and lid, showing a drop from top to bottom (no text or symbols)

1. Connect to main power supply.

How to use the glass jar

1. Place the ingredients in the glass jar.

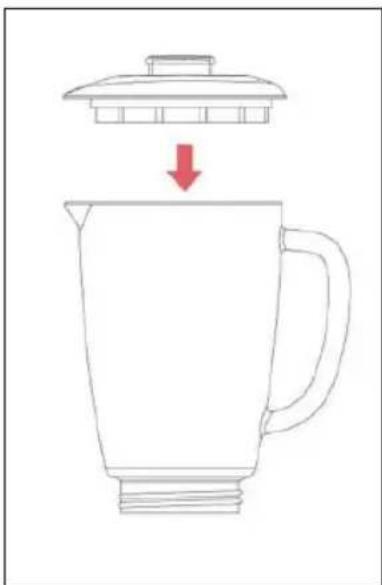

2. Place the lid on the jar and close it tightly.

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

1. Insert the measuring cup into the lid opening.

Simple line drawing showing a container dropping into a roof, with a red arrow indicating downward motion (no text or symbols)

1. Select the speed by turning the control knob or press the Quick-select button.

Note: Do not let the appliance to operate more than 3 minutes continuously. Let the appliance to cool down to room temperature before continue operating the appliance.

After using the blender

1. Disconnect the power from main supply.
2. Remove the lid (together with measuring cup) from the jar.
3. Remove the jar (together with blade assembly unit interface) from the motor part.
4. Detach the blade assembly unit interface from the bottom of the jar.

Note: Always clean the removable parts immediately after use.

Note: It is recommended to cut the meat or other food into smaller pieces before putting them in the jar. Do not operate with large quantities of food at one time.

Cleaning

Always clean the removable parts immediately after use.

Note: Be careful when cleaning the parts. Avoid touching the sharp blades!

1. Disconnect the power from main supply.
2. Disassemble all removable parts before cleaning.
3. Clean all removable parts in dishwasher or in lukewarm water with dishwashing liquid.
4. Use dry cloth to clean the main body.

How to clean the different parts:

Technical Data

Model: BL-1200/Bl-1200B

Power Supply: AC 220V-240V 50/60Hz

Output: 1200W

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Under the Waste Electrical and Electronic Equipment Directive (WEEE), such waste must be collected separately and processed. If in future you need to discard this product, please do not throw it out with your normal rubbish. Please send this product to a collection point where one is available.

AS WILFA

Industriveien 25

1481 Hagan

Norway

wilfa.com
