HFN-124770 - Fan Emerio - Free user manual and instructions

Product Type	Neck Fan
Brand	Emerio
Model	HFN-124770
Power Consumption	3.76W - 4W
Charging Voltage	DC 5V
Charging Current	1000mA (Max)
Battery Capacity	2000mAh (18650 battery)
Charging Time	Approx. 6 hours
Operating Time	2 - 4 hours (depending on speed)
Speed Settings	3 levels (low, medium, high)
LED Lighting Modes	Color cycling, red only, off
Aroma Function	Yes, with included aroma box and cotton pads
Flexible Tube	Adjustable for desired angle
Usage Positions	Wear around neck or fold and seat on flat surface
Safety Features	Automatic shut-off when low battery; low voltage
Warranty	2 years
Cleaning	Wipe with damp cloth, do not immerse
Suitable Age	8 years and above (with supervision)

Frequently Asked Questions - HFN-124770 Emerio

How do I charge the Emerio HFN-124770 fan?

Connect the included USB cable to the charge jack on the fan and a USB port (computer or adapter). The indicator light shows red during charging and turns blue when fully charged. Full charge takes about 6 hours.

How long does the battery last after a full charge?

The battery lasts between 2 to 4 hours depending on the speed setting used. Higher speeds reduce runtime.

How do I turn on the fan and adjust speeds?

Press the On/Off/Speed switch repeatedly: first press for low speed, second for medium, third for high, and fourth to turn off.

How do I use the LED lights?

Press the LED switch: first press cycles through colors, second press shows red only, third press turns the lights off.

Can I use the fan while it is charging?

No, you should not turn on the fan while it is charging. Always switch off and unplug before cleaning.

How do I use the aroma function?

Open the aroma box covers by rotating counterclockwise, insert the aroma cotton (included) or add your own oil, then close the covers. The fan will diffuse the scent when running.

How do I clean the fan?

Switch off and unplug the fan. Wipe the exterior with a damp cloth and dry thoroughly. Do not immerse in water. Use a dry brush or vacuum to clean the intake and outlet grilles.

Is the Emerio HFN-124770 waterproof?

No, it is not waterproof. Do not immerse in water or expose to splashes. Keep away from damp environments.

Can children use this fan?

Yes, children aged 8 years and above can use it under supervision. Children should not play with the appliance or perform cleaning without supervision.

What should I do if the fan stops working?

If the battery is low, the fan will automatically shut off. Charge it fully. If problems persist, contact customer service. Do not attempt to repair yourself.

USER MANUAL HFN-124770 Emerio

Black handheld device with two circular fans, connected by a curved cable (no text or symbols visible)

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
2. This appliance must only be supplied at safety extra low voltage corresponding to the marking on the appliance.
3. This appliance contains batteries that are non-replaceable.
4. Always unplug the USB plug when it is fully charged or before cleaning. When unplugging, make sure to grasp by the USB plug and not the cable.
5. Do not immerse the appliance or USB cable in water or other liquids. There is danger to life due to electric shock!
6. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
7. Do not use the appliance for other than intended use.

8. Keep the appliance away from damp, and protect from splashes.

9. Do not use this appliance for more than 4 hours under high speed level.

10. This product is prohibited to be used in high temperature environment such as shower room.
11. Do not charge the appliance with devices beyond the rated voltage.
12. Keep your hands dry when using or touching the appliance.
13. If there is water or solution in the appliance, please disconnect the power and dry the appliance immediately, and then confirm whether it can be used after drying.
14. Please use the appliance under normal temperature of 0-40 degrees.
15. Do not charge the appliance on flammable materials such as blankets or quilts.
16. Do not let the hair or other small objects reach into the fan to interrupt the fan running.
17. Please do not turn on the appliance when charging.

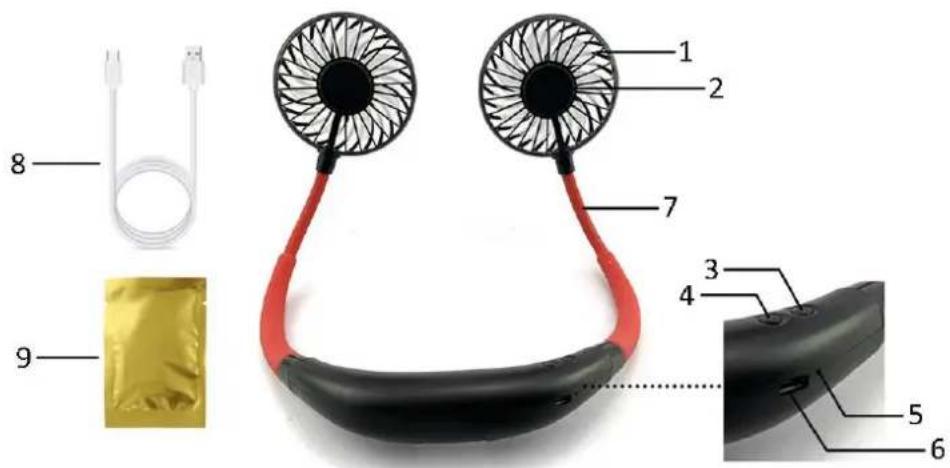

PARTS DESCRIPTION

1. Fan head (Fan guard + Fan blade)
2. Aroma box
3. On/off/ speed switch
4. LED switch
5. Indicator light
6. USB charge jack
7. Flexible tube
8. USB cable
9. Aroma cotton bag

HOW TO CHARGE

1. Connect one end of the USB cable to the charge jack of the appliance, and the other end to the USB port of the computer or other USB adaptor port. Be sure it fits tightly.
2. During charging, the indicator light will illuminate in red. When the battery is full, the indicator light will turn blue. Fully charged, the appliance can keep working for 2-4 hours.

Note: When the power is low, the fan speed will become weak and then the appliance will shut off automatically. Now you need to charge your appliance.

OPERATION

1. Press the on/off/speed switch once, the appliance will work on low speed; press twice, the appliance will work on middle speed; press three times, the appliance will work on high speed; press four times, the appliance will be off.
2. Press the LED switch once, the lights inside the fan head show in different colors; press twice, the lights show in red only; press three times, the lights will be off.
3. You can use the appliance in two ways:

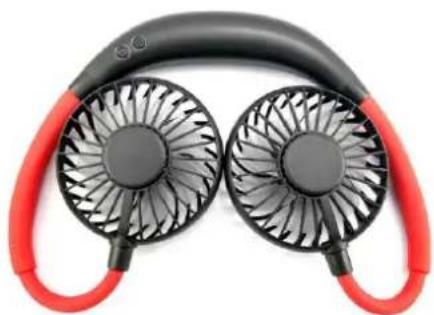

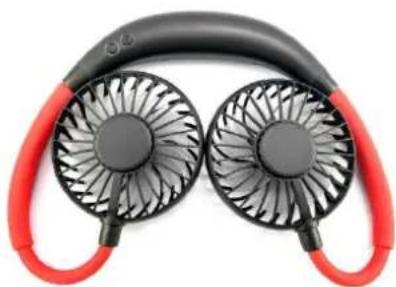

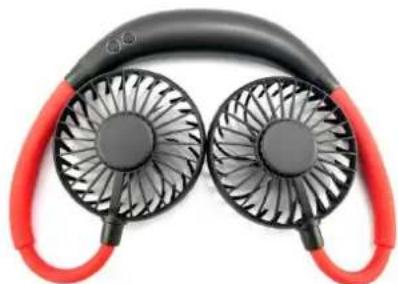

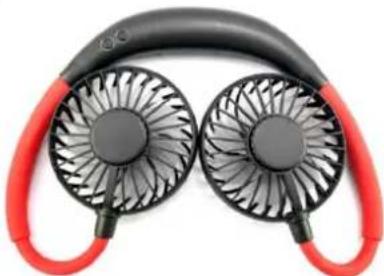

1) Fold and seat the appliance on a stable and flat surface. Below pictures for your reference.

Product photo of a black and red headband with two black fans, no visible text or symbols

Pair of black and red headband fans with visible blades, no text or symbols present

2) Hang the appliance around your neck. Adjust the flexible tube to your desired angle. Caution: do not hang your hair down on your shoulders.

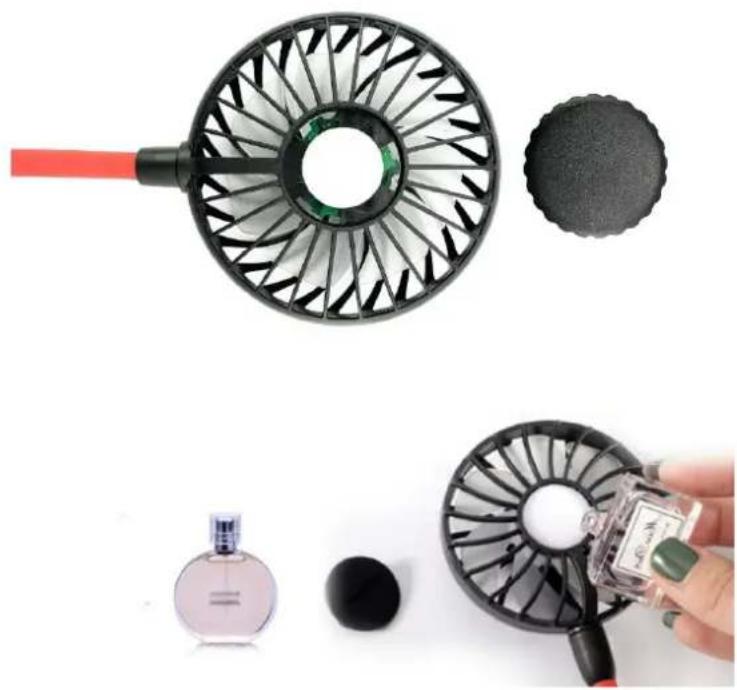

Use of the aroma cotton

1. Open the aroma cotton bag; take out two pieces of the aroma cotton.
2. Slightly rotate the covers of the aroma boxes in anti-clockwise direction to loosen the grooves inside and then lift the covers.
3. Put in the aroma cotton and rotate back the covers.

Note: When the aroma of the cotton fades away, you can replace it with your own aroma cotton or drop your desired oil on the original cotton.

Product display showing a black fan-shaped device, a perfume bottle, a compact powder brush, and a hand holding a small container (no text or symbols visible)

Note:

• To prevent overloading a USB-computer port, do not plug the fan into a USB port that is servicing other electrical needs.
- The fan will be fully charged in 6 hours approximately. Do not exceed this length of time for charging as you may damage the battery and shorten the lifespan of the fan.

CLEANING AND MAINTENANCE

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the appliance.
2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe the fan down with a damp cloth and then dry it carefully.
3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.
4. Pack the appliance in its original box and place it in a dry, well-ventilated place when it is not to be used for a long period of time.

TECHNICAL DATA

Power consumption: 3.76W-4W

Charging voltage: DC 5V

Charging current: 1000mA (Max)

Battery capacity: 2000mAh

Battery material: 18650

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.
