FP-121933 - Food processor Emerio - Free user manual and instructions

Product Type	Electric fireplace heater
Model Identifier	FP-121933
Operating Voltage	220-240V ~ 50Hz
Power Consumption	1850W
Minimum Heat Output	0.925 kW
Maximum Continuous Heat Output	1.85 kW
Lighting	Max 40W G9 halogen bulb
Heat Settings	Low and high (combined)
Flame Effect	Yes, adjustable speed
Thermostat Control	Mechanical thermostat knob
Safety Features	Built-in safety cut-out, thermal cutout
Controls Location	Behind front door
Recommended Distance from Combustibles	At least 1 meter
Warranty	2 years
Cleaning	Soft cloth on lacquered metal parts
Lamp Replacement	G9 halogen bulb, 25W recommended
Intended Use	Household and similar applications
Energy Efficiency Class	Not specified, but complies with EU 2015/1188

Frequently Asked Questions - FP-121933 Emerio

How do I turn on the heater?

Open the front door. Ensure the main power switch (3a) is set to 'I'. Then use switch (3b) for low heat or both (3b) and (3c) for high heat. The flame effect can be turned on independently.

Can I use the flame effect without heat?

Yes, set the main switch (3a) to 'I' and leave the heat switches off. Adjust the flame effect with the flame knob.

Why does the heater turn off by itself?

This is the built-in safety cut-out activating. Unplug, check that the air intake is not blocked, wait an hour, then plug back in and try again.

How do I replace the light bulb?

Disconnect the heater. Remove the nine screws on the back metal cover. Pull out the defective G9 halogen bulb and replace with a new 25W G9 bulb. Do not touch the bulb with bare hands.

Can I use this heater in a bathroom?

No, the manual states do not use in the immediate surroundings of a bath, shower, or swimming pool due to risk of electric shock.

Is it safe to leave the heater unattended?

No, never leave the appliance unattended during use, especially near children or vulnerable persons. The unit can become hot.

How do I clean the heater?

Use a soft cloth on the lacquered metal parts. Do not use abrasive materials. Never immerse the cord or plug in water.

What is the warranty period?

The Emerio FP-121933 comes with a 2-year warranty from the date of purchase. Keep your receipt as proof.

Can I use an extension cord?

No, the manual explicitly states not to use an extension lead with this appliance.

What should I do if the heater makes unusual noises?

Check that the unit is on a stable surface and not blocked. If noise persists, contact customer service. Do not attempt to repair yourself.

USER MANUAL FP-121933 Emerio

Black portable electric stove with open door and side legs, no visible text or symbols

Fire Place (EN)

Instruction manual – English ...... - 2 -

This product is only suitable for well insulated spaces or occasional use.

SAFETY INSTRUCTIONS

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. Read and save these instructions. Attention: pictures in the IM are for reference only.

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

3. Children shall not play with the appliance.

4. Cleaning and user maintenance shall not be made by children without supervision.

5. Children of less than 3 years should be kept away unless continuously supervised.

6. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way

and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

1. CAUTION — some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
3. This appliance is intended to be used in household and similar applications.
4. WARNING: In order to avoid overheating, do not cover the heater.
5. The heater must not be located immediately below a socket-outlet.
6. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
7. WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
8. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

1. Means "DO NOT COVER".

2. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

3. Always plug the appliance into an earthed plug socket.

4. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

5. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
6. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
7. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
8. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
9. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
10. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
11. Never leave the appliance unattended during use.
12. This appliance is not designed for commercial use.
13. Do not use the appliance for other than intended use.
14. Do not wind the cord around the appliance and do not bend it.
15. The unit must be positioned away from flammable or easily deformable objects during use.
16. Do not use the appliance outdoors.
17. Never move the appliance by pulling the cord.
18. Keep the appliance at least 1m from walls and any other combustible materials.
19. Never use the appliance to dry clothes or any other similar items.
20. This appliance must not be used with an extension lead.

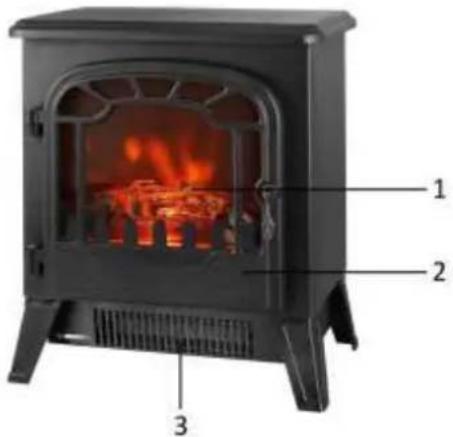

DESCRIPTION

1. Artificial firewood
2. Front door
3. Air outlet

USE

1. Plug in the appliance.
2. Open the front door. The switches are located behind the front door.

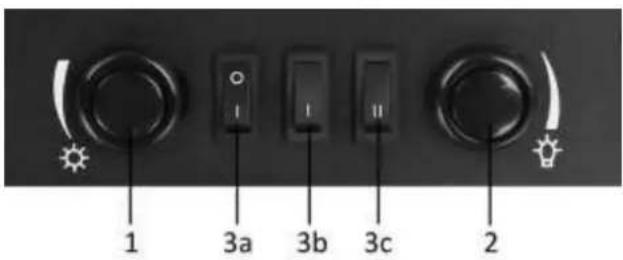

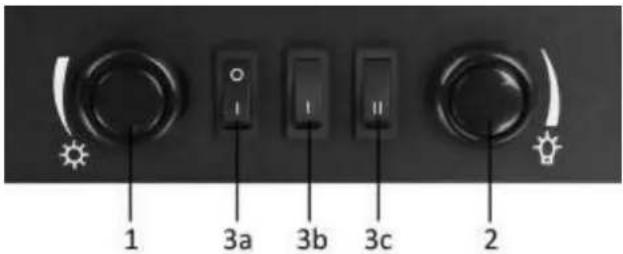

3. Select your desired working functions:

- Switch (3a): Switch on/off the power and flame effect

Note: This switch must be in the position "I" for unit to operate with or without heat.

• Switch (3b): Switch on/off low heat output
• Switch (3c): Switch on/off high heat output with switch (3b).

Note: This switch cannot work separately. It must work together with switch (3b).

1. Rotate the thermostat knob (1) clockwise or anticlockwise to increase or decrease your desired room temperature setting. Make sure it is set above the current room temperature. Otherwise, the appliance will not begin to heat.
2. Rotate the flame knob (2) clockwise or anticlockwise to increase or decrease the flame effect. Note: The flame effect can be operated with or without heat.

SAFETY CUT-OUT

Warning: This appliance is fitted with a built-in safety cut-out. If the cut-out gets activated the unit stops to work. Unplug the appliance from the mains and check that the air intake area is not blocked or covered. Leave for an hour. Reconnect and switch on the appliance.

MAINTENANCE

Before carrying out maintenance work, disconnect the appliance from the power supply!

Lamp replacement

1. Loosen the nine screws that fixed the back metal cover. Take off the back metal cover.

2. A G9 halogen bulb is located underneath.

3. Remove the defective bulb by pulling it out of the lamp holder. (see the figure below)

4. Replace with a 25W G9 halogen bulb. Take care not to touch the bulb with bare hands and ensure that the bulb is pushed in place.

5. To reassemble, follow the above instructions in reverse order.

Diagram of a mechanical device with an open lid and internal structure, showing a curved arrow indicating direction (no text or symbols present)

CLEANING

- The metal parts are lacquered and can be cleaned by simply using a soft cloth. Do not use abrasive material.

• Do not immerse the power cord or the plug in water or any liquids.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50Hz

Power consumption: 1850W

Lighting: Max 40W G9 halogen bulb

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return you

used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

ERP information (EN)

Supplier: Emerio International AB

Smedjegatan 6

131 54 Nacka

Sweden

Declare that the product detailed below:

Information requirements for electric local space heaters

Model identifier(s):
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1.85	kW	manual heat charge control, with integrated thermostat	N/A
Minimum heat output (indicative)	P_min	0.925	kW	manual heat charge control with room and/or outdoor temperature feedback	N/A
Maximum continuous heat output	P_max,c	1.85	kW	electronic heat charge control with room and/or outdoor temperature feedback	N/A
Auxiliary electricity consumption				fan assisted heat output	N/A
At nominal heat output	el_max	0,0	kW	Type of heat output/room temperature control (select one)
At minimum heat output	el_min	0,0	kW	single stage heat output and no room temperature control	No
In standby mode	els_B	0,0	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	Yes
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	Emerio International ABSmedjegatan 6131 54 NackaSweden

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 2015/1188 of 28 April 2015 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for local space heaters

Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging.

Diagram of a device with a lid removed and an arrow indicating the process (no text or symbols present)

REINIGUNG

Diagram of a device with an open lid and internal components, showing a black arrow indicating direction (no text or symbols present)

RENGÖ RING

Diagram of a device with an open lid and internal structure, showing a black arrow pointing to a component (no text or symbols present)

REINIGING

1. Tekopuita
2. Etuluukku
3. Ilmanpoisto

KÄYTTÖ

Diagram of a device with an open lid and internal components, showing a black arrow pointing to a component (no text or symbols present)

PUHDISTUS

RENGJ∅ RING

Diagram of a device with an open lid and internal components, showing a black arrow indicating direction (no text or symbols present)

RENG∅ RING
