VS-124999 - Vacuum sealer Emerio - Free user manual and instructions

Product Type	Vacuum Sealer
Brand	Emerio
Model	VS-124999
Dimensions (approx)	40 x 20 x 10 cm (15.7 x 7.9 x 3.9 in)
Weight (approx)	1.5 kg (3.3 lb)
Power Supply	220-240 V, 50/60 Hz
Power Consumption	120 W
Sealing Strip Width	30 cm (11.8 in)
Vacuum Pump Type	Single piston
Functions	Dry, Moist, Pulse, Seal Only, Canister/Container
Maximum Vacuum Pressure	-0.8 bar
Duty Cycle	3 minutes on, 1 minute off
Materials	Plastic (ABS) housing, stainless steel sealing strip
Accessories Included	10 vacuum bags (20x30 cm), 1 vacuum hose, 1 canister connector
Cleaning and Maintenance	Wipe housing with damp cloth; clean sealing strip with alcohol; replace foam gasket if worn
Safety Features	Overheating protection, automatic shut-off after 5 min idle
Spare Parts Availability	Foam gasket, sealing tape, vacuum hose available for purchase
Repairability	User-replaceable components (sealing tape, gasket); service center available
Warranty	2 years (EU)

Frequently Asked Questions - VS-124999 Emerio

How do I use the vacuum sealer for moist foods?

Press the Moist mode button before starting. This increases the vacuum time to handle liquids without mess. Ensure you use a slightly longer bag to leave space.

Can I use any vacuum bags?

For best results, use textured bags designed for vacuum sealers. Smooth bags may not seal properly. Our included bags are compatible, but you can also buy standard pre-cut rolls.

Why won't the machine start vacuuming?

Check that the lid is closed firmly and locked. Also ensure the bag is placed correctly over the vacuum channel. If using a canister, make sure the hose is connected tightly.

How do I clean the sealing strip?

Unplug the machine. Wipe the sealing strip with a cloth dampened with rubbing alcohol after it has cooled. This removes residue and prevents sticking.

What is the pulse function for?

The Pulse mode lets you control vacuum manually by holding the button. Release to stop vacuuming. Useful for fragile items like chips or herbs to avoid crushing.

Can I vacuum seal liquids?

It's possible with the Moist mode, but avoid filling bags more than half full. Freeze liquids first to make them solid for easier sealing.

Why is the seal not complete?

Ensure the bag is not wrinkled along the sealing strip. Clean the strip if dirty. If the problem persists, the sealing tape may need replacement.

How long does the vacuum pump last?

With normal home use, the pump can last several years. Allow the machine to cool between cycles (3 min on, 1 min off) to extend its life.

What can I do if the lid won't close?

Make sure there is no debris on the gasket. If the gasket is worn or misaligned, replace it. Do not force the lid shut.

Are spare parts available?

Yes, replacement foam gaskets, sealing tapes, and vacuum hoses are sold by Emerio. Check our website or contact support.

USER MANUAL VS-124999 Emerio

Black rectangular electronic device with a small display screen and logo (no visible text or symbols on body)

Vacuum sealer (EN)

Vakumier Gerät (DE)

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

3. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

4. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

5. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

6. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
7. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
8. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
9. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
10. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
11. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
12. Children are unable to recognize the hazards associated with incorrect handling of electrical appliances. Therefore, children should never use electric household appliances unsupervised.
13. Never leave the appliance unattended during use.
14. This appliance is not designed for commercial use.
15. Do not use the appliance for other than intended use.
16. Do not wind the cord around the appliance and do not bend it.
17. Do not place the appliance in wet, dusty or easily wet place.
18. Do not shake or drop the appliance, and prevent the appliance from being impacted.
19. Please do not place the appliance near the gas furnace or heat dissipation items.
20. The sealing strip of the vacuum sealer will become hot during use. Even if the lid is open, the sealing strip may become hot. There is a burn hazard.

21. WARNING!!

Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

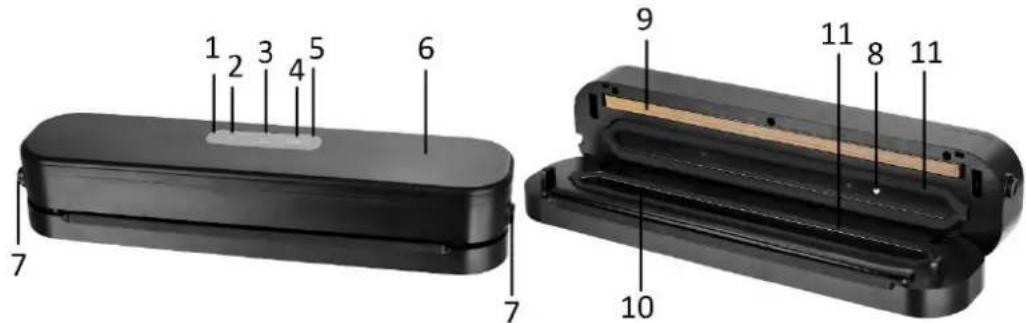

PARTS DESCRIPTION

1. Red light for sealing
2. Seal button
3. Cancel button
4. Vacuum & seal button
5. Green light for vacuuming
6. Cover
7. Unlock button
8. Air suction hole
9. Sealing strip
10. Vacuum chamber
11. Foam gasket

OPERATION

1. Prepare a roll of plastic film. Cut a length of the plastic film according to the size of the food that need to be packed (6cm longer than the food).
2. Plug the appliance into a properly installed mains socket.
3. Open the cover, put one side of the plastic film that needs to be sealed into the vacuum chamber. (See fig. 1)

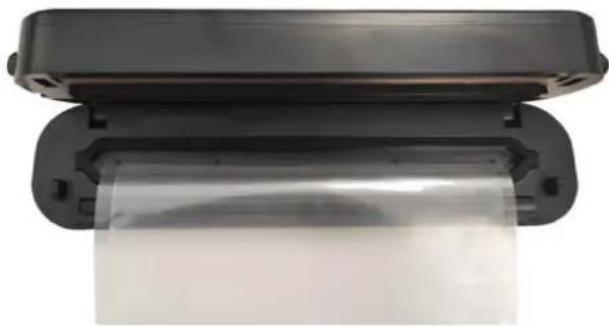

Close-up of a black plastic printer with a transparent sheet being placed on top (no text or symbols visible)

(Fig.1)

1. Close the cover, and press the two ends of the cover to lock it.
2. Press the "seal" button. The red light illuminates and the appliance begins to seal, the sealing time is about 5-10 seconds. When ready, the red light goes out. The appliance is in a standby mode now.
3. Press the unlock button in the both sides, open the cover and take the plastic film out. Now it's a plastic bag.

4. Put the food in the plastic bag.

5. Open the cover again, put the open end of the bag into the vacuum chamber, and lock the cover.

6. Press the "Vacuum & seal" button. The green light illuminates. The vacuum function is started. When it reaches a certain vacuum degree, the appliance will automatically convert to the seal function. At this time, the green light goes off and the red light illuminates. When the seal is ready, the red light goes off.
7. Press the unlock button in the both sides, open the cover and remove the complete vacuum-packed bag.
8. Wait at least 80 seconds before using the appliance again. Unplug the appliance after use.

Tips

• If you want to stop running, please press the "cancel" button.
  • Use a plastic film or bag (20cm -28cm width) with emboss and 0.2-0.29mm thickness.
• Try to keep the bag smooth during the vacuum sealing process. Wrinkles in the bag can keep residual air in the bag and cause food spoilage.
• Although the plastic material of the bags is quite strong, it can be punctured by sharp items. So if you are sealing foods with sharp edges (pasta, dried fruits, etc.), use some common plastic wrap before vacuum sealing. This will protect the bag from being punctured.
• If the vacuum pump continues to run. Press the “cancel” button to make it stop. Check if the condition of the sealed seal is good. Then place the open end of the bag smoothly and correctly, and lock the cover. Start the appliance again.
• To vacuum seal the foods not frozen, two extra inches are required for bag length to allow for expansion while freezing.
• Due to the risk of anaerobic bacteria, fresh mushrooms, onions, garlic and soft cheese should never be vacuum packaged.

VACUUM PACKAGING AND FOOD SAFETY

1) The vacuum packaging process extends the life of foods by removing most of the air from the sealed container, thereby reducing oxidation, which affects nutritional value, flavor and overall quality. Removing air can also inhibit growth of microorganisms, which can cause problems under certain conditions.
2) To preserve foods safely, it is critical that you maintain low temperatures. You can significantly reduce the growth of microorganisms at temperatures of 4^ C ( 40^ F) or below. Freezing at -17^ C ( 0^ F) does not kill microorganisms, but stops them from growing. For long-term storage, always freeze perishable foods that have been vacuum packaged, and keep refrigerated after thawing.
3) It is important to note that vacuum packaging is NOT a substitute for canning and it cannot reverse the deterioration of foods. It can only slow down the changes in quality. It is difficult to predict how long foods will retain their top-quality flavor, appearance or texture because it depends on age and condition of the food on the day it was vacuumed packaged.
4) IMPORTANT: Vacuum packaging is NOT a substitute for refrigeration or freezing. Any perishable foods that require refrigeration must still be refrigerated or frozen after vacuum packaging.
5) The Vacuum Sealer also protects non-food items from oxidation, corrosion and moisture. Simply follow the directions to vacuum package items using vacuum bags, canisters and accessories.

Attention

1. To pack the food containing little water

The water will flow into the interior of the appliance, resulting in failure. So please use a kitchen towel to remove the moisture, or use a plastic wrap or a disposable plastic wrap to carry out vacuum packaging. Slight frozen state will facilitate the vacuum packaging.

1. To pack powder food

The powder may be inhaled. Before the vacuum packaging, please put it into a disposable plastic bag.

1. To pack fruits and vegetables

It is not recommended to vacuum fruits and vegetables which are fragile or with high amount of water. When vacuum packed, the food will be pressured to generate extra water and gas to make the bag bulged. All vegetables (including broccoli, Brussels sprouts, cabbage, cauliflower, kale, turnips) naturally emits gases and swells the vacuumed bag after a few days, it is recommended to pre-freeze them and keep them refrigerated after vacuum packaging.

1. To pack the liquid food

It must not be vacuum packed, only need to be sealed.

When sealing liquid food, place the appliance higher than the food.

Storage

For vacuum-packed food (except dehydrated food), frozen storage is advised.

For packaged vegetables, please eat in 2 weeks, to avoid rot.

Microwave

If you want to put the vacuum-packed food in a microwave, punch a hole in the plastic bag first. SUITABLE FOR THAWING IN THE MICROWAVE TO MAX. 70 °C.

CLEANING

1. Unplug the appliance. Always let the appliance cool off completely before you clean it.

2. Wipe the appliance with a soft damp cloth. It should be kept as its cover unlocked.

PROBLEMS AND SOLUTIONS

If there is any exception, please check the following:

Abnormal condition	Inspection items
Do not work	1. Check whether it is plugged into the socket.2. Check if the plug is damaged.3. Check whether it is used continuously.
Cannot be sealed	1. Check whether the bag is folded or uneven.2. Check whether the cover is locked in place.3. Check whether the sealing strip is damaged.4. Check if there is any leftover food along the sealing line.
Cannot be vacuum-packed	1. Check if the plastic bag is placed correctly onto the vacuum area.2. Check whether the bag is folded or uneven.3. Check whether the plastic bag is broken.4. Check whether the food in the bag is too much.5. Check whether the air suction is blocked.6. Check whether it is the special plastic bag.7. Check the top or bottom of the foam gasket is intact.8. Check the vacuum valve is in the state of press.9. Check the two vacuum packaging running time interval of 80 s
After vacuum packaging, plastic bags gradually leak	1. For sharp objects, please use some common plastic wrap before vacuum packaging.2. If the plastic bag is too thin, the air may penetrate the bag. So please use a bag with emboss and 0.2-0.29mm thickness.3. The plastic bag containing food (itself exuding gas), might seem like vacuum disappears.

TECHNICAL DATA

Operating voltage: 220-240V\~50-60Hz

Power consumption: 125W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product

was purchased. They can take this product for environmental safe recycling.

SICHERHEITSHINWEISE

Close-up of a black plastic printer with a paper roll wrapped in plastic film (no text or symbols visible)

(Abb. 1)

Close-up of a black plastic printer with a transparent sheet being placed on its cover (no text or symbols visible)

(Bild 1)

Close-up of a black plastic printer with a transparent sheet being placed on its cover (no text or symbols visible)

(Afb.1)

Close-up of a black plastic printer with a transparent sheet being placed on its cover (no text or symbols visible)

(Kuva 1)

Close-up of a black plastic printer with a transparent sheet being placed on its cover (no text or symbols visible)

(Fig. 1)

Close-up of a black plastic printer with a transparent sheet being placed on its cover (no text or symbols visible)

(Fig.1)

1. For at pakke madvarer i pulver
