Product Type	Freestanding Microwave Oven
Brand	Emerio
Model	MW-124745
Colour	Black
Input Power (Microwave)	1150 W
Output Power (Microwave)	700 W
Microwave Frequency	2450 MHz
Operating Voltage	230 V ~ 50 Hz
Capacity	Approx. 20 L
Turntable	Glass turntable with rotating ring
Control Type	Mechanical knobs (Timer + Function)
Timer Range	0 - 30 minutes
Power Levels	6 (High, M.High, Medium, M.Low, Defrost, Low)
Defrost Function	Yes, adjustable defrost time
Door Opening	Push button release
Interior Light	Yes, turns on during operation
Safety Features	Door interlock, child safety (if supervised), automatic shut-off
Waveguide Cover	Fixed, do not remove
Cleaning	Wipe interior and exterior with damp cloth; avoid abrasive cleaners
Warranty	2 years from date of purchase
Disposal	Follow EU Directive 2012/19/EU for recycling
Installation Clearances	Back: at least 10 cm; sides: 5 cm; top: 20 cm; from floor: 85 cm

Frequently Asked Questions - MW-124745 Emerio

Can I use metal containers in this microwave?

No, metal containers should not be used as microwaves cannot penetrate metal. Use heat-resistant glass, ceramic, or plastic containers suitable for microwave use.

How do I defrost frozen food properly?

Turn the function selector to defrost setting. Set the timer according to the food weight (e.g., 0.1-1.0 kg meat: 1.5-26 minutes). Turn food at least once during defrosting and remove thawed parts to prevent cooking.

Why does my microwave emit a smell or smoke on first use?

This is normal due to manufacturing residues. Operate the microwave with a cup of water on high power several times to eliminate odors. Ensure good ventilation.

Can I heat sealed containers or eggs in the shell?

No, sealed containers may explode. Do not heat eggs in their shell or whole hard-boiled eggs as they may explode even after heating. Pierce foods like potatoes, sausages, and chestnuts before cooking.

What should I do if the microwave catches fire?

Keep the door closed, turn off the microwave, and disconnect the power supply. Do not open the door until the fire is out. If necessary, call emergency services.

How often should I clean the microwave?

Clean after each use. Wipe interior walls, door, and waveguide cover with a soft damp cloth. Remove food splashes to prevent smoking or fire. For odors, heat lemon slices or orange peel for 2-3 minutes.

Can I operate the microwave empty?

No, operating empty can damage the microwave. Always have food or liquid inside (e.g., a cup of water) when running.

Is this microwave safe for children to use?

Children aged 8+ can use it under supervision. They must understand safe operation and hazards. Do not allow unsupervised use by children under 8.

What are the power levels for different cooking needs?

High (100%): quick cooking. M.High (85%): roasting. Medium (66%): slow cooking. M.Low (40%): drinks/soups. Defrost (37%): defrosting. Low (17%): keeping warm.

How do I set the timer for less than 2 minutes?

First turn the timer knob to over 3 minutes, then turn back to the desired time (between 0-2 minutes). This ensures accurate setting.

USER MANUAL MW-124745 Emerio

Black STEPSO microwave oven with control knobs and a mesh grille (no visible text or symbols)

Microwave (EN)

Mikrowelle (DE)

Mikrovågsugn (SE)

Magnetron (NL)

Mikroaaltouuni (FI)

Mikrobølgeovn (NOR)

Mikrobølgeovn (DK)

Content – Inhalt – Innehåll – Inhoud – Pitoisuus – Innhold – Indhold

Instruction manual – English ...... - 2 -

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

The following basic precautions should always be followed when using electrical appliance:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. This appliance is intended to be used in household and similar application such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
7. Make sure the voltage in your living area corresponding to the one shown on the rating label of the appliance. And the wall socket is properly grounded.
8. To reduce the risk of fire in the microwave oven cavity:

. Do not overcook the food.

- Remove wire twist-ties from paper or plastic bags before placing bags in the microwave oven.

- Do not heat oil or fat for deep drying as the temperature of oil cannot be controlled.

• After use wipe the waveguide cover with a damp cloth,

followed by dry cloth to remove any food splashes and grease. Built-up grease may overheat and begin to cause smoke or catch fire.

• If materials inside the microwave oven should smoke or ignite, keep microwave oven door closed, turn microwave oven off and disconnect the power supply.

• Close supervision is necessary when using disposable containers made from plastic, paper or other combustible material.

• To reduce the risk of explosion and sudden boiling:

- Do not place sealed containers in the microwave oven. Baby bottles fitted with a screw cap or teat are considered to be sealed containers.

- When boiling liquid in the microwave oven, use the wide-mouthed container and let it stand about 20 seconds at the end of cooking to avoid delayed eruptive boiling of liquids.

. Potatoes, sausage and chestnut should be peeled or pierced before cooking. Eggs in their shell, whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

• The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.

1. Never operate the microwave oven further if the door or door seals are damaged or the microwave oven is malfunctioned. Return the appliance to the nearest authorized service center for repair and maintenance. Never try to adjust or repair the microwave oven yourself.

2. After cooking, the container is very hot. Using gloves to take out the food and avoid steam burns by directing steam away from the face and hands.

3. Slowly lift the furthest edge of dishes cover and microwave plastic wrap and carefully open popcorn and

oven cooking bags away from the face.

1. To prevent the turntable from breaking: Let the turntable cool down before cleaning. Do not place hot foods or utensils on the cold turntable. Do not place frozen foods or utensils on the hot turntable.

2. Make sure the utensils do not touch the interior walls during cooking.

3. WARNING: If the door or door seals are damaged, the microwave oven must not be operated until it has been repaired by a competent person.

4. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

5. WARNING: Only allow children to use the microwave oven without supervision when adequate instruction have been given so that the child is able to use the microwave oven in a safe way and understands the hazards of improper use.

6. Failure to maintain the microwave oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

7. Only use utensils that are suitable for use in microwave ovens.

8. Do not store food or any other things inside the microwave oven.

9. Do not operate the microwave oven without any liquid or food inside the microwave oven. This would do damage to the microwave oven.

10. Any accessories not recommended by the manufacturer may cause injuries to person.

11. Do not use outdoors.

12. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.

13. WARNING: It is hazardous for anyone other than a

competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

1. When heating food in plastic or paper containers, keep an eye on the microwave oven due to the possibility of

ignition.

1. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

2. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

3. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

4. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

5. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

6. The microwave oven should be cleaned regularly and any food deposits removed.

33.

Caution, hot surface.

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. The microwave oven shall not be placed in a cabinet. Regarding the information pertaining to the installation and the cleaning of the appliance, please refer to the below paragraph of the manual.

2. Metallic containers for food and beverage are not allowed

during microwave cooking.

1. The appliance shall not be cleaned with a steam cleaner.

2. This is group 2 class B appliance.

3. This appliance is group 2 as it intentionally generate radio-frequency energy for heating food or stuff.

4. This appliance is class B as it is suitable for use in locations in residential environments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

- Microwave is a kind of high frequency electromagnetic wave, which is commonly distributed in the nature. But the existing form of microwave is dispersed so that it cannot be collected together for heating purpose. The key component of magnetron of microwave oven will transform the energy of electricity to microwave and huge energy of microwave field is established under the closed cavity. So the molecule of food is caused to vibrate at very high speed and the friction heat produced will cook the food in a fast way.

- There are 3 properties of microwave, that is:

• Absorbability, the microwave can cause the excess vibration of molecule of various foods so as to obtain the heating purpose. But the infiltration ability is largely depending on the size, thickness and properties of the food.
• Penetrability, microwave can penetrate through ceramics, glass, temperature-resistant plastics. It is required to use the containers whose material have good microwave penetrability to achieve best heating result. See the below utensils guide.
• Reflectivity, microwave would be reflected by the metal wall of interior cavity so as to establish an even magnetic field, thus can prevent the overheating of partial area.

• To ensure sufficient ventilation, the distance of the back of microwave to the wall should be at least 10 cm; the side to the wall should be at least 5 cm; the free distance above the top surface should be at least 20 cm; and the distance of the microwave to the ground should be at least 85 cm.
• Do not place any objects on the top of microwave oven.
• The position of the oven shall be such that it is far from the TV, Radio or antenna as picture disturbance or noise may occur.
• The appliance must be positioned so that the plug is accessible.
• The microwave oven is intended to be used freestanding and shall not be placed in a cabinet.

UTENSILS GUIDELINE

Before use, check those utensils if they are suitable for use in microwave oven. Take the reference of below table.

Material of container	Microwave	Notes
Heat-resistant ceramic	Yes	Never use the ceramics which are decorated with metal rim or glazed
Heat-resistant plastic	Yes	Cannot be used for long time microwave cooking
Heat-resistant glass	Yes
Plastic film	Yes	It should not be used when cooking meat or chops as the over-temperature may do damage to the film
Grill rack	No
Metal container	No	It should not be used in a microwave oven. Microwave cannot penetrate through metal.
lacquer	No	Poor heat-resistant. Cannot be used for High-temperature cooking
Bamboo wood and paper	No	Poor heat-resistant. Cannot be used for High-temperature cooking

FOR THE FIRST USE

As there is manufacturing residue or oil remained on the oven cavity or heat element, it usually gives some odour, even a slight smoke, it is normal and would not occur after several times use, keep a door or window open to ensure good ventilation.

It is strongly recommended to operate as follows: place a cup of water in the turntable and set at high power and operate for several times.

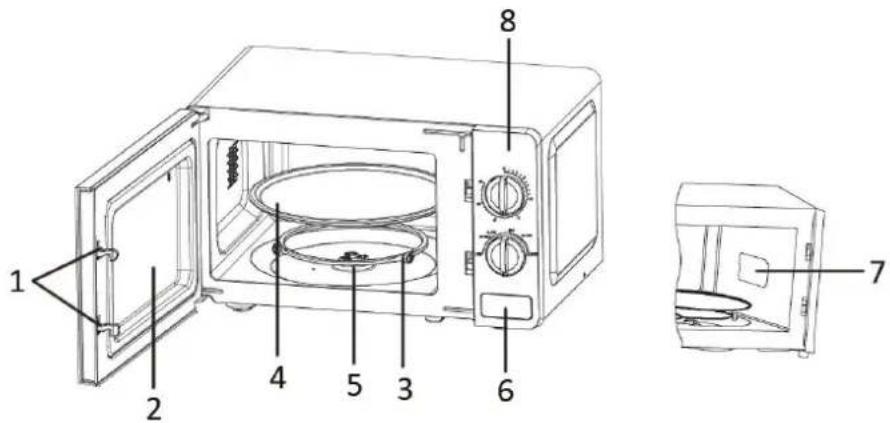

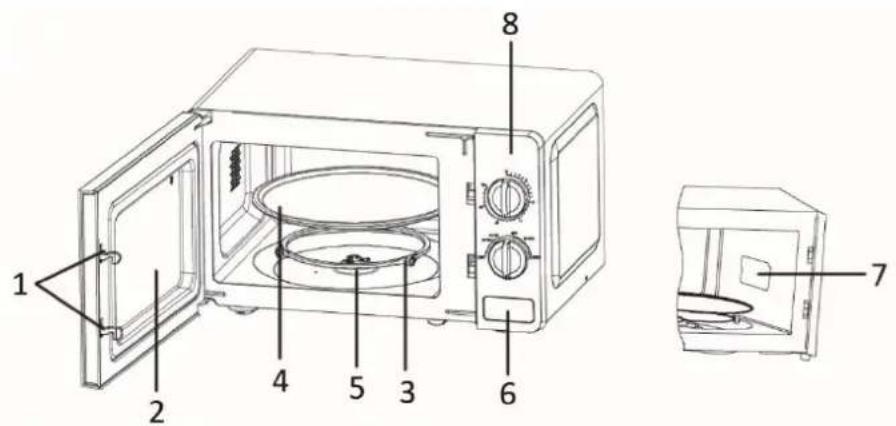

PRODUCT INTRODUCTION

1. Door interlock: ensures that microwave oven can only be activated when the door is properly closed.
2. Viewing Window: cooking status can be viewed through metal mesh.
3. Rotating ring: supporting the glass turntable
4. Glass turntable: it turns to make food heated evenly when cooking, recommend using it when cooking.
5. Rotating axis: the glass turntable sits on the axis; the motor underneath it drives the turntable to rotate.
6. Door release button: press it and the door is open.
7. Waveguide cover (do not move): protect the waveguide box from splashes of food
8. Control panel: see below in details (the control panel is subject to change without prior notice)

Caution:

Place the rotating ring first. Fit the glass turntable onto the rotating axis and make sure it is geared properly.

CONTROL PANEL

- Timer

The max length could be set is 30 minutes, when timer goes to the 0 position, a bell prompt will be heard.

- Function knob

Microwave cooking (6 power level selections)

• HIGH: 100% power (quick cooking)
• M. HIGH: 85% power (Roasting)
• MED (Medium) : 66% power (slow cooking)
• M. LOW: 40% power (for drinks or soups)
• DEFROST: 37% power
- LOW: 17% power (keeping warm)

OPERATION

• Connect the microwave oven to power supply.
• Open the door by depressing the Door release button and place the food on the rotate plate, then close the door.

• Set the function selector.

• Set the timer. If you set time less than 2 minutes, first turn the timer to over 3 minutes position and then turn back to your desired time.

• Then the oven begins to operate. And the operation process can be terminated at any time just by opening the door. Once the door is closed the process will be continued.
• A bell ring will be heard after time out. And the oven is de-energized and lamp will be off.

Caution: If food is removed before time out, make sure the timer is set back to "0" position so as to avoid unintentional running without load.

Note: It is recommended to wear gloves when removing the cooked food from oven and be careful do not touch the heat element on the top of cavity.

DEFROST NOTES

Defrost the frozen food is one of utilities of microwave oven, it is safe than room temperature defrosting as it would not help the growth of deleterious bacteria.

• Turn the function selector to defrost setting.
• Set the timer, which is dependent on the frozen food. It usually required longer time than ordinary cooking. Turn the food at least one time to check the doneness. If the defrosted food can be cut by knife defrosting period can be terminated.

Note: The thickness of microwave can penetrate through food from single side is not more than 4cm, if defrosting thick and chunky food, for obtaining the best result, turn over the food constantly. Remove out the defrosted portion or thin parts to prevent further cooking.

The following table provides a reference defrost time for various food:

FOOD	WEIGHT RANGE	DEFROST TIME
Meat	0.1~1.0 kg	1'30'' ~ 26'00''
Poultry	0.2~1.0 kg	2'30'' ~ 22'00''
Seafood	0.1~0.9 kg	1'30'' ~ 14'00''

CLEANING AND MAINTENANCE

The oven should be cleaned regularly and any food deposits removed.

Suggest you perform below steps after every time use.

Never use hard detergent, gasoline, abrasive powder or metal brush to clean any part of the appliance.

Clean the oven at regular intervals.

Disconnect the power supply cord before cleaning. And if possible leave the door open to inactive the oven during cleaning.

Exterior:

The outside may be cleaned by wiping with a soft and damp cloth. Avoid the use of harsh abrasive cleaners.

Door:

Wipe the door and window on sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaners.

Control panel:

Care should be taken in cleaning the control panel. Wipe the panel with a cloth dampened slightly. Do not scrub or use any sort of chemical cleaners.

Interior walls:

To clean the interior surfaces, wipe with a soft and damp cloth for hygienic reasons. After use wipe the

waveguide cover in the oven with a soft damp cloth to remove any food splashed. Build-up splashes may overheat and begin to smoke or catch fire. Do not remove the waveguide cover. Do not use a commercial oven cleaner, abrasive or harsh cleaners and scouring pads on any part of your microwave oven. Never spray oven cleaners directly onto any part of your oven.

Turntable /Rotating ring/Rotating axis:

After cooling down, Wash with mild soapy water and dry thoroughly.

Tip:

When the microwave oven has been used for a long time, there may be some strange odors existed in oven, following 3 methods can get rid of them. 1. Place several lemon slices in a cup, then heat with high power for 2-3 minutes. 2. Place a cup of red tea in oven, then heat with high power. 3. Put some orange peel into oven, and then heat them with high power for 1 minute.

Servicing

Warning: it is hazardous for anyone, other than a qualified service technician, to carry out any service or repair operation which involves removal of any cover which gives protection against exposure to microwave energy.

Caution: MICROWAVE RADIATION

Warning:

Do not become exposed to radiation from the microwave generator or other parts conducting microwave energy.

During servicing below listed parts are liable to be removed and give access to potentials above 250V to earth.

• Magnetron
  • High voltage transformer
  • High voltage capacitor
  • High voltage Diode
  • High voltage fuse

Below listed condition may cause undue microwave exposure during servicing.

• Improper fitting of magnetron.
• Improper matching of Door interlock, Door hinge and Door.
• Improper fitting of switch support.
• Door, Door seal or enclosure has been damaged.

TECHNICAL DATA

Operating voltage: 230V \~ 50Hz

Input power (microwave): 1150W

Microwave output power: 700W

Microwave frequency: 2450MHz

According to EN 61000-3-11:2000, the minimum of the two calculated value of Z_sys is the maximum permissible system impedance Z_max .

$$ Z _ {\max} = 0. 3 7 3 \Omega $$

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

INTRODUKSJON TIL PRODUKTET
