FS 4316-90 N X/2 - Freezer GRAM - Free user manual and instructions

Product Type	Freezer
Brand	GRAM
Model	FS 4316-90 N X/2
Total Net Capacity	Approx. 431 L (based on model number)
Freezing Capacity	Up to 4.5 kg per 100 L per 24 hours (standard)
Fast Freeze Function	Yes (SuperFreeze)
Defrost Type	Automatic defrost
Door Open Alarm	Yes
Door Reversibility	Yes (reversible doors)
Adjustable Feet	Yes (front leveling legs)
Control Type	Thermostat dial (1 to MAX)
Temperature Range	-18°C to -24°C (approx.)
Refrigerant	R600a (flammable)
Voltage	220-240 V
Frequency	50 Hz
Climate Class	Not specified (suitable for standard domestic use)
Noise Level	Not specified
Net Weight	Not specified
Dimensions (H x W x D)	Not specified
Energy Efficiency Class	Not specified
Compliance	WEEE, RoHS
Storage Drawers	Yes (multiple drawers including Mega Box)

Frequently Asked Questions - FS 4316-90 N X/2 GRAM

How do I set the temperature on my GRAM FS 4316-90 N X/2 freezer?

The operating temperature is regulated by the temperature control dial located on the control panel. Turn the dial to adjust: 1 is the warmest setting, MAX is the coldest. The normal storage temperature is -18°C. For lower temperatures, turn towards MAX. Use a thermometer to verify the temperature.

What is the SuperFreeze function and when should I use it?

SuperFreeze (or Fast Freeze) quickly freezes fresh food by setting the thermostat to MAX 24 hours before adding food. It automatically deactivates after 50 hours. Use it when freezing large quantities of fresh food to preserve quality.

How does the automatic defrost work?

Your freezer defrosts automatically. The ice melts periodically, and water evaporates. No manual defrosting is needed. However, clean the interior regularly with a baking soda solution.

Why is the freezer door hard to open after closing?

This is normal due to a pressure difference when the door is closed. After a few minutes, the pressure equalizes and the door opens easily. You may also hear a vacuum sound.

How do I clean the freezer?

Unplug the freezer before cleaning. Use lukewarm water and a damp cloth. For the interior, use a solution of one teaspoon of baking soda to one pint of water. Do not use abrasive cleaners, gasoline, or benzene. Dry thoroughly.

What should I do when using the freezer for the first time?

Clean the interior thoroughly. Plug in the freezer and let it run empty for at least 6 hours before adding food. Avoid opening the door frequently during this time. Do not unplug it during initial operation.

Why is there condensation on the side walls of the freezer?

Condensation can occur due to frequent door openings, high humidity, or leaving the door ajar. Wipe with a dry cloth and reduce how often the door is opened. If persistent, check the door seal.

Is it normal for the freezer to make noises?

Yes, operating noises such as liquid flowing, fan sounds, or compressor hum are normal. The freezer may also make a blowing sound from the cooling fan. Vibrations can be reduced by adjusting the leveling feet.

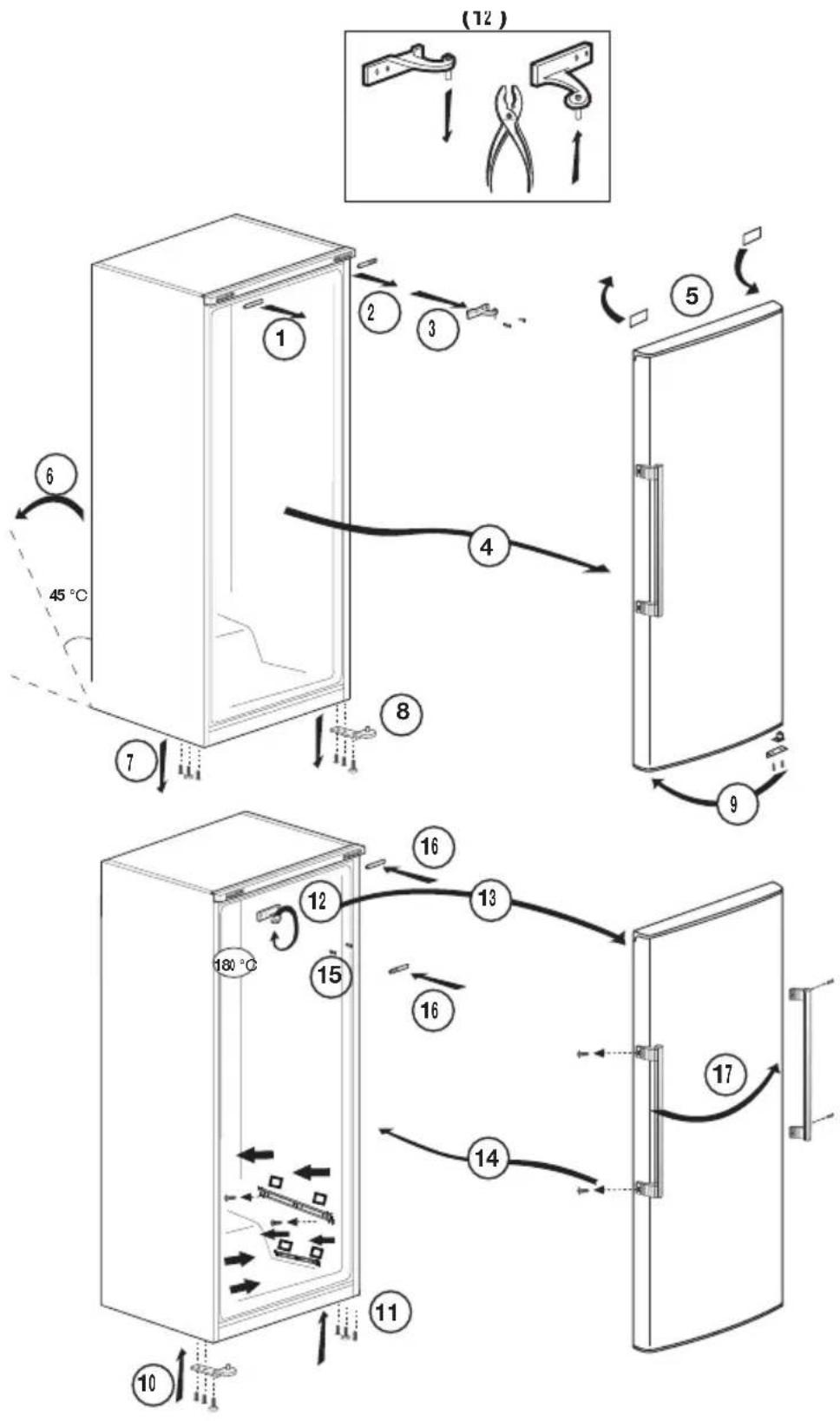

How do I reverse the door on my freezer?

Door reversal is possible. Follow the steps in the manual (order may vary). Usually, you remove the hinges, transfer them to the opposite side, and reposition the door. Use the provided plastic wedges for spacing. Consult the manual for detailed instructions.

What should I do during a power outage?

Keep the door closed to maintain temperature. The freezer may keep food frozen for several hours if not opened. After power returns, check the temperature. If the freezer was off for more than 6 hours, consume or cook frozen food immediately.

USER MANUAL FS 4316-90 N X/2 GRAM

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

Alarm for åben dør

Diagram showing a lightning bolt striking down on a wall-mounted device with wiring and plug (no text or symbols)

Pure electrical circuit lines without any symbols

Dette produktet er i samsvar med EU-direktivet som omhandler elektronisk og elektrisk utstyr (2012/19/EU). Dette produktet har et

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional movement, no text or symbols present.

5 Bruke fryseren

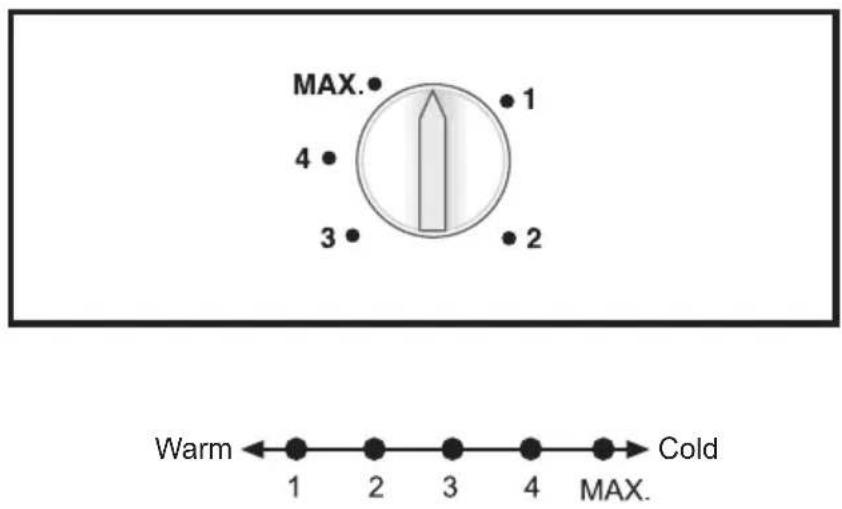

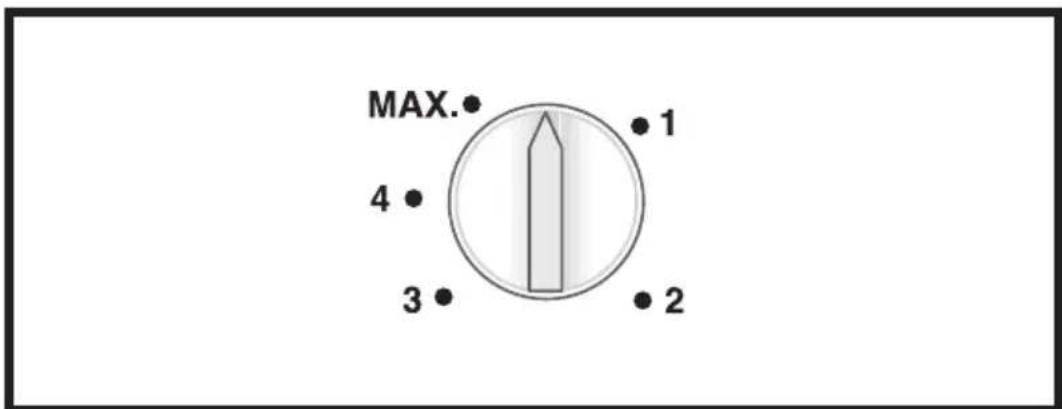

Stille temperaturen

Temperaturen justeres med temperaturknappen.

1 = Laveste innstilling for frys (Varmeste innstilling)

MAX. = Høyeste innstilling for frys (Kaldeste innstilling)

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Pure electrical circuit lines without any symbols

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Pure electrical circuit lines without any symbols

Pure diagram of a mechanical or structural system with arrows indicating direction, no text or symbols present

Ovi auki -varoitus

Your product has been produced in modern plants and checked under the most meticulous quality control and we hope that your product, will provide you with an effective service.

We recommend you to carefully read the entire user guide before using your product and to keep the user guide at hand for future references.

This user guide

• Will help you to use your appliance in a fast and safe way.
• Read the user guide before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the user guide in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
  Please note that this user guide may be valid for other models as well.

Symbols and their descriptions

This user guide contains the following symbols:

i Important information or useful tips.
⚠ Warning against dangerous conditions for life and property.
⚠ Warning against electric voltage.

i INFORMATION
ENERG SUPPLIER'S NAME MODEL IDENTIFIER (*)	The model information as stored in the product data base can be reached by entering following website and searching for your model identifier (*) found on energy label. https://eprel.ec.europa.eu/

1 Your freezer 5

2 Important Safety Warnings 6

Intended use 6

General safety 6

Compliance with WEEE Directive and

Disposing of the Waste Product: .....8

Compliance with RoHS Directive: .....8

Package information ....8

HC Warning 9

Energy-saving precautions ....9

3 Installation 10

Points to be paid attention to when the relocation of the refrigerator .....10

Electrical connection .....10

Disposing of the packaging .....11

Disposing of your old refrigerator .....11

Placing and Installation .....11

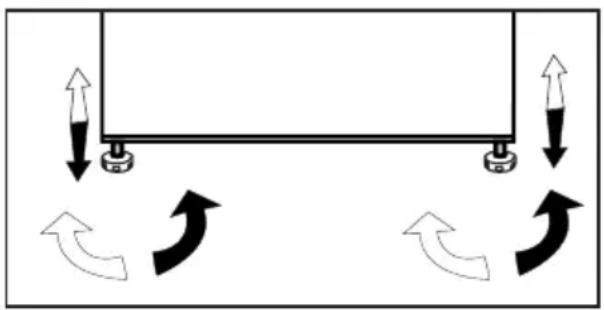

Adjusting the legs .....12

4 Preparation 13

5 Using your freezer 15

Setting the operating temperature ...15

Fast freez

e 16

How to Freeze Fresh Foods .....17

Recommendations for Preservation of

Frozen Foods ....18

Deep Freezer Information .....18

Defrosting the frozen foods .....18

Recommended Temperature

Settings 19

6 Maintenance and cleaning 22

Protection of plastic surfaces .....22

7 Recommended solutions for the problems 23

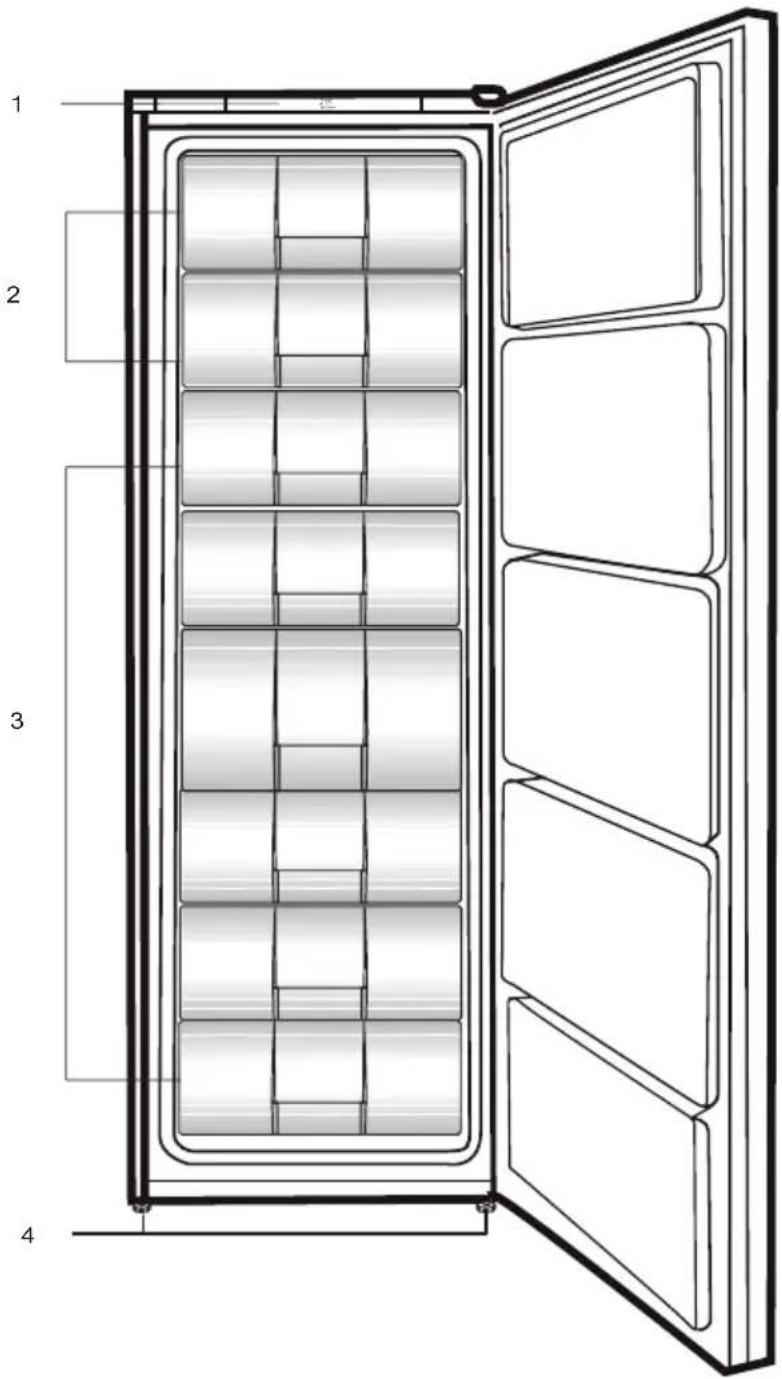

1 Your freezer

1. Control panel
2. Mega Box (Fast-Freeze compartment)
3. Drawers
4. Adjustable front legs

2 Important Safety Warnings

Please read through the following information. If this information is not followed, personal injury or material damage may occur and all warranty and reliability commitments will become invalid.

Intended use

• This product is designed for domestic use.
• It should not be used outdoors. It is not appropriate to use it outdoor even if the place is covered with a roof.

General safety

• When you want to dispose of the product, we recommend you to consult the authorized service in order to get information on disposal and available facilities.
• Consult GRAM service for all your questions and problems related to the refrigerator.
• Vapor and vaporized cleaning materials should never be used in connection with the cleaning and defrosting of your refrigerator. In such cases, the vapor might get in contact with the electrical parts and cause short circuit or electric shock.
• Never use the equipment from your refrigerator such as the

door as a support or a step.

• Do not use electrical devices inside the refrigerator.
• Do not damage the cooling circuit, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured may cause skin irritations and eye injuries.
• Do not cover or block the ventilation holes on your refrigerator with any material.
• Repairs of the electrical appliances must only be made by qualified people. Repairs performed by unqualified people may cause a risk for the user.
• In case of any failure, maintenance or repair, disconnect your refrigerator's mains supply by either turning off the relevant fuse or by unplugging your appliance.
• Do not pull the cable when pulling out the plug.
• Flammable items or products that contain flammable gases (e.g. spray) as well as explosive materials must never be kept in the appliance.

• Do not use mechanical devices or other means to accelerate the defrosting proces, other than the ones recommended

• Do not operate a damaged refrigerator. Consult GRAM service if you have any doubts.

• Electrical safety of your will only be covered by the guarantee be covered by the guarantee if the earth system in your house complies with standards.
• Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.
• Contact the GRAM service when there is a power cable damage and etc. so that it will not create a danger for you.
• Never plug the refrigerator into the outlet during installation or a, risk of death or serious injury may occur.
• This refrigerator is only designed for storing food. It should not be used for any other purposes.
• The label that describes the technical specification of the product is located on the inner left side of the refrigerator.
• Do not connect the refrigerator to electronic energy saving systems which turn off the electricity as they may damage the product.
• If the power supply is disconnected in manually controlled refrigerators please wait for at least 5 minutes before reconnecting the power.
• This user guide should be passed to the next owner of the refrigerator if the ownership changes.

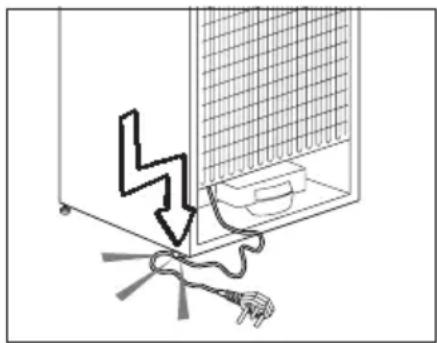

- When moving the refrigerator make sure that you do not damage the power cord. In order to prevent fire the power cord must not be twisted. Heavy objects should not be placed on the power cord. When the refrigerator is plugged into the socket do not touch the power outlet with wet hands.

Diagram showing a device with a lightning bolt and cable, no text or symbols present

• Do not connect the refrigerators if the electric outlet is loose.
• Do not splash water directly on the outer or inner parts of the refrigerator due to safety.
• Do not spray inflammable materials such as propane gas etc near the refrigerator due to the risk of fire and explosion.
• Do not place objects filled with water on top of the refrigerator as it may result in electric shock or fire.
• Do not overload the refrigerator with excess food. The excess food may fall out when the door is opened resulting in injuring you or damaging the refrigerator. Do not place objects on top of the

refrigerator as the objects may fall out when opening or closing the refrigerator door.

• If the refrigerator will not be operated for an extended period of time it should be unplugged. A problem in the electrical cable insulation may result in fire.
• The tip of the electric plug should be cleaned regularly otherwise it may cause fire.
• The refrigerator may move when the adjustable feet are not positioned firmly on the floor. By using the adjustable feet you can ensure that the refrigerator is positioned firmly on the floor.
• Do not pull the refrigerator by the door handle when moving the product as it may disconnect the handle from the refrigerator.
• If you want to place two products side by side, we recommend you to buy a decoration kit, which includes a mat to be placed on the side of the product. A decoration part is placed between the products to hide the gap between the products.

Child safety

- Children should be supervised to ensure that they do not play with the appliance

Compliance with WEEE Directive and Disposing of the Waste Product:

Pure electrical circuit lines without any symbols

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and

electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

Compliance with RoHS Directive:

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the

domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

HC Warning

- This product is equipped with a cooling system that contains R600a:

This gas is flammable.

Therefore, pay attention not to damage the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product to catch a fire and ventilate the room in which the unit is placed.

Energy-saving precautions

- Do not leave the door of your refrigerator open for a long time.

- Do not overload your refrigerator so that the air circulation inside of it is not prevented.

- Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators.

- Pay attention to keep your food in closed containers.

3 Installation

In case the information which are given in the user manual are not taken into account, manufacturer will not assume any liability for this.

Points to be paid attention to when the relocation of the refrigerator

1. Your refrigerator should be unplugged. Before transportation of your refrigerator, it should be emptied and cleaned.
2. Before it is re-packaged, shelves, accessories, crisper, etc. inside your refrigerator should be fixed with adhesive tape and secured against impacts. Package should be bound with a thick tape or sound ropes and the transportation rules on the package should be strictly observed.
3. Original packaging and foam materials should be kept for future transportations or moving.

Before you start the refrigerator, Check the following before you start to use your refrigerator:

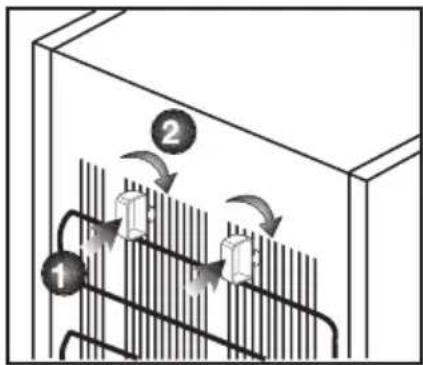

1. Attach 2 plastic wedges as illustrated below. Plastic wedges are intended to keep the distance which will ensure the air circulation between your refrigerator and the wall. (The picture is drawn up as a representation and it is not identical with your product.)

1. Clean the interior of the refrigerator as recommended in the "Maintenance and cleaning" section.
2. Connect the plug of the refrigerator to the wall socket. When the fridge door is opened, fridge internal lamp will turn on.
3. When the compressor starts to operate, a sound will be heard. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.
4. Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

Electrical connection

Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity.

Important:

The connection must be in compliance with national regulations.

- The power plug must be easily accessible after installation.

• Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.
• The voltage stated on the label located at left inner side of your product should be equal to your network voltage.
• Extension cables and multi plugs must not be used for connection.

A damaged power cable must be replaced by a qualified electrician.

⚠️ Product must not be operated before it is repaired! There is the risk of electric shock!

Disposing of the packaging

The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose of them by classifying them in accordance with the waste instructions stated by your local authorities. Do not throw away with regular house waste, throw away on packaging pick up spots designated by the local authorities.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old refrigerator without giving any harm to the environment.

- You may consult your authorized dealer or waste collection center of your municipality about the disposal of your refrigerator.

Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Placing and Installation

⚠️ If the entrance door of the room where the refrigerator will be installed is not wide enough for the refrigerator to pass through, then call the authorized service to have them remove the doors of your refrigerator and pass it sideways through the door.

1. Install your refrigerator to a place that allows ease of use.
2. Keep your refrigerator away from heat sources, humid places and direct sunlight.
3. There must be appropriate air ventilation around your refrigerator in order to achieve an efficient operation. If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at least 5 cm with the wall. Do not place your product on the materials such as rug or carpet.
4. Place your refrigerator on an even floor surface to prevent jolts.

Adjusting the legs

If your refrigerator is unbalanced;

You can balance your refrigerator by turning its front legs as illustrated in the figure. The corner where the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional movement, no text or symbols present.

Door Open Warning

\*May not be available in all models

An audio warning signal will be given when the door of your product is left open for at least 1 minute. This warning will be muted when the door is closed or any of the display buttons (if any) are pressed.

4 Preparation

• For a freestanding appliance; ‘this refrigerating appliance is not intended to be used as a built-in appliance’;
• Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.
• Please make sure that the interior of your refrigerator is cleaned thoroughly.
• If you want to place two products side by side, we recommend you to buy a decoration kit which includes a mat to be placed on the side of the product. A decoration part is placed between the products to hide the gap between the products.
• When you operate your refrigerator for the first time, please observe the following instructions during the initial six hour.
• The door should not be opened frequently.
• It must be operated empty without any food in it.
• Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section.
• Original packaging and foam materials should be kept for future transportations or moving.

- Due to temperature change as a result of opening/closing the product door during operation, condensation on the door/body shelves and the glass containers is normal.

Reversing the doors

Proceed in numerical order.

5 Using your freezer

Setting the operating temperature

The operating temperature is regulated by the temperature control.

1 = Lowest cooling setting

(Warmest setting)

MAX. = Highest cooling setting

(Coldest setting))

Please choose the setting which is consistent with the desired temperature.

The interior temperature also depends on ambient temperature, the frequency with which the door is opened and the amount of foods kept inside.

Frequently opening the door causes the interior temperature to rise.

For this reason, it is recommended to close the door as soon as possible after use.

The normal storage temperature of your appliance should be -18 °C (0 °F). Lower temperatures can be obtained by adjusting the thermostat control towards the position MAX.

We recommend checking the temperature with a thermometer to ensure that the storage compartments are kept to the desired temperature. Remember to read off the thermometer immediately as the temperature on the thermometer will rise very rapidly after you remove it from the freezer.

⚠ Attention

Do not exceed the freezing capacity of your appliance in 24 hours. See the rating label.

In order to maintain the quality of the food, the freezing must take effect as quickly as possible. In this way, the freezing capacity will not be exceeded, and the temperature inside the freezer will not rise.

Attention

Always keep the already deep-frozen food separated from freshly placed food.

If you find the freezer door difficult to open just after you have closed it, don't worry. This is due to the pressure difference which will equalize and allow the door to open normally after a few minutes.

You will hear a vacuum sound just after closing the door. This is quite normal.

SuperFreeze

If large amounts of fresh food are going to be frozen, adjust the thermostat control to the MAX. position. 24 hours before putting the fresh food in the fast freeze compartment.

It is strongly recommended to keep the thermostat control at the MAX. position for at least 24 hours to freeze the maximum amount of fresh food stated as the freezing capacity. Take special care not to mix frozen and fresh food.

Defrosting the appliance

The appliance defrosts automatically.

How to Freeze Fresh Foods

• Foods to be frozen must be divided into portions according to a size to be consumed, and frozen in separate packages. In this way, all the food should be prevented from being re-frozen by thawing.
• In order to protect the nutritional value, the aroma and the color of the foods as much as possible, vegetables should be boiled for a short period of time before freezing. (Boiling is not necessary for foods such as cucumber, parsley.) Cooking time of the vegetables frozen in this way is shortened by 1/3 than that of the fresh vegetables.
• To extend the storage times of frozen foods, boiled vegetables must first be filtered and then hermetically packaged as in the all types of foods.
• Foods should not be placed in the freezer compartment without package.
• The packaging material of the food to be stored should be air-tight, thick and durable and should not deform with cold and humidity. Otherwise, the food that is hardened by freezing might pierce the package. Sealing the package well is also important in terms of securely storing the food.

The following packaging types are suitable for use to freeze the food:

Polyethylene bag, aluminum foil, plastic foil, vacuum bags and cold-resistant storage containers with caps.

The use of the following types of packaging is not recommended to freeze the food;

Packaging paper, parchment paper, cellophane (gelatin paper), garbage bag, used bags and shopping bags.

• Hot foods should not be placed in the freezer compartment without cooling.
• When placing unfrozen fresh foods in the freezer compartment, please note that it does not contact with frozen foods. Cool-pack (PCM) can be placed to the rack immediately below the quick freezer rack for preventing them from being getting warm.

- During the freezing time (24 hours) do not place other food to the freezer.

- Place your foods to the freezing shelves or racks by spreading them so that they will not be cramped (it is recommended that the packaging does not come into contact with each other).

- Frozen foods must be immediately consumed in a short period of time after defrosting and must never be frozen again.

- Do not block the ventilation holes by putting your frozen foods in front of the ventilation holes located on the back surface.

- We recommend you to attach a label onto the package and write the name of the foods in the package and the freezing time.

Foods suitable for freezing:

Fish and seafood, red and white meat, poultry, vegetables, fruit, herbaceous spices, dairy products (such as cheese, butter and strained yoghurt), pastries, ready or cooked meals, potato dishes, souffle and desserts.

Foods not suitable for freezing:

Yoghurt, sour milk, cream, mayonnaise, leaved salad, red radish, grapes, all fruits (such as apple, pears and peaches).

- For foods to be frozen quickly and thoroughly, the following specified amounts per package should not be exceeded.

-Fruits and vegetables, 0.5-1 kg

-Meat, 1-1.5 kg

- A small amount of foods (maximum 2 kg) can also be frozen without the use of the quick freezing function.

To obtain the best result, apply the following instructions:

1. Activate the quick freezing function 24 hours before placing your fresh foods.

2. 24 hours after pressing the button, firstly place your food that you want to freeze to the third drawer from the bottom with higher freezing capacity. If you have food remained, place them in front of the second drawer from the bottom.

3. The quick freezing function will be automatically inactivated after 50 hours.

4. Do not try to freeze a large quantity of food at a time. Within 24 hours, this product can freeze the maximum food quantity specified as «Freezing Capacity ... kg/24 hours» on its type label. It is not convenient to put more unfrozen/fresh foods to the freezer compartment than the quantity specified on the label.

- You can review the Meat and Fish, Vegetables and Fruits, Dairy Products tables for placing and storing your foods in the deep-freezer.

Recommendations for Preservation of Frozen Foods

• While purchasing your frozen foods, make sure that they are frozen at appropriate temperatures and their packages are not broken.
• Put the packages on the freezer compartment as soon as possible after purchasing them.
• Make sure that the expiration date indicated on the packaging is not expired before consuming the packaged ready meals that you remove from the freezer compartment.

Defrosting

The ice in the freezer compartments is automatically thawed.

Deep Freezer Information

The EN 62552 standard requires (according to specific measurement conditions) that at least 4.5 kg of food for each 100 liter of freezer compartment volume can be frozen at a room temperature of 25^ C in 24 hours.

Defrosting the frozen foods

Depending on the food diversity and the purpose of use, a selection can be made between the following options for defrosting:

• At room temperature (it is not very suitable to defrost the food by leaving it at room temperature for a long time in terms of maintaining the food quality)
• In the refrigerator
• In the electrical oven (in models with or without fan)
  • EN In the microwave oven

CAUTION:

• Never put acidic beverages in glass bottles and cans into your freezer due to the risk of explosion.
• If there is moisture and abnormal swelling in the packaging of frozen foods, it is likely that they were previously stored in an improper storage condition and their contents deteriorated. Do not consume these foods without checking.
• Since some spices in cooked meals may change their taste when exposed to long-term storage conditions, your frozen foods should be less seasoned or the desired spices should be added to the foods after the thawing process.

Recommended Temperature Settings

Freezer compartment setting	Remarks
-20 °C This is the default	It recommended temperature setting.
-21,-22,-23 or -24 oC	These settings are recommended when the ambient temperature is higher than 30°C or when you think the refrigerator is not cool enough due to frequent opening and closing of the door.
SuperFreeze Use when	you want to freeze your food in a short time.It is recommended to be applied to preserve the quality of your fresh food. You do no need to use the quick freezing function when putting your frozen food.You do not need to use the quick freezing function to freeze a small amount of fresh food, up to 2 kg per day.

Meat and Fish Preparation				Longest storage time (month)
Meat products	Veal	Steak By cutting them 2 cm thick and placing foil between them or wrapping tightly with stretch	6-8
		Roast By packing the pieces of meat in a refrigerator bag or wrapping them tightly with stretch	6-8
		Cubes In small pieces 6-8
		Schnitzel, chops	By placing foil between cut slices or wrapping individually with stretch 6-8
	Mutton	Chops	By placing foil between meat pieces or wrapping individually with stretch	4-8
		Roast By packing the pieces of meat in a refrigerator bag or wrapping them tightly with stretch	4-8
		Cubes By packing the shredded meats in a refrigerator bag or wrapping them tightly with stretch	4-8
	Beef	Roast By packing the pieces of meat in a refrigerator bag or wrapping them tightly with stretch	8-12
		Steak By cutting them 2 cm thick and placing foil between them or wrapping tightly with stretch	8-12
		Cubes In small pieces 8-12
		Boiled meat By packaging in small pieces in a refrigerator bag 8-12
	Mince Without seasoning, in flat bags 1-3
	Offal (piece) In pieces		1-3
	Fermented sausage - Salami		It should be packaged even if it has casing.	1-2
	Jambon		By placing foil between cut slices	2-3
Poultry and hunting animals	Chicken and Turkey		By wrapping in foil	4-6
	Goose		By wrapping in foil (portions should not exceed 2.5 kg)	4-6
	Duck		By wrapping in foil (portions should not exceed 2.5 kg)	4-6
	Deer, Rabbit, Roe Deer		By wrapping in foil (portions should not exceed 2.5 kg, and their bones should be separated)	6-8
Fish and seafood	Freshwater fish (Trout, Carp, Crane, Catfish)		After thoroughly cleaning the inside and scales, it should be washed and dried, and the tail and head parts should be cut when necessary.	2
	Lean fish (Sea bass, Turbot, Sole)			4-6
	Fatty fish (Bonito, Mackerel, Bluefish, Red Mullet, Anchovy)			2-4
	Shellfish		Cleaned and in bags	4-6
	Caviar		In its packaging, in an aluminum or plastic container	2-3

Fruits and Vegetables	Preparation	Longest storage time (month)
String bean and Pole bean	By shock boiling for 3 minutes after washing and cutting into small pieces 10 - 13	13
Green pea By shock boiling for 2 minutes after shelling and washing 10-12
Cabbage By shock boiling for 1-2 minute(s) after cleaning 6 - 8
Carrot By shock boiling for 3-4 minutes after cleaning and cutting into slices 12
Pepper By boiling for 2-3 minutes after cutting the stem, dividing into two and separating the seeds	8 - 10
Spinach By shock boiling for 2 minutes after washing and cleaning 6 - 9
Leek By shock boiling for 5 minutes after chopping 6-8
Cauliflower By shock boiling in a little lemon water for 3-5 minutes after separating the leaves, cutting the core into pieces	10 - 12
Eggplant	By shock boiling for 4 minutes after washing and cutting into 2cm pieces	10 - 12
Squash	By shock boiling for 2-3 minutes after washing and cutting into 2cm pieces	8-10
Mushroom	By lightly sauteing in oil and squeezing lemon on it	2-3
Corn By cleaning and packing in cob or granular	12
Apple and Pear	By shock boiling for 2-3 minutes after peeling and slicing	8 - 10
Apricot and Peach	Divide in half and extract the seeds	4 - 6
Strawberry and Raspberry	By washing and shelling	8 - 12
Baked fruit	By adding 10% sugar in the container	12
Plum, Cherry, Sour Cherry	By washing and shelling the stalks	8 - 12

Dairy Products	Preparation	Longest Storage Time ((Month	Storage Conditions
Cheese (except feta cheese)	By placing foil therebetween, in slices	6 - 8	It can be left in its original packaging for short term storage. For long-term storage it should also be wrapped in aluminum or plastic foil.
Butter, margarine	In its own packaging	6	In its own packaging or in plastic containers

6 Maintenance and cleaning

⚠️ Never use gasoline, benzene or similar substances for cleaning purposes.
⚠️ We recommend that you unplug the freezer before cleaning.

• Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning.
• Use lukewarm water to clean the cabinet of your freezer and wipe it dry.
• Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.
• If your freezer is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.
• Check door seals regularly to ensure they are clean and free from food particles.

⚠️ To remove door racks, remove all the contents and then simply push the door rack upwards from the base.

⚠️Never use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.

Protection of plastic surfaces

- Do not put liquid oils or oil-cooked meals in your freezer in unsealed containers as they may damage the plastic surfaces of your freezer. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7 Recommended solutions for the problems

Please review this list before calling GRAM service. It might save you time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

The freezer does not operate.

• Is the freezer properly plugged in? Insert the plug to the wall socket.• Is the fuse of the socket or the main fuse blown out? Check the fuse.

Condensation on the side wall of the freezer.

• Very cold ambient conditions. Frequently opening and closing of the door. Highly humid ambient conditions. Leaving the door ajar. Switching the thermostat control to a colder degree.• Decreasing the time the door is left open or using it less frequently.• Wipe the condensation using a dry cloth and check if it persists.

The compressor is not running

• In case of an electrical cut the freezer cannot start up right away as the compressor has to balance the refrigerant pressure in the cooling system of the freezer. The alignment of the refrigerant pressure will lead to a postponement of the start up by 6 minutes. Please contact GRAM service if the freezer does not start up at the end of this period.• The freezer is in the defrost cycle. This is normal for a full-automatically defrosting freezer. The defrostning cycle occurs periodically.• Your freezer is not plugged into the socket. Make sure that the plug fits properly into the socket.• Are the temperature adjustments made in the correct way?• The power might be cut off.

The freezer is running frequently or for a long time.

• Your new product may be wider than the previous one. This is quite normal. Large freezers operate for a longer period of time.
• The ambient room temperature may be high. This is quite normal.
• The freezer might have been plugged in recently or might have been loaded with food. Cooling down of the freezer completely may last for a couple of hours longer.
• Large amounts of hot food might have been put in the freezer recently. Hot food causes longer running of the freezer until it reaches the safe storage temperature.
• The door might have been opened frequently or left ajar for a long time. The warm air that has entered into the freezer causes the freezer to run for longer periods of time. Open the door less frequently.
• The freezer door might have been left ajar. Check if the door is tightly closed.
• The freezer is adjusted to a very low temperature. Adjust the freezer temperature to a warmer degree and wait until the temperature is achieved.
• The door seal of the freezer may be soiled, worn out, broken or not placed properly. Clean or replace the seal. A damaged or broken sea causes the freezer to run for a longer period of time in order to maintain the current temperature.

The temperature in the freezer is very high.

• The freezer temperature might have been adjusted to a very high degree. Change the temperature of the freezer until the freezer temperature reaches to a sufficient level.
• The door might have been opened frequently or left ajar for a long time; open it less frequently.
• The door might have been left ajar; close the door completely.
• A large amount of hot food might have been put in the freezer recently. Wait until the fridge reaches the desired temperature.
• The freezer might have been plugged in recently. Cooling down of the freezer completely takes time.

The operation noise increases when the freezer is running.

- The operating performance of the freezer may change due to the changes in the ambient temperature. It is normal and not a fault.

Vibrations or noise.

• The floor is not level or it is weak. The freezer rocks when moved slowly. Make sure that the floor is strong enough to carry the freezer, and that the floor is level.
• The noise may be caused by the items put onto the freezer. Items on top of the freezer should be removed.

There are noises coming from the freezer like liquid spilling or spraying.

Liquid and gas flows happen in accordance with the operating principles of your freezer. It is normal and not a fault.

There is a noise like wind blowing.

Fans are used in order to cool the freezer. It is normal and not a fault.

Condensation on the inner walls of the freezer.

Hot and humid weather increases icing and condensation. It is normal and not a fault.The door might have been left ajar; make sure that the door is closed fully.The door might have been opened frequently or left ajar for a long time; open it less frequently.

Humidity occurs on the outside of the freezer.

There might be humidity in the air; this is quite normal in humid weather. When the humidity is less, condensation will disappear.

The door is not closing.

Food packaging may prevent the door from closing. Replace the packaging that are obstructing the door.The freezer is not completely upright on the floor and rocking when slightly moved. Adjust the elevation screws.The floor is not level or strong. Make sure that the floor is level and capable to carry the freezer.

NO: SE:

Gram A/S

Gram A/S

FI:

Gram A/S

Tel.: [phone]

Tel.: [phone]

Tel.: [phone]

www.gram.no www.gram.se www.gram.fi

Gram A/S

Gejlhavegård 2B

DK-6000 Kolding

[phone]

www.gram.dk

GRAM

FS 4316-90 N2

FS 4316-90 NX2

DK	Betjeningsvejledning
NO	Bruksanvisning
SV	Bruksanvisning
FI	Käyttöohjeet
EN	User guide
NL	Gebruiksaanwijzing

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Pure electrical circuit lines without any symbols

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion, no text or symbols present.

Diepvrieselement

