Jordan Clean Plus TBPL-110W - Toothbrush WILFA - Free user manual and instructions

Brand	Wilfa
Model	Jordan Clean Plus TBPL-110W
Product Type	Electric Toothbrush
Power Supply	Charger: 100-240V~ 50/60Hz 1W; Appliance: Lithium-ion 3.7V 800mA
Charging Time	Approximately 18 hours for full charge
Battery Life	Up to 120 minutes of use (about 1 month with twice-daily 2-min brushing)
Brushing Speed	High: ~8800 rpm; Low: ~7200 rpm
Timer	2-minute timer with 30-second intervals (click signals); automatic stop after 10 minutes
Modes	2 modes (High/Low) selectable by holding the switch for 1 second
Brush Head Technology	SoftClean™ with three cleaning zones
Battery Indicator	Flashing when low (≈20%); white light when fully charged; breathing mode while charging
Protection Features	Over-charge and over-discharge protection; automatic shut-off when battery critically low
Safety	For domestic use only; not for children under 8 without supervision; do not immerse in water
Cleaning & Maintenance	Remove brush head and rinse; wipe handle with damp cloth; do not use abrasive cleaners
Spare Parts	Replacement brush heads available (compatible with Jordan Clean series)
Battery Removal	Only at end of life: use flathead screwdriver to open, remove battery, recycle properly
Environmental Disposal	Do not dispose with household waste; use take-back system or recycle via retailer
Dimensions	Not specified in manual; typical electric toothbrush size
Weight	Not specified; approx. 100-150 g

Frequently Asked Questions - Jordan Clean Plus TBPL-110W WILFA

How do I charge the Jordan Clean Plus toothbrush?

Place the toothbrush on the charging base connected to a 100-240V outlet. The indicator will breathe (light/shade) while charging and become solid white when fully charged (after about 18 hours).

How long does the battery last?

A full charge provides up to 120 minutes of brushing, which is about 1 month of use with twice-daily 2-minute sessions.

How do I switch between high and low speed?

Press and hold the on/off switch for 1 second to toggle between high speed (~8800 rpm) and low speed (~7200 rpm).

Does the toothbrush have a timer?

Yes, it has a 2-minute timer with click signals every 30 seconds to remind you to move to a different area. After 2 minutes, it clicks 4 times. The brush automatically stops after 10 minutes to protect teeth and battery.

What does the battery indicator mean?

When the battery is low (≈20%), the indicator blinks quickly. While charging, it breathes alternately. When fully charged, it lights up white.

How should I clean the toothbrush?

Remove the brush head and rinse it and the handle under water. Wipe the handle with a damp cloth. Do not use abrasive cleaners or immerse the handle in water.

Are replacement brush heads available?

Yes, the toothbrush uses standard Jordan Clean brush heads. They are available separately and can be replaced when bristles wear out (typically every 3 months).

Is the toothbrush safe for children?

The appliance can be used by children aged 8 and above with supervision. Children should not play with it. Cleaning and maintenance should not be done by children without supervision.

How do I remove the battery for disposal?

At the end of the toothbrush's life, use a flathead screwdriver to open the casing. Remove the lithium-ion battery and dispose of it according to local regulations or via a retailer take-back program.

Why does the toothbrush stop automatically?

The brush has an automatic shut-off after 10 minutes of continuous use to protect teeth and preserve battery. It also stops if the battery is critically low to prevent deep discharge.

USER MANUAL Jordan Clean Plus TBPL-110W WILFA

Electrical Toothbrush

Bruksanvisning

Bruksanvisning

Brugsanvisning

Käyttöohje

Instruction manual

TBPL-110W

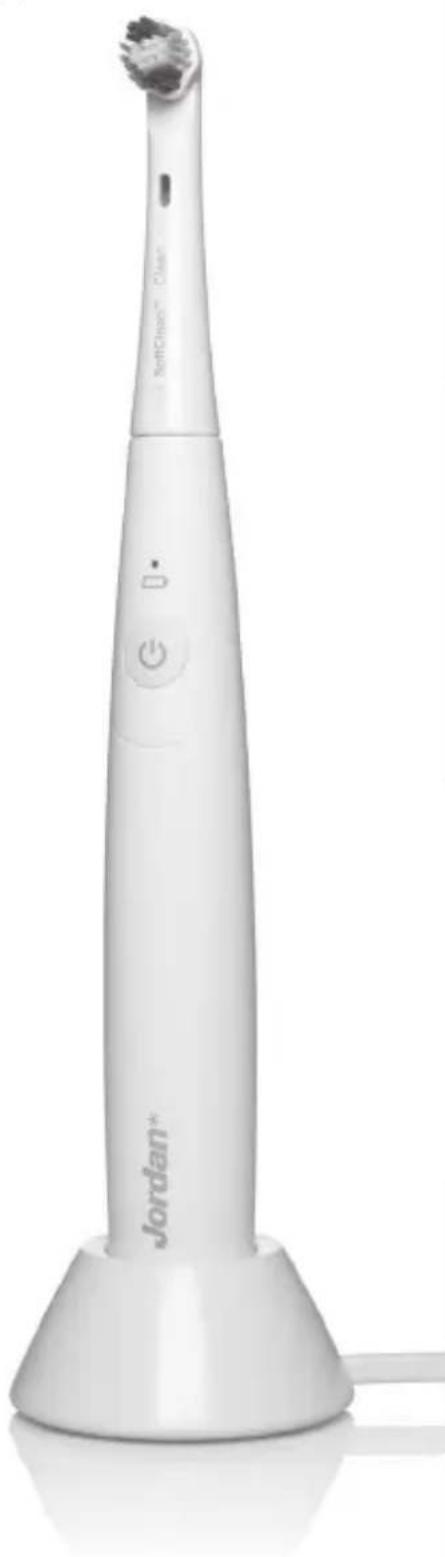

White electric toothbrush with a toothbrush tip, no visible text or symbols on the device body

JORDAN CLEAN ELEKTRISK TANNB∅RSTE

OPLADNING AF APPARATET

The Jordan Clean series is a new generation of electric toothbrushes that through SoftClean™ Technology delivers the right combination of oral hygiene features. Inspired by a Scandinavian design approach for simplicity and user-friendliness, the series gives an effective clean from an electric toothbrush and the ease of use of a manual one.

SAFETY

Please note the following instructions when using the appliance:

■ This appliance is intended for domestic use only.

■ This appliance is designed solely for cleaning and caring for human teeth. All other uses are expressly prohibited.

■ Do not use if the appliance or attachments is visibly damaged.

■ When the appliance is being charged, on no account should this or the charging unit come into contact with water or any other liquid.

- Keep the appliance out of direct sunlight, excessive heat and open flames.

■ Do not drop the appliance.

- Keep the appliance out of the reach of children.

■ Do not open the appliance under any circumstances.

■ No warranty claims are accepted for damage caused by improper handling.

■ Cleaning and user maintenance shall not be made by children without supervision.

This appliance can be used by children aged from 8 years and above. And persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

■ Children shall not play with the appliance.

■ The Electric Toothbrush can only be charged by the charging unit provided with the appliance.

SPECIAL FEATURES:

■ Softclean™ technology gives you an unique combination of highly effective bristles, and a smaller head for effective cleaning in a effective way. Each head is divided into three cleaning zones with specialized efficiencies per zone.

■ 2 modes with high oscillating speed at about 8800 rpm at hi speed for increasing cleaning performance and soft brushing at low speed of approximately 7200 rpm. Hold the switch for 1s for selecting the desired Hi/Lo Speed.

■ 2-min timer with click signal for each 30 sec brushing time for reminding you to move to different teeth area. It will click 2 times at 30/60/90 sec. and click 4 times at 2 minutes (recommended brushing time). The brush will stop automatically after 10 minutes for protecting your teeth and preserve battery capacity by accidental switch-on when travelling.

■ Low power indication when battery capacity goes down to about 20%, the indicator blinks quickly to remind you to recharge the brush in order to keep full power.
■ Built-in high capacity Lithium battery for long use. It can run 120min which gives 1 month based on 2 times brushing a day and 2 minutes brushing each time.
■ Over-charge and over-discharge Protection circuit is equipped to preserve the battery life time. When fully charged the toothbrush will automatic cut off. When running low on battery the toothbrush will automatically stop.

SPECIFICATIONS

Charging unit: 100-240V\~50/60Hz 1W. Rechargeable power unit is 3,7 Volts. Maximum operation time is approximately 120 minutes/4 weeks when fully charged. When rechargeable batteries are running low, the indicator will blink to tell you to recharge the unit immediately. If you continue to use the unit for some time without recharging it, the unit may stop automatically. This is our battery protection feature to preserve the batteries life time. You need to recharge immediately.

CHARGING THE UNIT

The charging unit can be connected to any voltage outlet - even to shaver sockets - between 100-240 volts AC (\~). The indicator will blink with light/shade (breathing mode) alternately, when the power unit is insert to charging base which is plugged-in. It will light up WHITE when batteries are fully charged (18 hours). The power unit may warm up somewhat during recharging. This has no significance on the unit's operation. Over-charging is impossible.

PRESERVING THE RECHARGEABLE BATTERIES

To maximize the capacity and life of the rechargeable batteries, they should be fully charged before first use and then fully discharged through use. Then recharge to full capacity again. This discharging/charging procedure should be done every six months. The Electric Toothbrush also has built-in LOW BATTERY INDICATION feature. If the battery power often runs too low this will shorten the battery life. The indicator will blink to remind you to charge. If you don't charge another "Automatic Shut off system" will stop the brush. You need to fully recharge before using again.

BEFORE USE

Before using your Jordan Clean toothbrush for the first time, charge the unit

full. After the power unit has been fully charged, attach the brush head to the power unit. The brush head must face the same direction as the switch after twist in. Jordan Clean has only one switch by pressing for the desired functions. In case you put the power unit into the charging base when it is working, it will automatically stop.

REMOVAL OF RECHARGEABLE BATTERY

This toothbrush is using Lithium-ion rechargeable battery. When the toothbrush reaches the end of its service life, the battery must be removed from the appliance before it is discarded. The appliance must be disconnected from the mainpower supply before removing the battery. The battery must be disposed of safely. Use a flathead screwdriver to remove the internal body, then remove the battery and dispose of it via a return and collection system or contact the retailer from whom the product was purchased. They operate a take-back system for safe recycling.

PROTECTING THE ENVIRONMENT

Correct disposal of this product.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable

reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

POWER SUPPLY

Charger:

100-240V\~, 50/60Hz, 1W.

Appliance:

Lithium-ion battery 3,7 V 800mA.

Produced by:

WILFA AS, Industriveien 25,

1481 Hagan, Norway.

www.wilfa.com
