Product Type	Netbook
Brand	Olivetti
Model	Olibook M1025
Processor	Intel Atom N450 (1.6 GHz, 512KB L2 cache, 533MHz FSB)
Chipset	Intel 82945GSE + 82801GBM
Memory	1 SO-DIMM slot (DDR2 533 MHz), expandable up to 2 GB
Storage	2.5" SATA HDD, 9.5 mm height, up to 5400 RPM (user-replaceable)
Display	10.1" WSVGA TFT LCD (1024 x 576)
Graphics	Intel integrated, shared system memory (up to 256 MB DVMT)
Audio	High Definition Audio, built-in stereo speakers and microphone
Network	10/100 Mb Ethernet LAN; 802.11b/g/n Wi-Fi
Ports	2x USB 2.0, VGA (external monitor), RJ-45 LAN, headphone-out, microphone-in, DC-in
Card Reader	7-in-1 (MMC, SD, MS, MS Pro, Mini SD, RS MMC, MS Duo with adapter)
Camera	1.3 MP PC camera (toggle with Fn+F10)
Battery	Polymer 3550 mAh, rechargeable
Power Adapter	AC Input 100-240 V, 50-60 Hz; DC Output 19 V, 1.57/1.58 A (30 W)
Dimensions (WxDxH)	271 x 188.6 x 19.5-28 mm
Weight	Approx. 1.2 kg (with battery)
Operating System	Windows 7 Starter Edition
Keyboard	WinKey keyboard with embedded numeric keypad
Pointing Device	TouchPad with scrolling function
Security	Kensington lock slot; BIOS password; boot sector write-protect
Upgradeability	RAM and HDD user-upgradable; CPU not user-serviceable
Cleaning	Use a soft dry cloth; do not use volatile or abrasive cleaners

Frequently Asked Questions - Olibook M1025 OLIVETTI

How do I charge the battery?

Plug the AC/DC adapter into the DC-in jack and connect to a power outlet. The orange LED indicates charging; when fully charged, the LED turns green.

How can I extend battery life?

Fully discharge and recharge the battery at least once every 30 days. Reduce LCD brightness (Fn+F8/F9), disable unused peripherals, and adjust Power Options in Windows Control Panel.

My laptop won't turn on. What should I do?

Check that the battery is properly installed and the AC/DC adapter is connected to a working outlet. Press the power button for 4 seconds or longer to force a shutdown, then try again.

The screen is blank. How do I fix it?

Press Fn+F7 to toggle display modes, Fn+F8/F9 to adjust brightness, or Fn+F4 to wake the system from sleep mode.

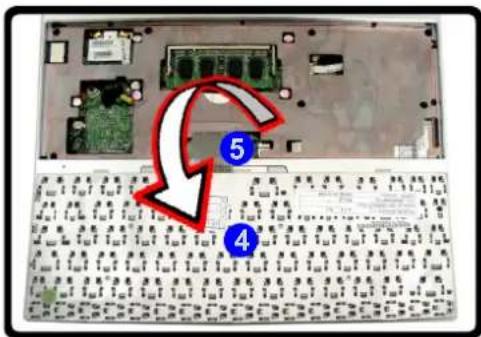

How do I upgrade the RAM?

Turn off the computer and remove the battery. Open the keyboard by pressing the three keyboard latches at the top, lift the keyboard carefully, then release the memory slot levers. Insert the new SO-DIMM module at a 30° angle and press down until it clicks.

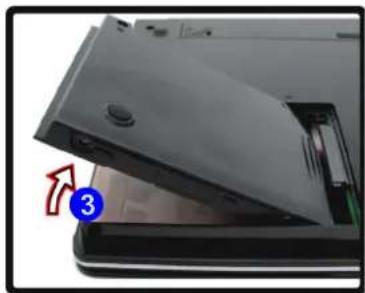

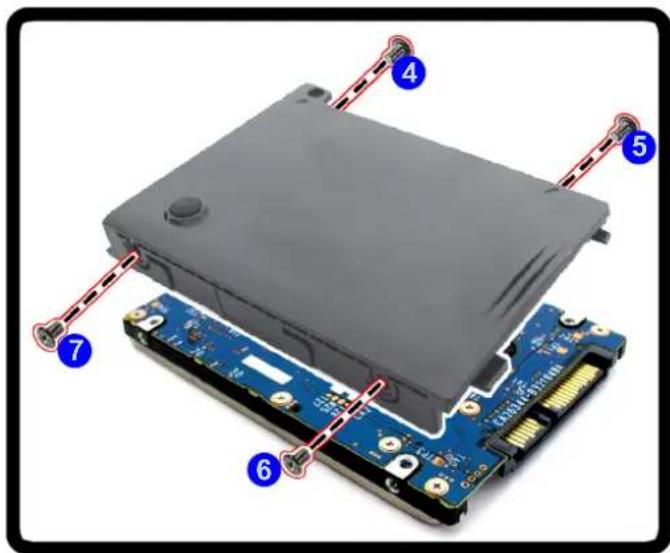

How do I replace the hard drive?

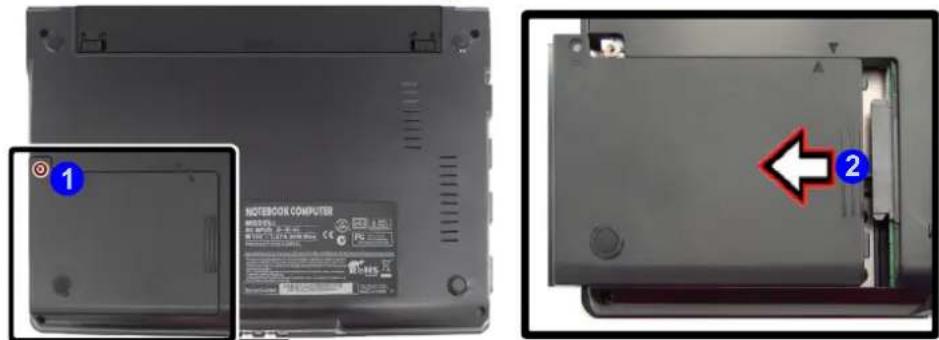

Turn off the computer and remove the battery. Remove the screw securing the hard disk bay cover, slide the HDD assembly out, unscrew the drive from its bracket, and replace with a 2.5" SATA HDD (9.5 mm height, 5400 RPM or slower).

Wireless LAN is not detected. What should I do?

Ensure the WLAN module is powered on by pressing Fn+F11 (check the LED indicator). Install the Wireless LAN driver from the Device Drivers & User's Manual disc, and enable the adapter in Windows Network Connections.

No sound or very low volume. How do I fix it?

Check the volume level using Fn+F5/F6 and the Windows volume icon. Ensure the Realtek HD Audio driver is installed. If using external speakers, verify they are connected to the headphone-out jack.

How do I enter the BIOS setup?

Restart the computer and press F2 during the Power-On Self Test (POST) when the prompt appears. Use the arrow keys to navigate and adjust settings.

Can I use a different operating system on this netbook?

The computer comes with Windows 7 Starter Edition pre-installed. You can install other OS versions, but you must download the appropriate drivers from the Device Drivers disc. Note that some features may not work without proper drivers.

USER MANUAL Olibook M1025 OLIVETTI

Black laptop with open lid and visible keyboard, isolated on white background (no text or symbols)

OLIBOOKM1025

NETBOOK

USER GUIDE

Edited/Published/Produced by:

Olivetti S.p.A.

Copyright © Olivetti, 2010

All rights reserved

Code: 383332 W

Date of publication: January 2010

Trademarks: Microsoft and Windows are registered trademarks of Microsoft Corporation.

Other trademarks and trade names

may be used in this document to refer to either the entities claiming the marks and names or their products.

Olivetti disclaims any proprietary interest in trademarks and trade names other than its own.

The mark affixed to the product certifies that the product satisfies the basic quality Requirements.

Table of Contents

Contents

Notice .... I

Instructions for Care and Operation ....III

Power Safety V

Battery Precautions ...... VI

Cleaning VII

Servicing VII

Travel Considerations ...... VIII

Quick Start Guide

About this Quick Guide 1-1

Regulatory and Safety Information 1-1

Trademarks 1-1

System Startup 1-1

System Software 1-1

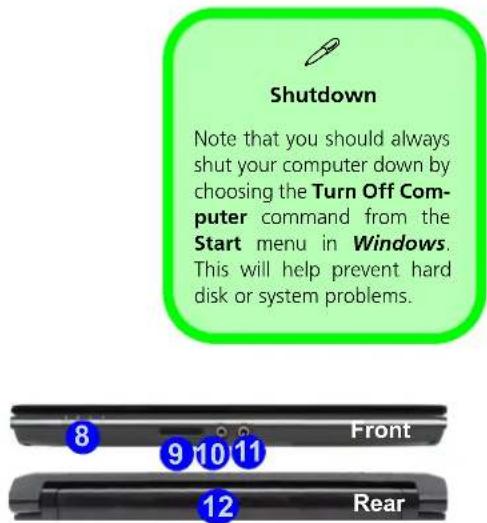

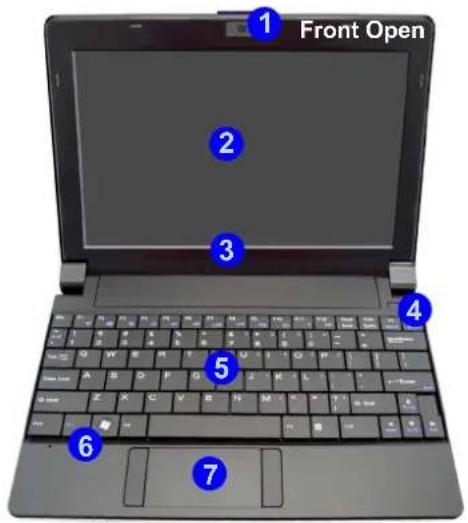

System Map: Front & Rear Views 1-2

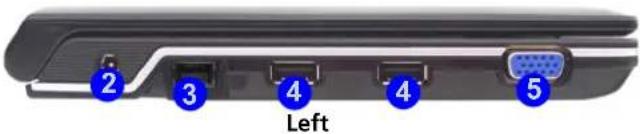

System Map: Side & Bottom Views 1-3

LED Indicators 1-4

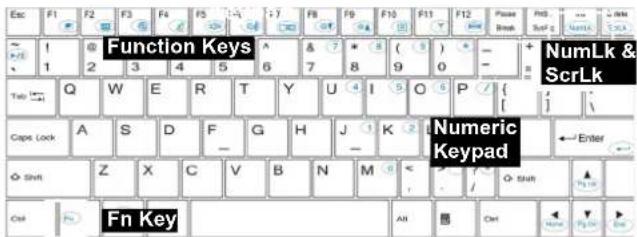

Keyboard & Function Keys 1-5

Driver Installation 1-6

Features & Components

Overview 2-1

Hard Disk Drive 2-2

7-in-1 Card Reader 2-3

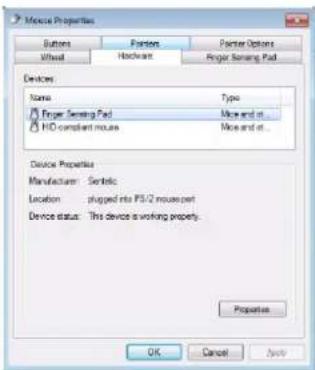

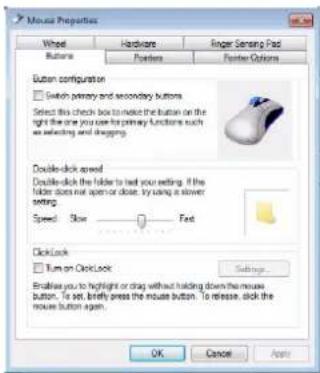

TouchPad and Buttons/Mouse 2-4

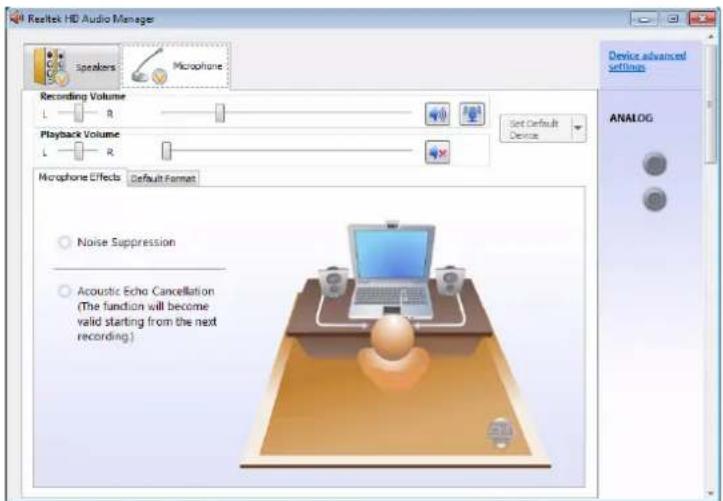

Audio Features 2-5

Power Management

Overview 3-1

Advanced Configuration and Power Interface .....3-1

The Power Sources 3-2

AC/DC Adapter 3-2

Battery 3-2

Turning on the Computer 3-3

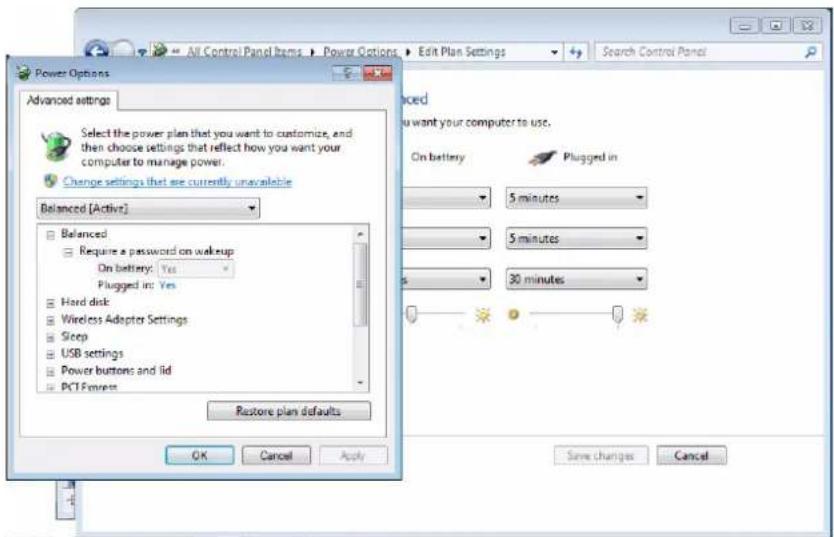

Power Schemes 3-4

Battery Information 3-6

Recharging the Battery with the AC/DC Adapter 3-7

Battery FAQ 3-9

Drivers

What to Install 4-1

Module Driver Installation 4-1

Driver Installation 4-2

Authorized Driver Message 4-4

New Hardware Found 4-4

Version Conflict Message 4-4

Table of Contents

BIOS Utilities

Overview 5-1

The Power-On Self Test (POST) 5-2

Failing the POST 5-2

The Setup Utility 5-3

Entering Setup 5-3

Setup Screens 5-4

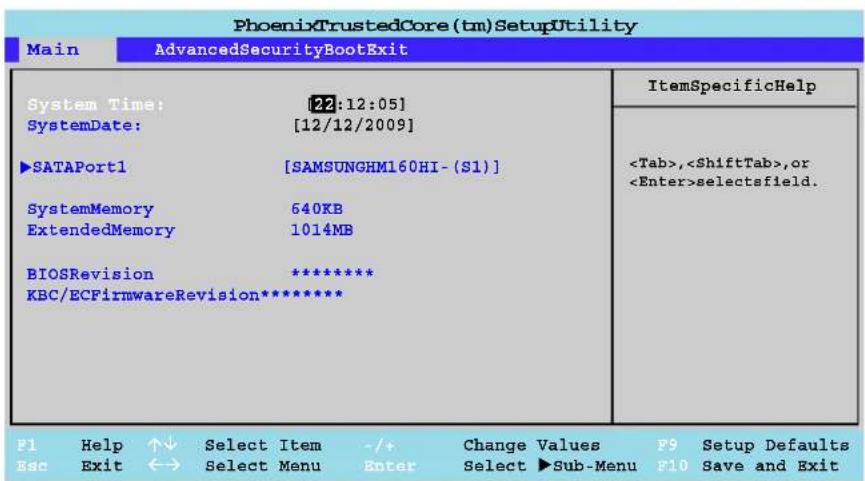

Main Menu 5-5

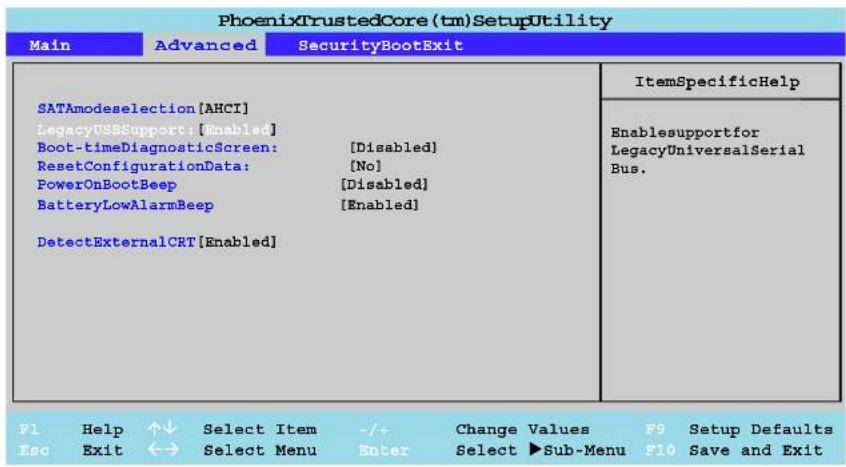

Advanced Menu 5-7

Security Menu 5-10

Boot Menu 5-12

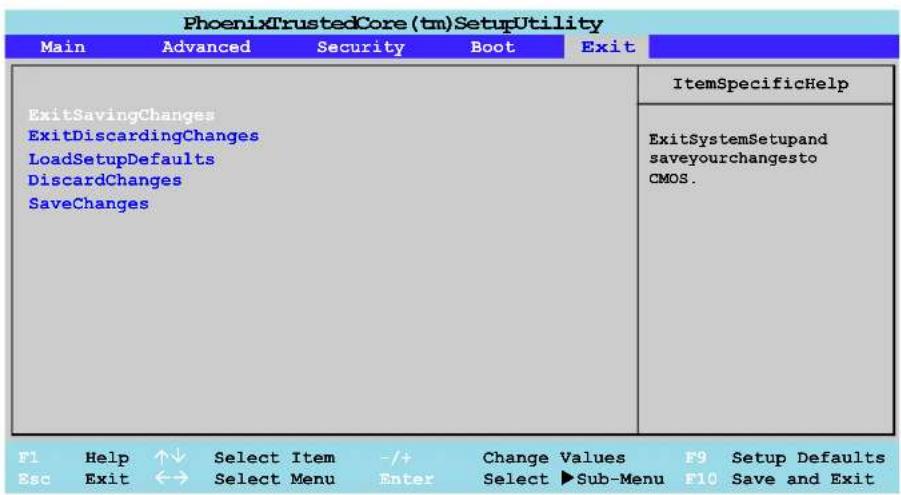

Exit Menu 5-13

Upgrading The Computer

Overview 6-1

When Not to Upgrade 6-2

Removing the Battery 6-3

Upgrading the HDD 6-4

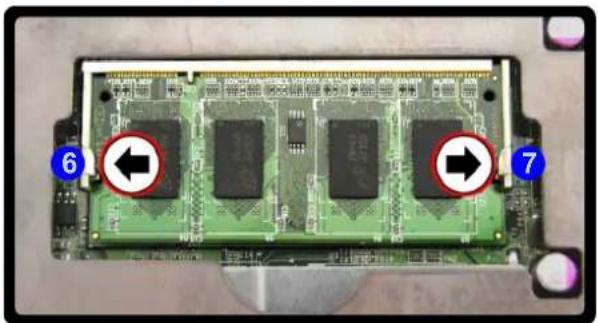

Upgrading the System Memory (RAM) 6-7

Upgrading the Processor 6-10

Additional Modules

Overview 7-1

PC Camera Module 7-2

Wireless LAN Module 7-4

Troubleshooting

Overview 8-1

Basic Hints and Tips 8-2

Backup and General Maintenance 8-3

Viruses 8-4

Upgrading and Adding New Hardware/Software ....8-5

Problems and Possible Solutions 8-6

Interface (Ports & Jacks)

Notebook Ports and Jacks A-2

Intel Video Driver Controls

Intel Video Driver Installation B-1

Dynamic Video Memory Technology ......B-1

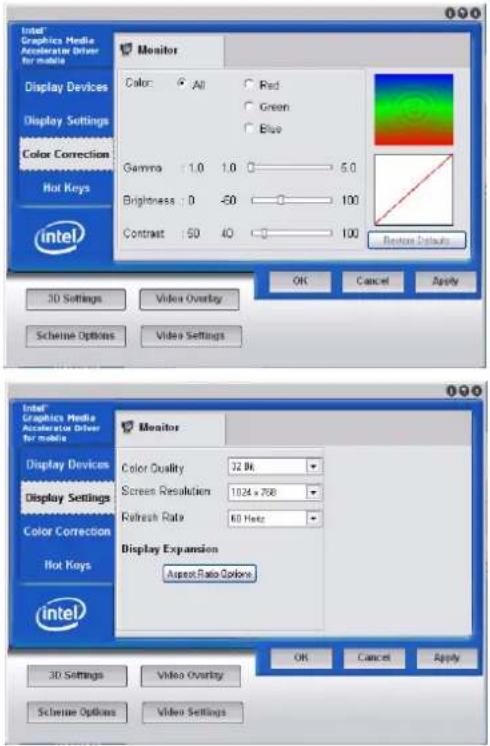

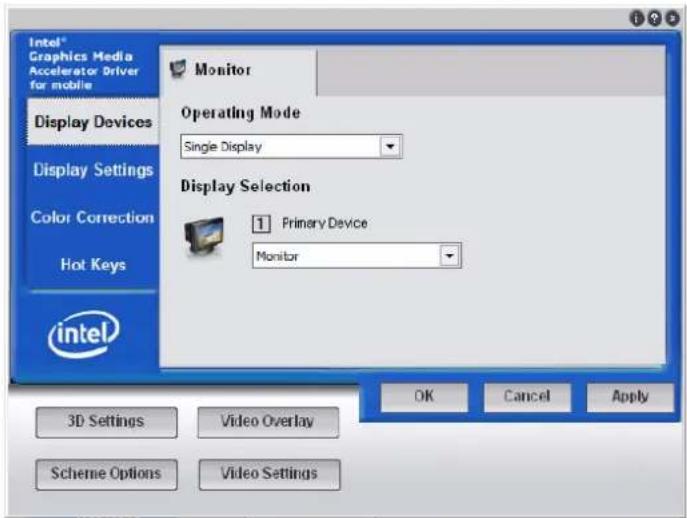

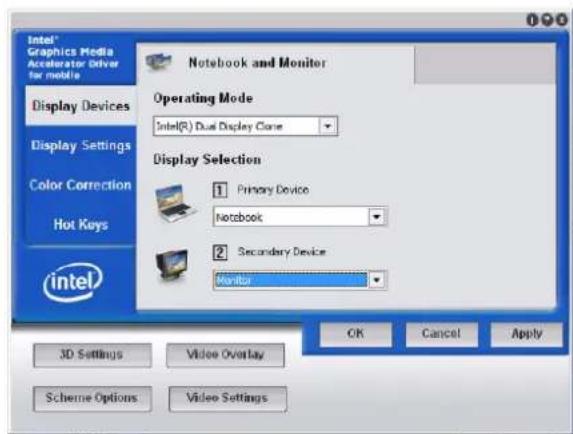

Intel Graphics Properties ......B-2

Scheme Options B-4

Display Devices & Options ......B-5

Attaching Other Displays B-6

Table of Contents

Specifications

Processor C-2

Core Logic C-2

Display C-2

Memory C-2

Video Adapter C-2

BIOS C-2

Storage C-2

Security C-2

Audio C-2

Pointing Device C-2

Keyboard C-2

Operating System C-3

Card Reader C-3

Slot C-3

Dimensions & Weight C-3

Table of Contents

XIV

Table of Contents

XV

Table of Contents

XVI

Notice

The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.

This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publication, except for copies kept by the user for backup purposes.

Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement of that product or its manufacturer.

©January 2010

Trademarks

Intel and Atom are trademarks/registered trademarks of Intel Corporation. Olivetti and Alice are trademarks/registered trademarks of Telecom Italia S.p.A

Preface

IMPORTANT SAFETY INSTRUCTIONS

Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock, and injury to persons when using any electrical equipment:

1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
2. Avoid using this equipment with a telephone line (other than a cordless type) during an electrical storm. There may be a remote risk of electrical shock from lightning.
3. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.
4. This product is intended to be supplied by a Listed Power Unit (Full Range AC/DC Adapter – AC Input 100 - 240 V, 50 - 60 Hz, DC Output 19 V, 1.57A / 1.58 A).

This Computer's Optical Device is a Laser Class 1 Product

Instructions for Care and Operation

The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:

1. Don't drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.

Do not expose the computer to any shock or vibration.

Do not place it on an unstable surface.

Do not place anything heavy on the computer.

1. Keep it dry, and don't overheat it. Keep the computer and power supply away from any kind of heating element. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.

Do not expose it to excessive heat or direct sunlight.	Do not leave it in a place where foreign matter or moisture may affect the system.	Don’t use or store the computer in a humid environment.	Do not place the computer on any surface that will block the Vents/Fan Intakes.

1. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong magnetic fields. These can hinder proper performance and damage your data.

Preface

1. Follow the proper working procedures for the computer. Shut the computer down properly and don't forget to save your work. Remember to periodically save your data as data may be lost if the battery is depleted.

Do not turn off the power until you properly shut down all programs.

Do not turn off any peripheral devices when the computer is on.

Do not disassemble the computer by yourself.

Perform routine maintenance on your computer.

1. Take care when using peripheral devices.

Use only approved brands of peripherals.	Unplug the power cord before attaching peripheral devices.

Power Safety

The computer has specific power requirements:

• Only use a power adapter approved for use with this computer.
• Your AC/DC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are unsure of your local power specifications, consult your service representative or local power company.
• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power supplies (i.e. AC/DC adapter or car adapter).

Do not plug in the power cord if you are wet.

Do not use the power cord if it is broken.

Do not place heavy objects on the power cord.

Power Safety Warning

Before you undertake any upgrade procedures, make sure that you have turned off the power, and disconnected all peripherals and cables (including telephone lines). It is advisable to also remove your battery in order to prevent accidentally turning the machine on.

Preface

Battery Precautions

• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Do not remove any batteries from the computer while it is powered on.
• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
• Recharge the batteries using the notebook's system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.

Battery Disposal & Caution

The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used battery according to the manufacturer's instructions.

Cleaning

Do not apply cleaner directly to the computer; use a soft clean cloth.

Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.

Servicing

Do not attempt to service the computer yourself. Doing so may violate your warranty and expose you and the computer to electric shock. Refer all servicing to authorized service personnel. Unplug the computer from the power supply. Then refer servicing to qualified service personnel under any of the following conditions:

• When the power cord or AC/DC adapter is damaged or frayed.
• If the computer has been exposed to rain or other liquids.
• If the computer does not work normally when you follow the operating instructions.
• If the computer has been dropped or damaged (do not touch the poisonous liquid if the LCD panel breaks).
• If there is an unusual odor, heat or smoke coming from your computer.

Removal Warning

When removing any cover(s) and screw(s) for the purposes of device upgrade, remember to replace the cover(s) and screw(s) before turning the computer on.

Preface

Travel Considerations

Packing

As you get ready for your trip, run through this list to make sure the system is ready to go:

1. Check that the battery pack and any spares are fully charged.
2. Power off the computer and peripherals.
3. Close the display panel and make sure it's latched.
4. Disconnect the AC/DC adapter and cables. Stow them in the carrying bag.
5. The AC/DC adapter uses voltages from 100 to 240 volts so you won't need a second voltage adapter. However, check with your travel agent to see if you need any socket adapters.
6. Put the notebook in its carrying bag and secure it with the bag's straps.
7. If you're taking any peripherals (e.g. a printer, mouse or digital camera), pack them and those devices' adapters and/or cables.
8. Anticipate customs - Some jurisdictions may have import restrictions or require proof of ownership for both hardware and software. Make sure your documents are prepared.

Power Off Before Traveling

Make sure that your notebook is completely powered off before putting it into a travel bag (or any such container). Putting a notebook which is powered on in a travel bag may cause the vent(s)/fan intake(s)/outlet(s) to be blocked. To prevent your computer from overheating make sure nothing blocks the vent(s)/fan intake(s)/outlet(s) while the computer is in use.

On the Road

In addition to the general safety and maintenance suggestions in this preface, and Chapter 8: Troubleshooting, keep these points in mind:

Hand-carry the notebook - For security, don't let it out of your sight. In some areas, computer theft is very common. Don't check it with normal luggage. Baggage handlers may not be sufficiently careful. Avoid knocking the computer against hard objects.

Beware of Electromagnetic fields - Devices such as metal detectors & X-ray machines can damage the computer, hard disk, floppy disks, and other media. They may also destroy any stored data - Pass your computer and disks around the devices. Ask security officials to hand-inspect them (you may be asked to turn it on). Note: Some airports also scan luggage with these devices.

Fly safely - Most airlines have regulations about the use of computers and other electronic devices in flight. These restrictions are for your safety, follow them. If you stow the notebook in an overhead compartment, make sure it's secure. Contents may shift and/or fall out when the compartment is opened.

Get power where you can - If an electrical outlet is available, use the AC/DC adapter and keep your battery(ies) charged.

Keep it dry - If you move quickly from a cold to a warm location, water vapor can condense inside the computer. Wait a few minutes before turning it on so that any moisture can evaporate.

Preface

Developing Good Work Habits

Developing good work habits is important if you need to work in front of the computer for long periods of time. Improper work habits can result in discomfort or serious injury from repetitive strain to your hands, wrists or other joints. The following are some tips to reduce the strain:

Line drawing of a woman sitting at a desk using a laptop (no text or symbols)

• Adjust the height of the chair and/or desk so that the keyboard is at or slightly below the level of your elbow. Keep your forearms, wrists, and hands in a relaxed position.
• Your knees should be slightly higher than your hips. Place your feet flat on the floor or on a footrest if necessary.
• Use a chair with a back and adjust it to support your lower back comfortably.
• Sit straight so that your knees, hips and elbows form approximately 90-degree angles when you are working.

- Take periodic breaks if you are using the computer for long periods of time.

Chapter I: Quick Start Guide

About this Quick Guide

This quick guide is a brief introduction to getting your system started. The remainder of the present manual covers the more advanced features and options, including troubleshooting, upgrade and driver installation. The drivers necessary for the proper operation of the computer are contained in the same Device Drivers & User's Manual disc supplied with your computer (Note: The company reserves the right to revise this publication or to change its contents without notice). The computer's features may already have been setup. If you are planning to re-configure (or re-install) portions of the system, refer to the present User's Manual. The Device Drivers & User's Manual disc does not contain an operating system.

Regulatory and Safety Information

Please pay careful attention to the safety information contained in the present User's Manual.

© January 2010

Trademarks

Intel and Atom are trademarks/registered trademarks of Intel Corporation.

Olivetti and Alice are trademarks/registered trademarks of Telecom Italia S.p.A.

System Startup

1. Remove all packing materials.
2. Place the computer on a stable surface.
3. Securely attach any peripherals you want to use with the notebook (e.g. keyboard and mouse) to their ports.
4. Attach the AC/DC adapter to the DC-In jack on the left of the computer, then plug the AC power cord into an outlet, and connect the AC power cord to the AC/DC adapter.
5. Use one hand to carefully raise the lid/LCD to a comfortable viewing angle, while using the other hand o support the base of the computer (Note: Never lift the computer by the lid/LCD).
6. Press the power button to turn the computer "on".

Diagram showing connection between a server and a cable with two connectors (no text or symbols)

Figure 1

Computer with AC/DC
Adapter Plugged-In

Hand pressing a black laptop with a red upward arrow icon (no text or symbols on the device)

System Software

Your computer come with system software pre-installed. You will find this manual refers to the Microsoft Win 7 Starter Edition operating system.

Quick Start Guide

System Map: Front & Rear Views

Figure 2 - Front & Rear Views

1. Built-In PC Camera
2. LCD
3. Speakers

4. Power Button

5. Keyboard

6. Built-In Microphone
7. TouchPad & Buttons

8. LED Indicators

9. 7-in-1 Card Reader

10. Microphone-In Jack
11. Headphone-Out Jack
12. Battery

1 - 2 System Map: Front & Rear Views

Quick Start Guide

System Map: Side & Bottom Views

External Optical Device Drives

To install applications and drivers etc. you will need to attach an external optical device (CD or DVD ROM) to the USB ports. If you are having problems detecting external ODDs, enable the enhanced detection of these devices as follows:

1. Press F2 at startup to enter the Setup Utility and use the arrow keys to navigate to the Advanced menu.
2. Use the arrow keys to select "Enhance USB ODD detection" and set the item to "Enabled" using the spacebar.
3. Press F10 to save and exit (if you want to start from the external ODD you will need to set it as first priority in the Boot menu after it has been detected).

Bottom
Figure 3 - Side & Bottom Views

1. Security Lock Slot
2. DC-In Jack
3. RJ-45 LAN Jack
4. 2 * USB 2.0 Ports
5. External Monitor Port
6. Hard Disk Bay
7. Vent
8. Power Button
9. Battery

Overheating

To prevent your computer from overheating make sure nothing blocks any vent while the computer is in use.

1 - 3 System Map: Side & Bottom Views

Quick Start Guide

LED Indicators

The LED indicators on the computer display helpful information about the current status of the computer.

Icon Color Description
	Orange	DC Power is Plugged In
	Green	The Computer is On
	Blinking Green	The Computer is in Sleep Mode
	Orange	The Battery is Charging
	Green	The Battery is Fully Charged
	Blinking Orange	The Battery Has Reached Critically Low Power Status
[3XOW]	Green	Hard Disk Activity
	Green	The Wireless LAN Module is Powe-red On

Table 1 - - LED Indicators

1 - 4 LED Indicators

Keyboard & Function Keys

The keyboard has a numeric keypad for easy numeric data input. Pressing the Fn +NumLk keys turns on/off the numeric keypad. It also features function keys to allow you to change operational features instantly. The function keys (F1 - F12 etc.) will act as hot keys when pressed while the Fn key is held down. In addition to the basic function key combinations, visual indicators are available when the hot key driver is installed.

Figure 4 - Keyboard

Keys	Function/Visual Indicators		Keys	Function/Visual Indicators
Fn + ~ Play/Pause (in Audio/Video Programs)			Fn + F7	Display Toggle
Fn + F1 TouchPad Toggle			Fn + F8/F9	Brightness Decrease/ Increase
			Fn + F10	PC Camera Power Toggle
Fn + F2	Turn LCD Backlight Off(Press a key to or use TouchPad to turn on)		Fn + F11	WLAN Module Power Toggle
Fn + F3 Mure Toggle Fn + NumLk Number					NumLock OFF NumLock ON
Fn + F4 Sleep Toggle Fn + ScrLk Scroll Lock Toggle					ScrollLock OFF ScrollLock ON
Fn +F5/F6 Volume Decrease/Increase			Caps Lock	Caps Lock Toggle	CapsLock OFF CapsLock ON

Table 2 - Function Keys & Visual Indicators

Quick Start Guide

Driver Installation

The Device Drivers & User's Manual disc contains the drivers necessary for the proper operation of the computer. This setup has already been done for you. If for any reason you need to reinstall the drivers, insert the disc and browse the Driver Folder to locate the driver you need. Install it by starting the executable file ("Setup.exe") present in each of the folders and follow the guided procedure. If you need to install more than one driver, take care to install them in the order indicated in Figure 5.

If the Found New Hardware wizard appears during the installation procedure, click Cancel to close the window, and follow the installation procedure as directed.

Driver - Win 7 Starter Edition

Chipset

Video

Audio

LAN

TouchPad

Card Reader

Hot Key

PC Camera Module

Wireless LAN Module

Table 3- Driver Installation

General guidelines for installation of drivers in Win 7 Starter Edition

As a general guide follow the default on-screen instructions for each driver (e.g. Next > Next > Finish) unless you are an advanced user. In many cases a restart is required to install the driver.

Make sure any modules (e.g. PC Camera, WLAN) are ON before installing the appropriate driver.

1 - 6 Driver Installation

Chapter 2: Features & Components

Overview

Read this chapter to learn more about the following main features and components of the computer:

• Hard Disk Drive
• 7-in-1 Card Reader
• TouchPad and Buttons/Mouse
  • Audio Features
  •

Power Safety

Before attempting to access any of the internal components of your computer please ensure that the machine is not connected to the AC power, and that the machine is turned off. Also ensure that all peripheral cables, including phone lines, are disconnected from the computer.

Figure 2 - 1

HDD Bay

Hard Disk Drive

The hard disk drive is used to store your data in the computer. The hard disk can be taken out to accommodate other 2.5" serial (SATA) HDDs with a height of 9.5 mm. The HDD is located in the bay on the right of your computer, and this can be opened after elevating the keyboard and accessing the screw securing the hard disk assembly. For further details see "Upgrading the HDD" on page 6 - 4.

Hard Disk Drive Bay

Hard Disk Drive Speeds

If you are going to upgrade/replace the hard disk drive, note that It is recommended that HDDs of a maximum speed of 5400 RPM are used. DO NOT use 7200rpm or higher HDDs.

HDD Bay

Note that the HDD bay can be accessed by elevating the keyboard (see "Upgrading the HDD" on page 6 - 4).

2 - 2 Hard Disk Drive

7-in-1 Card Reader

The card reader allows you to use some of the latest digital storage cards. Push the card into the slot and it will appear as a removable device, and can be accessed in the same way as your hard disk (s). Make sure you install the Card Reader driver).

• MMC (MultiMedia Card)
• SD (Secure Digital)
• MS (Memory Stick)
  • MS Pro (Memory Stick Pro)

• MS Duo (requires PC adapter*)
- Mini SD (requires PC adapter*)
- RS MMC (requires PC adapter*)

*Note: The PC adapters are usually supplied with these cards.

Card Reader Cover

Make sure you keep the rubber cover provided in the card reader when not in use. This will help prevent foreign objects and/or dust getting in to the card reader.

Figure 2 - 2 Right View

1. Card Reader

Back view of a black electronic device with two ports and a blue circular marker labeled '1' (no text or symbols on the device itself)

7-in-1 Card Reader 2 - 3

Features & Components

2

Mouse Driver

If you are using an external mouse your operating system may be able to auto-configure your mouse during its installation or only enable its basic functions. Be sure to check the device's user documentation for details.

Figure 2 - 3 Mouse Properties

TouchPad and Buttons/Mouse

The TouchPad is an alternative to the mouse; however, you can also add a mouse to your computer through one of the USB ports. The TouchPad buttons function in much the same way as a two-button mouse. Make sure you have installed the TouchPad driver.

You can configure the mouse functions from the Mouse Properties control panel. Click Start, point to Settings and click Control Panel (or just click Control Panel), and then double-click Mouse.

Click Hardware and double-click Proprieties to access Advanced settings.

2 - 4 TouchPad and Buttons/Mouse

Audio Features

The audio options of the computer can be configured from the control panel of Windows Sounds and Audio Peripherals or using the icon of the Realtek HD Audio Manager in the task bar/ control panel (this causes display of the Audio Realtek Configuration menus). Volume can also be adjusted using the key combination Fn + F5/F6.

Sound Volume Adjustment

How high the sound volume can be set depends on the setting of the volume control within Windows (and the volume control function keys on the computer). Click the Volume icon on the taskbar to check the setting.

Figure 2 - 4 Realtek HD Audio Manager

Features & Components

2

Audio Recording from Microphone

To record using the built-in or external microphone, configure the audio options as follows:

1. Double-click the Realtek HD Audio Manager icon in the task bar/control panel.
2. Click Mixer (folder).
3. Click the button under Mic Volume to select this (the volume can be increased as required).
4. Click OK to close the control panel.

Figure 2 - 5 Mixer - Mic Volume

2 - 6 Audio Features

Chapter 3: Power Management

Overview

To conserve power, especially when using the battery, your computer power management conserves power by controlling individual components of the computer (the monitor and hard disk drive) or the whole system. This chapter covers:

• The Power Sources
- Turning on the Computer
- Power Schemes
- Battery Information
- Configuring the Power Button
- Battery Information

Advanced Configuration and Power Interface

The ACPI interface provides the computer with enhanced power saving techniques and gives the operating system (OS) direct control over the power and thermal states of devices and processors. For example, it enables the OS to set devices into low-power states based on user settings and information from applications. ACPI is fully supported in Win 7.

OS Note

Power management functions will vary slightly depending on your operating system. For more information it is best to refer to the user's manual of your operating system.

The Power Sources

The computer can be powered by either an AC/DC adapter or a battery pack.

AC/DC Adapter

Use only the AC/DC adapter that comes with your computer. The wrong type of AC/DC adapter will damage the computer and its components.

1. Attach the AC/DC adapter to the DC-in jack on the left of the computer.
2. Plug the AC power cord into an outlet, and then connect the AC power cord to the AC/DC adapter.
3. Raise the lid/LCD to a comfortable viewing angle.
4. Press the power button to turn "On".

Battery

The battery allows you to use your computer while you are on the road or when an electrical outlet is unavailable. Battery life varies depending on the applications and the configuration you're using. To increase battery life, let the battery discharge completely before recharging (see "How do I completely discharge the battery?" on page 3 - 9).

We recommend that you do not remove the battery. For more information on the battery, please refer to "Battery Information" on page 3 - 6.

Turning on the Computer

Now you are ready to begin using your computer. To turn it on simply press the power button on the front panel.

When the computer is on, you can use the power button as a Stand by/Hibernate/Shutdown hot-key button when it is pressed for less than 4 seconds (pressing and holding the power button for longer than this will shut the computer down). Use Power Options in the Windows control panel to configure this feature.

Forced Off

If the system "hangs", and the Ctrl + Alt + Del key combination doesn't work, press the power button for 4 seconds, or longer, to force the system to turn itself off.

Power Button as Stand by or Hibernate Button

If you are using a fully ACPI-compliant OS, (such as Windows XP) you can use the OS's "Power Options" control panel to set the power button to send the system into Stand by or Hibernate mode (see your OS's documentation, or "Configuring the Power Button" on page 3 - 8 for details).

Shutdown

Note that you should always shut your computer down by choosing the Turn Off Computer command from the Start menu in Windows. This will help prevent hard disk or system problems.

Power Management

3

Resuming Operation

Press a key on the keyboard, or move the mouse/TouchPad to resume from Monitor or Hard Disk Stand by.

Figure 3 - 1

Power Schemes

Power Schemes

The computer can be set to power save mode using single components by means of the Power Save combinations. Each combination can also be set so that the monitor switches off after a preset period and the hard disk switches to sleep mode if not accessed for a specific period of time (as soon as the system performs a read or write access, the motor of the disk is restarted).

3 - 4 Power Schemes

Power Management

Each Windows Power Save combination will also regulate the performance level of the system processor in order to save energy. Remember this if you a drop in performance (especially when the computer is powered by the battery). Select the balanced setting for most uses of the portable.

Power Schemes 3 - 5

Power Management

Low Battery Warning

When the battery is critically low, immediately connect the AC/DC adapter to the computer or save your work, otherwise, the unsaved data will be lost when the power is depleted.

Battery Information

Please follow these simple guidelines to get the best use out of your battery.

New Battery

Always completely discharge, then fully charge, a new battery (see "Battery FAQ" on page 3 - 9 for instructions on how to do this).

Battery Life

Battery life depends on many factors including the programs that are running and peripherals connected. The Power save options (you can set Alarms and actions to be activated when the batteries are running down, and check the Battery meter from the control panel of the Power save options) or directly from the task bar, clicking the power save/mains icon.

Figure 3 - 2
Power Options
(Alarm & Power Meter)

53% remaining

Select a power plan:

Adjust screen brightness More power options

3 - 6 Battery Information

Power Management

Battery life may be shortened through improper maintenance. To optimize the life and improve its performance, fully discharge and recharge the battery at least once every 30 days.

We recommend that you do not remove the battery yourself. If you need to remove the battery for any reason, see "Removing the Battery" on page 6 - 3.

Recharging the Battery with the AC/DC Adapter

The battery pack automatically recharges when the AC/DC adapter is attached and plugged into an electrical outlet. If the computer is powered on, and in use, it will take several hours to fully recharge the battery. When the computer is turned off but plugged into an electrical outlet, battery charge time is less. (Refer to "Battery Information" on page 3 - 6 for more information on how to maintain and properly recharge the battery pack.)

Conserving Battery Power

To conserve battery power:

Lower the brightness level of the LCD display. The system will decrease LCD brightness slightly to save power when it is not powered by the AC/DC adapter.

Close modem or communication applications when they are not being used.

Remove any unused PC Cards from the computer (PC Cards quickly use up battery power even if the system enters sleep mode).

Disconnect any unnecessary external devices.

Power Management

Proper handling of the Battery Pack

• DO NOT disassemble the battery pack under any circumstances
• DO NOT expose the battery to fire or high temperatures, it may explode
• DO NOT connect the metal terminals (+, -) to each other

Damaged Battery Warning

Should you notice any physical defects (e.g. the battery is bent out of shape after being dropped), or any unusual smells emanating from the notebook battery, shut your computer down immediately and contact your service center. If the battery has been dropped we do not recommend using it any further, as even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire. It is recommended that you replace your computer battery every two years.

3 - 8 Battery Information

Power Management

Battery FAQ

How do I completely discharge the battery?

Use the computer with battery power until it shuts down due to a low battery. Don't turn off the computer by yourself even when you see a message that indicates the battery is critically low, just let the computer use up all of the battery power and shut down on its own. Disable the Power Options functions in the Control Panel, especially any Alarms (unclick the tickboxes - see page 3 - 6) and Schemes (change all the settings to Never - see page 3 - 4). As the battery nears the end of its life save and close any critical files.

How do I fully charge the battery?

When charging the battery, don't stop until the LED charging indicator light changes from orange to green.

How do I maintain the battery?

Completely discharge and charge the battery at least once every 30 days or after about 20 partial discharges.

Power Management

3 - 10 Battery Information

Chapter 4: Drivers

This chapter deals with installing the drivers a essential to the operation or improvement of some of the computer's subsystems. The system takes advantage of some newer hardware components for which the latest versions of most available operating systems haven't built in drivers. Thus, some of the system components won't be auto-configured with an appropriate driver or utility during operating system installation. Instead, you need to manually install some system-required drivers.

What to Install

The Device Drivers & User's Manual disc contains the drivers necessary for the proper operation of the computer.

Table 4 - 1, on page 4 - 2 lists what you need to install and it is very important that the drivers are installed in the order indicated.

Module Driver Installation

The procedures for installing drivers for the Wireless LAN, and PC Camera modules are provided in "Additional Modules" on page 7 - 1.

Make sure any modules (e.g. PC Camera or WLAN) are ON before installing the appropriate driver.

Drivers

Driver Installation

Driver - Win 7

Chipset

Video

Audio

LAN

TouchPad

Card Reader

Hot Key

PC Camera Module

Wireless LAN Module

Table 4 - 1 - Driver Installation

From "my Computer" select the CD/DVD unit containing the Device Drivers & User's Manual disc. RightClick and select Browse.

Open the Drivers folder and and browse to the executable file ("Setup.exe") in the appropriate driver folder.

If you are installing more than a single driver, make sure to install them in the order indicated in the Table 4-1.

4 - 2 Driver Installation

Windows Update

After installing all the drivers make sure you enable Windows Update in order to get all the latest security updates etc. (all updates will include the latest hotfixes from Microsoft).

Driver Installation General Guidelines

As a general guide follow the default on screen instructions for each driver (e.g. Next > Next > Finish) unless you are an advanced user. In many cases a restart is required to install the driver.

External optical drives (CD/DVD)

To install applications, drivers and similar components, an external optical drive must be connected to the USB ports.

Drivers

Authorized Driver Message

If you receive a message telling you that the driver you are installing is not authorized (Digital Signature Not Found), just click Yes or Continue Anyway to ignore the message and continue the installation procedure.

You will receive this message in cases where the driver has been released after the version of Windows you are currently using. All the drivers provided will have already received certification for Windows.

New Hardware Found

If you see the message "New Hardware Found" (Found New Hardware Wizard) during the installation procedure (other than when outlined in the driver install procedure), click Cancel to close the window, and follow the installation procedure as directed.

Version Conflict Message

During driver installation if you encounter any "file version conflict" message, please click Yes to choose to keep the existing (newer) version.

Updating/Reinstalling Individual Drivers

If you wish to update/reinstall individual drivers it may be necessary to uninstall the original driver. To do this go to the Control Panel in the Windows OS and double-click the Add/Remove Programs item. If you see the individual driver listed (if not see below), uninstall it, following the on screen prompts (it may be necessary to restart the computer). Go to the appropriate section of the manual to complete the update/reinstall procedure for the driver in question. If the driver is not listed in the Add/Remove Programs item:

1. Click Start (menu), point to Settings and click Control Panel (or click Start > Control Panel).
2. Double-click System (icon); System (icon) is in Performance and Maintenance (category).
3. Click Hardware (tab) > Device Manager (button).
4. Double-click the device you wish to update/reinstall the driver for (you may need to click "+").
5. Look for the Update Driver button (check the Driver tab) and follow the on screen prompts.

4 - 4 Driver Installation

Chapter 5: BIOS Utilities

Overview

This chapter gives a brief introduction to the computer's built-in software:

Diagnostics: The POST (Power-On Self Test)

Configuration: The Phoenix TrustedCore Setup Utility

If your computer has never been set up, or you are making important changes to the system (e.g. hard disk setup), then you should review this chapter first and note the original settings found in Setup. Even if you are a beginner, keep a record of the settings you find and any changes you make. This information could be useful if your system ever needs servicing.

There is one general rule: Don't make any changes unless you are sure of what you are doing. Many of the settings are required by the system, and changing them could cause it to become unstable or worse. If you have any doubts, consult your service representative.

BIOS Utilities

POST Screen

1.BIOS information
2.CPU type
3. Memory status
4.Enter Setup prompt appears only during POST

If you disable the Boot-time Diagnostic Screen, the POST screen will not appear.

The Power-On Self Test (POST)

Each time you turn on the computer, the system takes a few seconds to conduct a POST, including a quick test of the on-board RAM (memory).

As the POST proceeds, the computer will tell you if there is anything wrong. If there is a problem that prevents the system from booting, it will display a system summary and prompt you to run Setup.

If there are no problems, the Setup prompt will disappear and the system will load the operating system. Once that starts, you can't get into Setup without rebooting.

Failing the POST

Errors can be detected during the POST. There are two categories, "fatal" and "non-fatal".

Fatal Errors

These stop the boot process and usually indicate there is something seriously wrong with your system. Take the computer to your service representative or authorized service center as soon as possible.

5 - 2 The Power-On Self Test (POST)

Non-Fatal Errors

This kind of error still allows you to boot. You will get a message identifying the problem (make a note of this message!) followed by the prompt:

• Press to resume
• to enter Setup

Press F1 to see if the boot process can continue. It may work, without the correct configuration.

Press F2 to run the Setup program and try to correct the problem. If you still get an error message after you change the setting, or if the "cure" seems even worse, call for help.

The Setup Utility

The Phoenix TrustedCore Setup Utility tells the system how to configure itself and manage basic features and subsystems (e.g. port configuration).

Entering Setup

To enter Setup, turn on the computer and press F2 during the POST. The prompt (Press F2 to Enter Setup) seen on page 5 - 2 is usually present for a few seconds after you turn on the system. If you get a "Keyboard Error", (usually because you pressed F2 too quickly) just press F2 again.

If the computer is already on, reboot using the Ctrl + Alt + Delete combination and then hold down F2 when prompted. The Setup main menu will appear.

Setup Menus

The Setup menus shown in this section are for reference only. Your computer's menus will indicate the configuration appropriate for your model and options.

BIOS Utilities

Setup Screens

The following pages contain additional advice on portions of the Phoenix TrustedCore Setup Utility.

Along the top of the screen is a menu bar with menu headings. When you select a heading, a new screen appears. Scroll through the features listed on each screen to make changes to Phoenix TrustedCore Setup Utility.

Instructions on how to navigate each screen are in the box along the bottom of the screen. If these tools are confusing, press F1 to call up a General Help screen, and then use the arrow keys to scroll up or down the page.

The Item Specific Help on the right side of each screen explains the highlighted item and has useful messages about its options.

If you see an arrow ▶ next to an item, press Enter to go to a sub-menu on that subject. The sub-menu screen that appears has a similar layout, but the Enter key may execute a command.

5 - 4 The Setup Utility

Main Menu

Figure 5 - 1 Main Menu

System Time & Date (Main Menu)

The hour setting uses the 24-hour system (i.e., ∅∅ = midnight; 13 = 1 pm). If you can change the date and time settings in your operating system, you will also change these settings. Some applications may also alter data files to reflect these changes.

BIOS Utilities

SATA Port 1 (Main Menu)

Pressing Enter opens the sub-menu to show the configuration of a HDD on the computer's Serial ATA Port 1. Use the Auto (Type:) setting to have the items configured automatically for you.

System/Extended Memory (Main Menu)

This item contains information on the system memory, and is not user configurable. The system will auto detect the amount of memory installed.

Advanced Menu

Figure 5 - 2 Advanced Menu

SATA Mode Selection

Choose the data transfer mode for the SATA controller (the default setting is AHCI).

BIOS Utilities

Legacy USB Support (Advanced Menu)

Use this menu item to enable/disable the support for Legacy Universal Serial Bus in non-USB aware operating systems.

Boot-time Diagnostic Screen (Advanced Menu)

Use this menu item to enable/disable the Boot-time Diagnostic Screen or POST screen (see "The Power-On Self Test (POST)" on page 5 - 2).

Reset Configuration Data (Advanced Menu)

This item is set to No as default. You can change the setting to Yes if you have installed a new add-on which has reconfigured the system, resulting in such a serious system conflict that the operating system is unable to boot.

Power On Boot Beep (Advanced Menu)

Use this menu item to enable/disable the beep as the computer starts up.

Battery Low Alarm Beep (Advanced Menu)

Use this menu item to enable/disable the audible warning when the battery has reached low power status.

Detect External CRT (Advanced Menu)

This menu allows you to Enable/Disable detection for External CRT's (external displays). You can disable detection to save system power.

Enhance USB ODD detection (Advanced Menu)

This menu allows you to Enable/Disable enhanced detection for External USB ODD (optical device drives e.g. DVD drives). You can disable detection to speed up boot time, or enable it if you are having problems with detecting any attached USB ODDs.

BIOS Utilities

Security Menu

The changes you make here affect the access to the Setup utility itself, and also access to your machine as it boots up after you turn it on. These settings do not affect your machine or network passwords which will be set in your software OS.

Figure 5 - 3 Security Menu

Security Menu

Phoenix TrustedCore(tm) Setup Utility
MainAdvanced Security BootExit ItemSpecificHelp
Supervisor Password Is: Clear User Password Is: Clear Set Supervisor Password [Enter] Set User Password [Enter] Password on boot: [Disabled]					Supervisor Password controls access to the setup utility.
F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults Esc Exit ↔ Select Menu Enter Select ▶Sub-Menu F10 Save and Exit

Set Supervisor Password (Security Menu)

You can set a password for access to the Phoenix TrustedCore Setup Utility. This will not affect access to the computer OS (only the Phoenix TrustedCore Setup Utility).

Set User Password (Security Menu)

You can set a password for user mode access to the Phoenix SecureCore Setup Utility. This will not affect access to the computer OS, (only the Setup utility) unless you choose to set a Password on Boot (see below). Many menu items in the Phoenix SecureCore Setup Utility cannot be modified in user mode. You can only set the user password after you have set the supervisor password.

Password on boot (Security Menu)

Specify whether or not a password should be entered to boot the computer (you may only set a password on boot if a supervisor password is enabled). If "Enabled" is selected, only users who enter a correct password can boot the system (see the warning in the sidebar). The default setting is "Disabled".

Fixed disk boot sector (Security Menu)

If you choose "Write-Protect" this will protect against viruses being written to the hard disk boot sector (this is not a substitute for installing an anti-virus program - see "Viruses" on page 8 - 4).

Note: To clear existing passwords press Enter and type the existing password, then press Enter for the new password (without typing any password entry) and Enter again to confirm the password clearance.

Password Warning

If you set a boot password (Password on boot is "Enabled"), NEVER forget your password.

The consequences of this could be serious. If you cannot remember your boot password you must contact your vendor and you may lose all of the information on your hard disk.

Figure 5 - 4

Boot Menu

Boot Menu

PhoenixTrustedCore(tm)SetupUtility
MainAdvancedSecurity Boot Exit
					ItemSpecificHelp
Bootpriorityorder: 1:USBKEY: 2:USBCDROM: 3:IDEHDD: SAMSUNGHM160HI-(S1) 4:IDEFDC: 5:USBCDROM: 6:USBHDD: 7:PCIBEV:KMC26XFastEthernetContr 8: Excludedfrombootorder: :USBZIP:					Keysusedtoviewor configureddevices: UpandDownarrows selectadevice. <+>and<->moves thedeviceupordown. <x>excludeorinclude thedevicetoboot. <Shift+1>enablesor disablesadevice.
F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults sc Exit ↔ Select Menu Enter Select ▶Sub-Menu F10 Save and Exit

When you turn the computer on it will look for an operating system (e.g. Windows Vista) from the devices listed in this menu, and in this priority order. If it cannot find the operating system on that device, it will try to load it from the next device in the order specified in the Boot priority order. Item specific help on the right is available to help you move devices up and down the order.

Exit Menu

Figure 5 - 5 Exit Menu

Choosing to Discard Changes, or Exit Discarding Changes, will wipe out any changes you have made to the Setup. You can also choose to restore the original Setup defaults that will return the Setup to its original state, and erase any previous changes you have made in a previous session.

BIOS Utilities

Chapter 6: Upgrading The Computer

Overview

This chapter contains information on upgrading the computer. Follow the steps outlined to make the desired upgrades. If you have any trouble or problems you can contact your service representative for further help. Before you begin you will need:

• A small crosshead or Phillips screwdriver
• A small regular slotted (flathead) screwdriver
• An antistatic wrist strap

Before working with the internal components you will need to wear an antistatic wrist strap to ground yourself because static electricity may damage the components.

The chapter includes:

• Removing the Battery
• Upgrading the HDD
• Upgrading the System Memory (RAM)

Please make sure that you review each procedure before you perform it.

Warranty Warning

Please check with your service representative before undertaking any upgrade procedures to find out if this will VOID your warranty.

Upgrading The Computer

Power Safety Warning

Before you undertake any upgrade procedures, make sure that you have turned off the power, and disconnected all peripherals and cables (including telephone lines). It is advisable to also remove your battery in order to prevent accidentally turning the machine on.

When Not to Upgrade

These procedures involve opening the system's case, adding and sometimes replacing parts.

You should not perform any of these upgrades if:

• Your system is still under warranty or a service contract
• You don't have all the necessary equipment
• You're not in the correct environment
• You doubt your abilities

Under any of these conditions, contact your service representative to purchase or replace the component(s).

Removal Warning

When removing any cover(s) and screw(s) for the purposes of device upgrade, remember to replace the cover(s) and screw(s) before turning the computer on.

6 - 2 Overview

Removing the Battery

If you are confident in undertaking upgrade procedures yourself, for safety reasons it is best to remove the battery.

1. Turn the computer off, and turn it over.
2. Slide the latches in the direction of the arrows to unlock the battery.
3. Slide the battery out in the direction of the arrow . 2

Figure 6 - 1 Battery Removal

Upgrading The Computer

HDD System Warning

New HDDs are blank. Before you begin make sure: You have backed up any data you want to keep from your old drive.

You have all the CDs/DVDs required to install your operating system and programs.

If you have access to the internet, download the latest application and hardware driver updates for the operating system you plan to install. Copy these to a removable medium.

Upgrading the HDD

The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) HDDs with a height of 9.5mm (h) and a speed of 5400 RPM or lower. Follow your operating system's installation instructions, and install all necessary drivers and utilities (see "Driver Installation" on page 4 - 2), when setting up a new hard disk.

Hard Disk Removals

1. Turn off the computer, and remove the battery.
2. Locate the hard disk bay cover and remove screw .
3. Slide the hard disk assembly in the direction of the arrow . 2
4. Carefully lift the hard disk assembly 3 out of the bay.

Close-up of a laptop's front panel showing the lid and screen area, with a red arrow labeled '3' pointing to a button (no text or symbols on the main subject)

Hard Disk Drive Speeds

If you are going to upgrade/replace the hard disk drive, note that it is recommended that HDDs of a maximum speed of 5400 RPM are used. DO NOT use 7200rpm or higher HDDs.

Figure 6 - 2

Keyboard Release

Upgrading The Computer

1. Remove screws -4ron7the hard disk assembly.
2. Separate the hard disk from the case.
3. Insert the new hard disk into the case and pay careful attention to the disk's orientation in the case.
4. Secure the disk with the four screws and then reinsert the hard disk assembly into the computer's hard disk bay.
5. Replace the hard disk bay screw (see Figure on page 6 - 5).

Figure 6 - 3 HDD Removal

6 - 6 Upgrading the HDD

Upgrading the System Memory (RAM)

The computer has one memory socket for 200 pin Small Outline Dual In-line (SO-DIMM) DDRII (DDR2) type memory modules (see "Memory" on page C - 2 for details of supported module types).

The total memory size is automatically detected by the POST routine once you turn on your computer.

1. Turn off the computer, and remove the battery.
2. Carefully press in the three keyboard latches (1 - 3) at the top of the keyboard to elevate the keyboard from its normal position (you will need to use a small screwdriver to do this).
3. Carefully lift the keyboard u4(do not bend the keyboard ribbon cable). 5

Figure 6 - 4 Keyboard Release

Upgrading The Computer

Figure 6 - 5 RAM Module Release Latches

1. Gently pull the two release latches on the sides of the memory socket in the direction indicated by the arrows (6) and (7) in Figure 6 - 5.

Close-up of a green computer RAM module with two black memory chips and two blue circular annotations (no readable text or symbols)

Contact Warning

Be careful not to touch the metal pins on the module's connecting edge. Even the cleanest hands have oils which can attract particles, and degrade the module's performance.

Figure 6 - 6 RAM Module Removal

1. The RAM module will p8-up, and you can remove it.

Close-up of a green computer RAM module with multiple black chips, placed on a workbench (no visible text or symbols)

6 - 8 Upgrading the System Memory (RAM)

Upgrading The Computer

1. Insert a new module holding it at about a 30^ angle and fit the connectors firmly into the memory slot.

2. The module's pin alignment will allow it to only fit one way. Make sure the module is seated as far into the slot as it will go. DO NOT FORCE the module; it should fit without much pressure.

3. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.

4. Secure the keyboard, replace the battery and restart the computer to allow the system to detect the hard disk drive.

5. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.

Re-Inserting the Keyboard

When re-inserting the keyboard firstly align the three keyboard tabs at the bottom of the keyboard with the slots in the case.

Upgrading The Computer

A

Warranty

The CPU is not a user serviceable part. Accessing the CPU in any way, may violate your warranty.

Unauthorized tampering with the HDD may also violate your warranty.

Upgrading the Processor

If you want to upgrade your computer by replacing the existing processor with a faster/new one you will need to contact your customer service representative. We recommend that you do not do this yourself, since if it is done incorrectly you may damage the processor or mainboard.

Chapter 7: Additional Modules

Overview

This chapter contains information on the following modules, which come with your computer.

• PC Camera Module
- Wireless LAN Module

Driver Installation & Module Power

Make sure any modules (e.g. PC Camera or WLAN are ON before installing the appropriate driver).

A

Wireless Device Operation Aboard Aircraft

The use of any portable electronic transmission devices aboard aircraft is usually prohibited. Make sure the module(s) are OFF if you are using the computer aboard aircraft.

Additional Modules

Taking Still Pictures

Double-click the My computer icon of the desktop or, from the Start menu, point to My computer and click.

Double-click the camera icon. Click Take new photo in the Camera Tasks folder.

PC Camera Module

Use the Fn + F10 key combination (see "Function/Hot Key Indicators" on Chapter 1) to toggle power to the PC Camera module.

The PC camera is supported by the embedded Windows drivers.

The Device Drivers & User's Manual CD also includes the BisonCam application, you may want to install to capture video files and to take pictures. Before installing the driver, make surh that the optional PC Camera is on (the PC Camera's default power state is off)

PC Camera Driver & Bison Cam application Installation

1. Make sure the module is powered on, and then insert the Device Drivers & User's Manual disc into the CD/DVD drive.
2. Browse the CD and go to the Drivers / Camera folder.
3. Start the executable file ("Setup.exe").
4. Choose the language you prefer and click Next.
5. Click Next > Finish to restart the computer.
6. Run the BisonCap application program from the BisonCam shortcut on the desktop, or from the BisonCam item in the Start > Programs/All Programs menu (if the hardware is turned off use the Fn + F10 key combination to turn it on again).

7 - 2 PC Camera Module

PC Camera Audio Setup

If you wish to capture video & audio with your camera, it is necessary to setup the audio recording options in Windows.

1. Go to the Start menu and point to Settings (or just click Control Panel) and click Control Panel, then double-click the Sounds & Audio Devices icon (Sounds, Speech, and Audio Devices in Category View).
2. Click Advanced in the Volume > Device volume tab.
3. Click Options and scroll down and click Properties.
4. Select Realtek HD Audio Input from the Mixer device menu.
5. Make sure the Mic Volume (check box) is checked, then click OK.
6. Boost the volume in the Recording section (in the Recording Control menu) as high as it will go, and make sure the Select check box is checked.
7. Close the Recording Control window, and then click OK.
8. Double-click the Realtek HD Audio Manager icon in the task bar /control panel.
9. Click Mixer (tab)
10. Click the button under Mic Volume to select it (you can boost the volume level as high as required).
11. Click OK to close the control panel.
12. Run the BisonCap application program from the Start > Programs/All Programs > BisonCam menu.
13. Go to the Devices menu heading and select Realtek HD Audio Input (it should have a tick alongside it).

Additional Modules

A

Wireless Device Operation Aboard Aircraft

The use of any portable electronic transmission devices aboard aircraft is usually prohibited. Make sure the module(s) are OFF if you are using the computer aboard aircraft.

Use the Fn + F11 key combination to toggle power to the WLAN module, and check the indicator to see if the module is powered on or not (see Table 1 - 2, on page 1 - 9/ Table 1 - 3, on page 1 - 11).

Wireless LAN Module

Make sure that the Wireless LAN module is on before installing the driver (the WLAN module's default power state is off).

Use the Fn + F11 key combination (see "Function/Hot Key Indicators" on Chapter 1) to toggle power to the Wireless LAN module. Make sure you install the drivers in the order indicated in Table 4 - 1, on page 4 - 2.

Additional Modules

802.11b/g or 802.11n WLAN Driver Installation

1. Make sure the module is powered on, and then insert the Device Drivers & User's Manual disc into the CD/DVD drive.
2. Browse the CD and go to the Drivers / WLAN folder.
3. Start the executable file ("Setup.exe").
4. Choose the language you prefer and click Next.
5. Click Next > Install.
6. Click Finish.
7. In Win 7, the default setting for control of the Wireless LAN is the operating system.

Network Connection

Use the Windows Network Connections control panel to access available wireless networks (Start > Settings > Network Connections or Start > Connect To > Show all Connections).

Figure 7 - 1

Wireless Network

Control Panels

Additional Modules

1. Access any available wireless network from Windows Network connections > Wireless network connection in Windows (or click the wireless network icon in the task bar), then click Display wireless network.

7 - 6 Wireless LAN Module

Chapter 8: Troubleshooting

Overview

Should you have any problems with your computer, before consulting your service representative, you may want to try to solve the problem yourself. This chapter lists some common problems and their possible solutions. This can't anticipate every problem, but you should check here before you panic. If you don't find the answer in these pages, make sure you have followed the instructions carefully and observed the safety precautions in the preface. If all else fails, talk to your service representative. You should also make a record of what happened and what remedies you tried.

Of course, if something goes wrong, it will happen at the most inconvenient time possible, so you should preview this section just in case. If, after you've tried everything, and the system still won't cooperate, try turning it off for a few minutes and then rebooting. You will lose any unsaved data, but it may start working again. Then call your service representative.

Troubleshooting

Basic Hints and Tips

Many of the following may seem obvious but they are often the solution to a problem when your computer appears not to be working.

• Power - Is the computer actually plugged into a working electrical outlet? If plugged into a power strip, make sure it is actually working. Check the LED Power & Communication Indicators to see the computer's power status.
• Connections - Check all the cables to make sure that there are no loose connections anywhere.
• Power save options - Check that in Power Management/Power Options (see "Configuring the Power Button" on page 3 - 8), the key combination Fn + F4 or the power button are set to wake up the system.
• Brightness - Check the brightness of the screen by pressing the Fn + F8 and F9 keys to adjust the brightness.
• Display Choice - Press Fn + F7 to make sure the system is not set to "external only" display.
• Boot Drive - Make sure there are no optical media and/or USB storage devices in any connected drive when you start up your machine (this is a common cause of the message "Invalid system disk - Replace the disk, and then press any key" / "Remove disks or other media. Press any key to restart").

8 - 2 Basic Hints and Tips

Backup and General Maintenance

• Always backup your important data, and keep copies of your OS and programs safe, but close to hand. Don't forget to note the serial numbers if you are storing them out of their original cases, e.g. in a CD wallet.
• Run maintenance programs on your hard disk and OS as often as you can. You may schedule these programs to run at times when you are not using your computer. You can use those that are provided free with your OS, or buy the more powerful dedicated programs to do so.
• Write down your passwords and keep them safe (away from your computer). This is especially important if you choose to use a Supervisor password for the BIOS (see "The Power-On Self Test (POST)" on page 5 - 2).
• Keep copies of vital settings files such as network, dialup settings, mail settings etc.(even if just brief notes).

Warranty

The CPU is not a user serviceable part. Opening this compartment, or accessing the CPU in any way, may violate your warranty.

Troubleshooting

Viruses

• Install an Anti-Virus program and keep the definitions file (the file which tells your program which viruses to look for) up to date. New computer viruses are discovered daily, and some of them may seriously harm your computer and cause you to lose data. Anti-Virus programs are commercially available and the definitions file updates are usually downloadable directly from the internet.
• Be careful when opening e-mail from sources you don't know. Viruses are often triggered from within e-mail attachments so take care when opening any attached file. You can configure most Anti-Virus programs to check all e-mail attachments. Note: You should also beware of files from people you know as the virus may have infected an address book and been automatically forwarded without the person's knowledge.
• Keep a "Bootable CD-ROM/DVD-ROM/USB storage device" (this CD/DVD/USB device provides basic information which allows you to startup your computer) handy. You may refer to your OS's documentation for instructions on how to make one, and many Anti-Virus programs will also provide such a disk (or at least instructions on how to make one).

Upgrading and Adding New Hardware/Software

• Do not be tempted to make changes to your Windows Registry unless you are very sure of what you are doing, otherwise you will risk severely damaging your system.
• Don't open your computer or undertake any repair or upgrade work if you are not comfortable with what you are doing.
• Read the documentation. We can assume, since you are reading this that you are looking at the computer's manual, but what about any new peripheral devices you have just purchased? Many problems are caused by the installation of new hardware and/or software. Always refer to the documentation of any new hardware and/or software, and pay particular attention to files entitled "READ ME" or "READ ME FIRST".
• When installing a new device always make sure the device is powered on, and in many cases you will need to restart the computer. Always check that all the cables are correctly connected.
• Make sure you have installed the drivers for any new hardware you have installed (latest driver files are usually available to download from vendor's websites).
• Thoroughly check any recent changes you made to your system as these changes may affect one or more system components, or software programs. If possible, go back and undo the change you just made and see if the problem still occurs.
• Don't over complicate things. The less you have to deal with then the easier the source of the problem may be found; Example - if your computer has many devices plugged into its ports, and a number of programs running, then it will be difficult to determine the cause of a problem. Try disconnecting all of the devices and restarting the computer with all the peripheral devices unplugged. A process of elimination (adding and removing devices and restarting where necessary) will often find the source of a problem, although this may be time consuming.

Troubleshooting

Problems and Possible Solutions

Problem Possible Cause	- Solution
You turned on thepowerbut it doesn’t work.	Battery missing / incorrectly installed. Check the battery bay, make sure the battery is present and seated properly (the design of the battery only allows it to go in one way). Make sure there’s nothing interfering with the battery contacts.
The batteryLED powerindicatorblinking orange.	low Battery. Plug in the DC power source. If the computer doesn’t start up immediately, turn it off then on again.
You arelosing battery powertoo quickly.	The system is using too much power. If your OS has aPower Options Scheme (see “Power Schemes” on page 3 - 4) check its settings. You may also be using a USB device/external device that is drawing a lot of power.
Actualbattery operating timeis shorter than expected.	The battery has not been fully discharged before being recharged. Make sure the battery is fully discharged and recharge it completely before reusing (see “Battery Information” on page 3 - 6).Power Options have been disabled. Go to theControl Panelin Windows and re-enable the options.A peripheral device is consuming a lot of power. Turn off the unused device to save power.

Troubleshooting

Problem Possible Cause	- Solution
The computer feels too hot.	Make sure the computer is properly ventilated and the Vent/Fan intakes are not blocked. If this doesn’t cool it down, put the system intoHibernatemode or turn it off for an hour. Make sure the computer isn’t sitting on a thermal surface.Make sure you’re using the correct adapter.Make sure that your notebook is completely powered off before putting it into a travel bag (or any such container). Putting a notebook which is powered on in a travel bag may cause the Vent/Fan intakes to be blocked.
Nothing appears on screen.	The system is in a power saving mode. Toggle the sleep/resume key combination, Fn + F4 (see “Hibernate” on page 3 - 7/“Configuring the Power Button” on page 3 - 8).The screen controls need to be adjusted. Toggle the screen control key combinations Fn + F8/F9. If you’re connected to an external monitor, make sure it’s plugged in and turned on. You should also check the monitor’s own brightness and contrast controls.The computer is set for a different display. Toggle the screen display key combination, Fn + F7. If an external monitor is connected, turn it on.The screen saver is activated. Press any key or touch the TouchPad.

Troubleshooting

Problem Possible Cause	- Solution
No image appears on the external monitor I have plugged in and powered on.	You haven't installed the video driver and configured it appropriately from the Control Panel. See "Display Devices & Options" on page B - 5 for instructions on installing and configuring the video driver.
You forget the boot password.	If you forget the password, you may have to discharge the battery of the CMOS. Contact your service representative for help.
Password WarningIf you choose to set a boot password, NEVER forget your password. The consequences of this could be serious. If you cannot remember your boot password you must contact your vendor and you may lose all of the information on your hard disk.
The sound cannot be heard or the volume is very low.	The volume might be set too low. Check the volume control in the Volume Control Panel in the Windows taskbar, or use the key combination Fn + F5 and F6 (see "Function/Hot Key Indicators" on Chapter 1) to adjust.
Audio cannot be recorded from the built-in or external microphone.	The audio recording options need to be configured from the Realtek HD Audio Manager. See "Audio Recording from Microphone" on page 2 - 6 for configuration information.
Unwelcome numbers appear when typing.	Check that Num Lock is not turned ON.

8 - 8 Problems and Possible Solutions

Troubleshooting

Problem Possible Cause	- Solution
[1234]Other KeyboardsIf your keyboard is damaged or you just want to make a change, you can use any standard USB keyboard. The system will detect and enable it automatically. However special functions/hot keys unique to the system's regular keyboard may not work.
Thesystem freezeisor the screen goes dark.	The system's power saving features have timed-out. Use the AC/DC adapter, press the sleep (Fn + F4) key combination, or press the power button if no LEDs are lit.
The system never goes into apowersaving mode.	Power Options features are not enabled. Go to theWindowsPower Options menu and enable the features you prefer (see "Battery Information" on page 3 -6). Make sure you have enabledHibernatemode from the control panel.
TheWireless LANmodule cannot be detected.	The module is off. Check the LED indicator (p) and/or function key indicator to see if the WLAN module is on or off (see "Function/Hot Key Indicators" on Chapter 1). If the LED indicator is off, then press the Fn + F11 (WLAN) key combination in order to enable the modules (see "Function/Hot Key Indicators" on Chapter 1).
ThePC Cameramodule cannot be detected.	The module is off. Press the Fn + F10key combination in order to enable the module (see "Function/Hot Key Indicators" on Chapter 1).

Troubleshooting

Problem Possible Cause	- Solution
The Wireless LANor PC Camera modules cannot be configured.	The driver(s) for the module(s) have not been installed. Make sure you have installed the driver for the appropriate module (see the instructions for the appropriate module in "Additional modules" on page 7-1 ).
The Card Reader/Network (LAN) Device does not appear in the Device Manager in Windows.	This is a power saving feature. When not in use the Card Reader/Network (LAN) Device will not appear in the Windows Device Manager as they are not consuming any power. However as soon as the Card Reader is reading from/ writing to an inserted card, or the LAN card is experiencing network activity, the device will reappear in the Windows Device Manager.

Appendix A: Interface (Ports & Jacks)

Overview

The following chapter will give a quick description of the interface (ports & jacks) which allow your computer to communicate with external devices, connect to the internet etc.

Interface (Ports & Jacks) A - 1

Interface (Ports & Jacks)

Notebook Ports and Jacks

Item Description
Card Reader PortMMC / SD /MS	The card reader allows you to use some of the latest digital storage cards. Push the card into the slot and it will appear as a removable device.
DC-In Jack Plug the supplied AC/DC adapter into this jack to power your computer.
External Monitor Port This port allows you to connect an external monitor, or Flat Panel Display, to get dual video or simultaneous display on the LCD and external monitor/FPD.
Headphone-Out Jack	Headphones or speakers may be connected through this jack.Note: Set your system's volume to a reduced level before connecting to this jack.
Microphone-In Jack	Plug an external microphone in to this jack to record on your computer (see “Audio Recording from Microphone” on page 2 - 6 for configuration information).
RJ-45 LAN Jack This port supports LAN (Network) functions.	Note: Broadband (e.g. ADSL) modems usually connect to the LAN port.

A - 2 Interface (Ports & Jacks)

Interface (Ports & Jacks)

Item Description
Security Lock Slot	To prevent possible theft, a Kensington-type lock can be attached to this slot. Locks can be purchased at any computer store.
USB 2.0/1.1 Ports	These USB 2.0 compatible ports (USB 2.0 is fully USB 1.1 compliant) are for low-speed peripherals such as keyboards, mice or scanners, and for high-speed peripherals such as external HDDs, digital video cameras or high-speed scanners etc. Devices can be plugged into the computer, and unplugged from the computer, without the need to turn the system off (if the power rating of your USB device is 500mA or above, make sure you use the power supply which comes with the device).

Interface (Ports & Jacks)

A - 4 Interface (Ports & Jacks)

Appendix B: Intel Video Driver Controls

The basic settings for configuring the LCD are outlined in "Video Features" section.

Intel Video Driver Installation

Make sure you install all the drivers in the order indicated in Table 4 - 1, on page 4 - 2.

Video

1. insert the Device Drivers & User's Manual disc into the CD/DVD drive.
2. Browse the CD and go to the Drivers / Video folder.
3. Start the executable file ("Setup.exe")
4. Follow the installation procedure.
5. Click Finish to restart the computer.

Dynamic Video Memory Technology

Intel ^® DVMT automatically and dynamically allocates as much (up to 256MB) system memory (RAM) as needed to the video system (the video driver must be installed). DVMT returns whatever memory is no longer needed to the operating system.

DVMT Notes

DVMT is not local video memory.

DVMT is not user-configurable.

DVMT will not function in MS-DOS. DOS uses the legacy memory indicated.

Taskbar Icon

You can also access the controller properties from the taskbar. Click on the icon to bring up the menu and scroll to Graphics Properties.

If you cannot see the tray icon go to the Intel(R) Graphics Media Accelerator Driver tab (in the Display Properties > Advanced options) and click the "Show Tray Icon" tickbox.

Figure B - 1 Intel Graphics Properties

Intel Graphics Properties

More advanced video configuration options are provided by the Intel(R) Graphics Media Accelerator Driver for Mobile.

1. Open Display Properties and click Advanced.
2. Click the Intel(R)... tab and click Graphics Properties (button).
3. You can also access Graphics Properties from the Windows Intel(R) GMA Driver for Mobile control panel, or from the taskbar icon

B - 2 Intel Graphics Properties

You may make changes to the devices, color, schemes, Hot Keys etc. by clicking the appropriate menu item or button.

Help Menus

Right-click on many of the items in the tabs to bring up the "What's This?" button.

Click the "What's This?" button to bring up the help menu.

Multiple Display

At least one other display must be attached in order to view Multiple Display selection options.

Figure B - 2

Intel Graphics Media

Accelerator Driver for mobile

(Control Panel Tabs)

Application.exe

You will need to locate the actual application executable (.exe) file, not just the shortcut. To find the application right-click its shortcut on the desktop click Properties. Click the Shortcut (tab) and see where the executable file is located by clicking the Find Target (button). Note the location and you will then be able to browse to this file.

Figure B - 3

Select Scheme

Scheme Options

Use Scheme Options to configure quick settings for applications which require specific resolution and color settings in order to run properly e.g. games, multimedia programs. To set the scheme options:

1. Go to the Graphics Properties control panel (see "Intel Graphics Properties" on page B - 2).
2. Configure your display configuration, resolution etc. as per your requirements, from Display Devices (tab).
3. Click on Scheme Options (button).
4. Type a name for the scheme then click Save.
5. If you want to automatically launch an application when running the scheme click on Browse (button).
6. Browse to the executable file for the application you want to set the scheme for (see sidebar), and click Open to select it.
7. Click Save to save the settings (you can click in the "Restore the display settings after exiting this application" box to return to your original settings when you exit the program).
8. Click OK to exit the program.
9. You can run the scheme by clicking the taskbar icon and selecting the scheme

from Select Scheme.

B - 4 Intel Graphics Properties

Display Devices & Options

Besides the built-in LCD, you can also use an external VGA monitor (CRT) or external Flat Panel Display as your display device. A VGA monitor/Flat Panel Display connects to the external monitor port. The following display modes are available.

Intel Display Mode Description
Single Display One of the connected displays is used as the display device
Multiple Display - Intel(R) Dual Display Clone	Both connected displays output the same view and may be configured independently
Multiple Display - Extended Desktop	Both connected displays are treated as separate devices, and act as a virtual desktop

Attaching Displays

When you first attach an external display you may find that the desktop does not occupy the full screen area. Use either the display's auto adjust/configure controls, or the Intel(R) GMA Driver for Mobile control panel to configure the full screen display.

Function Key Combination

You can use the Fn + F7 key combination to toggle through the display options:

• Notebook Only
• External Display Only
• Notebook + External Display

Make sure you give the displays enough time to refresh.

Table B - 1

Display Modes

Multiple Display

At least one other display must be attached in order to view Multiple Display selection options.

BIOS Setting

Make sure that you have not disabled external display detection in the BIOS if attempting to connect external displays (see "Detect External CRT (Advanced Menu)" on page 5 - 9).

Figure B - 4 Display Devices

Attaching Other Displays

If you prefer to use a monitor or flat panel display, connect it to the external monitor port on the left of the computer.

To Enable Intel(R) Dual Display Clone Mode

1. Attach your external display to the external monitor port, and turn it on.
2. Go to the Intel(R) GMA Driver for mobile control panel and click Display Devices.
3. Click to choose Intel(R) Dual Display Clone (Multiple Display).
4. Click Apply, and OK to confirm the settings change.
5. Click Display Settings to adjust the settings for the attached devices.

Video Settings

Click Video Settings (button) in the Intel(R) GMA Driver for mobile control panel to access settings for Video Quality, Color Control and Video Scaling.

B - 6 Attaching Other Displays

To Enable Extended Desktop Mode:

1. Attach your external display to the external monitor port, and turn it on.
2. Go to the Intel(R) GMA Driver for mobile control panel and click Display Devices.
3. Click to choose Extended Desktop (Multiple Display).
4. Click Apply, and OK to confirm the settings change.
5. Click Display Settings to adjust the settings for the attached devices.

Click the appropriate monitor icon and drag it to match the physical arrangement you wish to use (e.g. the secondary display may be extended left/right/above/below the primary display).

Click Display Settings to make any adjustments required.

Display Settings Extended Desktop

You can have different Colors, Screen Area and Monitor Refresh Rates for each display device provided your monitor can support them.

You can drag the monitor icons to match the physical layout of your displays. Icons and programs may also be dragged between the displays.

Figure B - 5

Extended Desktop

Mode

You can also enable the Extended Desktop mode from the Display Properties control panel (see page B - 8).

Display Settings Extended Desktop

Use the control panel to drag the monitors to match the physical arrangement you wish to use.

You can drag any icons or windows across to either display desktop, which makes it possible to have one program visible in one of the displays, and a different program visible in the other display.

Figure B - 6

Display Properties (Extended Desktop)

To Enable Extended Desktop (Windows Display Properties)

1. Attach your external monitor to the external monitor port, and turn it on.
2. Click Start, point to Settings (or click Control Panel) and click Control Panel (if you are in Category View choose Appearance and Themes).
3. Double-click Display (icon).
4. In the Display Properties dialog box, click Settings (tab).
5. Click the monitor icon (e.g. 2), and make sure you have checked "Extend my Windows desktop onto this monitor." and click Apply.

Click the appropriate monitor icon (e.g. 2 to be able to select the option to extend the desktop on to it.

In this example the Primary monitor 1 is on the left, the secondary display 2 is on the

B - 8 Attaching Other Displays

Attaching Other Displays B - 9

B - 10 Attaching Other Displays

Appendix C: Specifications

Latest Specification Information

The specifications listed in this Appendix are correct at the time of going to press. Certain items (particularly processor types/speeds) may be changed, delayed or updated due to the manufacturer's release schedule. Check with your service center for details.

Specifications

Processor	Video Adapter	Audio
Intel® Atom® N450 processor(1.6 GHz 512KB On-die L2 Cache & 533MHz FSB - BGA Package)	Intel® NM10 Integrated Video CardSupports DirectX 9.0Shared Memory Architecture(up to 256MB shared video memory dynamically allocated from system memory where needed)	High Definition Audio Compliant InterfaceCompliant with Microsoft UAA (Universal Audio Architecture)Direct Sound 3DTM Compatible2 * Built-In SpeakersBuilt-In Microphone
Core Logic
Intel® 82945GSE +82801GBM	BIOS	Pointing Device
Display	One 8Mb SPI Flash ROMPhoenixTM BIOS	Built-in TouchPad (scrolling key functionality integrated)
10.1" WSVGA (1024 * 576) TFT LCD
Memory	Storage	Keyboard
One 200 Pin SO-DIMM Socket Supporting DDRII (DDR2) 533 MHz Memory Memory Expandable up to 2GB	One Changeable 2.5" 9.5 mm (h) SATA(Serial) Hard Disk DriveNote: It is recommended that HDDs of a speed of 5400 RPM are used. DO NOT use 7200rpm HDDs.	"WinKey" keyboard (with embedded numeric keypad)
	Security	Interface
	Kensington Lock	Two USB 2.0 portsHeadset output jackMicrophone input jackA RJ-45 jack for LANA DC input jackA port for external monitor

C - 2 Specifications

Specifications

Communication	Two Mini-card type slots (one for the Wireless LAN module, PCIe type, and an USB for Minicard type)	271mm (w) * 188.6mm (d) * 19.5 - 28mm (h) Around 1.2 kg With Battery
Half Mini-card Wireless LAN 802.11b/g/n module10Mb/100Mb Ethernet LANUSB 1.3M pixel PC camera	Power Management
	Wake On LANWake On USB
Operating System	Power
Windows 7 Starter Edition	Full Range AC/DC AdapterAC Input: 100 - 240V, 50 - 60HzDC Output: 19V, 1.57A/1.58A (30 Watts)
Card Reader
Embedded 7-in-1 Card Reader (MS/ MS Pro/ SD/ Mini SD/ MMC/ RS MMC/ MS Duo)Note: MS Duo/ Mini SD/ RS MMC Cards require a PC adapter	Battery
	Polymer Battery Pack, 3550mAh
	Environmental Spec
	TemperatureOperating: 5°C - 35°CNon-Operating: -20°C - 60°CRelative HumidityOperating: 20% - 80%Non-Operating: 10% - 90%
	Dimensions & Weight

Specifications

C - 4

Directive 2002/96/CE

DIRECTIVE 2002/96/CE ON THE TREATMENT, COLLECTION, RECYCLING AND DISPOSAL OF ELECTRIC AND ELECTRONIC DEVICES AND THEIR COMPONENTS

1. FOR COUNTRIES IN THE EUROPEAN UNION (EU)

The disposal of electric and electronic devices as solid urban waste is strictly prohibited: it must be collected separately. The dumping of these devices at unequipped and unauthorized places may have hazardous effects on health and the environment.

Offenders will be subjected to the penalties and measures laid down by the law.

To dispose of our devices correctly:

a) Contact the Local Authorities, who will give you the practical information you need and the instructions for handling the waste correctly, for example: location and times of the waste collection centres, etc.
b) When you purchase a new device of ours, give a used device similar to the one purchased to our dealer for disposal.

The crossed dustbin symbol on the device means that: - When it to be disposed of, the device is to be taken to the equipped waste collection centres and is to be handled separately from urban waste; - Olivetti guarantees the activation of the treatment, collection, recycling and disposal procedures in accordance with Directive 2002/96/CE (and subsequent amendments).

2. FOR OTHER COUNTRIES (NOT IN THE EU)

The treatment, collection, recycling and disposal of electric and electronic devices will be carried out in accordance with the laws in force in the country in question.

Code: 383332 W

OLIVETTI S.P.A. VIA JERVIS, 77 10015 IVREA (TO) ITALY www.olivetti.com
