KS 42456-61/2 - Fridge GRAM - Free user manual and instructions

Brand	Gram
Model	KS 42456-61/2
Product Type	Freestanding Refrigerator with Freezer
Energy Class	A+
Total Net Capacity	350 L
Fridge Net Capacity	250 L
Freezer Net Capacity	100 L
Freezing Capacity	4 kg/24h
Climate Class	SN-T
Noise Level	42 dB(A)
Annual Energy Consumption	280 kWh/year
Dimensions (H x W x D)	185 cm x 60 cm x 65 cm
Weight	70 kg
Refrigerant	R600a
Defrosting System	Automatic defrost in fridge, manual in freezer
Shelves Material	Glass
Door Reversibility	Yes, reversible door
Cooling Technology	Static cooling
Interior Light	LED
Cleaning	Clean with mild soap and water; avoid abrasive cleaners
Safety	Overheat protection, child lock (if applicable)
Spare Parts Availability	Original spare parts available for 10 years after purchase
Warranty	2 years

Frequently Asked Questions - KS 42456-61/2 GRAM

How do I set the temperature on my Gram KS 42456-61/2 fridge?

Use the thermostat dial inside the fridge compartment. Turn it clockwise to lower the temperature (colder) and counterclockwise to raise it. The recommended setting is medium (3-4). For the freezer, adjust similarly if there is a separate dial.

Why is my fridge not cooling properly?

Check if the power cord is plugged in and the thermostat is set correctly. Ensure the door is closed properly and the door gasket is clean. Also, check if the condenser coils at the back are dusty. Defrost the freezer if ice build-up is excessive. If the problem persists, contact service.

How do I defrost the freezer?

When ice build-up reaches about 3-5 mm, turn off the appliance and remove all food. Leave the door open and place towels to catch water. Do not use sharp objects to remove ice. Once defrosted, clean and dry the interior before turning it back on.

How do I clean the fridge?

Unplug the appliance. Remove all food and shelves. Wash the interior with a mild detergent and warm water. Rinse and dry thoroughly. Clean the door gasket with soapy water. Avoid harsh chemicals or abrasive pads.

Why is my fridge making unusual noises?

Normal operating sounds include the compressor hum, refrigerant flow, and occasional clicks. Louder sounds may indicate the fridge is not level, so adjust the feet. Vibrations can be reduced by ensuring items inside are stable and not touching the walls.

Can I reverse the door opening direction?

Yes, the door is reversible. You will need to remove the hinges, door, and handle, then reattach them on the opposite side. Refer to the manual for detailed instructions. The necessary parts are usually included.

What is the recommended temperature for the fridge and freezer?

For the fridge compartment, the ideal temperature is between 3°C and 5°C. The freezer should be set between -18°C and -20°C to keep food frozen safely.

How can I save energy with my refrigerator?

Keep the appliance away from direct sunlight and heat sources. Ensure good ventilation around the back. Allow hot food to cool before placing inside. Do not keep the door open for long. Defrost regularly and clean the condenser coils annually.

What should I do if the interior light does not work?

The light is an LED that is not user-replaceable. If it fails, contact authorized service for replacement. In the meantime, the appliance will still cool but you may need additional lighting.

How do I transport the fridge?

Empty and defrost the appliance completely. Secure the doors with tape and keep the appliance upright during transport. If it must be tilted, tilt it no more than 45 degrees. After transport, let it stand upright for 2-3 hours before plugging in.

USER MANUAL KS 42456-61/2 GRAM

Diagram showing a device with wires and connectors, no text or symbols present

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

Pure technical drawing of a mechanical part with two stacked rectangular sections (no text or symbols)

Placering af maden

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Pure electrical circuit lines without any symbols

Dette produktet er i samsvar med EU-direktivet som omhandler elektronisk og elektrisk utstyr (2012/19/EU). Dette produktet har et klassifiseringsymbol for sortering av avfall elektrisk

Illustration of two people working inside a large industrial machine (no text or symbols visible)

Elektrisk tilkobling

Tilkople produktet til et jordet uttak som er beskyttet av en sikring med riktig kapasitet.

Viktig:

Diagram showing a rectangular structure with upward and downward arrows indicating motion or force directions, no text or symbols present.

4 Forberedelse

5 Bruke kjøleskapet

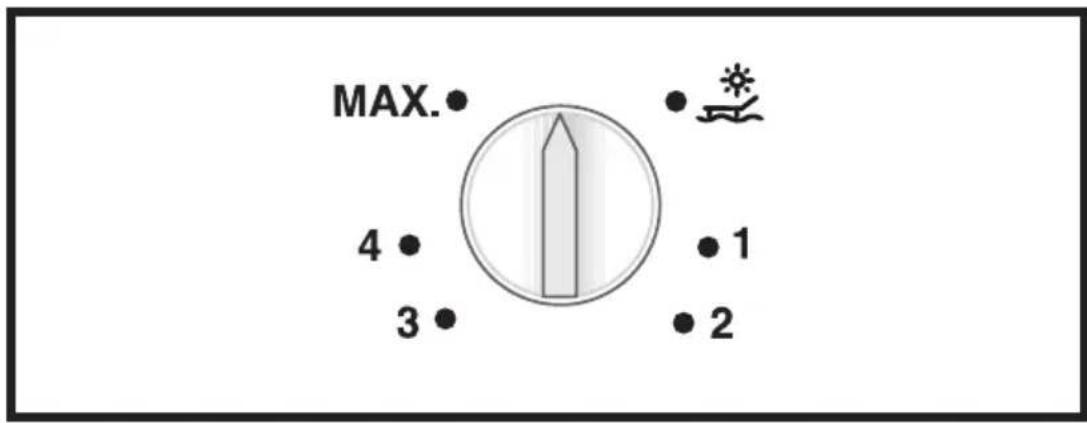

Termostatknapp

Technical line drawing of a two-tiered storage unit or enclosure (no text or symbols)

Diagram showing a mechanical or electrical component with a lightning bolt and wiring, no text or symbols present

Pure electrical circuit lines without any symbols

Diagram showing a beam supported at both ends with directional arrows indicating motion or force (no text or symbols)

Byta lampan

Pure technical drawing of a mechanical part with two stacked views (no text or symbols)

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Pure electrical circuit lines without any symbols

Diagram showing two vertical supports with curved arrows indicating rotational motion (no text or symbols)

Lampun vaihtaminen

Please read this user manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.

Therefore, read this entire user manual carefully before using the product and keep it as a reference. If you handover the product to someone else, give the user manual as well.

The user manual will help you use the product in a fast and safe way.

• Read the manual before installing and operating the product.
• Make sure you read the safety instructions.
• Keep the manual in an easily accessible place as you may need it later.
• Read the other documents given with the product.

Remember that this user manual is also applicable for several other models.

Differences between models will be identified in the manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

i Important information or useful tips.

⚠ Warning against dangerous conditions for life and property.
⚠ Warning against electric voltage.

1 Your refrigerator 3

2 Important Safety Warnings 4

Intended use ....4

General safety 4

Compliance with WEEE Directive and

Disposing of the Waste Product: .....7

Compliance with RoHS Directive: .....7

Package information ....7

HC Warning 8

Energy-saving precautions ....8

3 Installation 9

Points to be considered when re-transporting your refrigerator .....9

Before operating your refrigerator .....9

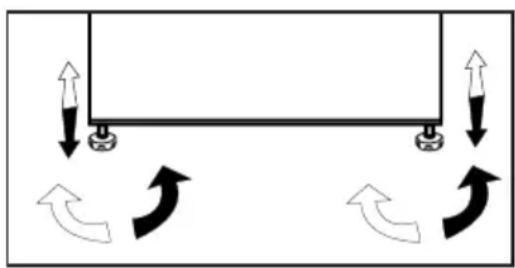

Adjusting the legs 10

Disposing of the packaging .....10

Disposing of your old refrigerator .....10

Placing and Installation ....10

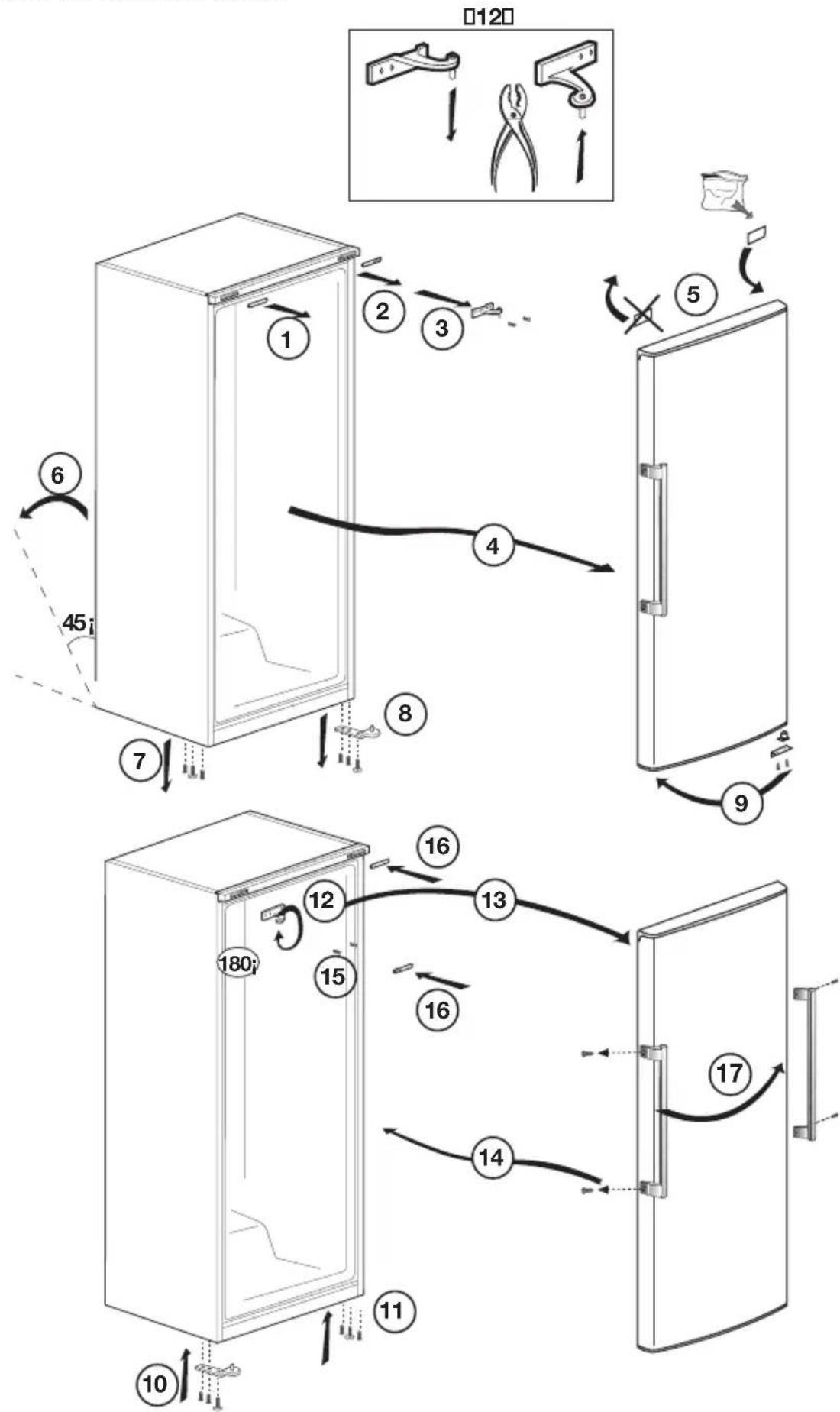

Reversing the door .....11

Proceed in numerical order. .....11

4 Preparation 12

5 Using your refrigerator 13

Using interior equipment .....13

Glass shelves: 13

Vacation Function 13

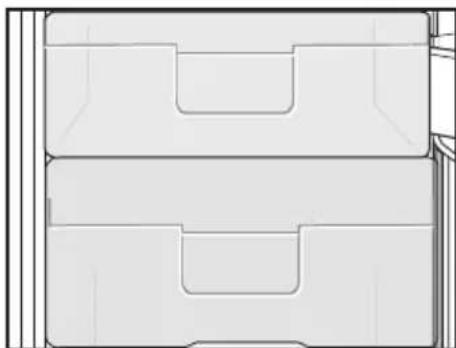

Chill compartment 14

Cooling 15

Placing the food 15

6 Maintenance and cleaning 16

Protection of plastic surfaces .....16

7 Recommended solutions for the problems 17

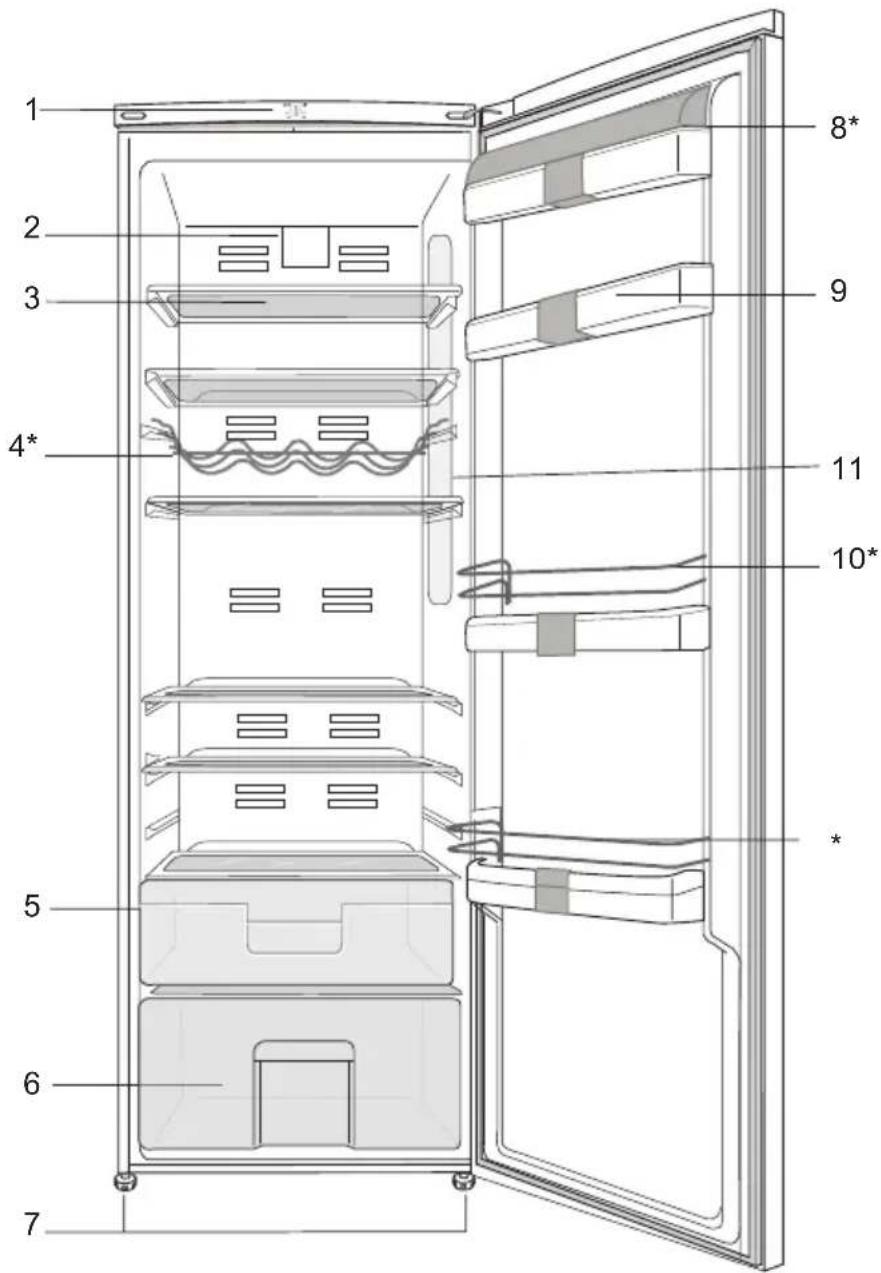

1 Your refrigerator

1. Control panel
2. Fan
3. Removable glass shelves
4. Wine shelf
5. FreshZone

6. Vegetable drawer

7. Adjustable legs

8. Dairy compartment
9. Door shelves
10. Chrome wire
11. Illumination lens

* OPTIONAL

C Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

2 Important Safety Warnings

Please read through the following information. If this information is not followed, personal injury or material damage may occur and all warranty and reliability commitments will become invalid.

Intended use

• This product is designed for domestic use.
• It should not be used outdoors. It is not appropriate to use it outdoor even if the place is covered with a roof.

General safety

• When you want to dispose of the product, we recommend you to consult the authorized service in order to get information on disposal and available facilities.
• Consult GRAM service for all your questions and problems related to the refrigerator.
• Vapor and vaporized cleaning materials should never be used in connection with the

cleaning and defrosting of your refrigerator. In such cases, the vapor might get in contact with the electrical parts and cause short circuit or electric shock.

• Never use the equipment from your refrigerator such as the door as a support or a step.
• Do not use electrical devices inside the freezer.
• Do not damage the cooling circuit, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured may cause skin irritations and eye injuries.
• Do not cover or block the ventilation holes on your refrigerator with any material.
  • Repairs of the electrical appliances must only be made by qualified

people. Repairs performed by unqualified people may cause a risk for the user.

- In case of any failure, maintenance or repair, disconnect your refrigerator's mains supply by either turning off the relevant fuse or by unplugging your appliance.

- Do not pull the cable when pulling out the plug.

- Flammable items or products that contain flammable gases (e.g. spray) as well as explosive materials must never be kept in the appliance.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than the ones recommended by the manufacturer.

- Do not operate a damaged freezer. Consult GRAM service if you have any doubts. - Electrical safety of your will only be covered by

the guaranteebe covered by the guarantee if the earth system in your house complies with standards.

• Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.
• Contact the GRAM service when there is a power cable damage and etc. so that it will not create a danger for you.
• Never plug the freezer into the outlet during installation or a, risk of death or serious injury may occur.
• This freezer is only only designed for storing food. It should not be used for any other purposes.
• The label that describes the technical specification of the product is located on the inner left side of the freezer.

• Do not connect the freezer to electronic energy saving systems which turn off the _EN electricity as they may damage the product.

• If the power supply is disconnected in manually controlled freezers please wait for at least 5 minutes before reconnecting the power.

• This user guide should be passed to the next owner of the freezer if the ownership changes.

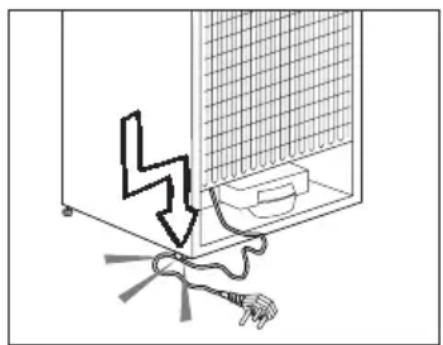

• When moving the freezer make sure that you do not damage the power cord. In order to prevent fire the power cord must not be twisted. Heavy objects should not be placed on the power cord. When the freezer is plugged into the socket do not touch the power outlet with wet hands.

Diagram showing a device with a lightning bolt and cable, no text or symbols present

• Do not connect the freezers if the electric outlet is loose.
• Do not splash water directly on the outer or

inner parts of the freezer due to safety.

• Do not spray inflammable materials such as propane gas etc near the freezer due to the risk of fire and explosion.

- Do not place objects filled with water on top of the freezer as it may result in electric shock or fire.

- Do not overload the freezer with excess food. The excess food may fall out when the door is opened resulting in injuring you or damaging the freezer. Do not place objects on top of the refrigerator as the objects may fall out when opening or closing the freezer door.

- If the freezer will not be operated for an extended period of time it should be unplugged. A problem in the electrical cable insulation may result in fire.

- The tip of the electric plug should be cleaned regularly otherwise it may

• The freezer may move when the adjustable feet are not positioned firmly on the floor. By using the adjustable feet you can ensure that the freezer is positioned firmly on the floor.
• Do not pull the freezer by the door handle when moving the product as it may disconnect the handle from the refrigerator.
• If you want to place two products side by side, we recommend you to buy a decoration kit, which includes a mat to be placed on the side of the product. A decoration part is placed between the products to hide the gap between the products.

Child safety

- Children should be supervised to ensure that they do not play with the appliance

Compliance with WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE

Pure electrical circuit lines without any symbols

Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with

high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

Compliance with RoHS Directive:

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

HC Warning

- This product is equipped with a cooling system that contains R600a:

This gas is flammable. Therefore, pay attention not to damage the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product to catch a fire and ventilate the room in which the unit is placed.

Energy-saving precautions

• Do not leave the door of your freezer open for a long time.
• Do not overload your freezer so that the air circulation inside of it is not prevented.
• Do not install your freezer under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators.
• Pay attention to keep your food in closed containers.

3 Installation

⚠️ Please remember that the manufacturer shall not be held liable if the information given in the user guide is not observed.

Points to be considered when re-transporting your refrigerator

1. Your refrigerator must be emptied and cleaned prior to any transportation.
2. Shelves, accessories, and etc. have to be fastened securely by adhesive tape against any jolt before repackaging.
3. Packaging must be tied with thick tapes and strong ropes and the rules of transportation printed on the package must be followed.

Please do not forget...

That recycled material is an indispensable source for the nature and for our national resources. If you would like to contribute to the recycling of the packaging materials, you can get further information from the environmental bodies or local authorities.

Before operating your refrigerator

Before starting to use your refrigerator check the following:

1. The interior of the refrigerator has to be dry and it is possible for the air to circulate freely at the back of the appliance.

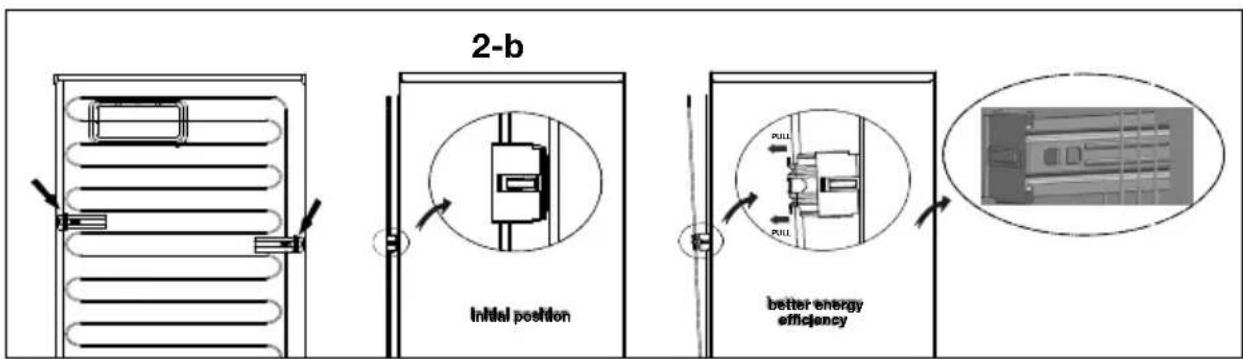

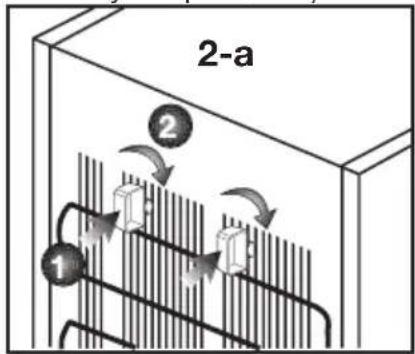

2. a) You can install the 2 spacers as illustrated in the figure. Spacers will provide the required distance between your refrigerator and the wall in order to allow the air circulation. (The illustrated figure is only an example and does not match exactly with your product.)

1. b) The condenser of your appliance is located on the back as shown below. In order to achieve better energy efficiency with lower energy consumption, please pull the condenser towards yourself as illustrated in picture below.

*may not be available in all models

1. Clean the interior of the refrigerator as recommended in the “Maintenance and cleaning” section.
2. . Plug the refrigerator into the outlet. When the door is open the interior light in the refrigerator compartment will be switched on.
3. . You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.
   6.. The front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

Electric connection

Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity.

Important:

• The connection must be in accordance with with national regulations.
• The power cable plug must be easily accessible after installation.
• Extension cords and connector must not be used for connection.

⚠ A damaged power cable must be replaced by a qualified electrician.

Disposing of the packaging

The packaging may be dangerous for children. Keep it out of the reach of children or dispose of it by classifying it in accordance with the waste instructions. Do not dispose of it together with the normal household waste.

The packaging of your refrigerator is made from recyclable materials.

- Disposing of your old refrigerator

Dispose of your old refrigerator without harming to the environment.

- You may consult your authorized retailer or the recycling depot in your municipality about the disposal of your refrigerator.

Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Placing and Installation

1. Install your refrigerator in a place that allows ease of use.
2. There must be appropriate air ventilation around your refrigerator in order to achieve an efficient operation.
3. Place your refrigerator on an even floor surface to prevent jolts.
4. Do not keep your refrigerator in ambient temperatures under 10^ C.

Adjusting the legs

If your refrigerator is unbalanced; You can balance your refrigerator by turning its front legs as illustrated in the figure. The corner where the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.

Diagram showing a beam supported at both ends with upward and downward arrows indicating force or motion (no text or symbols)

Changing the illumination lamp

To change the Bulb/LED used for illumination of your refrigerator, call .your AuthorisedService The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way. The lamps used in this appliance have to withstand extreme physical conditions .such as temperatures below -20 °C (only chest and upright freezer)

This product is equipped with a .lighting source of the "G" energy class The lighting source in this product shall only be replaced by professional .repairers

Reversing the door

Proceed in numerical order.

4 Preparation

• For a freestanding appliance; ‘this refrigerating appliance is not intended to be used as a built-in appliance’ ;
• Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.
• The ambient temperature of the room where you install your refrigerator should at least be 10^ C. Operating your refrigerator under cooler conditions than this is not recommended with regard to its efficiency.
• Please make sure that the interior of your refrigerator is cleaned thoroughly.
• If you want to place two products side by side, e.g. a refrigerator and a freezer, as a side by side solution you have to use a decoration kit which contains a small mat and a decoration part. The mat is mounted on the side of one of the products to create a space between the products. The decoration part is placed between the products to hide the gap between the products. The decoration kit is not a part of the product but can be delivered as an accessory.
• When you operate your refrigerator for the first time, please observe the following instructions during the initial six hour.
• The door should not be opened frequently.

• It must be operated empty without any food in it.

• Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section.

• Original packaging and foam materials should be kept for future transportations or moving.
• Due to temperature change as a result of opening/closing the product door during operation, condensation on the door/body shelves and the glass containers is normal.
• Since hot and humid air will not directly penetrate into your product when the doors are not opened, your product will optimize itself in conditions sufficient to protect your food. In this energy saving function, functions and components such as compressor, fan, heater, defrost, lighting, display and so on will operate according to the needs to consume minimum energy while maintaining the freshness of your foodstuff.

5 Using your refrigerator

Thermostat knob

The thermostat knob is located on the top trim of the refrigerator.

Important:

When you adjust the set temperature, there may be a short delay before the compressor starts to operate. This is normal and not a compressor fault.

Using interior equipment Glass shelves:

Distance between the shelves can be adjusted when necessary.

Vegetable drawer: Vegetables and fruits can be stored in this compartment.

Door shelves: Bottles, jars and tins can be placed in these shelves.

Vacation Function

If the doors of the product are not opened for 12 hours after the thermostat is switched to the hottest position, then the vacation function will be activated automatically.

Open the door of the product or change the thermostat setting to cancel the function.

Vacation function is optional. It may vary depending on the product type and may not be contained in every product.

It is not recommended to store food in cooler compartment when the vacation function is active.

Chill compartment

Chill compartment is ideal for storing solid dairy products meat, fish and poultry. Chill compartment temperature remains between -2°C and +3°C, slightly colder than freshfood compartment.

Prior to placing in the freezing compartment for storage, it is advised that you place such foodstuffs in chill compartment first for energy saving and better storage performance. If chill compartment is full, you may use freshfood compartment for this purpose.

It is not recommended to store vegetables and fruits in chill compartment.

The chill compartment drawer is optional to use. The appliance fulfills the chill compartment temperature storage requirements with and without the drawer provided.

You can increase the inner volume of your refrigerator by removing the drawer of chill compartment. Pull the drawer towards yourself until it is stopped by the stopper. Raise the front part for approximately 1 cm and pull the compartment towards yourself again to remove it completely.

Pure technical line drawing of a mechanical component or housing (no text or symbols)

Cooling

Food storage

The fridge compartment is for the short-term storage of fresh food and drinks.

Store milk products in the coldest part in the refrigerator.

Bottles can be stored on the bottle holder or in the doorshelf.

Raw meat is best kept in a polyethylene bag in the compartment at the very bottom of the refrigerator.

i Attention

Do not store explosive substances or containers with flammable propellant gases (canned cream, spray cans etc.) in the device. There is a danger of explosion.

Placing the food

Fridge compartment shelves	Food in pans, covered plates and closed containers
Fridge compartment door shelves	Small and packaged food or drinks (such as milk, fruit juice and beer)
Vegetable drawer Vegetables and fruits

Defrosting of the fridge

The appliance defrosts automatically. The fridge has an automatic defrosting system. It means that it works in a cycle, where it refrigerates when there is frost on the back wall, and it defrosts when water runs down the back wall.

The frost formed on the back wall in the fridge compartment is removed automatically. During the defrosting cycle the water that contains impurity can block the plughole. If this happens, clean the plughole with a cotton bud.

6 Maintenance and cleaning

⚠️ Never use gasoline, benzene or similar substances for cleaning purposes.
⚠️ We recommend that you unplug the freezer before cleaning.

• Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning.
• Use lukewarm water to clean the cabinet of your freezer and wipe it dry.
• Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.
• If your freezer is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.
• Check door seals regularly to ensure they are clean and free from food particles.
  ⚠️ To remove door racks, remove all the contents and then simply push the door rack upwards from the base.
  ⚠️Never use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.

Protection of plastic surfaces

- Do not put liquid oils or oil-cooked meals in your freezer in unsealed containers as they may damage the plastic surfaces of your freezer. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7 Recommended solutions for the problems

Please review this list before calling the GRAM service. It might save you time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

The freezer does not operate.

Is the freezer properly plugged in? Insert the plug to the wall socket.Is the fuse of the socket to which your freezer is connected to or the main fuse blown out? Check the fuse.

Condensation on the side wall of the freezer.

Very cold ambient conditions. Frequent opening and closing of the door. Highly humid ambient conditions. Leaving the door ajar. Switching the thermostat control to a colder temperature.Decreasing the time the doos is left open or using it less frequently.Wipe the condensation using a dry cloth and check if it persists.

The compressor is not running

In case of an electrical cut the freezer cannot start up right away as the compressor has to balance the refrigerant pressure in the cooling system of the freezer. The alignment of the refrigerant pressure will lead to a postponement of the start up by 6 minutes. Please contact GRAM service if the freezer does not start up at the end of this period.The freezer is in the defrost cycle. This is normal for a full-automatically defrosting freezer. The defrostning cycle occurs periodically.Your freezer is not plugged into the socket. Make sure that the plug fits properly into the socket.Are the temperature adjustments correctly made?The power might be cut off.

The freezer is running frequently or for a long time.

Your new product may be wider than the previous one. This is quite normal.Large freezers operate for a longer period of time.The ambient room temperature may be high. This is quite normal.The freezer might have been plugged in recently or might have been loaded with food. Cooling down of the freezer completely may last for a couple of hours longer.Large amounts of hot food might have been put in the freezer recently. Hot food causes longer running of the freezer until it reaches the safe storage temperature.The door might have been opened frequently or left ajar for a long time. The warm air that has entered into the freezer causes the freezer to run for longer periods of time. Open the door less frequently.The freezer door might have been left ajar. Check if the door is tightly closed.The freezer is adjusted to a very low temperature. Adjust the freezer temperature to a warmer degree and wait until the temperature is achieved.The door seal of the freezer may be soiled, worn out, broken or not placed properly. Clean or replace the seal. A damaged or broken sea causes the freezer to run for a longer period of time in order to maintain the current temperature.

The food kept in the fridge compartment drawers are freezing.

The fridge temperature might have been adjusted to a very low temperature.Adjust the fridge temperature to a warmer degree and check.

The temperature in the freezer is very high.

The fridge temperature might have been adjusted to a very high degree. Change the temperature of the freezer until the freezer temperature reaches to a sufficient level.The door might have been opened frequently or left ajar for a long time; open it less frequently.The door might have been left ajar; close the door completely.Large amount of hot food might have been put in the refrigerator recently. Wait until the fridge reaches the desired temperature.The refrigerator might have been plugged in recently. Cooling down of the refrigerator completely takes time.

The operation noise increases when the refrigerator is running.

The operating performance of the refrigerator may change due to the changes in the ambient temperature. It is normal and not a fault.

Vibrations or noise.

The floor is not level or it is weak. The refrigerator rocks when moved slowly.Make sure that the floor is strong enough to carry the freezer, and that the floor is level.The noise may be caused by the items put onto the refrigerator. Items on top of the refrigerator should be removed.

There are noises coming from the refrigerator like liquid spilling or spraying.

Liquid and gas flows happen in accordance with the operating principles of your refrigerator. It is normal and not a fault.

There is a noise like wind blowing.

Fans are used in order to cool the refrigerator. It is normal and not a fault.

Condensation on the inner walls of the refrigerator.

Hot and humid weather increases icing and condensation. It is normal and not a fault.The door might have been left ajar; make sure that the door is closed fully.The door might have been opened frequently or left ajar for a long time; open it less frequently.

Humidity occurs on the outside of the refrigerator

There might be humidity in the air; this is quite normal in humid weather. When the humidity is less, condensation will disappear.

A bad odor inside the refrigerator.

The interior of the refrigerator must be cleaned. Clean the the interior of the refrigerator with a sponge, lukewarm water or carbonated water.Some containers or packaging might cause the smell. Use a different container or different brand packaging..

The door is not closing.

Food packaging may prevent the door from closing. Replace the packaging that are obstructing the door.The refrigerator is not completely upright on the floor and rocking when slightly moved. Adjust the elevation screws.The floor is not level or strong. Make sure that the floor is level and capable to carry the refrigerator.

The vegetable drawers are stuck.

The food might be touching the ceiling of the drawer. Rearrange food in the drawer.

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion, no text or symbols present.

De deur omkeren

4 Voorbereiding

Pure technical drawing of a mechanical part with two stacked rectangular sections (no text or symbols)

Koelen

Bewaren van voedsel
