Product Type	Desk lamp with natural daylight spectrum
Brand	Livarno Lux
Model	LTL 27 A1
Operating Voltage	230 V ~ 50 Hz
Bulb Type	Energy-saving bulb FML 27W
Color Temperature	6400 K
Socket	GX10q
Cable Length	2 m
Base Dimensions (L x W x H)	24 × 17.5 × 5 cm
Lampshade Dimensions (L x W)	27 × 14.5 cm
Fully Extended Height	66 cm
Weight	2.0 kg
Safety Certification	TÜV Süd Product Service safety tested
Flexible Gooseneck	Yes, adjustable up to 45° left/right
On/Off Switch	Yes, on lamp housing
Intended Use	Indoor domestic use only
Replacement Bulb	Same type FML 27W, available from Targa
Cleaning	Dry cloth, slightly dampened if needed; no solvents
Disposal	Separate collection for electronic waste; bulbs disposed properly
Warranty	3 years from date of purchase

Frequently Asked Questions - LTL 27 A1 Livarno Lux

How do I replace the bulb?

Allow the lamp to cool completely, unplug it, remove the U-bolt in the lampshade, carefully pull the old bulb out, insert a new FML 27W bulb, ensure the U-bolt aligns over the pipes, and plug back in.

What type of bulb does this lamp use?

It uses an FML 27W energy-saving bulb with a GX10q socket and a color temperature of 6400 K.

Can I use an extension cord with this lamp?

No, extension cables or multiple outlet strips that do not meet safety requirements should not be used. Always plug directly into a suitable wall socket.

How should I clean the lamp?

Allow the lamp to cool completely, then use a dry cloth. For heavy dirt, use a slightly dampened cloth. Never use solvents or cleaners that could damage the plastic housing.

What is the maximum angle for the gooseneck?

Do not turn the gooseneck more than 45° to the left or right. Do not bend it backwards; instead, rotate the whole lamp housing.

What should I do if the power cable is damaged?

Stop using the lamp immediately. A damaged cable must be replaced only by the manufacturer or an authorized service center. Do not attempt to repair it yourself.

Is this lamp suitable for commercial use?

No, the lamp is designed for indoor domestic use only and is not intended for commercial applications.

How do I dispose of the lamp?

Do not dispose of it with household waste. Follow local regulations for electronic waste. The bulb must be disposed of separately. Packaging materials should be recycled properly.

What is the warranty period?

The lamp comes with a 3-year warranty from the date of purchase against material and manufacturing faults. Keep the receipt as proof of purchase.

How can I contact support?

For the UK, call 0207 - 36 50 744 or email [e-mail]. For other countries, see the manual for local contact details.

USER MANUAL LTL 27 A1 Livarno Lux

Two adjustable desk lamps with focused lighting, displayed on a table with printed materials (no visible text or symbols on the lamps or background)

TRUE COLOUR LAMP LTL 27 A1

TARGA GMBH

Lange Winds 41 D-59494 Soot

Informationen senost updatend - Senesis informationexpanding Last Information Update - Stand der Informationen: 02 / 2012 - Idert-No. ITL 27 A1 022012-1

IAN 73817

BE

Black plastic spoon with three handles, centered at 45° angle (no text or symbols on the spoon itself)

Underhåll/Rengöring

Byte av glödlampa

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Black plastic spoon with three handles and a central body, labeled 45° (no text or symbols on the spoon itself)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Technical Specifications....20

Important Safety Notice....20

Cables 21

Before Getting Started....22

Getting Started....22

Powering the Device On/Off 22

Flexible Gooseneck....22

Maintenance / Cleaning 23

Replacing the Bulb 23

Cleaning....23

Environmental Considerations and Recycling 23

Conformity 24

Details of Guarantee....24

Introduction

Thank you for choosing a LivarnoLux product.

The Daylight Lamp LTL 27 A1 can be used as a desk lamp with a natural light spectrum. The flexible gooseneck allows you to adjust the light to suit your needs.

Intended Use

This lamp is not destined for commercial use. Install this lamp only in enclosed rooms. Always make sure the lamp is always on a stable surface. The device fulfils all that relates to CE Conformity, relevant norms and standards. Any modifications to the device other than recommended changes by the manufacturer may result in these directives no longer being met.

Package Contents

• Energy-Saving Daylight with Bulb FML 27W

This User manual has a fold-out cover. On the inside of the cover the light is shown with figures indicated. The figures have the following meanings:

1	On/Off	button
2	Lampshade
3	Flexible	gooseneck
4	Lamp	stand

Technical Specifications

Manufacturer: LivarnoLux

Model name: LTL 27 A1

Operating voltage: 230 V \~ 50 Hz

Bulb: FML 27W Energy-saving bulb 6400 K Light temperature

Socket: GX10q

Cable length: 2 ~m

Dimensions

Base: 24 × 17.5 × 5 cm (L x W x H)

Lampshade: 27 x 14.5 cm (L x W)

Fully-outstretched height: 66 cm

Weight: 2.0 kg

TÜV Süd Product Service: Safety tested

Before you use this device for the first time, please read the following notes in this manual and heed all warnings, even if you are familiar with handling electronic devices. Keep this manual safe for future reference. If you sell the device or pass it on, it is essential you hand over this manual also.

This icon denotes important information for the safe operation of the product and for the user's safety.

This symbol denotes further information on the topic.

Electrical devices do not belong in the hands of children. Do not allow children to use electrical devices when not under supervision. Children may not comprehend the presence of potential risks. Keep the packaging away from children too as there is danger of suffocation.

If you notice any smoke, unusual noises or strange smells, switch off the device immediately and remove the plug from the wall socket. If this occurs the device should no longer be used and should be inspected by authorised service personnel. Do not inhale any smoke which could have originated from a fire in the device. However, if you do inhale smoke, please consult a doctor. Smoke inhalation can be harmful.

The lamp housing and the power cable must not be damaged in any way. Stop using the lamp immediately if you find any cables damaged. If the housing or cable is damaged, you could potentially get an electric shock.

Do not open the housing of the lamp - it contains no serviceable parts. If the housing is opened, you run the risk of an electric shock.

Therefore, make sure that the lamp is not subject to excessive vibration, as this can cause the light bulb to break. There is a risk of injury if the bulb is broken!

Do not hang anything from the lamp. The plastic body is not designed to carry weight. In particular, do not place flammable materials on or behind the lamp. This can damage the lamp and could cause a fire.

Never use any optical devices such as a magnifying glass to look directly into the light beam - this could damage your eyes! If you suspect any eye damage, consult a doctor.

Cables

Unplug the cable by holding the plug and never pull on the cable itself. Never place the device, pieces of furniture or other heavy objects on the cable and take care that this does not become trapped. Never make knots in the cable and do not tie it together with other cables. All cables should be positioned so that nobody can trip over them or be obstructed by them. Never use adapter plugs or extension cables that do not comply with the current safety regulations in your country, and do not modify any of the cables yourself. A damaged cable should only be replaced by the manufacturer or authorized service center.

Before Getting Started

Unpack the device and remove the transport protection from the lampshade (2).

Getting Started

Powering the Device On/Off

• Plug the power plug into a suitable power socket. No extension cables or multiple outlet strips should be used that do not meet safety requirements.
• Press the On/Off switch (1) to position "I" to power the light on.
• Press the On/Off switch to position "0" to power the light off.

Notice on Mains Separation.

The device is only fully separated from the mains when the mains plug is pulled out of the wall outlet. Switching off the device with the incorporated switch does not disconnect the appliance from the mains.

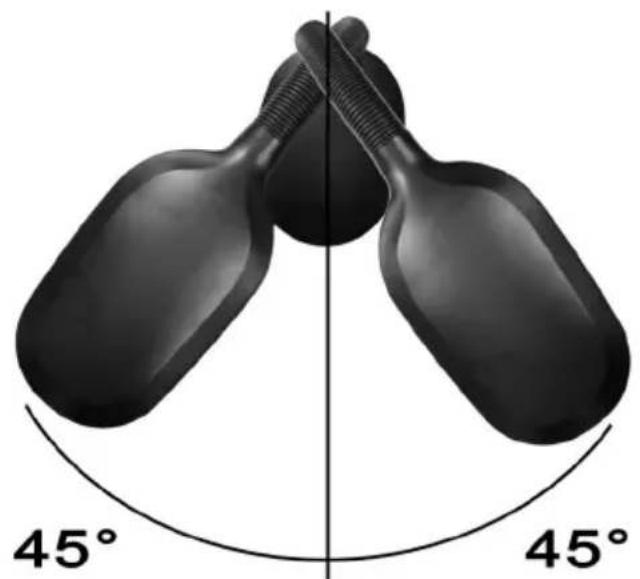

Flexible Gooseneck

• The flexible gooseneck (3) allows you to easily adjust the direction of the lamp to suit your needs. When doing this always make sure the lamp is on a stable surface.
  • Do not turn the gooseneck more than 45^ to the left or right.
• Do not bend the gooseneck towards the back, but instead turn the whole light housing round if you want the light to shine backwards.

Black plastic object with three handles and a central body, labeled 45° (no text or symbols on the object itself)

Maintenance / Cleaning

Replacing the Bulb

• Allow the lamp to cool completely before replacing the bulb.
  • Unplug the mains plug from the wall socket.
• Remove the U-bolt in the lampshade (2) whilst gently pushing the bolt end backwards.
• Carefully pull the bulb directly out of the socket.
• Insert a new bulb of the same type.
  • Make sure that the U-bolt is correctly aligned over the pipes of the new bulb.
• Plug the power plug back into the power socket.

You can obtain spare bulbs for this lamp from Targa.

Phone: 0207 - 36 50 744

E-mail: [e-mail]

Cleaning

Allow the lamp to cool completely before replacing the bulb.

To clean the light use a dry cloth. Never use any solvents or cleaners that may damage the plastic housing. Make sure that no liquid gets into the housing. When very dirty, use a slightly dampened cloth.

Environmental Considerations and Recycling

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

If the product is labelled with a struck-out waste bin, it is subject to the European Guideline 2002/96/EC. All electric and electronic devices must be disposed of separately from household waste at established bodies. For environmental protection reasons, bulbs must be properly disposed of.

Do not dispose of this device in with domestic trash. You can find out more information on collection points or collection dates from your municipal administration or local

waste disposal company.

Recycle the packaging material properly also. Cardboard packaging can be taken to paper recycling containers or public collection points for recycling. Any films or plastic contained in the packaging should be taken to your public collection points.

Conformity

This device complies with the basic and other relevant requirements of the EMC Directive 2004/108/EC and the Low Voltage Directive 2006/95/EC.

Details of Guarantee

Warranty of Targa GmbH

Dear Customer,

This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below.

Warranty conditions

The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate.

Warranty period and legal warranty rights

The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge.

Scope of warranty

The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our

authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced.

Submitting warranty claims

To ensure speedy handling of your complaint, please note the following:

Before using your product for the first time, please read the enclosed documentation or online help carefully. Should any problems arise which cannot be solved in this way, please call our hotline.
- Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase.
- If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.

Service

Phone: 0207 - 36 50 744

E-Mail: [e-mail]

Phone: 01 - 242 15 83

E-Mail: [e-mail]

Phone: 800 - 62 175

E-Mail: [e-mail]

Phone: 800 - 92 496

E-Mail: [e-mail]

IAN: 73817

Manufacturer

Please note that the following address is not a service address. First contact the service point stated above.

TARGA

GmbH

Postfach 22 44

D-59482 Soest

www.targa.de

Inhalt

Einleitung....27

Black plastic object with three handles and a central body, labeled 45° at the base (no other text or symbols)

Wartung/Reinigung

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

EC-Declaration of Conformity

Address:

Targa GmbH

Lange Wende 41

59494 Soest, Germany

Product:

Daylight Lamp

Model:

LIVARNOLUX LTL 27 A1

The product complies with the requirements of the following European directives:

2004/108/EC

Electromagnetic Compatibility

2006/95/EC

Low Voltage

Compliance was proved by the application of the following standards:

EMC:

EN 55015/A2:2009

EN 61547:2009

EN 61000-3-2/A2:2009

EN 61000-3-3:2008

Safety:

EN60598-2-4: 1997

EN60598-1/A11: 2009

Year of CE marking:

2012

Abstract line drawing of a stylized bird or dragon-like shape (no text or symbols)

Soest, 5 ^th of March 2012

Matthias Klauke, Managing Director
